YH6-MATCABAssembly of RFID reader and antenna boards

Stratasys Confidential Document Date: 19/02/2013 Document revision: 3.0 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Stratasys Ltd. would like the following documents regarding this submission for FCC ID : YH6- MATCAB to be kept confidential. 1. Block Diagram 2. Schematics 3. Parts List The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Idan Glass Compliance Engineer Stratasys Ltd. Stratasys Ltd. 2 Holzman St., Science Park, P.O. Box 2496, Rehovot 76124, Israel Tel +972 74-745-4285, Fax +972 74 745 4315 Web: www. stratasys.com

LIMITED MODULAR APPROVAL LETTER FCC ID: YH6‐MATCAB Item Requirements EUT 1 The modular transmitter must have its own RF shielding The cabinet frame and covers are a metal cage 2 The modular transmitter must have buffered modulation/data inputs. The modular transmitter has RS232 connection. 3 The modular transmitter must have its own power supply regulation. The modular transmitter has its own regulator on board. 4 The modular transmitter must comply with the antenna and transmission system requirements of sections 15.203, 15.204(b) and 15.204(c) TheStandard connector is available. Applied for Limited Modular Approval and a professional installation letter provided. 5 The modular transmitter must be tested in a stand‐alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The modular transmitter has been tested in a stand‐alone configuration. 6 The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: "Contains Transmitter Module FCC ID: XYZMODEL1" or "Contains FCC ID: XYZMODEL1." Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization The modular transmitter has been labeled with its own FCC ID number. The user manual of Objet500 includes the phrase: "contains a transmitter module, FCC ID: YH6‐MATCAB” 7 The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. Refer to test report. Device complies to §15.209 and 15.207 8 The modular transmitter must comply with any applicable RF exposure requirements. Complies. Idan Glass Compliance Engineer Stratasys Ltd.

Document Date: 14/01/2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen, This letter is to comply with the requirements of section 15.203 as we hereby state that the device pertaining to application FCC-ID YH6-MATCAB requires professional installation due to the following reasons: A) This device must be professionally installed and used only with components (e.g. antennas) provided with the product. Failure to do so may result in significantly lower performance of the product. B) The device and all of its components should be installed only in the 3D printers (manufactured by Stratasys) and replaced (if needed) only by service personnel trained by Stratasys. C) Modular transmitter is intended for industry/commercial use (not for the general public). Sincerely, Idan Glass Compliance Engineer Stratasys Ltd. Stratasys Ltd. 2 Holzman St., Science Park, P.O. Box 2496, Rehovot 76124, Israel Tel +972 74-745-4285, Fax +972 74 745 4315 Web: www. Stratasys.com

External photos Front view Right side view Left side view Rear view

ID Label location ID Label Location 1 ID Label Location 2

Internal Photos

Internal Photos

Test Report No. 9212326108 Applicant: Stratasys Ltd. Equipment Under Test: Objet500 Material Cabinet FCC ID: YH6-MATCAB From The Standards Institution Of Israel Industry Division Electronics & Telematics Laboratory EMC Branch ACLASS Accreditation Services Certificate Number: AT-1359 Test Report No.: 9212326108 Page 1 of 20 pages Title: Objet500 Material Cabinet FCC ID: YH6-MATCAB Model: RFID reader BRD-07000, antenna board BRD-03012 Applicant: Stratasys Ltd. Address: 2 Holzman St., Science Park, P.O.B 2496, Rehovot 76124, Israel Sample for test selected by: The customer The date of test: 24 April, 25 June 2012 Description of Equipment Under Test (EUT): Objet500 Material Cabinet Model: RFID reader BRD-07000, antenna board BRD-03012 Hardware version of radio unit A Software version of radio unit 1.1 Serial number: NA Manufactured by: Stratasys Ltd. Reference Documents:  CFR 47 FCC: Rules and Regulations; Part 15. “Radio frequency devices”; Subpart B: “Unintentional radiators” (2009). Section 15.109. Radiated emission limits. Subpart C : “Intentional radiators” (2009), Section 15.207. Conducted limits Section 15.209. “Radiated emission limits, general requirements”. According to applicant declaration the name of the company and the EUT model noted on test results plots was changed as follows: 1) Company's name was changed from "Objet Ltd" to "Stratasys Ltd". 2) EUT name was changed from "Triplex Material Cabinet" to "Objet500 Material Cabinet" This Test Report contains 20 pages and may be used only in full. This Test Report applies only to the specimen tested and may not be applied to other specimens of the same product. Test Report No.: 9212326108 Page 2 of 20 pages Title: Objet500 Material Cabinet FCC ID: YH6-MATCAB Model: RFID reader BRD-07000, antenna board BRD-03012 1. Test summary Parameter FCC Part 15 Reference paragraph Verdict Radiated emission test. Subpart C Section 15.209. Comply Radiated emission test. Subpart B Section 15.109 class A Comply Conducted emissions test Subpart C Section 15.207 Comply Telematics Laboratory January 2013 Name: Eng. Yuri Rozenberg Name: Michael Feldman Position: Head of EMC Branch Position: Test Technician Measurement uncertainty. Were relevant, the following measurement uncertainty level have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expended uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test description Expanded uncertainty Conducted emissions from 150 kHz to 30 MHz 2 Uc (P) =  2.8 dB Radiated emissions on the open field test site at 10 m measuring distance 30 MHz – 1.0 GHz at 3 m measuring distance 1.0 GHz – 18 GHz 2 Uc (E) =  4.18 dB 2 Uc (E) =  4.47 dB Test Report No.: 9212326108 Page 3 of 20 pages Title: Objet500 Material Cabinet FCC ID: YH6-MATCAB Model: RFID reader BRD-07000, antenna board BRD-03012 Table of Contents 1. Test summary 2 2. EUT Description and operation 4 2.1. General description: 4 2.2. Potential emission sources: 8 2.3. EUT setup and operation: 8 3. Measurements, examinations and derived results 8 3.1. Location of the Test Site: 8 3.2. Test condition: 8 3.3. Initial visual check and functional test: 8 3.4. Radiated emission test. 9 3.5. Test of field strength emission from intentional radiator. 10 3.6. AC main conducted emissions test 13 3.7. Test of radiated emissions from unintentional radiator 16 4. Appendix 1. Test equipment used. 17 5. Appendix 2: Antenna Factor and Cable Loss 18 Test Report No.: 9212326108 Page 4 of 20 pages Title: Objet500 Material Cabinet FCC ID: YH6-MATCAB Model: RFID reader BRD-07000, antenna board BRD-03012 2. EUT Description and operation 2.1. General description: * Note: the customer supplied all information in clause below. The EUT is RFID transceiver on MSC board installed inside material resin cabinet of 3D printer. The cabinet contains two boards and eight antennas. Product’s main functions are read and write data from material container protected by RFID identification tags attached to the resin material container. Its intended use is to identify the type of resin. The RFID unit voltage is 5V (produced from the main 24V). Trough RS-232 interface the RFID MCU (PIC16F876A) gets commands: Number of channel, read or write etc. The RFID signal is generated by the RFID chip (HTRC11001). This RF signal from RFID chip is directed to a MUX chip that switches the RF energy to only one of the four channel antennas at certain time. RS-232 interface connected internally inside a 3D printer. The test was done by simulating all 8 channel antennas from two boards. Transmit frequency: 125 kHz Type of modulation: AM Antenna type: Loop coil mfr. Objet mod. BRD-03012 The RFID and MSC board block diagrams are shown in Figures 1 and 2. The EUT's views are shown in photos below. Figure 1. The RFID unit block-diagram. MCU PIC16F876A RS232 driver 16MHz RFID chip HTRC 11001 MUX MAX4524EUB+ Tuning components 2 channels antenna 2 channels antenna Flat cable RF Signal Data lines Power supply READER Control lines Connection to PC Power 24V DC RF Signal Uart Test Report No.: 9212326108 Page 5 of 20 pages Title: Objet500 Material Cabinet FCC ID: YH6-MATCAB Model: RFID reader BRD-07000, antenna board BRD-03012 Power supply Load-Cell (x4) CPLD 33.33 MHz Pumps (x4) Switch (x4) RFID 5VDC Connector Figure 2. MSC board block diagram. MSC board BRD-07000 MSC board BRD-07000 Antennas 1-2 BRD-03012 Antennas 3-4 BRD-03012 Antennas 5-6 BRD-03012 Antennas 7-8 BRD-03012 RS-232/24VDC To Host computer. AC/DC P.S Triplex Material Cabinet Figure 3. RE test setup block diagram. Test Report No.: 9212326108 Page 6 of 20 pages Title: Objet500 Material Cabinet FCC ID: YH6-MATCAB Model: RFID reader BRD-07000, antenna board BRD-03012 Photo 1. RE test setup. Photo 2. RE test setup on OATS. Test Report No.: 9212326108 Page 7 of 20 pages Title: Objet500 Material Cabinet FCC ID: YH6-MATCAB Model: RFID reader BRD-07000, antenna board BR…

Text truncated - open the document above for the full version.

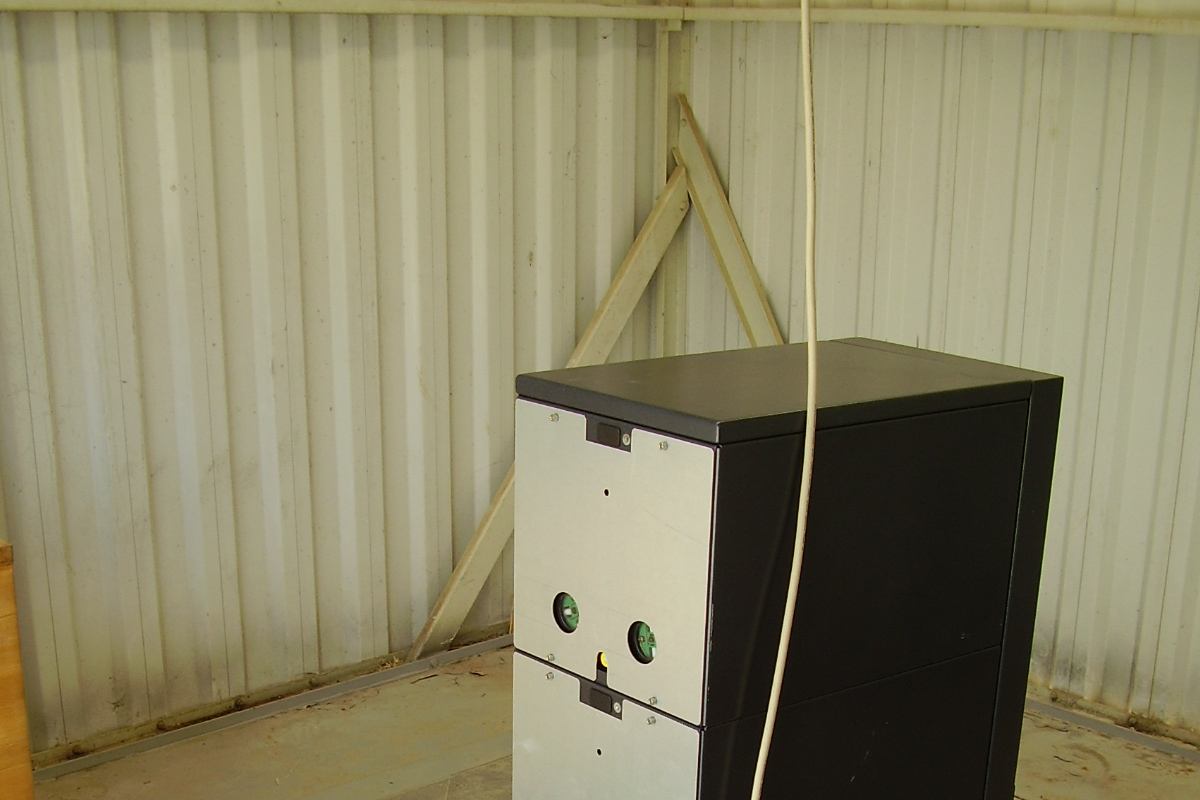

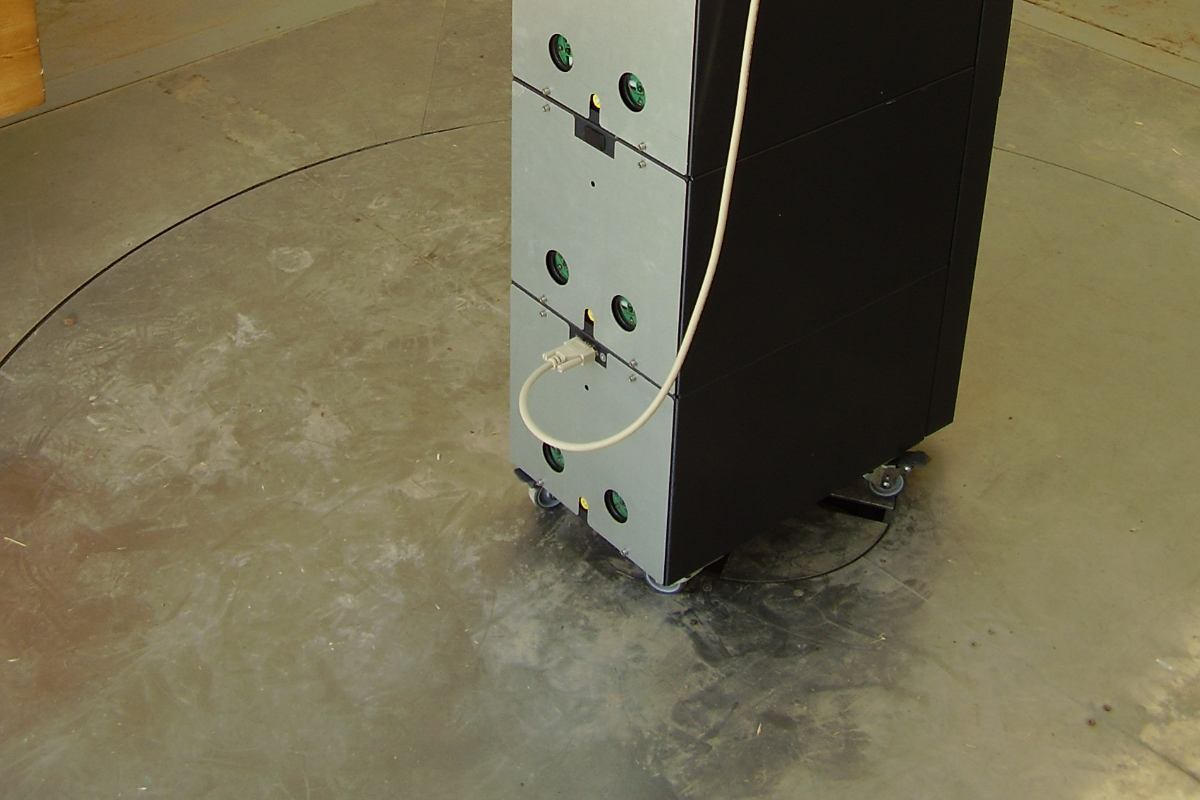

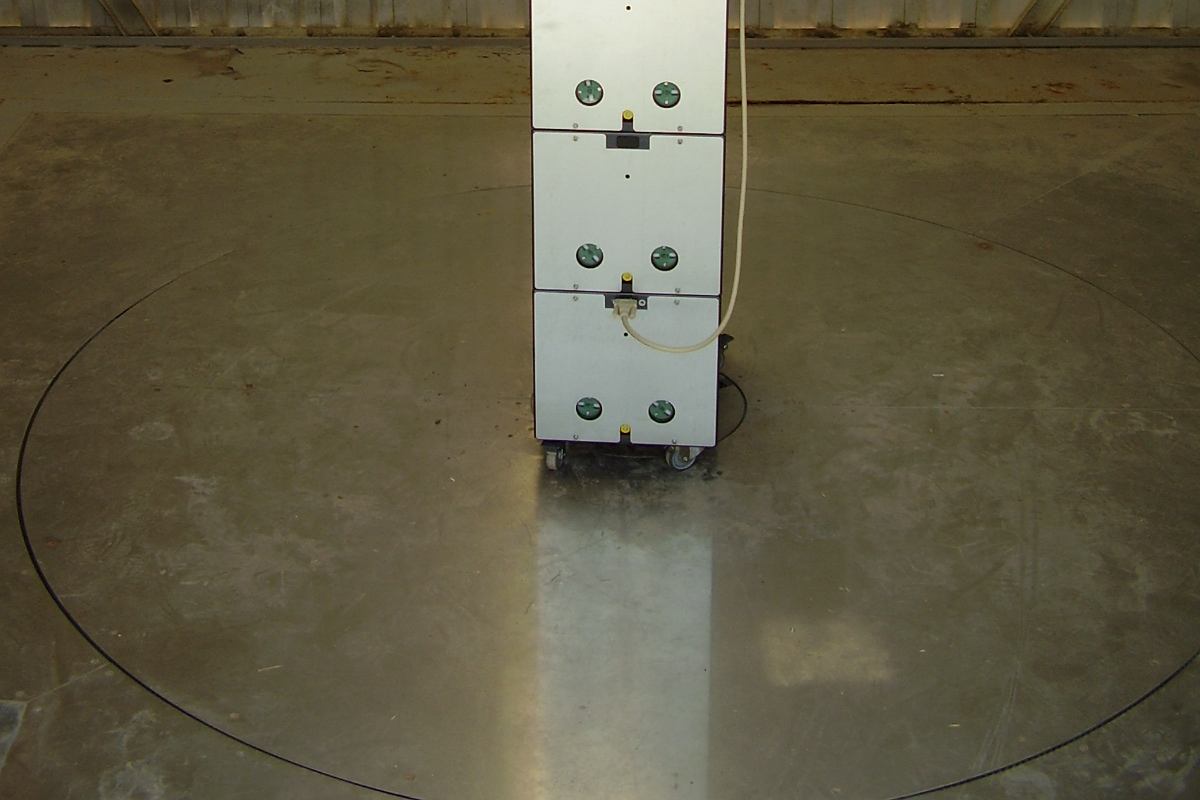

Test Set up photos RE test setup RE test setup on OATS RE test setup on OATS
