YH6-RFIDAssembly of RFID reader and two antenna boards

DOC-13000 Rev. E7–1 Operating & Maintaining the Connex500/350 3-D Printer Starting the Connex Printer ............................................................... 2 Loading Model and Support Cartridges.......................................... 4 Producing Models............................................................................... 5 Printer Interface Color Key.................................................................. 7 Printing Indicators ................................................................................ 8 Resuming Production After Printing has Stopped......................... 9 Changing the Model Material ......................................................... 10 Keeping the Connex Printer in Idle Mode..................................... 15 Shutting Down the Connex Printer ................................................ 16 Maintaining the Connex Printer ..................................................... 18 Routine Maintenance Schedule......................................................... 18 Cleaning the Print Heads................................................................... 19 Pattern Test........................................................................................... 21 Improving Print Quality .................................................................... 22 Cleaning and Replacing the Wiper................................................... 23 Replacing the Roller Scraper (Knife)................................................ 28 Aligning the Print Heads ................................................................... 30 Calibrating Print Heads ..................................................................... 34 Replacing Print Heads........................................................................ 40 Testing and Calibrating the UV Lamps ........................................... 49 Calibrating the Load Cells ................................................................. 51 Replacing the Odor Filter................................................................... 52 Replacing the UV Lamps ................................................................... 52 Built‐in Tests......................................................................................... 57 Replacing the Waste Container ......................................................... 62 Cleaning the Exterior P anels ............................................................. 64 Operating & Maintaining the Connex500/350 3-D Printer 7–2 DOC-13000 Rev. E Figure 7-1: The Connex500 3-D Printer Starting the Connex Printer 1. Turn on the main power switch, located at the back of the Connex printer. Figure 7-2: Main power cable and switch The main power switch turns on the Connex printer, which includes the built‐in Connex computer. Printer cover Printing-materials & storage compartment CAUTION! •Do not attempt to operate the Connex printer before being trained by an Objet customer-support representative. •Observe all safety warnings and follow the safety guidelines described in chapter 2. DOC-13000 Rev. E7–3 Connex500/350 User Guide 2. After the computer boots, log in to Windows and launch the Connex control application: •On the computer desktop, double‐click the Connex printer icon. or— •From the Start menu, select Objet > Connex500/350Connex500/350. The Connex printer interface screen opens (see figure 7‐3). All monitoring and controlling of the Connex printer is done from this interface. Figure 7-3: Connex500 interface A valid HASP key is required on the printer computer for the application to open. This key should be installed during printer installation. If the application does not open and a HASP message appears, contact your dealer or Objet Customer Support. Printer mode Current activity Support material cartridges Display toggle button Pause button Stop button Online/offline button Model material cartridges Connex installations utilize one monitor for displaying both the computer running Objet Studio / Job Manager and the computer installed inside the printer. Make sure that the KVM (keyboard-video-mouse) switch is in the correct position so that the Connex printer interface is displayed. Operating & Maintaining the Connex500/350 3-D Printer 7–4 DOC-13000 Rev. E Loading Model and Support Cartridges Connex printers use two cartridges of model material and two cartridges of support material, each weighing 3.6 kilograms when full. A graphical representation of the cartridges and their current weight appears in the printer interface (see figure 7‐3). —— Important: If you need to replace the model material currently installed with another type, see “Changing the Model Material” on page 7‐10. Otherwise, make sure to replace the model cartridge with one containing the same type of material. To load model and support cartridges: 1. On the front of the Connex printer (see figure 7‐1), pull open the doors of the storage compartment. 2. If you are replacing a cartridge, grasp its handle and pull the cartridge out, taking care not to twist or turn it. 3. Load model and support cartridges into their respective compartments—the model cartridge on the right, and the s upport cartridge on the left. (Note that the cartridges only fit into their correct compartments.) You should feel some resistance, as a needle pierces the cartridge. 4. Check the Connex printer interface to make sure that the new cartridge is detected and that its weight is displayed (see fig ure 7‐3). 5. Close the storage‐compartment door. The printer uses RFID technology to automatically identify the material cartridges. For this purpose, an RFID module is part of the printer hardware. Tampering with this module will render the printer inoperable and may void Objet warranties and service contracts. Tips about replacing cartridges: •You can replace material cartridges either before or during printing. •You can replace partially used cartridges to avoid the need for replacing them …

Text truncated - open the document above for the full version.

User Guide English Connex500/350 3-D Printer System DOC-13000 Rev. E Copyright Copyright © 2010 Objet Geometries Ltd. All rights reserved. This documentation contains proprietary information of Objet Geometries Ltd. This information is supplied solely to assist authorized users of Connex500/350 3‐D printing systems. No part of this document may be used for other purposes, and it may not be disclosed to ot her parties. Th e specifications on which this document is based are subject to change without notice. No part of this book may be reproduced in any form or by any means, nor stored in a database or retrieval system, without prior permission in writing from Objet Geometries Ltd. If this document is di stributed as a PDF file, yo u may print it for internal use. Trad em a r k s The following are registered trademarks of Objet Geometries Ltd.: Objet ® , FullCure ® . The following are trademarks of Objet Geometries Ltd.: Eden, Eden500V, Eden350V, Eden350, Eden330, Eden260, Eden260V, Eden250, Connex, Connex500, Connex350, Objet30, Objet24, Alaris, Alaris30, PolyJet, PolyJet Matrix, CADMatrix, PolyLog, Objet Studio, Job Manager, SHR, TangoBlack, TangoBlackPlus, TangoGray, TangoPlus, VeroBlue, VeroGray, VeroWhite, VeroWhitePlus, VeroBlack, Durus, DurusWhite, RoseClear, Clear, ObjetGreen, Digital Materials. Microsoft and Mi crosoft XP are tr ademarks of Microsoft Corporation. All names of products and services cited in this book are trademarks or registered trademarks of their respective companies. FCC Compliance The equipment referred to in this guide has been tested and found to comply with the limits for a Class A device pursuant to part 15 of the FCC rules. These limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. Objet 3‐D printing sys tems generate, use and ca n radiate radio‐frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct th e inte rference at his own expense. The 3‐D printer referred to in this guide contains a transmitter module, FCC ID: YH6‐RFID. NOTE: Objet Geometries is not responsible for radio or TV interference caused by unauthorized modification to this equipment. Such modification could void the user’s authority to operate the equipment. Equipment Recycling In the European Union, this symbol indicates that when the last user wishes to discard a product, it must be sent to appropriate facilities for recovery and recycling. For information about proper disposal, check your purchase contract, or contact the supplier of the equipment. Limitation of Liability The product, software or services are being provided on an “as is” and “as available” basis. Except as may be stated specifically in your contract, Objet Geometries Ltd. expressly disclaims all warranties of any kind, whether express or implied, including, but not limited to, any implied warranties of merchantability, fitness for a particular pu rpo se and non‐infringement. You understand and agree that Objet Geometries Ltd. shall not be liable for any direct, indirect, incidental, special, consequential or exemplary damages, including but not limited to, damages for loss of profits, goodwill, use, data or other intangible losses (even if Objet has been advised of th e possibilit y of such damages), resulting from: (i) the use or the inability to use the product or software; (ii) the cost of procurement of substitute goods and services resulting from any products, goods, data, software, information or services purchased; (iii) unauthorized access to or alteration of your products, software or dat a; (i v) statements or conduct of any third party; (v) any other matter relating to the product, software, or services. The text and drawings herein are for illustration and reference only. The specifications on which they are based are subject to change. Objet Geometries Ltd. may, at any time an d without not ice, make changes to this document. Objet Geometries Ltd., for itself and on behalf of its subsidiaries, assumes no liability for technical or editorial errors or omissions made herein, and shall not be liable for incidental, consequential, indirect, or special damages, including, without limitation, loss of use, loss or alteration of data , delays, or lost profits or savings arising from the use of this document. iv Patents This product is covered by one or more of the following U.S. patents: 5,263,130 5,287,435 5,386,500 5,519,816 5,695,708 6,259,962 6,569,373 6,644,763 6,658,314 6,850,334 6,863,859 7,183,335 7,209,797 7,225,045 7,300,619 7,364,686 7,368,484 7,369,915 7,479,510 7,500,846 7,604,768 7,628,857 Objet Geometries Ltd. http://www.objet.com DOC‐13000 Revision Rev. E November 2010 DOC-13000 Rev. E 1About This Guide Using This Guide ............................................................................................................................... 1–2 For More Information........................................................................................................................ 1–2 Terms Used in This Guide................................................................................................................ 1–3 2 Safety Safety Features ................................................................................................................................... 2–2 Symbols and Warning Labels .......................................................................................................... 2–3 Safety Guidelines ............................................................................................................................... 2–4 Printer Installation..............................................................................................................…

Text truncated - open the document above for the full version.

Objet Confidential Information 1 Document Date: 17/09/2010 Document revision: 1.0 Revision history: 1.0 Rev. 1.0 Initial Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Objet Geometries would like the following documents regarding this submission for FCC ID: YH6-RFID to be kept confidential. 1. Block Diagram. 2. Schematics. 3. Parts List. 4. Operation description. The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Guy Menchik VP R&D Objet Geometries Objet Geometries Ltd. 2 Holzman St., Science Park, P.O. Box 2496, Rehovot 76124, Israel Tel +972-8-9314314, Fax +972-8- 9314315 E-mail: [email protected] Web: www. objet.com

Document Date: 08/12/2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen, This letter is to comply with the requirements of section 15.203 as we hereby state that the device pertaining to application FCC-ID YH6-RFID requires professional installation due to the following reasons: A) This device must be professionally installed and used only with components (e.g. antennas) provided with the product. Failure to do so may result in significantly lower performance of the product. B) The device and all of its components should be installed only in the 3D printers (manufactured by Objet) and replaced (if needed) only by service personnel trained by Objet. C) Modular transmitter is intended for industry/commercial use (not for the general public). Sincerely, Guy Menchik VP R&D Objet Geometries Objet Geometries Ltd. 2 Holzman St., Science Park, P.O. Box 2496, Rehovot 76124, Israel Tel +972-8-9314314, Fax +972-8- 9314315 E-mail: [email protected] Web: www. objet.com

LIMITED MODULAR APPROVAL LETTER FCC ID: YH6-RFID Item Requirements EUT 1 The modular transmitter must have its own RF shielding The modular transmitter has not its own RF shielding. 2 The modular transmitter must have buffered modulation/data inputs. The modular transmitter has RS232 connection. 3 The modular transmitter must have its own power supply regulation. The modular transmitter has its own power supply regulation. 4 The modular transmitter must comply with the antenna and transmission system requirements of sections 15.203, 15.204(b) and 15.204(c) The Standard connector is available. Applied for Limited Modular Approval and a professional installation letter provided. 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The modular transmitter has been tested in a stand-alone configuration. 6 The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: "Contains Transmitter Module FCC ID: XYZMODEL1" or "Contains FCC ID: XYZMODEL1." Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization The modular transmitter has been labeled with its own FCC ID number. The user manual of Connex 500. Includes the phrase: "contains a transmitter module, FCC ID: YH6-RFID” 7 The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. Refer to test report # 9012353272 Device complies to §15.209 and 15.207 8 The modular transmitter must comply with any applicable RF exposure requirements. Complies. Guy Menchik VP R&D Objet Geometries

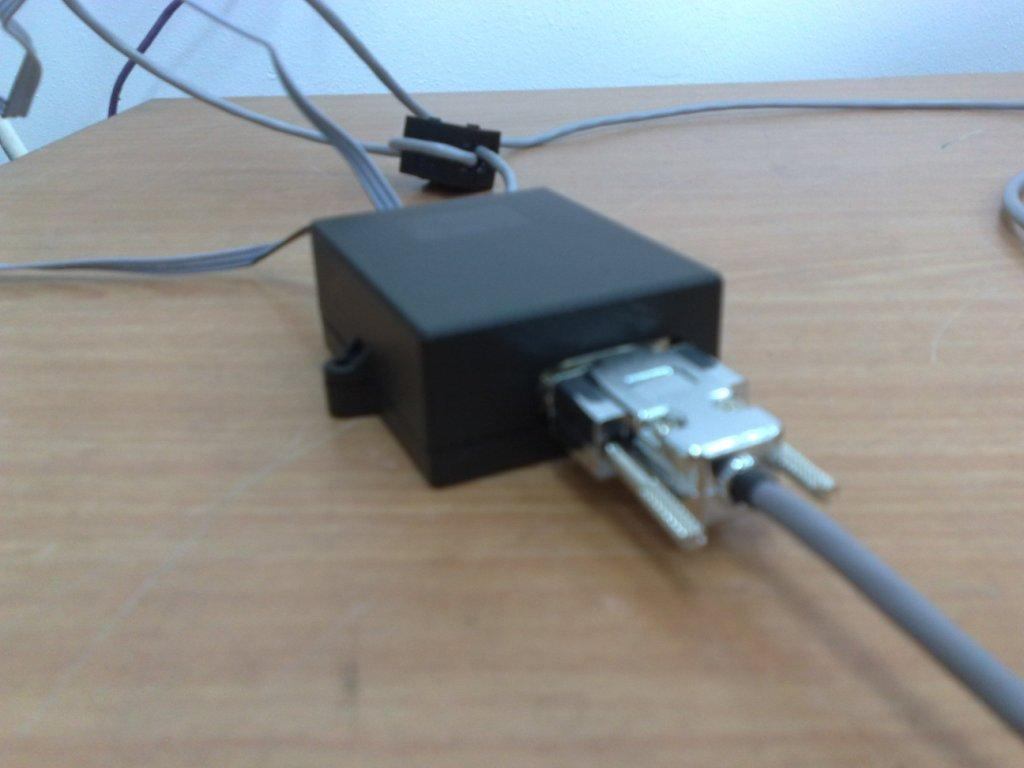

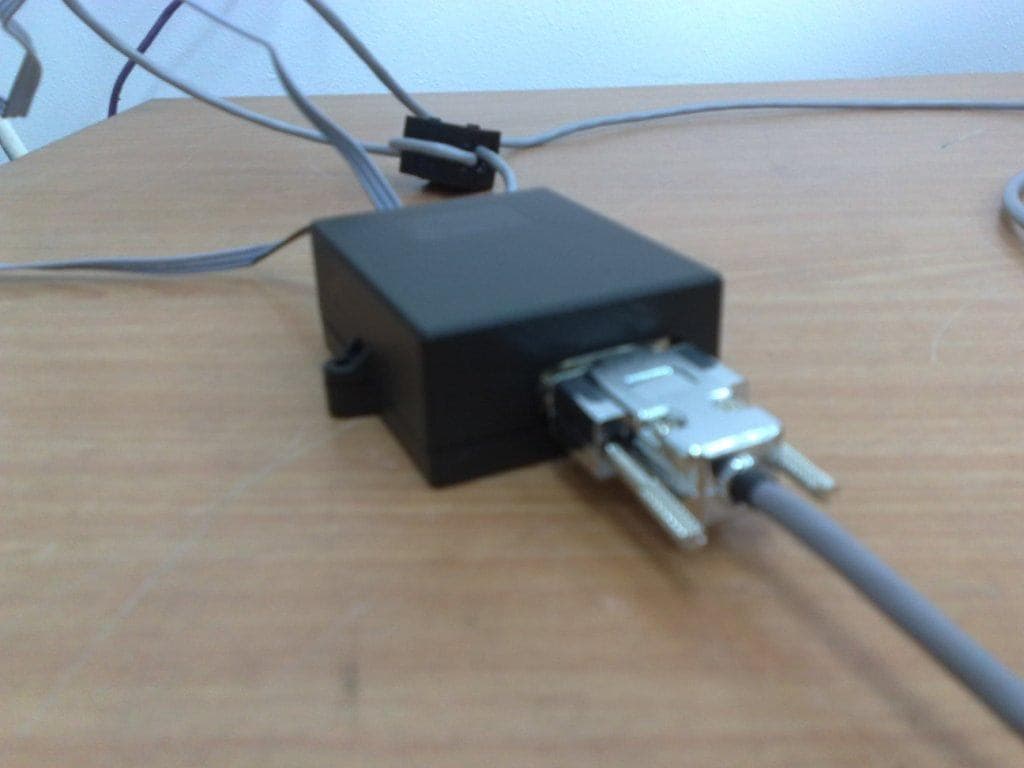

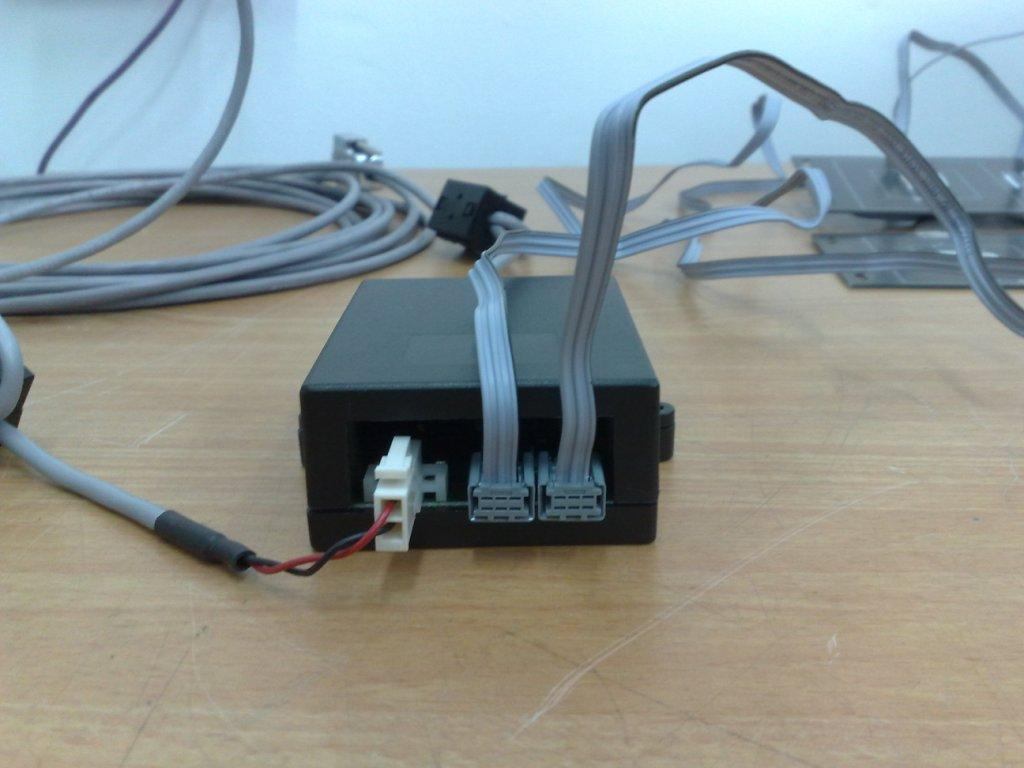

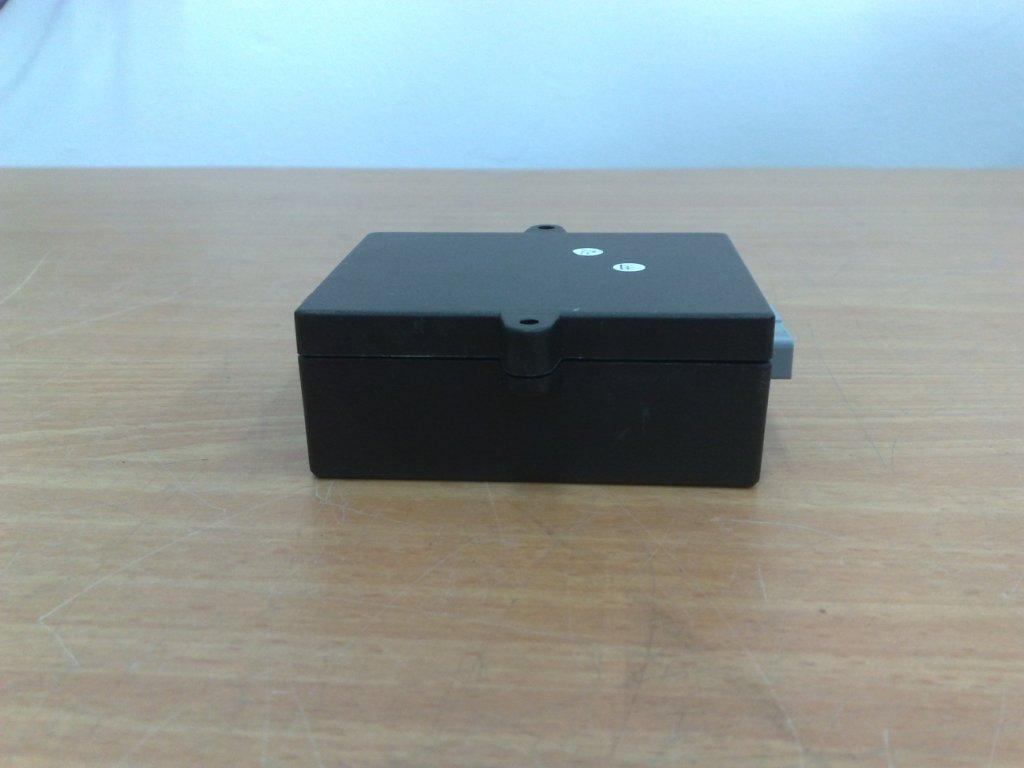

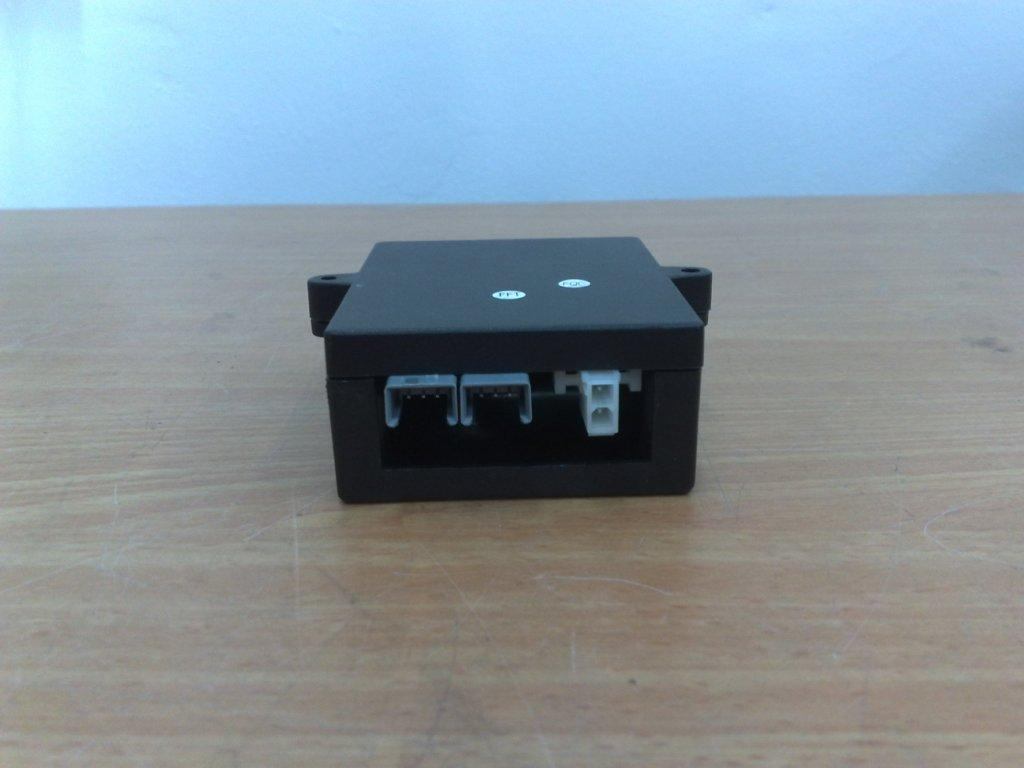

External Photos General views The RFID module without cables. The RFID module with cables.

Label for RFID module Pictures that describe were the label is attached on the RFID module:

Objet Confidential Information Internal Photos

8391 Old Courthouse Road, Suite 300 Vienna, VA 22182 September 28, 2010 Statement The RFID FCC ID: YH6-RFID does not have a tune-up procedure and all tune-up is controlled at the factory. The product is completely tuned and tested before shipment to the customer. Sincerely, Guy Menchik VP R&D Objet Geometries Ltd. Signature: ___

Test Report No. 9012353272 Applicant: Objet Geometries Ltd. Equipment Under Test: RFID module FCC ID: YH6-RFID From The Standards Institution Of Israel Industry Division Electronics & Telematics Laboratory EMC Section ACLASS Accreditation Services Certificate Number: AT-1359 Test Report No.: 9012353272 Page 1 of 19 pages Title: RFID module; Model: Reader BRD-03014, antenna board BRD-03012 Applicant: Objet Geometries Ltd. Address: 6 Holzman St., Science Park, P.O.B 2496, Rehovot 76124, Israel Sample for test selected by: The customer The date of test: 2, 11 August 2010 Description of Equipment Under Test (EUT): Assembly of RFID reader and two antenna boards. Model: Reader BRD-03014, antenna board BRD-03012 Serial number: NA Manufactured by: Logitag Ltd Reference Documents: ™ CFR 47 FCC: Rules and Regulations; Part 15. “Radio frequency devices”; Subpart B: “Unintentional radiators” (2009). Section 15.109. Radiated emission limits. Subpart C : “Intentional radiators” (2009), Section 15.207. Conducted limits Section 15.209. “Radiated emission limits, general requirements”. This Test Report contains 19 pages and may be used only in full. This Test Report applies only to the specimen tested and may not be applied to other specimens of the same product. Test Report No.: 9012353272 Page 2 of 19 pages Title: RFID module; Model: Reader BRD-03014, antenna board BRD-03012 1. Test summary Parameter FCC Part 15 Reference paragraph Verdict Radiated emission test. Subpart C Section 15.209. Comply Radiated emission test. Subpart B Section 15.109 class A Comply Conducted emissions test Subpart C Section 15.207 Comply Telematics Laboratory August 2010 Name: Eng. Yuri Rozenberg Name: Michael Feldman Position: Head of EMC Branch Position: Test Technician Measurement uncertainty. Were relevant, the following measurement uncertainty level have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expended uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test description Expanded uncertainty Radiated emissions in the open field test site at 3 m measuring distance: 30 MHz – 1.0 GHz 1.0 GHz – 18 GHz 2 Uc (E) = ± 4.32 dB 2 Uc (E) = ± 4.47 dB Test Report No.: 9012353272 Page 3 of 19 pages Title: RFID module; Model: Reader BRD-03014, antenna board BRD-03012 Table of Contents 1. Test summary 2 2. EUT Description and operation 4 2.1. General description: 4 2.2. Potential emission sources: 7 2.3. EUT setup and operation: 7 3. Measurements, examinations and derived results 7 3.1. Location of the Test Site: 7 3.2. Test condition: 7 3.3. Initial visual check and functional test: 7 3.4. Radiated emission test. 8 3.5. Test of field strength emission from intentional radiator. 9 3.6. AC main conducted emissions test 12 3.7. Test of radiated emissions from unintentional radiator 15 4. Appendix 1. Test equipment used. 16 5. Appendix 2: Antenna Factor and Cable Loss 17 Test Report No.: 9012353272 Page 4 of 19 pages Title: RFID module; Model: Reader BRD-03014, antenna board BRD-03012 2. EUT Description and operation 2.1. General description: * Note: the customer supplied all information in clause below. The EUT is RFID transceiver installed inside 3D printer. Product’s main functions are read and write data from RFID Tags attached to the resin material cartridges. Its intended use is to identify the kind of resin, expiration date, physical properties of the resin etc. Interface is RS-232 connected internally inside a 3D printer. Transmit frequency: 125 kHz Type of modulation: AM Antenna type: Loop coil mfr. Logitag mod. BRD-03012 The EUT is powered from printer internal P.S 24VDC. The EUT block diagram is shown in Figure 1. The EUT's views are shown in photos #1. Figure 1. The EUT block-diagram. MCU PIC16F876A RS232 16MHZ RFID chip HTRC 11001 MUX MAX4534 Tuning com ponents 2 channels antenna 2 channels antenna Flat cable RF Signal Data lines Power supply READER Control lines Connectio n to pc / mcu Power cord 10-24V DC RF Signal Uart line Test Report No.: 9012353272 Page 5 of 19 pages Title: RFID module; Model: Reader BRD-03014, antenna board BRD-03012 Photo 1. EUT’s external view. Photo 2. RE test setup. Test Report No.: 9012353272 Page 6 of 19 pages Title: RFID module; Model: Reader BRD-03014, antenna board BRD-03012 Photo 3. RE test setup in Anechoic chamber. Photo 4. RE test setup on OATS. Test Report No.: 9012353272 Page 7 of 19 pages Title: RFID module; Model: Reader BRD-03014, antenna board BRD-03012 2.2. Potential emission sources: The potential emission sources are detailed in Table 1. Table 1. Potential emission sources Frequency Location 125 kHz RFID (derived from 16 MHz) 16.0 MHz crystal CPU 2.3. EUT setup and operation: Measurements of transmitter were performed in continue transmition mode by simulating all four channel antennas and using Max Hold mode. 3. Measurements, examinations and derived results 3.1. Location of the Test Site: Preliminary radiated test was conducted at the EMC laboratory of the Standards Institution of Israel in Tel-Aviv. The final radiated emission test was conducted in an Open Area Test Site located at Kibbutz Native Halamed Hai in Emek HaEla, Israel. 3.2. Test condition: Temperature: 24°C. Humidity: 63 %. Atmospheric pressure: 1012 mbar. 3.3. Initial visual check and functional test: Initial visual check and brief built- in- test of the EUT was performed before testing. - No external damages were found. - The test on the EUT passed successfully. Test Report No.: 9012353272 Page 8 of 19 pages Title: RFID module; Model: Reader BRD-03014, antenna board BRD-03012 3.4. Radiated emission test. 3.4.1. General: Per FCC Part 15 subpart B, C Sections 15.109, 15.209 3.4.2. Preliminary radiated emission tests: Preliminary investigation measurements were performed up to tenth harmonic of fundamental in a semi-anechoic chamber at distance 3 meter. The EUT was setup in its typical configuration and operat…
