YHI-NW1213x3 11ac/n/g/b/a 2.4/5GHz WiFi Module

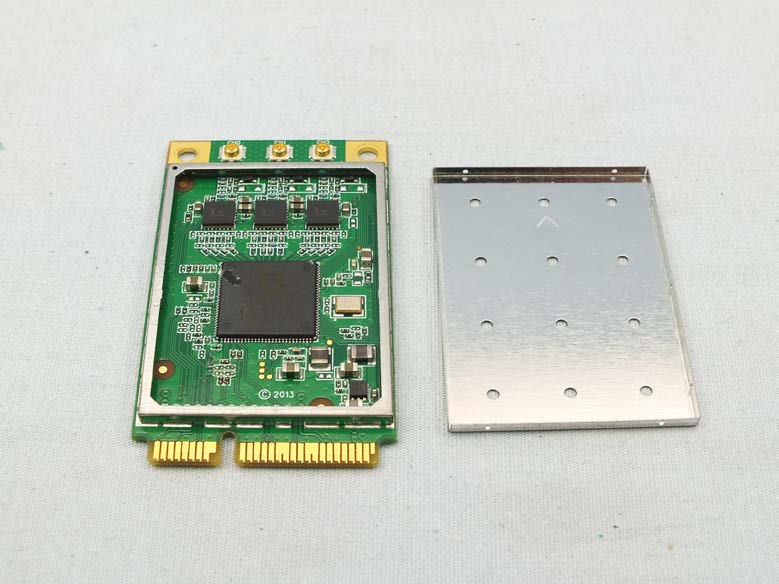

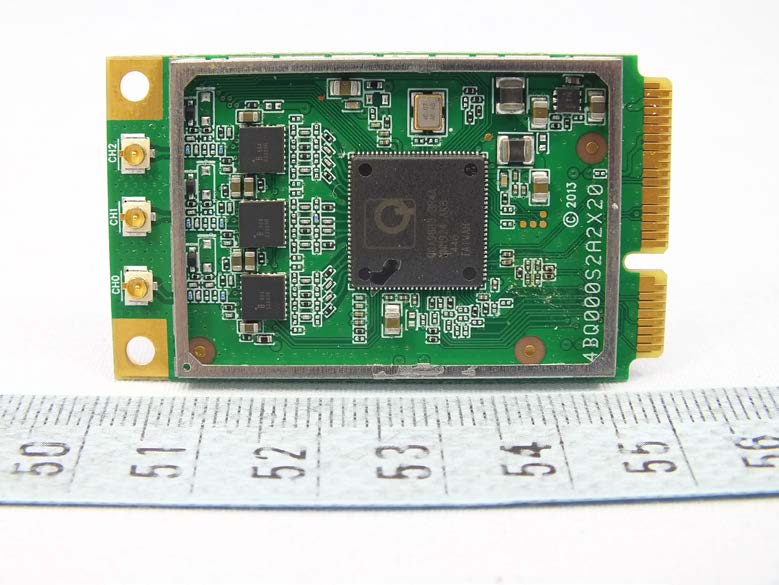

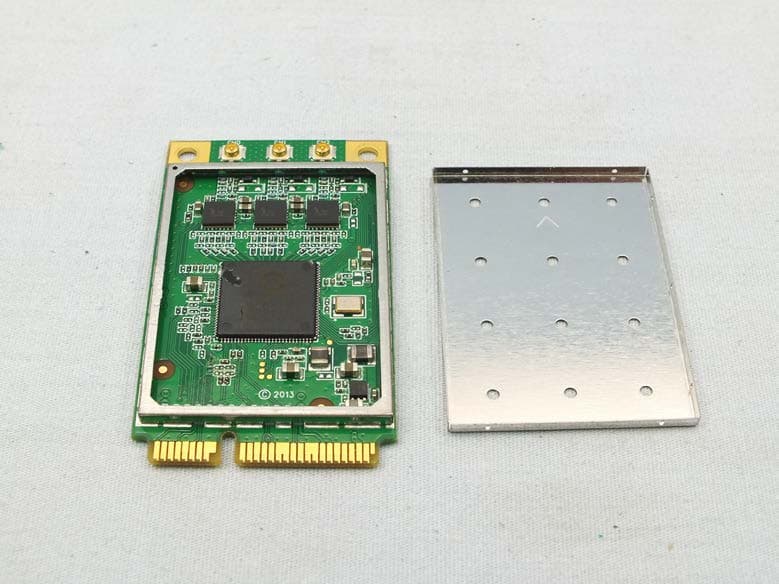

新漢股份有限公司 NEXCOM International Co., Ltd. www.nexcom.com.tw 1 Product Specification Document NW-121 QCA9880 3x3 11ac/n/g/b/a 2.4/5GHz Wi-Fi module 產品規格書 Product Specification Document Rev 1.5 December 29, 2015 新漢股份有限公司 NEXCOM International Co., Ltd. www.nexcom.com.tw 2 Product Specification Document 1 Revision History Project Name NW-121 Document No. Revision Date Release Notes From To V1.0 2015/05/29 Initial release V1.0 V1.1 2015/06/22 Page3, update operating frequency Page5, add missing HT40 MCS7 value under 2.4G Tx power Page6~8, update CH information under 5GHz V1.1 V1.2 2015/10/28 Correct model name V1.2 V1.3 2015/10/29 Page 3, update 11n/11ac data rate Page 3~4, update 11n/11ac modulation V1.3 V1.4 2015/12/15 Page 3, add not to support DFS frequencies per different country’s regulations. V1.4 V1.5 2015/12/29 Page 10, remove block diagram. Page 13, add antenna information 新漢股份有限公司 NEXCOM International Co., Ltd. www.nexcom.com.tw 3 Product Specification Document 2 Introduction NW-121 is a 3x3 11ac/n/b/g/a 2.4/5GHz dual-band WiFi module. It is based on Qualcomm Atheros QCA9880 chip solution. This module uses 3x3 multiple input/multiple output (MIMO), Orthogonal Frequency Division Multiplexing (OFDM) and Direct Sequence Spread Spectrum (DSSS) communication techniques. QCA9880 provides wireless data communications at rates of up to 1.3Gbps, depending on the coding techniques employed and the range of the system. 3 Functions: 3.1 IEEE standard supports 802.11ac/n/g/b/a 3.2 Support 20/40/80MHz bandwidth with 256QAM modulation 3.3 Spatial multiplexing up to 1.3Gbps data rate by 3T3R. 3.4 Doesn’t support DFS frequencies per different country’s regulations. 3.5 RoHS compliant 4 Hardware Specifications: Chipset Vendor Qualcomm Atheros Chipset model name QCA9880 Antenna 3 x I-PEX connectors, 3T3R Host Interface PCI-Express Form Factor Mini-PCIe (Full Mini-Card) Wireless LAN Standards IEEE 802.11ac/n/b/g/a Operating Frequency 2.412 GHz ~2.472 GHz 5.18 GHz~5.825 GHz (Doesn’t support DFS frequencies per different country’s regulations) Operating Voltage 3.3V WLAN Data Rate 802.11a/g 54Mbps with fall back of 48, 36, 24, 18, 12, 9, 6 Mbps 802.11b 11Mbps with fall back rates of 5.5, 2, and 1 Mbps 802.11n HT MCS0~MCS23 (450Mbps) 802.11ac VHT MCS0~MCS9 (1300Mbps) Modulation Schemes 802.11a/g 64QAM (54 Mbps, 48 Mbps), 16QAM (36 Mbps, 24Mbps), QPSK (18 Mbps, 12 Mbps), BPSK (9 Mbps, 6 Mbps) 802.11b CCK (11 Mbps, 5.5 Mbps), DQPSK (2 Mbps), DBPSK 新漢股份有限公司 NEXCOM International Co., Ltd. www.nexcom.com.tw 4 Product Specification Document (1 Mbps) 802.11n HT MCS0/8/16: BPSK, R=1/2; HT MCS1/9/17:QPSK, R=1/2; HT MCS2/10/18: QPSK, R=3/4; HT MCS3/11/19:16QAM, R=1/2; HT MCS4/12/20: 16QAM, R=3/4; HT MCS5/13/21: 64QAM, R=2/3; HT MCS6/14/22: 64QAM, R=3/4; HT MCS7/15/23: 64QAM, R=5/6. 802.11ac VHT MCS0: BPSK, R=1/2; VHT MCS1:QPSK, R=1/2; VHT MCS2: QPSK, R=3/4; VHT MCS3:16QAM, R=1/2; VHT MCS4: 16QAM, R=3/4; VHT MCS5: 64QAM, R=2/3; VHT MCS6: 64QAM, R=3/4; VHT MCS7: 64QAM, R=5/6. VHT MCS8: 256QAM, R=3/4; VHT MCS9: 256QAM, R=5/6 4.1 2.4GHz TX Power (dBm) 20MHz BW CH1 CH6 CH13 1Mbps 18 18 18 2Mbps 18 18 18 5.5Mbps 18 18 18 11Mbps 18 18 18 6Mbps 19 19 19 9Mbps 19 19 19 12Mbps 19 19 19 18Mbps 19 19 19 24Mbps 19 19 19 36Mbps 17.5 17.5 17.5 48Mbps 16.5 16.5 16.5 54Mbps 15 15 15 HT20 MCS0 19 19 19 HT20 MCS1 19 19 19 HT20 MCS2 19 19 19 HT20 MCS3 18 18 18 新漢股份有限公司 NEXCOM International Co., Ltd. www.nexcom.com.tw 5 Product Specification Document HT20 MCS4 18 18 18 HT20 MCS5 17 17 17 HT20 MCS6 15 15 15 HT20 MCS7 13 13 13 40MHz BW CH3 CH6 Ch11 HT40 MCS0 18 18 18 HT40 MCS1 18 18 18 HT40 MCS2 18 18 18 HT40 MCS3 17 17 17 HT40 MCS4 17 17 17 HT40 MCS5 17 17 17 HT40 MCS6 13 13 13 HT40 MCS7 10 10 10 4.2 2.4GHz RX Sensitivity (dBm) 20MHz BW CH1 CH6 CH13 6Mbps -90 -90 -90 9Mbps -90 -90 -90 12Mbps -90 -90 -90 18Mbps -88 -88 -88 24Mbps -84 -84 -84 36Mbps -80 -80 -80 48Mbps -76 -76 -76 54Mbps -76 -76 -74 HT20 MCS0 -90 -90 -90 HT20 MCS1 -90 -90 -90 HT20 MCS2 -88 -88 -88 HT20 MCS3 -82 -82 -82 HT20 MCS4 -80 -80 -80 HT20 MCS5 -74 -76 -76 HT20 MCS6 -74 -74 -74 HT20 MCS7 -72 -72 -72 40MHz BW CH3 CH6 Ch11 新漢股份有限公司 NEXCOM International Co., Ltd. www.nexcom.com.tw 6 Product Specification Document HT40 MCS0 -86 -88 -88 HT40 MCS1 -86 -86 -86 HT40 MCS2 -84 -84 -84 HT40 MCS3 -78 -80 -80 HT40 MCS4 -76 -76 -76 HT40 MCS5 -72 -72 -72 HT40 MCS6 -72 -72 -72 HT40 MCS7 -70 -70 -70 新漢股份有限公司 NEXCOM International Co., Ltd. www.nexcom.com.tw 7 Product Specification Document 4.3 5GHz TX Power (dBm) 20MHz BW CH36 CH100 CH140 6Mbps 18 18 18 9Mbps 18 18 18 12Mbps 18 18 18 18Mbps 18 18 18 24Mbps 18 18 18 36Mbps 15.5 15.5 15.5 48Mbps 15 15 15 54Mbps 14 14 14 HT20 MCS0 18 18 18 HT20 MCS1 18 18 18 HT20 MCS2 18 18 18 HT20 MCS3 16 16 16 HT20 MCS4 16 16 16 HT20 MCS5 14 14 14 HT20 MCS6 13 13 13 HT20 MCS7 13 13 13 VHT20 MCS8 13 13 13 40MHz BW CH36 CH100 CH140 HT40 MCS0 18 18 18 HT40 MCS1 18 18 18 HT40 MCS2 18 18 18 HT40 MCS3 16 16 16 HT40 MCS4 16 16 16 HT40 MCS5 14 14 14 HT40 MCS6 13 13 13 HT40 MCS7 13 13 13 VHT40 MCS8 13 13 13 VHT40 MCS9 12 12 12 80MHz BW CH36 CH100 CH140 VHT80 MCS0 18 18 18 新漢股份有限公司 NEXCOM International Co., Ltd. www.nexcom.com.tw 8 Product Specification Document VHT80 MCS1 18 18 18 VHT80 MCS2 18 18 18 VHT80 MCS3 15 15 15 VHT80 MCS4 15 15 15 VHT80 MCS5 13 13 13 VHT80 MCS6 12 12 12 VHT80 MCS7 12 12 12 VHT80 MCS8 11 11 11 VHT80 MCS9 11 11 11 4.4 5GHz RX Sensitivity (dBm) 20MHz BW CH36 CH100 CH140 6Mbps -92 -92 -92 9Mbps -92 -92 -92 12Mbps -92 -90 -90 18Mbps -88 -88 -88 24Mbps -86 -84 -84 36Mbps -80 -80 -80 48Mbps -76 -76 -76 54Mbps -76 -74 -74 HT20 MCS0 -94 -92 -92 HT20 MCS1 -90 -90 -90 HT20 MCS2 -88 -88 -86 HT20 MCS3 -84 -82 -82 HT20 MCS4 -80 -78 -78 HT20 MCS5 -76 -72 -72 HT20 MCS6 -74 -72 -72 HT20 MCS7 -72 -70 -70 VHT20 MCS8 -70 -68 -66 40MHz BW CH36 CH100 CH140 HT40 MCS0 -94 -92 -92 HT40 MCS1 -92 -90 -90 HT40 MCS2 -88 -88 -86 HT40 MCS3 -84 -82 -82 新漢股份有限公司 NEXCOM International Co., Ltd. www.nexcom.com.tw 9 Product Specification Document HT40 MCS4 -80 -78 -78 HT40…
