YHLBLU64WSmart Phone

G64 Quick Guide | Guía Rápida | Guía Rápido | Guide Rapide o For instructions or any questions pertaining to phone usage, please click on the BLU page by visiting the following address: manuals.bluproducts.com o Para obtener instrucciones o preguntas relacionadas con el uso del teléfono, por favor haga clic en la página de BLU visitando la siguiente dirección: manuals.bluproducts.com o Para obter instruções ou perguntas relacionadas ao uso do telefone, por favor, clique na página de BLU visitando o seguinte endereço: manuals.bluproducts.com o Pour des instructions ou pour toutes questions sur l'utilisation du téléphone, veuillez cliquer sur à la page BLU en visitant l'adresse suivante: manuals.bluproducts.com ABOUT YOUR PHONE ATTENTION Transportation Safety Observe all transportation laws and regulations. PLEASE DRIVE RESPONSIBLY - DO NOT TEXT & DRIVE Hospital Safety Follow hospital rules and limitations and turn off your mobile phone when near medical instruments. Airport Safety Remember to follow all airport and flight safety regulations. Water Hazard Your phone is not waterproof. Keep your phone away from water or liquid to avoid damage. Emergency Calls Make sure your mobile phone is switched on and in a service area. On home screen, tap the phone key and dial the emergency number. Battery Usage For better performance and longer battery life, it is recommended that you charge the battery fully before using the mobile phone for the first time and that you initially complete two to three charge cycles. IMEI Information To check your IMEI, press *#06# KEY FUNCTIONS Front Camera Volume Power On / Off Fingerprint Sensor Back Home Recent Apps Assistant (Double Click) Rear Camera Flash Power On / Off Used to power on/off the device and to lock the screen. » Long press the power button to power on » While the phone is powered on, press the power button and volume + simultaneously to access the power off menu Volume Adjusts the ringer volume, call volume, and multimedia volume. Home The home button pauses any current action and returns to the home screen. Recent Apps Opens a list of recently opened applications that allows you to switch conveniently between them. This option can also close any open applications by swiping to the side. Back Returns to the previous screen; Closes the keyboard, any open program, or any menu option. USB Port Charges the device and transfers files such as music and video between your device and a PC. Headset Port Connect earphones to this port for hands-free capabilities. You may also to listen to music or FM radio. Front Camera A high-resolution front camera to take pictures and video. This option is ideal for self-portraits. Rear Camera A high-resolution rear camera to take pictures and video. Flash Fingerprint Sensor Provides light for pictures in low-light conditions. It also may be used as a flashlight. Security measure that unlocks your device with the User’s fingerprints. INTRODUCTION Installation of the SIM Card Warning: Please keep the SIM card out of the reach of children. The SIM card and its contact are easily damaged due to scratching or bending. Please use caution when carrying, installing, or taking out the SIM card. Note: Please contact your cellular phone service provider directly to obtain your SIM card. To insert SIM card:  Remove the SIM card tray (with tool). Insert the SIM card.  Insert the SD card (For additional storage capacity)  Replace the SIM card tray and power on the phone. DEVICE CONFIGURATION When you initially power on your phone, there will be a series of steps to set up basic features. INSERT SIM Insert your SIM card so the phone can register to the network. SELECT LANGUAGE While on the Welcome screen, please scroll to select your language. In this step, you also have the option to adjust Vision Settings such as magnification, font, and display size. You have the ability to place an Emergency Call. CONNECT TO WI-FI This step allows the device to connect to the internet. Click on the desired Wi-Fi network that the device that will be connected. Please note that any unsecured Wi-Fi networks can be connected to without credentials and any secured Wi-Fi networks require a password for credentials prior to connection. It is recommended that you connect to a Wi-Fi network to check for software updates prior to startup to avoid any data overages. COPY APPS & DATA This step allows you to select transfer options such as applications, pictures, music and more from a previous device. You may also setup as new if you choose not to from a previous device. ADD YOUR ACCOUNT Sign in to your Google TM Account in order to keep accounts streamlined with Google services. Your account will be used for Google programs such as Google Play TM , Google Drive, and Google Pay. If you do not have a Google account, click to create a new account. If the device is not recognized by your Google account, you will have to complete a security verification. GOOGLE SERVICES Click to add Google services that include Backup and Restore, Location Services, Install Updates and Apps. SET SECURITY Setup your fingerprint to unlock your phone and for authorization on certain applications. There will be different options to setup security: with PIN, Password or Pattern. In this step, you will have the ability to setup a PIN at startup as an extra layer of security. You also have the option of skipping the fingerprint setup and completing it at a later time. FINALIZE SETUP The last step allows you to setup Google Assistant. You may also add another email address, control what information is visible through the phones lock screen, and lets you also review any additional apps. You may skip this step and setup later. Google, Google Play, Google Maps, YouTube, Gmail, and other marks are trademarks of Google LLC. SOBRE SU TELÉFONO Seguridad de Transporte Siga todas las leyes y regulaciones de transporte. MANEJE RESPONSABLEMENTE - NO USE MENSAJERIA DE TEXTO CUANDO CONDUCIENDO Seg…

Text truncated - open the document above for the full version.

Codec and Air Interface combinations that have passed frequency response and distortion/noise tested. Codec Air Interface EVS-NB 24.4Kbps，EVS-WB 24.4Kbps VoLTE, VoWIFI Codec and Air Interface combinations that have passed conversational gain te sted. Codec Air Interface AMR-NB 4.75-12.2Kbps，FR V2(EFR NB 12.2Kbps) GSM AMR-NB 4.75-12.2Kbps，AMR-WB 6.6-23.85Kbps WCDMA AMR-NB 4.75-12.2Kbps，AMR-WB 6.6-23.85Kbps EVS-NB 5.9-24.4Kbps，EVS-WB 5.9-24.4Kbps EVS-SWB 9.6-24.4Kbps VoLTE, VoWIFI Codec and Air Interface combinations that have not been tested. Codec Air Interface AMR-WB 6.6-12.65Kbps GSM

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: BLU Products, Inc. FRN: 0019890946 Contact Name: Wei Zeng Address: 8600 NW 36th Street, Suite #300 | Miami, FL 33166 Telephone No: 3057157171 Email: [email protected] Applicant: Company name: BLU Products, Inc. Product Description: Smart Phone Grantee code: YHL FCC ID: YHLBLU64W FRN：0019890946 Contact Name: Wei Zeng Address: 8600 NW 36th Street, Suite #300 | Miami, FL 33166 Telephone No: 3057157171 Email: [email protected] [BLU Products, Inc.] certifies that, as of the date of this filing of the application with the TCB, [BLU Products, Inc.] is our designated US agent for service of process for the above referenced FCC ID. [BLU Products, Inc.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [BLU Products, Inc.] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2024/07/23 Applicant’s Name: Wei Zeng US Agent’s Name: Wei Zeng Title: Senior Manager Title: Senior Manager Signature Signature

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: BLU Products, Inc. Grantee code: YHL FRN: 0019890946 FCC ID: YHLBLU64W Contact Name: Wei Zeng Address: 8600 NW 36th Street, Suite #300 | Miami, FL 33166 Telephone No: 3057157171 Fax No: 3054368819 Email: [email protected] i. [BLU Products, Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [BLU Products, Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [BLU Products, Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment . Date: 2024/07/23 Applicant’s Name: Wei Zeng Title: Senior Manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

BLU Products, Inc. Federal Communications Commission Date:2024/07/17 7435 Oakland Mills Road Columbia, MD 21046 Subject: FCC ID: Attestation to FCC HAC Waiver DA 23-914 YHLBLU64W , Model No: G64 To Whom It May Concern, We are certifying the HAC Compliance of FCC ID: YHLBLU64W under the ANSI C63.19-2019, and the Volume Control performance is assessed under the condition of the limited-term waiver DA 23-914. We attest that, the package label is compliance with 47 CFR 20.19(f)(1) and states the actual conversational gain obtained under the waiver for the passing codecs demonstrated in section 2.a. and 2.b. of KDB 285076 D05 HAC Wavier and for the lowest conversational gain achieved for each 2N and 8N. Sincerely, Contact: Wei Zeng E-mail: [email protected]

Federal Communications CommissionDA 23-914 Before the Federal Communications Commission Washington, D.C. 20554 In the Matter of Amendment of the Commission’s Rules Governing Standards for Hearing Aid-Compatible Handsets ) ) ) ) WT Docket No. 20-3 ORDER Adopted: September 29, 2023Released: September 29, 2023 By the Chief, Wireless Telecommunications Bureau: I.INTRODUCTION 1.Today we grant a limited waiver of section 20.19(b)(1) and (b)(3) of the Commission’s wireless hearing aid compatibility rules with respect to the volume control technical standard that handset manufacturers use in part to certify handsets as hearing aid-compatible under the 2019 ANSI Standard. 1 Our action is prompted by a request filed by the Alliance for Telecommunications Industry Solutions (ATIS) seeking waiver of certain aspects of these rules. 2 Under the terms of the time-limited waiver we grant today, a handset may be certified as hearing aid-compatible under the 2019 ANSI Standard if it meets the volume control testing requirements described in this Order as well as all other aspects of the 2019 ANSI Standard. 2.Consistent with ATIS’s September 12, 2023, ex parte letter (ATIS Ex Parte Letter) and as a condition of this waiver, we require a handset to pass the conversational gain test at the 2 Newton (N) force level on all available narrowband and wideband codecs and air interface combinations. 3 With respect to the 8N force level test, we agree with the ATIS Ex Parte Letter that this test should be performed, and we waive the requirement that a handset achieve at least an 18 dB conversational gain. 4 This waiver is conditioned on manufacturers performing the 8N force level test using the same testing parameters that we are requiring for the 2N force level test and to place on the handset’s package label the resulting conversational gain (even if it is below 18 dB) in a manner consistent with our existing hearing aid compatibility labeling rules. 3.With respect to the related receive distortion and noise performance (distortion/noise) and receive acoustic frequency response performance (frequency response) tests, we agree with the ATIS Ex Parte Letter that handsets must pass testing using at least one narrowband and one wideband codec of the 1 The 2019 ANSI Standard refers to the technical document entitled Accredited Standards Committee C63®– Electromagnetic Compatibility, American National Standard Methods of Measurement of Compatibility Between Wireless Communications Devices and Hearing Aids, ANSI C63.19-2019 (approved Aug. 19, 2019) (2019 ANSI Standard). 2 Petition of ATIS on Behalf of the Covered Entities of the Hearing Aid Compatibility Task Force for Limited, Interim Waiver, WT Docket Nos. 15-285 and 20-3 (filed Dec. 16, 2022) (ATIS Waiver Petition). ATIS filed its waiver petition on behalf of all manufacturers and service providers subject to section 20.19(b)(1) and (b)(3) of the Commission’s wireless hearing aid compatibility rules. Id. at 1, 4. 3 Letter from Thomas Goode, General Counsel, ATIS, to Marlene H. Dortch, Secretary, FCC, WT Docket Nos. 15- 285 and 20-3, at 2 (filed Sept. 12, 2023) (ATIS Ex Parte Letter); see also ATIS Waiver Petition at 4, 12-13. Below we explain the conversational gain test. See infra para. 9. 4 ATIS Ex Parte Letter at 2. Originally, ATIS had proposed to waive the entire 8N force level test. ATIS Waiver Petition at 10-11, 13. Federal Communications CommissionDA 23-914 2 manufacturer’s choosing. 5 We also accept ATIS’s suggestion that at least one narrowband and one wideband codec must pass testing for distortion/noise and frequency response and tests will be limited to one bit rate and only with those air interfaces associated with the chosen codecs and that the other codecs used for conversational gain at the 2N and 8N force levels are not required to undergo the distortion/noise and frequency response tests. 6 Further, as detailed below, we accept ATIS’s suggested method to set the volume control setting for testing these other codecs for conversational gain. 7 4.By taking these steps, we ensure that when the exclusive use transition period ends on December 5, 2023, new handset models can be certified as hearing aid-compatible using the 2019 ANSI Standard as modified by the conditions established in this Order. 8 Our actions allow consumers with hearing loss who use hearing aids or cochlear implants to benefit from wider availability of handsets offering improved hearing aid compatibility under the 2019 ANSI Standard’s radio frequency (RF) interference and inductive coupling requirements. In addition, our approach gives consumers assurance that a handset’s amplifier/speaker combination will provide improved volume control functionality over narrowband and wideband modes of voice communications, and that consumers have the information that they need to make informed purchasing decisions. Our actions today will move us closer to the Commission’s goal of reaching 100% hearing aid compatibility for wireless handsets, while also creating a path forward for testing to ensure that handsets have volume control capabilities. 9 5.This waiver is effective immediately upon release of this Order so that manufacturers may afford the benefits of this relief to consumers with hearing loss as soon as feasible. In reliance upon ATIS’s representations that efforts are underway to expeditiously develop a new volume control standard through the TIA standards setting process, we limit this waiver to a two-year period. 10 During this waiver period, we will evaluate the effectiveness of the waiver standard in meeting the needs of consumers with hearing loss and take action where appropriate. We expect that a two-year time limitation for the waiver will encourage all interested parties to work together to rapidly develop an improved volume control standard that we can incorporate into our rules in the future. To ensure this outcome, we condition this waiver in part on ATIS filing a status lett…

Text truncated - open the document above for the full version.

C5266091_X8_Ed.1 1/1 BLU Products, Inc. 8600 NW 36th Street, Suite #300 | Miami, FL 33166 Letter of Authorization Company: BLU Products, Inc. Address: 8600 NW 36th Street, Suite #300 | Miami, FL 33166 Product Name: Smart Phone Model Number: G64 FCC Identifier: YHLBLU64W We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Wei Zeng Date: July 23, 2024 Title: Senior Manager Signature of applicant:

C5266091_X10_Ed.2 1/1 BLU Products, Inc. 8600 NW 36th Street, Suite #300 | Miami, FL 33166 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: July 23, 2024 Subject: Request for Confidentiality FCC ID: YHLBLU64W To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☒ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wei Zeng Title: Senior Manager

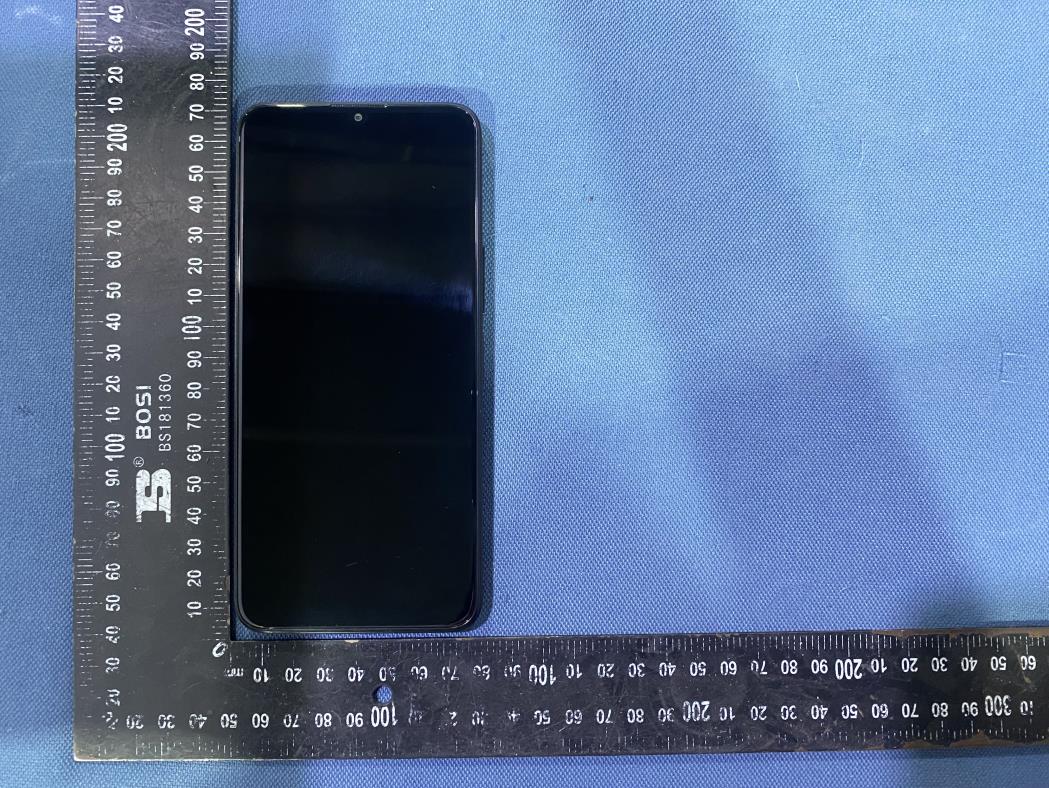

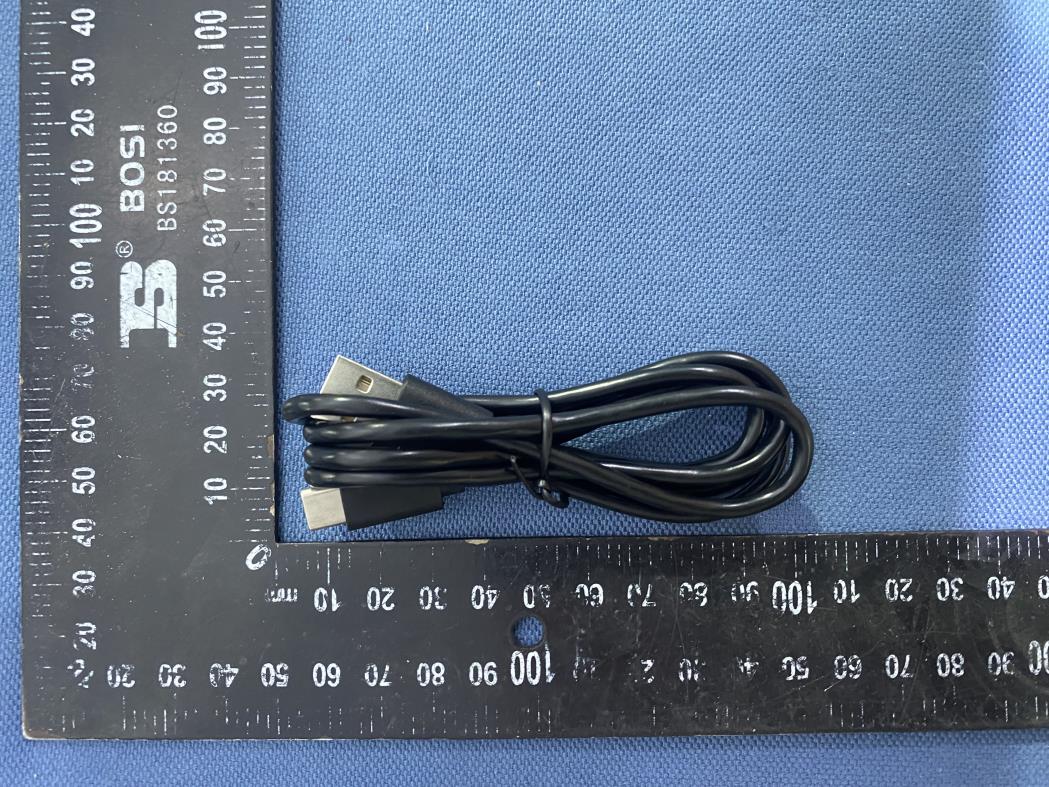

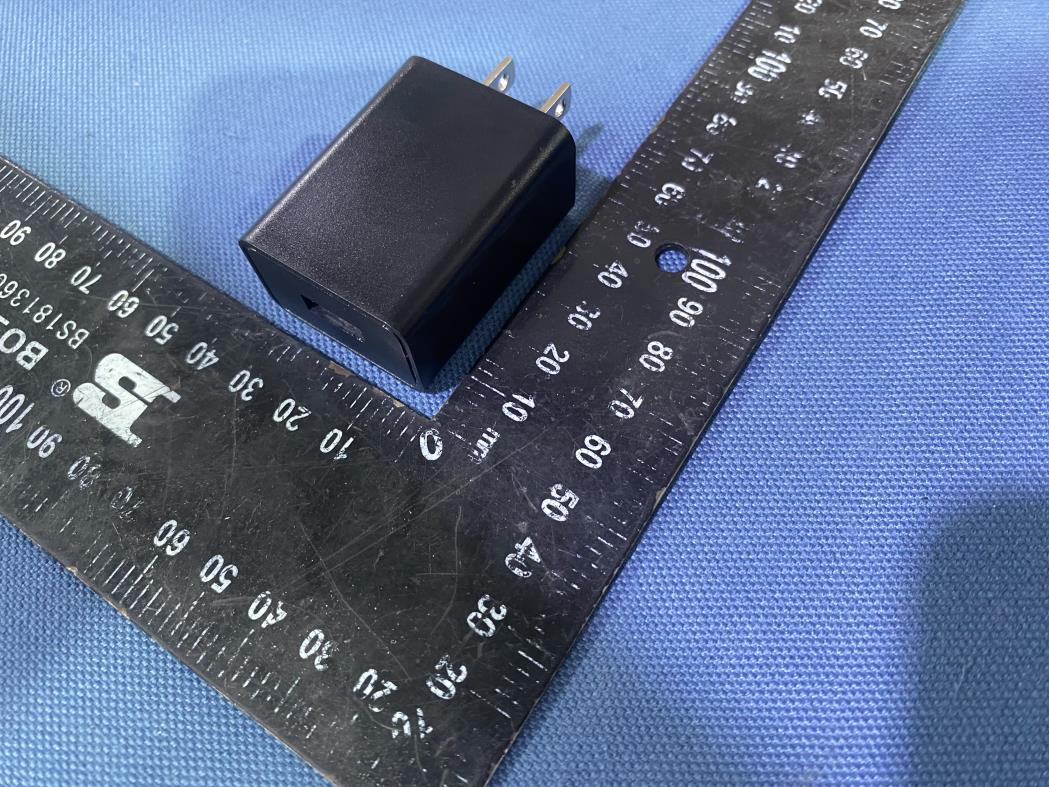

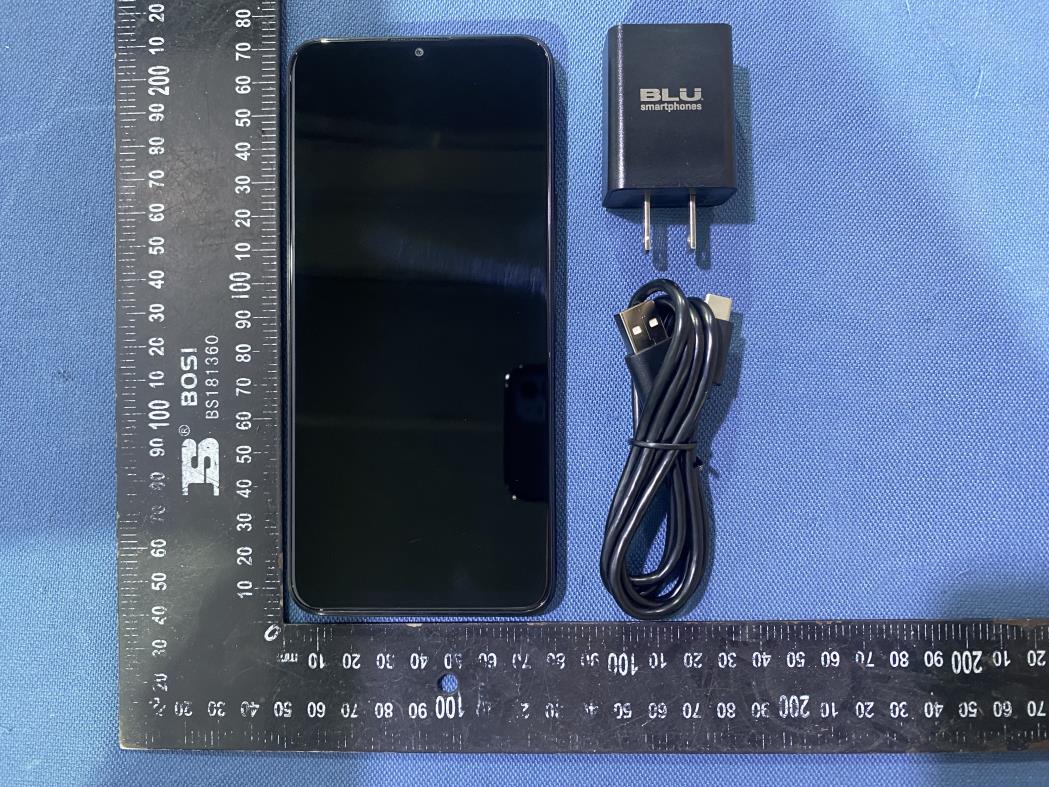

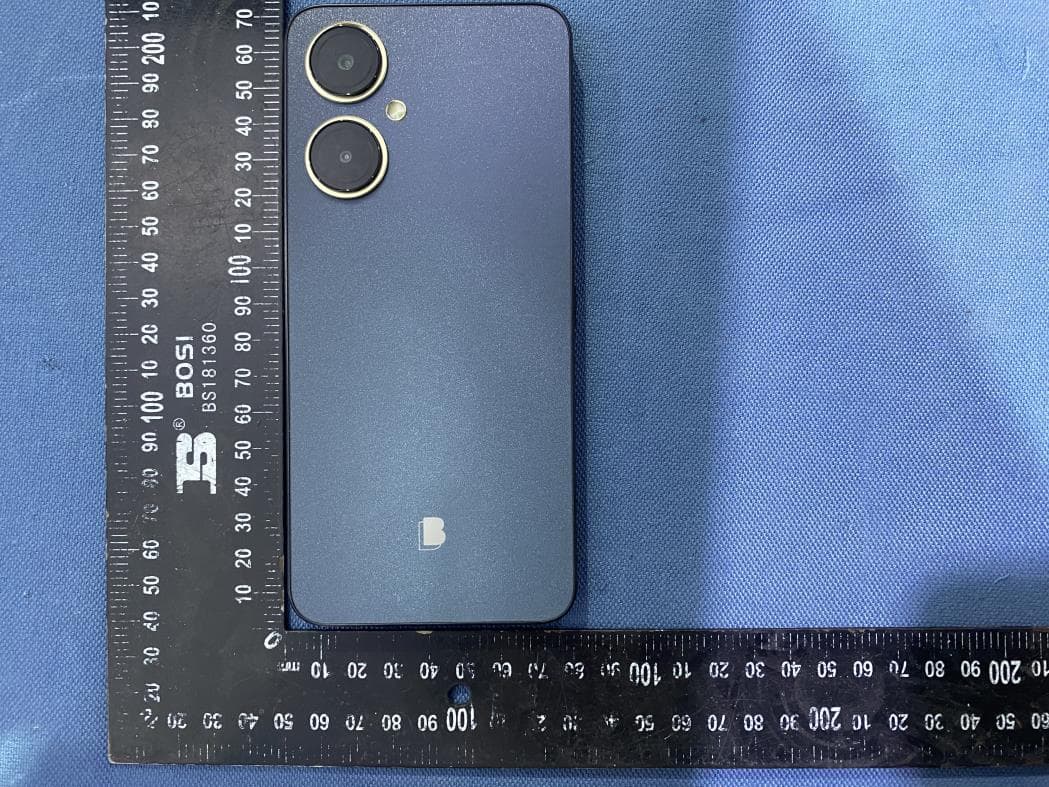

Page 1 of 6 FCC ID: YHLBLU64W Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 6 FCC ID: YHLBLU64W Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 6 FCC ID: YHLBLU64W Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 6 FCC ID: YHLBLU64W Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 6 FCC ID: YHLBLU64W Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 6 of 6 FCC ID: YHLBLU64W Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo

Label Location

Page 1 of 9 Model No.: G64 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 9 Model No.: G64 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo WWAN Main ANT Wi-Fi/ BT/ GPS ANT WWAN DIV ANT Page 3 of 9 Model No.: G64 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 9 Model No.: G64 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 9 Model No.: G64 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 6 of 9 Model No.: G64 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 7 of 9 Model No.: G64 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 8 of 9 Model No.: G64 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 9 of 9 Model No.: G64 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo

Test Laboratory: UnionTrust Date/Time: 2024/6/30 System Check_H750_24dBm DUT: Dipole 750 MHz Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H750 Medium parameters used: f = 750 MHz; σ = 0.908 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.37, 6.37, 6.37); Calibrated: 2024/3/26 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2024/3/18 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 System check/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.51 mW/g System check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.9 V/m; Power Drift = 0.032 dB Peak SAR (extrapolated) = 3.19 W/kg SAR(1 g) = 2.18 mW/g; SAR(10 g) = 1.45 mW/g Maximum value of SAR (measured) = 2.53 mW/g 0 dB = 2.53mW/g Test Laboratory: UnionTrust Date/Time: 2024/7/1 System Check_H750_24dBm DUT: Dipole 750 MHz Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H750 Medium parameters used: f = 750 MHz; σ = 0.892 mho/m; ε r = 42.4; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.37, 6.37, 6.37); Calibrated: 2024/3/26 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2024/3/18 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 System check/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.50 mW/g System check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.6 V/m; Power Drift = -0.023 dB Peak SAR (extrapolated) = 3.15 W/kg SAR(1 g) = 2.17 mW/g; SAR(10 g) = 1.46 mW/g Maximum value of SAR (measured) = 2.52 mW/g 0 dB = 2.52mW/g Test Laboratory: UnionTrust Date/Time: 2024/6/29 System Check_H835_24dBm DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835 Medium parameters used: f = 835 MHz; σ = 0.919 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.2, 6.2, 6.2); Calibrated: 2024/3/26 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2024/3/18 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 System check/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.86 mW/g System check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.6 V/m; Power Drift = 0.036 dB Peak SAR (extrapolated) = 3.66 W/kg SAR(1 g) = 2.45 mW/g; SAR(10 g) = 1.6 mW/g Maximum value of SAR (measured) = 2.86 mW/g 0 dB = 2.86mW/g Test Laboratory: UnionTrust Date/Time: 2024/7/10 System Check_H1750_24dBm DUT: Dipole 1750 MHz Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: H1750 Medium parameters used: f = 1750 MHz; σ = 1.37 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.4, 5.4, 5.4); Calibrated: 2024/3/26 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2024/3/18 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 System check/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.3 mW/g System check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 71.7 V/m; Power Drift = 0.144 dB Peak SAR (extrapolated) = 16.5 W/kg SAR(1 g) = 8.86 mW/g; SAR(10 g) = 4.57 mW/g Maximum value of SAR (measured) = 11.3 mW/g 0 dB = 11.3mW/g Test Laboratory: UnionTrust Date/Time: 2024/7/11 System Check_H1900_24dBm DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900 Medium parameters used: f = 1900 MHz; σ = 1.42 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.12, 5.12, 5.12); Calibrated: 2024/3/26 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2024/3/18 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 System check/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.0 mW/g System check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 86.6 V/m; Power Drift = 0.134 dB Peak SAR (extrapolated) = 20.0 W/kg SAR(1 g) = 10.4 mW/g; SAR(10 g) = 5.23 mW/g Maximum value of SAR (measured) = 13.4 mW/g 0 dB = 13.4mW/g Test Laboratory: UnionTrust Date/Time: 2024/7/12 System Check_H1900_24dBm DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900 Medium parameters used: f = 1900 MHz; σ = 1.46 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.12, 5.12, 5.12); Calibrated: 2024/3/26 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 20…

Text truncated - open the document above for the full version.
