YHLBLUARIAPTrue Wireless Stereo

BLU ARIA POD Quick Guide Dual-ear mode: Initial use of headsets When using the headsets for the first time, take the left and right headsets out of the charging box, remove the film, and put the two headsets back to the charging box. The blue indicators of the two headsets are on, and the headsets are activated. Basic Operations Auto power-on/off: When the headset is taken out of the charging box, the headset is automatically powered on and the TWS connection is successfully established, accompanied by a voice prompt. The headset will be automatically powered off if pairing is not completed in 3 minutes. When the headset is put into the charging box, the headset is automatically powered off and enters the charging state, accompanied by a voice prompt. Product overview 1. Headsets 2. Multifunction key 3. Charging contacts 4. Sound hole 5. Microphone 6. Charging box 7. Charging interface 8. Indicator light Connection: When taken out from the charging base, the headsets are automatically powered on,and enters pairing status. Search for the pairing target name on your mobile phone, tap Connect, and an electronic prompt tone rings. Apparel Please follow the diagram to penetrate the earphone into the ear, press the R<> right ear and LRR<> ear correspondence. Please rotate the headset slightly and adjust to a comfortable angle to ensure that the headset is stable and tight to prevent the headset from falling off. Hang-up: During a call, press the MFB button on the left/right channel headphone once. A beep is prompted. Rejecting a call: When a call comes in, double press the MFB button on the left/right channel headphone. A beep is prompted. Audio transfer: During a call, long press the MFB button on the left/right channel headphone, and release until a beep is prompted. Repeat this operation to transfer the audio between your phone and headset. Answering a call: When a call comes in, press the MFB button on the left/right channel headphone once. Auto redial: In standby or music state, double-click the MFB key on the left or right headset. The auto redial function is enabled, accompanied by a "Beep" sound. Click the MFB key again. The redial function is canceled, accompanied by a "Beep" sound. Music playing/pausing: When the headset is playing music, press the MFB button on the left/right channel headphone once to pause. Repeat this operation to restart playing. Automatic re-connection: After the earphone are powered on, they are actively re-connected to the last paired one devices. Three-way call: During a call, if another call comes in, - Press the MFB button on the left/right channel headphone once to hang up the current call and answer the incoming call. - Double press the MFB button on the left/right channel headphone to keep the current call (A) and answer the incoming call (B). Double press the MFB button again to switch between calls A and B. - During a three-party call, press the MFB button on the left/right channel headphone once to hang up the current call. iOS battery level display: After the earphone is connected to the iOS, the battery level of the earphone can be displayed. Power-off: Press MFB for about 5s (After the TWS pairing mode is completed, any earphone is powered off, the other earphone is powered off at the same time), accompanied by a "Power-off" voice prompt, If the headset is not connected to the mobile phone, both earpieces will be powered off; if the headset is connected to the mobile phone, only one earpiece will be powered off. Enabling/Disabling voice control: In standby or music state, press and hold the MFB key on the left or right headset for about 2 second. The voice control function is enabled, accompanied by a "Beep" sound. You can repeat this operation to disable the voice control function. Anti-lost alarm: When the headset is far away from you or is abnormally disconnected, a voice prompt can be heard. 5 minutes later, the headset will be automatically powered off. Charger and Battery Before using any charger to charge this earphone, check whether the specifications of the charger meet requirements. The recommended output voltage of the charger is DC5V+/-0.25V, and the recommended output current is 100 mA to 500 mA. An over-high charging voltage may damage the earphone. Warning: Use the recommended charger whenever possible. Use of other types of chargers may violate the warranty terms of the equipment and results in danger. If the charging cable is delivered with the earphone, connect the cable to a CCC-certified charger or computer to charge the earphone. Charging the Battery The earphone use embedded charging battery that cannot be removed. Do not attempt to remove the battery from the earphone or the charging box; otherwise, the earphone may be damaged. If the earphone is not used in a long time, keep it in a cool and well-ventilated place, and charge the earphone once every two months. 1.When the LED indicator connected earphone flash red with a voice “please charge”, put the earphone into the charging box. Otherwise the earphone will power off automatically. 2.If both the earphone and charging box are out of power, insert the cable of the charger into the Micro-USB port on the charging box, and plug the charger into the AC socket. The charging box and earphone will be charged simultaneously. 3.The earphone is charged through two metal contacts during charging in the box, and the indicator blinks blue while charging. The full charge takes about two hours. The indicator goes off when the earphone is fully charged. Then you can take out your earphone for use. When the charging box is being charged, the four indicators blink blue in sequence. The full charge takes about two hours. The four indicators become steady blue when the charging box is fully charged. Then you can disconnect the charger from the socket and charging box. 4.A fully charged battery of earphone can provide about 3hours of talk time, or 70 hours of standby time. The actual talk time a…

Text truncated - open the document above for the full version.

BLU Products, Inc. Agent Authorization Company: BLU Products, Inc. Address: 10814 NW 33rd St # 100 Doral, FL 33172, USA Product Name: True Wireless Stereo Model Number(s): BLU ARIA POD Product Description: True Wireless Stereo with Bluetooth We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021/04/30 Name: Zeng wei Title: Manager Company: BLU Products, Inc.

BLU Products, Inc. Authorization Letter We, (the approval holder) Company name BLU Products, Inc. Addresss 10814 NW 33rd St # 100 Doral, FL 33172, USA declare that the following representative (agent): Name (person) Bovey Yang Company name Shenzhen STS Test Services Co., Ltd. Addresss 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to Micom Labs for product certification below Product Description True Wireless Stereo Type or Model(s) BLU ARIA POD Tradename or Brand(s) BLU Attestation: City: Date: Name: (this must be a person) Function: Signature: (or official company stamp) USA 2021/04/30 Zeng wei Manager

BLU Products, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021/04/30 Subject; Request for Confidentiality FCC ID: YHLBLUARIAP To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Zeng wei Title: Manager

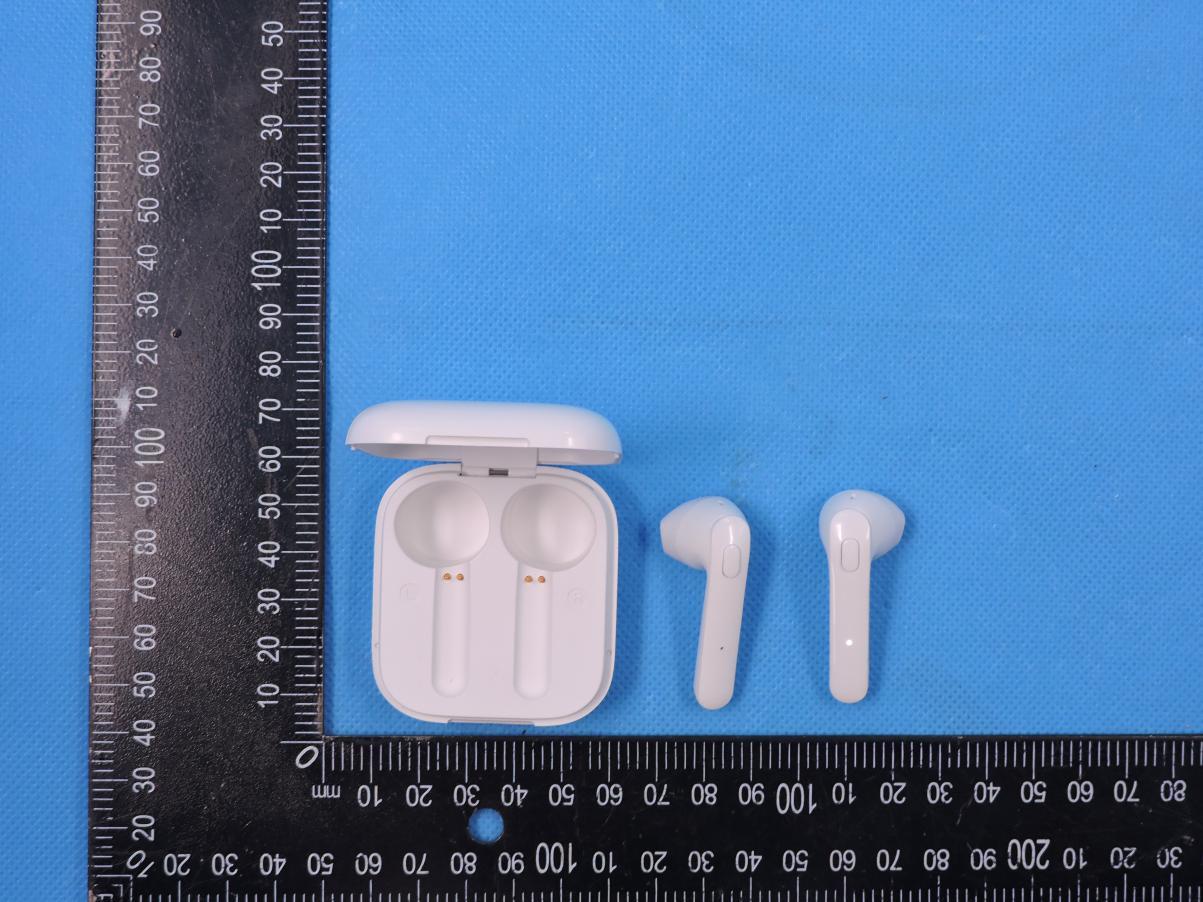

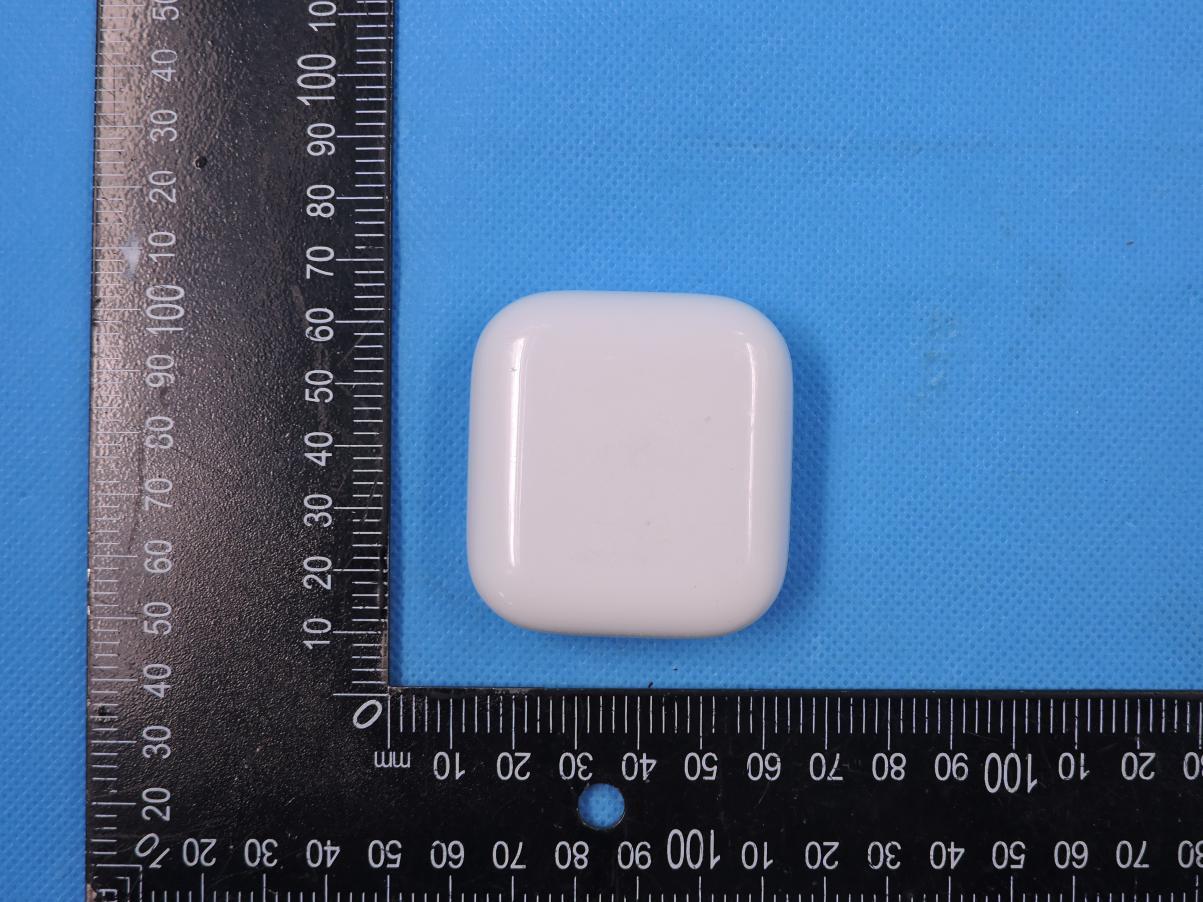

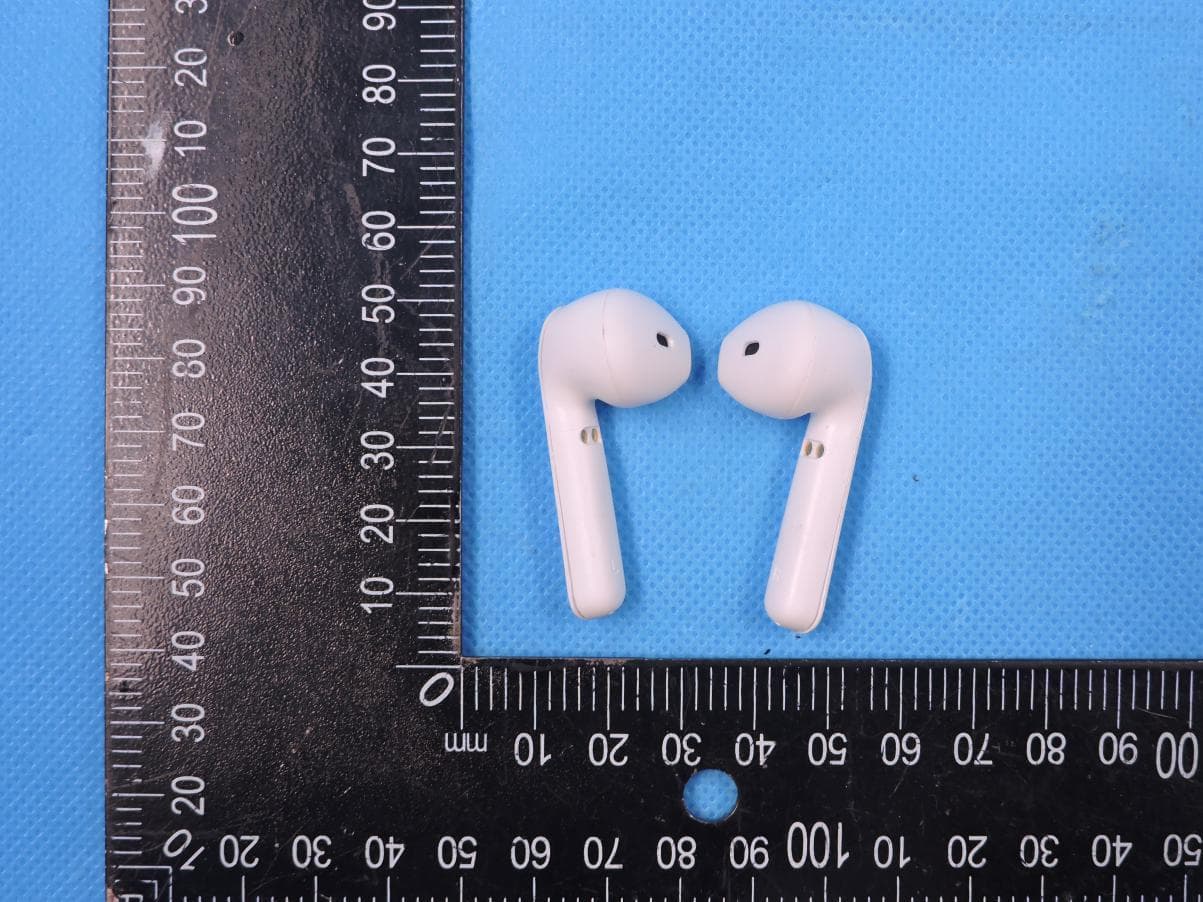

Page 1 of 5 Report No.: STS2104086 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: BLU ARIA POD Photo 1 Photo 2 Page 2 of 5 Report No.: STS2104086 Photo 3 Photo 4 Page 3 of 5 Report No.: STS2104086 Photo 5 Photo 6 Page 4 of 5 Report No.: STS2104086 Photo 7 Photo 8 Page 5 of 5 Report No.: STS2104086 Photo 9

Label Size:15*5mm The label is engraved on the shell True Wireless Stereo Model name: BLU ARIA POD FCC ID: YHLBLUARIAP

Page 1 of 3 Report No.: STS2104086 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: BLU ARIA POD Photo 1 Photo 2 BT Antenna BT Antenna Page 2 of 3 Report No.: STS2104086 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2104086 Photo 5

FCC ID: YHLBLUARIAP RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: YHLBLUARIAP Maximum measured transmitter power. BT5.0+EDR The Worst Case Mode 2402-2480MHz Detector PEAK LOW MID HIGH GFSK 2.85±1dBm 2.85±1dBm 2.85±1dBm π/4-DQPSK 5.1±1dBm 4±1dBm 3±1dBm 8DPSK 6±1dBm 5±1dBm 3±1dBm Remark: The worst case gain of the antenna is 5.54dBi. 5.54dBi logarithmic terms convert to numeric result is nearly 3.58 GFSK 2.402 3.8 3.85 2.426610095 0.7522 3 π/4-DQPSK 2.402 6.09 6.1 4.073802778 1.2627 3 8DPSK 2.402 6.61 7 5.011872336 1.5535 3 Mode Limit Maximum Peak Conducted Output Power (dBm) frequency (GHz) Tune up Power(dBm) Tune up Power (mW) Result Threshold at which no SAR required is 1.5535≤ 3.0 for 1-g SAR, Separation distance is 5mm. BT5.0 The Worst Case Mode 2402-2480MHz Detector PEAK 2402MHz 5±1dBm 2440MHz 4±1dBm 2480MHz 2±1dBm Remark: The worst case gain of the antenna is 5.54dBi. 5.54dBi logarithmic terms convert to numeric result is nearly 3.58 2.4025.266 3.9810717061.2340 3 2.444.094 2.5118864320.7847 3 2.482.993 1.9952623150.6284 3 Limit Maximum Peak Conducted Output Power (dBm) frequency (GHz) Tune up Power (dBm) Tune up Power (mW) Result Threshold at which no SAR required is 1.2340≤ 3.0 for 1-g SAR, Separation distance is 5mm.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, all test data presented in this report is only applicable to presented test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No.: STS2104086W01 Issued for BLU Products, Inc. 10814 NW 33rd St # 100 Doral, FL 33172, USA Product Name: True Wireless Stereo Brand Name: BLU Model Name: BLU ARIA POD Series Model: N/A FCC ID: YHLBLUARIAP Test Standard: FCC Part 15.247 S T L A B S Page 2 of 76 Report No.: STS2104086W01 TEST RESULT CERTIFICATION Applicant’s Name ................... : BLU Products, Inc. Address .................................. : 10814 NW 33rd St # 100 Doral, FL 33172, USA Manufacturer's Name ............. : BLU Products, Inc. Address .................................. : 10814 NW 33rd St # 100 Doral, FL 33172, USA Product Description Product Name ........................ : True Wireless Stereo Brand Name ......................... : BLU Model Name ........................... : BLU ARIA POD Series Model .......................... : N/A Test Standards ....................... : FCC Part15.247 Test Procedure ....................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................... : Date of receipt of test item ......... : 20 Apr. 2021 Date (s) of performance of tests : 20 Apr. 2021 ~ 28 Apr. 2021 Date of Issue ............................. : 28 Apr. 2021 Test Result ................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 76 Report No.: STS2104086W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 2.6 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 14 2.7 EQUIPMENTS LIST 15 3. EMC EMISSION TEST 17 3.1 CONDUCTED EMISSION MEASUREMENT 17 3.2 RADIATED EMISSION MEASUREMENT 21 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 33 4.1 LIMIT 33 4.2 TEST PROCEDURE 33 4.3 TEST SETUP 34 4.4 EUT OPERATION CONDITIONS 34 4.5 TEST RESULTS 35 5. NUMBER OF HOPPING CHANNEL 50 5.1 LIMIT 50 5.2 TEST PROCEDURE 50 5.3 TEST SETUP 50 5.4 EUT OPERATION CONDITIONS 50 5.5 TEST RESULTS 51 6. AVERAGE TIME OF OCCUPANCY 52 6.1 LIMIT 52 6.2 TEST PROCEDURE 52 6.3 TEST SETUP 52 6.4 EUT OPERATION CONDITIONS 52 6.5 TEST RESULTS 53 7. HOPPING CHANNEL SEPARATION MEASUREMEN 59 Page 4 of 76 Report No.: STS2104086W01 Table of Contents Page 7.1 LIMIT 59 7.2 TEST PROCEDURE 59 7.3 TEST SETUP 59 7.4 EUT OPERATION CONDITIONS 59 7.5 TEST RESULTS 60 8. BANDWIDTH TEST 66 8.1 LIMIT 66 8.2 TEST PROCEDURE 66 8.3 TEST SETUP 66 8.4 EUT OPERATION CONDITIONS 66 8.5 TEST RESULTS 67 9. OUTPUT POWER TEST 73 9.1 LIMIT 73 9.2 TEST PROCEDURE 73 9.3 TEST SETUP 73 9.4 EUT OPERATION CONDITIONS 73 9.5 TEST RESULTS 74 10. ANTENNA REQUIREMENT 75 10.1 STANDARD REQUIREMENT 75 10.2 EUT ANTENNA 75 Page 5 of 76 Report No.: STS2104086W01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 28 Apr. 2021 STS2104086W01 ALL Initial Issue Page 6 of 76 Report No.: STS2104086W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Page 7 of 76 Report No.: STS2104086W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9K-30MHz ±2.84dB 4 All emissions, radiated 30M-1GHz ±4.39dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.48dB 7 Conducted Emission (9KHz-150KHz) ±2.79dB 8 Conducted Emission (150KHz-30MHz) ±2.80dB Page 8 of 76 Report No.: STS2104086W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name True Wireless Stereo Trade Name BLU Model Name BLU ARIA POD Series Model N/A Model Difference N/A Channel List Please refer to the Note 2. Bluetooth Frequency:2402 – 2480 MHz Modu…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: YHLBLUARIAP DSS&DTS Setup photo Model name: BLU ARIA POD DSS&DTS conduction DSS&DTS radiation L Page 2 of 2 FCC ID: YHLBLUARIAP DSS&DTS radiation H
