YHLBLUB135DLSmart Phone

BLU Products, Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Feb 15, 2023
Application Purpose: Original Equipment
Date of Application: Feb 14, 2023
Equipment Note: Smart Phone
Frequency Range: 2412.00000000 - 2462.00000000
Company: BLU Products, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

B135DL User Guide 1 Contents Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Getting to know your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Setting up your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Chrome browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Google Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Google Play Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45 2 Safety information Please carefully read the items bellow: Use Safely Do not use the phone in situations where it might cause danger. Transportation Safety Please observe all transportation laws and regulations. Please drive with both hands on the wheel. DO NOT TEXT AND DRIVE Hospitals Please follow limitations. Please turn off your mobile phone when near medical instruments. Airports Remember to follow all airport and flight safety regulations. Please do not use your phone during flight. 3 Toxic Chemicals Do not use your mobile phone around fuels or chemicals. Hazard Do not use in hazardous areas where explosions may occur. Accessories and Batteries Use only Blu authorized batteries and accessories. Backup Remember to keep a written record of all important information. Water Your phone is not waterproof. Keep it away from water and liquids. SOS Emergency Calls Make sure your mobile phone is switched on and in a service area. In home screen, tap the phone key and dial 911 and send. 4 Getting to know your phone Power key Volume keys Recent Apps Back Home Receiver Front camera Rear camera Flash Headset port USB port Speaker Status bar 5 Power key • Long press the power button to power on. • While the phone is powered on, long press to access the power off menu or click to lock the screen. Volume keys Adjust the volume for ringtones, media, notifications, and system sounds. Home The home button pauses any current action and returns to the home screen. Recent Apps Open a list of recently opened applications that allows you to switch conveniently between them. This option can also close any open applications by swiping to the side. Back Return to the previous screen; Closes the keyboard, any open program, or any menu option. USB port Charge the device and transfers data such as documents, music, and video between your device and a PC. 6 Headset port Connect earphones to this port for hands-free capabilities. You may also to listen to music or FM radio. LED indicator Be informed of status changes and notifications on the phone with an LED indicator light on the front display. Status bar Provide phone and service status information on the right side and notification alerts on the left. Front Camera A high-resolution front camera to take pictures and video. This option is ideal for self-portraits. Rear Cameras A high-resolution rear camera to take pictures and video. Flash Provide light for pictures in low-light conditions. It also may be used as a flashlight. 7 Setting up your phone Install a Nano SIM/microSD card Note: Please contact your cellular phone service provider directly to obtain your SIM card if your card is not preinstalled. 1. Insert the included SIM tray pin into the tray slot and remove the SIM tray. 2. Place the Nano SIM card and microSD card (not included) with m…

Text truncated - open the document above for the full version.

Users Manual

Importing Contacts Contacts > Fix & manage > Select Import from SIM or Import from file Contact Lookup You may lookup contacts in several ways: • From the Contact app, click on the search bar and enter the contact name or letter. • From the Phone app, click on the Contacts tab. Once on the Contacts tab, enter the contact name on the search bar to complete the lookup. You may also scroll up and down to search for your contact. Voicemail Preferences Call button > More options (3 dots) > Settings > Voicemail Text Messaging Creating a Message • Click on Messages • Click on Start chat • Select the recipient and compose the message • Click Send when completed Message Options • Click on to include attachments • Click on the to take a picture or attach one from the Gallery M-QSG-1691 B135DL Included in this package • Activation card • Quick Start Guide • Device • Charger • USB Cable Initial Phone Setup Charging the Battery Turning the phone On Press and hold power button until your screen lights up. Turning the phone Off Press power button and volume up button at the same time to access the phone options screen. Tap Power off. Selecting the Language You may select a language on your phone's welcome screen or at later time in the device settings: Settings > System > Language & input > Languages > Add a language Set up your Google Account Having a Google (Gmail) account will give you access to several features on your phone including: • Google Drive cloud storage • Google Assistant • Google Play • and more Create or Sign-In to your Google account during the setup process on your phone or skip and do so at a later time. To sign into your Google Account: Settings > Passwords & accounts > Add account > Google To create a new Google Account: Settings > Passwords & accounts > Add account > Google > Create account > Follow prompts on the screen. Once a Google Account has been added, the device will automatically sync Google services unless disabled. Security Settings Establishing security settings is essential to keeping your device and personal information safe. During the setup process, you will be prompted to enter a security pin or choose a different Lock Screen Option. You may skip this step and complete your security settings at a later time. Settings > Security > Screen lock Lock Screen Options Swipe: Swipe to unlock the screen. Pattern: Draw a pattern to unlock the screen. PIN: Enter a numeric password to unlock the screen. Password: Enter an alphanumeric password to unlock the screen. How to Make and Receive Calls Making a Call • Open the Dialer and click on • Enter a phone number and click on Or • From Contacts list click on the contact name then on • From the Recents list click on Receiving a Call To receive a call, simply swipe the call icon during an incoming call Adding Contacts Contacts >Add icon > Enter contact > Save You can also create a new contact from the Contacts tab on the Dial Interface. Reading a Message • Click on the Messages icon • Click on the unread message Quick Settings Notification Panel The notification panel displays useful information such as Current time, Battery, Bluetooth, and Wi-Fi indicators. Incoming notifications such as messages, emails, and missed calls will also be displayed. Shortcut buttons The shortcut buttons on the notification panel allows easy access to Wi-Fi, Bluetooth, Location Access, among other settings and can be rearranged to the users liking. Configure the shortcut buttons • Drag down the notification panel • Click on • Drag to rearrange icons Using your Mobile Internet Accessing the web From the home screen, click on to browse the internet Connecting to Wi-Fi Wi-Fi allows mobile phones to connect to the internet wirelessly. Settings > Network & internet > Wi-Fi and select a Network Bluetooth® Connectivity Bluetooth is a wireless technology that allows your device to connect to peripherals such as headsets and speakers. Turn on/off Drag down notification panel and click on Pairing devices Settings > Connected devices > Pair new device > Available devices > Pair Notification and Status Icons: www.fcc.gov/oet/ea/fccid Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide. Google, Google Play and other marks are trademarks of Google LLC. Charging cable USB Type-C port No Data Data is being transmitted over the network Alarm is set Bluetooth is on Battery level Airplane mode is on Missed calls Wi-Fi is connected GPS is on Hotspot is on FCC ID Max. SAR (W/kg) Head Max. SAR (W/kg) Body HAC (Hearing Aid Compatible) & Rating 1.15 W/kg 0.78 W/kg M4/T3 YHLBLUB135DL QUICK START GUIDE GUIA DE INICIO RAPIDO Recibir una llamada Para recibir una llamada, simplemente deslice el icono de llamada durante una llamada entrante Agregar contactos Contactos > Agregar icono > Ingresar contacto > Guardar También puede crear un nuevo contacto desde la pestaña Contactos en la Interfaz de marcado Importar contactos Contactos > Corregir y administrar > Seleccione Importar desde latarjeta SIM o Importar desde archivo Búsqueda de contacto Puede buscar contactos de varias maneras desde la aplicación de contacto: • Clic en la barra de búsqueda e ingrese el nombre o la letra del contacto • Clic en el , luego en la pestaña Contactos. Una vez en la pestaña Contactos, ingrese el nombre del contacto en la barra de búsqueda para completar la búsqueda. También puede desplazarse hacia arriba y hacia abajo para buscar su contacto Preferencias de correo de voz Botón de llamada > Más opciones (3 puntos) > Configuración > Correo de voz M-QSG-1691 B135DL Incluido en este paquete • Tarjeta de activación • Guia De Inicio Rapido • Dispositivo • Cargador • Cable USB Configuración inicial Cargando la batería Encender el dispositivo Mantenga presionado el botón de encendido hasta que encienda la pantalla. Apagar el dispositivo Presione el botón de encendido y el botón de subir volumen al mismo tiempo para acceder a la pantalla de opciones del teléfono. Presiona Apagar. Seleccion…

Text truncated - open the document above for the full version.

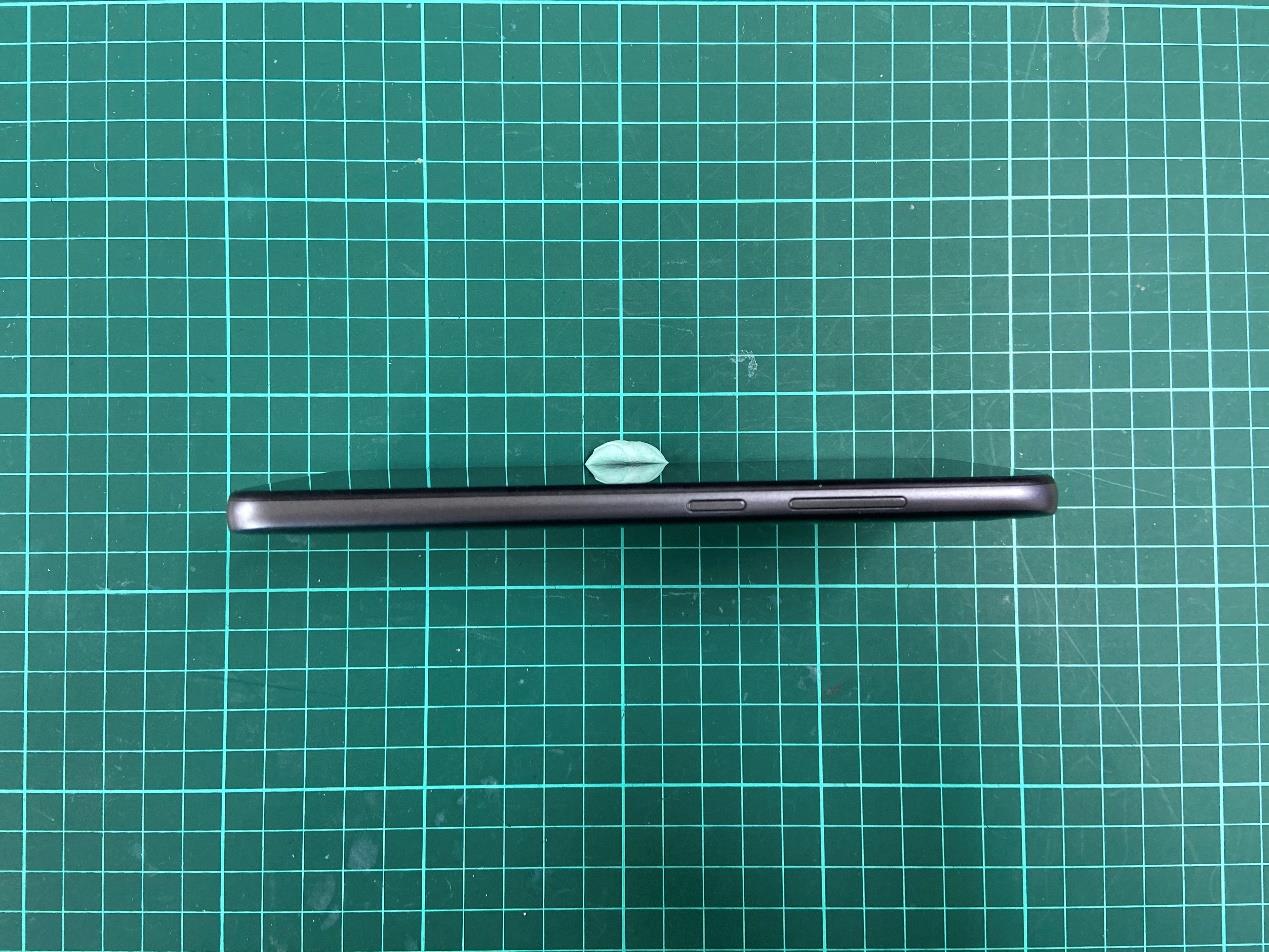

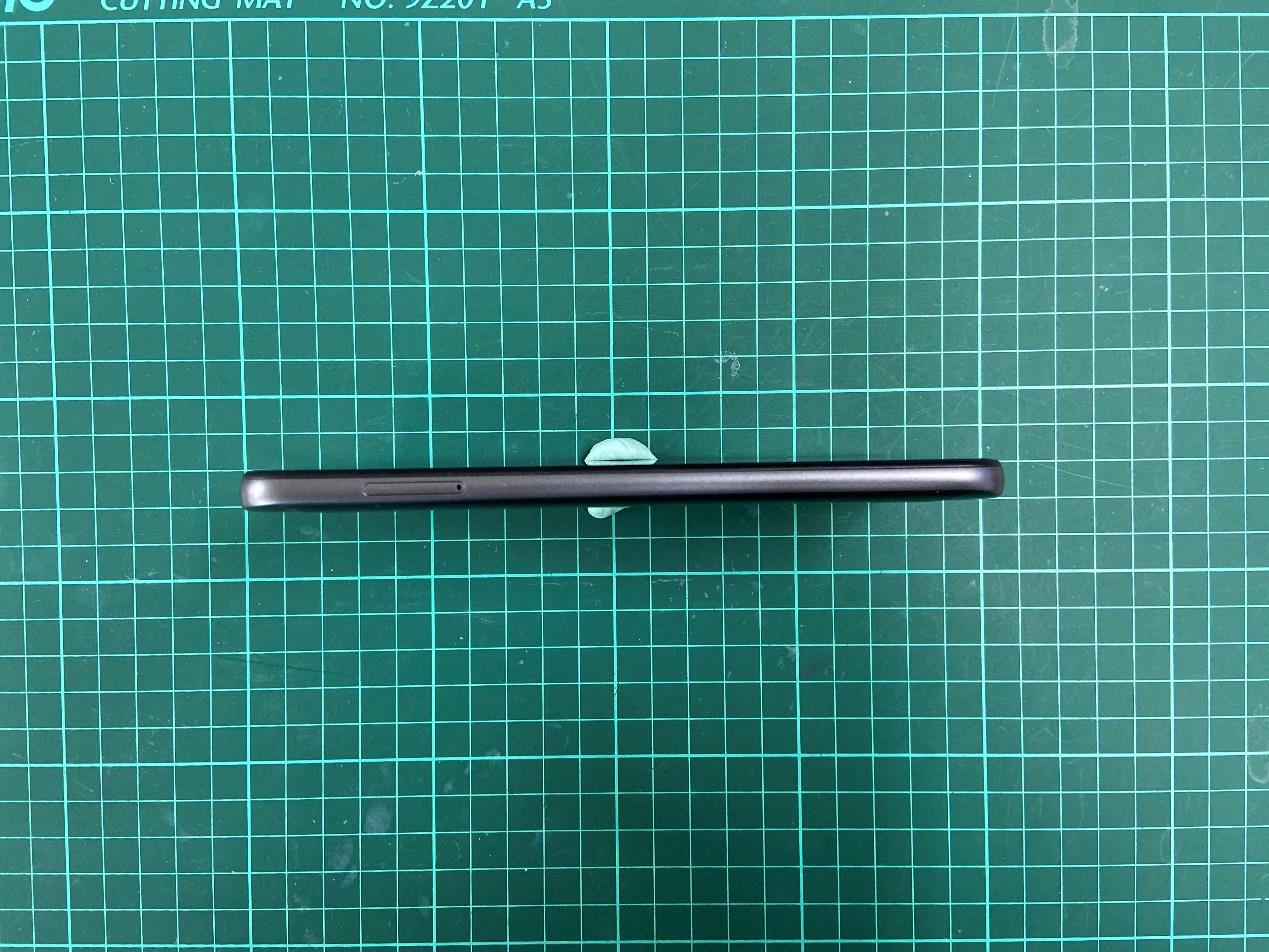

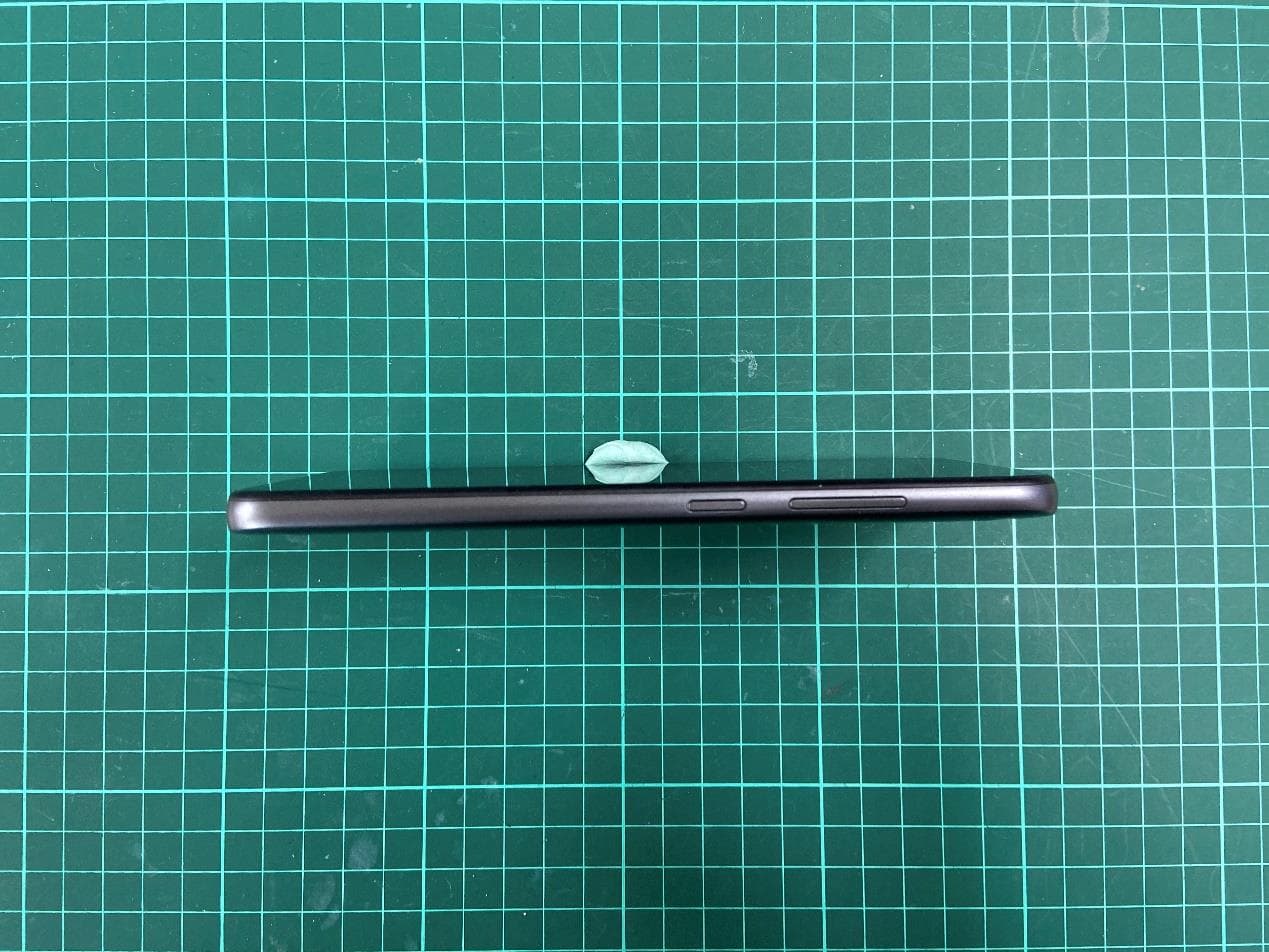

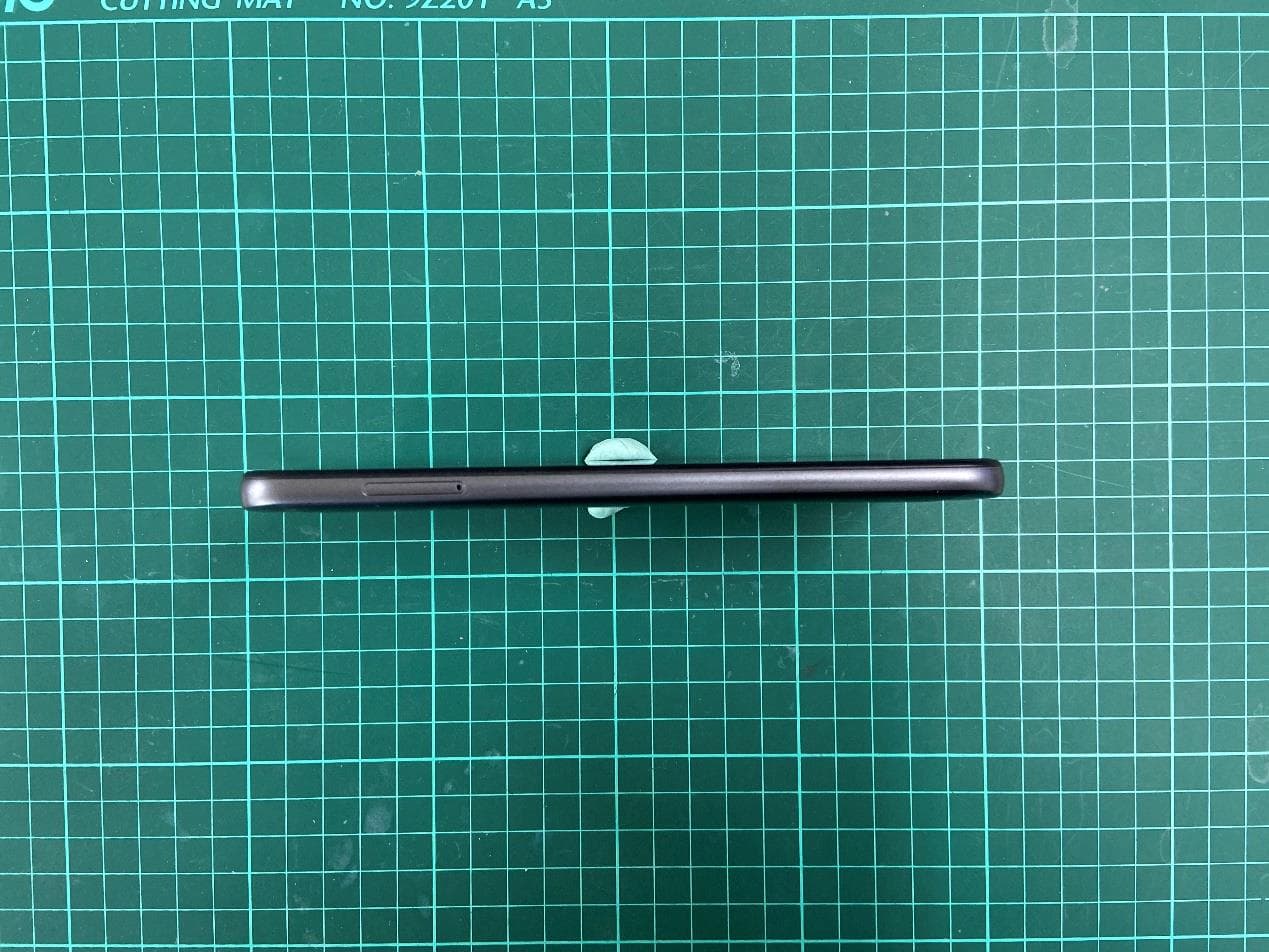

External Photos

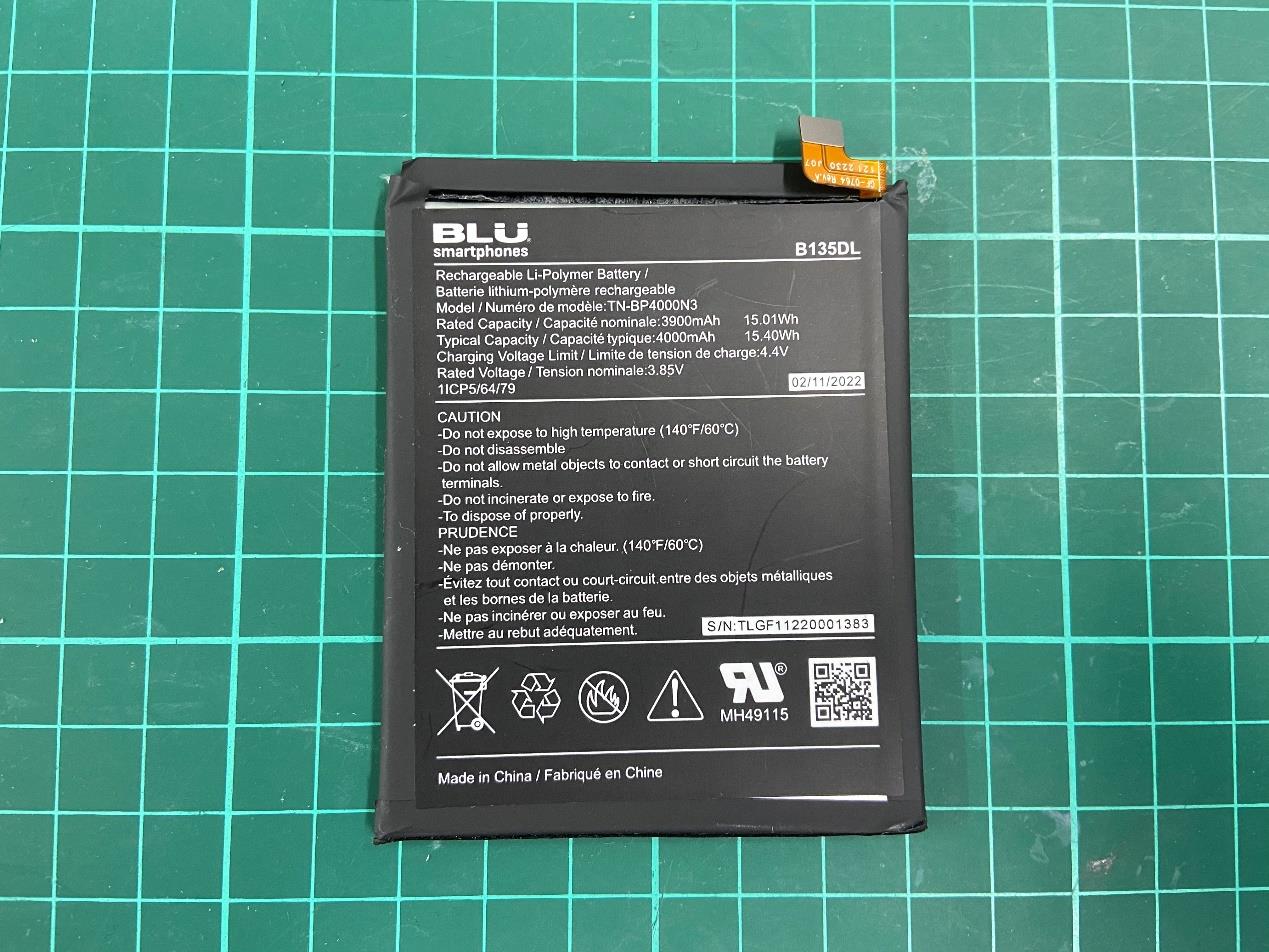

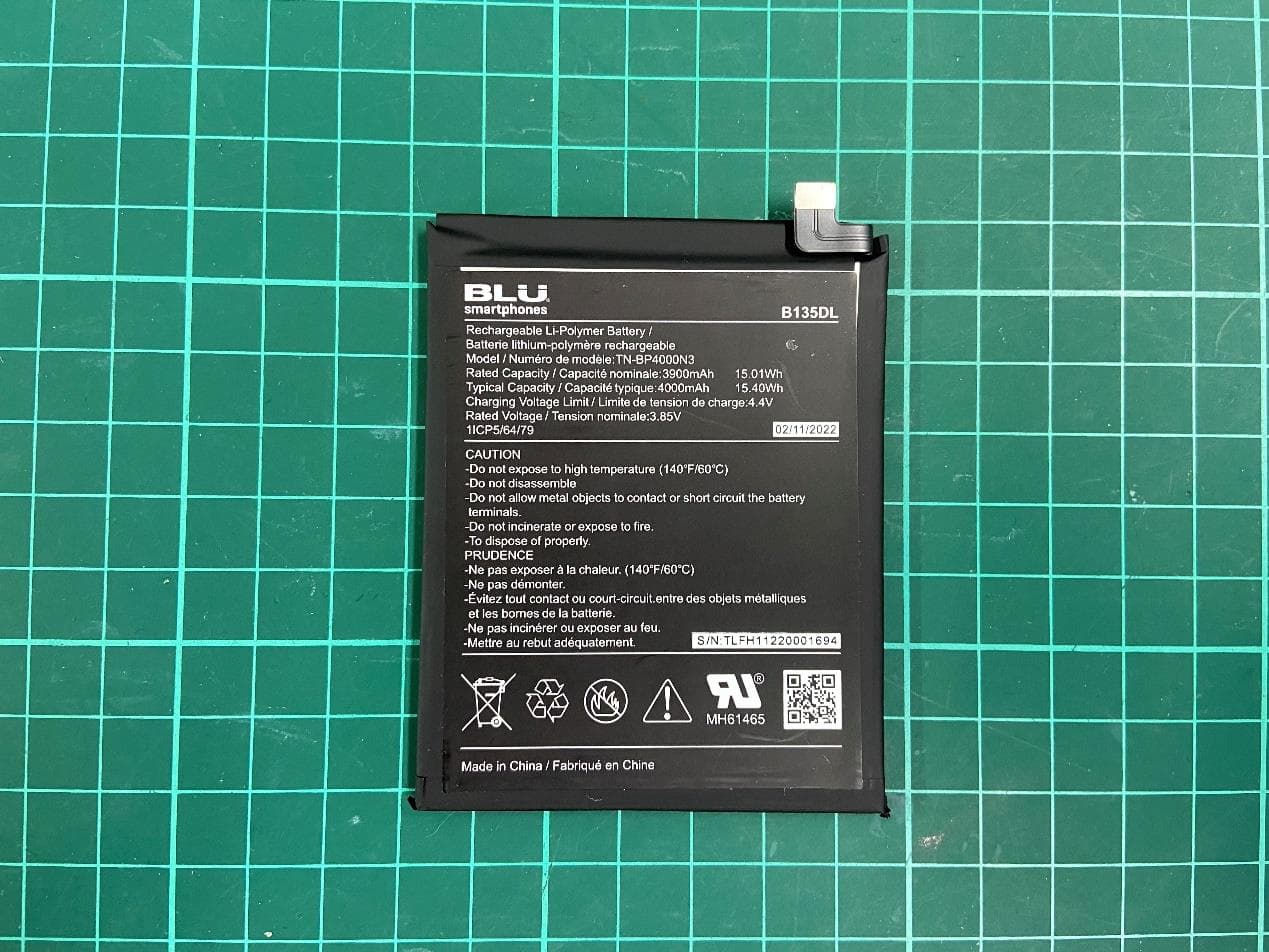

TN-BP4000N3 GUANGDONG FENGHUA NEW ENERGY CO.,LTD. TN-BP4000N3 GUANGDONG FENGHUA NEW ENERGY CO.,LTD. TN-BP4000N3 Dongguan Ganfeng Electronics Co., Ltd TN-BP4000N3 Dongguan Ganfeng Electronics Co., Ltd TN-BP4000N3 FENGHUA TN-BP4000N3 FENGHUA TN-BP4000N3 Ganfeng TN-BP4000N3 Ganfeng TN-050200U3 Dong Guan City GangQi Electronic Co.,Ltd. TN-050200U3 Guangdong Beicom Electronics Co., Ltd.

RF Exposure Info

TEST REPORT No.I22N02532-SAR For BLU Products,Inc. Smart phone Model Name: B135DL With Hardware Version: V1.0 Software Version: BLU_B135DL_V12.0.01.05.01.04 FCC ID: YHLBLUB135DL Issued Date: 2023-02-06 Designation Number: CN1210 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of SAICT. Test Laboratory: SAICT, Shenzhen Academy of Information and Communications Technology Building G, Shenzhen International Innovation Center, No.1006 Shennan Road, Futian District, Shenzhen, Guangdong, P. R. China 518000. Tel:+86(0)755-33322000, Fax:+86(0)755-33322001 Email: [email protected]. www.saict.ac.cn No.I22N02532-SAR ©Copyright. All rights reserved by SAICT Page 2 of 272 REPORT HISTORY Report Number Revision Description Issue Date I22N02532-SAR Rev.0 1st edition 2023-02-06 No.I22N02532-SAR ©Copyright. All rights reserved by SAICT Page 3 of 272 CONTENTS 1. SUMMARY OF TEST REPORT .......................................................................................................... 5 1.1. TEST ITEMS .................................................................................................................................... 5 1.2. TEST STANDARDS ........................................................................................................................... 5 1.3. TEST RESULT .................................................................................................................................. 5 1.4. TESTING LOCATION ......................................................................................................................... 5 1.5. PROJECT DATA ............................................................................................................................... 5 1.6. SIGNATURE ..................................................................................................................................... 5 2. STATEMENT OF COMPLIANCE ........................................................................................................ 6 3. CLIENT INFORMATION ...................................................................................................................... 8 3.1. APPLICANT INFORMATION ................................................................................................................. 8 3.2. MANUFACTURER INFORMATION ........................................................................................................ 8 4. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ........................................ 9 4.1. ABOUT EUT .................................................................................................................................... 9 4.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ............................................................. 10 4.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ................................................................ 10 5. TEST METHODOLOGY .................................................................................................................... 11 5.1. APPLICABLE LIMIT REGULATIONS..................................................................................................... 11 5.2. APPLICABLE MEASUREMENT STANDARDS ........................................................................................ 11 6. SPECIFIC ABSORPTION RATE (SAR) ............................................................................................ 12 6.1. INTRODUCTION .............................................................................................................................. 12 6.2. SAR DEFINITION ........................................................................................................................... 12 7. TISSUE SIMULATING LIQUIDS ....................................................................................................... 13 7.1. TARGETS FOR TISSUE SIMULATING LIQUID ....................................................................................... 13 7.2. DIELECTRIC PERFORMANCE .......................................................................................................... 13 8. SYSTEM VERIFICATION .................................................................................................................. 18 8.1. SYSTEM SETUP ............................................................................................................................. 18 8.2. SYSTEM VERIFICATION .................................................................................................................. 19 9. MEASUREMENT PROCEDURES .................................................................................................... 20 9.1. TESTS TO BE PERFORMED .............................................................................................................. 20 9.2. GENERAL MEASUREMENT PROCEDURE .......................................................................................... 22 9.3. WCDMA MEASUREMENT PROCEDURES FOR SAR ......................................................................... 23 9.4. SAR MEASUREMENT FOR LTE ....................................................................................................... 24 9.5. LTE (TDD) CONSIDERATIONS ........................................................................................................ 25 9.6. BLUETOOTH & WLAN MEASUREMENT PROCEDURES FOR SAR ....................................................... 26 9.7. POWER DRIFT ............................................................................................................................... 26 No.I22N02532-SAR ©Copyright. All rights reserved by SAICT Page 4 of 272 10. CONDUCTED OUTPUT POWER.................................................................................................... 27 10.1. GSM ME…

Text truncated - open the document above for the full version.

RF Exposure Info

No.I22N02532-SAR ©Copyright. All rights reserved by SAICT Page 74 of 272 Power Level A1 LTE Band 41 PC2 Actual output Power (dBm) Tune up Band -width RB No. / RB offset Frequency (MHz) Modulation Modulation QPSK 16QAM 64QAM QPSK 16QAM 64QAM 5 MHz 1RB_24 2687.5 26.18 25.27 24.12 27.0 26.0 25.0 2640.3 26.07 25.21 24.15 2593.0 26.05 25.21 24.13 2545.8 26.03 25.23 24.12 2498.5 26.04 25.21 24.15 1RB_12 2687.5 26.19 25.30 24.11 2640.3 26.12 25.21 24.12 2593.0 26.08 25.23 24.11 2545.8 26.05 25.21 24.11 2498.5 26.06 25.21 24.12 1RB_0 2687.5 26.18 25.31 24.16 2640.3 26.09 25.22 24.16 2593.0 26.05 25.23 24.14 2545.8 26.02 25.20 24.14 2498.5 26.06 25.24 24.15 12RB_13 2687.5 25.27 24.28 23.16 26.0 25.0 24.0 2640.3 25.16 24.19 23.19 2593.0 25.13 24.16 23.17 2545.8 25.12 24.11 23.16 2498.5 25.11 24.13 23.17 12RB_6 2687.5 25.30 24.29 23.17 2640.3 25.19 24.18 23.20 2593.0 25.18 24.20 23.19 2545.8 25.15 24.16 23.18 2498.5 25.12 24.16 23.18 12RB_0 2687.5 25.26 24.28 23.16 2640.3 25.18 24.19 23.19 2593.0 25.17 24.17 23.18 2545.8 25.12 24.13 23.17 2498.5 25.09 24.16 23.17 25RB_0 2687.5 25.30 24.32 23.20 2640.3 25.16 24.21 23.23 2593.0 25.17 24.21 23.23 2545.8 25.14 24.18 23.22 2498.5 25.12 24.20 23.20 No.I22N02532-SAR ©Copyright. All rights reserved by SAICT Page 75 of 272 Power Level A1 LTE Band 41 PC2 Actual output Power (dBm) Tune up Band -width RB No. / RB offset Frequency (MHz) Modulation Modulation QPSK 16QAM 64QAM QPSK 16QAM 64QAM 10 MHz 1RB_49 2685.0 26.21 25.33 24.24 27.0 26.0 25.0 2639.0 26.11 25.28 24.16 2593.0 26.10 25.26 24.18 2547.0 26.06 25.24 24.12 2501.0 26.05 25.25 24.15 1RB_24 2685.0 26.25 25.38 24.31 2639.0 26.15 25.32 24.22 2593.0 26.13 25.33 24.21 2547.0 26.11 25.30 24.17 2501.0 26.12 25.29 24.18 1RB_0 2685.0 26.22 25.35 24.28 2639.0 26.14 25.30 24.19 2593.0 26.12 25.28 24.19 2547.0 26.09 25.26 24.16 2501.0 26.11 25.28 24.15 25RB_25 2685.0 25.32 24.36 23.37 26.0 25.0 24.0 2639.0 25.22 24.27 23.30 2593.0 25.19 24.23 23.24 2547.0 25.18 24.25 23.26 2501.0 25.16 24.24 23.25 25RB_12 2685.0 25.34 24.36 23.40 2639.0 25.26 24.28 23.31 2593.0 25.23 24.28 23.30 2547.0 25.19 24.22 23.30 2501.0 25.18 24.27 23.26 25RB_0 2685.0 25.35 24.38 23.38 2639.0 25.25 24.28 23.31 2593.0 25.25 24.28 23.31 2547.0 25.23 24.25 23.31 2501.0 25.19 24.28 23.28 50RB_0 2685.0 25.37 24.39 23.35 2639.0 25.29 24.25 23.24 2593.0 25.24 24.25 23.21 2547.0 25.20 24.25 23.22 2501.0 25.21 24.25 23.21 No.I22N02532-SAR ©Copyright. All rights reserved by SAICT Page 76 of 272 Power Level A1 LTE Band 41 PC2 Actual output Power (dBm) Tune up Band -width RB No. / RB offset Frequency (MHz) Modulation Modulation QPSK 16QAM 64QAM QPSK 16QAM 64QAM 15 MHz 1RB_74 2682.5 26.11 25.22 24.17 27.0 26.0 25.0 2637.8 26.02 25.20 24.10 2593.0 26.04 25.20 24.08 2548.3 26.01 25.18 24.13 2503.5 25.99 25.20 24.09 1RB_37 2682.5 26.15 25.30 24.24 2637.8 26.06 25.23 24.15 2593.0 26.08 25.23 24.12 2548.3 26.04 25.21 24.11 2503.5 26.03 25.21 24.12 1RB_0 2682.5 26.14 25.31 24.22 2637.8 26.07 25.22 24.14 2593.0 26.08 25.27 24.16 2548.3 26.04 25.25 24.14 2503.5 26.06 25.22 24.11 36RB_38 2682.5 25.31 24.24 23.21 26.0 25.0 24.0 2637.8 25.17 24.15 23.09 2593.0 25.19 24.11 23.11 2548.3 25.15 24.11 23.12 2503.5 25.11 24.10 23.08 36RB_19 2682.5 25.31 24.26 23.26 2637.8 25.22 24.17 23.18 2593.0 25.21 24.17 23.14 2548.3 25.18 24.14 23.15 2503.5 25.18 24.15 23.14 36RB_0 2682.5 25.32 24.28 23.25 2637.8 25.25 24.21 23.20 2593.0 25.18 24.17 23.16 2548.3 25.17 24.12 23.15 2503.5 25.18 24.11 23.15 75RB_0 2682.5 25.31 24.29 23.26 2637.8 25.21 24.22 23.20 2593.0 25.17 24.22 23.15 2548.3 25.17 24.18 23.17 2503.5 25.15 24.15 23.14 No.I22N02532-SAR ©Copyright. All rights reserved by SAICT Page 77 of 272 Power Level A1 LTE Band 41 PC2 Actual output Power (dBm) Tune up Band -width RB No. / RB offset Frequency (MHz) Modulation Modulation QPSK 16QAM 64QAM QPSK 16QAM 64QAM 20 MHz 1RB_99 2680.0 26.08 25.22 24.13 27.0 26.0 25.0 2636.5 26.00 25.16 24.08 2593.0 26.03 25.24 24.08 2549.5 26.03 25.21 24.12 2506.0 25.97 25.15 24.03 1RB_50 2680.0 26.23 25.35 24.25 2636.5 26.12 25.30 24.19 2593.0 26.13 25.31 24.20 2549.5 26.10 25.30 24.18 2506.0 26.12 25.27 24.18 1RB_0 2680.0 26.14 25.29 24.21 2636.5 26.07 25.22 24.14 2593.0 26.03 25.20 24.09 2549.5 26.03 25.23 24.10 2506.0 26.07 25.22 24.10 50RB_50 2680.0 25.27 24.27 23.25 26.0 25.0 24.0 2636.5 25.16 24.15 23.11 2593.0 25.19 24.21 23.14 2549.5 25.17 24.16 23.14 2506.0 25.09 24.11 23.06 50RB_25 2680.0 25.35 24.34 23.29 2636.5 25.26 24.23 23.17 2593.0 25.21 24.23 23.20 2549.5 25.19 24.22 23.19 2506.0 25.16 24.21 23.14 50RB_0 2680.0 25.25 24.31 23.29 2636.5 25.25 24.27 23.19 2593.0 25.17 24.22 23.15 2549.5 25.18 24.22 23.15 2506.0 25.16 24.22 23.15 100RB_0 2680.0 25.37 24.32 23.25 2636.5 25.21 24.26 23.18 2593.0 25.21 24.25 23.15 2549.5 25.18 24.15 23.14 2506.0 25.14 24.16 23.12 No.I22N02532-SAR ©Copyright. All rights reserved by SAICT Page 78 of 272 Power Level B1 LTE Band 41 PC2 Actual output Power (dBm) Tune up Band -width RB No. / RB offset Frequency (MHz) Modulation Modulation QPSK 16QAM 64QAM QPSK 16QAM 64QAM 5 MHz 1RB_24 2687.5 22.44 22.63 22.48 23.5 23.5 23.5 2640.3 22.34 22.56 22.40 2593.0 22.34 22.53 22.41 2545.8 22.31 22.52 22.38 2498.5 22.29 22.53 22.38 1RB_12 2687.5 22.42 22.65 22.46 2640.3 22.36 22.56 22.39 2593.0 22.31 22.53 22.38 2545.8 22.25 22.53 22.36 2498.5 22.21 22.50 22.31 1RB_0 2687.5 22.45 22.64 22.51 2640.3 22.37 22.59 22.42 2593.0 22.33 22.56 22.44 2545.8 22.29 22.53 22.40 2498.5 22.32 22.55 22.40 12RB_13 2687.5 22.44 22.48 22.52 23.5 23.5 23.5 2640.3 22.36 22.41 22.41 2593.0 22.33 22.37 22.40 2545.8 22.29 22.37 22.39 2498.5 22.33 22.36 22.38 12RB_6 2687.5 22.45 22.49 22.51 2640.3 22.39 22.42 22.43 2593.0 22.36 22.37 22.38 2545.8 22.36 22.40 22.38 2498.5 22.31 22.37 22.37 12RB_0 2687.5 22.46 22.49 22.52 2640.3 22.38 22.41 22.42 2593.0 22.35 22.36 22.39 2545.8 22.33 22.36 22.36 2498.5 22.27 22.35 22.37 25RB_0 2687.5 22.46 22.52 22.52 2640.3 22.37 22.46 22.46 2593.0 22.34 22.41 22.43 2545.8 22.32 22.41 22.41 2498.5 22.35 …

Text truncated - open the document above for the full version.

RF Exposure Info

No.I22N02532-SAR ©Copyright. All rights reserved by SAICT Page 134 of 272 Table 13.22: SAR Values (LTE Band 41 PC2 - Body) Frequency Test Mode Test Position Figure No./ Note Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift(dB) Ch. MHz Hotspot Test Data (10mm) - Power Level B1 41490 2680.0 1RB50 Front / 22.51 23.5 0.324 0.41 -0.02 41490 2680.0 50RB25 Front / 22.45 23.5 0.319 0.41 0.08 41490 2680.0 1RB50 Rear / 22.51 23.5 0.744 0.93 0.09 41490 2680.0 50RB25 Rear / 22.45 23.5 0.701 0.89 0.17 41490 2680.0 1RB50 Left / 22.51 23.5 0.045 0.06 0.03 41490 2680.0 50RB25 Left / 22.45 23.5 0.042 0.05 0.14 41490 2680.0 1RB50 Right / 22.51 23.5 0.066 0.08 0.11 41490 2680.0 50RB25 Right / 22.45 23.5 0.057 0.07 0.05 41490 2680.0 1RB50 Bottom / 22.51 23.5 0.858 1.08 0.01 41490 2680.0 50RB25 Bottom / 22.45 23.5 0.758 0.97 0.16 41055 2636.5 1RB50 Rear / 22.44 23.5 0.632 0.81 -0.18 40620 2593.0 1RB50 Rear / 22.39 23.5 0.647 0.84 -0.08 40185 2549.5 1RB50 Rear / 22.33 23.5 0.712 0.93 0.00 39750 2506.0 1RB50 Rear / 22.37 23.5 0.565 0.73 -0.18 41055 2636.5 50RB25 Rear / 22.40 23.5 0.753 0.97 -0.05 40620 2593.0 50RB25 Rear / 22.36 23.5 0.793 1.03 0.07 40185 2549.5 50RB25 Rear / 22.34 23.5 0.904 1.18 0.17 39750 2506.0 50RB25 Rear / 22.34 23.5 0.712 0.93 0.18 41055 2636.5 1RB50 Bottom / 22.44 23.5 0.729 0.93 -0.02 40620 2593.0 1RB50 Bottom / 22.39 23.5 0.746 0.96 -0.19 40185 2549.5 1RB50 Bottom / 22.33 23.5 0.844 1.10 0.12 39750 2506.0 1RB50 Bottom / 22.37 23.5 0.652 0.85 -0.14 41055 2636.5 50RB25 Bottom / 22.40 23.5 0.868 1.12 0.10 40620 2593.0 50RB25 Bottom / 22.36 23.5 0.914 1.19 0.17 40185 2549.5 50RB25 Bottom 22 22.34 23.5 0.953 1.24 -0.19 39750 2506.0 50RB25 Bottom / 22.34 23.5 0.821 1.07 0.17 40620 2593.0 100RB0 Bottom / 22.40 23.5 0.916 1.18 0.03 40185 2549.5 1RB50 Bottom B2 22.33 23.5 0.833 1.09 0.12 Body-Worn Test Data (15mm) - Power Level C1 41490 2680.0 1RB50 Front / 23.45 24.0 0.206 0.23 0.02 41490 2680.0 50RB25 Front / 23.49 24.0 0.231 0.26 -0.14 41490 2680.0 1RB50 Rear / 23.45 24.0 0.415 0.47 -0.15 41490 2680.0 50RB25 Rear / 23.49 24.0 0.429 0.48 0.02 41490 2680.0 50RB25 Rear B2 23.49 24.0 0.421 0.47 0.06 No.I22N02532-SAR ©Copyright. All rights reserved by SAICT Page 135 of 272 Table 13.23: SAR Values (LTE Band 66 - Head) Frequency Test Mode Test Position Figure No./ Note Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift(dB) Ch. MHz Power Level A1 132572 1770.0 1RB50 Left Cheek / 22.97 24.0 0.171 0.22 -0.18 132572 1770.0 50RB25 Left Cheek / 21.96 23.0 0.142 0.18 0.04 132572 1770.0 1RB50 Left Tilt / 22.97 24.0 0.147 0.19 0.02 132572 1770.0 50RB25 Left Tilt / 21.96 23.0 0.116 0.15 -0.18 132572 1770.0 1RB50 Right Cheek 23 22.97 24.0 0.261 0.33 -0.07 132572 1770.0 50RB25 Right Cheek / 21.96 23.0 0.181 0.23 0.03 132572 1770.0 1RB50 Right Tilt / 22.97 24.0 0.124 0.16 0.04 132572 1770.0 50RB25 Right Tilt / 21.96 23.0 0.095 0.12 0.00 132572 1770.0 1RB50 Right Cheek B2 22.97 24.0 0.256 0.32 0.12 The worst case with CA_66B & CA_66C 132022 1715.0 CA_66B Right Cheek / 22.88 24.0 0.236 0.31 0.05 132572 1770.0 CA_66C Right Cheek / 22.91 24.0 0.252 0.32 0.08 Note: SAR for LTE Band 4 is covered by LTE Band 66 due to similar frequency range, same maximum tune-up limit and same channel bandwidth. No.I22N02532-SAR ©Copyright. All rights reserved by SAICT Page 136 of 272 Table 13.24: SAR Values (LTE Band 66 - Body) Frequency Test Mode Test Position Figure No./ Note Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR(1g) (W/kg) Reported SAR(1g) (W/kg) Power Drift(dB) Ch. MHz Hotspot Test Data (10mm) - Power Level B1 132572 1770.0 1RB50 Front / 18.06 19.5 0.305 0.42 -0.13 132572 1770.0 50RB25 Front / 18.10 19.5 0.301 0.42 -0.07 132572 1770.0 1RB50 Rear / 18.06 19.5 0.535 0.75 -0.06 132572 1770.0 50RB25 Rear / 18.10 19.5 0.528 0.73 -0.20 132572 1770.0 1RB50 Left / 18.06 19.5 0.066 0.09 -0.03 132572 1770.0 50RB25 Left / 18.10 19.5 0.065 0.09 -0.10 132572 1770.0 1RB50 Right / 18.06 19.5 0.079 0.11 0.07 132572 1770.0 50RB25 Right / 18.10 19.5 0.078 0.11 -0.11 132572 1770.0 1RB50 Bottom / 18.06 19.5 0.667 0.93 -0.13 132572 1770.0 50RB25 Bottom / 18.10 19.5 0.658 0.91 -0.03 132322 1745.0 1RB50 Bottom / 18.03 19.5 0.726 1.02 0.16 132072 1720.0 1RB50 Bottom 24 17.98 19.5 0.793 1.13 -0.04 132322 1745.0 50RB25 Bottom / 18.09 19.5 0.688 0.95 0.01 132072 1720.0 50RB25 Bottom / 18.01 19.5 0.774 1.09 0.18 132572 1770.0 100RB Bottom / 18.03 19.5 0.632 0.89 0.02 132072 1720.0 1RB50 Bottom B2 17.98 19.5 0.792 1.12 0.06 Hotspot Test Data (10mm) - The worst case with CA_66B & CA_66C 132022 1715.0 CA_66B Bottom / 17.94 19.5 0.761 1.09 0.08 132572 1770.0 CA_66C Bottom / 17.99 19.5 0.784 1.11 0.01 Body-Worn Test Data (15mm) - Power Level C1 132572 1770.0 1RB50 Front / 21.04 22.5 0.243 0.34 0.02 132572 1770.0 50RB25 Front / 21.12 22.5 0.239 0.33 -0.12 132572 1770.0 1RB50 Rear / 21.04 22.5 0.471 0.66 -0.08 132572 1770.0 50RB25 Rear / 21.12 22.5 0.467 0.64 0.15 132572 1770.0 1RB50 Rear B2 21.04 22.5 0.467 0.65 0.07 Body-Worn Test Data (15mm) - The worst case with CA_66B & CA_66C 132022 1715.0 CA_66B Rear / 20.95 22.5 0.447 0.64 -0.06 132572 1770.0 CA_66C Rear / 20.98 22.5 0.438 0.62 0.07 Note: SAR for LTE Band 4 is covered by LTE Band 66 due to similar frequency range, same maximum tune-up limit and same channel bandwidth. No.I22N02532-SAR ©Copyright. All rights reserved by SAICT Page 137 of 272 Table 13.25: SAR Values (LTE Band 71 - Head) Frequency Test Mode Test Position Figure No./ Note Conducted Power (dBm) Max. tune-up Power (dBm) Measured SAR…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Wei Zeng(Senior Manager)

[email protected]3057157171Fax: 3054368819

Technical Contact

CTTLXue Zhen

[email protected]86-62304633

No. 52, Huayuan Bei Road, Haidian District, · Beijing · China

Test Firm

Telecommunication Technology Labs, CAICTYaqin Shen

[email protected]8610-62304633Fax: 8610-62300586

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.41 GHz - 2.46 GHz	411.10 mW

Confidentiality

Long Term

Grant Notes

Power output is conducted. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 15 mm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router) and simultaneous transmission exposure conditions are 1.15 W/kg, 0.24 W/kg, 0.69 W/kg and 1.59W/kg, respectively. This device also contains Bluetooth, 5GHz WLAN and GSM/WCDMA/LTE transmitters. This device only supports 20 MHz BW modes in 2.4G WLAN transmitter. HAC Rating: M4/T3 -2011.
