YHLBLUC5L20Mobile Phone

1 C5L 2020 USER MANUAL 2 Table of Contents Safety Information .................................................................................................... 4 Appearance and Key Function ................................................................................ 7 Introduction .............................................................................................................. 10 Call Functions ......................................................................................................... 12 Notifications Bar ...................................................................................................... 14 Contacts ................................................................................................................... 16 Messaging ............................................................................................................... 20 Bluetooth & Wi-Fi .................................................................................................... 22 3 Downloads ............................................................................................................... 23 Opera Mini ................................................................................................................ 24 Gmail ........................................................................................................................ 25 Play Store ................................................................................................................ 26 Camera .................................................................................................................... 28 Music ........................................................................................................................ 31 FM Radio ................................................................................................................. 33 Sound Recorder ...................................................................................................... 35 File Manager ........................................................................................................... 37 Calendar .................................................................................................................. 38 Alarm Clock ............................................................................................................. 39 Settings .................................................................................................................... 40 4 Storage ..................................................................................................................... 45 Troubleshooting ...................................................................................................... 46 Safety Information Please carefully read the terms below: Use Safely Do not use the phone in situations where it might cause danger. Transportation Safety Please observe all transportation laws and regulations. Please drive with both hands on the wheel. PLEASE DRIVE RESPONSIBLY - DO NOT TEXT AND DRIVE Hospital Safety Please follow hospital rules and limitations. Please turn off your mobile phone when near medical instruments. Airport Safety Remember to follow all airport and flight safety regulations. 5 Please do not use your phone during flight. Chemical Warning Do not use your mobile phone around fuels or chemicals. Temperature Warning Do not subject your phone to extreme temperature conditions. Water Hazard Your phone is not waterproof. Keep your phone away from water or liquid to avoid damage. Emergency Calls Make sure your mobile phone is switched on and in a service area. In home screen, tap the phone key and dial the emergency number. Accessories and Batteries Use only Blu authorized batteries and accessories. Information Backup Remember to keep a written record of all important information. Battery Safety and Precautions - For better performance and longer battery life, it is recommended that you charge the battery fully before using the mobile phone for the first time. 6 - The optimum performance of a new battery is typically achieved after two or three complete charge cycles. Note: Keep in mind that continuous overcharging will affect long term battery life. - While charging, keep the mobile phone out the reach of children. - Store the battery in a cool and dry place away from direct sunlight and water. - Do not expose batteries to extreme temperatures (below -8°C (18°F) or above 43°C (110°F). - Immediately stop using the battery if it produces an odor, cracks and leaks, overheats, distorts or has any other type of physical damage. - Avoid using the charger near or around liquids. If the charger comes in contact with water or any liquids, immediately unplug it from the outlet to reduce the risk of overheating, charger malfunction, electric shock or fire. Warning: Please be careful with the disposal of used batteries. Do not throw away batteries with daily waste. Please follow local environmental laws and guidelines for proper waste disposal. Cleaning and Maintenance - Avoid using the handset and accessories in excessively moist areas to avoid malfunction. - Use a soft, dry cloth to clean the handset, battery and charger. - Do not use alcohol, thinner, benzene or any other solvent to clean the handset. 7 Appearance and Key Function 8 Volume Power Back Home Menu Front Camera 9 Rear Camera Speaker Flash 10 Introduction Installation of the SIM Card Warning: Please keep the SIM card out of the reach of children. The SIM card and its contact are easily damaged due to scratching or bending. Please use caution when carrying, installing or taking out the SIM card. NB: Please contact your cellular phone service provider directly to obtain your SIM card. To insert SIM card: 1. Remove the card slot. Insert the SIM card. 2. Insert the SD card. (For additional storage capacity) 3.Insert card slot, and power on phone. 11 Memory card Slot 1 Slot 2 1…

Text truncated - open the document above for the full version.

BLU Products, Inc. 10814 NW 33rd St # 100 Doral, FL 33172 ,USA Date: 2020/06/23 Declaration of Differences We the undersigned hereby confirm that any of our production units (FCC ID :YHLBLUC5L20) bearing the following model numbers are identical in circuitry and electrical; The difference is that the back cover of mobile phone looks different and the memory is different. Production name Trade Mark Model No. Differences Mobile Phone BLU C5L 2020 1.Design of back cover 2.Storage 16G Mobile Phone BLU J5L 1.Design of back cover 2.Storage 32G Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, -------------------- Signature Contact Person: Wei Zeng Company: BLU Products, Inc. E-mail: [email protected]

C5266091_X8_Ed.1 1/1 BLU Products, Inc. Letter of Authorization Company: BLU Products, Inc. Address: 10814 NW 33rd St # 100 Doral, FL 33172 ,USA Product Name: Mobile Phone Model Number: C5L 2020 FCC Identifier: YHLBLUC5L20 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Wei Zeng Date: 2020/7/15 Title: Senior Manager Signature of applicant:

C5266091_X10_Ed.1 1/1 BLU Products, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2020/7/15 Subject: Request for Confidentiality FCC ID: YHLBLUC5L20 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wei Zeng Title: Senior Manager

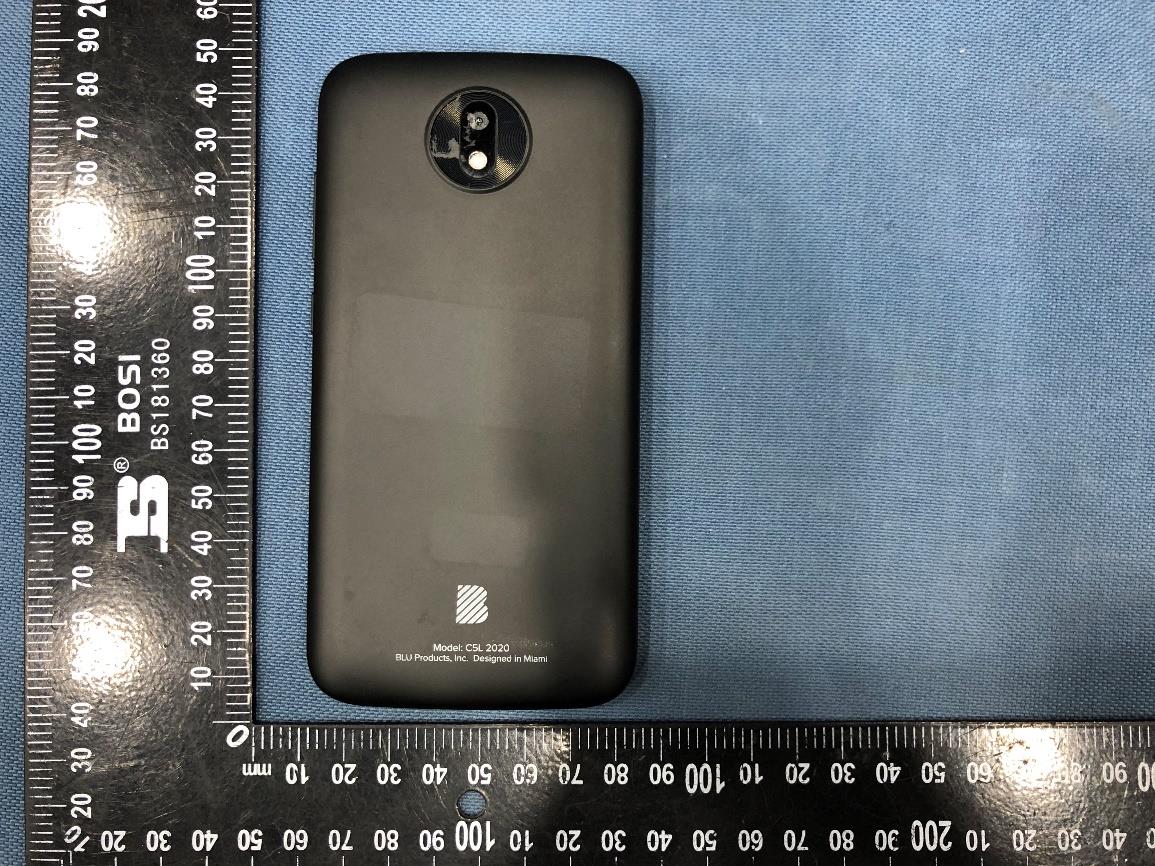

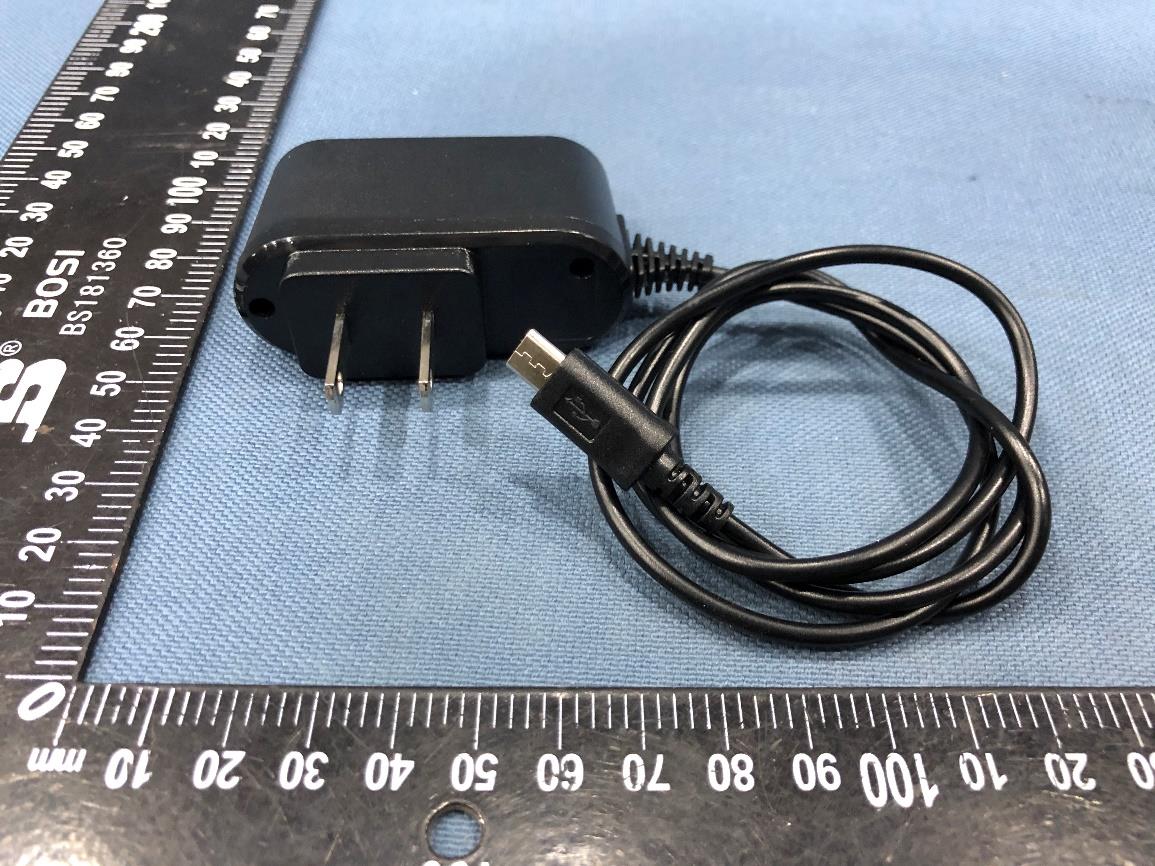

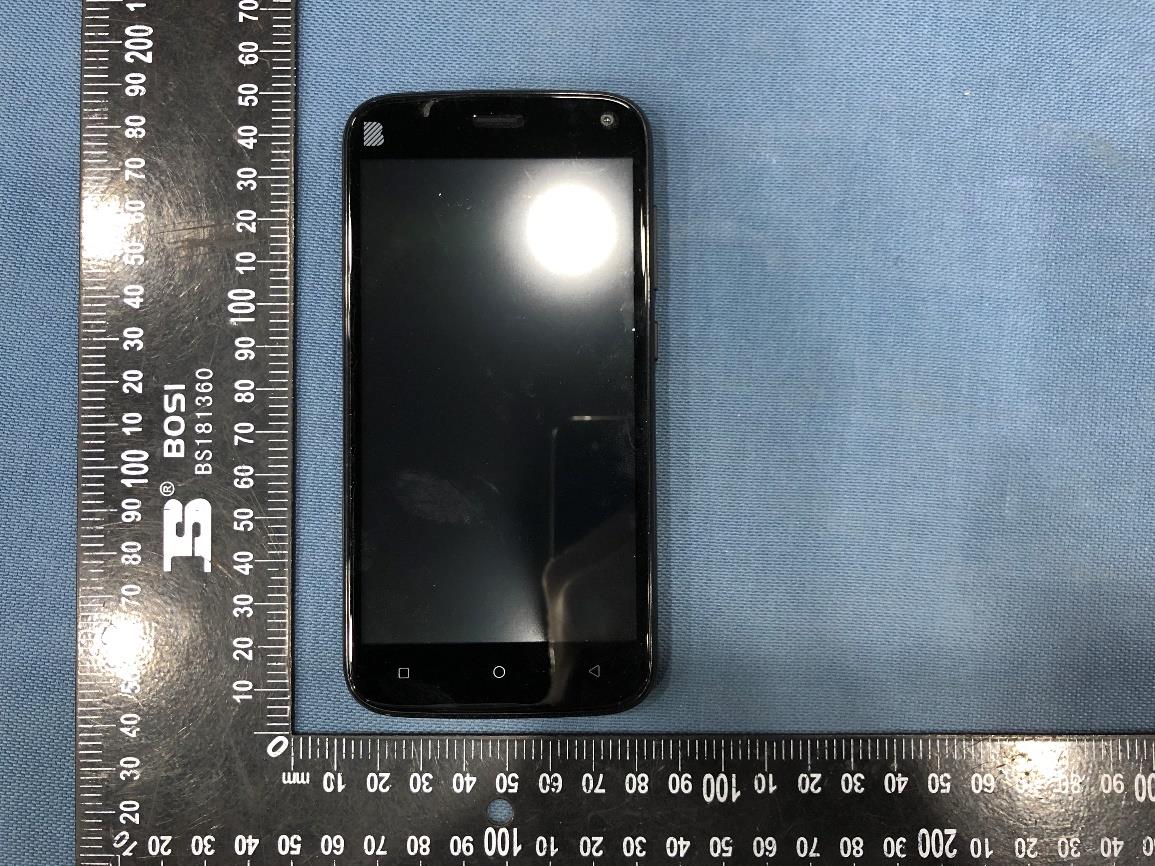

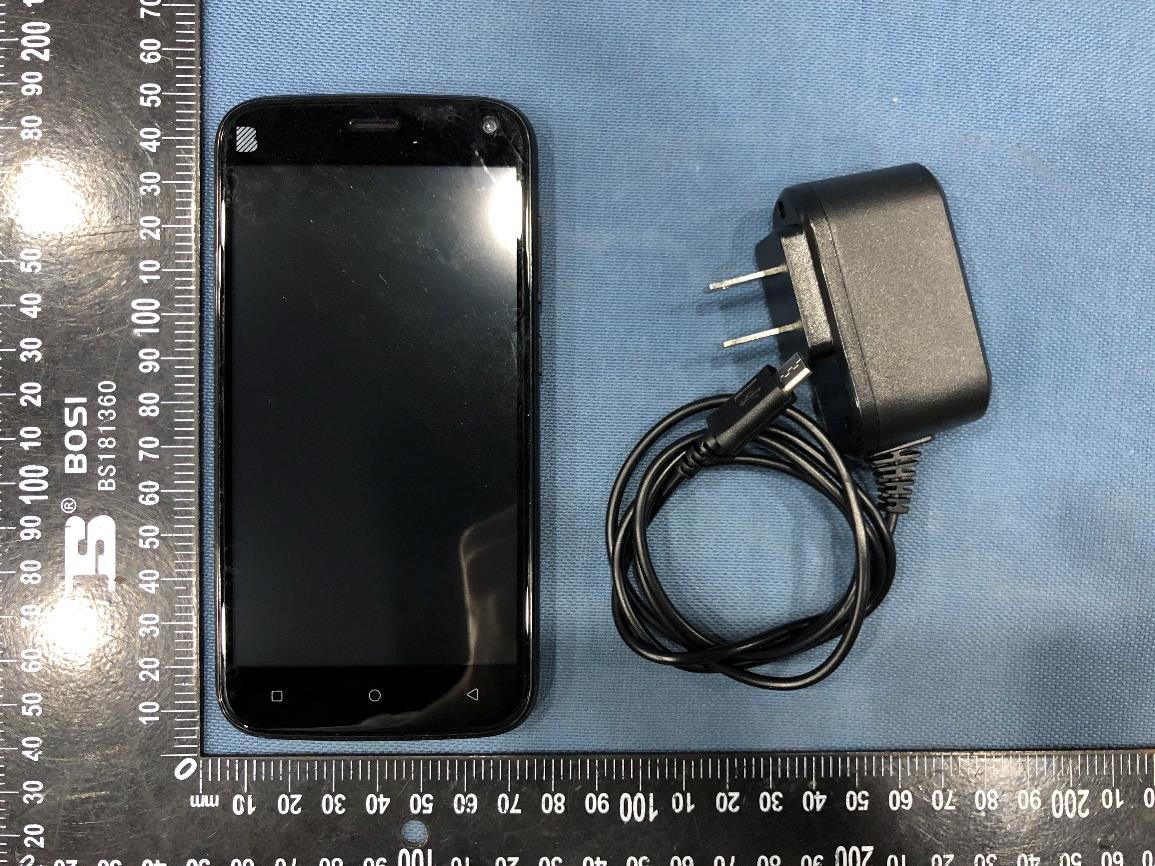

Page 1 of 5 FCC ID: YHLBLUC5L20 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 5 FCC ID: YHLBLUC5L20 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 5 FCC ID: YHLBLUC5L20 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo(J5L) EUT Photo Camera appearance difference Page 4 of 5 FCC ID: YHLBLUC5L20 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 5 FCC ID: YHLBLUC5L20 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo

Label Location

Page 1 of 7 FCC ID: YHLBLUC5L20 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo 2.4G WIFI/BT Antenna GSM/WCDMA/ LTE Antenna LTE (AUX) Antenna Page 2 of 7 FCC ID: YHLBLUC5L20 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 7 FCC ID: YHLBLUC5L20 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 7 FCC ID: YHLBLUC5L20 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 7 FCC ID: YHLBLUC5L20 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 6 of 7 FCC ID: YHLBLUC5L20 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 7 of 7 FCC ID: YHLBLUC5L20 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

Page 2 of 55 Report No.: 200609003SAR-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com Version Version No. Date Description V1.0 July 10, 2020 Original Page 3 of 55 Report No.: 200609003SAR-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com Contents Page 1 GENERAL INFORMATION ............................................................................................................................. 5 1.1 STATEMENT OF COMPLIANCE .......................................................................................................... 5 1.2 EUT DESCRIPTION .............................................................................................................................. 6 1.2.1 General Description ...................................................................................................................... 6 1.2.2 Wireless Technologies .................................................................................................................. 7 1.2.3 List of Accessory ........................................................................................................................... 8 1.3 MAXIMUM CONDUCTED POWER ...................................................................................................... 9 1.4 OTHER INFORMATION ...................................................................................................................... 10 1.5 TESTING LOCATION ......................................................................................................................... 10 1.6 TEST FACILITY .................................................................................................................................. 10 1.7 GUIDANCE STANDARD .................................................................................................................... 11 2 SPECIFIC ABSORPTION RATE (SAR) ........................................................................................................ 12 2.1 INTRODUCTION ................................................................................................................................. 12 2.2 SAR DEFINITION ................................................................................................................................ 12 2.3 SAR LIMITS ........................................................................................................................................ 12 3 SAR MEASUREMENT SYSTEM .................................................................................................................. 13 3.1 SPEAG DASY SYSTEM ..................................................................................................................... 13 3.1.1 Robot .......................................................................................................................................... 13 3.1.2 Probe .......................................................................................................................................... 14 3.1.3 Data Acquisition Electronics (DAE) ............................................................................................ 14 3.1.4 Phantom ..................................................................................................................................... 15 3.1.5 Device Holder ............................................................................................................................. 16 3.1.6 System Validation Dipoles .......................................................................................................... 16 3.2 SAR SCAN PROCEDURE .................................................................................................................. 17 3.2.1 SAR Reference Measurement (drift) .......................................................................................... 17 3.2.2 Area Scan ................................................................................................................................... 17 3.2.3 Zoom Scan ................................................................................................................................. 17 3.2.4 SAR Drift Measurement.............................................................................................................. 18 3.3 TEST EQUIPMENT ............................................................................................................................. 19 3.4 MEASUREMENT UNCERTAINTY ...................................................................................................... 20 3.5 TISSUE DIELECTRIC PARAMETER MEASUREMENT & SYSTEM VERIFICATION ...................... 21 3.5.1 Tissue Simulating Liquids ........................................................................................................... 21 3.5.2 System Check Description ......................................................................................................... 23 3.5.3 Tissue Verification....................................................................................................................... 24 3.5.4 System Verification ..................................................................................................................... 24 4 SAR MEASUREMENT EVALUATION .......................................................................................................... 25 4.1 EUT CONFIGURATION AND SETTING .....................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: UnionTrust Date: 2020/6/18 System Check_H835_10dBm DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835 Medium parameters used: f = 835 MHz; σ = 0.919 mho/m; ε r = 43.2; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.12, 6.12, 6.12); Calibrated: 2019/4/12 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 system check/Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.122 mW/g system check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.1 V/m; Power Drift = -0.011 dB Peak SAR (extrapolated) = 0.152 W/kg SAR(1 g) = 0.097 mW/g; SAR(10 g) = 0.071 mW/g Maximum value of SAR (measured) = 0.124 mW/g Test Laboratory: UnionTrust Date: 2020/6/23 System Check_H1750_10dBm DUT: Dipole 1750 MHz Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: H1750 Medium parameters used: f = 1750 MHz; σ = 1.41 mho/m; ε r = 41; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.38, 5.38, 5.38); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 2; Type: QD 000 P40 CB; Serial: TP-1376 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 system check/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.487 mW/g system check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.3 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.769 W/kg SAR(1 g) = 0.389 mW/g; SAR(10 g) = 0.196 mW/g Maximum value of SAR (measured) = 0.504 mW/g Test Laboratory: UnionTrust Date: 2020/7/1 System Check_H1900_10dBm DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900 Medium parameters used: f = 1900 MHz; σ = 1.46 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.1, 5.1, 5.1); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 2; Type: QD 000 P40 CB; Serial: TP-1376 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 system check/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.560 mW/g system check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.7 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.894 W/kg SAR(1 g) = 0.422 mW/g; SAR(10 g) = 0.214 mW/g Maximum value of SAR (measured) = 0.572 mW/g Test Laboratory: UnionTrust Date: 2020/6/22 System Check_H2450_10dBm DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H2450 Medium parameters used: f = 2450 MHz; σ = 1.78 mho/m; ε r = 40.2; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(4.61, 4.61, 4.61); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 2; Type: QD 000 P40 CB; Serial: TP-1376 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 system check/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.963 mW/g system check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.6 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 1.46 W/kg SAR(1 g) = 0.533 mW/g; SAR(10 g) = 0.330 mW/g Maximum value of SAR (measured) = 0.927 mW/g Test Laboratory: UnionTrust Date: 2020/6/22 System Check_H2600_10dBm DUT: Dipole 2600 MHz C ommunication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: H2600 Medium parameters used: f = 2600 MHz; σ = 2.03 mho/m; ε r = 37.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3142; ConvF(4.45, 4.45, 4.45); Calibrated: 2020/5/09 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1324; Calibrated: 2020/5/06 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 system check/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.915 mW/g system check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.52 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 0.586 mW/g; SAR(10 g) = 0.300 mW/g Maximum value of SAR (measured) = 0.868 mW/g

Test Laboratory: UnionTrust Date: 2020/6/18 P01_GSM850_GPRS10_Left Cheek_128 DUT: EUT Communication System: GPRS 850-2slots; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: H850 Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.908 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.13, 6.13, 6.13); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 Test/Area Scan (61x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.475 mW/g Test/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.1 V/m; Power Drift = -0.174 dB Peak SAR (extrapolated) = 0.558 W/kg SAR(1 g) = 0.427 mW/g; SAR(10 g) = 0.334 mW/g Maximum value of SAR (measured) = 0.474 mW/g Test Laboratory: UnionTrust Date: 2020/7/1 P02_GSM1900_GPRS11_Right Cheek_512 DUT: EUT Communication System: GPRS1900-3slots; Frequency: 1850.2 MHz;Duty Cycle: 1:2.67 Medium: H1900 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.41 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.1, 5.1, 5.1); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 Test/Area Scan (61x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.275 mW/g Test/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.19 V/m; Power Drift = -0.049 dB Peak SAR (extrapolated) = 0.381 W/kg SAR(1 g) = 0.232 mW/g; SAR(10 g) = 0.142 mW/g Maximum value of SAR (measured) = 0.263 mW/g Test Laboratory: UnionTrust Date: 2020/7/1 P03_WCDMA II_RMC12.2K_Right Cheek_9400 DUT: EUT Communication System: WCDMA Band II; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: H1900 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.1, 5.1, 5.1); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 Test/Area Scan (61x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.457 mW/g Test/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.71 V/m; Power Drift = 0.154 dB Peak SAR (extrapolated) = 0.632 W/kg SAR(1 g) = 0.387 mW/g; SAR(10 g) = 0.236 mW/g Maximum value of SAR (measured) = 0.444 mW/g Test Laboratory: UnionTrust Date: 2020/6/23 P04_WCDMA IV_RMC12.2K_Right Cheek_1312 DUT: EUT Communication System: WCDMA Band IV; Frequency: 1712.4 MHz;Duty Cycle: 1:1 Medium: H1750 Medium parameters used (interpolated): f = 1712.4 MHz; σ = 1.31 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.38, 5.38, 5.38); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 Test/Area Scan (61x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.319 mW/g Test/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.70 V/m; Power Drift = 0.137 dB Peak SAR (extrapolated) = 0.463 W/kg SAR(1 g) = 0.281 mW/g; SAR(10 g) = 0.174 mW/g Maximum value of SAR (measured) = 0.330 mW/g Test Laboratory: UnionTrust Date: 2020/6/18 P05_WCDMA V_RMC12.2K_Right Cheek_4132 DUT: EUT Communication System: WCDMA Band V; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium: H850 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.911 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.13, 6.13, 6.13); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 Test/Area Scan (61x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.558 mW/g Test/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.3 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.654 W/kg SAR(1 g) = 0.493 mW/g; SAR(10 g) = 0.377 mW/g Maximum value of SAR (measured) = 0.557 mW/g Test Laboratory: UnionTrust Date: 2020/7/1 P06_LTE 2_QPSK20M_Right Cheek_18900_1RB_0 Offset DUT: EUT Communication System: LTE Band 2; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: H1900 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.1, 5.1, 5.1); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 Test/Area Scan (61x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.445 mW/g Test/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.11 V/m; Power Drift = -0.078 dB Peak SAR (extrapolated) = 0.631 W/kg SAR(1 g) = 0.370 mW/g; SAR(10 g) = 0.223 mW/g Maximum value of SAR (measured) = 0.446 mW/g Test Laboratory: UnionTrust Date: 2020/6/23 P07_LTE 4_QPSK20M_Right Cheek_20300_1RB_99 Offset DUT: EUT Communication System: LTE Band 4&20M; Frequency: 1745 MHz;Duty Cycle: 1:1 Medium: H1750 Medium parameters used: f = 1745 MHz; σ = 1.41 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.38, 5.38, 5.38); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics:…
