YHLBLUC5LPSmart Phone with GSM, WCDMA, LTE, Bluetooth and WiFi

C5L PLUS Quick Guide | Guía Rápida | Guía Rápido | Guide Rapide o For instructions or any questions pertaining to phone usage, please click on the BLU page by visiting the following address: manuals.bluproducts.com o Para obtener instrucciones o preguntas relacionadas con el uso del teléfono, por favor haga clic en la página de BLU visitando la siguiente dirección: manuals.bluproducts.com o Para obter instruções ou perguntas relacionadas ao uso do telefone, por favor, clique na página de BLU visitando o seguinte endereço: manuals.bluproducts.com o Pour des instructions ou pour toutes questions sur l'utilisation du téléphone, veuillez cliquer sur à la page BLU en visitant l'adresse suivante: manuals.bluproducts.com ATTENTION ABOUT YOUR PHONE Transportation Safety Observe all transportation laws and regulations. PLEASE DRIVE RESPONSIBLY - DO NOT TEXT & DRIVE Hospital Safety Follow hospital rules and limitations and turn off your mobile phone when near medical instruments. Airport Safety Remember to follow all airport and flight safety regulations. Water Hazard Your phone is not waterproof. Keep your phone away from water or liquid to avoid damage. Emergency Calls Make sure your mobile phone is switched on and in a service area. On home screen, tap the phone key and dial the emergency number. Battery Usage For better performance and longer battery life, it is recommended that you charge the battery fully before using the mobile phone for the first time and that you initially complete two to three charge cycles. IMEI Information To check your IMEI, press *#06# KEY FUNCTIONS Volume Power On / Off Back Home Recent Apps Front Camera Assistant Rear Camera Flash Power On / Off Used to power on/off the device and to lock the screen. » Long press the power button to power on » While the phone is powered on, press the power button and volume + simultaneously to access the power off menu Volume Adjusts the ringer volume, call volume, and multimedia volume. Home The home button pauses any current action and returns to the home screen. Recent Apps Opens a list of recently opened applications that allows you to switch conveniently between them. This option can also close any open applications by swiping to the side. Back Returns to the previous screen; Closes the keyboard, any open program, or any menu option. USB Port Charges the device and transfers data such as documents, music, and video between your device and a PC. Headset Port Connect earphones to this port for hands-free capabilities. You may also to listen to music or FM radio. Front Camera A high-resolution front camera to take pictures and video. This option is ideal for self-portraits. Rear Camera A high-resolution rear camera to take pictures and video. Flash Provides light for pictures in low-light conditions. It also may be used as a flashlight. INTRODUCTION Installation of the SIM Card Warning: Please keep the SIM card out of the reach of children. The SIM card and its contact are easily damaged due to scratching or bending. Please use caution when carrying, installing, or taking out the SIM card. Note: Please contact your cellular phone service provider directly to obtain your SIM card. To insert SIM card:  Remove the rear cover. Insert the SIM card.  Insert the SD card (For additional storage capacity)  Insert the battery, replace the rear cover and power on the phone. SIM Card Slot DEVICE CONFIGURATION When you initially power on your phone, there will be a series of steps to set up basic features. INSERT SIM Insert your SIM card so the phone can register to the network. SELECT LANGUAGE While on the Welcome screen, please scroll to select your language. In this step, you also have the option to adjust Vision Settings such as magnification, font, and display size. You have the ability to place an Emergency Call. CONNECT TO WI-FI This step allows the device to connect to the internet. Click on the desired Wi-Fi network that the device that will be connected. Please note that any unsecured Wi-Fi networks can be connected to without credentials and any secured Wi-Fi networks require a password for credentials prior to connection. It is recommended that you connect to a Wi-Fi network to check for software updates prior to startup to avoid any data overages. COPY APPS & DATA This step allows you to select transfer options such as applications, pictures, music and more from a previous device. You may also setup as new if you choose not to from a previous device. ADD YOUR ACCOUNT Sign in to your Google TM Account in order to keep accounts streamlined with Google services. Your account will be used for Google programs such as Google Play TM , Google Drive, and Google Pay. If you do not have a Google account, click to create a new account. If the device is not recognized by your Google account, you will have to complete a security verification. GOOGLE SERVICES Click to add Google services that include Backup and Restore, Location Services, Install Updates and Apps. DEVICE PROTECTION Click to setup device protection such as a PIN or Password. This option can be done at a later time. FINALIZE SETUP The last step allows you to setup Google Assistant. You may also add another email address, control what information is visible through the phones lock screen, and lets you also review any additional apps. You may skip this step and setup later. Google, Google Play, Google Maps, YouTube, Gmail, and other marks are trademarks of Google LLC. SOBRE SU TELÉFONO Seguridad de Transporte Siga todas las leyes y regulaciones de transporte. MANEJE RESPONSABLEMENTE - NO USE MENSAJERIA DE TEXTO CUANDO CONDUCIENDO Seguridad de Hospitales Siga todas las leyes y regulaciones de hospital y apague su teléfono móvil cuando cerca de instrumentos médicos. Seguridad de Aeropuertos Por favor, siga todas las normas de seguridad de vuelo y de aeropuerto. Prueba de Agua El teléfono móvil no es impermeable. Manténgalo alejado de agua o líquidos para evitar daño. Llamadas de …

Text truncated - open the document above for the full version.

BLU Products, Inc. Date:2022/11/24 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The BLU Products, Inc., the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the BLU Products, Inc. solely in matters relating to the application for an FCC equipment authorization for FCC ID: YHLBLUC5LP including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the BLU Products, Inc. in connection with the Application shall have the same effect as acts of the BLU Products, Inc.. BLU Products, Inc. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Signatory: Contact name:Wei Zeng Title:Senior Manager Tel:3057157171 Email:[email protected] Company name: BLU Products, Inc.

BLU Products, Inc. Date: 2022/11/24 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID: YHLBLUC5LP To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules (CFR 47), and Section 552(b)(4) of the Freedom of Information Act, BLU Products, Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days from grant date as outlined in Public Notice DA04-1705. This provision will give BLU Products, Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 BOM 5 Tune up procedure SHORT-TERM 6 External Photos 7 Internal Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Signatory： Contact name:Wei Zeng Title:Senior Manager Tel:3057157171 Email:[email protected] Company name: BLU Products, Inc.

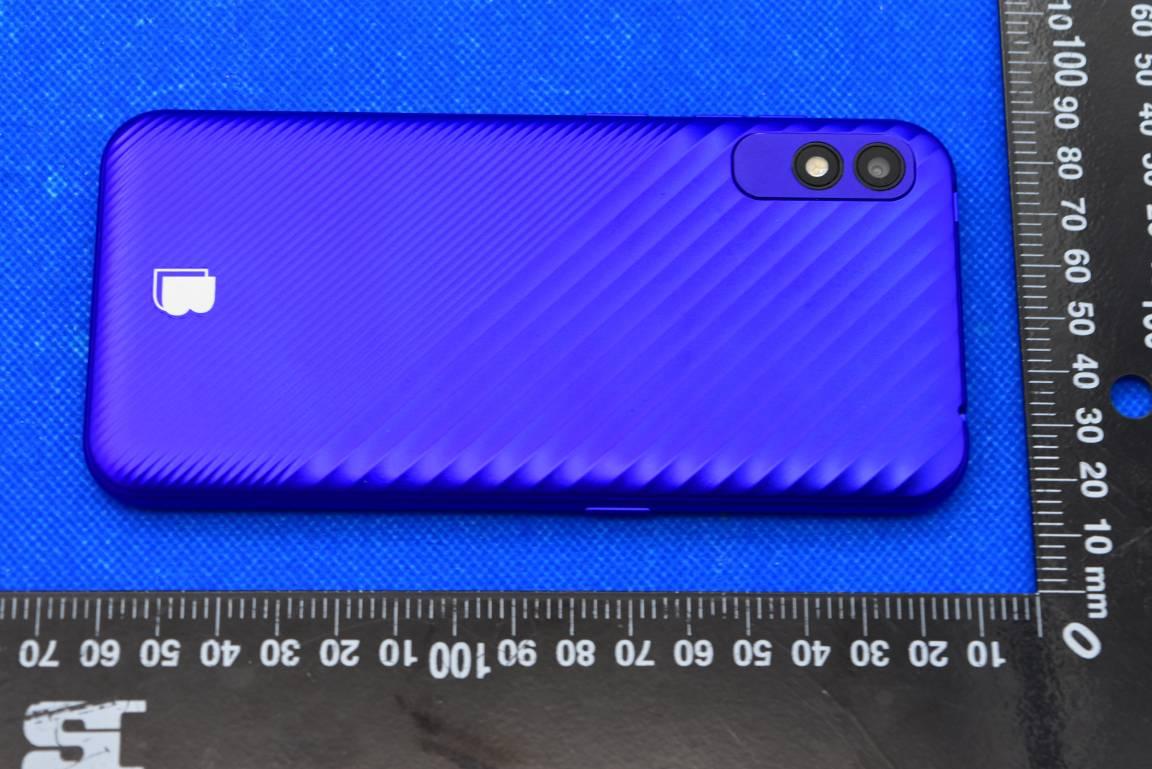

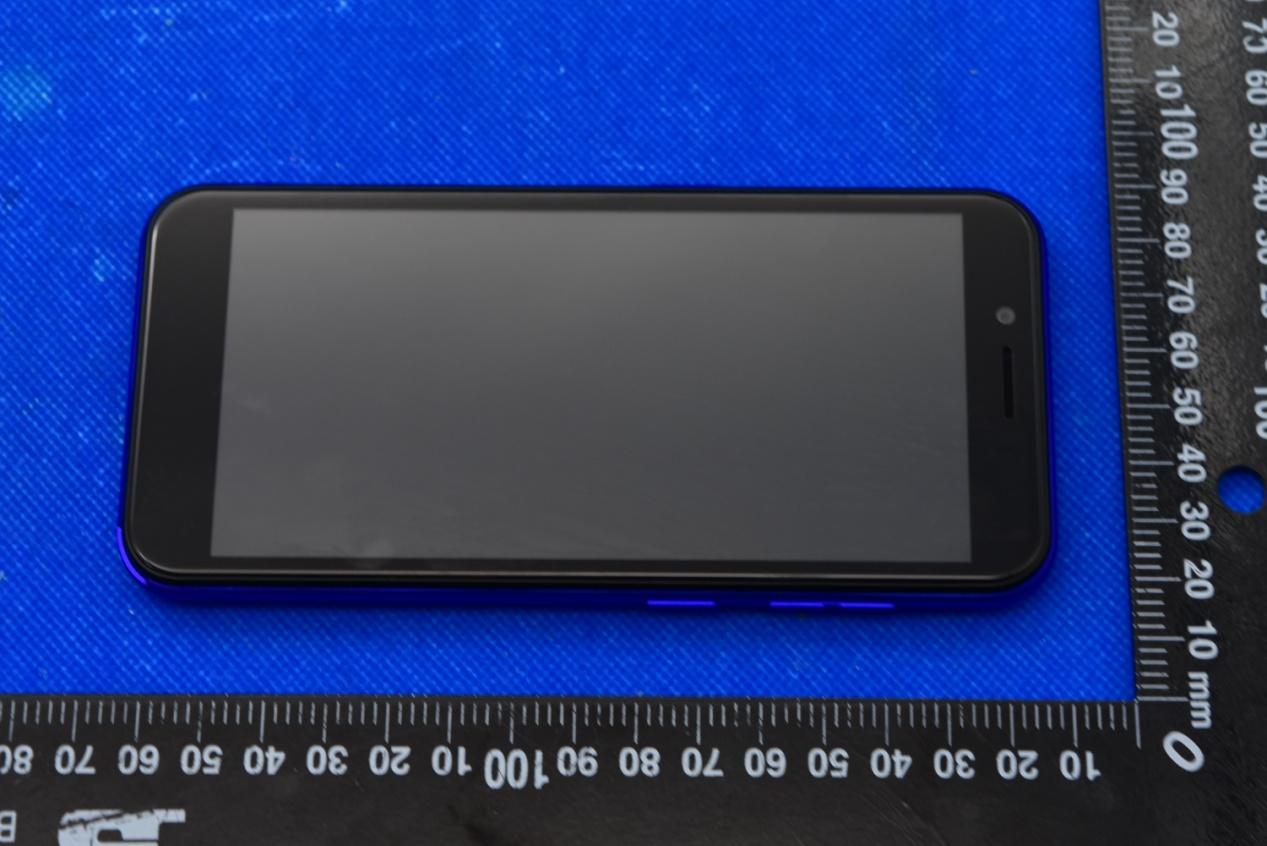

FCC ID: YHLBLUC5LP External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

Label Location(Insidethebatterycompartment)

FCC ID: YHLBLUC5LP Internal Photos 1. EUT uncover view 2. Antenna view WIFI/BT/GPS Antenna DIV Antenna WWAN Main Antenna

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22090382S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.10.10 System Check_750MHz_Head Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 750 MHz; σ = 0.922 S/m; ε r = 40.806; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(10.2, 10.2, 10.2) @ 750 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW750/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.31 W/kg CW750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.31 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.77 W/kg SAR(1 g) = 2.11 W/kg; SAR(10 g) = 1.31 W/kg Maximum value of SAR (measured) = 3.14 W/kg 0 dB = 3.14 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.10.16 System Check_900MHz_Head Communication System: UID 0, CW (0); Frequency: 900 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used: f = 900 MHz; σ = 0.971 S/m; ε r = 40.911; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.81, 9.81, 9.81) @ 900 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW900/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.58 W/kg CW900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.49 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 4.11 W/kg SAR(1 g) = 2.69 W/kg; SAR(10 g) = 1.81 W/kg Maximum value of SAR (measured) = 3.43 W/kg 0 dB = 3.43 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.10.18 System Check_1800MHz_Head Communication System: UID 0, CW (0); Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1800 MHz; σ = 1.411 S/m; ε r = 40.172; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.26, 8.26, 8.26) @ 1800 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW1800/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.1 W/kg CW1800/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 86.29 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 16.0 W/kg SAR(1 g) = 10.12 W/kg; SAR(10 g) = 5.24 W/kg Maximum value of SAR (measured) = 12.5 W/kg 0 dB = 12.5 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.10.18 System Check_2000MHz_Head Communication System: UID 0, CW (0); Frequency: 2000 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 2000 MHz; σ = 1.391 S/m; ε r = 40.744; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.99, 7.99, 7.99) @ 2000 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW2000/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.7 W/kg CW2000/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 89.91 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 18.4 W/kg SAR(1 g) = 10.71 W/kg; SAR(10 g) = 5.42 W/kg Maximum value of SAR (measured) = 14.4 W/kg 0 dB = 14.4 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.10.20 System Check_2450MHz_Head Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used: f = 2450 MHz; σ = 1.789 S/m; ε r = 39.413; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.42, 7.42, 7.42) @ 2450 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW2450/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 21.5 W/kg CW2450/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 93.19 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 27.9 W/kg SAR(1 g) = 12.75 W/kg; SAR(10 g) = 5.95 W/kg Maximum value of SAR (measured) = 20.5 W/kg 0 dB = 20.5 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.10.22 System Check_2600MHz_Head Communication System: UID 0, CW (0); Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: HSL_2600 Medium parameters used: f = 2600 MHz; σ = 1.987 S/m; ε r = 39.294; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Li…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22090382S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.10.16 GSM850_GPRS(2 TX slots)_Left Cheek_Ch251 Communication System: UID 0, GSM850(class 10) (0); Frequency: 848.8 MHz;Duty Cycle: 1:4.15 Medium: HSL_900 Medium parameters used: f = 849 MHz; σ = 0.964 S/m; ε r = 42.978; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.81, 9.81, 9.81) @ 824.2 MHz; Calibrated: 2022.01.22 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch251/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.439 W/kg Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.608 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.489 W/kg SAR(1 g) = 0.365 W/kg; SAR(10 g) = 0.276 W/kg Smallest distance from peaks to all points 3 dB below = 21.9 mm Maximum value of SAR (measured) = 0.443 W/kg 0 dB = 0.443 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.10.18 GSM1900_GPRS(3 TX slots)_Left Cheek_Ch661 Communication System: UID 0, GSM1900(class 11) (0); Frequency: 1880 MHz;Duty Cycle: 1:2.77 Medium: HSL_2000 Medium parameters used: f = 1880 MHz; σ = 1.366 S/m; ε r = 40.167; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.99, 7.99, 7.99) @ 1880 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch661/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.268 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.981 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.312 W/kg SAR(1 g) = 0.197 W/kg; SAR(10 g) = 0.122 W/kg Maximum value of SAR (measured) = 0.254 W/kg 0 dB = 0.254 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.10.18 WCDMA Band II_RMC 12.2Kbps_Left Cheek_Ch9538 Communication System: UID 0, UMTS-FDD (0); Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 1908 MHz; σ = 1.378 S/m; ε r = 39.922; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.99, 7.99, 7.99) @ 1907.6 MHz; Calibrated: 2022.01.22 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch9538/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.391 W/kg Ch9538/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.730 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.424 W/kg SAR(1 g) = 0.273 W/kg; SAR(10 g) = 0.169 W/kg Maximum value of SAR (measured) = 0.348 W/kg 0 dB = 0.348 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.10.18 WCDMA Band IV_RMC 12.2Kbps_Left Cheek_Ch1413 Communication System: UID 0, UMTS-FDD (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1733 MHz; σ = 1.412 S/m; ε r = 39.814; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.26, 8.26, 8.26) @ 1732.6 MHz; Calibrated: 2022.01.22 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch1413/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.397 W/kg Ch1413/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.036 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.413 W/kg SAR(1 g) = 0.277 W/kg; SAR(10 g) = 0.183 W/kg Maximum value of SAR (measured) = 0.348 W/kg 0 dB = 0.348 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.10.16 WCDMA Band V_RMC 12.2Kbps_Left Cheek_Ch4182 Communication System: UID 0, UMTS-FDD (0); Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.943 S/m; ε r = 42.985; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.81, 9.81, 9.81) @ 826.4 MHz; Calibrated: 2022.01.22 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch4182/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.234 W/kg Ch4182/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.499 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.253 W/kg SAR(1 g) = 0.194 W/kg; SAR(10 g) = 0.150 W/kg Maximum value of SAR (measured) = 0.230 W/kg 0 dB = 0.230 W/kg Test Laboratory: Shenzhen Morlab Communications Techno…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22090382S01 Annex E Conducted Power Note: Conducted power unit: dBm The target power was recorded in the manufacture document. 128189251128189251 824.2836.4848.8824.2836.4848.8 32.1732.3432.4033.0023.1723.3423.4024.00 32.1732.3332.3833.0023.1723.3323.3824.00 30.5530.6030.6331.5024.5524.6024.6325.500.08 28.5428.5328.6029.5024.2824.2724.3425.240.07 26.7426.8426.8827.5023.7423.8423.8824.500.14 25.5325.3625.2126.0016.5316.3616.2117.000.32 23.4123.7223.5424.0017.4117.7217.5418.000.31 21.4421.5621.6322.0017.1817.3017.3717.740.19 19.5619.8019.4320.5016.5616.8016.4317.500.37 Max.32.40Max.24.63 512661810512661810 1850.218801909.81850.218801909.8 29.3729.4229.3630.0020.3720.4220.3621.00 29.3429.4029.3330.0020.3420.4020.3321.00 27.3127.3927.2828.0021.3121.3921.2822.000.11 25.5925.7625.6826.5021.3321.5021.4222.240.17 23.5823.6523.5224.5020.5820.6520.5221.500.13 25.2225.6225.1926.0016.2216.6216.1917.000.43 23.4123.7523.3524.0017.4117.7517.3518.000.40 21.0221.4521.1222.0016.7617.1916.8617.740.43 17.8318.0517.8018.5014.8315.0514.8015.500.25 Max.29.42Max.21.50 926294009538131214131513413241824233 966298009938153716381738435744074458 1852.418801907.61712.41732.61752.6826.4836.4846.6 3GPP Rel 99RMC 12.2Kbps22.2822.2322.3323.0022.3122.3822.3423.0022.3522.4122.3723.00 3GPP Rel 6HSDPA Subtest-121.7321.5021.4422.0021.2121.4721.3922.0021.5821.2421.5722.00 3GPP Rel 6HSDPA Subtest-221.3421.1421.0822.0021.2321.4821.4022.0021.3021.0021.3022.00 3GPP Rel 6HSDPA Subtest-321.4921.2921.2121.5021.1721.4321.3521.5021.0120.6721.0021.50 3GPP Rel 6HSDPA Subtest-421.1620.9720.8921.5021.2121.4821.3921.5020.9220.5920.9121.50 3GPP Rel 6HSUPA Subtest-121.6121.3621.2822.0021.0321.3721.3621.5022.3122.1022.2322.50 3GPP Rel 6HSUPA Subtest-221.6321.3721.2922.0021.0021.3521.3321.5022.2922.0722.2222.50 3GPP Rel 6HSUPA Subtest-321.5821.3421.2522.0021.0121.3521.3121.5022.2722.0822.2222.50 3GPP Rel 6HSUPA Subtest-421.6221.3621.2722.0020.9721.3121.2921.5022.2722.0222.1722.50 3GPP Rel 6HSUPA Subtest-521.6021.3721.7022.0021.0121.3321.3021.5022.3222.1022.2322.50 3GPP Rel 7 HSPA+ (16QAM) Subtest-121.7921.4521.3822.5021.0521.3921.1922.0022.2921.9222.1322.50 Cable Loss0.8Cable Loss0.8Cable Loss0.8 Max.22.33Max.22.38Max.22.41 Attenuator Mode WCDMA Band V (dBm) Tune-up Limit (dBm) TX Channel Rx Channel Frequency (MHz) Mode AttenuatorCable Loss : 0.8 BandWCDMA Band II (dBm) Tune-up Limit (dBm) WCDMA Band IV (dBm) Tune-up Limit (dBm) EDGE 4 Tx slots EDGE 2 Tx slots EDGE 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot GPRS 2 Tx slots GPRS 3 Tx slots TX Channel Frequency (MHz) GSM 1 Tx slot 0.09 GPRS 1 Tx slot GSM1900Burst Average Power (dBm) Tune-up Limit (dBm) Frame-Average Power (dBm) Tune-up Limit (dBm) Ch Delta > 0.5 Mode AttenuatorCable Loss : 0.6 EDGE 4 Tx slots EDGE 2 Tx slots EDGE 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot GPRS 2 Tx slots GPRS 3 Tx slots Ch Delta > 0.5 TX Channel Frequency (MHz) GSM 1 Tx slot 0.23 GPRS 1 Tx slot GSM850Burst Average Power (dBm) Tune-up Limit (dBm) Frame-Average Power (dBm) Tune-up Limit (dBm) Full Power BW [MHz]Modulation RB Size RB Offset Low Channel Middle Channel High Channel BW [MHz] Modulation RB Size RB Offset Low Channel Middle Channel High Channel 187001890019100200502017520300 18601880190017201732.51745 20QPSK1023.7523.7123.8020QPSK1023.7123.7923.86 20QPSK14923.6623.5823.7020QPSK14923.6823.7123.65 20QPSK19923.6923.6223.7220QPSK19923.6623.5723.54 20QPSK50022.5522.5722.5920QPSK50022.4122.5122.53 20QPSK502422.4922.5522.5420QPSK502422.4822.5822.54 20QPSK505022.5322.6322.5720QPSK505022.5622.4322.49 20QPSK100022.4822.5122.5420QPSK100022.4422.4622.49 2016QAM1022.6222.5822.652016QAM1022.5822.7322.83 2016QAM14922.6022.5122.572016QAM14922.6422.6122.67 2016QAM19922.5522.5322.532016QAM19922.6022.5022.56 2016QAM50021.5921.5521.622016QAM50021.6121.7421.68 2016QAM502421.6021.4721.492016QAM502421.5321.4121.51 2016QAM505021.5321.5721.532016QAM505021.7221.5121.69 2016QAM100021.5221.5121.552016QAM100021.5221.4621.70 186751890019125200252017520325 1857.518801902.51717.51732.51747.5 15QPSK1023.6923.4623.5715QPSK1023.7523.7723.80 15QPSK13723.5423.4523.5115QPSK13723.5523.6723.39 15QPSK17423.5623.3923.5215QPSK17423.4023.5823.57 15QPSK36022.4522.4022.2915QPSK36022.3422.4422.38 15QPSK362022.2222.4122.4215QPSK362022.4522.5522.43 15QPSK363922.5122.4322.4615QPSK363922.4622.2322.32 15QPSK750 22.4122.4022.3015QPSK75022.1922.2822.38 1516QAM1022.4722.3722.411516QAM1022.4122.4722.63 1516QAM13722.5322.3322.461516QAM13722.6022.5922.61 1516QAM17422.3022.3622.511516QAM17422.3822.2722.36 1516QAM36021.3321.4121.451516QAM36021.3821.6521.41 1516QAM362021.5921.3121.341516QAM362021.3421.2421.23 1516QAM363921.4521.3421.511516QAM363921.5921.4621.48 1516QAM75021.2721.4621.261516QAM75021.4121.2221.40 186501890019150200002017520350 18551880190517151732.51750 10QPSK1023.6523.6323.7110QPSK1023.4623.7323.57 10QPSK12523.6323.2923.5010QPSK12523.4123.4623.54 10QPSK14923.4523.5723.6310QPSK14923.3823.3623.52 10QPSK25022.5022.5722.3610QPSK25022.3122.4522.35 10QPSK251222.4222.2522.3310QPSK251222.1922.3222.52 10QPSK252522.2322.4922.5110QPSK252522.4922.2122.31 10QPSK50022.2122.3522.2610QPSK50022.3122.2422.44 1016QAM1022.3322.3522.621016QAM1022.3722.5122.63 1016QAM12522.4022.3722.461016QAM12522.5522.3822.63 1016QAM14922.3622.2922.491016QAM14922.4122.3822.26 1016QAM25021.5021.2621.331016QAM25021.4721.6821.53 1016QAM251221.5721.4221.461016QAM251221.3321.3921.22 1016QAM252521.2521.5521.521016QAM252521.4321.4521.48 1016QAM50021.2921.3421.501016QAM50021.4921.4521.42 186251890019175199752017520375 1852.518801907.51712.51732.51752.5 5QPSK1023.7923.4423.665QPSK1023.5223.5723.73 5QPSK11223.5023.4623.56 5QPSK11223.4423.5623.42 5QPSK12423.4923.4423.695QPSK12423.5723.3123.48 5QPSK12022.5022.5222…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22090382S01 Annex F DASY Calibration Certificate

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22090382S01 Page 1 of 66 TEST REPORT APPLICANT : BLU Products, Inc. PRODUCT NAME : Smart Phone MODEL NAME : C5L+ BRAND NAME : BLU FCC ID : YHLBLUC5LP STANDARD(S) : FCC 47 CFR Part 2(2.1093) IEEE 1528-2013 RECEIPT DATE : 2022-10-09 TEST DATE : 2022-10-10 to 2022-10-22 ISSUE DATE : 2022-11-28 Edited by : Xie Yiyun (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22090382S01 Page 2 of 66 DIRECTORY 1. SAR Results Summary ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 2. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 2.1. Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 2.2. Equipment under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 2.3. Environment of Test Site/Conditions ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8 3. Specific Absorption Rate (SAR) ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 3.1. Introduction∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 3.2. SAR Definition ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 4. RF Exposure Limits ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10 4.1. Uncontrolled Environment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙…

Text truncated - open the document above for the full version.
