YHLBLUC6LMXWWSmart Phone

C6L MAX Guía Rápida | Quick Guide  Para obtener instrucciones o preguntas relacionadas con el uso del teléfono, por favor haga clic en la página de BLU visitando la siguiente dirección: manuals.bluproducts.com  For instructions or any questions pertaining to phone usage, please click on the BLU page by visiting the following address: manuals.bluproducts.com  Para obter instruções ou perguntas relacionadas ao uso do telefone, por favor, clique na página de BLU visitando o seguinte endereço: manuals.bluproducts.com  Pour des instructions ou pour toutes questions sur l'utilisation du téléphone, veuillez cliquer sur à la page BLU en visitant l'adresse suivante: manuals.bluproducts.com ATENCIÓN SOBRE SU TELÉFONO Seguridad de Transporte Siga todas las leyes y regulaciones de transporte. MANEJE RESPONSABLEMENTE - NO USE MENSAJERIA DE TEXTO CUANDO CONDUCIENDO Seguridad de Hospitales Siga todas las leyes y regulaciones de hospital y apague su teléfono móvil cuando cerca de instrumentos médicos. Seguridad de Aeropuertos Por favor, siga todas las normas de seguridad de vuelo y de aeropuerto. Prueba de Agua El teléfono móvil no es impermeable. Manténgalo alejado de agua o líquidos para evitar daño. Llamadas de Emergencia SOS Asegúrese de que su teléfono móvil está encendido y en un área de servicio. En la pantalla de inicio, pulse la tecla del teléfono y marque el número de emergencia. Uso de batería Para mejorar el rendimiento y la vida útil de la batería, se recomienda que cargue la batería completamente antes de utilizar el teléfono móvil por primera vez y que inicialmente se complete dos o tres ciclos de carga completos. Información de IMEI Para conocer su IMEI, marque *#06#. FUNCIONES Volumen Retroceder Inicio Apps Recientes Encendido / Apagado Cámara Frontal Cámara Trasera Flash Encendido / Apagado Se utiliza para encender/apagar el dispositivo y bloquear la pantalla. » Mantenga pulsado el botón de encendido para encender » Mientras el teléfono este encendido, mantenga pulsado para acceder el menú de apagado o haga clic para bloquear la pantalla. Volumen Ajusta el volumen del timbre, el volumen durante una llamada, y el volumen de multimedia. Inicio El botón de inicio se detiene cualquier acción actual y vuelve a la pantalla de inicio. Aplicaciones Recientes Abre una lista de aplicaciones recientemente abiertas y le permite cambiar cómodamente entre ellas. Esta opción también puede cerrar todas las aplicaciones abiertas deslizando hacia el lado. Retroceder Regresa a la pantalla anterior; Se cierra el teclado, cualquier programa abierto, opción de menú, o el panel de notificaciones. Puerto de Auricular Conecte los auriculares a este puerto para capacidades de manos libres. También se puede escuchar música o radio FM. Puerto de USB Carga el dispositivo y también transfiere documentos, música y vídeo entre el teléfono y un PC. Cámara Frontal Una cámara frontal de alta resolución para tomar fotos y video. Esta opción es ideal para autorretratos. Cámara Trasera Una cámara trasera de alta resolución para tomar fotos y video. Flash Proporciona luz para fotos en condiciones de poca luz. También se puede utilizar como una linterna. INTRODUCCIÓN Instalación de la Tarjeta SIM Advertencia: Mantenga la tarjeta SIM fuera del alcance de los niños. El contacto de la tarjeta SIM se daña fácilmente debido al roce o flexión. Por favor tenga cuidado al transportar o instalar la tarjeta SIM. Nota: Por favor comuníquense con el proveedor de servicio directamente para obtener su tarjeta SIM. Para insertar la tarjeta SIM:  Retire la cubierta posterior. Inserte la tarjeta SIM.  Inserte la tarjeta de memoria (para capacidad adicional).  Inserte la batería, recoloque la cubierta posterior y encienda el teléfono. Ranura Tarjeta SIM CONFIGURACIÓN DEL DISPOSITIVO Cuando inicialmente se enciende el teléfono, habrá una serie de configuraciones básicas. INSERTAR SIM Inserte su tarjeta SIM para que el teléfono pueda registrarse a la red. SELECCIONAR IDIOMA En la pantalla de bienvenida, por favor, haga clic y desplace para elegir su selección de idioma. En este paso, también tiene la opción de ajustar la configuración de visión, como la ampliación, la fuente y el tamaño de visualización. Usted tiene la capacidad de realizar una llamada de emergencia. CONECTATE A WI-FI Este paso permite que el dispositivo se conecte a la red de Wi-FI. Haga clic en la red Wi-Fi que desee que el dispositivo se conecte. Por favor, tenga en cuenta que todas las redes sin seguridad pueden conectarse directamente y cualquiera de las redes protegidas requieren una contraseña antes de conexión. Se recomienda que se conecte a una red Wi-Fi para verificar las actualizaciones de software antes del inicio para evitar cualquier exceso de datos. COPIAR APLICACIONES Y DATOS Este paso le permite seleccionar opciones de transferencia tales como aplicaciones, imágenes, música y más desde un dispositivo anterior. También tiene la opción de configurar como nuevo. AGREGAR LA CUENTA Ingrese a su Cuenta de Google TM para llevar una contabilidad simplificada con los servicios de Google. Tu cuenta se utilizará para algunos programas de Google que incluyen: Google Play, Google Drive, y Google Pay. Si no tiene una cuenta de Google, haga clic para crear una nueva cuenta. Si su cuenta de Google no reconoce el dispositivo, tendrías que completar una verificación de seguridad. SERVICIOS DE GOOGLE Haga clic para agregar servicios de Google que incluyen Asistente de Google, Copia de seguridad y restauración, Servicio de ubicación, Instalar actualizaciones y aplicaciones. PROTECCIÓN DEL DISPOSITIVO Haga clic para configurar el dispositivo de protección como un PIN o contraseña. Esta opción se puede hacer en otro momento. FINALIZAR LA CONFIGURACIÓN El último paso le permite configurar el Asistente de Google. También puede agregar otra dirección de correo electrónico, controlar qué información es visible en la pantalla de bloqueo de su teléfono y también le permite revisar …

Text truncated - open the document above for the full version.

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: BLU Products, Inc. Grantee code: YHL FCC ID: YHLBLUC6LMXWW Contact Name: Wei Zeng Address: 8600 NW 36th Street, Suite #200 Doral, FL 33166 Telephone No: 3057157171 Fax No: 3054368819 Email: [email protected] i. [BLU Products, Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [BLU Products, Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [BLU Products, Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment . Date: 2023/10/18 Applicant’s Name: BLU Products, Inc. Title: Senior Manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: BLU Products, Inc. FRN: 0019890946 Contact Name: Wei Zeng Address: 8600 NW 36th Street, Suite #200 Doral, FL 33166 Telephone No: 3057157171 Email: [email protected] Applicant: Company name: BLU Products, Inc. FRN: 0019890946 Product Description: Smart Phone Grantee code: YHL FCC ID: YHLBLUC6LMXWW FRN： 0019890946 Contact Name: Wei Zeng Address: 8600 NW 36th Street, Suite #200 Doral, FL 33166 Telephone No: 3057157171 Email: [email protected] [BLU Products, Inc.] certifies that, as of the date of this filing of the application with the TCB, [BLU Products, Inc.] is our designated US agent for service of process for the above referenced FCC ID. [BLU Products, Inc.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [BLU Products, Inc.] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2023/10/16 Applicant’s Name: Wei Zeng US Agent’s Name: Wei Zeng Title: Senior Manager Title: Senior Manager Signature Signature

C5266091_X8_Ed.1 1/1 BLU Products, Inc. 8600 NW 36th Street, Suite #200 Doral, FL 33166 Letter of Authorization Company: BLU Products, Inc. Address: 8600 NW 36th Street, Suite #200 Doral, FL 33166 Product Name: Smart Phone Model Number: C6L MAX FCC Identifier: YHLBLUC6LMXWW We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Wei Zeng Date: October 18, 2023 Title: Senior Manager Signature of applicant:

C5266091_X10_Ed.2 1/1 BLU Products, Inc. 8600 NW 36th Street, Suite #200 Doral, FL 33166 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: October 18, 2023 Subject: Request for Confidentiality FCC ID: YHLBLUC6LMXWW To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☒ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wei Zeng Title: Senior Manager

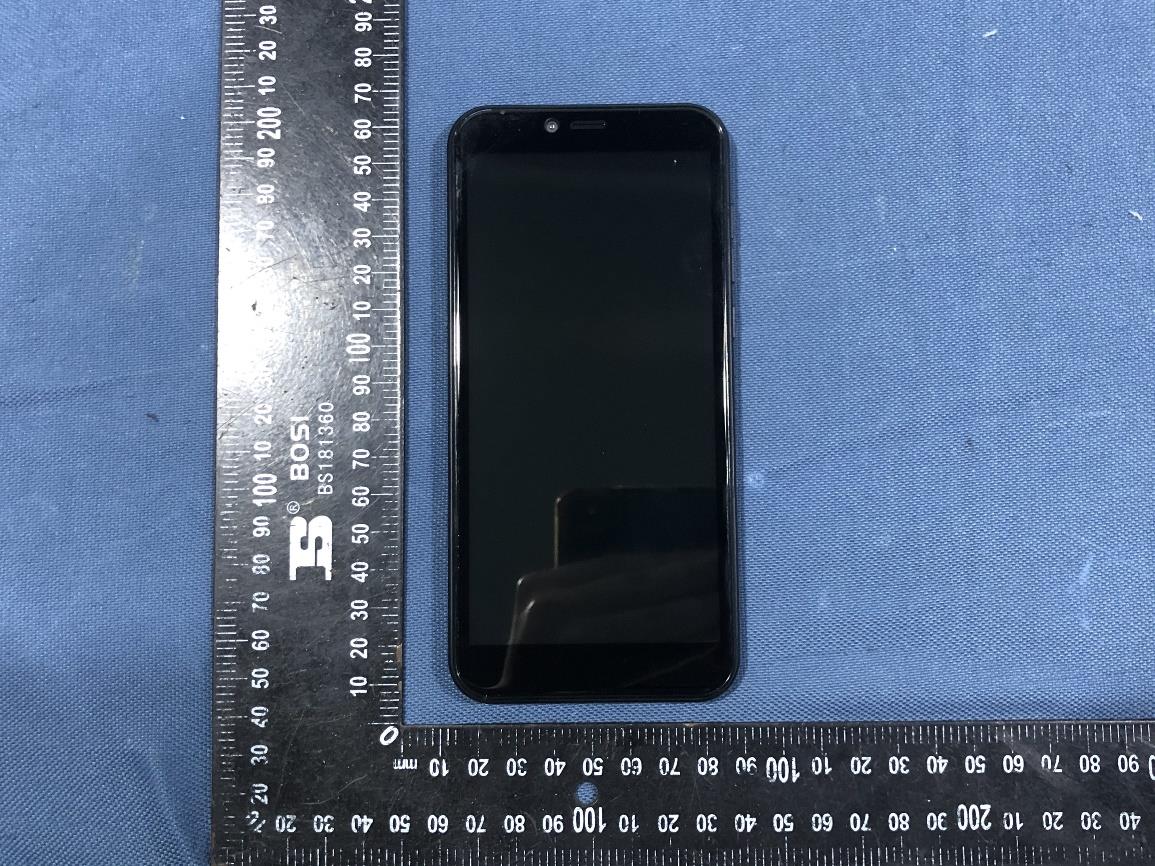

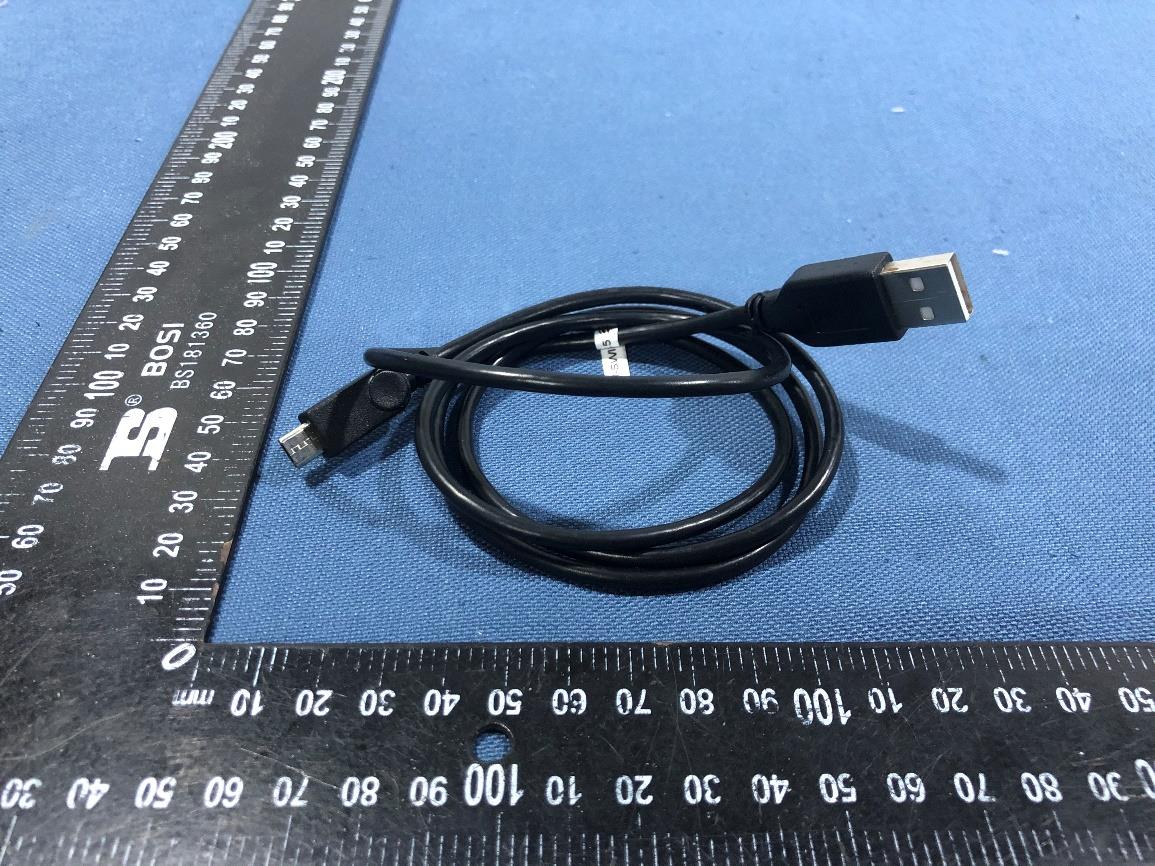

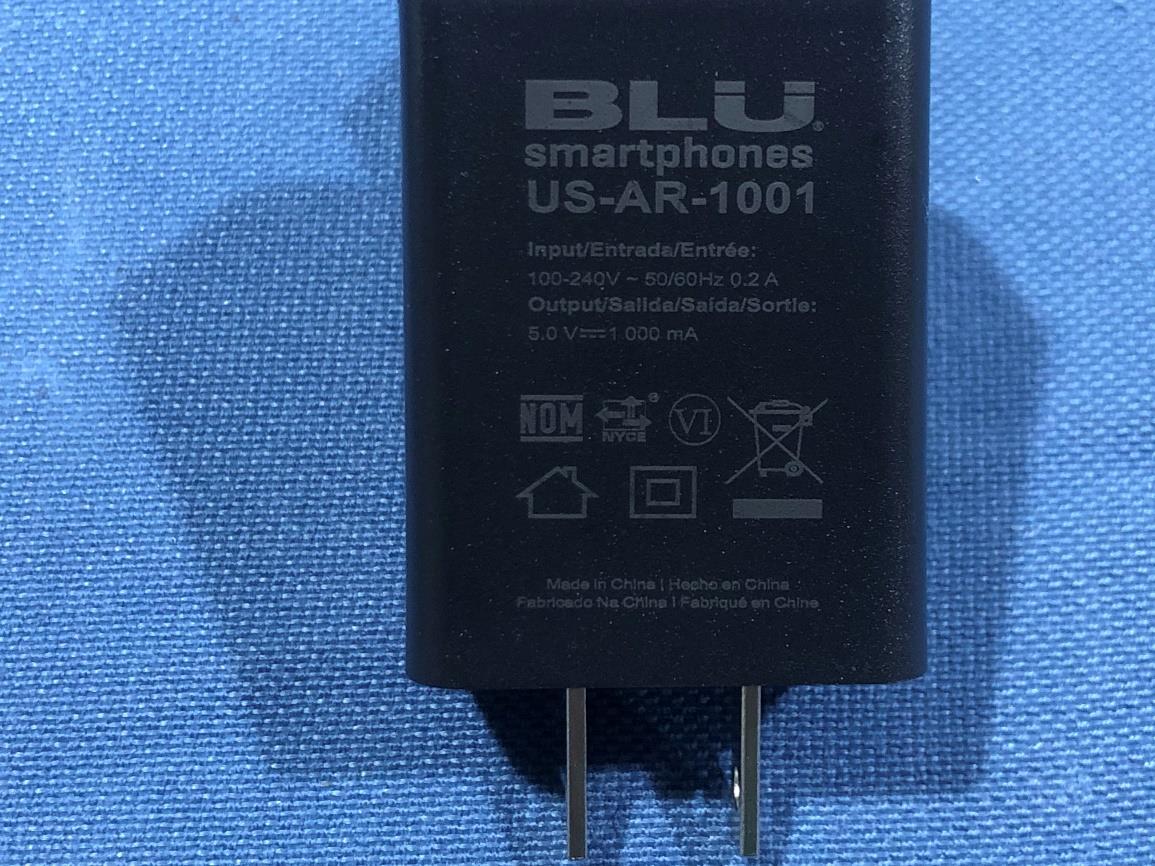

Page 1 of 5 FCC ID: YHLBLUC6LMXWW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 5 FCC ID: YHLBLUC6LMXWW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 5 FCC ID: YHLBLUC6LMXWW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 5 FCC ID: YHLBLUC6LMXWW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 5 FCC ID: YHLBLUC6LMXWW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo

Label location

Page 1 of 8 FCC ID: YHLBLUC6LMXWW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo WWAN Antenna （Div） WLAN/BT Antenna WWAN Antenna （Main） Page 2 of 8 FCC ID: YHLBLUC6LMXWW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 8 FCC ID: YHLBLUC6LMXWW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 8 FCC ID: YHLBLUC6LMXWW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 8 FCC ID: YHLBLUC6LMXWW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 6 of 8 FCC ID: YHLBLUC6LMXWW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 7 of 8 FCC ID: YHLBLUC6LMXWW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 8 of 8 FCC ID: YHLBLUC6LMXWW Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

Page 1 of 60 Report No.: 2309266971SAR-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-SAR-IEEE Std 1528-2013-V1.1 FCC SAR TEST REPORT Product Name: Smart Phone Trade Mark: BLU Model No.: C6L MAX Report Number: 2309266971SAR-1 Test Standards: FCC 47 CFR Part 2 §2.1093 ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 FCC ID: YHLBLUC6LMXWW Test Result: PASS Date of Issue: October 24, 2023 Prepared for: BLU Products, Inc. 8600 NW 36th Street, Suite #200 Doral, FL 33166 Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: Curry Xue Henry Lu Test Engineer Team Leader Approved by: Date: October 24, 2023 Kevin Liang Assistant Manager Page 2 of 60 Report No.: 2309266971SAR-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-SAR-IEEE Std 1528-2013-V1.1 Version Version No. Date Description V1.0 October 24, 2023 Original Report Page 3 of 60 Report No.: 2309266971SAR-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-SAR-IEEE Std 1528-2013-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 5 1.1. STATEMENT OF COMPLIANCE ................................................................................................................................. 5 1.2. CLIENT INFORMATION ............................................................................................................................................ 6 1.3. EUT INFORMATION ................................................................................................................................................ 6 1.3.1. GENERAL DESCRIPTION OF EUT .............................................................................................................. 6 1.3.2. DESCRIPTION OF ACCESSORIES ............................................................................................................... 6 1.3.3. EUT TX FREQUENCY BANDS .................................................................................................................... 7 1.3.4. WIRELESS TECHNOLOGIES....................................................................................................................... 7 1.4. MAXIMUM CONDUCTED POWER ............................................................................................................................. 8 1.5. OTHER INFORMATION ............................................................................................................................................ 9 1.6. TEST LOCATION .................................................................................................................................................... 9 1.7. TEST FACILITY ...................................................................................................................................................... 9 1.8. GUIDANCE STANDARD ......................................................................................................................................... 10 2. SPECIFIC ABSORPTION RATE (SAR) ................................................................................................................. 11 2.1. INTRODUCTION .................................................................................................................................................... 11 2.2. SAR DEFINITION ................................................................................................................................................. 11 2.3. SAR LIMITS ........................................................................................................................................................ 11 3. SAR MEASUREMENT SYSTEM ............................................................................................................................ 12 3.1. SPEAG DASY SYSTEM ..................................................................................................................................... 12 3.1.1. ROBOT .................................................................................................................................................. 12 3.1.2. PROBE .................................................................................................................................................. 13 3.1.3. DATA ACQUISITION ELECTRONICS (DAE) ................................................................................................ 13 3.1.4. PHANTOM .............................................................................................................................................. 14 3.1.5. DEVICE HOLDER .................................................................................................................................... 15 3.1.6. SYSTEM VALIDATION DIPOLES ................................................................................................................ 15 3.2. SAR SCAN PROCEDURE ..................................................................................................................................... 16 3.2.1. SAR REFEREN…

Text truncated - open the document above for the full version.

Test Laboratory: UnionTrust Date/Time: 2023/10/11 System Check_H750_24dBm DUT: Dipole 750 MHz Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H750 Medium parameters used: f = 750 MHz; σ = 0.893 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.42, 6.42, 6.42); Calibrated: 2023/3/15 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2023/3/8 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 System check/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.44 mW/g System check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 52.2 V/m; Power Drift = 0.015 dB Peak SAR (extrapolated) = 2.83 W/kg SAR(1 g) = 2.2 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 2.45 mW/g 0 dB = 2.45mW/g Test Laboratory: UnionTrust Date/Time: 2023/10/10 System Check_H835_24dBm DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835 Medium parameters used: f = 835 MHz; σ = 0.91 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.25, 6.25, 6.25); Calibrated: 2023/3/15 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2023/3/8 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 System check/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.84 mW/g System check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.8 V/m; Power Drift = 0.014 dB Peak SAR (extrapolated) = 3.41 W/kg SAR(1 g) = 2.53 mW/g; SAR(10 g) = 1.83 mW/g Maximum value of SAR (measured) = 2.86 mW/g 0 dB = 2.86mW/g Test Laboratory: UnionTrust Date/Time: 2023/10/11 System Check_H835_24dBm DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835 Medium parameters used: f = 835 MHz; σ = 0.91 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.25, 6.25, 6.25); Calibrated: 2023/3/15 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2023/3/8 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 System check/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.65 mW/g System check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.4 V/m; Power Drift = -0.013 dB Peak SAR (extrapolated) = 3.16 W/kg SAR(1 g) = 2.35 mW/g; SAR(10 g) = 1.7 mW/g Maximum value of SAR (measured) = 2.65 mW/g 0 dB = 2.65mW/g Test Laboratory: UnionTrust Date/Time: 2023/10/8 System Check_H1750_24dBm DUT: Dipole 1750 MHz Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: H1750 Medium parameters used: f = 1750 MHz; σ = 1.37 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.37, 5.37, 5.37); Calibrated: 2023/3/15 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2023/3/8 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 System check/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.4 mW/g System check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 82.8 V/m; Power Drift = 0.182 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 9.49 mW/g; SAR(10 g) = 4.93 mW/g Maximum value of SAR (measured) = 12.1 mW/g 0 dB = 12.1mW/g Test Laboratory: UnionTrust Date/Time: 2023/10/9 System Check_H1900_24dBm DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900 Medium parameters used: f = 1900 MHz; σ = 1.4 mho/m; ε r = 40; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.11, 5.11, 5.11); Calibrated: 2023/3/15 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2023/3/8 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 System check/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.0 mW/g System check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 87.2 V/m; Power Drift = 0.134 dB Peak SAR (extrapolated) = 20.0 W/kg SAR(1 g) = 10.4 mW/g; SAR(10 g) = 5.22 mW/g Maximum value of SAR (measured) = 13.4 mW/g 0 dB = 13.4mW/g Test Laboratory: UnionTrust Date/Time: 2023/10/7 System Check_H2450_24dBm DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H2450 Medium parameters used: f = 2450 MHz; σ = 1.8 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(4.68, 4.68, 4.68); Calibrated: 2023/3/15 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2023/3/8 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 System check/Area Scan (61x81x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 17.9 mW/g System check/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 99.1 V/m; Power Drift = 0.012 dB Peak SAR (extrapolated) = 27.3 W/kg SAR(1 g) = 12.8 mW/g; SAR(10 g) = 5.84 mW/g Maximum value of SAR (measured) = 16.9 mW/g 0 dB = 16.9mW/g Test Laboratory: UnionTrust Date/Time: 2023/10/7 System Check_H2600_24dBm DUT: Dipole 2600 MHz Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: H2600 Medium parameters used: f = 2600 MHz; σ = 1.96 mho/m; ε r = 39; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(4.53, 4.53, 4.53); Calibrated: 2023/3/15 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electr…

Text truncated - open the document above for the full version.

Test Laboratory: UnionTrust Date/Time: 2023/10/11 GSM850_GPRS10_Right Cheek_128 DUT: EUT Communication System: GPRS 850-2solt; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: H835 Medium parameters used : f = 824.2 MHz; σ = 0.906 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.25, 6.25, 6.25); Calibrated: 2023/3/15 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2023/3/8 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 Area Scan (81x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.359 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.35 V/m; Power Drift = 0.129 dB Peak SAR (extrapolated) = 0.386 W/kg SAR(1 g) = 0.344 mW/g; SAR(10 g) = 0.299 mW/g Maximum value of SAR (measured) = 0.362 mW/g 0 dB = 0.362mW/g Test Laboratory: UnionTrust Date/Time: 2023/10/10…

Text truncated - open the document above for the full version.
