YHLBLUDJLITEGSM Mobile Phone

-0- Phone Specifications Dimensions (W×D×H): 101.5mm*44.7mm*13.6mm Lithium battery Rated capacity: 3.7V 600mAh Continuous standby duration: (Relates to network status) 160-200 hours Continuous conversation duration: (Relates to network status) 3-4 hours Please refer to their labels for other data related to the battery and the charger 1 Phone overview 2 Getting started 2.1 Installing the SIM Cards An SIM card carries useful information, including your mobile phone number, PIN (Personal Identification Number), PUK (PIN Unlocking Key), IMSI (International Mobile Subscriber Identity), network information, contacts data, and short messages data. 1) Remove the back cover and 2) Lift the battery away. 3) Insert the SIM card into the SIM card slot lightly with the corner cutting of the card aligning to the notch of the slot and the gold plate of the card facing download, till the SIM card cannot be further pushed in. -1- 4) With the metallic contacts of the battery facing the metallic contacts in the battery slot, press the battery down until it locks into place，then fix its back cover. 2.2 Linking to the Network After the SIM card and the mobile phone are successfully unlocked, the mobile phone automatically searches for an available network. 3 Input method This mobile phone provides multiple input methods, including English input in both upper and lower case, and numeric input method. 3.1 To Shift Entry Methods Press # key to switch between input methods. 3.2 Numeric and English Input You can input numbers with the numeric input method. Press a number key to input the corresponding number. 3.3 Inserting a Symbol Press the * key to enter the Select symbol interface and select a symbol you want. 4 Using the Menus 4.1 Phonebook The mobile phone can store up to 100 telephone numbers. 4.2 Messages If the short message memory is full, a blinking message icon appears on the top of the screen. 4.3 Call logs Through this function, you can view a list of missed calls, dialed calls and received calls etc. -2- 4.4 Settings Services STK service is the tool kit of SIM card. This phone supports the service function .The specific items are depended by SIM card and network. Service menu will be auto added to the phone menu when supported by network and SIM card. Date and time You can set time and date through this function. Display Through this function，you can set wallpaper, LCD backlight, brightness, etc.. Phone Settings  Language: Select the display language for the mobile phone.  Shortcuts: Dedicated key: Customize the shortcut functions of the Up, Down, Left, and Right direction keys. In the standby interface, you can press a direction key to directly enter the function menu corresponding to that direction key. My shortcuts: You can set some most used menus as shortcut functions through this item.  Greeting text: Through this function, you can set greeting text content & status.  Home city: Select a city as home city.  Auto keypad lock: Once turned on, you mobile will be locked automatically within 30s if you performed no operations during the period. Or you can press left soft key then * key to lock/unlock keypad.  Input method settings: Set writing language and input method through this function. Call settings  Caller ID: You can select the ID set by the network, hide the ID, or send the ID. By default, the ID set by the network is chosen.  Call waiting: Network dependent  Call divert: this network function enables you to forward incoming calls to another number you have previously specified.  Call barring: The call barring function enables you to bar calls as needed. When setting this function, you need to use a network barring code, which can be obtained from the network operator.  Line switching: Switch to Line 1 or Line 2. By default, Line 1 is used. Note: If you choose Line 2, dialing may fail. This depends on the implementation of the network operator. -3-  Closed user group: This function requires network support. For details, consult the local network operator. Note: SIM on service is required. Common call settings  Call time reminder: To set single or circle tone in a call to make you know the time.  Auto redial: Set it to On or Off to enable or disable auto redial. To end the auto redial process, press the End key.  Answer mode: Once select any key; you can press any key except the end key to answer an incoming call. Network settings Through this function, you can select network and set preferred network. Network status Through this function, you can check network status. Security Settings This function provides you with related settings about safety use. Set UTRL Select SIM1 or SIM2 as per your need. Restore Factory Settings Use this function to restore factory settings. Note: The initial phone lock code is 1122. 4.5 File manager The phone supports the T-Flash card. You can use the file manager to conveniently manage various directories and files on the T-Flash card. 4.6 Fun & Games A game named F1 race is embedded in the phone. For specific operation, please refer to ‘help’ option of the game. 4.7 Multimedia  Audio player: Use this function to play audio files. In audio player interface, you can press up or down direction key to tune volume.  Video player: You can use this function to play video files.  Sound recorder: You can record AMR & WAV format audio files through this function.  FM radio: you need to insert earphone into its corresponding jack before using this function. 4.8 Organizer  Stopwatch: Stopwatch is simple application for measuring time with possibility to register several results and suspend/resume measurement. -4-  Torch: In idle screen, you can long press OK key to turn on/off the torch.  Calendar: Once you enter this menu, there is a monthly-view calendar for you to keep track of important appointments, etc.  To do list: This function enables you to create new memos.  Alarm: Five alarm clocks are set but deactivated by default.  World clock: Acc…

Text truncated - open the document above for the full version.

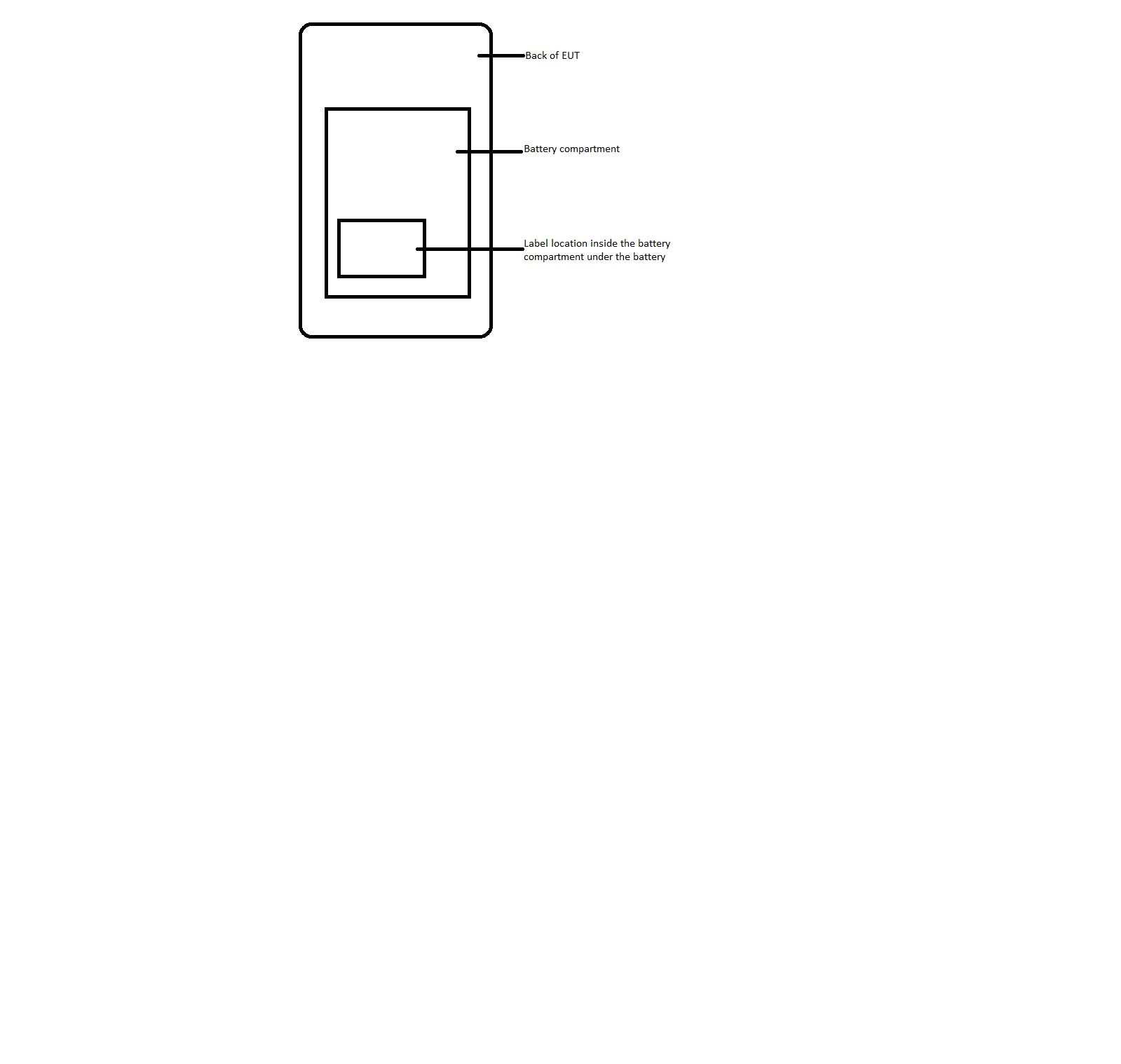

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198 ; Fax: 852-27931197 Date: December 7, 2011 Statement We, CT Asia, states that our device, FCC ID: YHLBLUDJLITE, has no space to put the label except the battery compartment of this device. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, ________________________ Chris Chan

1/2 CT Asia Date: December 7, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : YHLBLUDJLITE To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which CT Asia deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Chris Chan Company: CT Asia TEL: 852-27931198 2/2 FAX: 852-27931197 E-mail: [email protected]

Rev. 1/1/03 CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198 ; Fax: 852-27931197 Date: December 7, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YHLBLUDJLITE Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: Deejay Lite_Schem.pdf) Block Diagram (file: Deejay Lite_BlkDia.pdf) Parts List (file: Deejay Lite_PartsLst.pdf) Operation Description (file: Deejay Lite_OpDes.pdf) Tune up Procedure (file: Deejay Lite_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Chris Chan

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198; Fax: 852-27931197 Date: December 7, 2011 Power of Attorney To whom it may concern, Please be notified that I, Chris Chan, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: YHLBLUDJLITE If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Chris Chan Company: CT Asia TEL: 0852-27931198 FAX: 0852-27931197 E-mail: [email protected]

Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE 1. External Photograph of EUT Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE List of Accessory: Specification of Accessory AC Adapter Brand Name BLU Model Name US300507 Battery Brand Name BLU Model Name N4C60T Earphone Type 1.2m non-shielded Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE

Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE 3. Internal Photograph of EUT Sample with Double SIM Card Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Sample with Single SIM Card Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE Photographs of EUT Report No.: EP1D0107 Brand Name: BLU / Model Name: Deejay Lite SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 32 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE WWAN Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE FCC SAR Test Report Report No. : FA1D0107 FCC SAR Test Report APPLICANT : CT Asia EQUIPMENT : GSM mobile phone BRAND NAME : BLU MODEL NAME : Deejay Lite FCC ID : YHLBLUDJLITE STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Dec. 01, 2011 and completely tested on Dec. 05, 2011. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE FCC SAR Test Report Report No. : FA1D0107 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Device Under Test (DUT) .................................................................................................................6 3.2 Product Photos .......................................................................................................................................................7 3.3 Applied Standards ...................................................................................................................................................7 3.4 Device Category and SAR Limits ............................................................................................................................7 3.5 Test Conditions ........................................................................................................................................................7 4. Specific Absorption Rate (SAR) ....................................................................................................................................8 4.1 Introduction .............................................................................................................................................................8 4.2 SAR Definition .........................................................................................................................................................8 5. SAR Measurement System ............................................................................................................................................9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder .......................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. Uncertainty Assessment .............................................................................................................................................20 8. SAR Measurement Evaluation ....................................................................................................................................22 8.1 Purpose of System Performance check ..…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE FCC Test Report Report No. : FD1D0107 FCC Test Report APPLICANT : CT Asia EQUIPMENT : GSM mobile phone BRAND NAME : BLU MODEL NAME : Deejay Lite FCC ID : YHLBLUDJLITE STANDARD : FCC 47 CFR FCC Part 15 Subpart B CLASSIFICATION : Certification The product was received on Dec. 01, 2011 and completely tested on Dec. 05, 2011. We, SPORTON INTERNATIONAL (KUNSAHN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE FCC Test Report Report No. : FD1D0107 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1. GENERAL DESCRIPTION .......................................................................................................................... 5 1.1. Applicant ............................................................................................................................................ 5 1.2. Manufacturer ..................................................................................................................................... 5 1.3. Feature of Equipment Under Test ..................................................................................................... 5 1.4. Test Site ............................................................................................................................................ 6 1.5. Applied Standards ............................................................................................................................. 6 1.6. Ancillary Equipment List .................................................................................................................... 6 2. TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1. Test Mode ......................................................................................................................................... 7 2.2. Connection Diagram of Test System ................................................................................................ 8 2.3. Test Software .................................................................................................................................... 8 3. TEST RESULT ............................................................................................................................................. 9 3.1. Test of AC Conducted Emission Measurement ................................................................................ 9 3.2. Test of Radiated Emission Measurement ....................................................................................... 13 4. LIST OF MEASURING EQUIPMENT ........................................................................................................ 17 5. UNCERTAINTY OF EVALUATION ........................................................................................................... 18 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE FCC Test Report Report No. : FD1D0107 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FD1D0107 Rev. 01 Initial issue of report Dec. 09, 2011 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 09, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUDJLITE FCC Test Report Report No. : FD1D0107 SUMMARY OF TEST RESULT Report Section FCC Rule Description Limit Result Remark 3.1 15.107 AC Conducted Emission< 15.107 limits PASS Under limit 14.01 dB at 0…

Text truncated - open the document above for the full version.
