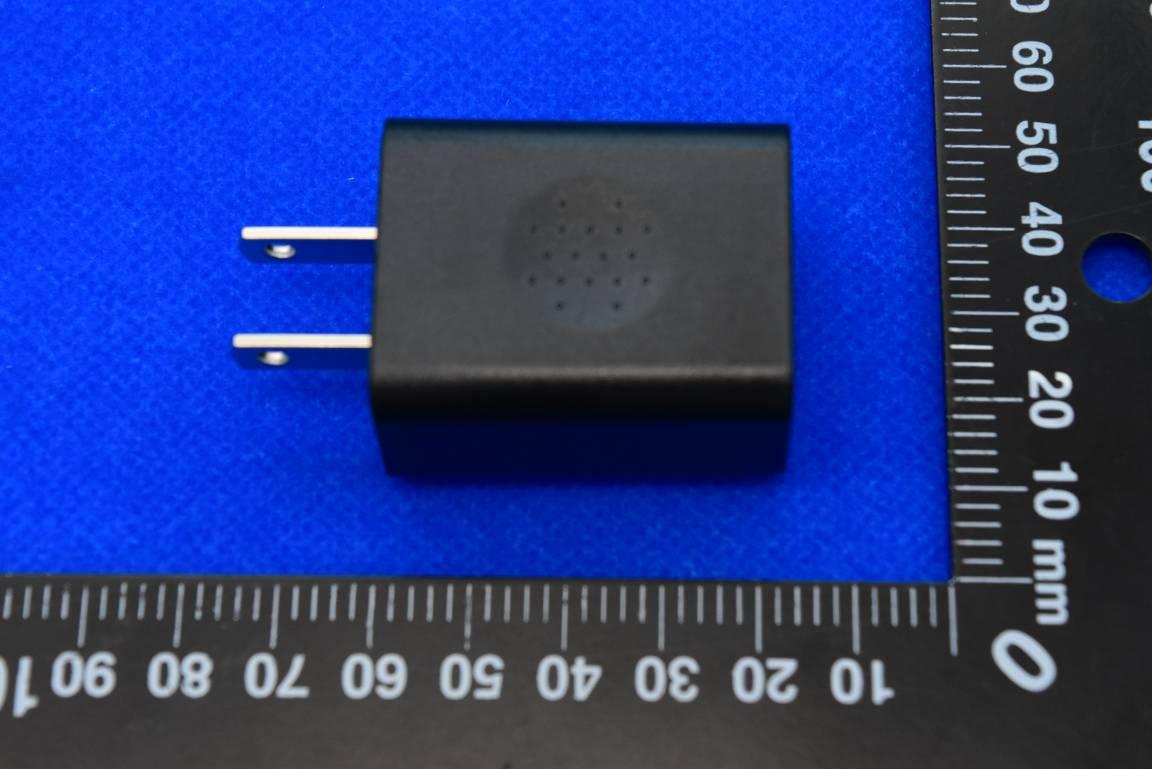

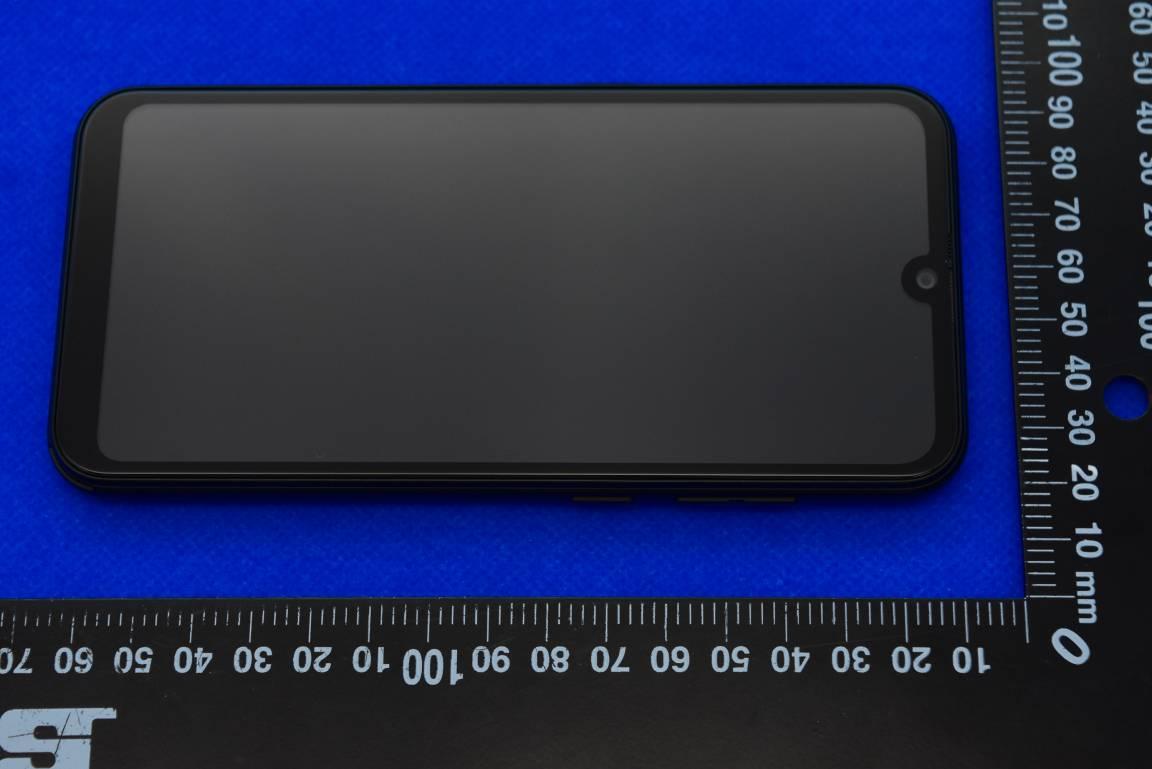

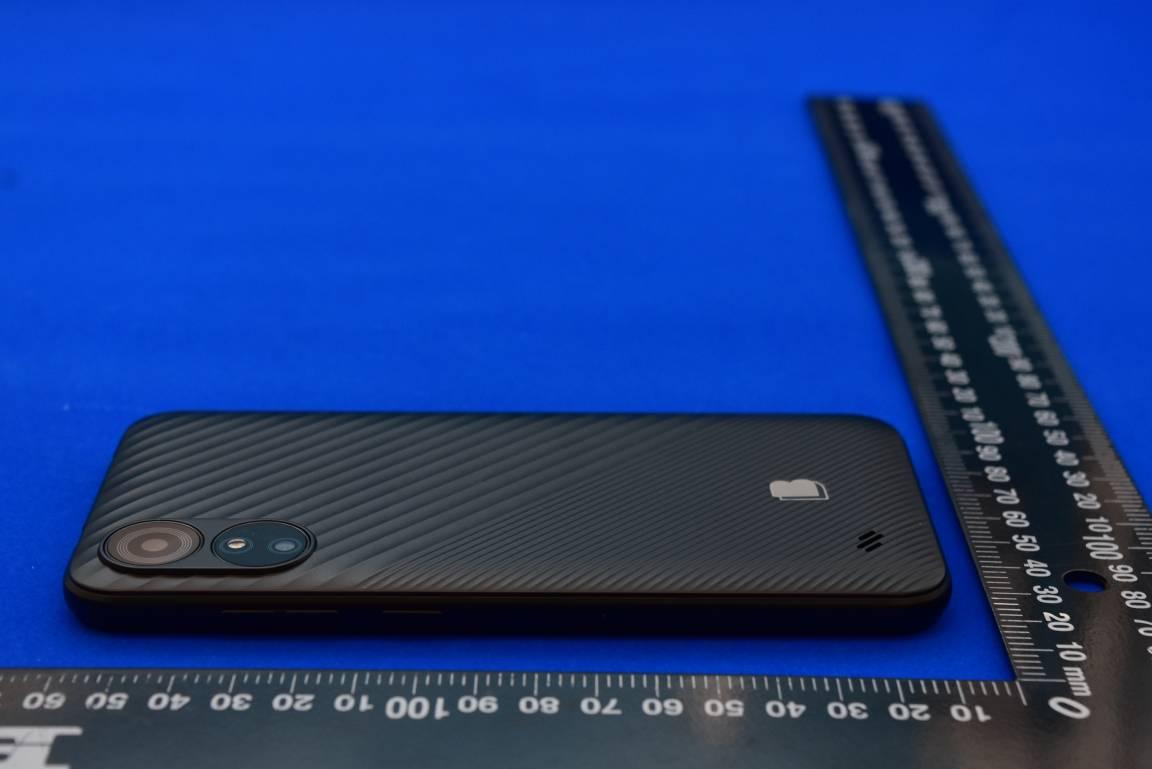

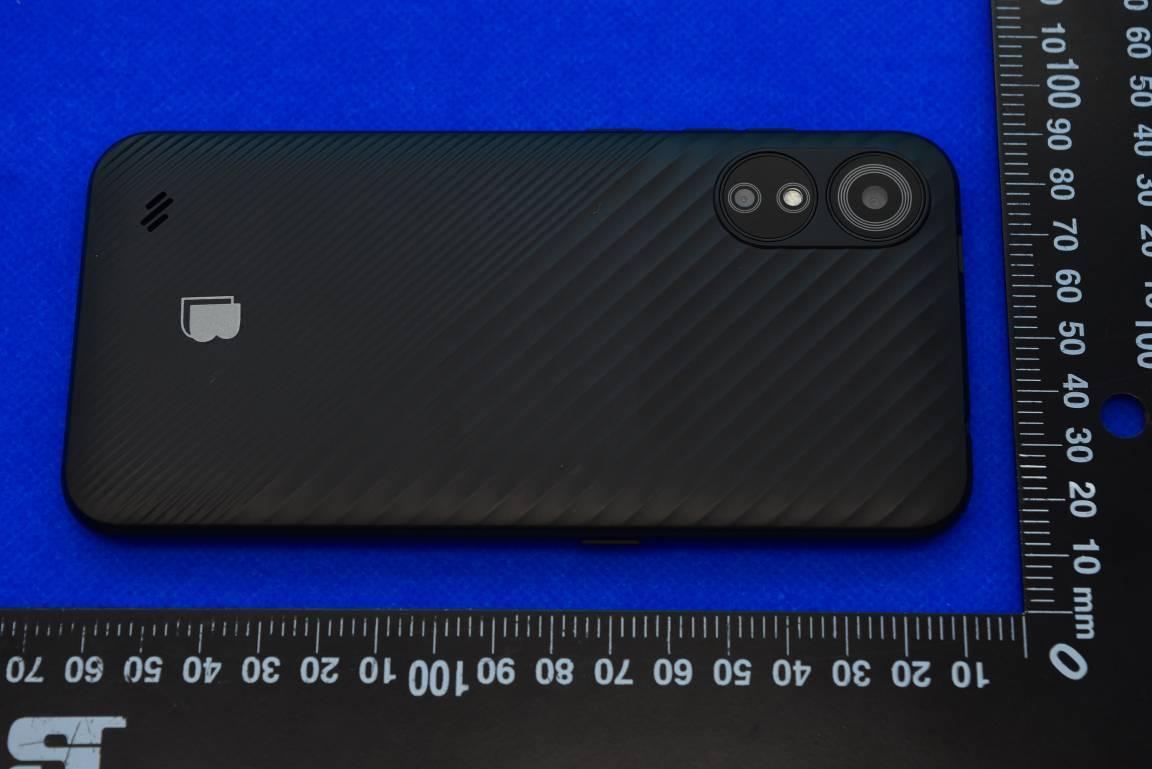

FCC ID: YHLBLUG33 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

Label： Location：(Insidethebatterycompartment) BackView

FCC ID: YHLBLUG33 Internal Photos 1. EUT uncover view 2. Antenna view

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23020308S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.04.28 System Check_750MHz_Head Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 750 MHz; σ = 0.873 S/m; ε r = 41.885; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(10.45, 10.45, 10.45) @ 750 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.12 W/kg CW750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.33 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 3.57 W/kg SAR(1 g) = 2.25 W/kg; SAR(10 g) = 1.28 W/kg Maximum value of SAR (measured) = 3.01 W/kg 0 dB = 3.01 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23020308S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.04.26 System Check_900MHz_Head Communication System: UID 0, CW (0); Frequency: 900 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used: f = 900 MHz; σ = 0.962 S/m; ε r = 41.663; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(10, 10, 10) @ 900 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW900/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.99 W/kg CW900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.41 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 4.74 W/kg SAR(1 g) = 2.69 W/kg; SAR(10 g) = 1.75 W/kg Maximum value of SAR (measured) = 3.95 W/kg 0 dB = 3.95 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23020308S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.04.27 System Check_1800MHz_Head Communication System: UID 0, CW (0); Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1800 MHz; σ = 1.367 S/m; ε r = 40.135; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.4, 8.4, 8.4) @ 1800 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW1800/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 15.9 W/kg CW1800/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 90.74 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 20.1 W/kg SAR(1 g) = 10.23 W/kg; SAR(10 g) = 5.23 W/kg Maximum value of SAR (measured) = 15.8 W/kg 0 dB = 15.8 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23020308S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.05.04 System Check_2000MHz_Head Communication System: UID 0, CW (0); Frequency: 2000 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 2000 MHz; σ = 1.362 S/m; ε r = 40.315; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.13, 8.13, 8.13) @ 2000 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW2000/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 16.1 W/kg CW2000/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 86.98 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 19.2 W/kg SAR(1 g) = 10.87 W/kg; SAR(10 g) = 5.41 W/kg Maximum value of SAR (measured) = 15.0 W/kg 0 dB = 15.0 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23020308S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.04.25 System Check_2450MHz_Head Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: …

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23020308S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.04.26 GSM850_GPRS(2 TX slots)_Right Cheek_Ch189 Communication System: UID 0, GSM850(class 10) (0); Frequency: 836.4 MHz;Duty Cycle: 1:4.15 Medium: HSL_900 Medium parameters used: f = 836.4 MHz; σ = 0.958 S/m; ε r = 40.843; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(10, 10, 10) @ 900 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch189/Area Scan (71x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.547 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.378 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.592 W/kg SAR(1 g) = 0.487 W/kg; SAR(10 g) = 0.391 W/kg Maximum value of SAR (measured) = 0.541 W/kg 0 dB = 0.547 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23020308S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.04.27 GSM1900_GPRS(3 TX slots)_Right Cheek_Ch661 Communication System: UID 0, GSM1900(class 11) (0); Frequency: 1880 MHz;Duty Cycle: 1:2.77 Medium: HSL_1800 Medium parameters used: f = 1880 MHz; σ = 1.351 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.4, 8.4, 8.4) @ 1880 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch661/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.16 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.92 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 1.36 W/kg SAR(1 g) = 0.763 W/kg; SAR(10 g) = 0.438 W/kg Maximum value of SAR (measured) = 1.01 W/kg 0 dB = 1.01 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23020308S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.04.27 WCDMA Band II_RMC 12.2Kbps_Right Cheek_Ch9400 Communication System: UID 0, UMTS-FDD (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1880 MHz; σ = 1.351 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.4, 8.4, 8.4) @ 1880 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch9400/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.369 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.065 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.398 W/kg SAR(1 g) = 0.245 W/kg; SAR(10 g) = 0.148 W/kg Maximum value of SAR (measured) = 0.316 W/kg 0 dB = 0.369 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23020308S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.04.27 WCDMA Band IV_RMC 12.2Kbps_Right Cheek_Ch1413 Communication System: UID 0, UMTS-FDD (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1733 MHz; σ = 1.366 S/m; ε r = 41.367; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.4, 8.4, 8.4) @ 1732.6 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch1413/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.275 W/kg Ch1413/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.586 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.292 W/kg SAR(1 g) = 0.178 W/kg; SAR(10 g) = 0.110 W/kg Maximum value of SAR (measured) = 0.227 W/kg 0 dB = 0.275 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23020308S01 Test Laboratory: Shenzhen Morlab Commun…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23020308S01 Annex E Conducted Power Note: Conducted power unit: dBm The target power was recorded in the manufacture document. 128189251128189251 824.2836.4848.8824.2836.4848.8 33.1533.1733.0934.0024.1524.1724.0925.00 33.1233.1533.0834.0024.1224.1524.0825.00 31.0131.0430.9932.0025.0125.0424.9926.000.05 29.0529.0829.0330.0024.7924.8224.7725.740.05 26.7926.8326.7227.5023.7923.8323.7224.500.11 26.3126.3426.1927.0017.3117.3417.1918.000.15 25.1625.1825.1026.0019.1619.1819.1020.000.08 22.8222.8622.6623.5018.5618.6018.4019.240.20 20.1420.1920.0821.0017.1417.1917.0818.000.11 Max.33.17Max.25.04 512661810512661810 1850.218801909.81850.218801909.8 30.0030.0329.9631.0021.0021.0320.9622.00 29.9530.0229.8931.0020.9521.0220.8922.00 27.6927.7527.6428.5021.6921.7521.6422.500.11 26.1126.1426.0627.0021.8521.8821.8022.740.08 23.8323.9223.8024.5020.8320.9220.8021.500.12 26.1726.2526.1127.0017.1717.2517.1118.000.14 24.2924.3624.2525.0018.2918.3618.2519.000.11 21.3821.4121.3322.0017.1217.1517.0717.740.08 18.0918.1218.0419.0015.0915.1215.0416.000.08 Max.30.03Max.21.88 926294009538131214131513413241824233 1852.418801907.61712.41732.61752.6826.4836.4846.6 3GPP Rel 99RMC 12.2Kbps22.8022.8222.7723.5022.7322.8522.8423.5022.7322.7622.7423.50 3GPP Rel 6HSDPA Subtest-121.9922.2222.2623.0020.6420.4620.7821.5021.4421.4621.1322.00 3GPP Rel 6HSDPA Subtest-221.5321.8321.8623.0021.1521.0221.2722.0021.1921.1620.8622.00 3GPP Rel 6HSDPA Subtest-321.6421.9722.0022.5021.0820.9921.2322.0020.8320.8420.5721.50 3GPP Rel 6HSDPA Subtest-421.3221.6321.6722.5021.0521.0021.2422.0020.7120.7320.4721.50 3GPP Rel 6HSUPA Subtest-119.4119.7519.9320.5019.2119.2419.5520.5019.6419.9619.5620.50 3GPP Rel 6HSUPA Subtest-219.2119.5419.6920.5018.4718.3118.5419.5019.3519.5819.4220.50 3GPP Rel 6HSUPA Subtest-319.6620.0020.1721.0019.2519.2519.5120.5019.7020.0319.6521.00 3GPP Rel 6HSUPA Subtest-419.6920.0720.2221.0018.8018.8019.0620.0019.3719.5719.4120.50 3GPP Rel 6HSUPA Subtest-521.7422.0322.1123.0021.0220.8921.1822.0021.2221.3320.9322.00 3GPP Rel 7 HSPA+ (16QAM) Subtest-121.1221.5921.5022.5021.5421.8521.6022.5022.1822.0621.9123.00 Cable Loss0.8Cable Loss0.8Cable Loss0.6 Max.22.82Max.22.85Max.22.76 Tune-up Limit (dBm) Attenuator Mode Tune-up Limit (dBm) Tune-up Limit (dBm) Tune-up Limit (dBm) BandWCDMA Band II (dBm)WCDMA Band IV (dBm)WCDMA Band V (dBm) TX Channel Frequency (MHz) Mode AttenuatorCable Loss : 0.8 EDGE 4 Tx slots EDGE 1 Tx slot EDGE 2 Tx slots EDGE 3 Tx slots GPRS 2 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots GSM1900Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot Tune-up Limit (dBm) Ch Delta > 0.5 0.14 Mode AttenuatorCable Loss : 0.6 EDGE 2 Tx slots EDGE 3 Tx slots EDGE 4 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot GPRS 2 Tx slots Tune-up Limit (dBm) Tune-up Limit (dBm) Ch Delta > 0.5 0.09 GSM850 Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Full Power MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23020308S01 BW [MHz]Modulation RB Size RB Offset Low Channel Middle Channel High Channel BW [MHz] Modulation RB Size RB Offset Low Channel Middle Channel High Channel 187001890019100200502017520300 18601880190017201732.51745 20QPSK1022.7322.7822.6920QPSK1022.6622.6822.59 20QPSK14922.6122.7122.5820QPSK14922.5122.6522.39 20QPSK19922.6422.7322.7020QPSK19922.6122.5522.59 20QPSK50021.5121.5821.5320QPSK50021.5321.7321.46 20QPSK502421.5521.5621.4920QPSK502421.6421.6821.46 20QPSK505021.4821.5221.5320QPSK505021.5821.4921.54 20QPSK100021.5121.5321.5020QPSK100021.4821.6821.64 2016QAM1021.5821.6121.532016QAM1021.7321.7421.52 2016QAM14921.5521.5321.562016QAM14921.6421.4721.55 2016QAM19921.2121.5621.522016QAM19921.4921.4421.55 2016QAM50020.6620.6920.632016QAM50020.5620.7220.46 2016QAM502420.6420.6320.592016QAM502420.5020.7720.67 2016QAM505020.6720.5420.522016QAM505020.5320.5420.44 2016QAM100020.5920.5820.552016QAM100020.6820.6720.68 186751890019125200252017520325 1857.518801902.51717.51732.51747.5 15QPSK1022.7322.7522.6715QPSK1022.6522.6522.53 15QPSK13722.6322.7022.4415QPSK13722.5822.6422.48 15QPSK17422.6022.6422.5815QPSK17422.5922.5722.56 15QPSK36021.4021.6921.4715QPSK36021.6121.5921.53 15QPSK362021.6821.3721.4415QPSK362021.3621.6421.64 15QPSK363921.3821.4521.5315QPSK3639 21.6121.4721.55 15 QPSK75021.4321.4921.4415QPSK75021.3421.3321.46 1516QAM1021.5121.6121.521516QAM1021.5921.5521.59 1516QAM13721.5621.4921.601516QAM13721.5821.4321.39 1516QAM17421.5821.6421.631516QAM17421.3221.6921.36 1516QAM36020.5520.8320.771516QAM36020.6320.8020.52 1516QAM362020.4920.6920.721516QAM362020.7220.6020.71 1516QAM363920.6820.6920.521516QAM363920.7920.5420.50 1516QAM75020.4120.6820.541516QAM75020.4920.5220.60 186501890019150200002017520350 18551880190517151732.51750 10QPSK1022.7222.7622.5510QPSK1022.6022.6622.61 10QPSK12522.6122.7222.5110QPSK12522.6522.6422.66 10QPSK14922.6122.5422.6010QPSK14922.5722.6222.58 10QPSK25021.6421.6321.4110QPSK25021.3221.5721.33 10QPSK251221.5421.7121.5810QPSK251221.4521.5321.29 10QPSK252521.6021.5021.5910QPSK252521.5021.3721.60 10QPSK50021.5821.4721.4310QPSK50021.3721.3921.50 1016QAM1021.5421.6521.661016QAM1021.5921.4121.35 1016QAM12521.5921.5221.571016QAM12521.3621.4921.41 1016QAM14921.5321.6921.411016QAM14921.3321.3621.42 1016QAM25020.5820.6020.711016QAM25020.4920.6920.57 1016QAM251220.6520.5620.491016QAM251220.5520.6920.56 1016QAM252520.7720.4020.581016QAM252520.5320.5320.45 1016QAM50020.5620.7120.…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23020308S01 Annex F DASY Calibration Certificate

Annual validation for test lab. Appendix Annual validation for Test Lab. General calibration information Date 2022.12.15 Test Laboratory ShenZhen Morlab Communications Technology Co., Ltd. Antenna serial No. D900V2-SN: 1d064 Antenna Parameters with Head TSL Impedance, transformed to feed point 48.406Ω-1.16jΩ Return Loss -33.947dB General Antenna Parameters and Design Electrical Delay (one direction) 1.276 ns After long term use with 100W radiated power，only a slight warming of the dipole near the feed point can be measured The dipole is made of standard semirigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps are added to the dipole arms in order to improve matching when loaded according to the position as explained in the "Measurement Conditions" paragraph. The SAR data are not affected by this change. The overall dipole length is still according to the Standard No excessive force must be applied to the dipole arm， because they might bend or the soldered connections near the feed point may be damaged . Annual validation for test lab. Annual validation for test lab. Appendix Impedance Measurement Plot for Head TSL

Annual validation for test lab. Appendix Annual validation for Test Lab. General calibration information Date 2022.12.15 Test Laboratory ShenZhen Morlab Communications Technology Co., Ltd. Antenna serial No. D1800V2-SN: 2d158 Antenna Parameters with Head TSL Impedance, transformed to feed point 52.134Ω-1.04jΩ Return Loss -32.673dB General Antenna Parameters and Design Electrical Delay (one direction) 1.276 ns After long term use with 100W radiated power，only a slight warming of the dipole near the feed point can be measured The dipole is made of standard semirigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps are added to the dipole arms in order to improve matching when loaded according to the position as explained in the "Measurement Conditions" paragraph. The SAR data are not affected by this change. The overall dipole length is still according to the Standard No excessive force must be applied to the dipole arm， because they might bend or the soldered connections near the feed point may be damaged . Annual validation for test lab. Appendix Impedance Measurement Plot for Head TSL Annual validation for test lab.

Annual validation for test lab. Appendix Annual validation for Test Lab. General calibration information Date 2022.12.15 Test Laboratory ShenZhen Morlab Communications Technology Co., Ltd. Antenna serial No. D2000V2-SN: 1050 Antenna Parameters with Head TSL Impedance, transformed to feed point 48.902Ω-1.79jΩ Return Loss -33.466dB General Antenna Parameters and Design Electrical Delay (one direction) 1.276 ns After long term use with 100W radiated power，only a slight warming of the dipole near the feed point can be measured The dipole is made of standard semirigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps are added to the dipole arms in order to improve matching when loaded according to the position as explained in the "Measurement Conditions" paragraph. The SAR data are not affected by this change. The overall dipole length is still according to the Standard No excessive force must be applied to the dipole arm， because they might bend or the soldered connections near the feed point may be damaged . Annual validation for test lab. Annual validation for test lab. Appendix Impedance Measurement Plot for Head TSL

Annual validation for test lab. Appendix Annual validation for Test Lab. General calibration information Date 2022.12.15 Test Laboratory ShenZhen Morlab Communications Technology Co., Ltd. Antenna serial No. D2450V2-SN: 805 Antenna Parameters with Head TSL Impedance, transformed to feed point 50.661Ω-5.59jΩ Return Loss -23.203dB General Antenna Parameters and Design Electrical Delay (one direction) 1.276 ns After long term use with 100W radiated power，only a slight warming of the dipole near the feed point can be measured The dipole is made of standard semirigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps are added to the dipole arms in order to improve matching when loaded according to the position as explained in the "Measurement Conditions" paragraph. The SAR data are not affected by this change. The overall dipole length is still according to the Standard No excessive force must be applied to the dipole arm， because they might bend or the soldered connections near the feed point may be damaged . Annual validation for test lab. Annual validation for test lab. Appendix Impedance Measurement Plot for Head TSL
