YHLBLUG51Smart Phone with GSM, WCDMA, LTE, WiFi and Bluetooth

-1- 3909 Android 8.1is the Operating System for your Touch Screen3909. -2- INTRODUCTION Thanks for choosing 3909, Single SIM Android, 3G smart phone based on 1.3GHz Quad Core Processor.This smartphone is running on Android 8.1OS.If you‟d like your phone to live a long and fruitful life, please read this guide carefully and keep it for future reference. You never know when you might need it. And don‟t worry if the pictures we use to demonstrate your phone‟s functions look a little different from what you see on its screen. It‟s the functions that matter. -3- Table of Contents 1 Safety ......................................................................... 4 1.1 Safety Precautions ........................................... 4 1.2 Using your phone safely .................................. 4 2 Understanding your Phone ................................... 7 2.1 Your Phone ....................................................... 7 Here need to add your own pictures ....................... 7 2.2 Description Icons .............................................. 7 2.3 Charging the battery ........................................ 8 2.4 Power ON/OFF ................................................. 8 2.5 Enter Main Menu .............................................. 8 2.6 Enter Sub Menu ............................................... 8 2.7 Use Notification Panel ..................................... 9 2.8 Move icons on the main interface .................. 9 2.9 Delete icons on the main interface ................... 9 2.10 Change wallpapers .......................................... 9 2.11 Recent tasks ..................................................... 9 2.12 Install APK through File Manager .................. 9 3 Using your Phone.................................................... 11 3.1 Main Menu & Its Functions ............................. 11 3.2 Wi-Fi .................................................................. 14 4 Inputting Text ........................................................... 15 5 Maintenance ............................................................. 16 6 Taking Care of your Device ................................... 16 -4- 1 Safety 1.1 Safety Precautions Please read through the following briefings carefully and act in accordance with these rules, so as to prevent causing anydanger or violating any law. SAR Value  W/kg@1g(Head) W/kg@1g(Body)  Use cell phone when the signal strength is good. Keep your calls short or instead use headset or send a text message. This advice applies especially to children, adolescents and pregnant women.  If you are using a Bluetooth headset device, please make sure it has a low power emitter. ROHS Declaration Declaration of Conformity with the requirements of the e-waste Management Rules, 2011 (adopted by Notification S.O.1035 (E) of Ministry of Environment and Forests)  The Product is in conformity with the requirements of Rule 13 of the e-waste Rules. The content of hazardous substance with the exemption of the applications listed in SCHEDULE II of the e-waste Rules: a. Lead (Pb) – not over 0.1% by weight; b. Cadmium (Cd) – not over 0.01% by weight; c. Mercury (Hg) – not over 0.1% by weight; d. Hexavalent chromium (Cr6+) – not over 0.1% by weight; e. Polybrominated biphenyls (PBBs) – not over 0.1% by weight; f. Polybrominateddiphenyl ethers (PBDEs) – not over 0.1% by weight. 1.2 Using your phone safely On The Road Using a phone while driving is illegal in many countries. Please follow local laws and drive safely at all times. Near Sensitive Electronics Don‟t use your phone near sensitive electronic equipment – particularly medical devices such as pacemakers – as it could cause them to malfunction. It can also interfere with the operation of fire detectors and other automatic-control equipment. -5- For more information about how your phone affects pacemakers or other electronic equipment, please contact the manufacturer or your local distributor. Your phone may cause interference when used near TVs, radios or automated office equipment. While Flying Your phone can cause interference with aircraft equipment. So it‟s essential you follow airline regulations. And if airline personnel ask you to switch off your phone, or disable its wireless functions, please do as they say. In Hospital Your phone may interfere with the normal operation of medical equipment. Follow all hospital regulations and turn it off when you‟re asked to by posted warnings or medical staff. At a Petrol Station Don‟t use your phone at petrol stations. In fact, it‟s always best to switch off whenever you‟re near fuels, chemicals or explosives. Around Water Keep your phone away from water (or any other liquid). It‟s not a waterproof model. Making Repairs Never take your phone apart. Please leave that to the professionals. Unauthorised repairs could break the terms of your warranty. Broken Antenna Don‟t use your phone if the antenna is damaged, as it could cause injury. Around Children Keep your mobile out of children‟s reach. It should never be used as a toy and it might not -6- be good for their health. Original Accessories Only use the original accessories supplied with your phone or those approved by the manufacturer. Using unapproved accessories may affect performance, make the warranty void, break national regulations on the use of mobile phones, or even cause injury. Near Explosives Turn off your phone in or near areas where explosive materials are used. Always obey local laws and turn off your phone when requested. Emergency Calls To make an emergency call your phone must be turned on and in an area where there‟s network coverage. Dial the national emergency number and press „send‟. Explain exactly where you are and don‟t hang up until help has arrived. Working Temperature The working temperature for the phone is between 0 Degree and 40 Degree Celcius. Please don‟t use the phone outside the range. Using the phone under too high or too low temperature might cause …

Text truncated - open the document above for the full version.

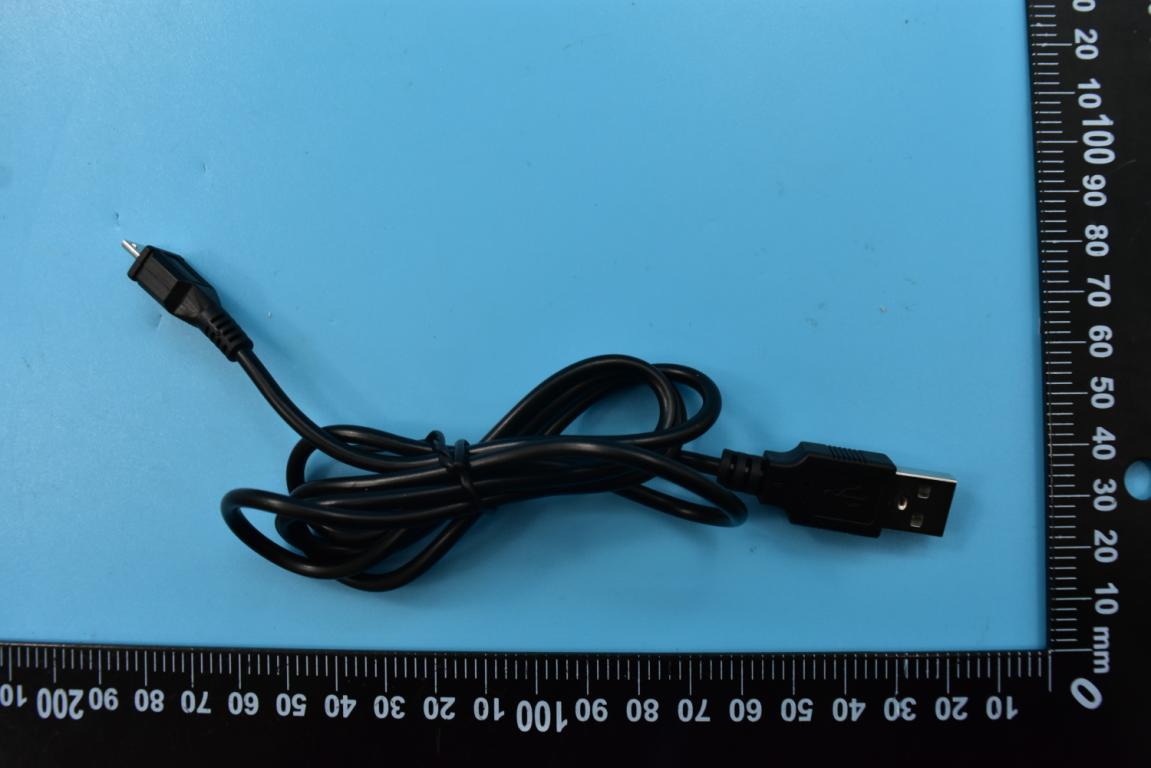

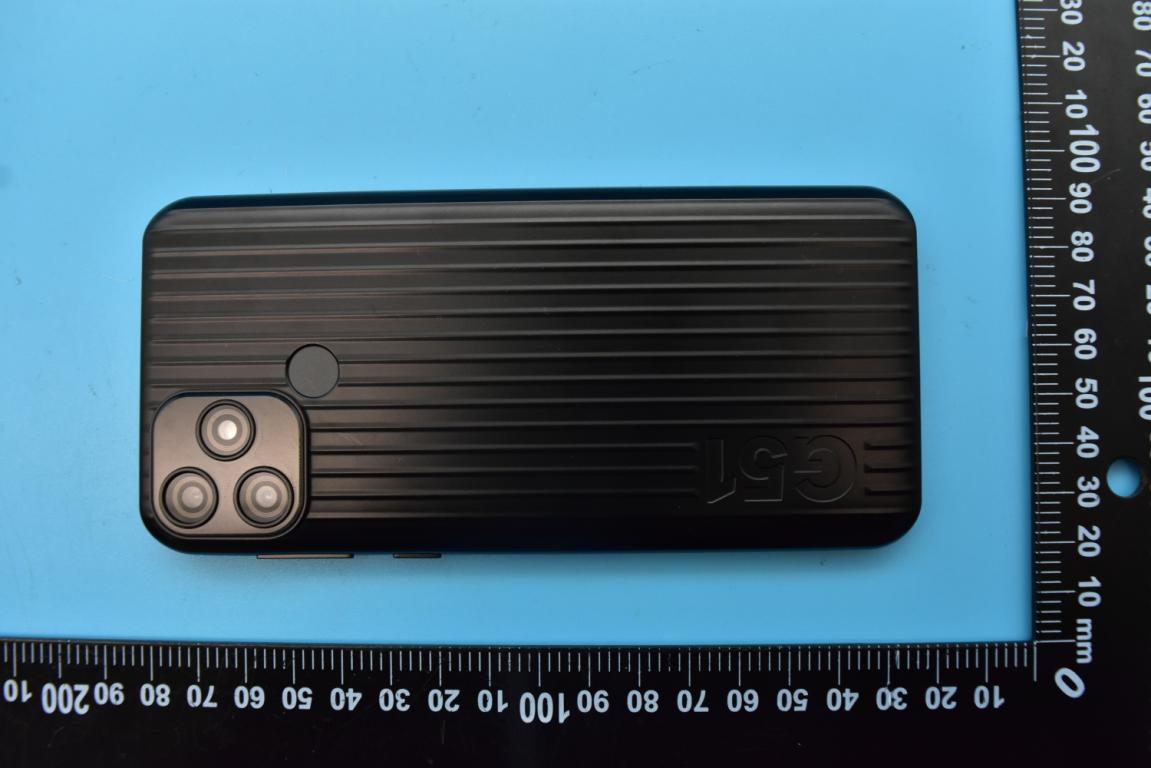

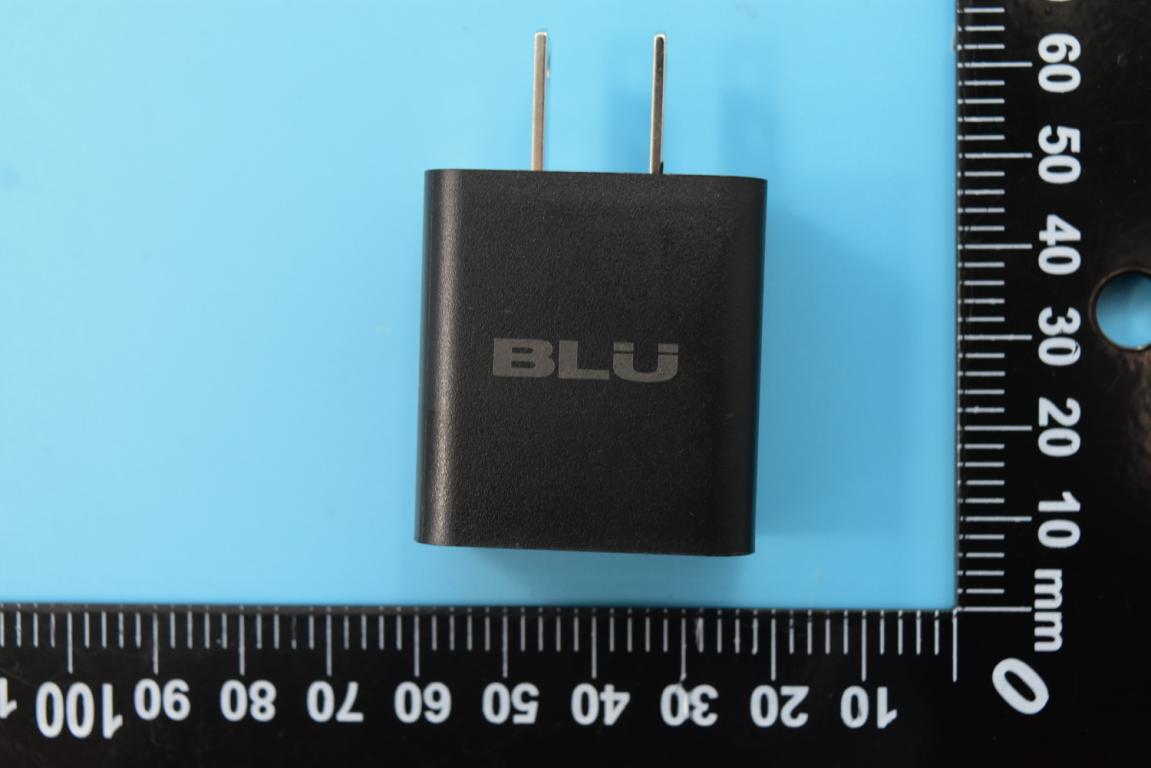

FCC ID: YHLBLUG51 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

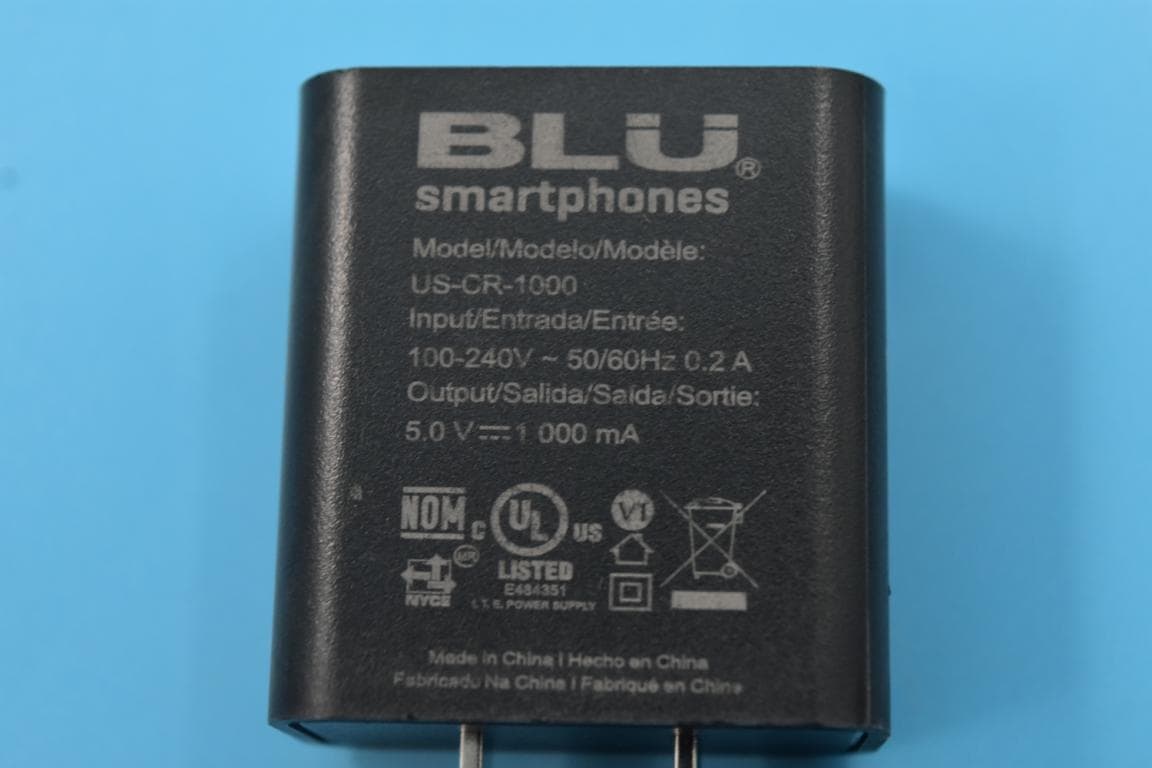

1. Label 2. Label location

FCC ID: YHLBLUG51 Internal Photos 1. EUT uncover view 2. Antenna view GSM/WCDMA/LTE Antenna Bluetooth/Wi-Fi Antenna Diversity Antenna

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22010101S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.02.24 System Check_750MHz_Head Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 750 MHz; σ = 0.885 S/m; ε r = 41.550; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(9.41, 9.41, 9.41) @ 750 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 4.41 W/kg CW750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 71.20 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 6.12 W/kg SAR(1 g) = 2.05 W/kg; SAR(10 g) = 1.36 W/kg Maximum value of SAR (measured) = 4.41 W/kg 0 dB = 4.41 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.02.24 System Check_900MHz_Head Communication System: UID 0, CW (0); Frequency: 900 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used: f = 900 MHz; σ = 0.996 S/m; ε r = 42.121; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(8.91, 8.91, 8.91) @ 900 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW900/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 7.48 W/kg CW900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 82.55 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 8.24 W/kg SAR(1 g) = 2.7 W/kg; SAR(10 g) = 1.78 W/kg Maximum value of SAR (measured) = 6.87 W/kg 0 dB = 7.48 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.02.25 System Check_1800MHz_Head Communication System: UID 0, CW (0); Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1800 MHz; σ = 1.42 S/m; ε r = 41.06; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(8.08, 8.08, 8.08) @ 1800 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW1800/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 25.7 W/kg CW1800/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 116.7 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 31.5 W/kg SAR(1 g) = 10.06 W/kg; SAR(10 g) = 5.02 W/kg Maximum value of SAR (measured) = 24.7 W/kg 0 dB = 25.7 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.02.26 System Check_2000MHz_Head Communication System: UID 0, CW (0); Frequency: 2000 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 2000 MHz; σ = 1.39 S/m; ε r = 40.03; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(7.66, 7.66, 7.66) @ 2000 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW2000/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 28.3 W/kg CW2000/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 124.3 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 35.6 W/kg SAR(1 g) = 10.45 W/kg; SAR(10 g) = 5.11 W/kg Maximum value of SAR (measured) = 27.6 W/kg 0 dB = 28.3 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.05 System Check_2450MHz_Head Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used: f = 2450 MHz; σ = 1.712 S/m; ε r = 40.121; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(7.22, 7.22, 7.22) @ 2450 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW2450/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 38.7 W/kg CW2450/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 126.9 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 49.6 W/kg SAR(1 g) = 13.02 W/kg; SAR(10 g) = 6.0 W/kg Maximum value of SAR (measured) = 37.2 W/kg 0 dB = 38.7 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.07 System Check_2600MHz_Head Communication System: UID 0, CW (0); Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: HSL_2600 Medium parameters used: f = 2600 MHz; σ = 1.925 S/m; ε r = 40.220; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Te…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22010101S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.02.24 GSM850_GPRS(4 TX slots)_Right Cheek_Ch189 Communication System: UID 0, GSM850(class 12) (0); Frequency: 836.4 MHz;Duty Cycle: 1:2.08 Medium: HSL_900 Medium parameters used: f = 836.4 MHz; σ = 0.943 S/m; ε r = 42.978; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(8.91, 8.91, 8.91) @ 900 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch189/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.519 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.829 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.575 W/kg SAR(1 g) = 0.435 W/kg; SAR(10 g) = 0.329 W/kg Maximum value of SAR (measured) = 0.508 W/kg 0 dB = 0.519 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.02.26 GSM1900_GPRS(4 TX slots)_Left Cheek_Ch661 Communication System: UID 0, GSM1900(class 12) (0); Frequency: 1880 MHz;Duty Cycle: 1:2.08 Medium: HSL_2000 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(7.66, 7.66, 7.66) @ 2000 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch661/Area Scan (71x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.313 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.184 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.352 W/kg SAR(1 g) = 0.230 W/kg; SAR(10 g) = 0.146 W/kg Maximum value of SAR (measured) = 0.299 W/kg 0 dB = 0.299 W/kg = -5.24 dBW/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.02.26 WCDMA Band II_RMC 12.2Kbps_Left Cheek_Ch9400 Communication System: UID 0, UMTS-FDD (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(7.66, 7.66, 7.66) @ 2000 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch9400/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.440 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.117 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.502 W/kg SAR(1 g) = 0.329 W/kg; SAR(10 g) = 0.208 W/kg Maximum value of SAR (measured) = 0.423 W/kg 0 dB = 0.440 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.02.25 WCDMA Band IV_RMC 12.2Kbps_Left Cheek_Ch1413 Communication System: UID 0, UMTS-FDD (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1733 MHz; σ = 1.366 S/m; ε r = 41.367; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(8.08, 8.08, 8.08) @ 1800 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch1413/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.242 W/kg Ch1413/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.188 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.269 W/kg SAR(1 g) = 0.184 W/kg; SAR(10 g) = 0.100 W/kg Maximum value of SAR (measured) = 0.229 W/kg 0 dB = 0.242 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.02.24 WCDMA Band V_RMC 12.2Kbps_Right Cheek_Ch4182 Communication System: UID 0, UMTS-FDD (0); Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used: f = 836.4 MHz; σ = 0.943 S/m; ε r = 42.978; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(8.91, 8.91, 8.91) @ 900 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch4182/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.324 W/kg Ch4182/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.957 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.353 W/kg SAR(1 g) = 0.264 W/kg; SAR(10 g) = 0.197 W/kg Maximum value of SAR (measured) = 0.304 W/kg 0 dB = 0.324 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.02.26 LTE Band 2_20MHz_QPSK_1RB_0Offset_Righ…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22010101S01 Annex E Conducted Power 128189251128189251 824.2836.4848.8824.2836.4848.8 32.6932.7632.6833.5023.6923.7623.6824.50 32.6932.7732.6933.5023.6923.7723.6924.50 31.5231.6831.5532.5025.5225.6825.5526.500.16 29.7229.8429.8130.5025.4625.5825.5526.240.12 28.6528.6628.6129.5025.6525.6625.6126.500.05 27.0827.1127.0628.0018.0818.1118.0619.000.05 25.4125.5025.4426.0019.4119.5019.4420.000.09 22.3922.4722.5623.0018.1318.2118.3018.740.17 21.3621.3421.2222.0018.3618.3418.2219.000.14 Max.32.77Max.25.68 512661810512661810 1850.218801909.81850.218801909.8 30.2630.3130.2931.0021.2621.3121.2922.00 30.2730.3330.3031.0021.2721.3321.3022.00 29.5129.6229.5830.0023.5123.6223.5824.000.11 27.4827.5627.5128.0023.2223.3023.2523.740.08 26.4426.5926.4727.0023.4423.5923.4724.000.15 26.6126.7826.6627.0017.6117.7817.6618.000.17 25.3925.4625.4126.0019.3919.4619.4120.000.07 22.4922.6622.5723.0018.2318.4018.3118.740.17 20.7120.8120.7421.0017.7117.8117.7418.000.10 Max.30.33Max.23.62 926294009538131214131513413241824233 966298009938153716381738435744074458 1852.418801907.61712.41732.61752.6826.4836.4846.6 3GPP Rel 99RMC 12.2Kbps23.0423.1123.0724.0022.4122.5122.3924.0022.1522.2622.1523.00 3GPP Rel 6HSDPA Subtest-122.6722.4822.9223.5022.2022.2522.2023.0022.2222.1822.1623.00 3GPP Rel 6HSDPA Subtest-222.5422.4522.8223.5022.3922.3522.3223.0022.1622.1522.1423.00 3GPP Rel 6HSDPA Subtest-322.0721.9222.3023.0021.9821.9221.8122.5021.8821.8421.8222.50 3GPP Rel 6HSDPA Subtest-422.0821.9822.2523.0021.9021.8821.7922.5021.8921.8521.8122.50 3GPP Rel 6HSUPA Subtest-122.0022.3722.1823.0021.8321.7521.7022.5021.8821.8421.9522.50 3GPP Rel 6HSUPA Subtest-222.4822.3822.7323.5022.3122.2322.2523.0022.2022.1422.1223.00 3GPP Rel 6HSUPA Subtest-321.5021.3821.7122.0021.3121.3121.1922.0021.2721.1521.2422.00 3GPP Rel 6HSUPA Subtest-422.4322.3522.7923.5022.3022.2222.2223.0022.1822.2022.2023.00 3GPP Rel 6HSUPA Subtest-521.4721.4121.6522.0021.3221.2821.1622.0021.4121.3421.4322.00 3GPP Rel 7 HSPA+ (16QAM) Subtest-121.3321.2421.5722.0021.1721.1621.0922.0021.4721.4321.3922.00 Cable Loss0.8Cable Loss0.8Cable Loss0.6 Max.23.11Max.22.51Max.22.26 Tune-up Limit (dBm) Attenuator Mode Tune-up Limit (dBm) Tune-up Limit (dBm) Tune-up Limit (dBm) BandWCDMA Band IIWCDMA Band IVWCDMA Band V TX Channel Rx Channel Frequency (MHz) Mode AttenuatorCable Loss : 0.8 EDGE 4 Tx slots EDGE 1 Tx slot EDGE 2 Tx slots EDGE 3 Tx slots GPRS 2 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots GSM1900Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot Tune-up Limit (dBm) Ch Delta > 0.5 0.07 Mode AttenuatorCable Loss : 0.6 EDGE 2 Tx slots EDGE 3 Tx slots EDGE 4 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot GPRS 2 Tx slots Tune-up Limit (dBm) Tune-up Limit (dBm) Ch Delta > 0.5 0.09 Conducted Power GSM850Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel BW [MHz]Modulation RB Size RB Offset Low Channel Middle Channel High Channel BW [MHz] Modulation RB Size RB Offset Low Channel Middle Channel High Channel 187001890019100200502017520300 18601880190017201732.51745 20QPSK10 22.2922.3222.26 20QPSK1022.3122.3922.38 20QPSK149 22.2722.2122.14 20QPSK14922.1722.2522.24 20QPSK199 22.2122.1722.15 20QPSK19922.0922.2222.34 20QPSK500 21.3721.4621.39 20QPSK50021.4721.5121.48 20QPSK5024 21.3821.4321.43 20QPSK502421.3821.4621.46 20QPSK5050 21.4321.3921.45 20QPSK505021.2721.3821.39 20QPSK1000 21.3621.4521.41 20QPSK100021.3721.4121.48 2016QAM10 21.4221.4221.44 2016QAM1021.2421.5421.41 2016QAM149 21.2621.5621.52 2016QAM14921.3921.1621.30 2016QAM199 21.5121.3621.76 2016QAM19921.1821.4021.24 2016QAM500 21.4421.4121.39 2016QAM50021.3721.3021.44 2016QAM5024 21.4021.4521.46 2016QAM502421.6321.7421.63 2016QAM5050 21.4821.4521.52 2016QAM505021.5921.6021.60 2016QAM1000 21.5121.5221.39 2016QAM100021.6121.6921.70 2064QAM10 21.4621.6521.39 2064QAM1021.3521.4621.68 2064QAM149 21.4121.5921.50 2064QAM14921.3921.3221.20 2064QAM199 21.3621.6921.69 2064QAM19921.6621.2321.70 2064QAM500 21.4621.3821.43 2064QAM50021.3621.4521.40 2064QAM5024 21.4921.4321.48 2064QAM502421.3821.4921.43 2064QAM5050 21.4821.4921.43 2064QAM505021.4221.3721.39 2064QAM1000 21.3621.3321.34 2064QAM100021.4521.4321.52 186751890019125200252017520325 1857.518801902.51717.51732.51747.5 15QPSK10 22.1022.1322.04 15QPSK1022.1822.2222.32 15QPSK137 21.8922.2522.13 15QPSK13722.2222.3122.23 15QPSK174 22.2622.1822.26 15QPSK17422.0922.3122.34 15QPSK360 21.2321.3221.31 15QPSK36021.3221.3921.42 15QPSK3620 21.2221.4121.38 15QPSK362021.3621.4921.45 15QPSK3639 21.3421.3521.32 15QPSK363921.4121.4021.49 15QPSK750 21.2621.3221.28 15QPSK75021.3621.3821.39 1516QAM10 21.3521.4321.37 1516QAM1021.3021.5221.24 1516QAM137 21.4821.5121.37 1516QAM13721.3821.3821.22 1516QAM174 21.4321.5521.55 1516QAM17421.2421.5421.33 1516QAM360 21.2221.2721.30 1516QAM36021.2521.2721.46 1516QAM3620 21.3121.2421.37 1516QAM362021.2021.2721.33 1516QAM3639 21.3621.4521.42 1516QAM363921.1621.2521.31 1516QAM750 21.2321.2521.34 1516QAM75021.2721.2821.37 1564QAM10 21.4321.1921.25 1564QAM1021.2221.5321.58 1564QAM137 21.4221.2321.65 1564QAM13721.6421.4021.46 1564QAM174 21.3121.3521.50 1564QAM17421.6821.3921.43 1564QAM360 21.1621.3321.21 1564QAM36021.3321.4021.44 1564QAM3620 21.3621.3821.28 1564QAM362021.3921.4121.43 1564QAM3639 21.2421.2921.38 1564QAM363921.4221.3821.40 1564QAM750 21.2321.3021.29 1564QAM75021.3521.4621.39 186501890019150200002017520350 18551880190517151732.51750 10QPSK10 22.1422.1322.23 10QPSK1022.3022.2922.12 10QPSK125 22.1822.2122.16 10QPSK12522.2822.2122.22 10QPSK149 22.1422.1522.14 10QPSK14922.1621.9922.22 10QPSK250 21.4121.4221.38 10QPSK25021.1521.3721.39 10QPSK2512 21.3721.4921.42 10QPSK…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22010101S01 Annex F DASY Calibration Certificate

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZh en , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22010101S01 Page 1 of 69 TEST REPORT APPLICANT : BLU Products, Inc. PRODUCT NAME : Smart Phone MODEL NAME : G51 BRAND NAME : BLU FCC ID : YHLBLUG51 STANDARD(S) : FCC 47 CFR Part 2(2.1093) IEEE 1528-2013 RECEIPT DATE : 2022-02-14 TEST DATE : 2022-02-24 to 2022-03-07 ISSUE DATE : 2022-04-12 Edited by : Xie Yiyun (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22010101S01 Page 2 of 69 DIRECTORY 1. SAR Results Summary ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 2. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 2.1. Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 2.2. Equipment under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 2.3. Environment of Test Site/Conditions ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8 3. Specific Absorption Rate (SAR) ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 3.1. Introduction∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 3.2. SAR Definition ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 4. RF Exposure Limits ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10 4.1. Uncontrolled Environment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10 4.2. Controlled Environment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10 5. Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 11 6. SAR Measurement System ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 12 6.1. E-Field Probe ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 13 6.2. Data Acquisition Electronics (DAE) ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 6.3. Robot ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 6.4. Measurement Server ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 15 6.5. Light Beam Unit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 15 6.6. Phantom ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 15 6.7. Device Holder ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 16 6.8. Data Storage and Evaluation ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 17 6.9. Test Equipment List ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 19 7. Tissue Simulating Liquids ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 21 8. SAR System Verification ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 23 8.1. Purpose of System Performance check ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 23 8.2. System Setup ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 23 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22010101S01 Page 3 of 69 8.3. Validation Results ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 24 9. EUT Testing Position ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 27 9.1. Handset Reference Points ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙…
