YHLBLUG61Smart Phone with Bluetooth, WiFi, GSM, WCDMA and LTE

G61 Quick Guide | Guía Rápida | Guía Rápido | Guide Rapide FCC ID : YHLBLUG61 o For instructions or any questions pertaining to phone usage, please click on the BLU page by visiting the following address: manuals.bluproducts.com o Para obtener instrucciones o preguntas relacionadas con el uso del teléfono, por favor haga clic en la página de BLU visitando la siguiente dirección: manuals.bluproducts.com o Para obter instruções ou perguntas relacionadas ao uso do telefone, por favor, clique na página de BLU visitando o seguinte endereço: manuals.bluproducts.com o Pour des instructions ou pour toutes questions sur l'utilisation du téléphone, veuillez cliquer sur à la page BLU en visitant l'adresse suivante: manuals.bluproducts.com ATTENTION ABOUT YOUR PHONE Transportation Safety Observe all transportation laws and regulations. PLEASE DRIVE RESPONSIBLY - DO NOT TEXT & DRIVE Hospital Safety Follow hospital rules and limitations and turn off your mobile phone when near medical instruments. Airport Safety Remember to follow all airport and flight safety regulations. Water Hazard Your phone is not waterproof. Keep your phone away from water or liquid to avoid damage. Emergency Calls Make sure your mobile phone is switched on and in a service area. On home screen, tap the phone key and dial the emergency number. Battery Usage For better performance and longer battery life, it is recommended that you charge the battery fully before using the mobile phone for the first time and that you initially complete two to three charge cycles. IMEI Information To check your IMEI, press *#06#. KEY FUNCTIONS Volume Power On / Off Back Home Recent Apps Front Camera Rear Cameras Flash Fingerprint Sensor Power On / Off Used to power on/off the device and to lock the screen. » Long press the power button to power on » While the phone is powered on, long press to access the power off menu or click to lock the screen Volume Adjusts the ringer volume, call volume, and multimedia volume. Home The home button pauses any current action and returns to the home screen. Recent Apps Opens a list of recently opened applications that allows you to switch conveniently between them. This option can also close any open applications by swiping to the side. Back Returns to the previous screen; Closes the keyboard, any open program, or any menu option. USB Port Charges the device and transfers data such as documents, music, and video between your device and a PC. Headset Port Connect earphones to this port for hands-free capabilities. You may also to listen to music or FM radio. Front Camera A high-resolution front camera to take pictures and video. This option is ideal for self-portraits. Rear Camera A high-resolution rear camera to take pictures and video. Flash Fingerprint Sensor Provides light for pictures in low-light conditions. It also may be used as a flashlight (Rear). Security measure that unlocks your device with the User’s fingerprints. INTRODUCTION Installation of the SIM Card Warning: Please keep the SIM card out of the reach of children. The SIM card and its contact are easily damaged due to scratching or bending. Please use caution when carrying, installing, or taking out the SIM card. Note: Please contact your cellular phone service provider directly to obtain your SIM card. To insert SIM card:  Remove the SIM card tray (with tool). Insert the SIM card.  Insert the SD card (For additional storage capacity)  Replace the SIM card tray and power on the phone. DEVICE CONFIGURATION When you initially power on your phone, there will be a series of steps to set up basic features. INSERT SIM Insert your SIM card so the phone can register to the network. SELECT LANGUAGE While on the Welcome screen, please scroll to select your language. In this step, you also have the option to adjust Vision Settings such as magnification, font and display size. You have the ability to place an Emergency Call. SELECT WI-FI This step allows the device to connect to the internet. Click on the desired Wi-Fi network that the device that will be connected. Please note that any unsecured Wi-Fi networks can be connected to without credentials and any secured Wi-Fi networks require a password for credentials prior to connection. It is recommended that you connect to a Wi-Fi network to check for software updates prior to startup to avoid any data overages. COPY APPS & DATA This step allows you to select transfer options such as applications, pictures, music and more from a previous device. You may also setup as new if you choose not to from a previous device. ADD YOUR ACCOUNT Sign in to your Google TM account in order to keep accounts streamlined with Google services. Your account will be used for Google programs such as Google Play TM , Google Drive, Google + and Google Wallet. If you do not have a Google account, click to create a new account. If the device is not recognized by your Google account, you will have to complete a security verification. GOOGLE SERVICES Click to add or remove Google services that include Backup and Restore, Location Service, Install Updates and Apps, and Google Now. SET FINGERPRINT SECURITY Setup your fingerprint to unlock your phone and for authorization on certain applications. There will be three options to setup fingerprint security: with PIN, Password or Pattern. In this step, you will have the ability to setup a PIN at startup as an extra layer of security. You also have the option of skipping the fingerprint setup and completing it at a later time. FINALIZE SETUP The last step allows you to set up Google Assistant and Google Pay. It also allows you to add another email address. You can also control what information is visible through the phones lock screen and lets you also review any additional apps. You may skip this step and setup later. Google, Google Play and other marks are trademarks of Google LLC. SOBRE SU TELÉ FONO Seguridad de Transporte Siga todas las leyes y regulaciones de transporte. MANEJE RESPON…

Text truncated - open the document above for the full version.

BLU Products, Inc. Date:2021/1/8 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID: YHLBLUG61 To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules(CFR 47), and Section 552(b)(4) of the Freedom of Information Act, BLU Products, Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA04-1705. This provision will give BLU Products, Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 BOM 5 Tune-up SHORT-TERM 6 External Photos 7 Internal Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Signatory Contact name: Wei Zeng Title: Senior Manager Tel: 3057157171 Email: [email protected] Company name: BLU Products, Inc.

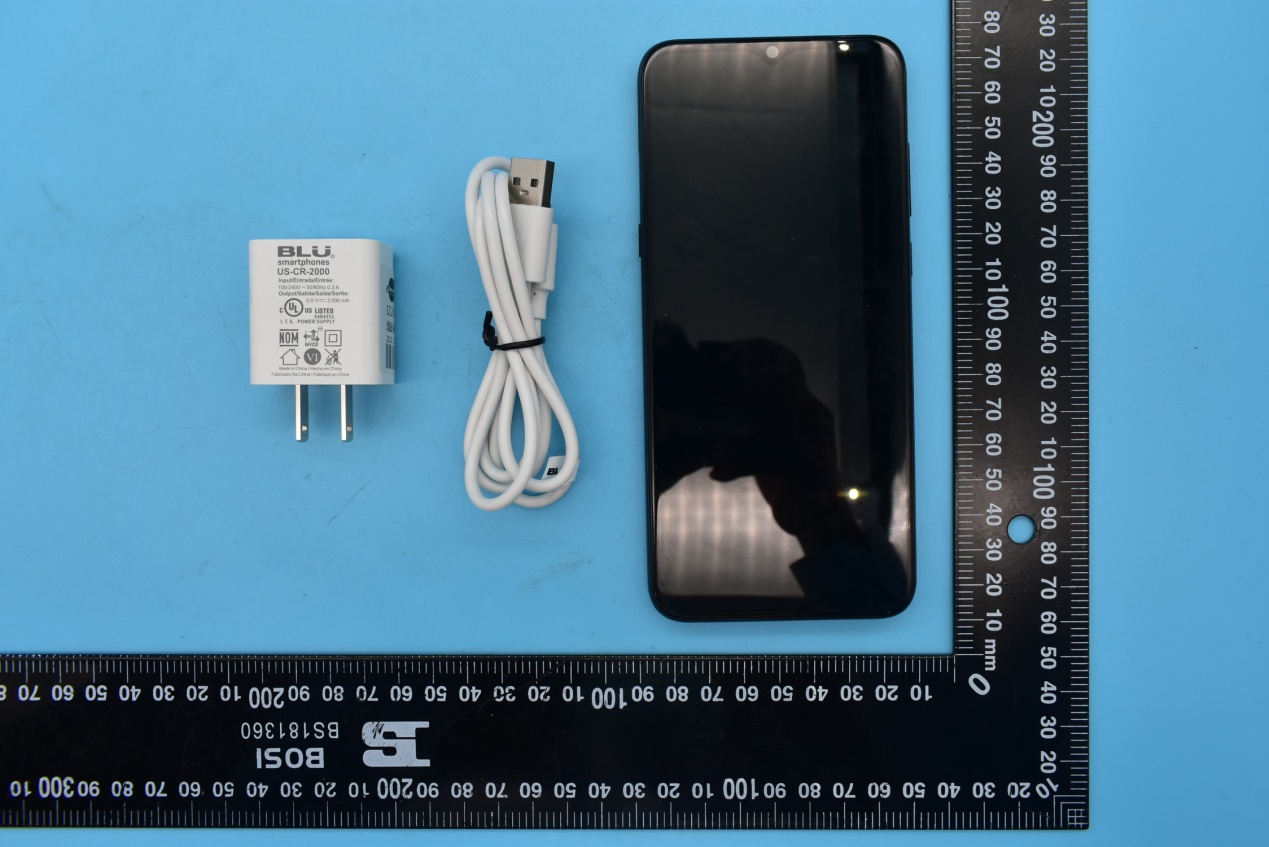

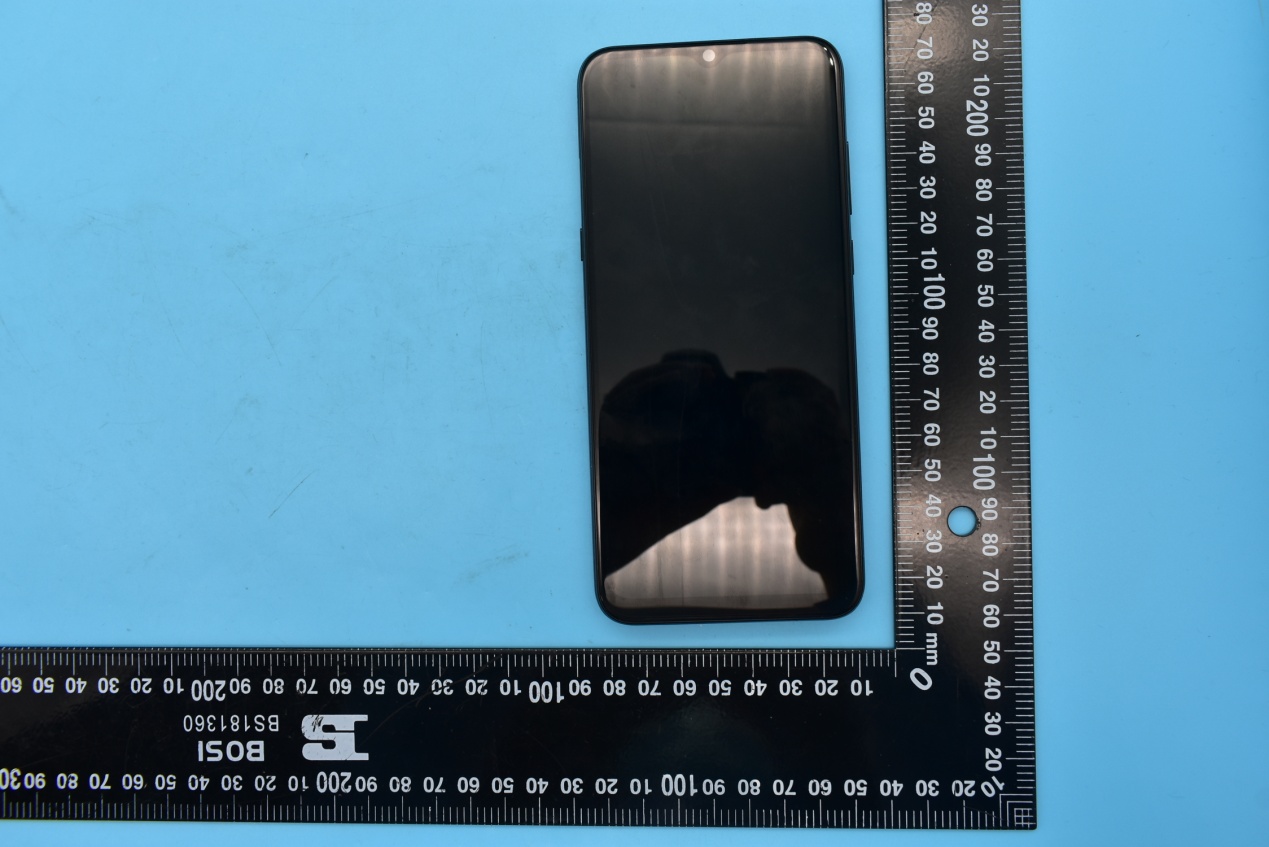

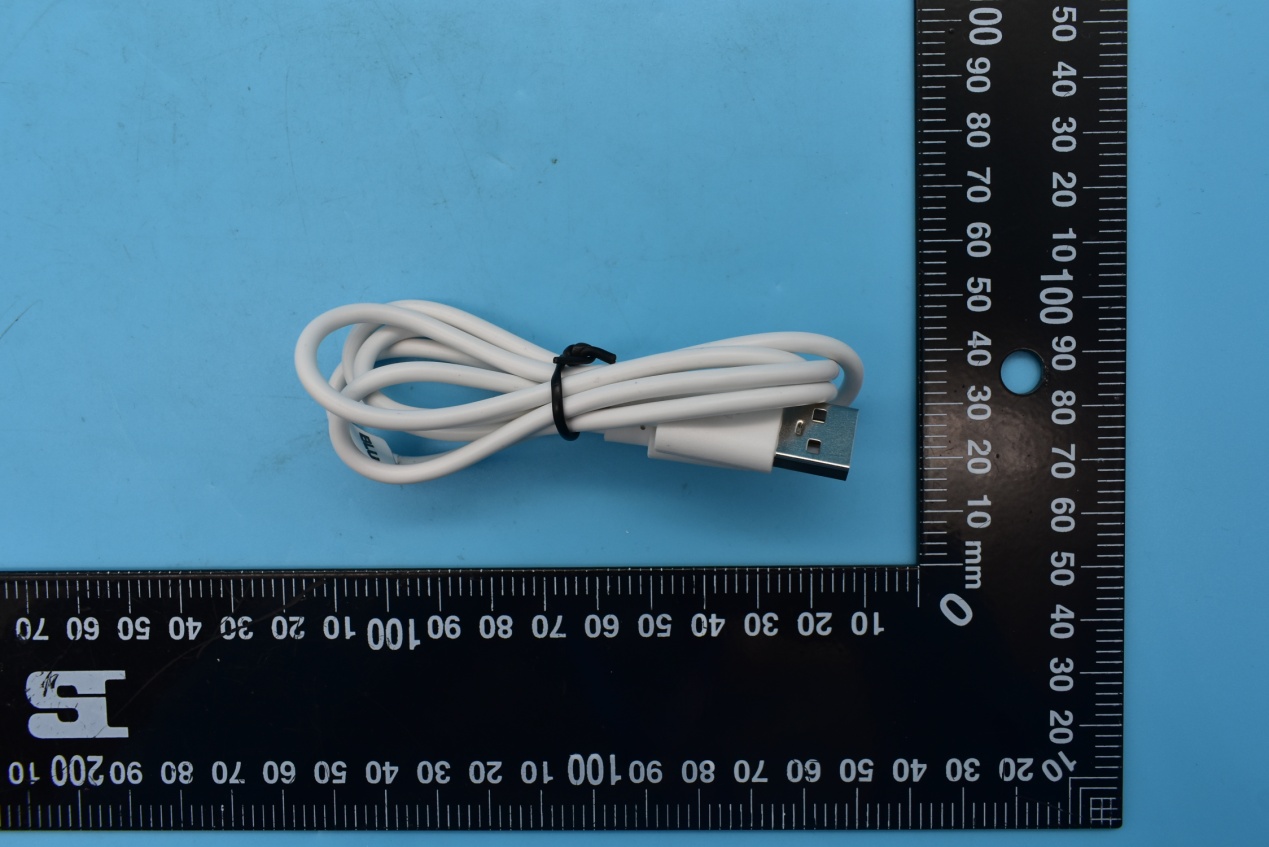

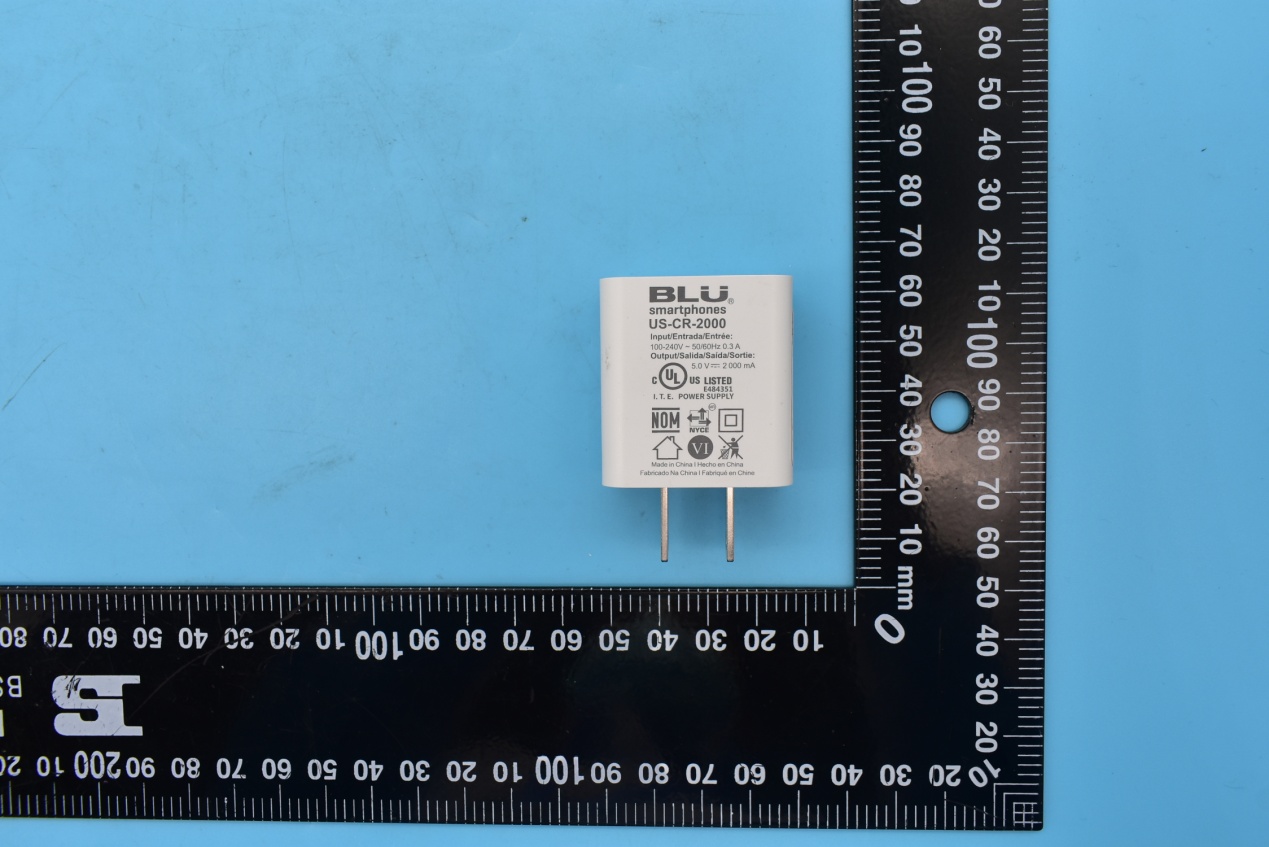

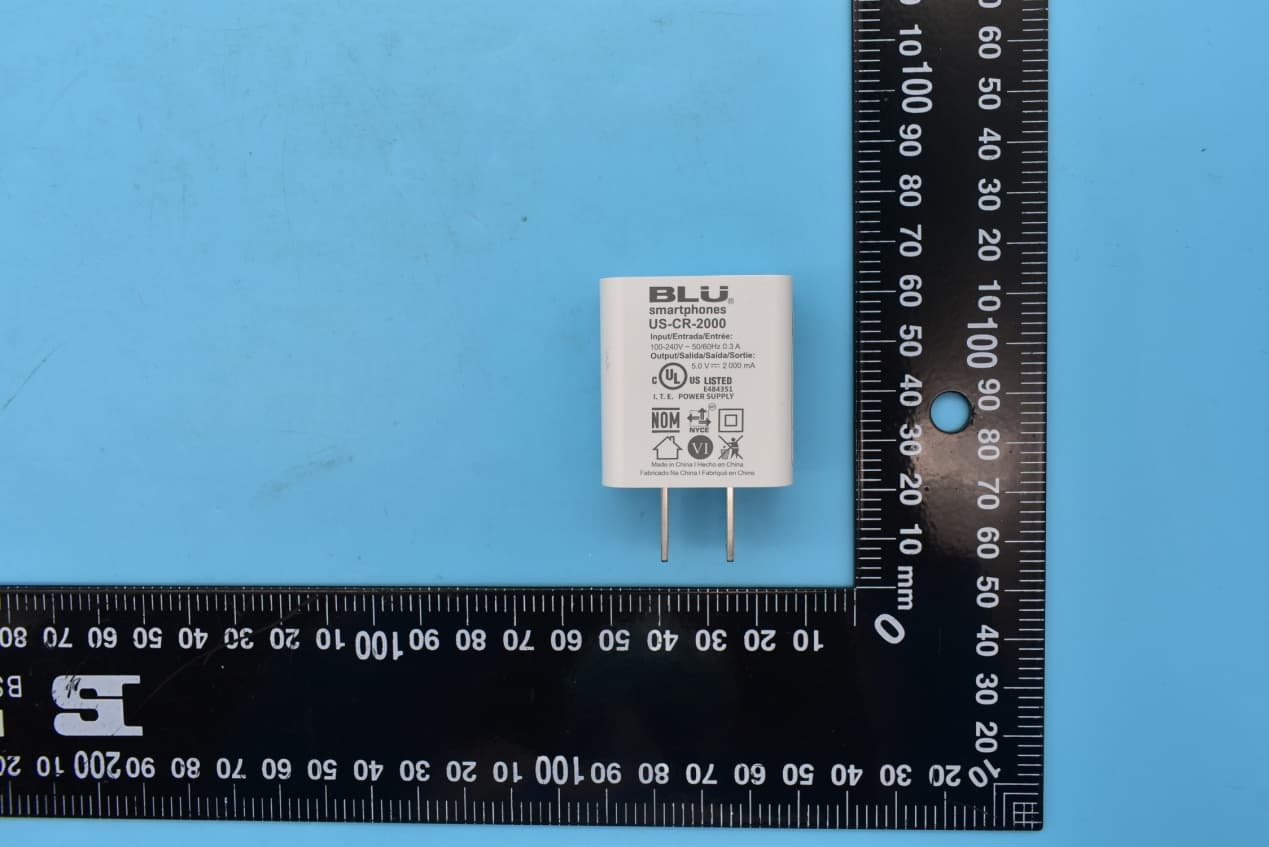

FCC ID:YHLBLUG61 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

BLU Products, Inc. Label Label Location In the back

FCC ID:YHLBLUG61 Internal Photos 1. EUT uncover view 2. Antenna view MAIN Antenna Wi-Fi Antenna Diversity Antenna

REPORT No.：SZ20110224S01 TEST REPORT APPLICANT : BLU Products, Inc. PRODUCT NAME : Smart Phone MODEL NAME : G61 BRAND NAME : BLU FCC ID : YHLBLUG61 STANDARD(S) : 47 CFR Part 2(2.1093) IEEE 1528-2013 RECEIPT DATE : 2020-12-11 TEST DATE : 2020-12-19 to 20-12-24 ISSUE DATE : 2021-01-14 Edited by : Liang Yumei (Rapporteur) Approved by: Peng Huarui (Supervisor) NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 87 REPORT No.：SZ20110224S01 DIRECTORY 1. SAR Results Summary ······································································································ 5 2. Technical Information ········································································································ 6 2.1. Applicant and Manufacturer Information ····································································· 6 2.2. Equipment under Test (EUT) Description ···································································· 6 2.3. Environment of Test Site/Conditions ············································································ 8 3. Specific Absorption Rate (SAR) ······················································································· 9 3.1. Introduction ······················································································································ 9 3.2. SAR Definition ·················································································································· 9 4. RF Exposure Limits·········································································································· 10 4.1. Uncontrolled Environment ··························································································· 10 4.2. Controlled Environment ······························································································· 10 5. Applied Reference Documents ······················································································· 11 6. SAR Measurement System ····························································································· 12 6.1. E-Field Probe ·················································································································· 13 6.2. Data Acquisition Electronics (DAE) ············································································ 14 6.3. Robot ······························································································································· 14 6.4. Measurement Server ····································································································· 15 6.5. Light Beam Unit ············································································································· 15 6.6. Phantom ·························································································································· 15 6.7. Device Holder ················································································································· 16 6.8. Data Storage and Evaluation ······················································································· 17 6.9. Test Equipment List ······································································································ 19 7. Tissue Simulating Liquids ······························································································ 21 8. SAR System Verification ································································································· 23 9. EUT Testing Position ······································································································· 26 10. Measurement Procedures ······························································································· 30 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 87 REPORT No.：SZ20110224S01 10.1. Spatial Peak SAR Evaluation ······················································································· 30 10.2. Power Reference Measurement··················································································· 31 10.3. Area Scan Procedures ·································································································· 31 10.4. Zoom Scan Procedures ································································································ 31 10.5. SAR Averaged Methods ································································································ 32 10.6. Power Drift Monitoring ·································································································· 32 11. SAR Test Procedure ········································································································· 33 11.1. General Scan Requirements ························································································ 33 11.2. Test Procedure ··············································································································· 34 11.3. Description of Interpolation/Extrapolation Scheme ················································· 34 11.4. Wireless Router ·····································…

Text truncated - open the document above for the full version.

REPORT No.：SZ20110224S01 Annex C Plots of System Performance Check MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.19 System Check_750MHz_Head Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 750 MHz; σ = 0.919 S/m; ε r = 42.261; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(10.09, 10.09, 10.09); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.60 W/kg CW750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 62.32 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 5.15 W/kg SAR(1 g) = 2.11 W/kg; SAR(10 g) = 1.34 W/kg Maximum value of SAR (measured) = 3.61 W/kg 0 dB = 3.60 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.20 System Check_835MHz_Head Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 835 MHz; σ = 0.927 S/m; ε r = 42.886; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(9.74, 9.74, 9.74); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW835/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.19 W/kg CW835/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 48.38 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 2.96 W/kg SAR(1 g) = 2.32 W/kg; SAR(10 g) = 1.46 W/kg Maximum value of SAR (measured) = 2.20 W/kg 0 dB = 2.19 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.21 System Check_1750MHz_Head Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1750 MHz; σ = 1.398 S/m; ε r = 41.113; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(8.53, 8.53, 8.53); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW1750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 8.83 W/kg CW1750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 79.23 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 14.5 W/kg SAR(1 g) = 9.53 W/kg; SAR(10 g) = 5.14 W/kg Maximum value of SAR (measured) = 8.96 W/kg 0 dB = 8.96 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.21 System Check_1900MHz_Head Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1900 MHz; σ = 1.417 S/m; ε r = 41.168; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(8.13, 8.13, 8.13); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW1900/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 17.7 W/kg CW1900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 111.1 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 31.4 W/kg SAR(1 g) = 10.09 W/kg; SAR(10 g) = 5.26 W/kg Maximum value of SAR (measured) = 17.4 W/kg 0 dB = 17.7 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.24 System Check_2450MHz_Head Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used: f = 2450 MHz; σ = 1.795 S/m; ε r = 40.179; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(7.34, 7.34, 7.34); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) CW2450/Area Scan (71x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 25.9 W/kg CW2450/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 111.5 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 51.7 W/kg SAR(1 g) = 13.22 W/kg; SAR(10 g) = 6.09 W/kg Maximum value of SAR (measured) = 24.2 W/kg 0 dB = 25.9 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.24 System Check_2600MHz_Head Communication System: UID 0, CW (0); Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: HSL_2600 Medium parameters used: f = 2600 MHz; σ = 1.916 S/m; ε r = 40.266; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; C…

Text truncated - open the document above for the full version.

REPORT No.：SZ20110224S01 Annex D Plots of Maximum SAR Test Results MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.20 GSM8500_GPRS(2 TX slots)_Right Cheek_Ch189 C ommunication System: UID 0, GSM850(class 10) (0); Frequency: 836.4 MHz;Duty Cycle: 1:4.15 Medium: HSL_835 Medium parameters used: f = 836.4 MHz; σ = 0.943 S/m; ε r = 42.978; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(9.74, 9.74, 9.74); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch189/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.256 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.254 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.287 W/kg SAR(1 g) = 0.235 W/kg; SAR(10 g) = 0.185 W/kg Maximum value of SAR (measured) = 0.245 W/kg 0 dB = 0.256 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.21 GSM1900_GPRS(3 TX slots)_Left Cheek_Ch661 Communication System: UID 0, PCS1900(class 11) (0); Frequency: 1880 MHz;Duty Cycle: 1:2.77 Medium: HSL_1900 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(8.13, 8.13, 8.13); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch661/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0606 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.073 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.0840 W/kg SAR(1 g) = 0.055 W/kg; SAR(10 g) = 0.036 W/kg Maximum value of SAR (measured) = 0.0589 W/kg 0 dB = 0.0606 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.21 WCDMA Band II_RMC 12.2Kbps_Left Cheek_Ch9538 Communication System: UID 0, UMTS-FDD (0); Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1908 MHz; σ = 1.32 S/m; ε r = 39.631; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(8.13, 8.13, 8.13); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch9538/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0915 W/kg Ch9538/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.319 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.122 W/kg SAR(1 g) = 0.082 W/kg; SAR(10 g) = 0.053 W/kg Maximum value of SAR (measured) = 0.0881 W/kg 0 dB = 0.0915 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.21 WCDMA Band IV_RMC 12.2Kbps_Left Cheek_Ch1513 Communication System: UID 0, UMTS-FDD (0); Frequency: 1752.6 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1753 MHz; σ = 1.454 S/m; ε r = 39.5; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(8.53, 8.53, 8.53); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch1513/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.137 W/kg Ch1513/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.553 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.180 W/kg SAR(1 g) = 0.121 W/kg; SAR(10 g) = 0.079 W/kg Maximum value of SAR (measured) = 0.131 W/kg 0 dB = 0.137 W/kg Date: 2020.12.20 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. WCDMA Band V_RMC 12.2Kbps_Right Cheek_Ch4182 C ommunication System: UID 0, UMTS-FDD (0); Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 837 MHz; σ = 0.945 S/m; ε r = 42.91; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN7515; ConvF(9.74, 9.74, 9.74); Calibrated: 2020.11.30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2020.06.02 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch4182/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.179 W/kg Ch4182/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.585 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.209 W/kg SAR(1 g) = 0.170 W/kg; SAR(10 g) = 0.133 W/kg Maximum value of SAR (measured) = 0.177 W/kg 0 dB = 0.179 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.12.21 LTE Band 2_20MHz_QPSK_1RB_0Offset_Left Cheek_Ch19100 Communication System: UID 0, LTE (0); Frequency: 1900 MHz;Duty Cy…

Text truncated - open the document above for the full version.

REPORT No.：SZ20110224S01 Annex E DASY Calibration Certificate MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected]

Add: No.5 1 Xueyuan Road, HaTel: +86-10-62304633-2079 dichna N CALIBRATION1In1` N411114 11191V CNAS L0570d' Fax '+86110-b23046002 04 China E-mail: cttlachinattl com http://www.chinattl.en C lient KEHU Certificate No: Z1860194 CAL-1Li1N CERTIFICATE Object D750V3-SN: 1173 Calibration Procedure(s) FF-Z11-003-01 Calibration Procedures for dipole validation kits Calibration date: June 21, 2018 This calibration Certificate documents the traceab ility to national standards, which real ize the physical un its of measurements(S I). The measurements and the uncertainties with confidence probabi-ity are g iven on the fo llowing pages and are part of the certificate. A ll cal ibrations have been conducted in the c losed laboratory facility: environment temperature(223)C and hum idity<70%. Cal ibration Equipment used (M&TE critica-for calibration) Primary Standards ID # Cal Date(Calibrated by, Certificate No.) Schedu ed Calibration Power Meter NRVD Power sensor NRV-Z5 Reference Probe EX3DV4 DAE4 Secondary Standards 102083 01-Nov-17 (CTTL, No.J17X08756) Oct-18 100542 01-Nov-17 (CTTL, No.J17X08756) Oct-18 SN 7464 12-Sep1 7(S PEAG, No. EX3-7464-Sep17) Sep-18 SN 1525 02ct-17(SPEAG,No.DAE4-1525ctl7) Oct-18 ID # Ca Date(Ca librated by, Certificate No.) Schedu ed Ca libration S igna l Generator E4438C NetworkAnalyzer E5071 C MY49071430 23-Jan-18 (CTTL, No.JI8X00560) Jan-19 MY46110673 24-Jan-18 (CTTL, No.J18X00561) Jan-19 Name Function . Signature Calibrated by Reviewed by Approved by Issued: June 26, 2018 Th is calibration certificate sha l l not be reproduced except in full without written approval of the laboratory. Certificate No: Z 18-60194 Page 1 of8 In Collaboration with CAUBRA71ON LABORATORY Add: N 51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinatti.cn Gssary: TSL tissue s-mu lating quid ConvF sensitivity in TSL I NORMx,y,z N/A not app licable or not measured Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak SpatiaAveraged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techn ques", June 2013 b) IEC 62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to rad io frequency fields from hand-held and body-mounted wireless communication devices- Part 1: Device used next to the ear (Frequency range of 300MHz to 6GHz)", July 2016 c) IEC 62209-2, "Procedure to measure the Specific Absorption Rate (SAR) For wireless communication devices used in close proxim ity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measurement Requirements for 100 MHz to 6 GHz Additional Documentation: e) DASY4/5 System Handbook Methods Applied and Interpretation of Parameters: . Measurement Conditions: Further deta i ls are avai lable from the Validation Report at the end of the certificate. Al l figures stated in the certificate are val id at the frequency ind cated. . Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented para l lel to the body axis. . Feed Point Impedance and Return Loss: These parameters are measured with the d ipole positioned under the liquid fi l led phantom The impedance stated s transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncertainty requ ired . Electrical Delay: One-way delay between the SMA connector and the antenna feed point. No uncertainty required. SAmeasured…

Text truncated - open the document above for the full version.
