YHLBLUG71Smart Phone with Bluetooth, WiFi, GSM, WCDMA and LTE

User Manual G71 User Manual FCC ID: YHLBLUG71 User Manual All rights are reserved. No part of this document may be reproduced without permission. While all efforts have been made to ensure the accuracy of all the contents in this manual, we assume no liability for errors or omissions or statements of any kind in this manual, whether such errors or omissions or statements resulting from negligence, accidents, or any other cause. The contents of this manual are subject to change without notice. Protect our environment! We strive to produce products in compliance with global environmental standards. Please consult your local authorities for proper disposal. Note: User Manual is just to guide the user about the functionality of the phone. It is not a certificate of technology. Some functions may vary due to modifications and upgrade of software, or due to printing mistake. “It is advisable to charge battery to 100% before start using phone for better battery life” User Manual G71 1 1- Welcome ............................................................... 7 1.1. Exciting Features ............................................... 7 2- Phone Layout ........................................................ 9 2.1. Keys and Parts ................................................... 9 1. USB Jack .............................................................. 9 2. Earphone Jack ...................................................... 9 3. Receiver ................................................................ 9 4. Front Camera ........................................................ 9 5. Front Flash ............................................................ 9 6. Screen ................................................................... 9 7. Menu Key .............................................................. 9 8. Home Key ............................................................. 9 9. Back Key ............................................................... 9 User Manual G71 2 10. Volume Key ......................................................... 9 11. Power Key ........................................................... 9 12. Rear Flash ........................................................... 9 13. Rear Camera ....................................................... 9 14. Speaker ............................................................... 9 15. Fingerprint ........................................................... 9 2.2. Icons and Indicators ........................................... 9 3- Getting Started .................................................... 10 3.1. Insert SIM card ................................................. 10 3.2. Insert Memory card............................................11 3.3. Unlock the Phone ..............................................11 3.4. Using the Touch screen .................................... 12 3.5. Using the Phone’s Buttons ............................... 13 User Manual G71 3 3.6. Context Menus ................................................. 13 3.7. Options menus ................................................. 14 3.8. Menu Icons ....................................................... 14 4-Placing and Receiving Calls ................................ 14 4.1. Make a Call ...................................................... 15 4.2. Disable Phone Calls (Airplane mode) .............. 15 4.3. Disable SIM card .............................................. 15 5-The Home Screen ................................................ 15 5.1. Open and Close the Launcher ......................... 16 5.2. Switch to Recently Used Application ................ 17 5.3. Customize Home Screen ................................. 17 6-Connect to the Internet ........................................ 18 6.1. To configure your Internet: ............................... 18 User Manual G71 4 6.2. Access Internet via Wi-Fi .................................. 18 7-Managing Notifications ......................................... 19 7.1. Open the Notifications Panel ............................ 19 7.2. Respond to Notifications .................................. 19 7.3. Close Notifications Panel ................................. 19 8-Messaging ............................................................ 20 8.1. Message environment & Settings .................... 20 8.2. Using the Onscreen Keyboard ......................... 20 8.3. Create and Send Multimedia Message ............ 23 8.4. Operation on a message: ................................. 23 9-Multimedia ............................................................ 23 9.1. Camera ............................................................ 23 9.2. Photos .............................................................. 25 User Manual G71 5 9.3. Share an image ................................................ 25 9.4. Music ................................................................ 25 9.5. FM Radio .......................................................... 26 9.6. Record Sounds ................................................ 26 9.7. Make Screenshot ............................................. 26 9.8. New features of the volume control .................. 27 10-Connect to Networks and Devices ..................... 27 10.1. Connect to PC ................................................ 27 10.2. Connect to Internet ......................................... 28 10.3. Connect to Wi-Fi Networks ............................ 28 10.4. Pair with Bluetooth Devices ........................... 28 10.5. Connect to Internet via your Phone ................ 29 10.6. Install Secure Certificate from SD Card ......... 29 User Manual G71 6 11-Download Applications ....................................... 30 12-Phone Settings ................................................... 31 13- Health and Safety Information .......................... 32 User Manual G71 7 1- WELCOME Congratulations on your purchase of the BLU mobile phone. Your phone provide…

Text truncated - open the document above for the full version.

BLU Products, Inc. Date:2021/1/12 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID: YHLBLUG71 To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules(CFR 47), and Section 552(b)(4) of the Freedom of Information Act, BLU Products, Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA04-1705. This provision will give BLU Products, Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 BOM 5 Tune-up SHORT-TERM 6 External Photos 7 Internal Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Signatory Contact name: Wei Zeng Title: Senior Manager Tel: 3057157171 Email: [email protected] Company name: BLU Products, Inc.

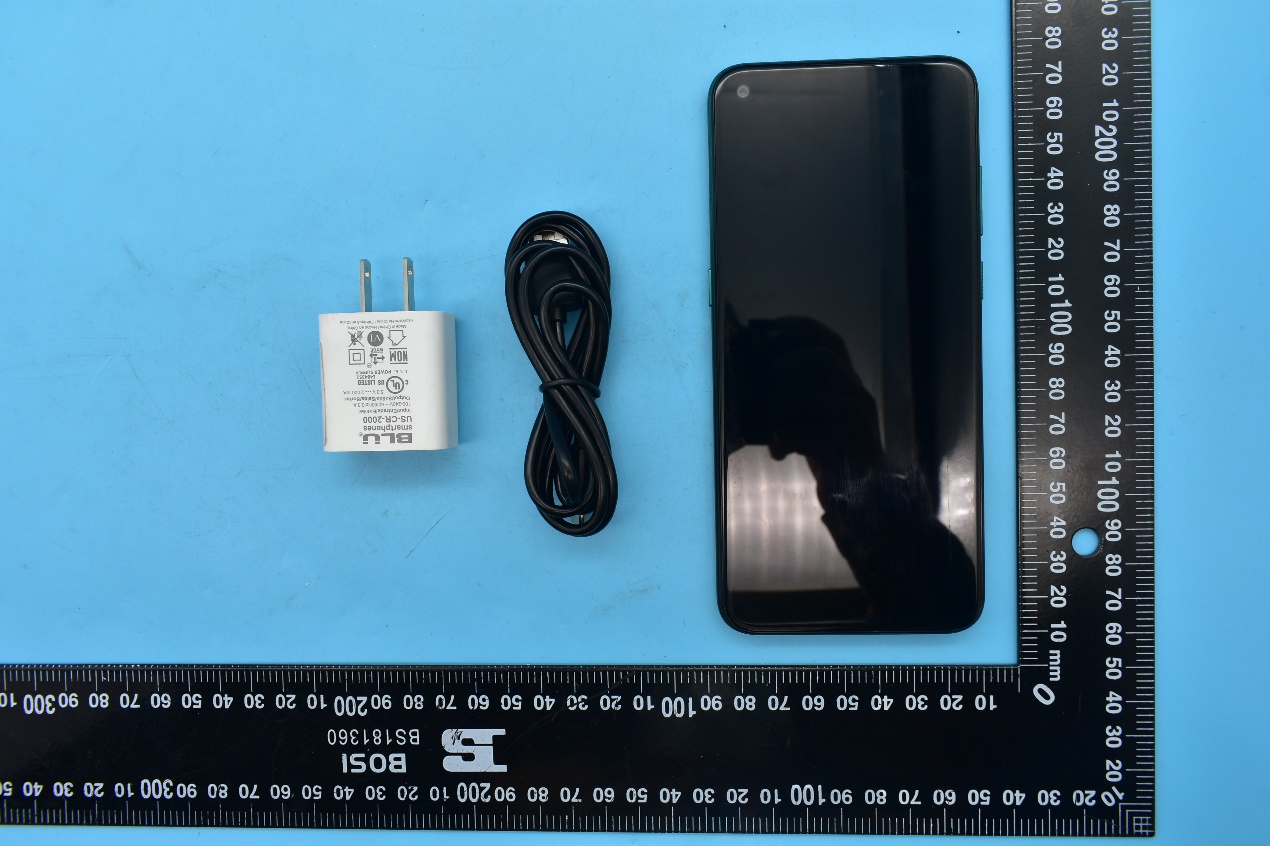

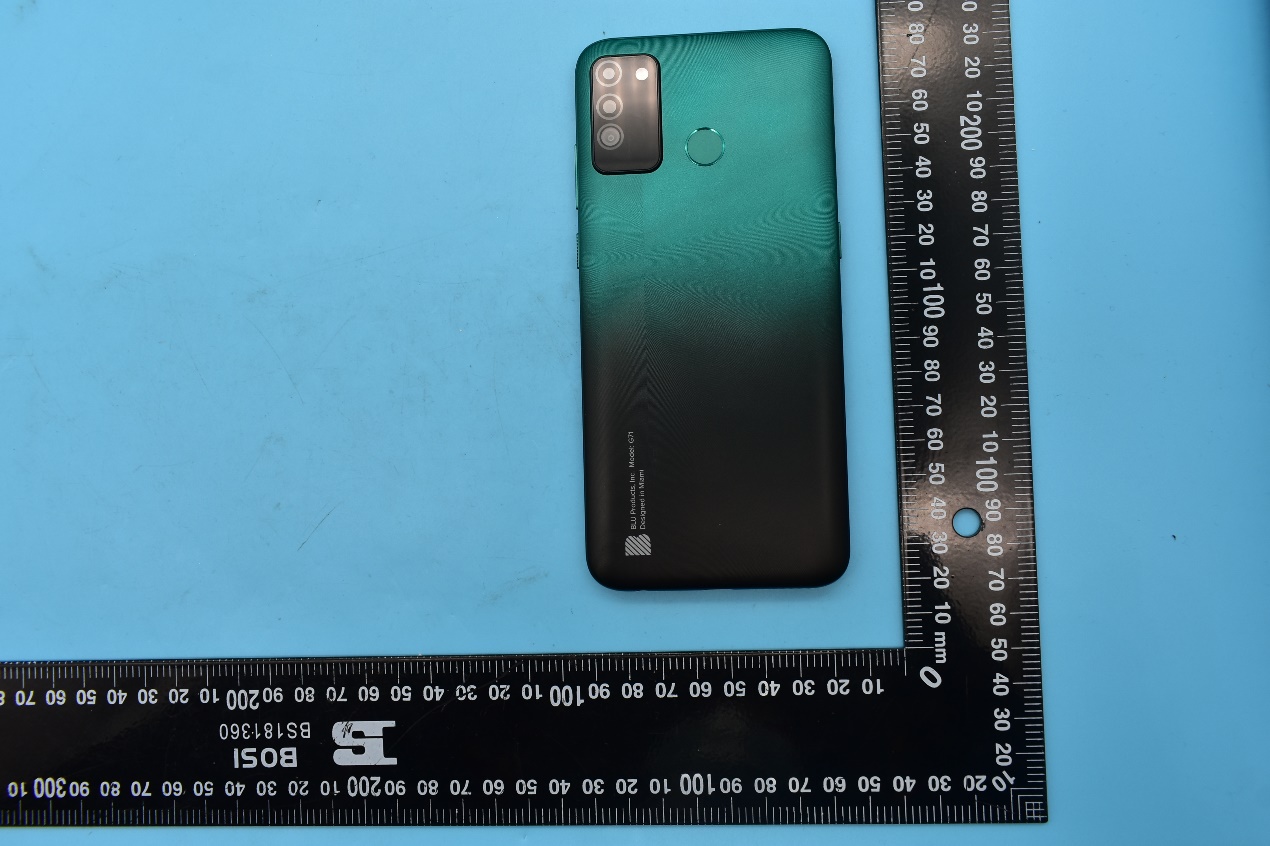

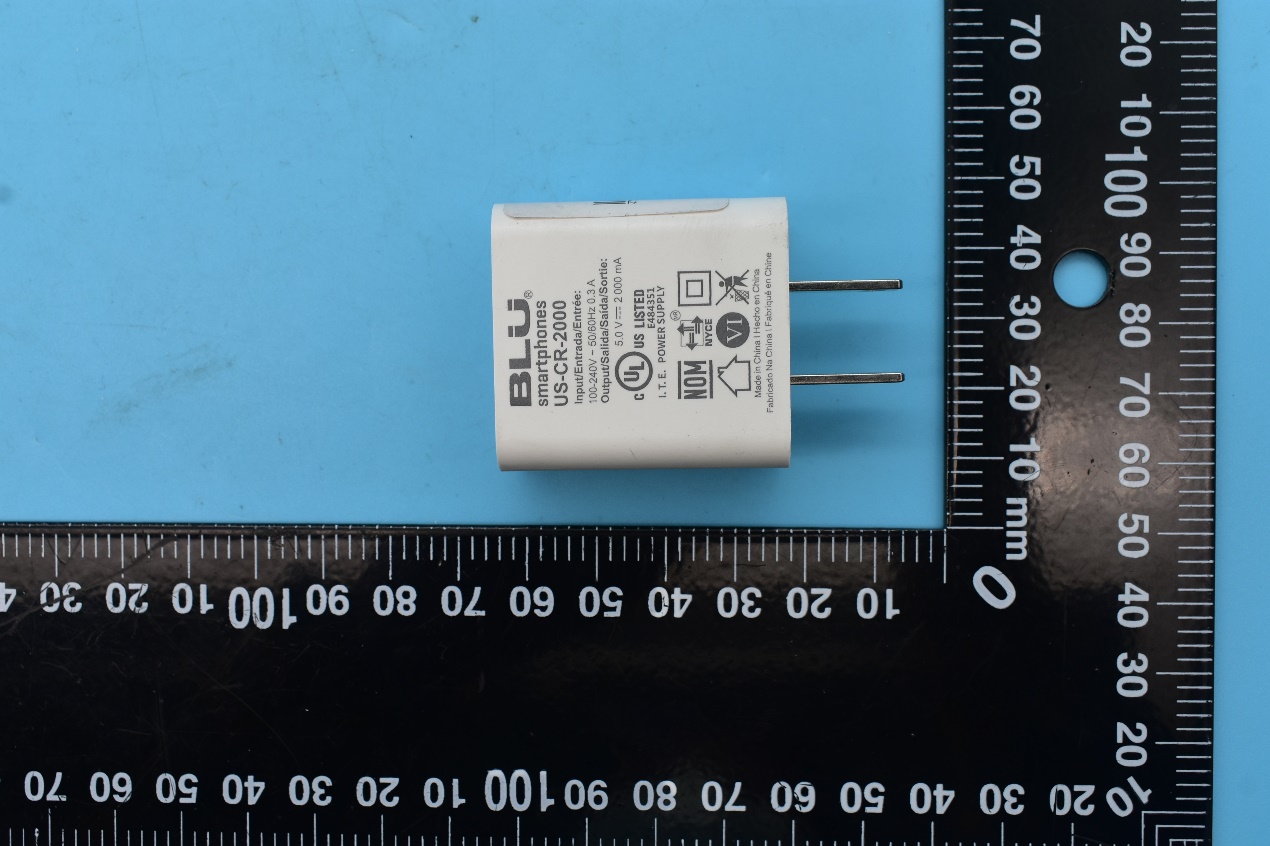

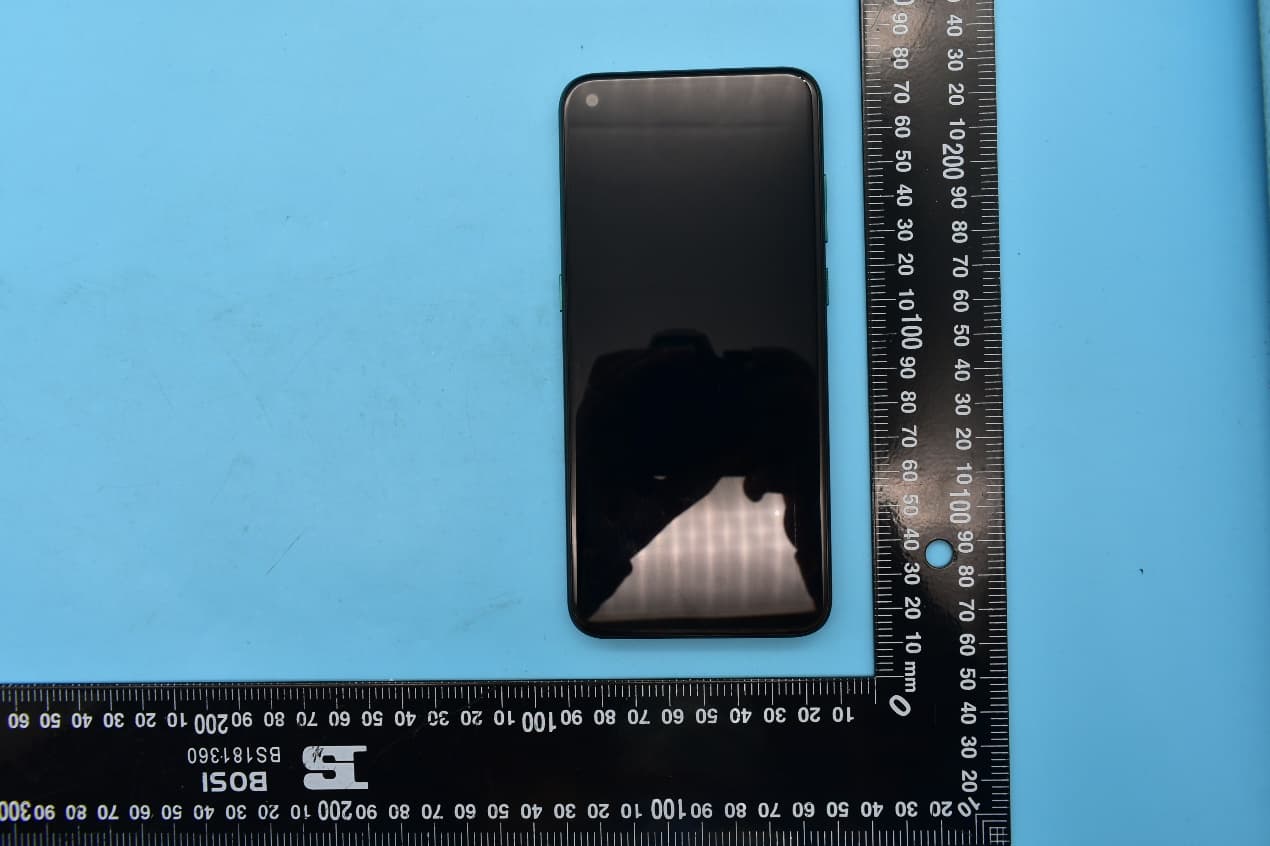

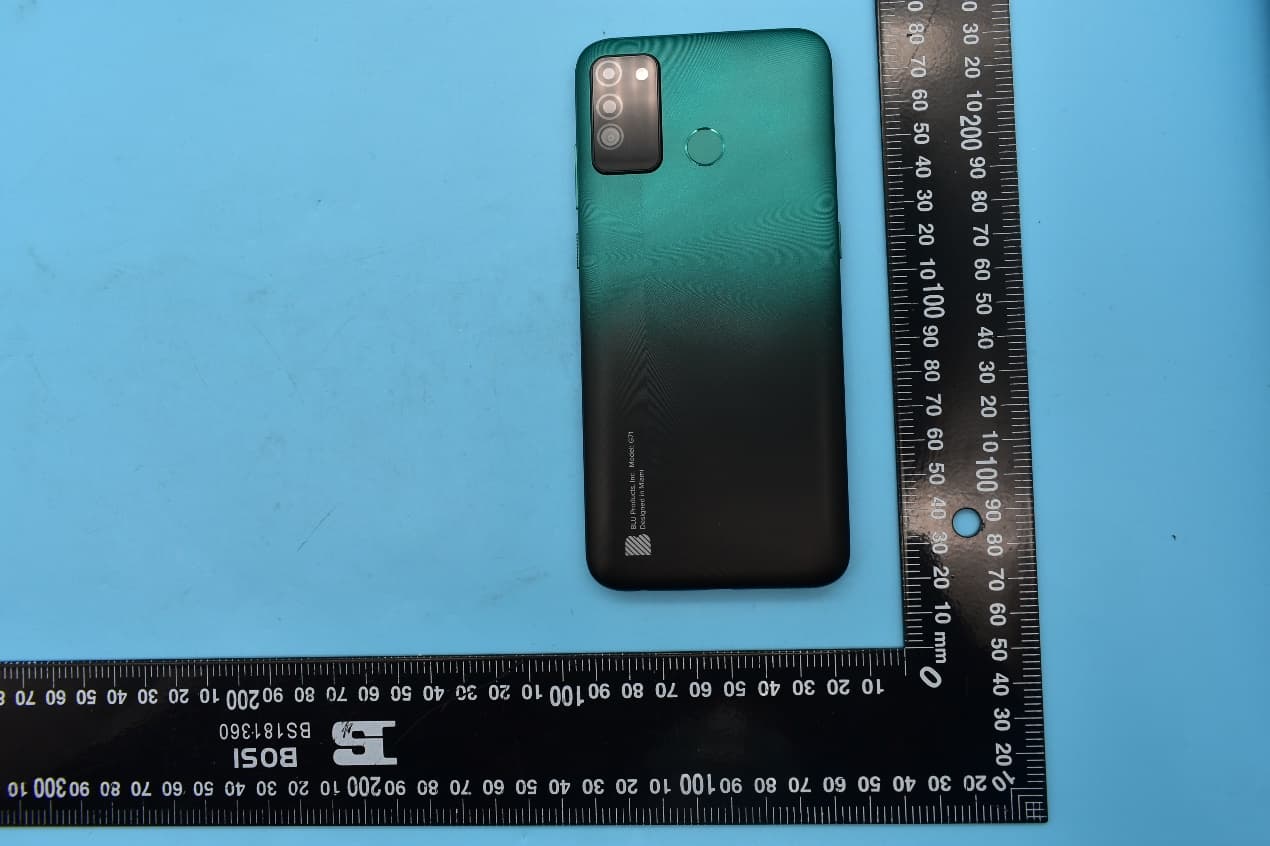

FCC ID:YHLBLUG71 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

BLU Products, Inc. Label Label Location In the back

FCC ID:YHLBLUG71 Internal Photos 1. EUT uncover view 2. Antenna view Main Antenna Bluetooth/Wi-Fi Antenna Diversity Antenna

NOTE: This document is issued by MORLAB, the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 89 REPORT No.：SZ20110225S01 TEST REPORT APPLICANT : BLU Products, Inc. PRODUCT NAME : Smart Phone MODEL NAME : G71 BRAND NAME : BLU FCC ID : YHLBLUG71 STANDARD(S) : 47 CFR Part 2(2.1093) IEEE 1528-2013 RECEIPT DATE : 2020-12-11 TEST DATE : 2021-01-11 to 2021-01-31 ISSUE DATE : 2021-02-02 Edited by : Liang Yumei ( Rapporteur) Approved by: Peng Huarui (Supervisor) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 89 REPORT No.：SZ20110225S01 DIRECTORY 1. SAR Results Summary ······································································································ 5 2. Technical Information ········································································································ 6 2.1. Applicant and Manufacturer Information ····································································· 6 2.2. Equipment under Test (EUT) Description ···································································· 6 2.3. Accessories Information ································································································ 7 2.4. Environment of Test Site/Conditions ············································································ 8 3. Specific Absorption Rate (SAR) ······················································································· 9 3.1. Introduction ······················································································································ 9 3.2. SAR Definition ·················································································································· 9 4. RF Exposure Limits·········································································································· 10 4.1. Uncontrolled Environment ··························································································· 10 4.2. Controlled Environment ······························································································· 10 5. Applied Reference Documents ······················································································· 11 6. SAR Measurement System ····························································································· 12 6.1. E- Field Probe ·················································································································· 13 6.2. Data Acquisition Electronics (DAE) ············································································ 14 6.3. Robot ······························································································································· 14 6.4. Measurement Server ····································································································· 15 6.5. Light Beam Unit ············································································································· 15 6.6. Phantom ·························································································································· 15 6.7. Device Holder ················································································································· 16 6.8. Data Storage and Evaluation ······················································································· 17 6.9. Test Equipment List ······································································································ 19 7. Tissue Simulating Liquids ······························································································ 21 8. SAR System Verification ································································································· 23 9. EUT Testing Position ······································································································· 26 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 89 REPORT No.：SZ20110225S01 10. Measurement Procedures ······························································································· 30 10.1. Spatial Peak SAR Evaluation ······················································································· 30 10.2. Power Reference Measurement··················································································· 31 10.3. Area Scan Procedures ·································································································· 31 10.4. Zoom Scan Procedures ································································································ 31 10.5. SAR Averaged Methods ································································································ 32 10.6. Power Drift Monitoring ·································································································· 32 11. SAR Test Procedure ········································································································· 33 11.…

Text truncated - open the document above for the full version.

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20110225S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.01.11 System Check_750MHz_Head Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 750 MHz; σ = 0.916 S/m; ε r = 42.133; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.76, 9.76, 9.76); Calibrated: 2020.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2020.11.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.10 (7331) CW750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.77 W/kg CW750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.01 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.91 W/kg SAR(1 g) = 2.14 W/kg; SAR(10 g) = 1.33 W/kg Maximum value of SAR (measured) = 2.77 W/kg 0 dB = 2.77 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.01.28 System Check_835MHz_Head Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 835 MHz; σ = 0.924 S/m; ε r = 42.666; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.57, 9.57, 9.57); Calibrated: 2020.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2020.11.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.10 (7331) CW835/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.45 W/kg CW835/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 40.87 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 1.95 W/kg SAR(1 g) = 2.27 W/kg; SAR(10 g) = 1.52 W/kg Maximum value of SAR (measured) = 1.44 W/kg 0 dB = 1.45 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.01.31 System Check_1750MHz_Head Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1750 MHz; σ = 1.401 S/m; ε r = 39.772; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.32, 8.32, 8.32); Calibrated: 2020.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2020.11.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.10 (7331) CW1750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 6.39 W/kg CW1750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 66.80 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 10.5 W/kg SAR(1 g) = 9.53 W/kg; SAR(10 g) = 5.09 W/kg Maximum value of SAR (measured) = 6.48 W/kg 0 dB = 6.48 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.01.31 System Check_1900MHz_Head Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1900 MHz; σ = 1.414 S/m; ε r = 39.918; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.04, 8.04, 8.04); Calibrated: 2020.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2020.11.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.10 (7331) CW1900/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 6.89 W/kg CW1900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 71.76 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 11.2 W/kg SAR(1 g) = 10.06 W/kg; SAR(10 g) = 5.26 W/kg Maximum value of SAR (measured) = 6.82 W/kg 0 dB = 6.89 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.01.24 System Check_2450MHz_Head Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used: f = 2450 MHz; σ = 1.769 S/m; ε r = 39.119; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.58, 7.58, 7.58); Calibrated: 2020.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2020.11.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.10 (7331) CW2450/Area Scan (71x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 10.8 W/kg CW2450/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 71.73 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 19.5 W/kg SAR(1 g) = 13.09 W/kg; SAR(10 g) = 6.07 W/kg Maximum value of SAR (measured) = 9.80 W/kg 0 dB = 9.80 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.01.29 System Check_2600MHz_Head Communication System: UID 0, CW (0); Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: HSL_2600 Medium parameters used: f = 2600 MHz; σ = 1.967 S/m; ε r = 38.762; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - P…

Text truncated - open the document above for the full version.

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20110225S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.01.28 GSM850_GPRS(4 TX slots)_Left Cheek _Ch189 Communication System: UID 0, GSM850(class 12) (0); Frequency: 836.4 MHz;Duty Cycle: 1:2.08 Medium: HSL_835 Medium parameters used: f = 836.4 MHz; σ = 0.943 S/m; ε r = 42.978; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.57, 9.57, 9.57); Calibrated: 2020.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2020.11.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.10 (7331) Ch189/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.540 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.47 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.637 W/kg SAR(1 g) = 0.355 W/kg; SAR(10 g) = 0.231 W/kg Maximum value of SAR (measured) = 0.470 W/kg 0 dB = 0.540 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.01.19 GSM1900_GPRS(4 TX slots)_Left Tilt _Ch661 Communication System: UID 0, GSM1900(class 12) (0); Frequency: 1880 MHz;Duty Cycle: 1:2.08 Medium: HSL_1900 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.04, 8.04, 8.04); Calibrated: 2020.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2020.11.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.10 (7331) Ch661/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.588 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.497 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.783 W/kg SAR(1 g) = 0.367 W/kg; SAR(10 g) = 0.160 W/kg Maximum value of SAR (measured) = 0.596 W/kg 0 dB = 0.596 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.01.31 WCDMA Band II_RMC 12.2Kbps_Left Tilt_Ch9400 Communication System: UID 0, UMTS-FDD (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.04, 8.04, 8.04); Calibrated: 2020.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2020.11.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.10 (7331) Ch9400/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.871 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.01 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.19 W/kg SAR(1 g) = 0.555 W/kg; SAR(10 g) = 0.238 W/kg Maximum value of SAR (measured) = 0.902 W/kg 0 dB = 0.871 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.01.31 WCDMA Band IV_RMC 12.2Kbps_Left Tilt_Ch1312 Communication System: UID 0, UMTS-FDD (0); Frequency: 1712.4 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1712.4 MHz; σ = 1.384 S/m; ε r = 40.015; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.32, 8.32, 8.32); Calibrated: 2020.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2020.11.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.10 (7331) Ch1312/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.32 W/kg Ch1312/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.56 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.73 W/kg SAR(1 g) = 0.836 W/kg; SAR(10 g) = 0.377 W/kg Maximum value of SAR (measured) = 1.33 W/kg 0 dB = 1.33 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.01.28 WCDMA Band V_RMC 12.2Kbps_Left Cheek_Ch4183 Communication System: UID 0, UMTS-FDD (0); Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 837 MHz; σ = 0.945 S/m; ε r = 42.91; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.57, 9.57, 9.57); Calibrated: 2020.11.27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2020.11.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.10 (7331) Ch4183/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.291 W/kg Ch4183/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.556 V/m; Power Drift = 0.25 dB Peak SAR (extrapolated) = 0.375 W/kg SAR(1 g) = 0.199 W/kg; SAR(10 g) = 0.123 W/kg Maximum value of SAR (measured) = 0.273 W/kg 0 dB = 0.273 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2021.01.31 LTE Band 2_20MHz_QPSK_1RB_49Offset_Left Tilt_Ch18700 Communication System: UID 0, LTE (0); Frequency: 1860 M…

Text truncated - open the document above for the full version.

Add: No.5 1 Xueyuan Road, HaTel: +86-10-62304633-2079 dichna N CALIBRATION1In1` N411114 11191V CNAS L0570d' Fax '+86110-b23046002 04 China E-mail: cttlachinattl com http://www.chinattl.en C lient KEHU Certificate No: Z1860194 CAL-1Li1N CERTIFICATE Object D750V3-SN: 1173 Calibration Procedure(s) FF-Z11-003-01 Calibration Procedures for dipole validation kits Calibration date: June 21, 2018 This calibration Certificate documents the traceab ility to national standards, which real ize the physical un its of measurements(S I). The measurements and the uncertainties with confidence probabi-ity are g iven on the fo llowing pages and are part of the certificate. A ll cal ibrations have been conducted in the c losed laboratory facility: environment temperature(223)C and hum idity<70%. Cal ibration Equipment used (M&TE critica-for calibration) Primary Standards ID # Cal Date(Calibrated by, Certificate No.) Schedu ed Calibration Power Meter NRVD Power sensor NRV-Z5 Reference Probe EX3DV4 DAE4 Secondary Standards 102083 01-Nov-17 (CTTL, No.J17X08756) Oct-18 100542 01-Nov-17 (CTTL, No.J17X08756) Oct-18 SN 7464 12-Sep1 7(S PEAG, No. EX3-7464-Sep17) Sep-18 SN 1525 02ct-17(SPEAG,No.DAE4-1525ctl7) Oct-18 ID # Ca Date(Ca librated by, Certificate No.) Schedu ed Ca libration S igna l Generator E4438C NetworkAnalyzer E5071 C MY49071430 23-Jan-18 (CTTL, No.JI8X00560) Jan-19 MY46110673 24-Jan-18 (CTTL, No.J18X00561) Jan-19 Name Function . Signature Calibrated by Reviewed by Approved by Issued: June 26, 2018 Th is calibration certificate sha l l not be reproduced except in full without written approval of the laboratory. Certificate No: Z 18-60194 Page 1 of8 In Collaboration with CAUBRA71ON LABORATORY Add: N 51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinatti.cn Gssary: TSL tissue s-mu lating quid ConvF sensitivity in TSL I NORMx,y,z N/A not app licable or not measured Calibration is Performed According to the Following Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak SpatiaAveraged Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techn ques", June 2013 b) IEC 62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to rad io frequency fields from hand-held and body-mounted wireless communication devices- Part 1: Device used next to the ear (Frequency range of 300MHz to 6GHz)", July 2016 c) IEC 62209-2, "Procedure to measure the Specific Absorption Rate (SAR) For wireless communication devices used in close proxim ity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measurement Requirements for 100 MHz to 6 GHz Additional Documentation: e) DASY4/5 System Handbook Methods Applied and Interpretation of Parameters: . Measurement Conditions: Further deta i ls are avai lable from the Validation Report at the end of the certificate. Al l figures stated in the certificate are val id at the frequency ind cated. . Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center marking of the flat phantom section, with the arms oriented para l lel to the body axis. . Feed Point Impedance and Return Loss: These parameters are measured with the d ipole positioned under the liquid fi l led phantom The impedance stated s transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncertainty requ ired . Electrical Delay: One-way delay between the SMA connector and the antenna feed point. No uncertainty required. SAmeasured: SAR measured at the stated antenna input power. SAnormalized: SAR as measured, normal ized to an input power of 1 W at the antenna connector. SAR for nominal TSL parameters: The measured TSL parameters are used to calculate the nom inal SAR resu lt. The reported uncertainty of measurement is stated as the standard uncerta inty…
