YHLBLUG71LSmart Phone with GSM, WCDMA, LTE, Bluetooth and WiFi

1 G71L User Guide 2 Contents I. CAUTIONS ON MOBILE PHONE USE ............................................................................................................... 4 1.1 INTERFERENCE ......................................................................................................................................... 4 1.2 REASONABLE USE .................................................................................................................................... 4 1.3 QUALIFIED MAINTENANCE SERVICE .......................................................................................................... 4 1.4 WATER-RESISTANCE................................................................................................................................. 4 1.5 EMERGENCY CALLS .................................................................................................................................. 4 2 PRECAUTIONS FOR USE OF BATTERY ........................................................................................................... 4 3 CAUTIONS FOR CHILDREN............................................................................................................................ 4 II. KEYS AND PARTS ........................................................................................................................................ 5 III. START TO USE ........................................................................................................................................... 6 3.1 TO INSERT SIM CARD(S): ........................................................................................................................ 6 3.2 CHARGE THE BATTERY ............................................................................................................................. 7 IV. BASIC FUNCTIONS ..................................................................................................................................... 8 1. LOCK AND UNLOCK THE SCREEN ................................................................................................................ 8 2. MAKE IT YOURS .......................................................................................................................................... 9 3. SWITCH TO RECENTLY USED APPLICATION ...............................................................................................14 3 4. MAKE A CALL ............................................................................................................................................15 5. CALL LOG ..................................................................................................................................................16 6. ANSWERING PHONE CALLS AND REJECTION ..............................................................................................17 7. ADD A CONTACT ........................................................................................................................................18 8. SEND AND RECEIVE MESSAGE(S) ..............................................................................................................19 9. BROWSER THE WEB ..................................................................................................................................21 10. DOWNLOAD APPLICATIONS FROM PLAY STORE .......................................................................................21 11. MANAGE APPLICATIONS ..........................................................................................................................23 12. APPLICATIONS & UTILITIES .............................................................................................................24 13. SETTINGS ................................................................................................................................................24 V. TECHNICAL INFORMATION .........................................................................................................................29 4 I. Cautions on mobile phone use 1.1 Interference All phones may be interfered, which affect phone calls. 1.2 Reasonable use Use only in the normal position. Do not touch the antenna area unnecessarily. 1.3 Qualified maintenance service Only qualified personnel may install or repair this product. 1.4 Water-resistance Your device is non water-resistant. Keep it dry. 1.5 Emergency calls Ensure the phone is switched on and in service. Enter the emergency number and press the Dialer icon. 2 Precautions for use of battery 2.1 Do not dispose of batteries near or in a fire to avoid dangers. 2.2 Do not dispose of batteries in the garbage. Dispose of batteries to assigned battery recycling center. 3 Cautions for children Keep your device out the reach of children in case of accidental injury caused by incorrect use of the device as toys. 5 II. Keys and parts----------------------------------- 6  1. Earphone jack  2. Receiver  3. Light sensor / Proximity sensor  4. SIM card slot  5. Front camera  6. Adjust volume key  7. Power key  7. USB Connector  8. Mic  9. USB jack  10. Rear Camera  11. Flashlight  12. Fingerprint  13. Speaker III. Start to use 3.1 To insert SIM card(S): Insert the SIM card correctly in the card slot(s) (See figure below), suggest switch off the phone when you insert SIM card. Insert the Micro SD card into the slot with the correct direction (See figure below), suggest switch off the phone when you insert Micro SD. Note: Use only compatible memory cards with this device. Incompatible memory cards may damage the card or the device and corrupt the data stored in the card. 7 3.2 Charge the battery During charging, the battery indicator on the phone is a thunder icon. If the device is switched off during charging, there will still be a charging indication on the screen that shows the phone is being charged. If the device is overused when the battery is low, the ch…

Text truncated - open the document above for the full version.

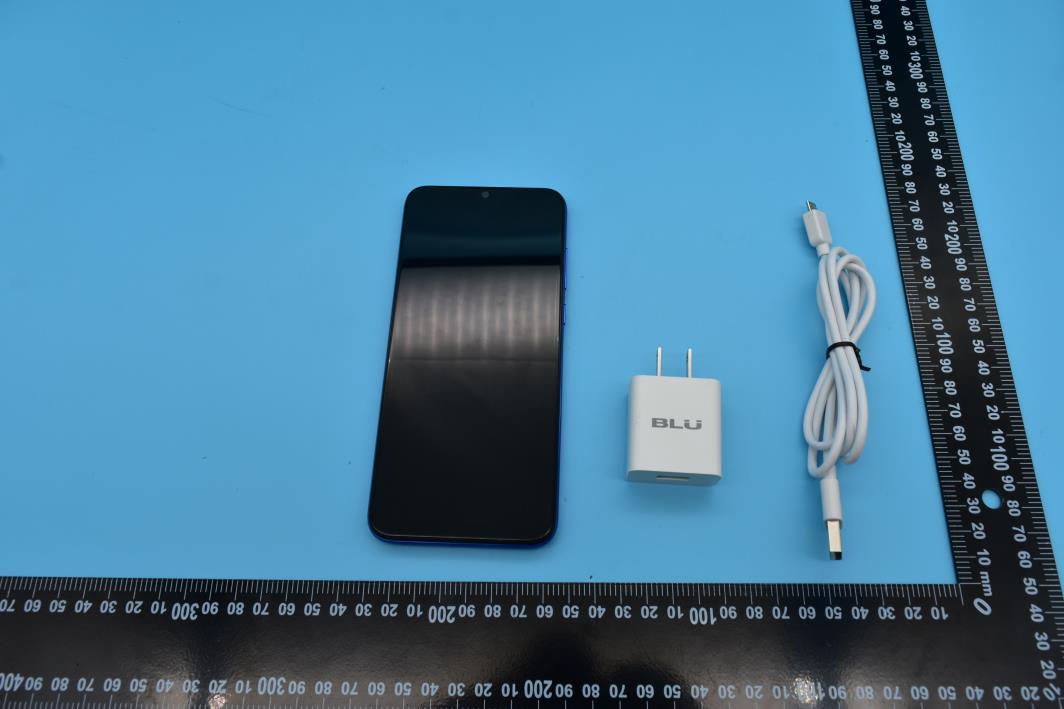

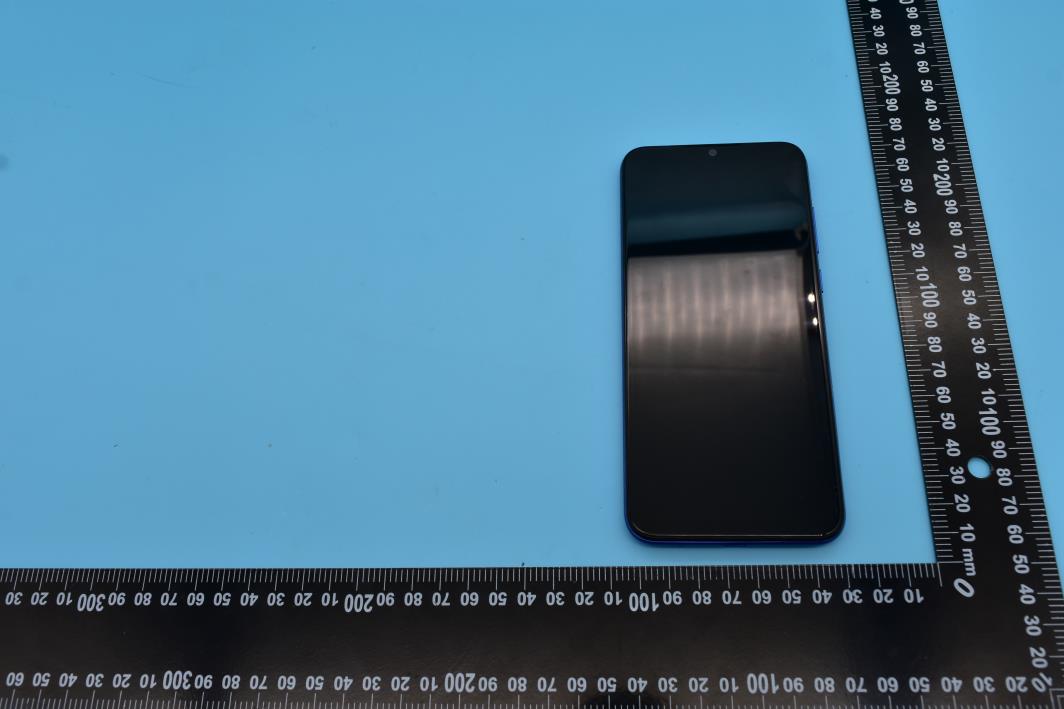

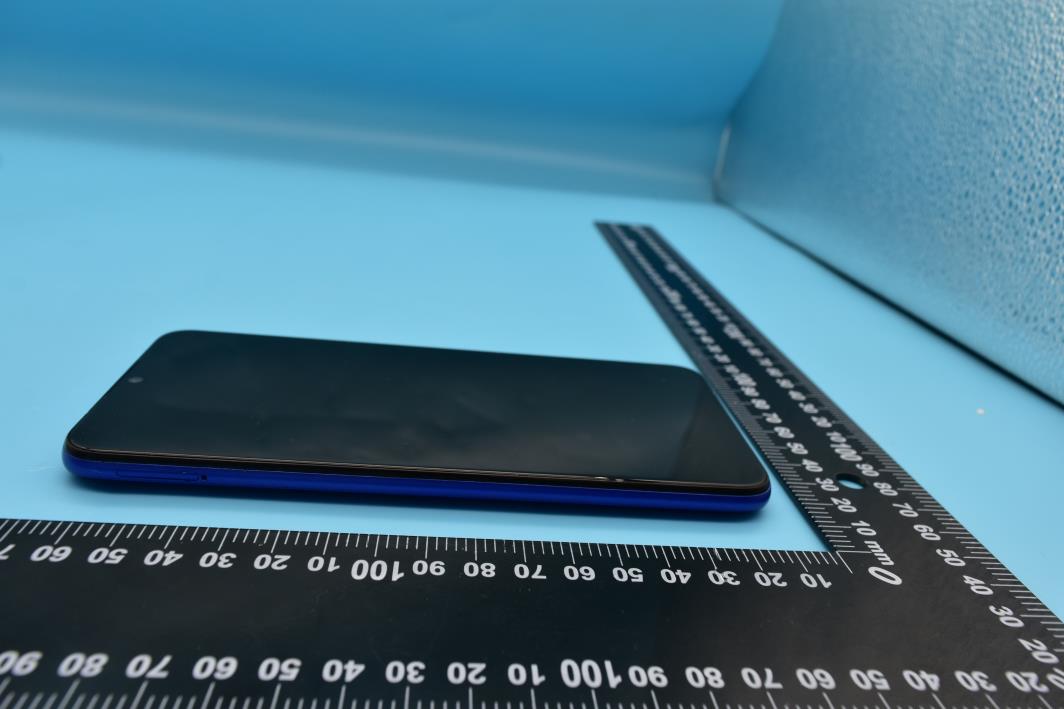

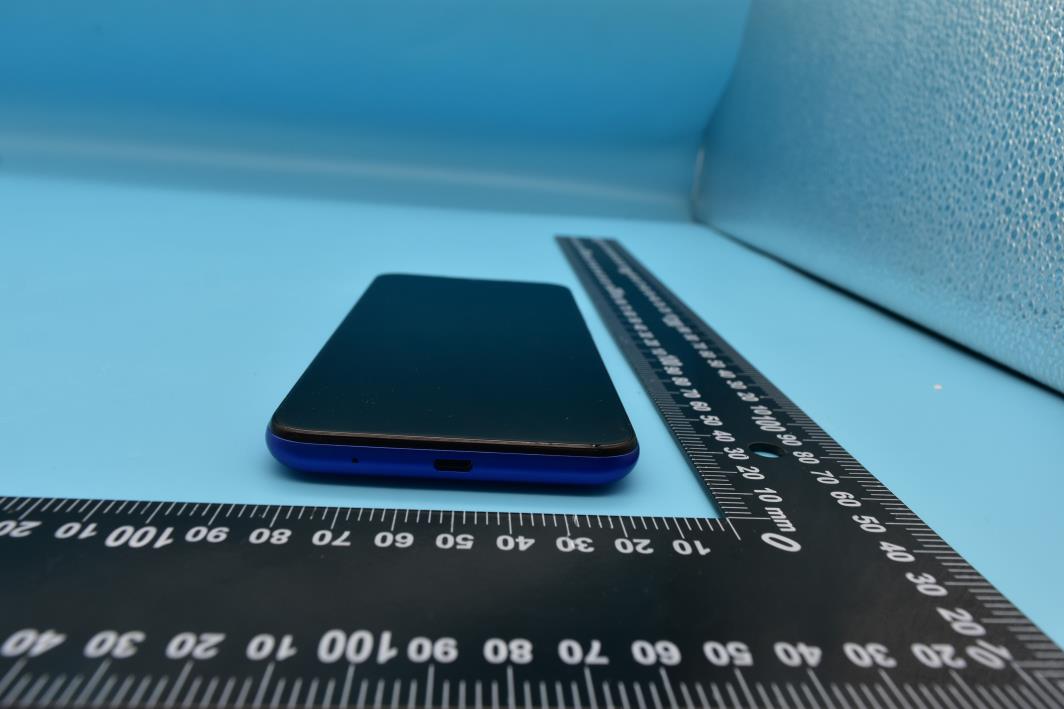

FCC ID: YHLBLUG71L External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

1. Label 2. Label location

FCC ID: YHLBLUG71L Internal Photos 1. EUT uncover view 2. Antenna view GSM/WCDMA/LTE Antenna Bluetooth/Wi-Fi Antenna LTE Diversity Antenna

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ21120365S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.01.08 System Check_750MHz Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 750 MHz; σ = 0.875 S/m; ε r = 40.824; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(9.41, 9.41, 9.41) @ 750 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1353; Calibrated: 2021.10.19 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 4.71 W/kg CW750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 73.26 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 6.67 W/kg SAR(1 g) = 2.09 W/kg; SAR(10 g) = 1.35 W/kg Smallest distance from peaks to all points 3 dB below: Larger than measurement grid Ratio of SAR at M2 to SAR at M1 = 67.5% Maximum value of SAR (measured) = 4.70 W/kg 0 dB = 4.70 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.01.05 System Check_900MHz Communication System: UID 0, CW (0); Frequency: 900 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used: f = 900 MHz; σ = 0.964 S/m; ε r = 41.564; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(8.91, 8.91, 8.91) @ 900 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1353; Calibrated: 2021.10.19 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW900/Area Scan (71x71x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.24 W/kg CW900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.19 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 3.85 W/kg SAR(1 g) = 2.72 W/kg; SAR(10 g) = 1.74 W/kg Smallest distance from peaks to all points 3 dB below = 16 mm Ratio of SAR at M2 to SAR at M1 = 66.3% Maximum value of SAR (measured) = 3.27 W/kg 0 dB = 3.27 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.01.12 System Check_1800MHz Communication System: UID 0, CW (0); Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: 1800 Medium parameters used: f = 1800 MHz; σ = 1.411 S/m; ε r = 40.374; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(8.08, 8.08, 8.08) @ 1800 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1353; Calibrated: 2021.10.19 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.14 (7483) CW1800/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 12.3 W/kg CW1800/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 93.17 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 20.0 W/kg SAR(1 g) = 9.83 W/kg; SAR(10 g) = 5.25 W/kg Smallest distance from peaks to all points 3 dB below = 11.2 mm Ratio of SAR at M2 to SAR at M1 = 54.8% Maximum value of SAR (measured) = 12.0 W/kg 0 dB = 12.0 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.01.15 System Check_2000MHz Communication System: UID 0, CW (0); Frequency: 2000 MHz;Duty Cycle: 1:1 Medium: 2000 Medium parameters used: f = 2000 MHz; σ = 1.414 S/m; ε r = 40.176; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(7.66, 7.66, 7.66) @ 2000 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1353; Calibrated: 2021.10.19 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.14 (7483) CW2000/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.0 W/kg CW2000/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 96.66 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 21.7 W/kg SAR(1 g) = 10.12 W/kg; SAR(10 g) = 5.31 W/kg Smallest distance from peaks to all points 3 dB below = 11.2 mm Ratio of SAR at M2 to SAR at M1 = 53.2% Maximum value of SAR (measured) = 12.8 W/kg 0 dB = 12.8 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.01.18 System Check_2450MHz Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used: f = 2450 MHz; σ = 1.773 S/m; ε r = 39.446; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(7.22, 7.22, 7.22) @ 2450 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1353; Calibrated: 2021.10.19 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.14 (7483) CW2450/Area Scan (81x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 18.6 W/kg CW2450/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 100.8 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 32.4 W/kg SAR(1 g) = 13.05 W/kg; SAR(10 g) = 6.11 W/kg…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ21120365S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.01.05 GSM 850_GPRS(2 TX slots)_Right cheek_Ch189 Communication System: UID 0, Generic GPRS (2TX) (0); Frequency: 836.4 MHz;Duty Cycle: 1:4.15 Medium: 900MHz Head Medium parameters used: f = 836.4 MHz; σ = 0.938 S/m; ε r = 45.254; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(8.91, 8.91, 8.91) @ 836.4 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1353; Calibrated: 2021.10.19 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch189/Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0656 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.306 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.0790 W/kg SAR(1 g) = 0.063 W/kg; SAR(10 g) = 0.049 W/kg Maximum value of SAR (measured) = 0.0658 W/kg 0 dB = 0.0658 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.01.12 GSM 1900_GPRS(2 TX slots)_Left cheek_Ch512 Communication System: UID 0, Generic GPRS (2TX) (0); Frequency: 1850.2 MHz;Duty Cycle: 1:4.15 Medium: 1800MHz Head Medium parameters used: f = 1850.2 MHz; σ = 1.351 S/m; ε r = 40.823; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(7.66, 7.66, 7.66) @ 1850.2 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1353; Calibrated: 2021.10.19 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch512/Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.119 W/kg Ch512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.140 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.173 W/kg SAR(1 g) = 0.106 W/kg; SAR(10 g) = 0.064 W/kg Maximum value of SAR (measured) = 0.115 W/kg 0 dB = 0.115 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.01.19 WCDMA Band II_RMC 12.2Kbps_Left Cheek_Ch9400 Communication System: UID 0, WCDMA(BS Test Model 1, 64 DPCH) (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 2000MHz Head Medium parameters used: f = 1880 MHz; σ = 1.377 S/m; ε r = 40.712; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(7.66, 7.66, 7.66) @ 1880 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1353; Calibrated: 2021.10.19 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch9400/Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0308 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.534 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.0450 W/kg SAR(1 g) = 0.027 W/kg; SAR(10 g) = 0.016 W/kg Maximum value of SAR (measured) = 0.0304 W/kg 0 dB = 0.0304 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.01.20 WCDMA Band IV_RMC 12.2Kbps_Right Cheek_Ch1413 Communication System: UID 0, WCDMA(BS Test Model 1, 64 DPCH) (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium: 1800MHz Head Medium parameters used: f = 1732.6 MHz; σ = 1.239 S/m; ε r = 41.216; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(8.08, 8.08, 8.08) @ 1732.6 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1353; Calibrated: 2021.10.19 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.10 (0); SEMCAD X Version 14.6.10 (7331) Ch1413/Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.118 W/kg Ch1413/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.364 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.157 W/kg SAR(1 g) = 0.107 W/kg; SAR(10 g) = 0.068 W/kg Maximum value of SAR (measured) = 0.114 W/kg 0 dB = 0.114 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.01.19 WCDMA Band V_RMC 12.2Kbps_Right Cheek_Ch4182 Communication System: UID 0, WCDMA(BS Test Model 1, 64 DPCH) (0); Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: 900MHz Head Medium parameters used: f = 836.4 MHz; σ = 0.938 S/m; ε r = 45.254; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3753; ConvF(8.91, 8.91, 8.91) @ 836.4 MHz; Calibrated: 2021.07.26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1353; Calibrated: 2021.10.19 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch4182/Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0414 W/kg Ch4182/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.076 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.0490 W/kg SAR(1 g) = 0.040 W/kg; SAR(10 g) = 0.032 W/kg Maximum value of SAR (measured) = 0.0427 W/kg 0 dB = 0.0427 W/kg Test Laboratory: Shenzhen Mo…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ21120365S01 Annex E Conducted Power 128189251128189251 824.2836.4848.8824.2836.4848.8 32.0632.1232.0033.0023.0623.1223.0024.00 32.1232.1532.0533.0023.1223.1523.0524.00 30.0630.1129.9530.5024.0624.1123.9524.500.16 28.2428.2528.1728.5023.9823.9923.9124.240.08 26.1226.2826.1826.5023.1223.2823.1823.500.16 25.3825.4025.3626.0016.3816.4016.3617.000.04 24.0824.2324.1424.5018.0818.2318.1418.500.15 22.4022.6022.3223.0018.1418.3418.0618.740.28 19.9920.1319.8520.5016.9917.1316.8517.500.28 Max.32.15Max.24.11 512661810512661810 1850.218801909.81850.218801909.8 28.7028.9028.8629.5019.7019.9019.8620.50 28.7228.9428.8829.5019.7219.9419.8820.50 27.0126.7626.6127.5021.0120.7620.6121.500.40 25.3025.2425.2925.5021.0420.9821.0321.240.06 23.2623.2322.8023.5020.2620.2319.8020.500.46 24.3024.5924.6025.0015.3015.5915.6016.000.30 22.5022.6522.5823.0016.5016.6516.5817.000.15 20.5120.5620.4521.0016.2516.3016.1916.740.11 18.9318.6218.7619.5015.9315.6215.7616.500.31 Max.28.94Max.21.04 926294009538131214131513413241824233 966298009938153716381738435744074458 1852.418801907.61712.41732.61752.6826.4836.4846.6 3GPP Rel 99RMC 12.2Kbps20.1520.5420.1021.0020.4720.5120.4821.0023.1423.1823.1324.00 3GPP Rel 6HSDPA Subtest-119.8920.3019.7420.5018.8218.9218.8719.5022.3422.5122.3323.00 3GPP Rel 6HSDPA Subtest-219.7420.2319.5120.5019.2919.5419.3920.0022.1422.1922.0223.00 3GPP Rel 6HSDPA Subtest-319.5119.4219.2720.0019.4119.6419.5320.0021.9521.8821.9222.50 3GPP Rel 6HSDPA Subtest-419.6119.5619.3520.0019.2919.5619.3420.0021.8721.8021.8322.50 3GPP Rel 6HSUPA Subtest-117.9017.9917.6518.5017.4418.0017.7918.5023.0723.1423.0623.50 3GPP Rel 6HSUPA Subtest-217.3918.1218.1218.5017.5717.9817.7718.5022.9823.1022.9723.50 3GPP Rel 6HSUPA Subtest-318.1018.1318.1318.5017.5817.9517.7718.5023.0423.1123.0223.50 Tune-up Limit (dBm) Tune-up Limit (dBm) Tune-up Limit (dBm) Tune-up Limit (dBm) BandWCDMA Band IIWCDMA Band IVWCDMA Band V TX Channel Rx Channel Frequency (MHz) Mode AttenuatorCable Loss : 0.8 EDGE 4 Tx slots EDGE 1 Tx slot EDGE 2 Tx slots EDGE 3 Tx slots GPRS 2 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots GSM1900Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot Tune-up Limit (dBm) Ch Delta > 0.5 0.24 Mode AttenuatorCable Loss : 0.6 EDGE 2 Tx slots EDGE 3 Tx slots EDGE 4 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot GPRS 2 Tx slots Tune-up Limit (dBm) Tune-up Limit (dBm) Ch Delta > 0.5 0.15 GSM850Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel 3GPP Rel 6HSUPA Subtest-417.9417.3717.9218.5016.9217.1817.4118.5022.9823.0922.9223.50 3GPP Rel 6HSUPA Subtest-516.6816.7216.6517.5016.7316.8216.7517.5023.0423.1123.0123.50 3GPP Rel 7 HSPA+ (16QAM) Subtest-120.1920.3220.2720.5019.0218.9819.0919.5023.1123.1223.0523.50 Cable Loss0.8Cable Loss0.8Cable Loss0.6 Max.20.54Max.20.51Max.23.18 Attenuator Mode BW [MHz] Modulation RB Size RB Offset Low Channel Middle Channel High Channel BW [MHz] Modulation RB Size RB Offset Low Channel Middle Channel High Channel 187001890019100200502017520300 18601880190017201732.51745 20QPSK1019.8720.0519.8320QPSK1022.9523.0222.97 20QPSK14919.8719.9419.8620QPSK14922.8522.9822.84 20QPSK19919.7819.9219.8020QPSK19922.9122.8722.93 20QPSK50018.8819.0518.8720QPSK50021.8021.9821.84 20QPSK502418.8918.9518.8320QPSK502421.7921.8521.87 20QPSK505018.8318.8718.8420QPSK505021.8421.8621.92 20QPSK100018.8419.0118.7920QPSK100021.9421.8721.69 2016QAM1018.5719.6819.182016QAM1022.1822.2021.92 2016QAM14918.5019.4619.172016QAM14922.0522.1321.82 2016QAM19918.8219.5219.342016QAM19922.1221.9921.94 2016QAM50017.9718.1217.952016QAM50021.1721.1821.26 2016QAM502417.9518.0017.922016QAM502421.0621.1221.35 2016QAM505017.9217.9817.912016QAM505021.1621.0421.23 2016QAM100018.1018.1617.972016QAM100021.0321.0521.16 2064QAM1018.5319.1118.942064QAM1022.0822.2622.30 2064QAM14918.5419.0418.992064QAM14921.9821.9421.89 2064QAM19918.5819.1019.072064QAM19922.1222.0521.96 2064QAM50018.0118.0717.942064QAM50021.0421.1321.21 2064QAM502418.0518.0618.052064QAM502421.1621.1421.32 2064QAM505017.9418.0718.042064QAM505021.2321.2121.06 2064QAM100017.9618.1618.002064QAM100021.0721.0921.13 186751890019125 200252017520325 1857.518801902.51717.51732.51747.5 15QPSK1019.8520.0019.8115QPSK1022.8522.9222.87 15QPSK13719.7619.9319.8015QPSK13722.7522.8822.74 15QPSK17419.7019.9819.9315QPSK17422.8122.7722.83 15QPSK36018.8919.0318.8915QPSK36021.7021.8821.74 15QPSK362018.7418.8918.8915QPSK362021.6921.7521.77 15QPSK363918.8218.9418.8215QPSK363921.7421.7621.82 15QPSK75018.8818.9818.7715QPSK75021.8421.7721.59 1516QAM1019.5519.5519.481516QAM1022.0822.1021.82 1516QAM13719.6019.5319.471516QAM13721.9522.0321.72 1516QAM17419.3919.5019.471516QAM17422.0221.8921.84 1516QAM36017.8818.0617.881516QAM36021.0721.0821.16 1516QAM362017.8418.0717.931516QAM362020.9621.0221.25 1516QAM363917.8417.9817.931516QAM363921.0620.9421.13 1516QAM75018.0418.1618.001516QAM75020.9320.9521.06 1564QAM1019.0819.1018.851564QAM1021.9822.1622.20 1564QAM13719.0519.0718.911564QAM13721.8821.8421.79 1564QAM17418.7519.0018.901564QAM17422.0221.9521.86 1564QAM36018.0218.0818.001564QAM36020.9421.0321.11 1564QAM362017.9718.0717.991564QAM362021.0621.0421.22 1564QAM363917.9718.1118.001564QAM363921.1321.1120.96 1564QAM75017.9818.0418.001564QAM75020.9720.9921.03 186501890019150200002017520350 18551880190517151732.51750 10QPSK1019.9020.0019.8410QPSK1022.8622.9322.87 10QPSK12519.8119.9919.8010QPSK12522.7622.8922.74 10QPSK14919.8719.9919.89 10QPSK14922.8222.7822.83 10QPSK25018.8718.9618.8210QPSK25021.7121.8921.74 10QPSK251218.9419.0018.7610QPSK251221.7021.7621.77 10QPSK252518.8518.9218.9310QPSK252521.7521.7721.82 10QPSK50018.8719.0118.8910QPSK50021.…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ21120365S01 Annex F DASY Calibration Certificate

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ21120365S01 Page 1 of 68 TEST REPORT APPLICANT : BLU Products, Inc. PRODUCT NAME : Smart Phone MODEL NAME : G71L BRAND NAME : BLU FCC ID : YHLBLUG71L STANDARD(S) : FCC 47 CFR Part 2(2.1093) IEEE 1528-2013 RECEIPT DATE : 2021-12-27 TEST DATE : 2022-01-05 to 2022-01-22 ISSUE DATE : 2022-02-07 Edited by : Gan Yueming (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ21120365S01 Page 2 of 68 DIRECTORY 1. SAR Results Summary ······································································································ 5 2. Technical Information ········································································································ 6 2.1. Applicant and Manufacturer Information ····································································· 6 2.2. Equipment under Test (EUT) Description ···································································· 6 2.3. Environment of Test Site/Conditions ··········································································· 8 3. Specific Absorption Rate (SAR) ······················································································· 9 3.1. Introduction ······················································································································ 9 3.2. SAR Definition ················································································································· 9 4. RF Exposure Limits ········································································································· 10 4.1. Uncontrolled Environment ··························································································· 10 4.2. Controlled Environment ······························································································· 10 5. Applied Reference Documents ······················································································ 11 6. SAR Measurement System ····························································································· 12 6.1. E-Field Probe ················································································································· 13 6.2. Data Acquisition Electronics (DAE) ············································································ 14 6.3. Robot ······························································································································ 14 6.4. Measurement Server ····································································································· 15 6.5. Light Beam Unit ············································································································· 15 6.6. Phantom ························································································································· 15 6.7. Device Holder ················································································································ 16 6.8. Data Storage and Evaluation ······················································································· 17 6.9. Test Equipment List ······································································································ 19 7. Tissue Simulating Liquids ······························································································ 21 8. SAR System Verification ································································································· 23 8.1. Purpose of System Performance check ···································································· 23 8.2. System Setup ················································································································· 23 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ21120365S01 Page 3 of 68 8.3. Validation Results ········································································································· 24 9. EUT Testing Position ······································································································· 26 9.1. Handset Reference Points ······································…
