YHLBLUG90PROMobile Phone

1 FCC Regulations: This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. 2 Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. RF Exposure Information (SAR) This mobile phone meets the government’s requirements for exposure to radio waves. This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the poser required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. 3 The highest SAR value for the model phone as reported to the FCC when tested for use at the ear is 0.67W/kg and when worn on the body, as described in this user guide, is 0.75W/kg (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements.) While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: YHLBLUG90PRO For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and the positions the handset a minimum of 1.0 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. If you do not use a body-worn accessory and are not holding the phone at the ear, position the handset a minimum of 1.0 cm from your body when the phone is switched on.

1 G90 PRO User Guide 2 Contents I. CAUTIONS ON MOBILE PHONE USE ............................................................................................................... 4 1.1 INTERFERENCE ......................................................................................................................................... 4 1.2 REASONABLE USE .................................................................................................................................... 4 1.3 QUALIFIED MAINTENANCE SERVICE .......................................................................................................... 4 1.4 WAT ER-RESISTANCE................................................................................................................................. 4 1.5 EMERGENCY CALLS .................................................................................................................................. 4 2 PRECAUTIONS FOR USE OF BATTERY ........................................................................................................... 4 3 CAUTIONS FOR CHILDREN............................................................................................................................ 5 II. KEYS AND PARTS ........................................................................................................................................ 5 III. START TO USE ........................................................................................................................................... 7 3.1 TO INSERT SIM CARD(S): ........................................................................................................................ 7 3.2 CHARGE THE BATTERY ............................................................................................................................. 9 I V. BASIC FUNCTIONS ..................................................................................................................................... 9 1. LOCK AND UNLOCK THE SCREEN ................................................................................................................ 9 2. MAKE IT YOURS .........................................................................................................................................10 3. SWITCH TO RECENTLY USED APPLICATION ...............................................................................................16 4. MAKE A CALL ............................................................................................................................................17 5. CALL LOG ..................................................................................................................................................19 3 6. ANSWERING PHONE CALLS AND REJECTION ..............................................................................................20 7. ADD A CONTACT ........................................................................................................................................21 8. SEND AND RECEIVE MESSAGE(S) ..............................................................................................................22 9. BROWSER THE WEB ..................................................................................................................................24 10. ENJOY MUSIC ..........................................................................................................................................24 11. DOWNLOAD APPLICATIONS FROM PL AY STORE .......................................................................................25 12. MANAGE APPLICATIONS ..........................................................................................................................26 13. APPLICATIONS & UTILITIES .............................................................................................................27 14. SETTINGS ................................................................................................................................................28 V. TECHNICAL INFORMATION .........................................................................................................................33 4 I. Cautions on mobile phone use 1.1 Interference All phones may be interfered, which affect phone calls. 1.2 Reasonable use Use only in the normal position. Do not touch the antenna area unnecessarily. 1.3 Qualified maintenance service Only qualified personnel may install or repair this product. 1.4 Water-resistance Your device is non water-resistant. Keep it dry. 1.5 Emergency calls Ensure the phone is switched on and in service. Enter the emergency number and press the Dialer icon. 2 Precautions for use of battery 2.1 Do not dispose of batteries near or in a fire to avoid dangers. 2.2 Do not dispose of batteries in the garbage. Dispose of batteries to assigned battery recycling center. 5 3 Cautions for children Keep your device out the reach of children in case of accidental injury caused by incorrect use of the device as toys. II. Keys and parts 6 7  1. SIM card tray  2. Front camera  3. Receiver  4. Light sensor / Proximity sensor  5. Volume key  6. Power key  7. Audio jack  8. Mic  9. USB connector  10. Speaker  11. Rear camera  12. Finger printer  13. Flashlight  14. Macro camera  15. Sub-MIC III. Start to use 3.1 To insert SIM card(S): Insert the SIM card correctly in the card slot(s) (See figure below), suggest switch off the phone when you insert SIM card. Insert the Micro SD card into the slot with the correct direction (See figure below), suggest switch off the phone when you insert SIM card. Note: Use only compatible memory cards with this device. Incompatible memory cards may damage the card or the device and corrupt the data stored in the card. 8 9 3.2 Charge the battery During charging, the battery indicator on the phone is a thunder icon. If the device is switched off during charging, there wil…

Text truncated - open the document above for the full version.

BLU Products, Inc. Agent Authorization Company: BLU Products, Inc. Address: 10814 NW 33rd St # 100 Doral, FL 33172 ,USA Product Name: Mobile Phone Model Number(s): G90 PRO Product Description: N/A We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-05-14 Name: Wei Zeng Title: Senior Manager Company: BLU Products, Inc.

BLU Products, Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-05-14 Subject; Request for Confidentiality FCC ID: YHLBLUG90PRO To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wei Zeng Title: Senior Manager

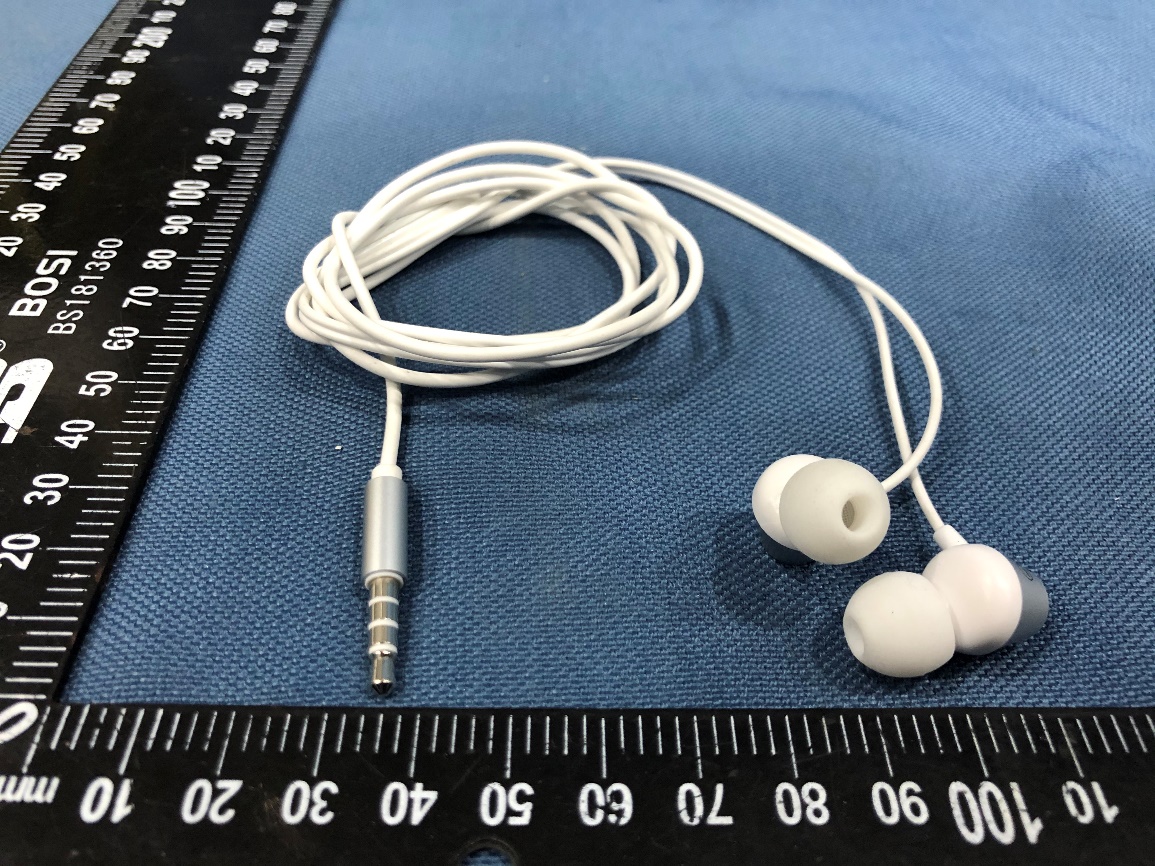

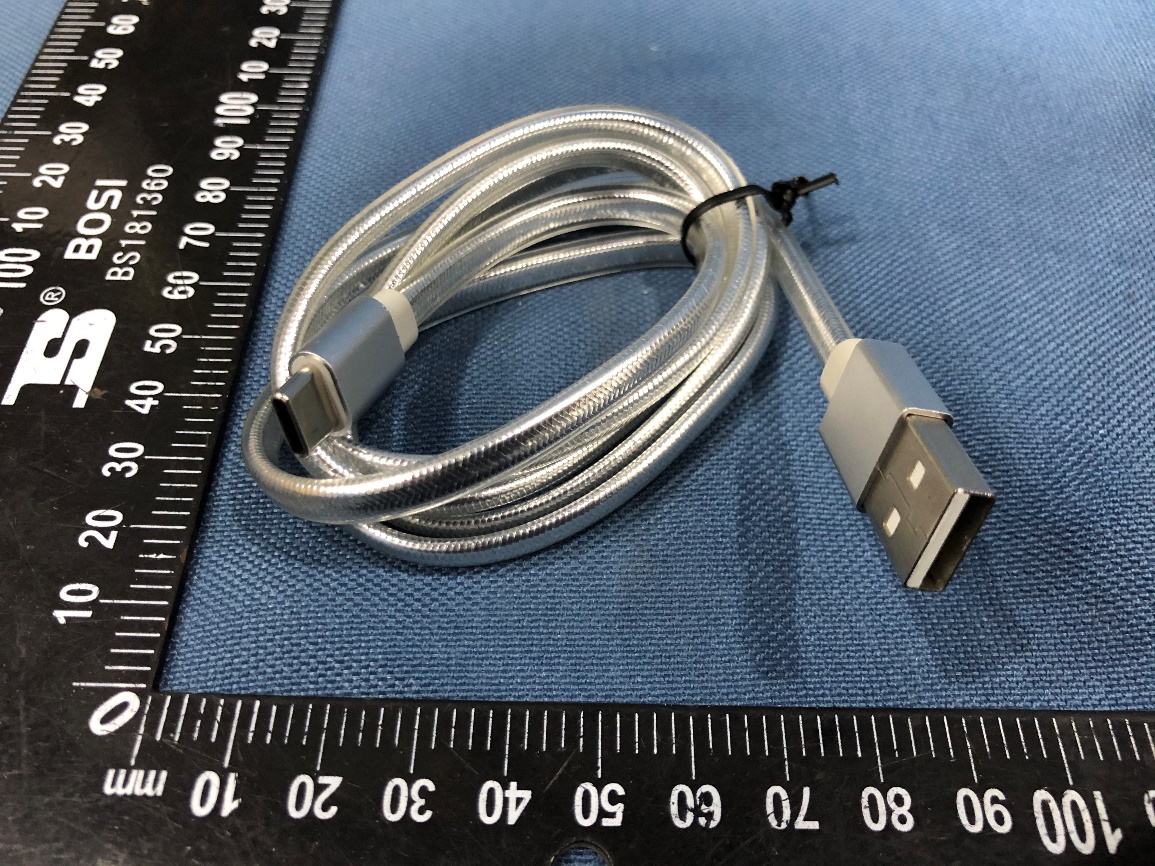

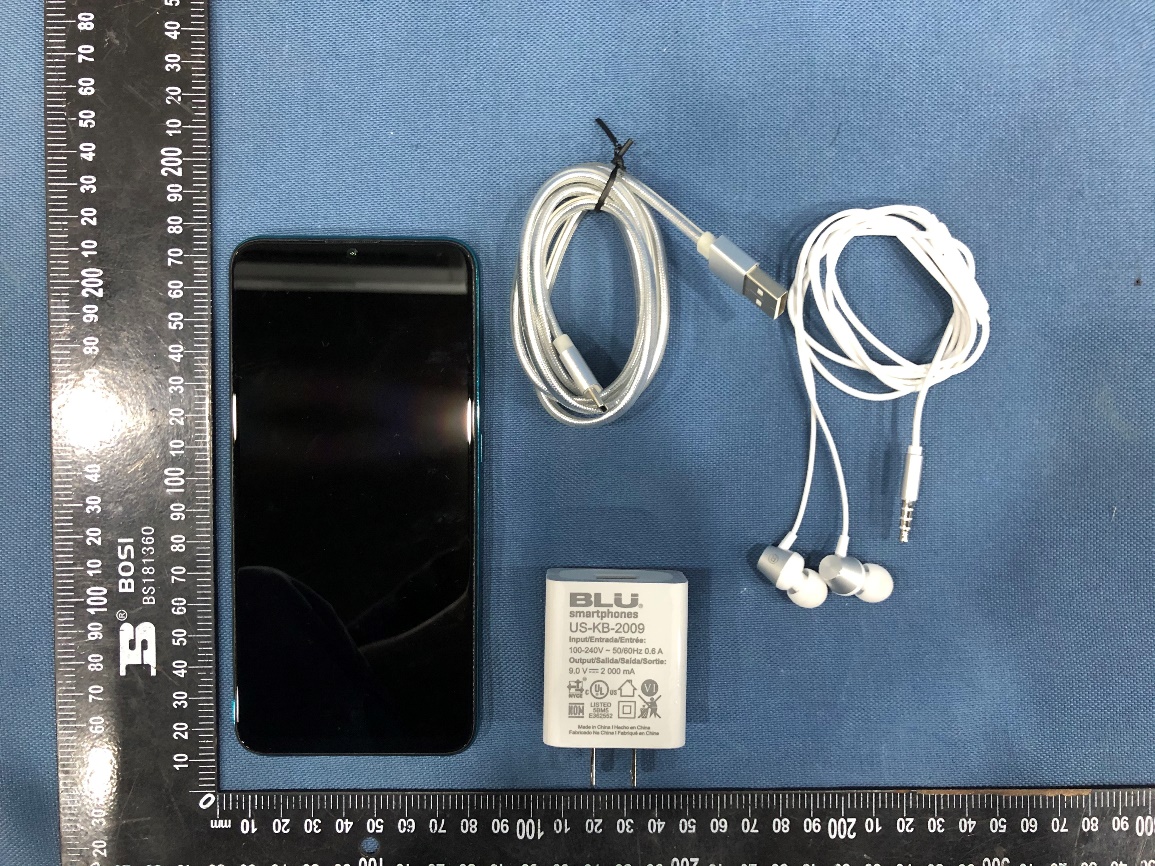

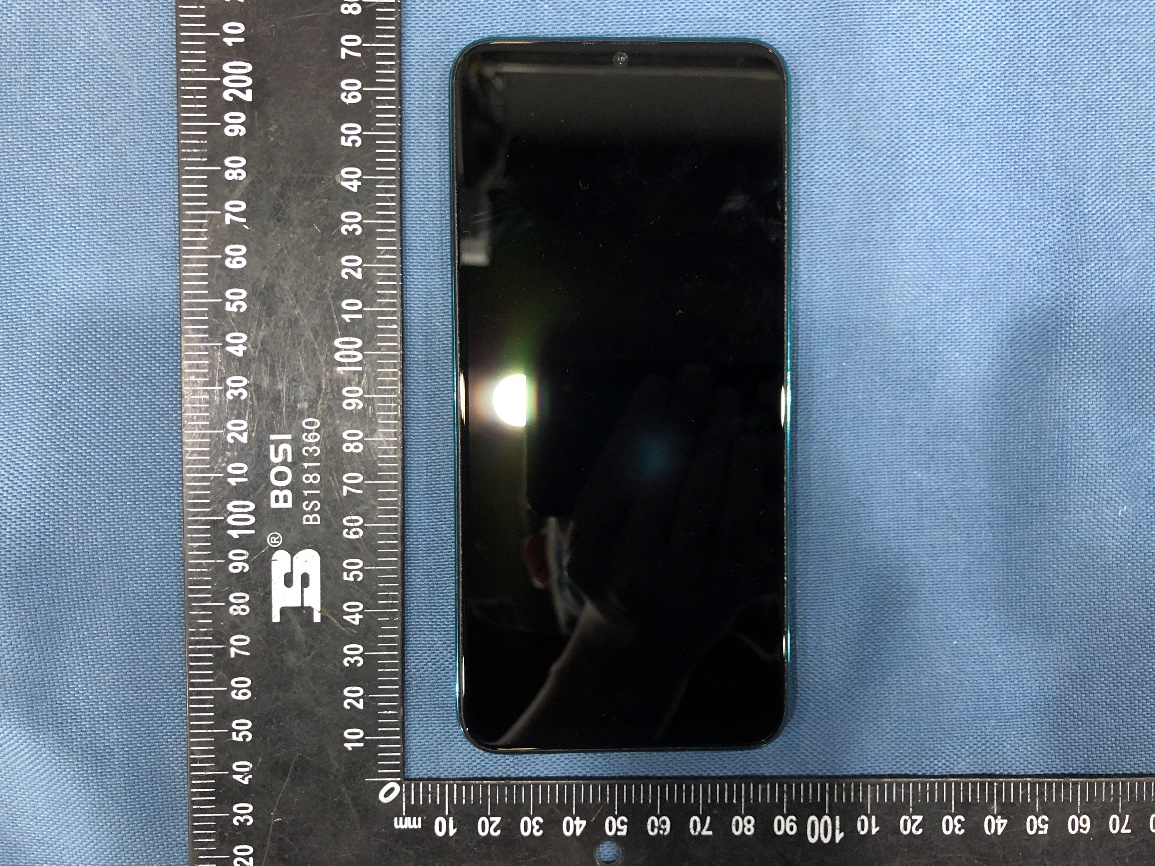

Page 1 of 6 FCC ID: YHLBLUG90PRO Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 6 FCC ID: YHLBLUG90PRO Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 6 FCC ID: YHLBLUG90PRO Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 6 FCC ID: YHLBLUG90PRO Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 6 FCC ID: YHLBLUG90PRO Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 6 of 6 FCC ID: YHLBLUG90PRO Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

40MM 35MM

Page 1 of 6 FCC ID: YHLBLUG90PRO Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo 2.4G WIFI/BT Antenna GSM/WCDMA/L TE Antenna (Main) LTE Antenna (Aux) Page 2 of 6 FCC ID: YHLBLUG90PRO Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 6 FCC ID: YHLBLUG90PRO Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 6 FCC ID: YHLBLUG90PRO Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 6 FCC ID: YHLBLUG90PRO Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 6 of 6 FCC ID: YHLBLUG90PRO Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

Page 2 of 57 Report No.: 200423020SAR-1 ShenzhenUnionTrustQualityandTechnologyCo.,Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com UTTR-SAR-IEEE Std 1528-2013-V1.0 Version Version No. Date Description V1.0 May 28, 2020 Original Page 3 of 57 Report No.: 200423020SAR-1 ShenzhenUnionTrustQualityandTechnologyCo.,Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com UTTR-SAR-IEEE Std 1528-2013-V1.0 Contents Page 1 GENERAL INFORMATION ............................................................................................................................. 5 1.1 STATEMENT OF COMPLIANCE .......................................................................................................... 5 1.2 EUT DESCRIPTION .............................................................................................................................. 6 1.2.1 General Description ...................................................................................................................... 6 1.2.2 Wireless Technologies .................................................................................................................. 7 1.2.3 List of Accessory ........................................................................................................................... 7 1.3 MAXIMUM CONDUCTED POWER ...................................................................................................... 8 1.4 OTHER INFORMATION ........................................................................................................................ 9 1.5 TESTING LOCATION ........................................................................................................................... 9 1.6 TEST FACILITY .................................................................................................................................... 9 1.7 GUIDANCE STANDARD .................................................................................................................... 10 2 SPECIFIC ABSORPTION RATE (SAR) ........................................................................................................ 11 2.1 INTRODUCTION ................................................................................................................................. 11 2.2 SAR DEFINITION ................................................................................................................................ 11 2.3 SAR LIMITS ........................................................................................................................................ 11 3 SAR MEASUREMENT SYSTEM .................................................................................................................. 12 3.1 SPEAG DASY SYSTEM ..................................................................................................................... 12 3.1.1 Robot .......................................................................................................................................... 12 3.1.2 Probe .......................................................................................................................................... 13 3.1.3 Data Acquisition Electronics (DAE) ............................................................................................ 13 3.1.4 Phantom ..................................................................................................................................... 14 3.1.5 Device Holder ............................................................................................................................. 15 3.1.6 System Validation Dipoles .......................................................................................................... 15 3.2 SAR SCAN PROCEDURE .................................................................................................................. 16 3.2.1 SAR Reference Measurement (drift) .......................................................................................... 16 3.2.2 Area Scan ................................................................................................................................... 16 3.2.3 Zoom Scan ................................................................................................................................. 16 3.2.4 SAR Drift Measurement .............................................................................................................. 17 3.3 TEST EQUIPMENT ............................................................................................................................. 18 3.4 MEASUREMENT UNCERTAINTY ...................................................................................................... 19 3.5 TISSUE DIELECTRIC PARAMETER MEASUREMENT & SYSTEM VERIFICATION ...................... 20 3.5.1 Tissue Simulating Liquids ........................................................................................................... 20 3.5.2 System Check Description ......................................................................................................... 22 3.5.3 Tissue Verification....................................................................................................................... 23 3.5.4 System Verification ..................................................................................................................... 23 4 SAR MEASUREMENT EVALUATION .......................................................................................................... 24 4.1 EUT CONFIGURATION AND SETTING ..............…

Text truncated - open the document above for the full version.

Test Laboratory: UnionTrust Date: 2020/4/30 System Check_H750 DUT: Dipole 750 MHz Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H750 Medium parameters used: f = 750 MHz; σ = 0.885 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3142; ConvF(6.29, 6.29, 6.29); Calibrated: 2020/3/12 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1324; Calibrated: 2019/6/23 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 system check/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.098 mW/g system check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.27 V/m; Power Drift = 0.114 dB Peak SAR (extrapolated) = 0.130 W/kg SAR(1 g) = 0.085 mW/g; SAR(10 g) = 0.055 mW/g Maximum value of SAR (measured) = 0.100 mW/g 0 dB = 0.100mW/g Test Laboratory: UnionTrust Date: 2020/4/30 System Check_H835 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835 Medium parameters used: f = 835 MHz; σ = 0.925 mho/m; ε r = 42.9; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3142; ConvF(6.29, 6.29, 6.29); Calibrated: 2020/3/12 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1324; Calibrated: 2019/6/23 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 system check/Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.162 mW/g system check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.7 V/m; Power Drift = -0.056 dB Peak SAR (extrapolated) = 0.196 W/kg SAR(1 g) = 0.101 mW/g; SAR(10 g) = 0.074 mW/g Maximum value of SAR (measured) = 0.161 mW/g 0 dB = 0.161mW/g Test Laboratory: UnionTrust Date: 2020/4/29 System Check_H1750 DUT: Dipole 1750 MHz Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: H1750 Medium parameters used: f = 1750 MHz; σ = 1.36 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3142; ConvF(5.26, 5.26, 5.26); Calibrated: 2020/3/12 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1324; Calibrated: 2019/6/23 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 system check/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.661 mW/g system check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.1 V/m; Power Drift = 0.187 dB Peak SAR (extrapolated) = 0.866 W/kg SAR(1 g) = 0.390 mW/g; SAR(10 g) = 0.180 mW/g Maximum value of SAR (measured) = 0.626 mW/g 0 dB = 0.626mW/g Test Laboratory: UnionTrust Date: 2020/4/29 System Check_H1900 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900 Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 41; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3142; ConvF(5.08, 5.08, 5.08); Calibrated: 2020/3/12 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1324; Calibrated: 2019/6/23 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 system check/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.728 mW/g system check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.4 V/m; Power Drift = 0.116 dB Peak SAR (extrapolated) = 0.953 W/kg SAR(1 g) = 0.416mW/g; SAR(10 g) = 0.202 mW/g Maximum value of SAR (measured) = 0.660 mW/g 0 dB = 0.660mW/g Test Laboratory: UnionTrust Date: 2020/5/09 System Check_H2450 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H2450 Medium parameters used: f = 2450 MHz; σ = 1.78 mho/m; ε r = 40.2; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3142; ConvF(4.57, 4.57, 4.57); Calibrated: 2020/3/12 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1324; Calibrated: 2019/6/23 - Phantom: SAM 2; Type: QD 000 P40 CB; Serial: TP-1376 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 system check/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.710 mW/g system check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.6 V/m; Power Drift = 0.487 dB Peak SAR (extrapolated) = 1.03 W/kg SAR(1 g) = 0.532 mW/g; SAR(10 g) = 0.257 mW/g Maximum value of SAR (measured) = 0.691 mW/g 0 dB = 0.691mW/g Test Laboratory: UnionTrust Date: 2020/5/09 System Check_H2600 DUT: Dipole 2600 MHz Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: H2600 Medium parameters used: f = 2600 MHz; σ = 2.05 mho/m; ε r = 37.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3142; ConvF(4.45, 4.45, 4.45); Calibrated: 2020/3/12 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1324; Calibrated: 2019/6/23 - Phantom: SAM 2; Type: QD 000 P40 CB; Serial: TP-1376 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 system check/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.915 mW/g system check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.52 V/m; Power Drift = 0.884 dB Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 0.608 mW/g; SAR(10 g) = 0.246 mW/g Maximum value of SAR (measured) = 0.868 mW/g 0 dB = 0.868mW/g

Test Laboratory: UnionTrust Date: 2020/4/30 P01_GSM850_GPRS10_Right Cheek_128 DUT: EUT Communication System: GPRS 850-2solt; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: H850 Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.915 mho/m; ε r = 43; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3142; ConvF(6.29, 6.29, 6.29); Calibrated: 2020/3/12 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1324; Calibrated: 2019/6/23 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 Test/Area Scan (71x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.196 mW/g Test/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.17 V/m; Power Drift = 0.02dB Peak SAR (extrapolated) = 0.208 W/kg SAR(1 g) = 0.136 mW/g; SAR(10 g) = 0.088 mW/g. Maximum value of SAR (measured) = 0.183 mW/g 0 dB = 0.183mW/g Test Laboratory: UnionTrust Date: 2020/4/30 P02_GSM1900_GPRS10_Right Cheek_0MM_512 DUT: EUT Communication System: GPRS1900-2slots; Frequency: 1850.2 MHz;Duty Cycle: 1:4 Medium: H1900 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.35 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3142; ConvF(5.08, 5.08, 5.08); Calibrated: 2020/3/12 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1324; Calibrated: 2019/6/23 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 186 Test/Area Scan (71x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.080 mW/g Test/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.05 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.101 W/kg SAR(1 g) = 0.064 mW/g; SAR(10 g) = 0.039 mW/g Maximum value of SAR (measured) = 0.073 mW/g 0 dB = 0.073mW/g Test Laboratory: UnionTrust Date: 2020/4/29 P03_WCDMA II_RMC12.2K_Right Cheek_9262 DUT: EUT Communication System: WCDMA Band II; Frequency: 1852.4 MHz;Duty Cycle: 1:1 Medium: H1900 Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.35 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3142; ConvF(5.08, 5.08, 5.08); Calibrated: 2020/3/12 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1324; Calibrate…

Text truncated - open the document above for the full version.
