YHLBLUJOY2Mobile Phone

Federal Communication Commission Interference Statement FCC ID: YHLBLUJOY2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Radiation Exposure Statement: This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless device employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using standard operating positions (10mm) accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands.

C5266091_X8_Ed.1 1/1 Letter of Authorization < BLU Products, Inc.> Company: BLU Products, Inc. Address: 10814 NW 33rd St # 100 Doral, FL 33172, USA Product Name: Mobile Phone Model Number: JOY FCC Identifier: YHLBLUJOY2 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Wei Zeng Date: 2021-11-09 Title: Senior Manager Signature of applicant:

C5266091_X10_Ed.1 1/1 < BLU Products, Inc.> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date:2021/11/9 Subject: Request for Confidentiality FCC ID: YHLBLUJOY2 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wei Zeng Title: Senior Manager

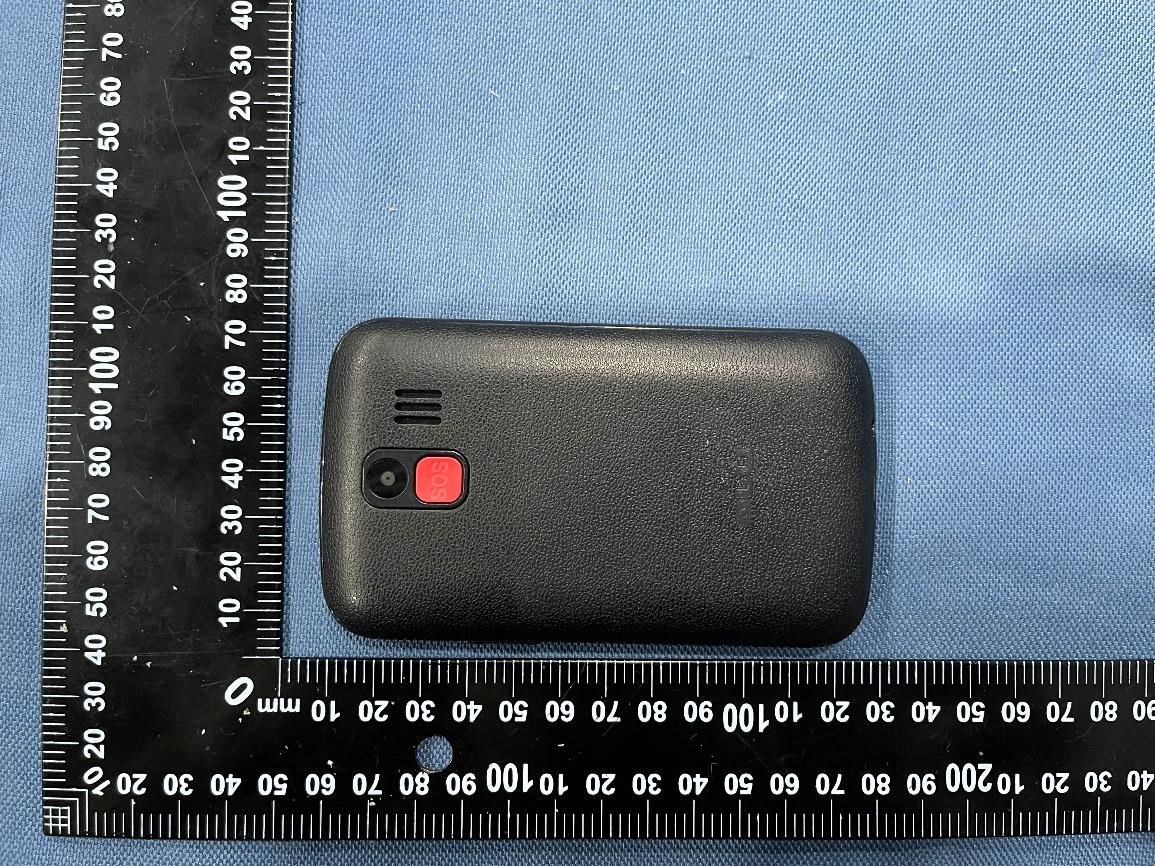

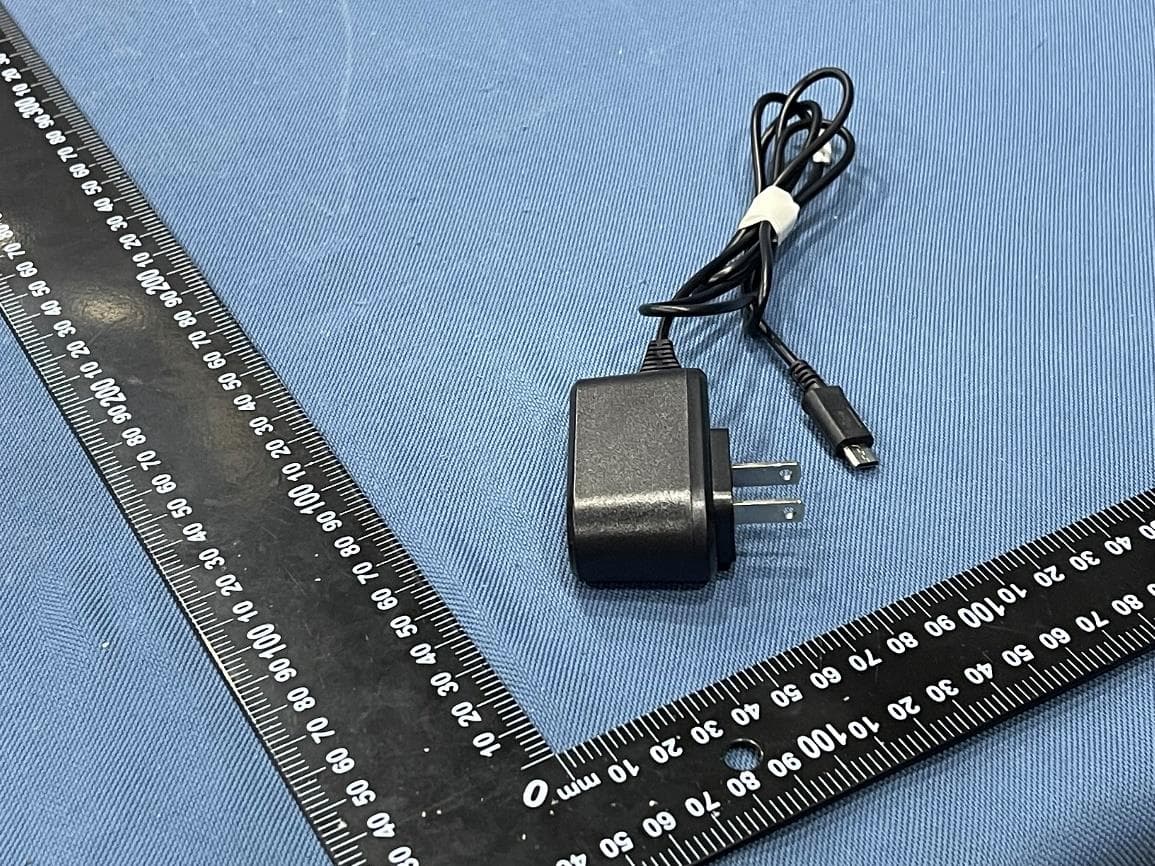

Page 1 of 4 FCC ID: YHLBLUJOY2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 4 FCC ID: YHLBLUJOY2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 4 FCC ID: YHLBLUJOY2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 4 FCC ID: YHLBLUJOY2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

12.4*4.4mm

Page 1 of 6 FCC ID: YHLBLUJOY2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 6 FCC ID: YHLBLUJOY2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 6 FCC ID: YHLBLUJOY2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 6 FCC ID: YHLBLUJOY2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo BT Antenna Page 5 of 6 FCC ID: YHLBLUJOY2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo GSM Antenna Page 6 of 6 FCC ID: YHLBLUJOY2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

Page 1 of 39 Report No.: 210924006SAR-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-SAR-IEEE Std 1528-2013-V1.1 FCC SAR TEST REPORT Product Name: Mobile Phone Trade Mark: BLU Model No.: JOY Add. Model No.: N/A Report Number: 210924006SAR-1 Test Standards: FCC 47 CFR Part 2 §2.1093 ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 FCC ID: YHLBLUJOY2 Test Result: PASS Date of Issue: November 8, 2021 Prepared for: BLU Products, Inc. 10814 NW 33rd St # 100 Doral, FL 33172, USA Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: Niko Su Henry Lu Test Engineer Team Leader Approved by: Date: November 8, 2021 Kevin Liang Assistant Manager Page 2 of 39 Report No.: 210924006SAR-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-SAR-IEEE Std 1528-2013-V1.1 Version Version No. Date Description V1.0 November 8, 2021 Original Report Page 3 of 39 Report No.: 210924006SAR-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-SAR-IEEE Std 1528-2013-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 5 1.1. S TATEMENT OF C OMPLIANCE ................................................................................................................................. 5 1.2. C LIENT I NFORMATION ............................................................................................................................................ 6 1.3. EUT I NFORMATION ................................................................................................................................................ 6 1.3.1. G ENERAL D ESCRIPTION OF EUT .............................................................................................................. 6 1.3.2. D ESCRIPTION OF A CCESSORIES ............................................................................................................... 6 1.3.3. EUT T X F REQUENCY B ANDS .................................................................................................................... 6 1.3.4. W IRELESS T ECHNOLOGIES ....................................................................................................................... 7 1.4. M AXIMUM C ONDUCTED P OWER ............................................................................................................................. 7 1.5. O THER I NFORMATION ............................................................................................................................................ 7 1.6. T EST L OCATION .................................................................................................................................................... 7 1.7. T EST F ACILITY ...................................................................................................................................................... 8 1.8. G UIDANCE S TANDARD ........................................................................................................................................... 8 2. SPECIFIC ABSORPTION RATE (SAR) ................................................................................................................... 9 2.1. I NTRODUCTION ...................................................................................................................................................... 9 2.2. SAR D EFINITION ................................................................................................................................................... 9 2.3. SAR L IMITS .......................................................................................................................................................... 9 3. SAR MEASUREMENT SYSTEM ............................................................................................................................ 10 3.1. SPEAG DASY S YSTEM ..................................................................................................................................... 10 3.1.1. R OBOT .................................................................................................................................................. 10 3.1.2. P ROBE .................................................................................................................................................. 11 3.1.3. D ATA A CQUISITION E LECTRONICS (DAE) ............................................................................................... 11 3.1.4. P HANTOM .............................................................................................................................................. 12 3.1.5. D EVICE H OLDER .................................................................................................................................... 13 3.1.6. S YSTEM V ALIDATION D IPOLES ................................................................................................................ 13 3.2. SAR S CAN P ROCEDURE ........................................................................................................…

Text truncated - open the document above for the full version.

Date/Time: 2021/11/3Test Laboratory: UnionTrust Check_H835_10dBm DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Medium parameters used: f = 835 MHz; σ = 0.936 mho/m; ε r = 40.9; ρ = 1000 kg /m 3 DASY4 Configuration: -Probe: ES3DV3 - SN3090; ConvF(6.15, 6.15, 6.15); Calibrated: 2021/4/26 - Sensor-Surface: 3mm (Mechanical Surface Detection) -Electronics: DAE4 Sn662; Calibrated: 2021/4/9 - Phantom: SAM 2; Type: QD 000 P40 CB; Serial: TP-1376 - Postprocessing SW: SEMCAD, V1.8 Build 186 system check/Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.118 mW/g system check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.3 V/m; Power Drift = 0.019 dB Peak SAR (extrapolated) = 0.154 W/kg SAR(1 g) = 0.098 mW/g; SAR(10 g) = 0.064 mW/g Maximum value of SAR (measured) = 0.119 mW/g 0 dB = 0.119mW/g Test Laboratory: UnionTrust Date/Time: 2021/11/4 System Check_H1900_10dBm DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900 Medium parameters used: f = 1900 MHz; σ = 1.418 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.08, 5.08, 5.08); Calibrated: 2021/4/26 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2021/4/9 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - ; Postprocessing SW: SEMCAD, V1.8 Build 176 system check/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.597 mW/g system check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.4 V/m; Power Drift = 0.170 dB Peak SAR (extrapolated) = 0.791 W/kg SAR(1 g) = 0.421 mW/g; SAR(10 g) = 0.216 mW/g Maximum value of SAR (measured) = 0.548 mW/g 0 dB = 0.548mW/g

Test Laboratory: UnionTrust Date/Time: 2021/11/3 GSM850_GSM_Rear Face_10MM_251 DUT: EUT Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: H835 Medium parameters used: f = 849 MHz; σ = 0.946 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.15, 6.15, 6.15); Calibrated: 2021/4/26 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2021/4/9 - Phantom: SAM 2; Type: QD 000 P40 CB; Serial: TP-1376 - Postprocessing SW: SEMCAD, V1.8 Build 176 Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.07 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 34.1 V/m; Power Drift = 0.034 dB Peak SAR (extrapolated) = 1.29 W/kg SAR(1 g) = 0.946 mW/g; SAR(10 g) = 0.669 mW/g Maximum value of SAR (measured) = 1.06 mW/g 0 dB = 1.06mW/g Test Laboratory: UnionTrust Date/Time: 2021/11/3 GSM850_Left Cheek_251 DUT: EUT Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: H835 Medium parameters used: f = 849 MHz; σ = 0.946 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.15, 6.15, 6.15); Calibrated: 2021/4/26 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2021/4/9 - Phantom: SAM 2; Type: QD 000 P40 CB; Serial: TP-1376 - Postprocessing SW: SEMCAD, V1.8 Build 176 Area Scan (71x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.827 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.4 V/m; Power Drift = -0.061 dB Peak SAR (extrapolated) = 0.980 W/kg SAR(1 g) = 0.722 mW/g; SAR(10 g) = 0.511 mW/g Maximum value of SAR (measured) = 0.812 mW/g 0 dB = 0.812mW/g Test Laboratory: UnionTrust Date/Time: 2021/11/4 GSM1900_GSM_Front Face_10MM_810 DUT: EUT Communication System: GSM1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: H1900 Medium parameters used: f = 1910 MHz; σ = 1.43 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.08, 5.08, 5.08); Calibrated: 2021/4/26 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2021/4/9 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 176 Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.26 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.0 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 1.62 W/kg SAR(1 g) = 1 mW/g; SAR(10 g) = 0.608 mW/g Maximum value of SAR (measured) = 1.18 mW/g 0 dB = 1.18mW/g Test Laboratory: UnionTrust Date/Time: 2021/11/4 GSM1900_Right Cheek_810 DUT: EUT Communication System: GSM1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: H1900 Medium parameters used: f = 1910 MHz; σ = 1.43 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.08, 5.08, 5.08); Calibrated: 2021/4/26 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2021/4/9 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 176 Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.777 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.7 V/m; Power Drift = -0.056 dB Peak SAR (extrapolated) = 0.886 W/kg SAR(1 g) = 0.599 mW/g; SAR(10 g) = 0.382 mW/g Maximum value of SAR (measured) = 0.681 mW/g 0 dB = 0.681mW/g

Report No.: 210924006SAR-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E- mail: [email protected] Http://www.uttlab.com UTTR-SAR-IEEE Std 1528-2013-V1.1_Appendix D <Photographs of EUT> Refer to the EUT external photographs. <Antenna Location> The separation distance for antenna to edge: Antenna to edge (mm) overall diagonal display diagonal Left Side Right Side Top Side Bottom Side WWAN 123 61 52 14 112 5 BT 56 7 76 42 <EUT Front Bottom Side Right Side Left Side Top Side WWAN Ant. WLAN / BT Antenna Report No.: 210924006SAR-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E- mail: [email protected] Http://www.uttlab.com UTTR-SAR-IEEE Std 1528-2013-V1.1_Appendix D <Photographs of SAR Setup> Right Cheek Right Tilted Left Cheek Left Tilted Front Face of EUT with 1.0 cm Gap Rear Face of EUT with 1.0 cm Gap

Page 1 of 30 Report No.: 210924005RFM-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCC23G-V1.1 FCC TEST REPORT Product Name: Mobile Phone Trade Mark: BLU Model No.: JOY Report Number: 210924005RFM-1 Test Standards: FCC 47 CFR Part 22 Subpart H FCC 47 CFR Part 24 Subpart E FCC ID: YHLBLUJOY2 Test Result: PASS Date of Issue: November 9, 2021 Prepared for: BLU Products, Inc. 10814 NW 33rd St # 100 Doral, FL 33172, USA Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: Gavin Xu Henry Lu Project Engineer Team Leader Approved by: Date: November 9, 2021 Kevin Liang Assistant Manager Page 2 of 30 Report No.: 210924005RFM-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCC23G-V1.1 Version Version No. Date Description V1.0 November 9, 2021 Original Page 3 of 30 Report No.: 210924005RFM-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCC23G-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.2 DESCRIPTION OF ACCESSORIES .............................................................................................................. 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 5 1.4 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 5 1.5 TEST LOCATION ................................................................................................................................................. 5 1.6 TEST FACILITY ................................................................................................................................................... 5 1.7 DEVIATION FROM STANDARDS ............................................................................................................................ 6 1.8 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 1.9 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 6 1.10 MEASUREMENT UNCERTAINTY ........................................................................................................................... 6 2. TEST SUMMARY ...................................................................................................................................................... 7 3. EQUIPMENT LIST .................................................................................................................................................... 8 4. TEST CONFIGURATION .......................................................................................................................................... 9 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ........................................................................................................ 9 4.2 TEST SETUP .................................................................................................................................................... 10 4.2.1 FOR RADIATED EMISSIONS TEST SETUP ................................................................................................ 10 4.2.2 FOR CONDUCTED RF TEST SETUP ........................................................................................................ 11 4.3 TEST CHANNELS ............................................................................................................................................. 12 4.4 SYSTEM TEST CONFIGURATION ........................................................................................................................ 13 4.5 PRE-SCAN ....................................................................................................................................................... 13 5. RADIO TECHNICAL REQUIREMENTS SPECIFICATION .................................................................................... 14 5.1 REFERENCE DOCUMENTS FOR TESTING ............................................................................................................ 14 5.2 MAXIMUM ERP/EIRP ...................................................................................................................................... 14 5.3 CONDUCTED OUTPUT POWER .......................................................................................................................... 16 5.4 PEAK-TO-AVERAGE RATIO .........................................…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: YHLBLUJOY2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 1 PHOTOS OF TEST SETUP ERP EIRP Page 2 of 2 FCC ID: YHLBLUJOY2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com RF Conducted Test Setup
