YHLBLUK50KSmart Phone

K50 Quick Guide | Guía Rápida | Guía Rápido | Guide Rapide o For instructions or any questions pertaining to phone usage, pl ease click on the BLU page by visiting the following address: https://boldphone.com o Para obtener instrucciones o preguntas relacionadas con el uso del teléfono, por favor haga clic en la página de BLU visitando la siguiente dirección: https://boldphone.com o Para obter instruções ou perguntas relacionadas ao uso do telef one, por favor, clique na página de BLU visitando o seguinte endereço: https://boldphone.com o Pour des instructions ou pour toutes questions sur l'utilisatio n du téléphone, veuillez cliquer sur à la page BLU en visitant l'adresse suivante: https://boldphone.com ddEd/KE ABOUT YOUR PHONE Transportation Safety Observe all transportation laws and regulations. PLEASE DRIVE RESPONSIBLY - DO NOT TEXT & DRIVE Hospital Safety Follow hospital rules and limitations and turn off your mobile phone when near medical instruments. Airport Safety Remember to follow all airport and flight safety regulations. Water Hazard Your phone is not waterproof. Keep your phone away from water o r liquid to avoid damage. Emergency Calls Make sure your mobile phone is switched on and in a service are a. On home screen, tap the phone key and dial the emergency number. Battery Usage For better performance and longer battery life, it is recommend ed that you charge the battery fully before using the mobile phone for the first time and that you initiall y complete two to three charge cycles. IMEI Information To check your IMEI, press *#06# . KEY FUNCTIONS VolumePower On / Off Back Home Recent Apps Front Camera Fingerprint Sensor(On Touch panel) Rear Camera(Multiple Sensors) Flash Power On / Off Used to power on/off the device and to lock the screen. » Long press the power button to power on » While the phone is powered on , long press to access the power off menu or click to lock the screen Volume Adjusts the ringer volume, call volume, and multimedia volume. Home The home button pauses any current action and returns to the ho me screen. Recent Apps Opens a list of recently opened applications that allows you to switch conveniently between them. This option can also close any open applications by swiping to the side. Back Returns to the previous screen; Closes the keyboard, any open p rogram, or any menu option. USB Port Charges the device and transfers data such as documents, music, and video between your device and a PC. Headset Port Connect earphones to this port for hands-free capabilities. You may also to listen to music or FM radio. Front Camera A high-resolution front camera to take pictures and video. This option is ideal for self-portraits. Rear Camera A high-resolution rear camera to take pictures and video. Flash Fingerprint Sensor Provides light for pictures in low-light conditions. It also ma y be used as a flashlight (Rear). Security measure that unlocks your device with the User’s fingerprints. INTRODUCTION Installation of the SIM Card Warning: Please keep the SIM card out of the reach of children. The SIM card and its contact are easily damaged due to scratching or bending. Please use caution when c arrying, installing, or taking out the SIM card. Note: Please contact your cellular phone service provider directly t o obtain your SIM card. To insert SIM card:  Remove the SIM card tray (with tool). Insert the SIM card.  Replace the SIM card tray and power on the phone. SIM Card Slot Phone is Front Facing DEVICE CONFIGURATION When you initially power on your phone, there will be a series of steps to set up basic features. INSERT SIM Insert your SIM card so the phon e can register to the network. SELECT LANGUAGE While on the Welcome screen, please scroll to select your langu age. In this step, you also have the option to adjust Vision Settings such as magnification, font, and disp lay size. You have the ability to place an Emergency Call. SELECT WI-FI This step allows the device to connect to the internet. Click o n the desired Wi-Fi network that the device that will be connected. Please note that any unsecured Wi-Fi ne tworks can be connected to without credentials and any secured Wi-F i networks require a password f or credentials prior to connection. It is recommended that you c onnect to a Wi-Fi network to check for so ftware updates prior to startup to avoid any data overages. COPY APPS & DATA This step allows you to select transfer options such as applica tions, pictures, music and more from a previous device. You may also setup as new if you choose not to from a previous device. ADD YOUR ACCOUNT Sign in to your Google TM Account in order to keep accounts streamlined with Google serv ices. Your account will be used for Google programs such as Google Play, Google Dr ive, and Google Pay. If you do not have a Google account, click to create a new account. If the device is not recognized by your Google account, you will have to complete a security verification. GOOGLE SERVICES Click to add or remove Google services that include Backup and Restore, Location Service, Install Updates and Apps. SET DEVICE SECURITY Setup your fingerprint to unlock your phone and for authorizati on on certain applications. There will be three options to setup fingerprint security: with PIN, Password or Pattern. In this step, you will have the ability to setup a PIN at startup as an extra layer of security. You also have the option of skipping the fingerprint setup and completing it at a later time. You ca n also setup face unlock during this process. FINALIZE SETUP The last step allows you to set up Google Assistant. It also al lows you to add another email address. You can also control what information is visible through the phones lock screen and lets you also review any additional apps. You may skip this step and setup later. SOBRE SU TELÉFONO Google, Google Play, Google Maps, YouTube, Gmail, and other marks are trademarks of Google LLC. Seguridad de Transporte Siga todas las le…

Text truncated - open the document above for the full version.

BLU Products, Inc. 8600 NW 36th Street, Suite #300 Miami, FL 33166, Doral, Florida 33166, United States Date: 2024-06-12 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d) (5) (i) Filing SUBJECT: FCC Application for FCC ID: YHLBLUK50K To Whom It May Concern: BLU Products, Inc. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signatory [Wei Zeng, Senior Manager]

BLU Products, Inc. 8600 NW 36th Street, Suite #300 Miami, FL 33166, Doral, Florida 33166, United States Date: 2024-06-12 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d) (5) (ii) Filing SUBJECT: FCC Application for FCC ID: YHLBLUK50K To Whom It May Concern: BLU Products, Inc. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Signatory [Wei Zeng, Senior Manager]

BLU Products, Inc. 8600 NW 36th Street, Suite #300 Miami, FL 33166, Doral, Florida 33166, United States Rev 1/26/2023 Date: 2024-06-12 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d) (7) Filing Grantee Code: YHL BLU Products, Inc. certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: Name: BLU Products, Inc. FRN: 0019890946 Address: 8600 NW 36th Street, Suite #300 Miami, FL 33166, Doral, Florida 33166, United States Contact Person: Wei Zeng Tel.: 3057157171 Email: [email protected] Sincerely, Signatory [Wei Zeng, Senior Manager]

BLU Products, Inc. 8600 NW 36th Street, Suite #300 Miami, FL 33166, Doral, Florida 33166, United States Date: 2024-06-12 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCC Application for FCC ID: YHLBLUK50K Confidentiality Request To whom it may concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. ☒ Block Diagram ☒ Tune-Up Information ☒ Operational Description ☒ Security Information ☒ Schematics ☐ Software Defined Radio (SDR) Information ☒ Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); ☐ External Photos ☐ Test Setup Photos ☐ Internal Photos ☐ User Manual ☐ For 45 days, pursuant to Public Notice DA 04-1705. or ☐ For 180 days pursuant to KDB 726920 D01. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signatory [Wei Zeng, Senior Manager]

BLU Products, Inc. 8600 NW 36th Street, Suite #300 Miami, FL 33166, Doral, Florida 33166, United States Date: 2024-06-12 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCC Application for FCC ID: YHLBLUK50K POWER OF ATTORNEY To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, BLU Products, Inc. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Signatory [Wei Zeng, Senior Manager]

BLU Products, Inc. 8600 NW 36th Street, Suite #300 Miami, FL 33166, Doral, Florida 33166, United States Date: 2024-06-12 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCC Application for FCC ID: YHLBLUK50K To Whom It May Concern: I, the undersigned, hereby states this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules, and will apply the Supplier's Declaration of Conformity procedure to the Part 15 Class B Digital and receivers that operate in the range between 30 and 960 MHz of this composite device. I understand the following FCC requirements: 1. Devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Pt 2.1077 contains the list of information that must be included in the Supplier's Declaration of Conformity, which must be supplied with each product sold. The SDoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(b), the responsible party is either the Manufacturer or if the product is imported the Importer. Sincerely, Signatory [Wei Zeng, Senior Manager]

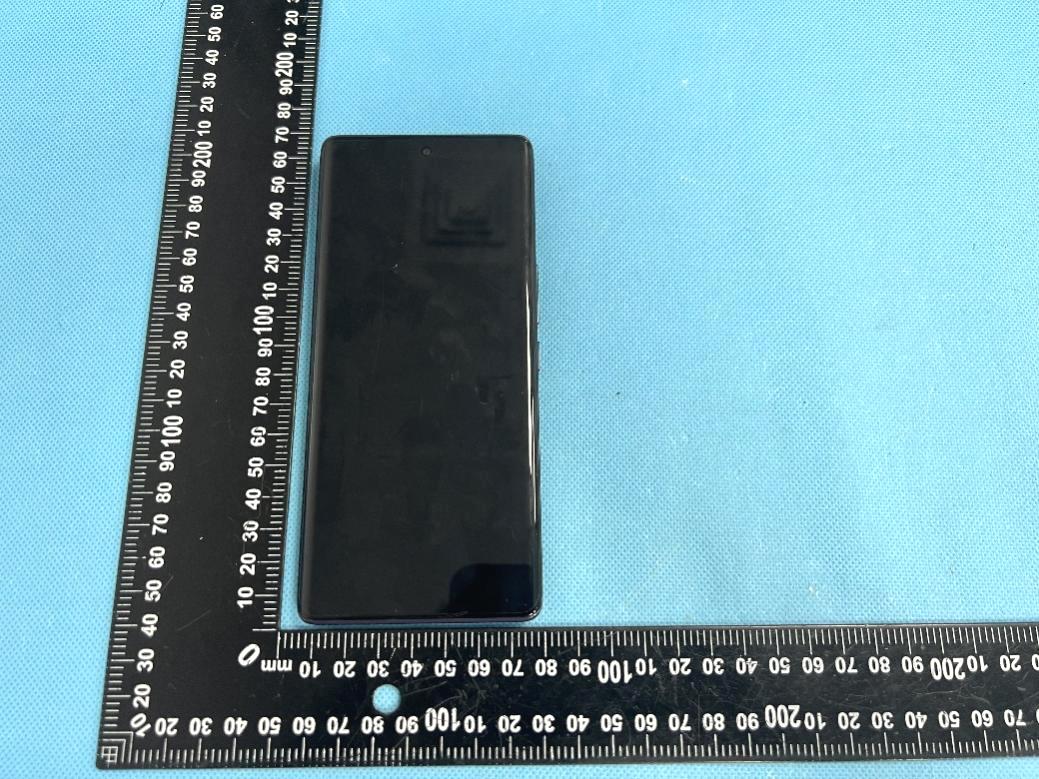

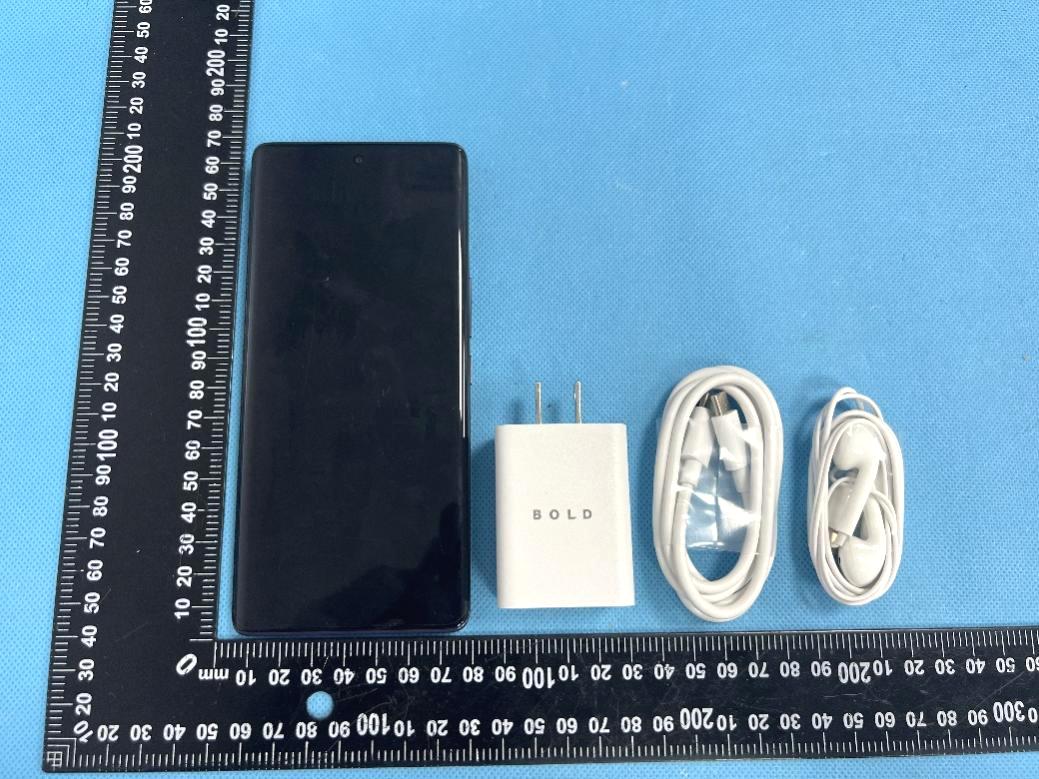

ReferenceNo.:WTX24X04087264W001/002/003/004/005/006/007/009/010/011Page2of13 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT2-EUTEXTERNALPHOTOGRAPHS EUTView1 EUTView2 ReferenceNo.:WTX24X04087264W001/002/003/004/005/006/007/009/010/011Page3of13 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView3 EUTView4 ReferenceNo.:WTX24X04087264W001/002/003/004/005/006/007/009/010/011Page4of13 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView5 EUTView6 ReferenceNo.:WTX24X04087264W001/002/003/004/005/006/007/009/010/011Page5of13 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView7

ReferenceNo.:WTX24X04087264W001/002/003/004/005/006/007/009/010/011Page1of13 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT1-PRODUCTLABELING ProposedFCCIDLabelFormat Specifications:Thelabelshallbesecurelyaffixedtoapermanentlyattachedpartofthedevice,inalocation whereitisvisibleoreasilyaccessibletotheuser,andshallnotbereadilydetachable.Thelabelshallbe sufficientlydurabletoremainfullylegibleandintactonthedeviceinallnormalconditionsofusethroughout thedevice’sexpectedlifetime. ProposedLabelLocationonEUT FCCIDLabel Location

Reference No.: WTX24X04087264W001/002/003/004/005/006/007/009/010/011 Page 6 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX24X04087264W001/002/003/004/005/006/007/009/010/011 Page 7 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX24X04087264W001/002/003/004/005/006/007/009/010/011 Page 8 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 3 Solder Board-Component View 4

Reference No.: WTX24X04087264W001/002/003/004/005/006/007/009/010/011 Page 9 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 5 Solder Board-Component View 6 Reference No.: WTX24X04087264W001/002/003/004/005/006/007/009/010/011 Page 10 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View ANT1 ANT0 WIFI 5G ANT2 ANT3 ANT7 WIFI 2.4G+BT ANT6 ANT4 ANT5 NFCAntenna

ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 1 of 270 AnnexA.PlotsofSystemPerformanceCheck MEASUREMENT1 Type:Validationmeasurement(Fast,75.00%) Dateofmeasurement:2024-05-06 Measurementduration:7minutes21seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:1.67;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomValidationplane DevicePositionDipole BandCW750 SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)750.000000 RelativePermittivity(realpart)42.232457 Conductivity(S/m)0.902347 PowerVariation(%)1.178100 AmbientTemperature22.2 LiquidTemperature22.2 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 2 of 270 Maximumlocation:X=-2.00,Y=0.00 D.SAR1g&10g SAR10g(W/Kg)1.430855 SAR1g(W/Kg)2.051374 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)2.82682.15421.64731.27591.0033 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 3 of 270 MEASUREMENT2 Type:Validationmeasurement(Fast,75.00%) Dateofmeasurement:2024-05-09 Measurementduration:12minutes21seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:1.71;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomValidationplane DevicePositionDipole BandCW835 SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)835.000000 RelativePermittivity(realpart)42.012489 Conductivity(S/m)0.921417 PowerVariation(%)-1.884700 AmbientTemperature22.2 LiquidTemperature22.2 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 4 of 270 Maximumlocation:X=1.00,Y=0.00 D.SAR1g&10g SAR10g(W/Kg)1.527360 SAR1g(W/Kg)2.210386 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)3.06772.32241.76441.35851.0631 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 5 of 270 MEASUREMENT3 Type:Validationmeasurement(Fast,75.00%) Dateofmeasurement:2024-05-14 Measurementduration:12minutes21seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:2.11;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomValidationplane DevicePositionDipole BandCW1800 SignalCW(Crestfactor:1.0) B.SARMeasurementResults Frequency(MHz)1800.000000 RelativePermittivity(realpart)40.424471 Conductivity(S/m)1.761485 PowerVariation(%)1.425800 AmbientTemperature22.5 LiquidTemperature22.5 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 6 of 270 Maximumlocation:X=1.00,Y=1.00 D.SAR1g&10g SAR10g(W/Kg)4.968858 SAR1g(W/Kg)9.623880 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)17.393610.43226.11873.61322.2066 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 7 of 270 MEASUREMENT4 Type:Validationmeasurement(Fast,75.00%) Dateofmeasurement:2024-05-17 Measurementduration:12minutes21seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:2.21;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomValidationplane DevicePositionDipole BandCW1900 SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)1900.000000 RelativePermittivity(realpart)40.382574 Conductivity(S/m)1.953135 PowerVariation(%)-1.224700 AmbientTemperature22.3 LiquidTemperature22.3 C.SARSurfaceandVolume SURFACESARVOLUMESAR Maximumlocation:X=0.00,Y=1.00 ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 8 of 270 D.SAR1g&10g SAR10g(W/Kg)5.260825 SAR1g(W/Kg)10.222516 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)18.694011.11826.47173.81032.3414 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 9 of 270 MEASUREMENT5 Type:Validationmeasurement(Fast,75.00%) Dateofmeasurement:2024-05-23 Measurementduration:12minutes21seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:2.29;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomValidationplane DevicePositionDipole BandCW2450 SignalCW(Crestfactor:1.0) B.SARMeasurementResults Frequency(MHz)2450.000000 RelativePermittivity(realpart)39.122289 Conductivity(S/m)1.761828 PowerVariation(%)1.475200 AmbientTemperature22.1 LiquidTemperature22.1 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 10 of 270 Maximumlocation:X=7.00,Y=0.00 D.SAR1g&10g SAR10g(W/Kg)6.149024 SAR1g(W/Kg)13.746586 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)28.795915.13017.54303.74361.9810 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 11 of 270 MEASUREMENT6 Type:Validationmeasurement(Fast,75.00%) Dateofmeasurement:2024-05-20 Measurementduration:12minutes21seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:2.22;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomValidationplane DevicePositionDipole BandCW2600 SignalCW(Crestfactor:1.0) B.SARMeasurementResults Frequency(MHz)2600.000000 RelativePermittivity(realpart)38.874541 Conductivity(S/m)1.9324789 PowerVariation(%)1.344710 AmbientTemperature22.1 LiquidTemperature22.1 C.SARSurfaceandVolume SURFACESARVOLUMESAR Maximumlocation:X=3.00,Y=0.00 ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 12 of 270 D.SAR1g&10g SAR10g(W/Kg)6.553727 SAR1g(W/Kg)14.814545 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)31.180216.26508.03393.94722.0732 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)C…

Text truncated - open the document above for the full version.

ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 120 of 270 Maximumlocation:X=15.00,Y=15.00 D.SAR1g&10g SAR10g(W/Kg)0.193262 SAR1g(W/Kg)0.330955 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)0.52790.35260.23320.15520.1048 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 121 of 270 MEASUREMENT48 Type:Phonemeasurement(Complete) Dateofmeasurement:2024-05-14 Measurementduration:12minutes3seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:2.11;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomFlatPlane DevicePositionBack BandLTEBand4 ChannelsQPSK,20MHz,1RB,Low SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)1720.000000 RelativePermittivity(realpart)40.424216 Conductivity(S/m)1.761368 PowerVariation(%)1.374700 AmbientTemperature22.2 LiquidTemperature22.2 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 122 of 270 Maximumlocation:X=16.00,Y=17.00 D.SAR1g&10g SAR10g(W/Kg)0.255741 SAR1g(W/Kg)0.432104 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)0.68030.46580.31710.21800.1525 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 123 of 270 MEASUREMENT49 Type:Phonemeasurement(Complete) Dateofmeasurement:2024-05-09 Measurementduration:12minutes3seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:1.71;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomFlatPlane DevicePositionBack BandLTEBand5 ChannelsQPSK,10MHz,1RB,Low SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)829.000000 RelativePermittivity(realpart)42.011692 Conductivity(S/m)0.921828 PowerVariation(%)1.374700 AmbientTemperature22.2 LiquidTemperature22.2 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 124 of 270 Maximumlocation:X=-3.00,Y=-57.00 D.SAR1g&10g SAR10g(W/Kg)0.109563 SAR1g(W/Kg)0.147059 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)0.18720.15260.12420.10110.0823 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 125 of 270 MEASUREMENT50 Type:Phonemeasurement(Complete) Dateofmeasurement:2024-05-20 Measurementduration:12minutes3seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:2.22;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomFlatPlane DevicePositionBack BandLTEBand7 ChannelsQPSK,20MHz,1RB,Middle SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)2535.0000000 RelativePermittivity(realpart)38.871489 Conductivity(S/m)1.932250 PowerVariation(%)-0.425700 AmbientTemperature22.1 LiquidTemperature22.1 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 126 of 270 Maximumlocation:X=1.00,Y=2.00 D.SAR1g&10g SAR10g(W/Kg)0.182516 SAR1g(W/Kg)0.338686 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)0.77460.35600.18880.11360.0577 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 127 of 270 MEASUREMENT51 Type:Phonemeasurement(Complete) Dateofmeasurement:2024-05-06 Measurementduration:12minutes3seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:1.67;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomFlatPlane DevicePositionBack BandLTEBand12 ChannelsQPSK,10MHz,1RB,Low SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)704.000000 RelativePermittivity(realpart)42.232941 Conductivity(S/m)0.901023 PowerVariation(%)1.374700 AmbientTemperature22.2 LiquidTemperature22.2 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 128 of 270 Maximumlocation:X=1.00,Y=-41.00 D.SAR1g&10g SAR10g(W/Kg)0.165058 SAR1g(W/Kg)0.214808 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)0.26330.22220.18650.15570.1292 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 129 of 270 MEASUREMENT52 Type:Phonemeasurement(Complete) Dateofmeasurement:2024-05-06 Measurementduration:12minutes3seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:1.67;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomFlatPlane DevicePositionBack BandLTEBand13 ChannelsQPSK,10MHz,1RB,Middle SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)782.000000 RelativePermittivity(realpart)42.231457 Conductivity(S/m)0.902447 PowerVariation(%)0.915700 AmbientTemperature22.2 LiquidTemperature22.2 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 130 of 270 Maximumlocation:X=3.00,Y=-53.00 D.SAR1g&10g SAR10g(W/Kg)0.093844 SAR1g(W/Kg)0.124273 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)0.15640.12870.10580.08710.0717 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 131 of 270 MEASUREMENT53 Type:Phonemeasurement(Complete) Dateofmeasurement:2024-05-06 Measurementduration:12minutes3seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:1.67;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomFlatPlane DevicePositionBack BandLTEBand17 ChannelsQPSK,10MHz,1RB,Low SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)709.000000 RelativePermittivity(realpart)42.231634 Conductivity(S/m)0.903645 PowerVariation(%)0.365700 AmbientTemperature22.2 LiquidTemperature22.2 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.…

Text truncated - open the document above for the full version.

ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 234 of 270 Maximumlocation:X=17.00,Y=-8.00 D.SAR1g&10g SAR10g(W/Kg)0.231616 SAR1g(W/Kg)0.422731 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)0.71060.46020.29510.19150.1277 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 235 of 270 MEASUREMENT105 Type:Phonemeasurement(Complete) Dateofmeasurement:2024-05-06 Measurementduration:12minutes3seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:1.67;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomFlatPlane DevicePositionBack BandNRn71 ChannelsDFT-s-OFDMQPSK,20MHz,1RB,High SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)688.000000 RelativePermittivity(realpart)42.234951 Conductivity(S/m)0.903071 PowerVariation(%)-0.524900 AmbientTemperature22.2 LiquidTemperature22.2 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 236 of 270 Maximumlocation:X=28.00,Y=27.00 D.SAR1g&10g SAR10g(W/Kg)0.057374 SAR1g(W/Kg)0.087243 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)0.13580.09050.06280.04690.0372 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 237 of 270 MEASUREMENT106 Type:Phonemeasurement(Complete) Dateofmeasurement:2023-06-05 Measurementduration:12minutes3seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:2.07;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomFlatPlane DevicePositionBack BandNRn77_3450-3550MHz ChannelsDFT-s-OFDMQPSK,100MHz,1RB,Middle SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)3500.000000 RelativePermittivity(realpart)36.861835 Conductivity(S/m)3.054129 PowerVariation(%)-0.948500 AmbientTemperature22.4 LiquidTemperature22.4 C.SARSurfaceandVolume SURFACESARVOLUMESAR ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 238 of 270 Maximumlocation:X=-17.00,Y=37.00 D.SAR1g&10g SAR10g(W/Kg)0.013064 SAR1g(W/Kg)0.032468 E.ZAxisScan Z(mm)0.004.008.0012.0016.00 SAR(W/Kg)0.08460.03340.01100.00340.0015 F.3DImage 3DscreenshotHotspotposition ReferenceNo.:WTX24X04087264W012 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cnPage 239 of 270 MEASUREMENT107 Type:Phonemeasurement(Complete) Dateofmeasurement:2023-06-05 Measurementduration:12minutes3seconds E-fieldProbe:SSE2-SN18/21EPGO356;ConvF:2.27;Calibrated:2023-07-07 A.Experimentalconditions AreaScandx=8mmdy=8mm ZoomScandx=5mmdy=5mmdz=4mm PhantomFlatPlane DevicePositionBack BandNRn77_3700-3980MHz ChannelsDFT-s-OFDMQPSK,100MHz,1RB,Low SignalDutyCycle1:1 B.SARMeasurementResults Frequency(MHz)3750.000000 RelativePermittivity(realpart)35.462541 Conductivity(S/m)3.323747 PowerVariation(%)0.475600 AmbientTemperature22.4 LiquidTemperature22.4 C.SARSurfaceandVolu…

Text truncated - open the document above for the full version.
