YHLBLULIFEPLAYMobile Phone

1 Life Play User Manual 2 1. For your safety .......................................................................................................................... 3 2. Learn about the phone ............................................................................................................ 4 3. Before using .............................................................................................................................. 5 4. Getting started .......................................................................................................................... 6 5. Communication ........................................................................................................................ 8 6. Multimedia ................................................................................................................................. 9 7. Connecting to networks and devices ............................................................................... 11 8. Health and safety ................................................................................................................... 13 3 1. For your safety Read these simple guidelines. Not following them may be dangerous or illegal. SWITCH OFF IN HOSPITALS Follow any restrictions. Switch the device off near medical equipment. Do not use the device where blasting is in progress. Please keep this cell phone away from children, as they could mistake it for a toy, and hurt themselves with it. Don’t try to modify the phone except by the professional. Warning! Only use the authorized spare parts, otherwise it may damage the phone and the warranty will be void. And it may be dangerous. SWITCH OFF WHEN REFUELING Don’t use the phone at a refueling point. Don’t use near fuel or chemicals. SIM CARD AND T-FLASH CARD ARE PORTABLE Keep your phone, phone parts and accessories out of children’s reach Notice: The T-Flash Card can be used as a Memory Disk, the USB cable is necessary. BATTERY Please do not destroy or damage the battery, it can be dangerous and cause fire. Please do not throw battery in fire to avoid danger When battery cannot be used, please dispose in an environmental safe method Do not try to dismantle the battery. If the battery or the charger is broken or old, please stop using them. And replace with certified genuine battery 4 USE QUALITY EQUIPMENT Use our authorized equipment to avoid danger ROAD SAFETY COMES FIRST Give full attention while driving; pull off the road or park before using your phone. Please follow traffic rules of local city/town INTERFERENCE All wireless devices may be susceptible to cause interference, which could affect performance. SWITCH OFF IN AIRCRAFT Wireless devices can cause interference in aircraft. It’s not only dangerous but also illegal to use mobile phone in an aircraft. 2. Learn about the phone Button Press Press & hold Power key (Right side) Turns on/off the screen. Opens a menu with options for airplane mode, powering off the phone and so on. Volume Up/Down (Right side) When a call is in progress, Increases or decrease the call volume, When the phone is ringing, silences the ringer. On the Home screen when no calls in progress, Increase or decreases the ringtone volume, or sets the phone to be silent instead of ringing. In other applications, controls the volume of music, spoken directions, and other audio. Quickly increasing the ringtone volume to maximum or minimum. 5 3. Before using Insert SIM card The phone is a Dual SIM mobile phone allowing you to use the facility of two networks. To insert SIM card(s): 1. Switch off the mobile phone and remove the rear cover and battery. 2. Insert the SIM card correctly in the card slot(s) 3. Finally insert the battery and replace the rear cover of the mobile phone. Note: The SIM card is a small object; please keep the card out of the reach of children to avoid swallowing the card by accident. Do not touch the metal surface of the SIM card and keep it away from electromagnetism to avoid loss and damage of the data. You will not be able to connect to the network if the SIM card is damaged. Insert Memory card U U s s e e o o n n l l y y c c o o m m p p a a t t i i b b l l e e m m e e m m o o r r y y c c a a r r d d s s a a p p p p r r o o v v e e d d b b y y O O u u r r c c o o m m p p a a n n y y f f o o r r u u s s e e w w i i t t h h t t h h i i s s d d e e v v i i c c e e . . I I n n c c o o m m p p a a t t i i b b l l e e m m e e m m o o r r y y c c a a r r d d s s m m a a y y d d a a m m a a g g e e t t h h e e c c a a r r d d o o r r t t h h e e d d e e v v i i c c e e a a n n d d c c o o r r r r u u p p t t t t h h e e d d a a t t a a s s t t o o r r e e d d i i n n t t h h e e c c a a r r d d . . T T o o i i n n s s e e r r t t t t h h e e m m e e m m o o r r y y c c a a r r d d : : 1. Power off the mobile phone, and then remove the rear cover . 2. Insert the memory card into the slot 3. Finally insert the rear cover of the mobile phone. Remove/Insert Battery You may need to remove the battery to insert SIM cards or replace the battery. To insert the battery: 1. Invert the back of the mobile phone upward and then take off the rear cover. 2. Insert the battery. 3. Finally place back the rear cover of the mobile phone. Note: Please use the original-packing battery and accessories. Charger 1. Connect the charger to the charger jack on the phone. 2. Next connect the charger to a power socket, the charging starts, with the charging icon in an animated state. 3. When the charging icon becomes static, it indicates that the battery is full. 4. Disconnect the charger from the power socket and the phone. Note: Slight heating during charging is normal. It indicates that the battery is full, when the charging icon becomes static. 6 4. Getting started 4 4 . . 1 1 T T u u r r n n o o n n / / o o f f f f y y o o u u r r p p h h o o n n e e  Turn on the phone Long press the power key to start up the cell phone. If you have starte…

Text truncated - open the document above for the full version.

Rev. 1/1/03 CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198 ; Fax: 852-27931197 Date: June 13, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YHLBLULIFEPLAY Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Edward Phan

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198; Fax: 852-27931197 Date: June 13, 2013 Power of Attorney To whom it may concern, Please be notified that I, Edward Phan, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: YHLBLULIFEPLAY If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Edward Phan Company: CT Asia TEL: 852-27931198 FAX: 852-27931197 E-mail: [email protected]

1/1 CT Asia Date: June 13, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : YHLBLULIFEPLAY To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which CT Asia deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Edward Phan Company: CT Asia TEL: 852-27931198 FAX: 852-27931197 E-mail: [email protected]

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198; Fax: 852-27931197 Date: June 13, 2013 Statement We, CT Asia, states that our device, FCC ID: YHLBLULIFEPLAY. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Edward Phan

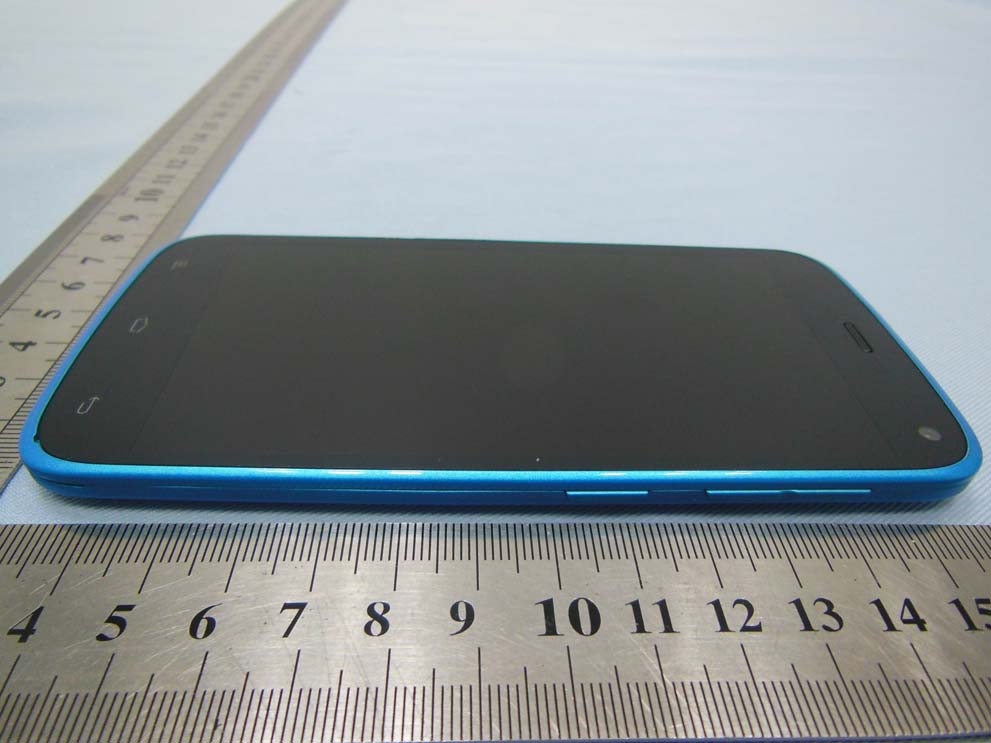

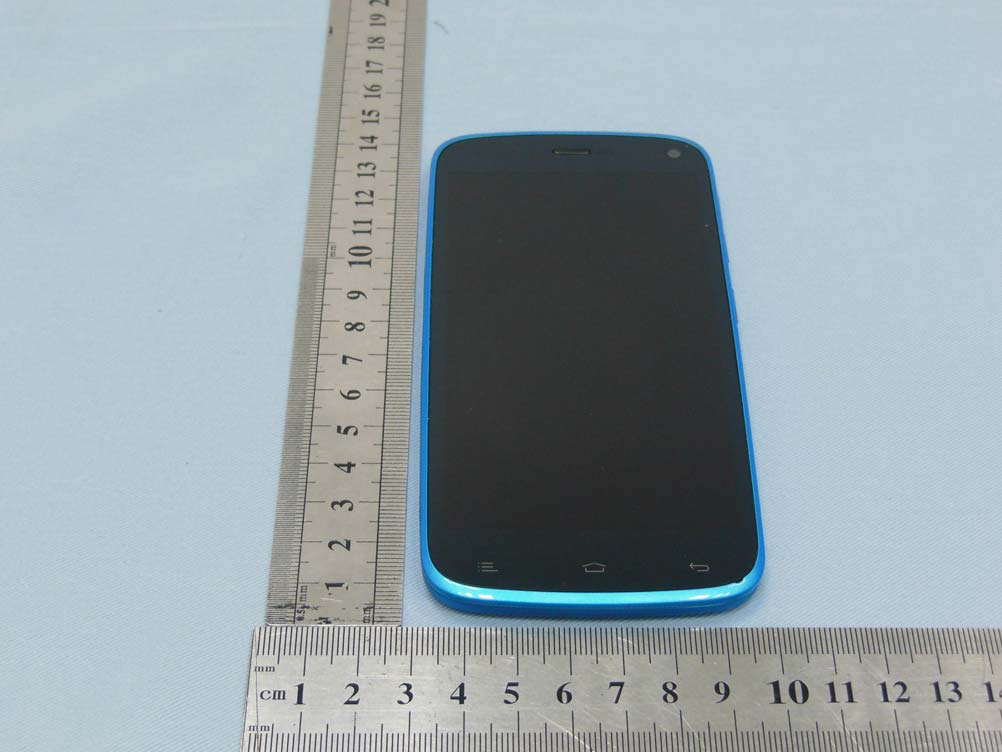

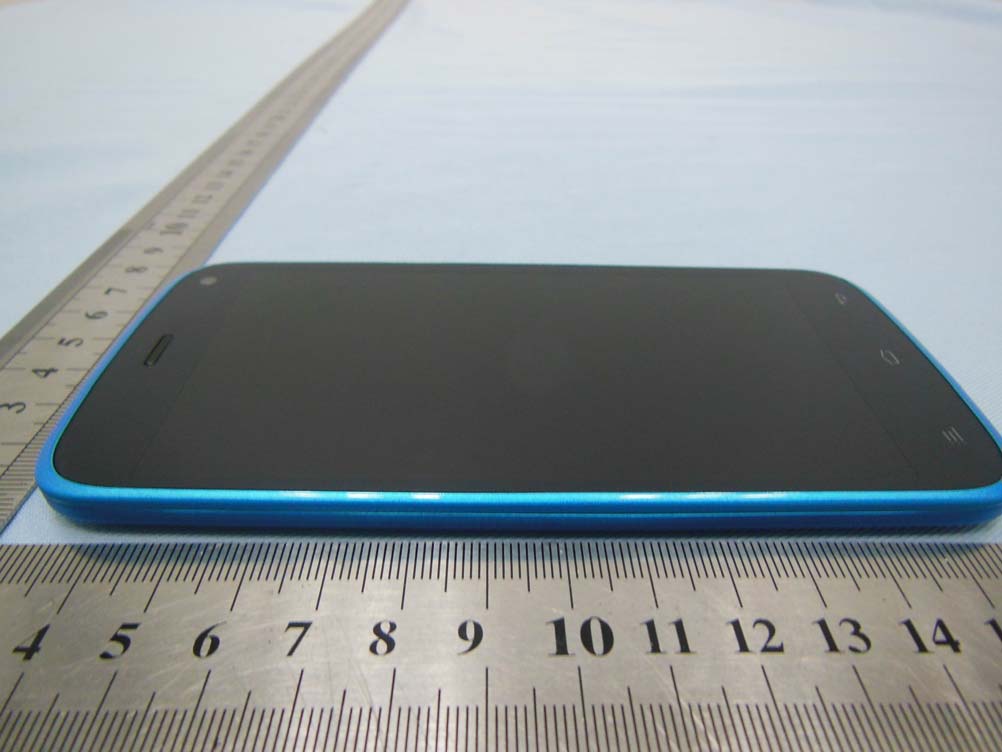

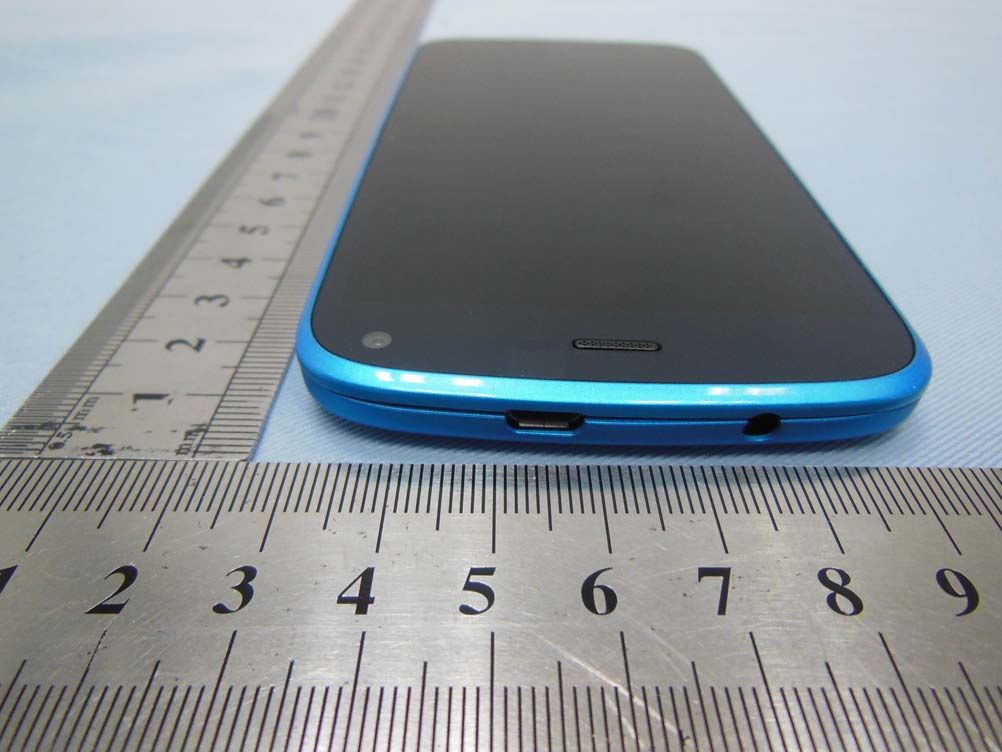

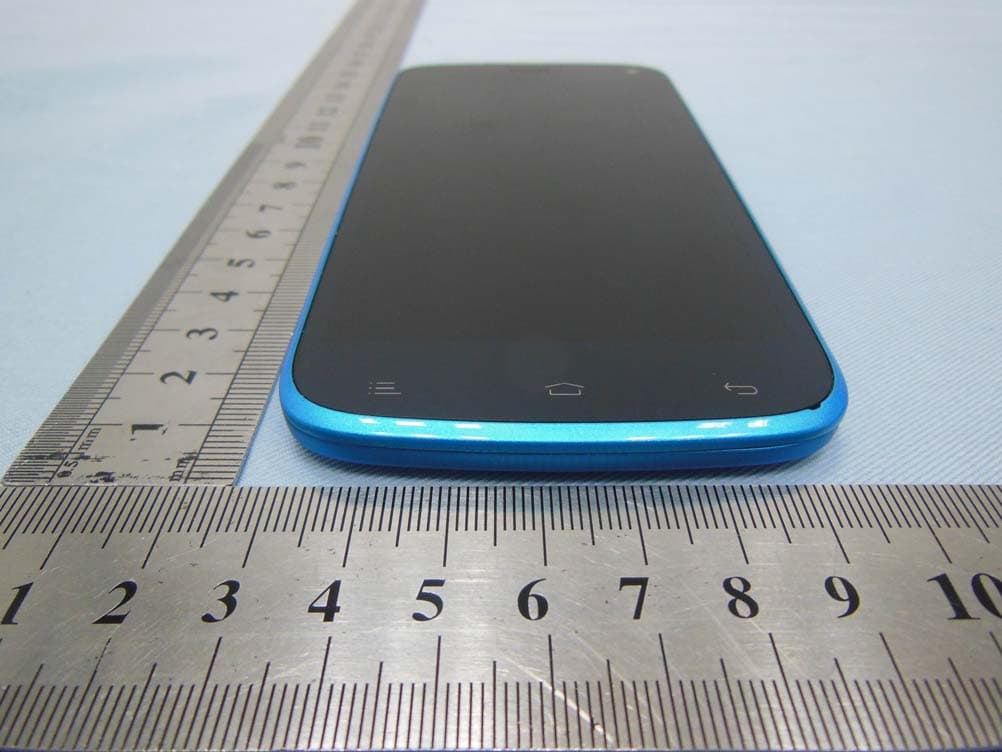

Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY 1. External Photograph of EUT Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY List of Accessory: Specification of Accessory AC Adapter Brand Name BLU Model Name US-03-001 Battery Brand Name BLU Model Name C735804180T USB Cable Signal Line Type 1.0m, non-shielded cable, without core Earphone Signal Line Type 1.2m, non-shielded cable Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY AC Adapter Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Battery

Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY 3. Internal Photograph of EUT Bluetooth & WLAN Antenna GPS Antenna WWAN Antenna Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP350801 Brand Name: BLU; Model Name: Life Play SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 27 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 13, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY Bluetooth & WLAN Antenna <Tx / Rx> GPS Antenna <Rx>

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 57 TEL:+86-755-8637-9589 Report Issued Date : Jun 13, 2013 FAX: +86-755-8637-9595 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY FCC SAR Test Report Report No. : FA350801 FCC SAR Test Report APPLICANT : CT Asia EQUIPMENT : Mobile Phone BRAND NAME : BLU MODEL NAME : Life Play FCC ID : YHLBLULIFEPLAY STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on May 21, 2013. We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (SHENZHEN) INC. No. 101, Complex Building C, Guanlong Village, Xili Town, Nanshan District, Shenzhen, Guangdong, P.R.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 57 TEL:+86-755-8637-9589 Report Issued Date : Jun 13, 2013 FAX: +86-755-8637-9595 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY FCC SAR Test Report Report No. : FA350801 Table of Contents 1. Statement of Compliance ............................................................................................................................................................ 4 2. Administration Data ..................................................................................................................................................................... 5 2.1 Testing Laboratory ................................................................................................................................................................ 5 2.2 Applicant ............................................................................................................................................................................... 5 2.3 Manufacturer ........................................................................................................................................................................ 5 2.4 Application Details ................................................................................................................................................................ 5 3. General Information ..................................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) ........................................................................................................................ 6 3.2 Maximum RF output power among production units ........................................................................................................... 7 3.3 Applied Standard .................................................................................................................................................................. 9 3.4 Device Category and SAR Limits ......................................................................................................................................... 9 3.5 Test Conditions ..................................................................................................................................................................... 9 4. Specific Absorption Rate (SAR) ............................................................................................................................................... 10 4.1 Introduction ......................................................................................................................................................................... 10 4.2 SAR Definition .................................................................................................................................................................... 10 5. SAR Measurement System ....................................................................................................................................................... 11 5.1 E-Field Probe ..................................................................................................................................................................... 12 5.2 Data Acquisition Electronics (DAE) .................................................................................................................................... 12 5.3 Robot .................................................................................................................................................................................. 13 5.4 Measurement Server .......................................................................................................................................................... 13 5.5 Phantom ............................................................................................................................................................................. 14 5.6 Device Holder ..................................................................................................................................................................... 14 5.7 Data Storage and Evaluation ............................................................................................................................................. 15 5.8 Test Equipment List ............................................................................................................................................................ 17 6. Tissue Simulating Liquids ........................................................................................................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : B1 of B1 TEL:+86-755-8637-9589 Report Issued Date : Jun 13, 2013 FAX: +86-755-8637-9595 Report Version : Rev. 01 FCC ID : YHLBLULIFEPLAY FCC SAR Test Report Report No. : FA350801 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 21.05.2013 49 GSM850_GSM Voice_Right Cheek_Ch189 DUT: 350801 Communication System: Generic GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_130521 Medium parameters used: f = 836.4 MHz; σ = 0.902 mho/m; ε r = 40.572; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch189/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.446 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.534 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.489 mW/g SAR(1 g) = 0.394 mW/g; SAR(10 g) = 0.302 mW/g Maximum value of SAR (measured) = 0.445 W/kg 0 dB = 0.445 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 21.05.2013 50 GSM850_GSM Voice_Right Tilted_Ch189 DUT: 350801 Communication System: Generic GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_130521 Medium parameters used: f = 836.4 MHz; σ = 0.902 mho/m; ε r = 40.572; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch189/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.332 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.587 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.365 mW/g SAR(1 g) = 0.294 mW/g; SAR(10 g) = 0.227 mW/g Maximum value of SAR (measured) = 0.334 W/kg 0 dB = 0.334 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 21.05.2013 51 GSM850_GSM Voice_Left Cheek_Ch189 DUT: 350801 Communication System: Generic GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_130521 Medium parameters used: f = 836.4 MHz; σ = 0.902 mho/m; ε r = 40.572; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch189/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.428 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.107 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.464 mW/g SAR(1 g) = 0.373 mW/g; SAR(10 g) = 0.286 mW/g Maximum value of SAR (measured) = 0.426 W/kg 0 dB = 0.426 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 21.05.2013 52 GSM850_GSM Voice_Left Tilted_Ch189 DUT: 350801 Communication System: Generic GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_130521 Medium parameters used: f = 836.4 MHz; σ = 0.902 mho/m; ε r = 40.572; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch189/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.335 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.532 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.376 mW/g SAR(1 g) = 0.299 mW/g; SAR(10 g) = 0.228 mW/g Maximum value of SAR (measured) = 0.344 W/kg 0 dB = 0.344 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 21.05.2013 53 GSM1900_GSM Voice_Right Cheek_Ch810 DUT: 350801 Communication System: Generic GSM; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_130521 Medium parameters used: f = 1910 MHz; σ = 1.436 mho/m; ε r = 41.187; ρ = 1000 kg/m 3 Ambient Temperature： 23.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.84, 7.84, 7.84); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch810/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.263 W/kg Ch810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.429 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.305 mW/g SAR(1 g) = 0.198 mW/g; SAR(10 g) = 0.121 mW/g Maximum value of SAR (measured) = 0.255 W/kg 0 dB = 0.255 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 21.05.2013 54 GSM1900_GSM Voice_Right Tilted_Ch810 DUT: 350801 Communication System: Generic GSM; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_130521 Medium parameters used: f = 1910 MHz; σ = 1.436 mho/m; ε…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 85 TEL : +86-755- 3320-2398 Report Issued Date : Jun. 13, 2013 FCC ID : YHLBLULIFEPLAY Report Version : Rev. 01 FCC RF Test Report Report No. : FR35080…

Text truncated - open the document above for the full version.
