YHLBLUM10LUUTablet with GSM, WCDMA, LTE, WiFi and Bluetooth

M10L Quick Guide | Guía Rápida | Guía Rápido | Guide Rapide o For instructions or any questions pertaining to device usage, please clic k on the BLU page by visiting the following address: manuals.bluproducts.com o Para obtener instrucciones o preguntas relacionadas con el uso del dispos itivo, por favor haga clic en la página de BLU visitando la siguiente dirección: manuals.bluproducts.com o Para obter instruções ou perguntas relacionadas ao uso do dispositivo por favor, clique na página de BLU visitando o seguinte endereço: manuals.bluproducts.com o Pour des instructions ou pour toutes questions sur l'utilisation de l’app areil, veuillez cliquer sur à la page BLU en visitant l'adresse suivante: manuals.bluproducts.com ATTENTION ABOUT YOUR DEVICE Transportation SafetyObserve all transportation laws and regulations. PLEASE DRIVE RESPONSIBLY - DO NOT TEXT & DRIVE Hospital SafetyFollow hospital rules and limitations and turn off your device when near me dical instruments. Airport SafetyRemember to follow all airport and flight safety regulations.Water HazardYour device is not waterproof. Keep your device away from water or liquid to avoid damage. Emergency CallsMake sure your device is switched on and in a service area. On home screen, ta p the phone key and dial the emergency number.Battery UsageFor better performance and longer battery life, it is recommended that you charge the battery fully before using the device for the first time and that you initially complete two to th ree charge cycles. IMEI InformationTo check your IMEI, press *#06# KEY FUNCTIONS Volume Power On / Off Back Home Recent Apps Front Camera Rear CameraFlash Power On / Off Used to power on/off the device and to lock the screen. » Long press the power button to power on » While the device is powered on, long press to access the power off menu or cli ck to lock the screen Volume Adjusts the ringer volume, call volume, and multimedia volume. Home The home button pauses any current action and returns to the home screen. Recent Apps Opens a list of recently opened applicat ions that allows you to switch conv eniently between them. This option canalsocloseanyopenapplicat ions by swiping to the side. Back Returns to the previous screen; Closes the keyboard, any o pen program, or a ny menu option. USB Port Charges the device and transfers data such as documents, music, and video b etween your device and a PC. Headset Port Connect earphones to this port for han ds-free capabiliti es. You may also t olistentomusicorFMradio. Front Camera A high-resolution front camera to take pictures and video. This option is i deal for self-portraits. Rear Camera A high-resolution rear camera to take pictures and video. Flash Provides light for pictures in low-light conditions. It also may be used as a flashlight. INTRODUCTION Installation of the SIM CardWarning: Please keep the SIM card out of the reach of children. The SIM card and its con tact are easily damaged due to scratching or bending. Please use caution when carrying, in stalling, or taking out the SIM card. Note: Please contact your service provider directly to obtain your SIM card. To insert SIM card:  Remove the SIM card tray (with tool). Insert the SIM card.  Insert the SD card (For additional storage capacity)  Replace the SIM card tray and power on the phone. SIM Card Slot DEVICE CONFIGURATION When you initially power on your device, there will be a series of steps to se t up basic features. INSERT SIMInsert your SIM card so the device can register to the network.SELECT LANGUAGEWhile on the Welcome screen, please scroll to select your language. In this step, you also have the option to adjust Vision Settings such as magnification, font, and display size. Y ou have the ability to place an Emergency Call.CONNECT TO WI-FIThis step allows the device to connect to the internet. Click on the desired Wi-Fi network that the device that will be connected. Please note that any unsecured Wi-Fi networks can b e connected to without credentials and any secured Wi-Fi networks require a password for credent ials prior to connection. It is recommended that you connect to a Wi-Fi network to check for software updat es prior to startup to avoid any data overages.COPY APPS & DATAThis step allows you to select transfer options such as applications, pict ures, music and more from a previous device. You may also setup as new if you choose not to from a previou s device. ADD YOUR ACCOUNTSign in to your Google TM Account in order to keep accounts streamlined with Google services. Your a ccount will be used for Google programs such as Google Play TM , Google Drive, Google + and Google Pay. If you do not have a Google account, click to create a new account. If the device is n ot recognized by your Google account, you will have to complete a security verification. GOOGLE SERVICESClick to add Google services that include Backup and Restore, Location Ser vices, Install Updates and Apps.DEVICE PROTECTIONClick to setup device protection such as a PIN or Password. This option can b edoneatalatertime. FINALIZE SETUPYou may also add another email address, control what information is visibl e through the devices lock screen, and lets you also review any additional apps. You may skip this step and setup later. Google, Google Play, Google Maps, YouTube, Gmail, and other marks are trad emarks of Google LLC. SOBRE SU DISPOSITIVO Seguridad de TransporteSiga todas las leyes y regulaciones de transporte. MANEJE RESPONSABLEMENTE - NO USE MENSAJERIA DE TEXTO CUANDO CONDUCIENDO Seguridad de HospitalesSiga todas las leyes y regulaciones de hospital y apague su dispositivo cua ndo cerca de instrumentos médicos.Seguridad de AeropuertosPor favor, siga todas las normas de seguridad de vuelo y de aeropuerto.Prueba de AguaEl teléfono móvil no es impermeable. Manténgalo alejado de agua o líquidos para evitar daño. Llamadas de Emergencia SOSAsegúrese de que su dispositivo está encendido y en un área de servicio. En l a pantalla…

Text truncated - open the document above for the full version.

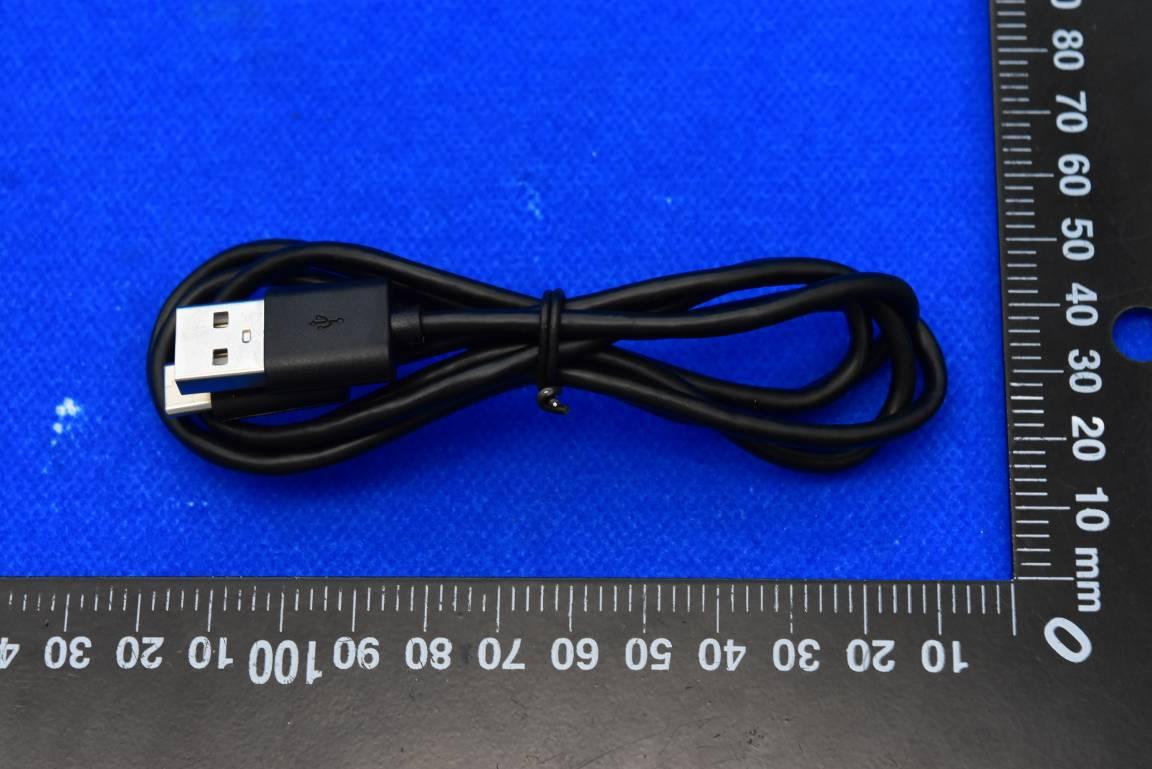

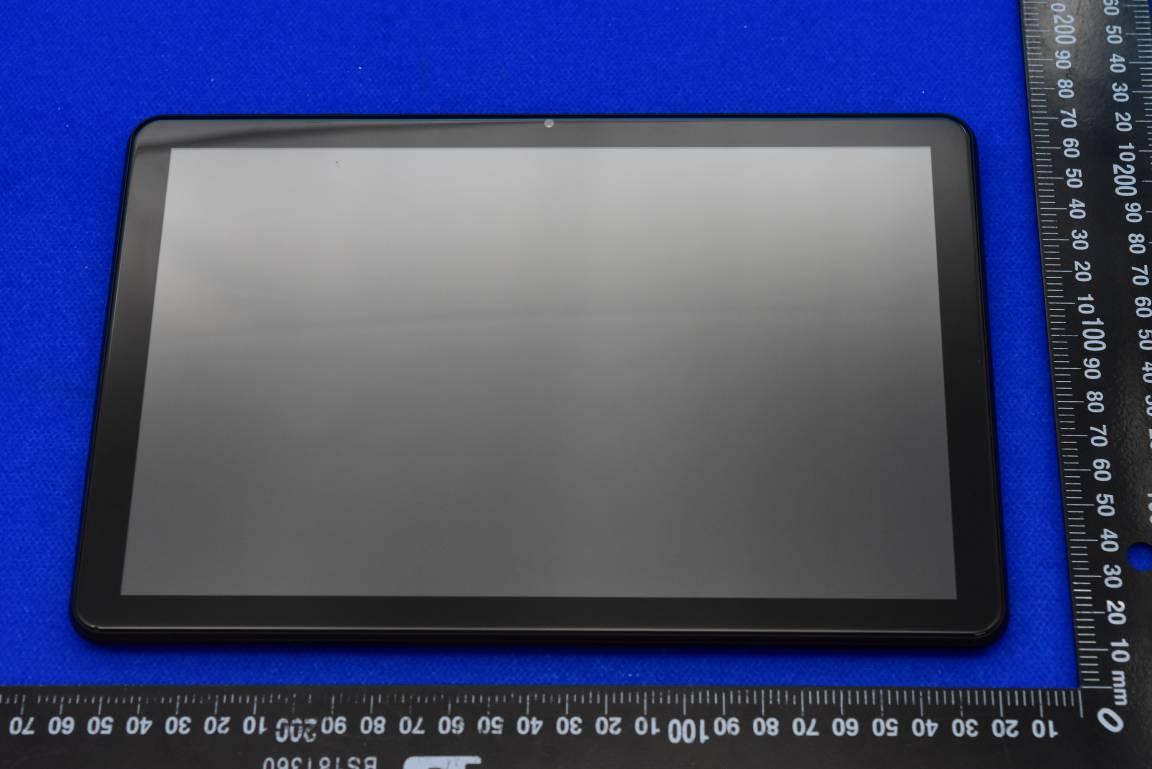

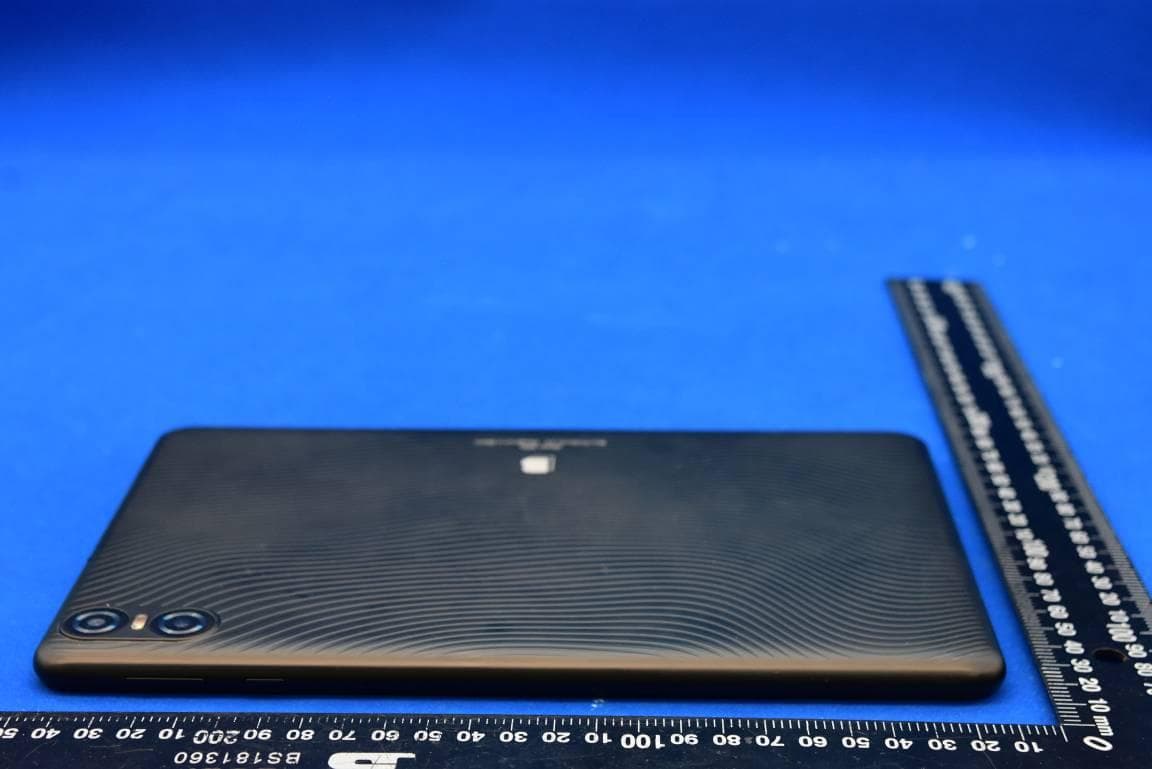

FCC ID: YHLBLUM10LUU External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories

Label： Location： BackView

FCC ID: YHLBLUM10LUU Internal Photos 1. EUT uncover view 2. Antenna view LTE Diversity Antenna GPS/WIFI/BT Antenna GSM/WCDMA/LTE Main Antenna

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.05.01 System Check_750MHz_Head Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 750 MHz; σ = 0.917 S/m; ε r = 40.9; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(10.45, 10.45, 10.45) @ 750 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: ELI V8.0 (20deg probe tilt); Type: QD OVA 004 Ax; Serial: xxxx - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.17 W/kg CW750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.64 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 3.61 W/kg SAR(1 g) = 2.23 W/kg; SAR(10 g) = 1.42 W/kg Maximum value of SAR (measured) = 3.05 W/kg 0 dB = 3.05 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.05.10 System Check_900MHz_Head Communication System: UID 0, CW (0); Frequency: 900 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used: f = 900 MHz; σ = 0.99 S/m; ε r = 42.706; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(10, 10, 10) @ 900 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: ELI V8.0 (20deg probe tilt); Type: QD OVA 004 Ax; Serial: xxxx - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW900/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 4.29 W/kg CW900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 60.46 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 4.89 W/kg SAR(1 g) = 2.98 W/kg; SAR(10 g) = 1.89 W/kg Maximum value of SAR (measured) = 4.12 W/kg 0 dB = 4.12 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.05.08 System Check_1800MHz_Head Communication System: UID 0, CW (0); Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1800 MHz; σ = 1.449 S/m; ε r = 41.257; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.4, 8.4, 8.4) @ 1800 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: ELI V8.0 (20deg probe tilt); Type: QD OVA 004 Ax; Serial: xxxx - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW1800/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 15.2 W/kg CW1800/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 74.69 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 18.2 W/kg SAR(1 g) = 10.3 W/kg; SAR(10 g) = 5.36 W/kg Maximum value of SAR (measured) = 14.5 W/kg 0 dB = 14.5 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.05.18 System Check_2000MHz_Head Communication System: UID 0, CW (0); Frequency: 2000 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 2000 MHz; σ = 1.456 S/m; ε r = 39.425; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.13, 8.13, 8.13) @ 2000 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: ELI V8.0 (20deg probe tilt); Type: QD OVA 004 Ax; Serial: xxxx - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW2000/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 15.9 W/kg CW2000/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 72.69 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 18.8 W/kg SAR(1 g) = 10.6 W/kg; SAR(10 g) = 5.45 W/kg Maximum value of SAR (measured) = 15.1 W/kg 0 dB = 15.1 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.05.16 System Check_2450MHz Com…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.05.10 GSM850_GPRS(4 TX slots)_Bottom Face_0mm_Ch189 Communication System: UID 0, GSM850(class 12) (0); Frequency: 836.4 MHz;Duty Cycle: 1:2.08 Medium: HSL_900 Medium parameters used: f = 836.4 MHz; σ = 0.958 S/m; ε r = 40.843; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(10.45, 10.45, 10.45) @ 836.4 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: ELI V8.0 (20deg probe tilt); Type: QD OVA 004 Ax; Serial: xxxx - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch189/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.446 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.332 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.622 W/kg SAR(1 g) = 0.301 W/kg; SAR(10 g) = 0.167 W/kg Maximum value of SAR (measured) = 0.477 W/kg 0 dB = 0.477 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.05.08 GSM1900_GPRS(4 TX slots)_Bottom Face_0mm_Ch661 Communication System: UID 0, GSM1900(class 12) (0); Frequency: 1880 MHz;Duty Cycle: 1:2.08 Medium: HSL_1800 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.11, 8.11, 8.11) @ 1880 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: ELI V8.0 (20deg probe tilt); Type: QD OVA 004 Ax; Serial: xxxx - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch661/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.62 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.461 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 2.54 W/kg SAR(1 g) = 1.08 W/kg; SAR(10 g) = 0.525 W/kg Maximum value of SAR (measured) = 1.63 W/kg 0 dB = 1.63 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.05.08 WCDMA Band II_RMC 12.2Kbps_Bottom Face_0mm_Ch9400 Communication System: UID 0, UMTS-FDD (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.11, 8.11, 8.11) @ 1880 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: ELI V8.0 (20deg probe tilt); Type: QD OVA 004 Ax; Serial: xxxx - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch9400/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.04 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.926 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 1.30 W/kg SAR(1 g) = 0.577 W/kg; SAR(10 g) = 0.280 W/kg Maximum value of SAR (measured) = 0.826 W/kg 0 dB = 0.826 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01 Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2023.05.08 WCDMA Band IV_RMC 12.2Kbps_Bottom Face_0mm_Ch1413 Communication System: UID 0, UMTS-FDD (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1733 MHz; σ = 1.366 S/m; ε r = 41.367; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.4, 8.4, 8.4) @ 1732.6 MHz; Calibrated: 2023.03.15 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2023.02.22 - Phantom: ELI V8.0 (20deg probe tilt); Type: QD OVA 004 Ax; Serial: xxxx - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch1413/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.974 W/kg Ch1413/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.583 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 1.23 W/kg SAR(1 g) = 0.560 W/kg; SAR(10 g) = 0.277 W/kg Maximum value of SAR (measured) = 0.860 W/kg 0 dB = 0.860 W/kg MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01 Annex E Conducted Power 128189251128189251 824.2836.4848.8824.2836.4848.8 32.1032.1232.07 33.00 23.1023.1223.0724.00 31.3931.4231.33 32.00 25.3925.4225.3326.000.09 29.6929.7329.66 30.50 25.4325.4725.4026.240.07 28.6628.7328.69 29.50 25.6625.7325.6926.500.07 26.8927.0126.95 27.50 17.8918.0117.9518.500.12 25.6325.7225.55 26.50 19.6319.7219.5520.500.17 23.2823.5923.48 24.00 19.0219.3319.2219.740.31 22.4822.6322.52 23.50 19.4819.6319.5220.500.15 Max.32.12Max.25.73 512661810512661810 1850.218801909.81850.218801909.8 28.6928.7328.70 29.00 19.6919.7319.7020.00 27.8427.9427.83 28.00 21.8421.9421.8322.000.11 26.1026.2126.18 26.50 21.8421.9521.9222.240.11 25.0425.1625.11 25.50 22.0422.1622.1122.500.12 25.1125.2125.20 25.50 16.1116.2116.2016.500.10 24.5924.6424.55 25.00 18.5918.6418.5519.000.09 22.6122.7122.73 23.00 18.3518.4518.4718.740.12 21.5521.6921.70 22.00 18.5518.6918.7019.000.15 Max.28.73Max.22.16 926294009538131214131513413241824233 966298009938153716381738435744074458 1852.418801907.61712.41732.61752.6826.4836.4846.6 3GPP Rel 99RMC 12.2Kbps22.1022.1322.07 23.00 22.0922.1522.11 23.00 22.3422.4322.35 23.00 3GPP Rel 6HSDPA Subtest-120.0420.3020.52 21.50 20.3220.4520.73 21.50 21.4121.3621.48 22.00 3GPP Rel 6HSDPA Subtest-218.7119.0919.15 20.00 18.7319.0519.24 20.00 21.3821.3821.44 22.00 3GPP Rel 6HSDPA Subtest-317.2217.6217.67 18.50 17.4717.5017.64 18.50 20.9320.9020.93 21.50 3GPP Rel 6HSDPA Subtest-416.7817.4417.04 18.00 17.1717.2217.48 18.00 20.8820.8820.91 21.50 3GPP Rel 6HSUPA Subtest-118.7018.7318.77 19.50 20.8420.4020.44 21.00 20.9520.8720.96 21.50 3GPP Rel 6HSUPA Subtest-218.7018.7118.77 19.50 20.8420.8920.94 21.50 21.4221.3921.43 22.00 3GPP Rel 6HSUPA Subtest-319.6919.7319.75 20.50 19.8719.9319.97 20.50 20.4320.4020.42 21.00 3GPP Rel 6HSUPA Subtest-418.2518.2617.60 18.50 20.8520.9320.95 21.50 21.4321.4021.46 22.00 3GPP Rel 6HSUPA Subtest-518.5018.8319.16 20.00 19.8219.8719.95 20.50 20.4120.3720.42 21.00 3GPP Rel 7 HSPA+ (16QAM) Subtest-120.1220.1520.22 21.00 19.8019.8519.88 20.50 20.3820.3120.34 21.00 Cable Loss0.8Cable Loss0.8Cable Loss0.6 Max.22.13Max.22.15Max.22.43 Full Power GSM850Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Frequency (MHz) GPRS 1 Tx slot GPRS 2 Tx slots Tune-up Limit (dBm) Tune-up Limit (dBm) Ch Delta > 0.5 0.05 GPRS 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot EDGE 2 Tx slots EDGE 3 Tx slots EDGE 4 Tx slots Mode AttenuatorCable Loss : 0.6 GSM1900Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Frequency (MHz) GPRS 1 Tx slot Tune-up Limit (dBm) Ch Delta > 0.5 0.04 GPRS 2 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot EDGE 2 Tx slots EDGE 3 Tx slots EDGE 4 Tx slots TX Channel Rx Channel Frequency (MHz) Mode AttenuatorCable Loss : 0.8 Tune-up Limit (dBm) Tune-up Limit (dBm) Tune-up Limit (dBm) BandWCDMA Band II (dBm)WCDMA Band IV (dBm)WCDMA Band V (dBm) Attenuator Mode Tune-up Limit (dBm) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01 BW [MHz] Modulation RB Size RB Offset Low Channel Middle Channel High Channel BW [MHz] Modulation RB Size RB Offset Low Channel Middle Channel High Channel 187001890019100200502017520300 18601880190017201732.51745 20QPSK1023.1923.2423.1920QPSK1023.0323.1623.09 20QPSK14922.8723.1322.9820QPSK14922.8223.0922.84 20QPSK19922.7722.9422.8620QPSK19922.7422.8322.75 20QPSK50022.4022.4222.3220QPSK50022.3922.4722.37 20QPSK502422.2522.2922.3820QPSK502422.2022.3422.43 20QPSK505022.3822.4522.3520QPSK505022.3522.4622.29 20QPSK100022.2822.4722.4020QPSK100022.2222.5422.35 2016QAM1022.3622.4522.362016QAM1022.3122.4122.37 2016QAM14922.1922.4222.292016QAM14922.2122.4022.29 2016QAM19922.2122.2622.282016QAM19922.1522.2022.34 2016QAM50021.6821.7421.702016QAM50021.3621.5721.47 2016QAM502421.5021.6621.592016QAM502421.4021.7021.60 2016QAM505021.5021.6521.512016QAM505021.4521.6121.58 2016QAM100021.4721.6221.522016QAM100021.4521.5921.50 2064QAM1021.5221.6421.682064QAM1021.3721.4921.62 2064QAM14921.5721.5921.522064QAM14921.4421.4621.44 2064QAM19921.4721.5021.502064QAM19921.4321.3621.43 2064QAM50020.6720.7720.612064QAM50020.5520.7220.57 2064QAM502420.6420.5820.462064QAM502420.4920.4120.36 2064QAM505020.5920.5620.632064QAM505020.5020.5320.46 2064QAM1000 20.5920.6220.4820 64QAM100020.5120.4620.43 186751890019125200252017520325 1857.518801902.51717.51732.51747.5 15QPSK1023.1623.1923.1515QPSK1022.9723.1323.05 15QPSK13722.8423.1022.9515QPSK13722.7723.0522.78 15QPSK17422.7322.8822.8015QPSK17422.7122.7822.70 15QPSK36022.3522.3622.2515QPSK36022.3422.4022.33 15QPSK362022.2022.2722.3415QPSK362022.1622.2722.40 15QPSK363922.3422.4222.3015QPSK363922.3222.4022.25 15QPSK75022.2222.4122.3615QPSK75022.1522.5122.32 1516QAM1022.2922.4122.301516QAM1022.2622.3722.33 1516QAM13722.1522.3822.271516QAM13722.1822.3622.26 1516QAM17422.1722.2222.221516QAM17422.1322.1822.27 1516QAM36021.6221.7321.641516QAM36021.3221.5221.36 1516QAM362021.4121.6521.561516QAM362021.4421.6621.53 1516QAM363921.4721.6221.561516QAM363921.3921.5621.48 1516QAM75021.3821.5521.441516QAM75021.4121.5421.39 1564QAM1021.4621.6221.611564QAM1021.3121.4421.56 1564QAM13721.5221.5321.461564QAM13721.3921.4121.41 1564QAM17421.4421.4521.431564QAM17421.3921.3221.41 1564QAM36020.6120.7220.581564QAM36020.5020.6920.51 1564QAM362020.5920.5620.391564QAM362020.4420.3420.34 1564QAM363920.5520.5120.601564QAM363920.4320.4720.44 1564QAM75020.5620.5720.431564QAM75020.4620.4020.37 186501890019150200002017520350 18551880190517151732.51750 10QPSK1023.1523.1723.1…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01 Annex F Test Position Consideration Wireless Interface GPRS 850 Class 12 GPRS 1900 Class 12 WCDMA Band II WCDMA Band IV WCDMA Band V LTE Band 2 LTE Band 4 LTE Band 5 LTE Band 7 LTE Band 12 LTE Band 17 LTE Band 25 LTE Band 26 LTE Band 41 LTE Band 66 LTE Band 71 Calculated Frequency849MHz 1910MHz 1910MHz 1755MHz 849MHz 1910MHz 1755MHz 849MHz 2570MHz 716MHz 716MHz 1915MHz 849MHz 2690MHz 1780MHz 698MHz Maximum power (dBm)332923.00232323.523.524.523.5242423.5242723.524 Maximum rated power(mW)1995.0 794.0200.0200.0200.0224.0224.0282.0224.0251.0251.0224.0251.0501.0224.0251.0 Separation distance(mm) exclusion threshold367.6219.555.353.036.961.959.352.071.842.542.562.046.3158.359.841.9 Testing required?YesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYes Separation distance(mm) exclusion threshold757.0 1159.0 1159.0 1163.0 757.0 1159.0 1163.0 757.0594.0678.0678.0 1158.0 757.0 1145.0 1162.0 668.0 Testing required?YesNoNoNoNoNoNoNoNoNoNoNoNoNoNoNo Separation distance(mm) exclusion threshold271.0300.0300.0305.0271.0300.0305.0271.0185.0269.0269.0300.0271.0286.0304.0269.0 Testing required?YesYesNoNoNoNoNoYesYesNoNoNoNoYesNoNo Separation distance(mm) exclusion threshold367.6219.555.353.036.961.959.352.071.842.542.562.046.3158.359.841.9 Testing required?YesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYes Separation distance(mm) exclusion threshold468.0648.0648.0653.0468.0648.0653.0468.0351.0435.0435.0648.0468.0634.0652.0431.0 Testing required?YesYesNoNoNoNoNoNoNoNoNoNoNoNoNoNo Exposure Position Bottom Face 5.0 Edge 1 155.0 69.1 5.0 103.9 Edge 2 Edge 3 Edge 4 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01 Wireless InterfaceBT 2.4GHz WLAN ANT 1 5GHz WLAN ANT 1 Calculated Frequency2480MHz 2472MHz 5825MHz Maximum power (dBm)1110.59 Maximum rated power(mW)13.011.08.0 Separation distance(mm)5.05.05.0 exclusion threshold4.13.53.9 Testing required?YesYesYes Separation distance(mm)20.020.020.0 exclusion threshold1.00.91.0 Testing required?NoNoNo Separation distance(mm)240.0240.0240.0 exclusion threshold1995.0 1996.0 1962.0 Testing required?NoNoNo Separation distance(mm)101.0101.0101.0 exclusion threshold605.0605.0572.0 Testing required?NoNoNo Separation distance(mm)5.05.05.0 exclusion threshold4.13.53.9 Testing required?YesYesYes Exposure Position Bottom Face Edge 1 Edge 2 Edge 3 Edge 4 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen, GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL.1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ23040221S01 Annex G DASY Calibration Certificate

Annual validation for test lab. Appendix Annual validation for Test Lab. General calibration information Date 2022.12.15 Test Laboratory ShenZhen Morlab Communications Technology Co., Ltd. Antenna serial No. D900V2-SN: 1d064 Antenna Parameters with Head TSL Impedance, transformed to feed point 48.406Ω-1.16jΩ Return Loss -33.947dB General Antenna Parameters and Design Electrical Delay (one direction) 1.276 ns After long term use with 100W radiated power，only a slight warming of the dipole near the feed point can be measured The dipole is made of standard semirigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps are added to the dipole arms in order to improve matching when loaded according to the position as explained in the "Measurement Conditions" paragraph. The SAR data are not affected by this change. The overall dipole length is still according to the Standard No excessive force must be applied to the dipole arm， because they might bend or the soldered connections near the feed point may be damaged . Annual validation for test lab. Annual validation for test lab. Appendix Impedance Measurement Plot for Head TSL

Annual validation for test lab. Appendix Annual validation for Test Lab. General calibration information Date 2022.12.15 Test Laboratory ShenZhen Morlab Communications Technology Co., Ltd. Antenna serial No. D1800V2-SN: 2d158 Antenna Parameters with Head TSL Impedance, transformed to feed point 52.134Ω-1.04jΩ Return Loss -32.673dB General Antenna Parameters and Design Electrical Delay (one direction) 1.276 ns After long term use with 100W radiated power，only a slight warming of the dipole near the feed point can be measured The dipole is made of standard semirigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps are added to the dipole arms in order to improve matching when loaded according to the position as ex…
