YHLBLUMAGICMobile Phone

User Guide Page 1 of 61 Magic User Guide User Guide Page 2 of 61 Table of Contents 1 Safety ................................................................................................. 10 Safety precautions ................................................................................................. 10 2 Your phone ..................................................................................... 13 Phone overview ..................................................................................................... 13 3 Installation and Charging.............................................................. 14 Install the SIM card ................................................................................................ 14 Install the microSD card ........................................................................................ 14 Install the battery ................................................................................................... 14 Charge the battery ................................................................................................. 15 4 Getting Started ............................................................................... 16 User Guide Page 3 of 61 Turn phone on/off .................................................................................................. 16 Set up screen lock ................................................................................................. 16 Home screen .......................................................................................................... 17 Monitor your phone’s status ................................................................................. 17 Open and switch applications .............................................................................. 19 PIN and PUK .......................................................................................................... 20 5 Calls ................................................................................................. 21 Make a call ............................................................................................................. 21 In-call options ......................................................................................................... 21 Answer and reject a call ........................................................................................ 21 Manage multiple calls ........................................................................................... 22 Work with the call log ............................................................................................ 23 Dial by voice ........................................................................................................... 23 User Guide Page 4 of 61 6 Text Entry ........................................................................................ 24 Use the onscreen keyboard ................................................................................. 24 Edit text ................................................................................................................... 25 7 Messaging....................................................................................... 27 Create and send a text message ......................................................................... 27 Create and send a multimedia message ............................................................ 27 Change messaging settings ................................................................................. 27 8 Connecting to networks and devices.......................................... 28 Connect to mobile networks ................................................................................. 28 Connect to Wi-Fi networks ................................................................................... 29 Connect to Bluetooth devices .............................................................................. 30 Connect to computer via USB .............................................................................. 31 Share your phone’s mobile data connection ...................................................... 33 User Guide Page 5 of 61 Set up dial-up modem connection ....................................................................... 34 9 Email ................................................................................................ 36 Add and edit email accounts ................................................................................ 36 Compose and send email ..................................................................................... 37 Read and respond to a message......................................................................... 37 10 Browser ........................................................................................... 38 Browser options ..................................................................................................... 38 Connect .................................................................................................................. 38 Download files........................................................................................................ 39 Change browser settings ...................................................................................... 39 11 Contacts .......................................................................................... 40 Create a contact .................................................................................................... 40 User Guide Page 6 of 61 Search for a contact .............................................................................................. 40 Import, export and share contacts ....................................................................... 40 Call, text and edit contacts ................................................................................... 41 Delete contacts .................................…

Text truncated - open the document above for the full version.

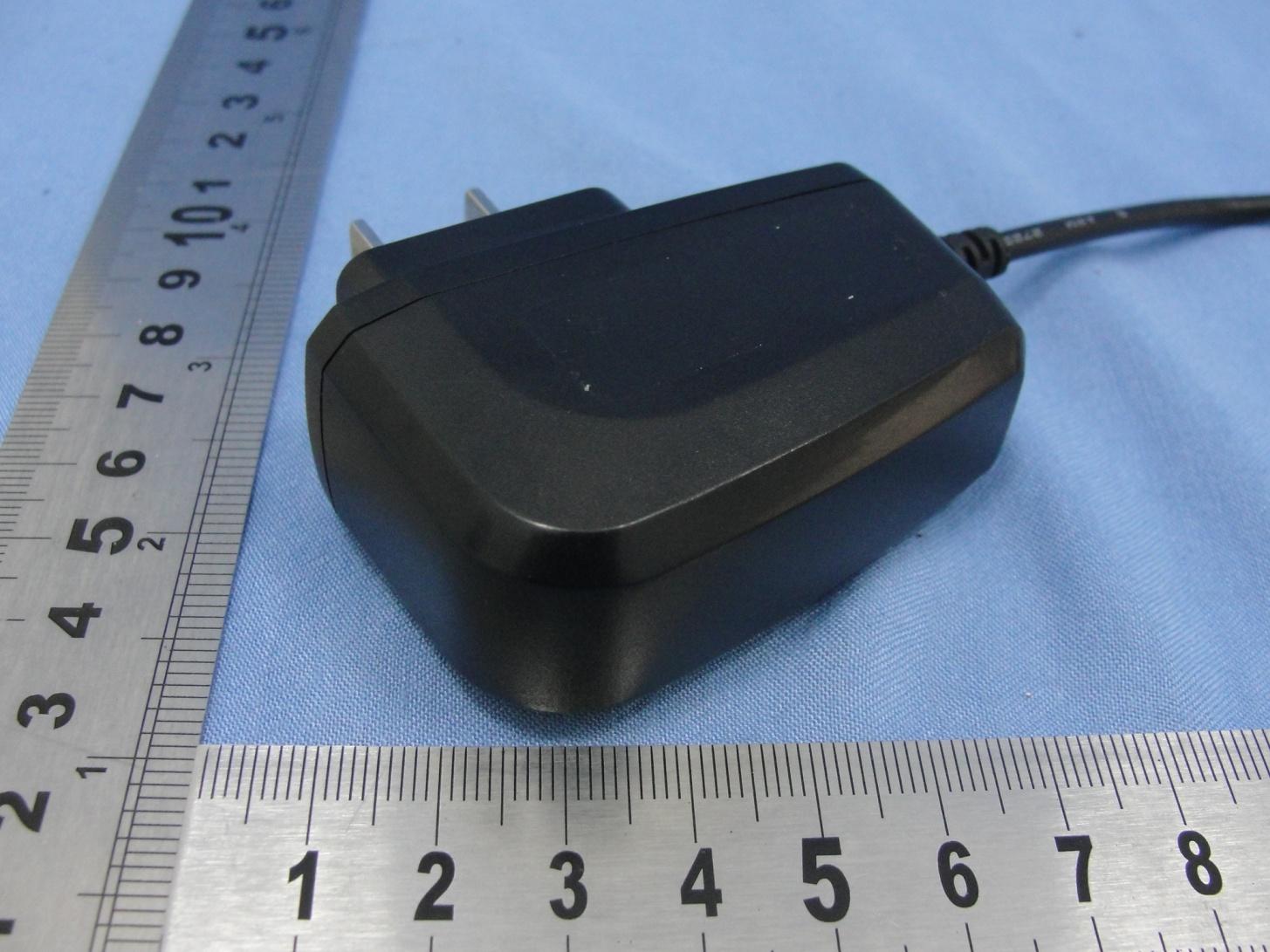

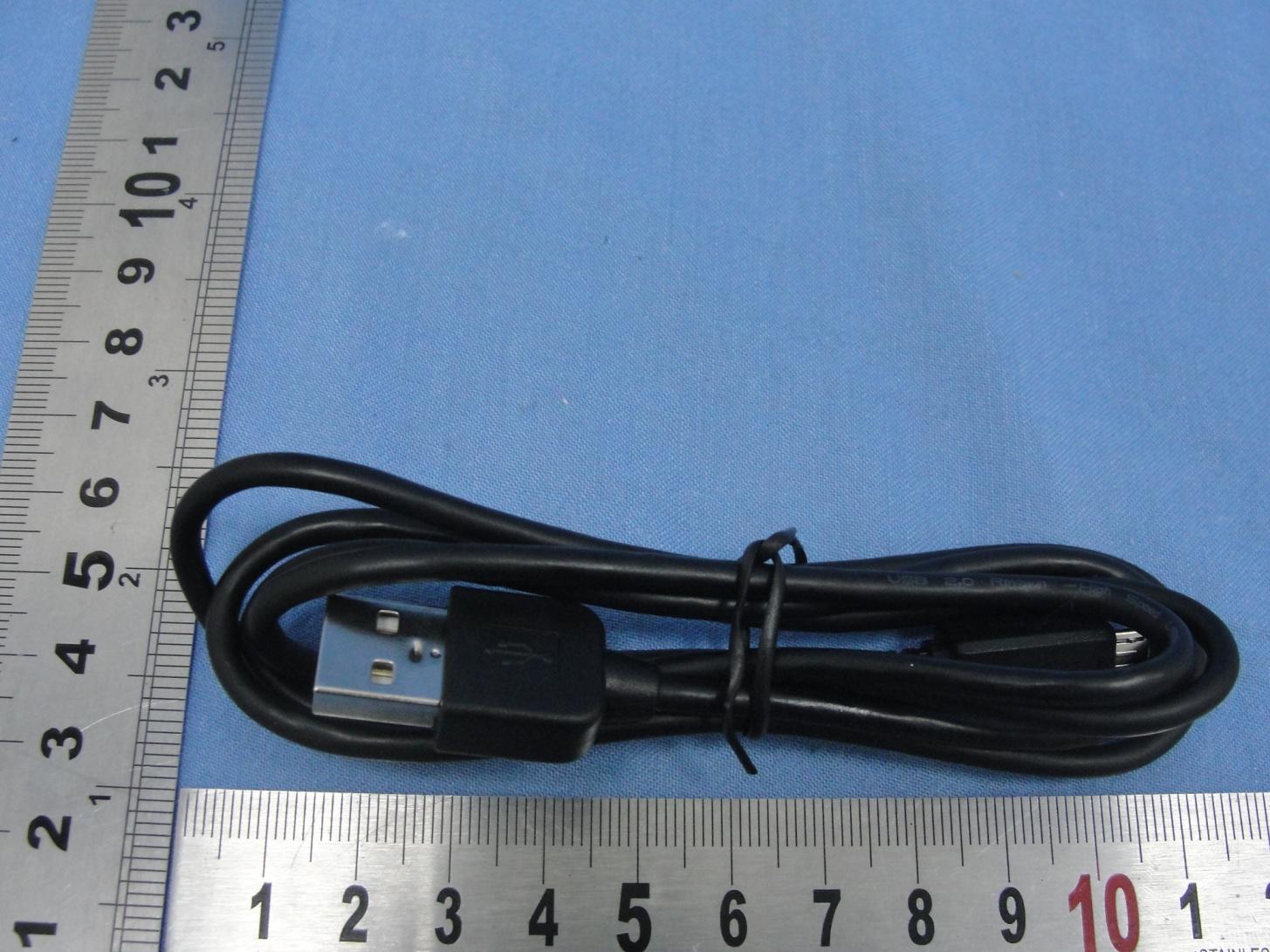

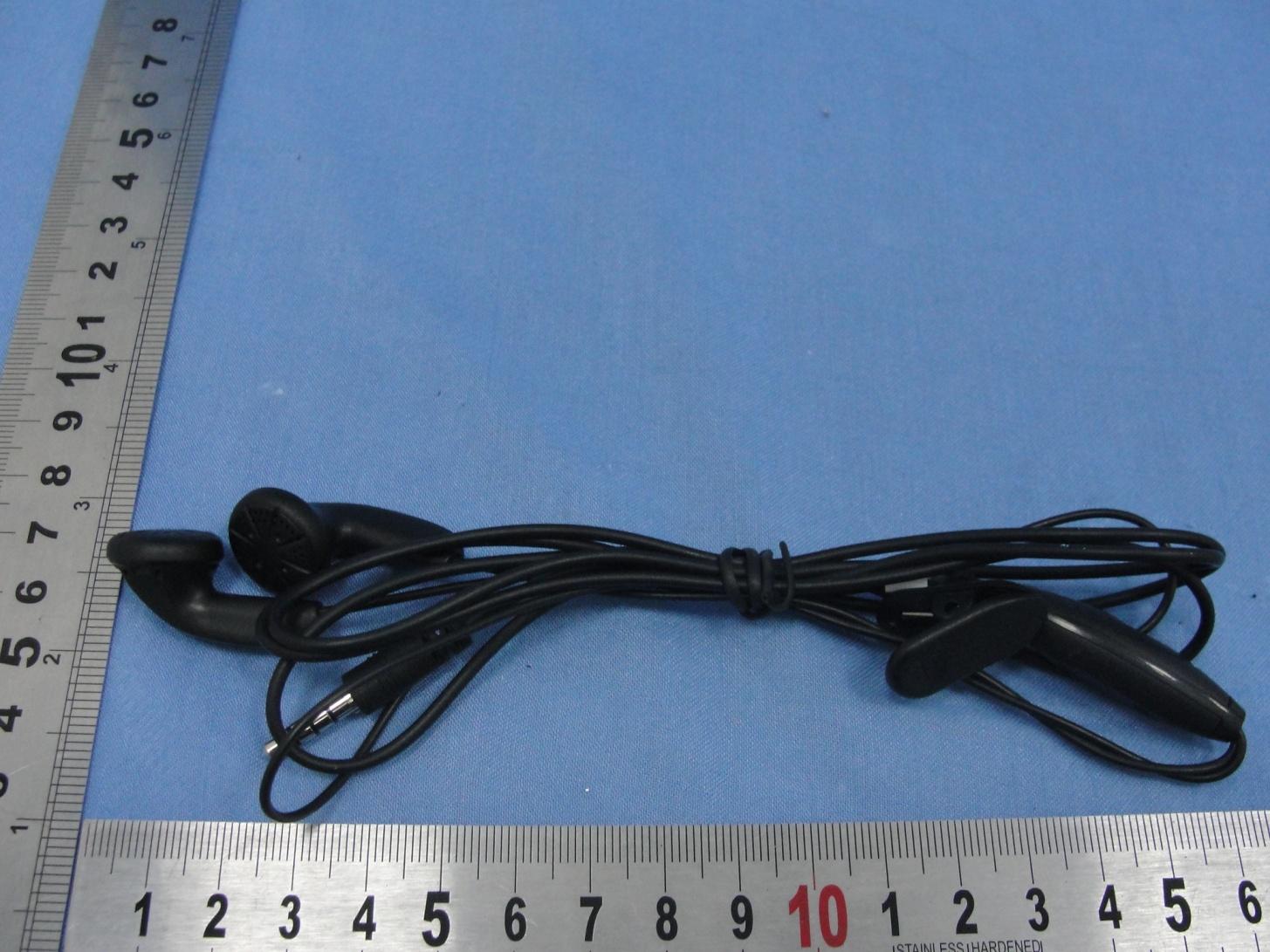

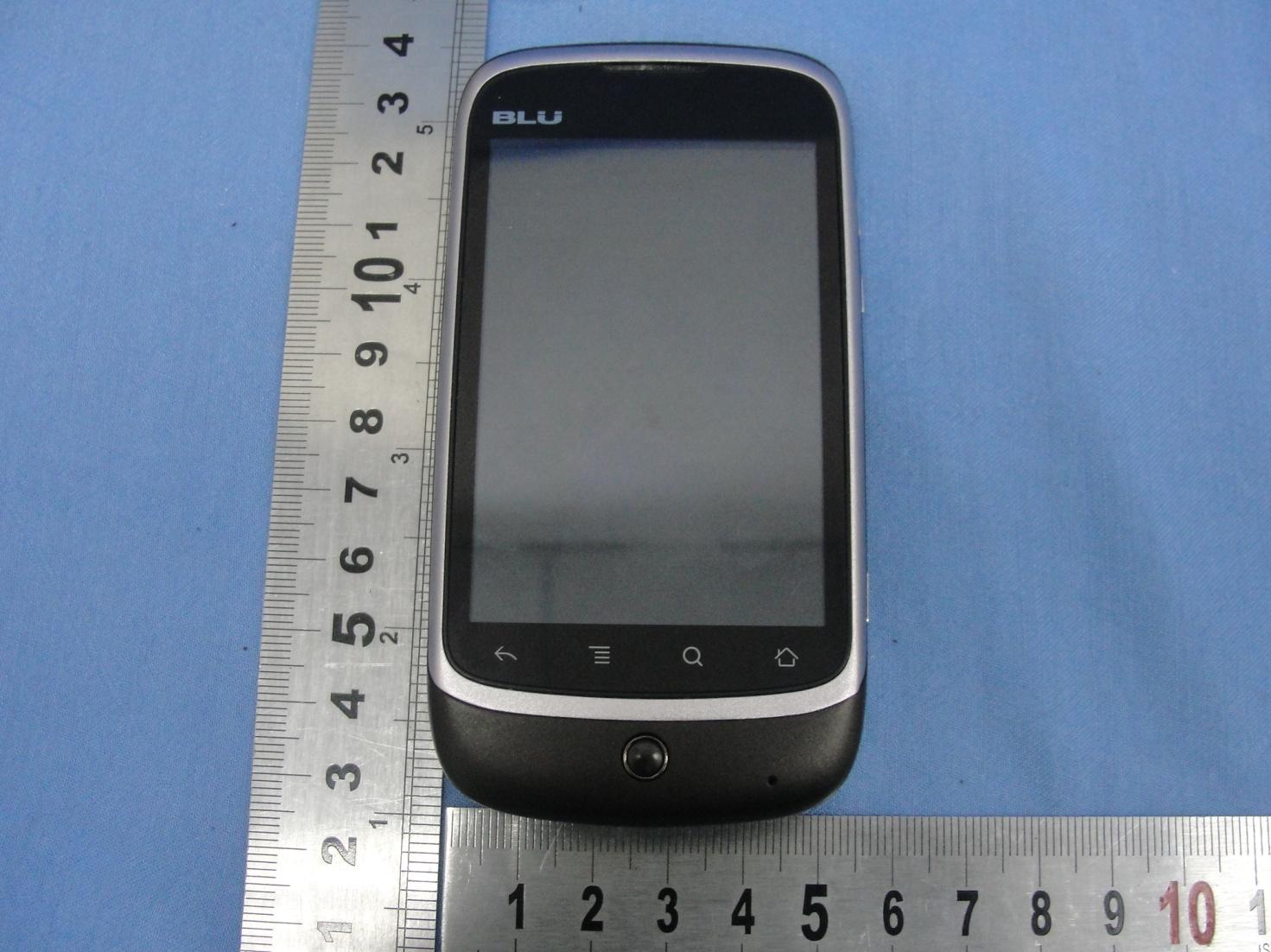

Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC 1. External Photograph of EUT Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC 720510 Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC List of Accessory: Specification of Accessory AC Adapter Brand Name BLU Model Name US200506 Battery Brand Name BLU Model Name C654450145T Earphone Brand Name BLU Model Name MAGIC USB Cable Brand Name BLU Model Name MAGIC Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC

Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC 3. Internal Photograph of EUT Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC 720510 Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC WWAN Antenna <Tx/Rx> Antenna Antenna Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC Bluetooth & WLAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP130433 Brand Name: BLU / Model Name: Magic SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 25 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC GPS Antenna <Rx> Antenna Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC FCC SAR Test Report Report No. : FA130433A FCC SAR Test Report APPLICANT : CT Asia EQUIPMENT : mobile phone BRAND NAME : BLU MODEL NAME : Magic FCC ID : YHLBLUMAGIC STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Mar. 04, 2011 and completely tested on Mar. 21, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 34 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : YHLBLUMAGIC FCC SAR Test Report Report No. : FA130433A Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage ......................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-9 System Check_Head_835MHz_110309 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_110309 Medium parameters used: f = 835 MHz; σ = 0.909 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.45 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.5 V/m; Power Drift = 0.0028 dB Peak SAR (extrapolated) = 3.41 W/kg SAR(1 g) = 2.28 mW/g; SAR(10 g) = 1.49 mW/g Maximum value of SAR (measured) = 2.45 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-10 System Check_Body_835MHz_110310 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110310 Medium parameters used: f = 835 MHz; σ = 0.97 mho/m; ε r = 56.5; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.51 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.4 V/m; Power Drift = 0.00524 dB Peak SAR (extrapolated) = 3.45 W/kg SAR(1 g) = 2.32 mW/g; SAR(10 g) = 1.54 mW/g Maximum value of SAR (measured) = 2.51 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-9 System Check_Head_1900MHz_110309 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110309 Medium parameters used: f = 1900 MHz; σ = 1.46 mho/m; ε r = 38.4; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.39, 7.39, 7.39); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.5 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.4 V/m; Power Drift = -0.000404 dB Peak SAR (extrapolated) = 19.9 W/kg SAR(1 g) = 10.1 mW/g; SAR(10 g) = 5.11 mW/g Maximum value of SAR (measured) = 11.3 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-10 System Check_Body_1900MHz_110310 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110310 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature：23. °C; Liquid Temperature：21. °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.26, 7.26, 7.26); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87 V/m; Power Drift = 0.00519 dB Peak SAR (extrapolated) = 20.8 W/kg SAR(1 g) = 10.6 mW/g; SAR(10 g) = 5.4 mW/g Maximum value of SAR (measured) = 11.9 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-21 System Check_Body_1900MHz_110321 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110321 Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.26, 7.26, 7.26); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.6 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86 V/m; Power Drift = 0.00293 dB Peak SAR (extrapolated) = 19.9 W/kg SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.19 mW/g Maximum value of SAR (measured) = 11.4 mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-9 #27 GSM850_Right Cheek_Ch189 DUT: 130401 Communication System: Generic GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110309 Medium parameters used: f = 836.4 MHz; σ = 0.91 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.1 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.6 V/m; Power Drift = 0.159 dB Peak SAR (extrapolated) = 1.2 W/kg SAR(1 g) = 0.969 mW/g; SAR(10 g) = 0.716 mW/g Maximum value of SAR (measured) = 1.01 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-9 #27 GSM850_Right Cheek_Ch189_2D DUT: 130401 Communication System: Generic GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110309 Medium parameters used: f = 836.4 MHz; σ = 0.91 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.1 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.6 V/m; Power Drift = 0.159 dB Peak SAR (extrapolated) = 1.2 W/kg SAR(1 g) = 0.969 mW/g; SAR(10 g) = 0.716 mW/g Maximum value of SAR (measured) = 1.01 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-9 #22 GSM850_Right Tilted_Ch128 DUT: 130401 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110309 Medium parameters used: f = 824.2 MHz; σ = 0.897 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.730 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.1 V/m; Power Drift = 0.157 dB Peak SAR (extrapolated) = 0.863 W/kg SAR(1 g) = 0.666 mW/g; SAR(10 g) = 0.476 mW/g Maximum value of SAR (measured) = 0.690 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-9 #25 GSM850_Left Cheek_Ch189 DUT: 130401 Communication System: Generic GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110309 Medium parameters used: f = 836.4 MHz; σ = 0.91 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.09 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.4 V/m; Power Drift = 0.059 dB Peak SAR (extrapolated) = 1.18 W/kg SAR(1 g) = 0.956 mW/g; SAR(10 g) = 0.727 mW/g Maximum value of SAR (measured) = 1.01 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-9 #24 GSM850_Left Tilted_Ch128 DUT: 130401 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_110309 Medium parameters used: f = 824.2 MHz; σ = 0.897 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.744 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.6 V/m; Power Drift = 0.072 dB Peak SAR (extrapolated) = 0.813 W/kg SAR(1 g) = 0.652 mW/g; SAR(10 g) = 0.459 mW/g Maximum value of SAR (measured) = 0.683 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-9 #09 GSM1900_Right Cheek_Ch810 DUT: 130401 Communication System: Generic GSM; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_110309 Medium parameters used: f = 1910 MHz; σ = 1.47 mho/m; ε r = 38.4; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.39, 7.39, 7.39); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn…
