YHLBLUQT45HDGSM/WCDMA mobile

1 / 39 User Manual User Manual ................................................................ 1 1 Overview of the phone .............................................. 6 2 Introduction to usage of the phone .......................... 7 2.1 Install and take out the SIM card ......................................... 7 2.1.1 Install the SIM card ................................................... 8 2.1.2 Take out the SIM card .............................................. 8 2.2 Switch on and off ................................................................ 9 2.2.1 Switch on .................................................................... 9 2.2.2 Switch off .................................................................... 9 2.2.3 Password lock ........................................................... 9 3 Call functions ........................................................... 10 3.1 Make a voice call .............................................................. 10 3.2 During a voice call ............................................................. 11 3.2.1 Adjust the volume ..................................................... 11 3.2.2 Answer a new call ................................................... 12 3.2.3 Connect two calls at the same time...................... 12 3.2.4 Conference call ....................................................... 13 3.3 Emergency call .................................................................. 13 3.4 During a video call ............................................................ 14 4 Contacts .................................................................... 14 4.1 Contacts of the phone ........................................................ 15 4.2 Contacts of the SIM Card .................................................. 16 5Text messages and multimedia messages ................ 17 5.1 Create and send a short message (SMS) ............................ 17 5.2 Create and send a multimedia message (MMS) ................ 18 5.3 Message setup: .................................................................. 18 6 Settings ..................................................................... 19 6.1 Wireless & networks ......................................................... 19 6.1.1 Airplane mode.......................................................... 19 6.1.2 WLAN and Settings ................................................ 20 6.1.3 Bluetooth and settings ............................................ 20 6.1.4 Virtual private network settings ............................. 20 6.1.5 Mobile networks ...................................................... 20 6.2 Call settings ....................................................................... 20 6.2.1 Fixed dialing ............................................................. 20 6.2.2 Video call .................................................................. 21 6.2.3 Voice mail ................................................................. 21 6.3 Sound and display (ringer mode) ...................................... 21 6.3.1 Start ringer mode..................................................... 21 6.3.2 Customized ringer mode ........................................ 22 6.4 Location and security ........................................................ 23 6.4.1 My location ............................................................... 23 6.4.2 Screen unlock picture ............................................. 23 6.4.3 SIM card locking ...................................................... 23 6.4.4 Password ................................................................. 23 6.4.5 Credential storage .................................................. 23 6.5 Applications ...................................................................... 24 6.6 Account & Sync ................................................................ 24 6.6.1 General sync settings ............................................. 24 6.6.2 Account management ............................................. 24 6.8 SD Card and Memory of the Phone................................... 25 6.8.1 SD Card ................................................................. 25 6.8.2 Memory of the phone ............................................. 25 6.9 Search ................................................................................ 25 6.9.1 Web page search .................................................... 25 6.9.2 Rapid search box .................................................... 25 6.10 Date and Time ................................................................. 25 6.11 About the phone............................................................... 25 7 Ringer mode ............................................................. 26 7.1 Start ringer mode ........................................................ 26 7.2 Customized ringer mode ........................................... 26 8 Browser .................................................................... 27 8.1 Start the browser................................................................ 27 8.2 Open a web page ............................................................... 28 8.3 Basic functions of the browser .......................................... 28 8.3.1 Create a new window ............................................. 28 8.3.2 Bookmark ................................................................. 28 8.3.3 Window ..................................................................... 28 8.3.4 Forward .................................................................... 28 8.3.5 Backward ................................................................. 29 8.3.6 More .......................................................................... 29 9 Applications .............................................................. 30 9.1 Photo camera and video camera ........................................ 30 9.1.1 Photo camera ......................…

Text truncated - open the document above for the full version.

CT Asia Unit 01, 15/F, Seaview Centre, 139 -141 Hoi bun Road, Kwun Tong, Kowloon, Hong Kong Tel.:+ 852-27931198 Fax: +852-27931198 Date: September 11, 2012 Declaration We, CT Asia, declare that the device of FCC ID: YHLBLUQT45HD, Mod el Name: Quattro 4.5 HD, for 2.4G part of this device, only channels 1~11, will be used in North America and bands of 802.11 b/g/n channels 12~13, non-US frequency, Country code selection are all disabled. Should you have any question or comment regarding this matter, please have my best attention. Sinc erely yours, _____________________ Name: KeithTsui CT Asia Tel.:+ 852-27931198 // Fax: +852-27931198 E-mail: [email protected]

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun Road, Kwun Tong, Kowloon, Hong Kong Tel.:+ 852-27931198 Fax: +852-27931198 Date: September 11, 2012 Declaration To whom it may concern, Quattro 4.5 HD is a WLAN/Bluetooth combination antenna with FCC ID: YHLBLUQT45HD. This WLAN/Bluetooth co-existence mechanism is to ensure that the WLAN and Bluetooth transmitters would not simultaneously operate. Therefore, WLAN and Bluetooth antenna in Quattro 4.5 HD should not be considered to be able to transmit simultaneously. Though the users can use WLAN and Bluetooth simultaneously, but the real situation is that WLAN and Bluetooth are used by time sharing and no overlap transmission. Should you have any question, please have my best attention. Sincerely yours, _______________ Name: KeithTsui CT Asia Tel.:+ 852-27931198 // Fax: +852-27931198 E-mail: [email protected]

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun Road, Kwun Tong, Kowloon, Hong Kong Tel.:+ 852-27931198 Fax: +852-27931198 Date: September 11, 2012 Federal Communications Commission 7345 Oakland Mills Road Columbia MD21046 Subject: Request for Confidentiality FCC ID: YHLBLUQT45HD To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely.
Schematic Diagram
Block Diagram
Parts List
Theory of Operation
Tune-up Procedure
Operational Description (Antenna) Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the Grant Date of Equipment Authorizations.  External Photos  Internal Photos  Test Setup Photos  Users Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Name: KeithTsui CT Asia Tel.:+ 852-27931198 // Fax: +852-27931198 E-mail: [email protected]

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun Road, Kwun Tong, Kowloon, Hong Kong Tel.:+ 852-27931198 Fax: +852-27931198 Date: September 11, 2012 Power of Attorney To whom it may concern, Please be notified that I, KeithTsui, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: YHLBLUQT45HD If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours, Name: KeithTsui CT Asia Tel.:+ 852-27931198 // Fax: +852-27931198 E-mail: [email protected]

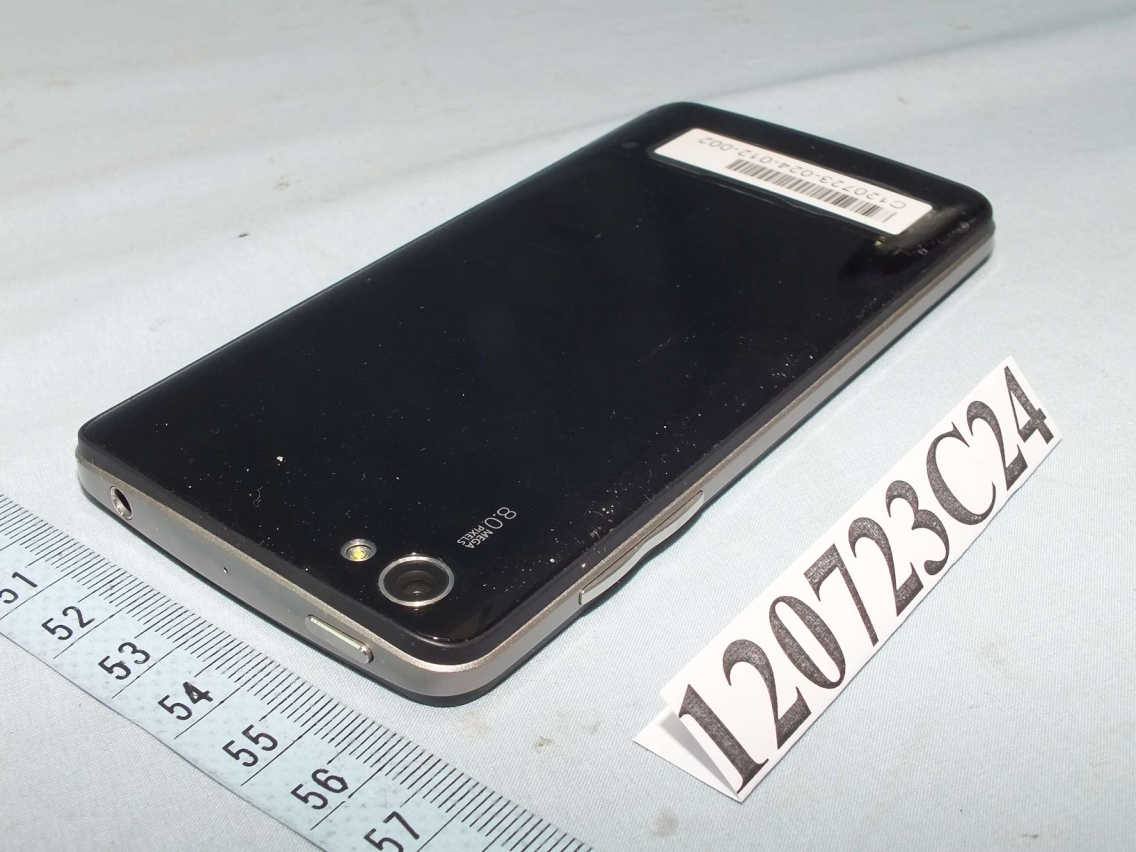

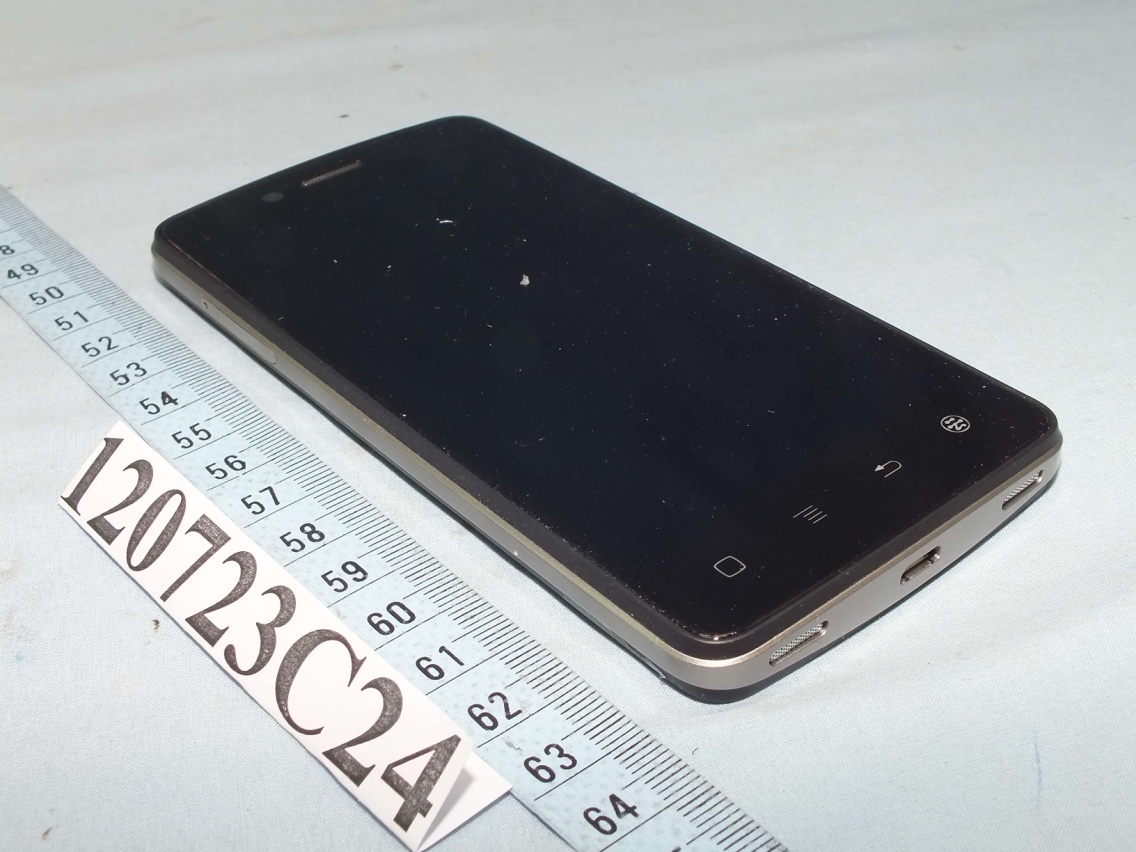

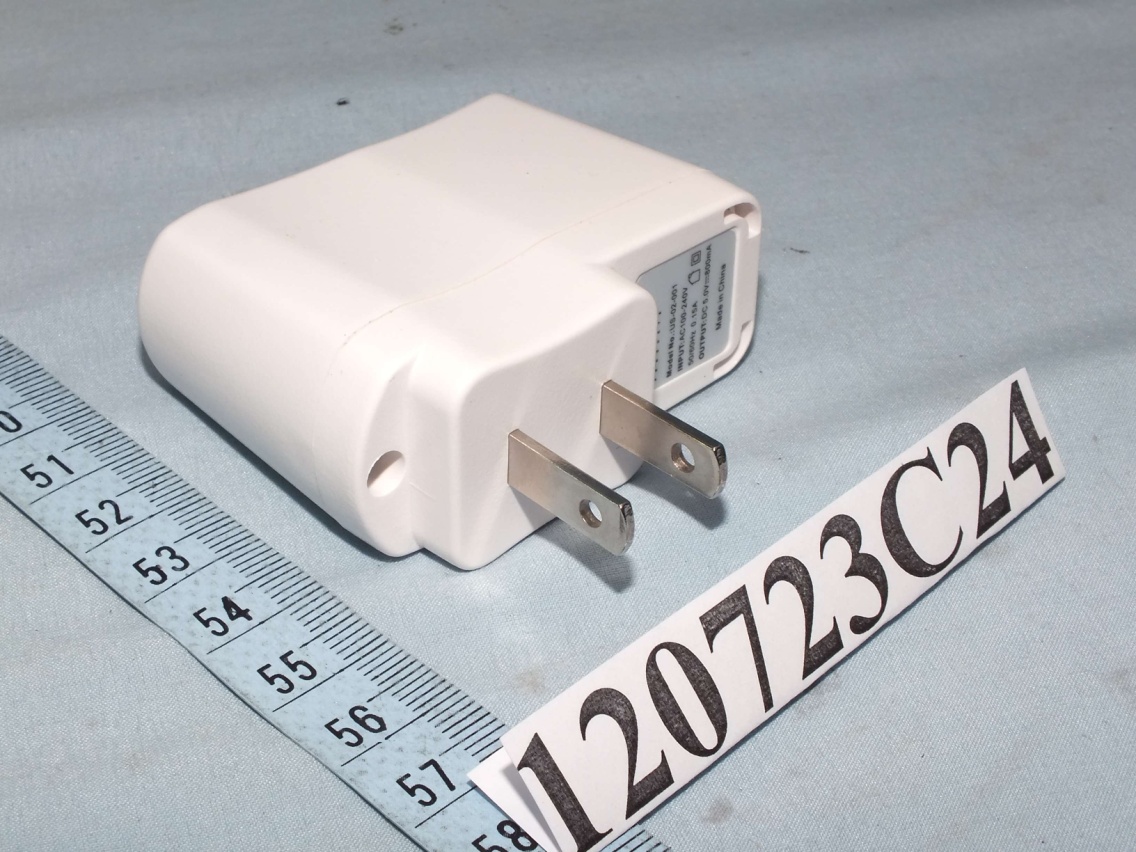

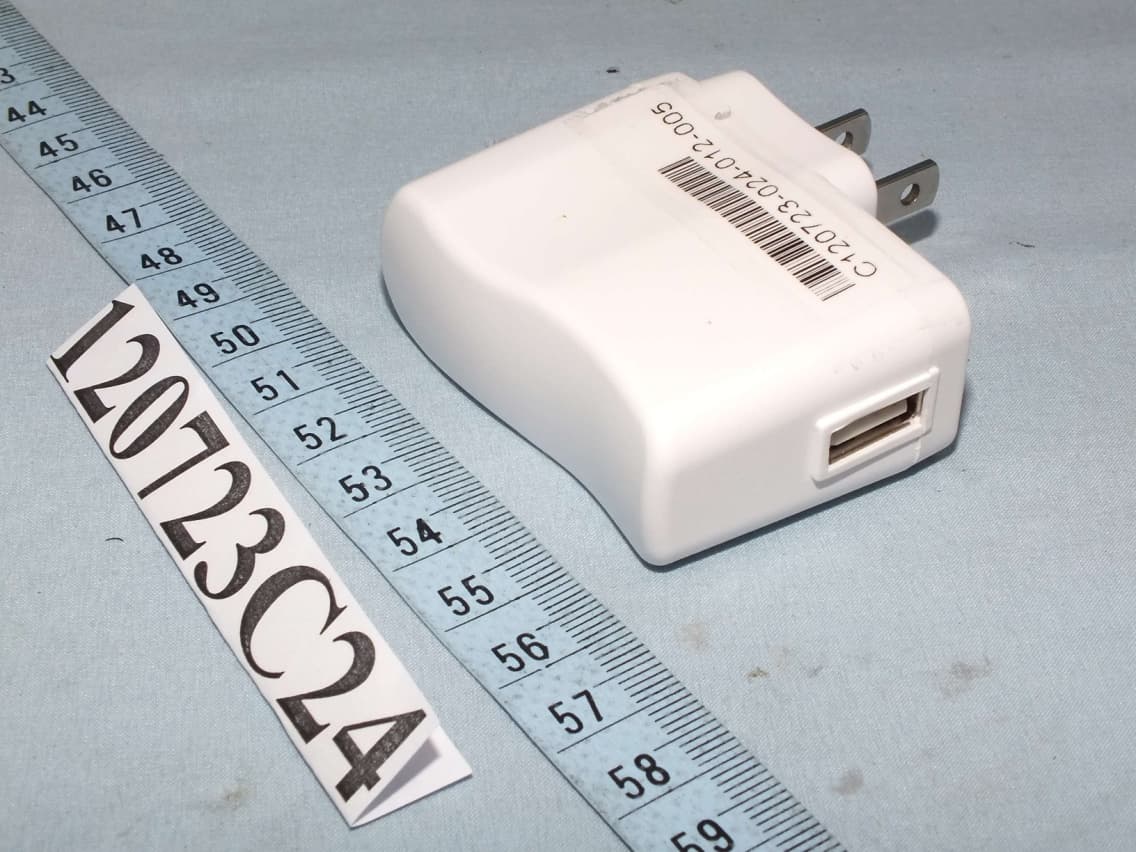

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 4        Page 5        Page 6        Page 7      Page 8        Page 9        Page 10        Page 11        Page 12        Page 13        Page 14       Page 15

FCC SAR Test Report Report Format Version 5.0.0Page No. : 1 of 31 Report No. : SA120723C24A Reference No.: 120910C18Issued Date : Sep. 11, 2012 Revision : R01 FCC SAR Test Report Report No. : SA120723C24A Applicant : CT Asia Address : Unit 01, 15/F, Seaview Centre,139-141 Hoi bun road, Kwun Tong, Kowloon,Hongkong Product : GSM/WCDMA mobile FCC ID : YHLBLUQT45HD Brand : BLU Model No. : Quattro 4.5 HD Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 248227 D01 v01r02 / KDB 648474 D01 v01r05 / KDB 941225 D01 v02 KDB 941225 D03 v01 / KDB 941225 D04 v01 / KDB 941225 D06 v01 Date of Testing : Aug. 23, 2012 ~ Sep. 04, 2012 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Pettie Chen / Senior Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0Page No. : 2 of 31 Report No. : SA120723C24A Reference No.: 120910C18Issued Date : Sep. 11, 2012 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1.Summary of Maximum SAR Value ....................................................................................................................................... 4 2.Description of Equipment Under Test ................................................................................................................................. 5 3.SAR Measurement System ................................................................................................................................................... 6 3.1Definition of Specific Absorption Rate (SAR) ................................................................................................................ 6 3.2SPEAG DASY System ................................................................................................................................................. 6 3.2.1Robot .................................................................................................................................................................. 7 3.2.2Probes ................................................................................................................................................................ 8 3.2.3Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4Phantoms ........................................................................................................................................................... 9 3.2.5Device Holder ................................................................................................................................................... 10 3.2.6System Validation Dipoles ................................................................................................................................ 10 3.2.7Tissue Simulating Liquids ................................................................................................................................. 11 3.3SAR System Verification ............................................................................................................................................ 13 3.4SAR Measurement Procedure ................................................................................................................................... 14 3.4.1Area & Zoom Scan Procedure ......................................................................................................................... 14 3.4.2Volume Scan Procedure ................................................................................................................................... 14 3.4.3Power Drift Monitoring ...................................................................................................................................... 14 3.4.4Spatial Peak SAR Evaluation ........................…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0Issued Date : Sep. 11, 2012 Report No. : SA120723C24A Reference No.: 120910C18 Revision : R01 Appendix A. SAR Plots of System Verification The plots for system verification are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/24      ! "# Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_0824 Medium parameters used: f = 835 MHz;  = 0.909 mho/m;  r = 42.3;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˉʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁˌʳк DASY4 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.8, 9.8, 9.8); Calibrated: 2012/07/19 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2012/07/19 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 $%&'()*+ +%,-.-./ Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.08 mW/g $%&'(0 +%,..1/( 23 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.0 V/m; Power Drift = -0.003 dB Peak SAR (extrapolated) = 3.66 W/kg )4,5/&6'(5 )4,5/&67'(5 Maximum value of SAR (measured) = 3.07 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/25   1  1 1! " Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: H1750_0825 Medium parameters used: f = 1750 MHz;  = 1.34 mho/m;  r = 41.8;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˋʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁˈʳк DASY4 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.56, 8.56, 8.56); Calibrated: 2012/07/19 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2012/07/19 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 $%&'()*+ +%,-.-./ Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 13.6 mW/g $%&'(0 +%,..1/( 23 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.5 V/m; Power Drift = 0.004 dB Peak SAR (extrapolated) = 16.1 W/kg )4,5/&67'(5 )4,5/&61-'(5 Maximum value of SAR (measured) = 12.5 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/24   7  7 7! "#- Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_0824 Medium parameters used: f = 1900 MHz;  = 1.44 mho/m;  r = 39.7;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˈʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁˋʳк DASY4 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.13, 8.13, 8.13); Calibrated: 2012/07/19 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2012/07/19 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 $%&'()*+ +%,-.-./ Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 15.0 mW/g $%&'(0 +%,..1/( 23 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 100.8 V/m; Power Drift = 0.004 dB Peak SAR (extrapolated) = 18.4 W/kg )4,5/&761'(5 )4,5/&67-'(5 Maximum value of SAR (measured) = 13.9 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/23      ! "11 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H2450_0823 Medium parameters used: f = 2450 MHz;  = 1.79 mho/m;  r = 40.1;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˉʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁˊʳк DASY4 Configuration: - Probe: EX3DV4 - SN3864; ConvF(7.28, 7.28, 7.28); Calibrated: 2012/07/19 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2012/07/19 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 $%&'()*+ +%,-.-./ Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 22.1 mW/g $%&'(0 +%,..1/( 23 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 108.7 V/m; Power Drift = -0.001 dB Peak SAR (extrapolated) = 27.9 W/kg )4,5/&6'(5 )4,5/&67'(5 Maximum value of SAR (measured) = 20.1 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/24   8   ! "# Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: B835_0824 Medium parameters used: f = 835 MHz;  = 0.978 mho/m;  r = 55.6;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˊʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁˈʳк DASY4 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.94, 9.94, 9.94); Calibrated: 2012/07/19 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2012/07/19 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 $%&'()*+ +%,-.-./ Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.03 mW/g $%&'(0 +%,..1/( 23 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.6 V/m; Power Drift = -0.015 dB Peak SAR (extrapolated) = 3.53 W/kg )4,5/&6'(5 )4,5/&61'(5 Maximum value of SAR (measured) = 3.00 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/25   81  1 1! " Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: B1750_0825 Medium parameters used: f = 1750 MHz;  = 1.47 mho/m;  r = 53.8;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˈʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁˇʳк DASY4 Configuration: - Probe: EX3DV4 - SN3864…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0Issued Date : Sep. 11, 2012 Report No. : SA120723C24A Reference No.: 120910C18 Revision : R01 Appendix B. SAR Plots of SAR Measurement The plots for SAR measurement are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/24 P01 GSM850_GPRS12_Right Cheek_Ch251 DUT: 120723C24 Communication System: GSM850 GPRS12; Frequency: 848.8 MHz;Duty Cycle: 1:2 Medium: H835_0824 Medium parameters used: f = 849 MHz;  = 0.923 mho/m;  r = 42.2;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˉʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁˌʳк DASY4 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.8, 9.8, 9.8); Calibrated: 2012/07/19 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2012/07/19 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch251/Area Scan (51x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.429 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.91 V/m; Power Drift = 0.135 dB Peak SAR (extrapolated) = 0.484 W/kg SAR(1 g) = 0.388 mW/g; SAR(10 g) = 0.294 mW/g Maximum value of SAR (measured) = 0.439 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/24 P02 GSM850_GPRS12_Right Tilted_Ch251 DUT: 120723C24 Communication System: GSM850 GPRS12; Frequency: 848.8 MHz;Duty Cycle: 1:2 Medium: H835_0824 Medium parameters used: f = 849 MHz;  = 0.923 mho/m;  r = 42.2;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˉʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁˌʳк DASY4 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.8, 9.8, 9.8); Calibrated: 2012/07/19 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2012/07/19 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch251/Area Scan (51x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.268 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.95 V/m; Power Drift = 0.057 dB Peak SAR (extrapolated) = 0.394 W/kg SAR(1 g) = 0.232 mW/g; SAR(10 g) = 0.174 mW/g Maximum value of SAR (measured) = 0.266 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/24 P03 GSM850_GPRS12_Left Cheek_Ch251 DUT: 120723C24 Communication System: GSM850 GPRS12; Frequency: 848.8 MHz;Duty Cycle: 1:2 Medium: H835_0824 Medium parameters used: f = 849 MHz;  = 0.923 mho/m;  r = 42.2;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˉʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁˌʳк DASY4 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.8, 9.8, 9.8); Calibrated: 2012/07/19 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2012/07/19 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch251/Area Scan (51x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.372 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.65 V/m; Power Drift = -0.188 dB Peak SAR (extrapolated) = 0.417 W/kg SAR(1 g) = 0.329 mW/g; SAR(10 g) = 0.248 mW/g Maximum value of SAR (measured) = 0.381 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/24 P04 GSM850_GPRS12_Left Tilted_Ch251 DUT: 120723C24 Communication System: GSM850 GPRS12; Frequency: 848.8 MHz;Duty Cycle: 1:2 Medium: H835_0824 Medium parameters used: f = 849 MHz;  = 0.923 mho/m;  r = 42.2;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˉʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁˌʳк DASY4 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.8, 9.8, 9.8); Calibrated: 2012/07/19 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2012/07/19 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch251/Area Scan (51x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.225 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.36 V/m; Power Drift = 0.137 dB Peak SAR (extrapolated) = 0.242 W/kg SAR(1 g) = 0.192 mW/g; SAR(10 g) = 0.145 mW/g Maximum value of SAR (measured) = 0.220 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/24 P05 GSM1900_GPRS12_Right Cheek_Ch512 DUT: 120723C24 Communication System: GSM1900 GPRS12; Frequency: 1850.2 MHz;Duty Cycle: 1:2 Medium: H1900_0824 Medium parameters used: f = 1850.2 MHz;  = 1.39 mho/m;  r = 40;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˈʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁˋʳк DASY4 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.13, 8.13, 8.13); Calibrated: 2012/07/19 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2012/07/19 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch512/Area Scan (51x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.410 mW/g Ch512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.2 V/m; Power Drift = 0.132 dB Peak SAR (extrapolated) = 0.471 W/kg SAR(1 g) = 0.328 mW/g; SAR(10 g) = 0.217 mW/g Maximum value of SAR (measured) = 0.400 mW/g Ch512/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.2 V/m; Power Drift = 0.132 dB Peak SAR (extrapolated) = 0.375 W/kg SAR(1 g) = 0.262 mW/g; SAR(10 g) = 0.174 mW/g Maximum value of SAR (measured) = 0.317 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/08/24 P06 GSM1900_GPRS12_Right Tilted_Ch512 DUT: 120723C24 Communication System: GSM1900 GPRS12; Frequency: 1850.2 MHz;Duty Cycle: 1:2 Medium: H1900_0824 Medium…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0Issued Date : Sep. 11, 2012 Report No. : SA120723C24A Reference No.: 120910C18 Revision : R01 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

Report No.: FD120723C24A 1 of 28 Report Format Version 5.0.0 Reference No.: 120723C24, 120910C18 FCC CERTIFICATION REPORT REPORT NO.: FD120723C24A MODEL NO.: Quattro 4.5 HD RECEIVED: Jul. 23, 2012 TESTED: Aug. 01 ~ Aug. 04, 2012 ISSUED: Sep. 11, 2012 APPLICANT: CT Asia ADDRESS: Unit 01, 15/F, Seaview Centre,139-141 Hoi bun road, Kwun Tong, Kowloon,Hongkong ISSUED BY: Bureau Veritas Consumer Products Services (H.K…

Text truncated - open the document above for the full version.
