YHLBLUSTAR40Mobile Phone

1 Star 4.0 User Manual 2 Table of Contents Safety Information .............................................. 3 Appearance and Key Function ........................... 4 Introduction ........................................................ 5 Call Functions .................................................... 6 Contacts ............................................................. 7 Messaging .......................................................... 8 Internet Browser ................................................. 9 Bluetooth .......................................................... 10 Camera ............................................................. 11 Gallery .............................................................. 12 Music ................................................................ 13 Sound Recorder ............................................... 14 Alarm Clock ...................................................... 15 FM Radio .......................................................... 15 Settings ............................................................ 16 Storage ............................................................. 19 3 Safety Information Please carefully read the terms below: Use Safely Do not use your mobile phone where it might cause danger. Transportation Safety Please observe all transportation laws and regulations. Please drive with both hands on the wheel. DO NOT TEXT AND DRIVE Hospitals Please follow limitations. Please turn off your mobile phone when near medical instruments. Airports Please follow all flight safety regulations and do not use your phone during flight. Toxic Chemicals Do not use your mobile phone around fuels or chemicals. Explosion Hazard Please observe related limitations and do not use your mobile phone around an area where explosions may occur. Accessories and Batteries Please use only Blu authorized batteries and accessories. Backup Please remember to keep a written record of all important information. Water Your phone is not waterproof. Keep it away from water and liquids. SOS Emergency Calls Make sure your mobile phone is switched on and in a service area. In home screen, tap the phone key and dial 911 and send. 4 Appearance and Key Function Volume Power Back Home Menu Rear Camera Speaker 5 Introduction Installation of the SIM Card Please install the SIM card before using your phone. Note: Please keep the SIM card out of the reach of children. The SIM card and its contact are easily damaged due to scratching or bending. Please be cautious when carrying, installing or taking out the SIM card. Please contact your cellular phone service provider directly to obtain the SIM card. To insert SIM card: 1. Switch off the mobile phone and remove the rear cover and battery. Insert the SIM card. 2. Insert the SD card. (For additional storage capacity) 3. Insert the battery and replace the rear cover of the mobile phone. Power On and Off On - Please ensure the SIM card has been properly inserted into the phone. Long press the Power key to switch on the phone on. Off - In standby mode, long press on Power key until an options menu appears. Select Power Off in the menu and confirm in the pop-up prompt to switch off the phone. Security You may set a security lock feature as a security measure for the phone. For further information regarding password locks, password revision and other functions please enter into the security option in system settings. SIM Slot Memory Card 6 Call Functions At the dial keyboard, enter the phone number and then click the dial key. If dialing an extension, you may click the dial pad icon in the bottom of the screen to open the interface and enter the number of the extension. You may also enter an input number and call contacts through speed dial. Call Logs Every telephone number called and received will be saved in the phones call log. All numbers in the call log can be dialed directly by clicking the dial icon on the right side of the screen. When the number appears on the list, click it to view details. Proximity Sensor The proximity sensor determines how far away an object is from the device. During the call or when your place the phone close to the ear, the backlight will turn off automatically this conserves battery and prevents inadvertently touching. 7 Contacts Enter: Click on the applications menu and select contacts • The default display is the phone contacts and SIM card contacts • The contacts are organized alphabetically by default. Click the Search icon to enter the contact search interface.  Any numbers or letters associated with any of the contacts saved in the list will be shown in the search results.  If there were no matches for the inputted contact, the interface will display no contacts found. Add New Contact 1. Click (+) icon to add contact. 2. Select to save contacts to phone or SIM card. 3. You may edit contact picture, name, telephone number, group, address, and email among other options. 4. Click to finish and save contact. Add Contact Search 8 Messaging You may use this function to exchange text messages and multimedia messages with your family and friends. The messages to and from the same contact or phone number will be saved into a single conversation so you may see the entire message history conveniently. Send an SMS Application Menu » Messaging » New message (or use shortcut icon) 1. Click to enter recipient (You may enter contacts from contact book or enter a new number) 2. Compose Message 3. Send Send an MMS When creating message, the default message style is SMS. The message will automatically convert to MMS when adding an attachment. 1. Click the Paperclip icon in the messaging interface. 2. Click “Attach” to add the following attachments. 9 Internet Browser Menu Functions Backward • After browsing through multiple pages, this option will return the user to the previous page. Forward • After browsing through multiple pages, this option will move to a web page after the curre…

Text truncated - open the document above for the full version.

Rev. 1/1/03 CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198 ; Fax: 852-27931197 Date: January 14, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YHLBLUSTAR40 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Edward Phan

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198; Fax: 852-27931197 Date: January 14, 2014 Power of Attorney To whom it may concern, Please be notified that I, Edward Phan, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: YHLBLUSTAR40 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Edward Phan Company: CT Asia TEL: 852-27931198 FAX: 852-27931197 E-mail: [email protected]

1/1 CT Asia Date: January 14, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : YHLBLUSTAR40 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which CT Asia deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Edward Phan Company: CT Asia TEL: 852-27931198 FAX: 852-27931197 E-mail: [email protected]

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198; Fax: 852-27931197 Date: January 14, 2014 Statement We, CT Asia, states that our device, FCC ID: YHLBLUSTAR40. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Edward Phan

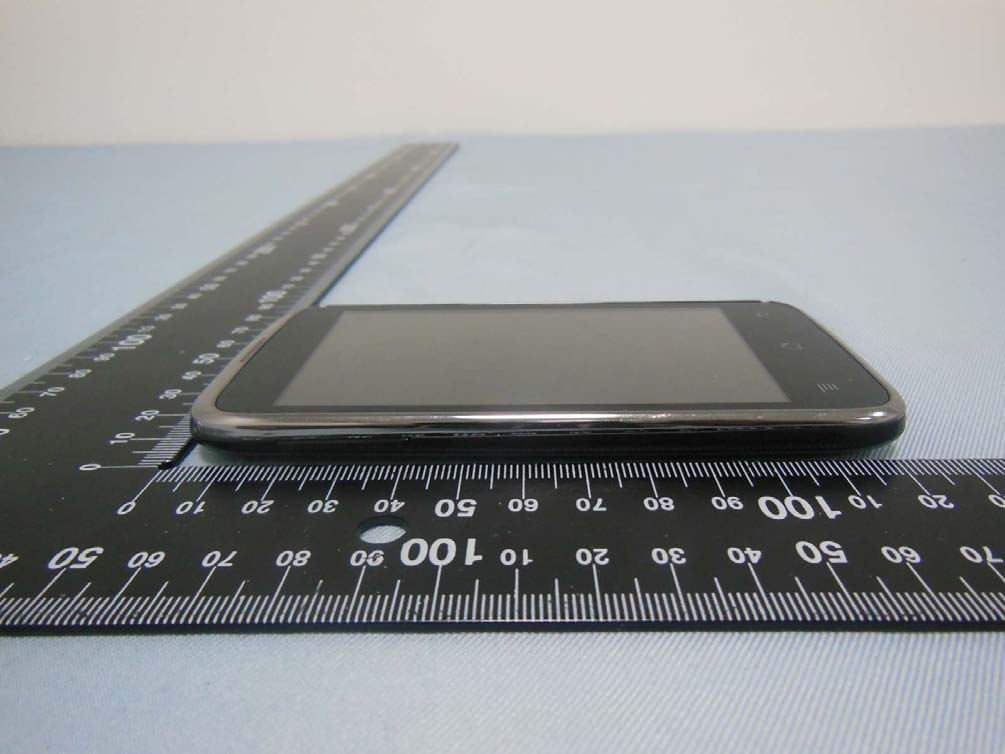

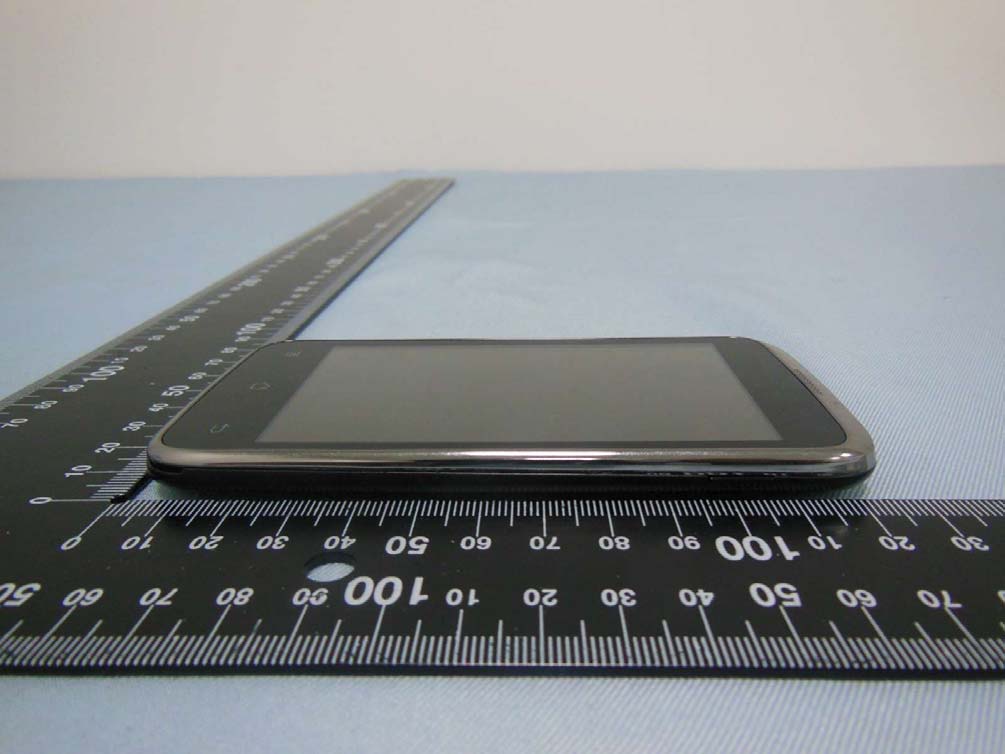

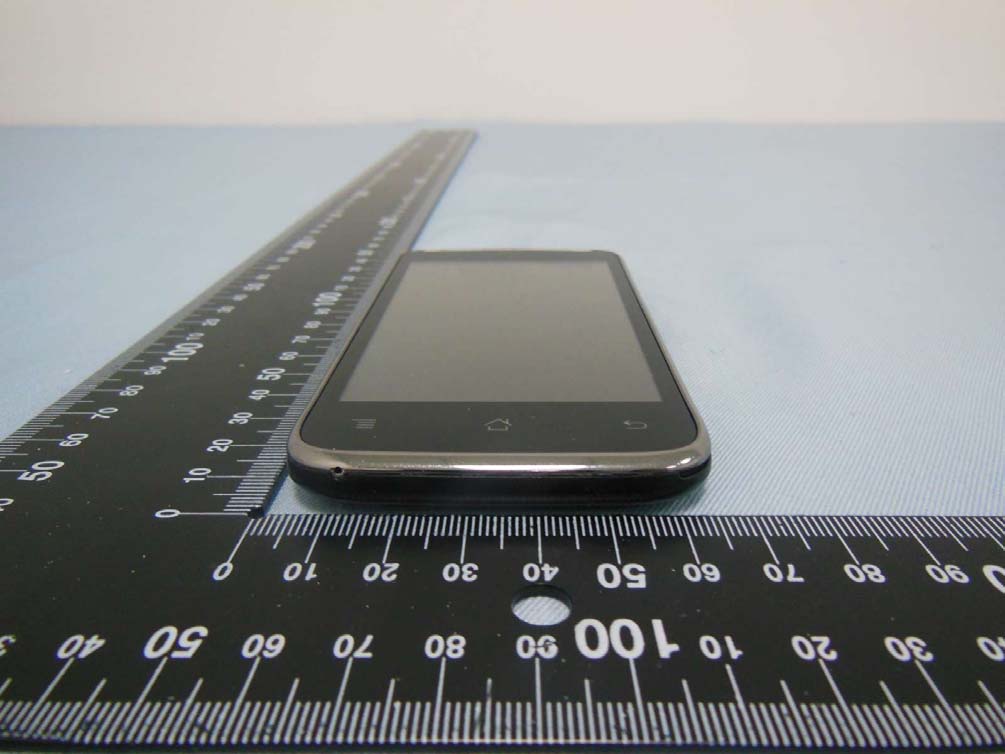

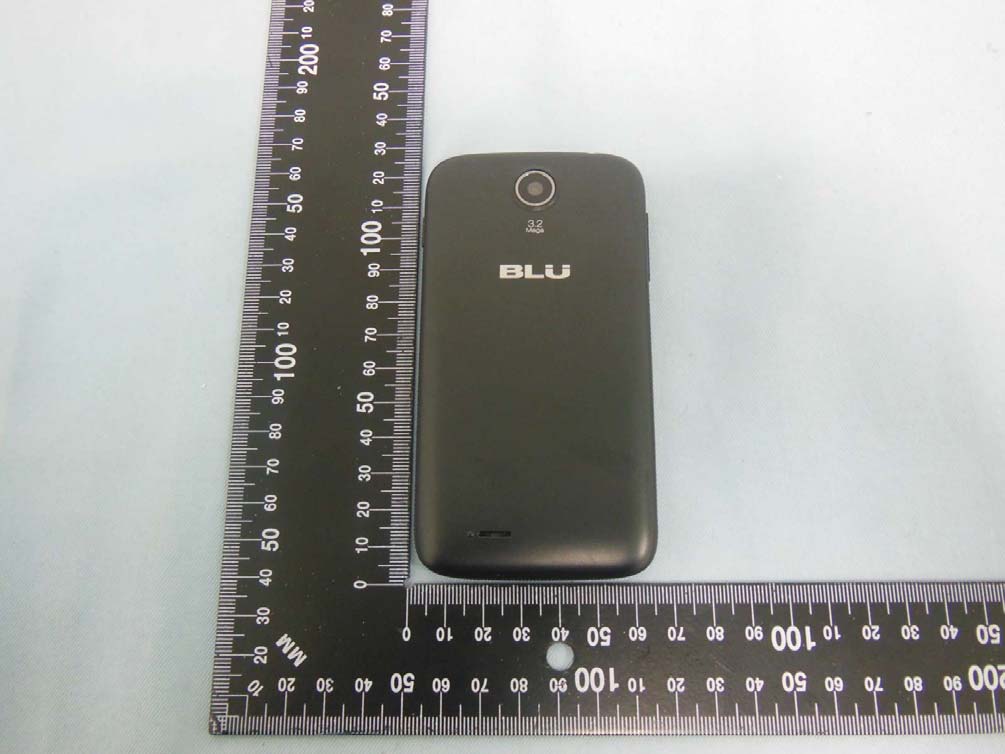

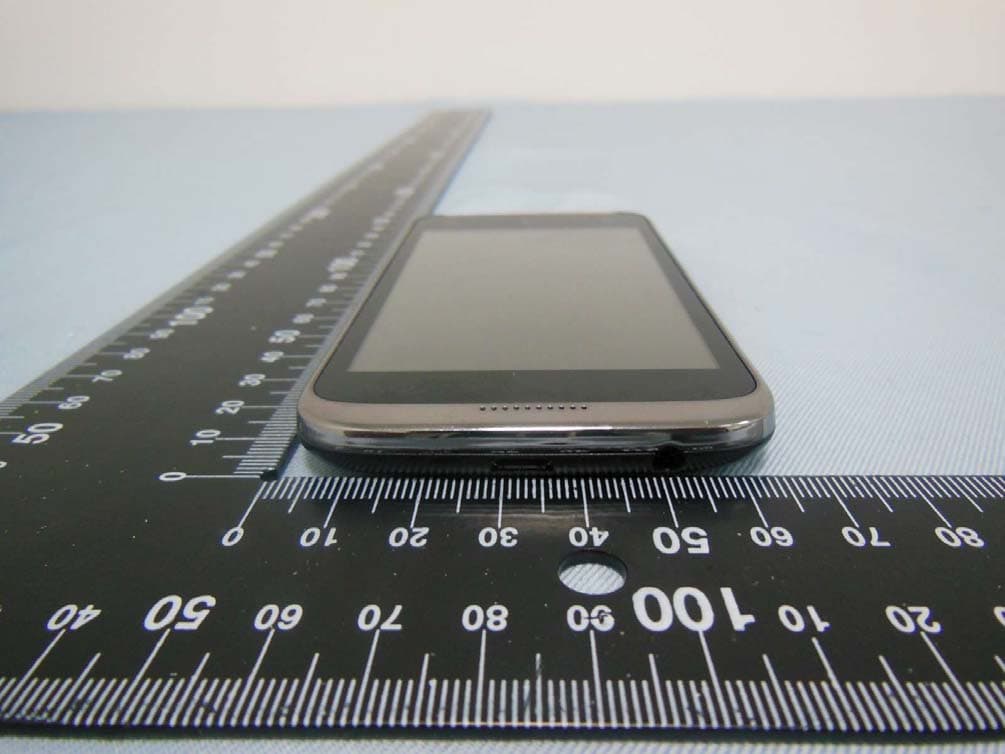

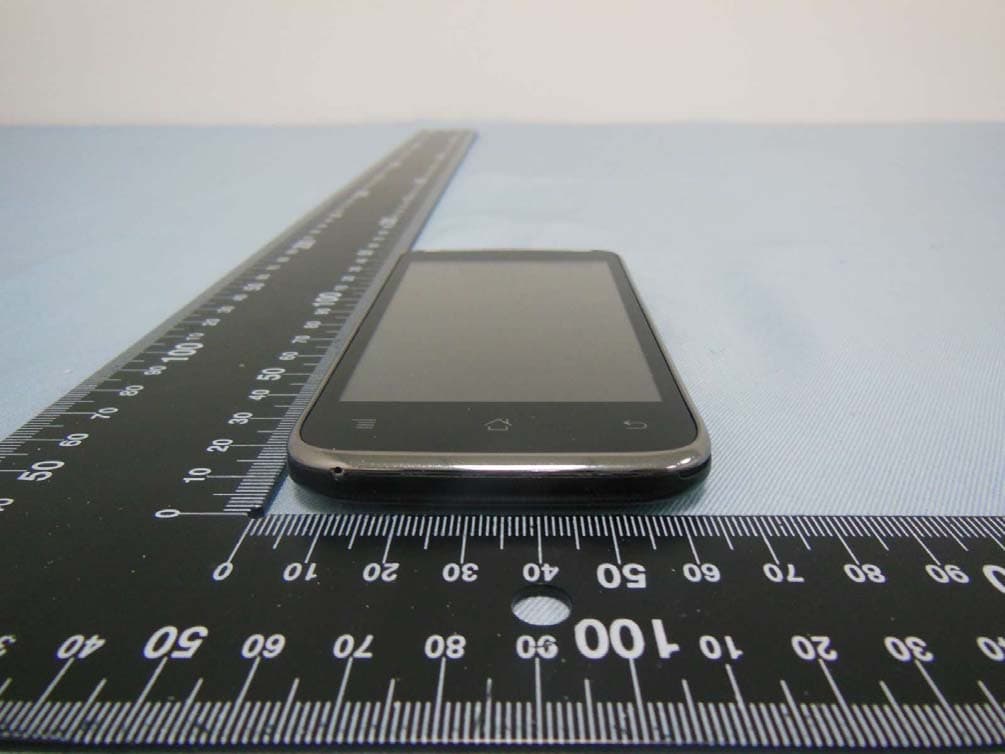

Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 1. External Photograph of EUT Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 List of Accessory: Specification of Accessory AC Adapter Brand Name BLU Model Name US-KT-0600 Battery Brand Name BLU Model Name C584505150L USB Cable Signal Line Type 1.2m, unshielded cable, without core Earphone Signal Line Type 1.4m, unshielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 AC Adapter Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Battery

Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 3. Internal Photograph of EUT Bluetooth & WLAN Antenna WWAN Antenna Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP3D1802 Brand Name: BLU; Model Name: Star 4.0 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 22 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 Bluetooth & WLAN Antenna <Tx / Rx>

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 53 TEL : 86-755-8637-9589 Report Issued Date : Jan. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : YHLBLUSTAR40 FCC SAR Test Report Report No. : FA3D1802 FCC SAR Test Report APPLICANT : CT Asia EQUIPMENT : Mobile Phone BRAND NAME : BLU MODEL NAME : Star 4.0 FCC ID : YHLBLUSTAR40 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was testing completed on Dec. 31, 2013. We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (SHENZHEN) INC. No. 101, Complex Building C, Guanlong Village, Xili Town, Nanshan District, Shenzhen, Guangdong, P.R.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 53 TEL : 86-755-8637-9589 Report Issued Date : Jan. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : YHLBLUSTAR40 FCC SAR Test Report Report No. : FA3D1802 Table of Contents 1. Statement of Compliance ............................................................................................................................................................ 4 2. Administration Data ..................................................................................................................................................................... 5 2.1 Testing Laboratory ................................................................................................................................................................ 5 2.2 Applicant ............................................................................................................................................................................... 5 2.3 Manufacturer ........................................................................................................................................................................ 5 2.4 Application Details ................................................................................................................................................................ 5 3. General Information ..................................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) ........................................................................................................................ 6 3.2 Maximum RF output power among production units ........................................................................................................... 7 3.3 Applied Standard .................................................................................................................................................................. 8 3.4 Device Category and SAR Limits ......................................................................................................................................... 8 3.5 Test Conditions ..................................................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ................................................................................................................................................. 9 4.1 Introduction ........................................................................................................................................................................... 9 4.2 SAR Definition ...................................................................................................................................................................... 9 5. SAR Measurement System ....................................................................................................................................................... 10 5.1 E-Field Probe ..................................................................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................................... 11 5.3 Robot .................................................................................................................................................................................. 12 5.4 Measurement Server .......................................................................................................................................................... 12 5.5 Phantom ............................................................................................................................................................................. 13 5.6 Device Holder ..................................................................................................................................................................... 13 5.7 Data Storage and Evaluation ............................................................................................................................................. 14 5.8 Test Equipment List ............................................................................................................................................................ 16 6. Tissue Simulating Liquids ........................................................................................................................................................ 17 7. System Verification Procedures ..........…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : C1 of C1 TEL : 86-755-8637-9589 Report Issued Date : Jan. 09, 2014 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : YHLBLUSTAR40 FCC SAR Test Report Report No. : FA3D1802 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report D835V2, serial No. 4d091 Extended Dipole Calibrations Referring to   , if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 4d091 ʳ 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 11.18.2011 -25.734 ʳ 50.867 ʳ -5.1504ʳ -22.318 ʳ47.082 ʳ -6.8594ʳ 11.17.2012 -25.917 0.7149.7731.09-5.13290.02 -22.4660.6648.683 1.60 -6.35980.50 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report <Dipole Verification Data> - D835V2, serial no. 4d091 835MHz - Head 835MHz – Body SPORTON INTERNATIONAL (KUNSHAN) INC. TEL : 86-0512-5790-0158 FAX : 86-0512-5790-0958 D835V2, Serial No. 4d091 Extended Dipole Calibrations Referring to KDB 865664 D01 v01r01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> '9ದVHULDOQRG  +HDG%RG\ 'DWHRI 0HDVXUHPHQW 5HWXUQ/RVV G%  'HOWD  5HDO ,PSHGDQFH RKP  'HOWD RKP ,PDJLQDU\ ,PSHGDQFH RKP  'HOWD RKP 5HWXUQ/RVV G%  'HOWD  5HDO ,PSHGDQFH RKP  'HOWD RKP  ,PDJLQDU\ ,PSHGDQFH RKP  'HOWD RKP         The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (KUNSHAN) INC. TEL : 86-0512-5790-0158 FAX : 86-0512-5790-0958 <Dipole Verification Data> - D835V2, serial no. 4d091 835MHz - Head 835MHz – Body SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report D1900V2, serial no. 5d118 Extended Dipole Calibrations Referring to KDB 865664D01V01r01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1900V2 – serial no. 5d118 ġ 1900 Head 1900 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 11.21.2011 -22.535 ġ53.449 ġ6.9277ġ-22.401 ġ47.82 ġ 7.1133ġ 11.17.2012 -22.603 0.3053.491 -0.047.10090.17-22.45 0.2246.14 -1.68 6.7234-0.39 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration.   SPORTON INTERNATIONAL (SHENZHEN) INC.           FCC Test Report <Dipole Verification Data>- D1900V2, serial no. 5d118 1900MHz – Head 1900MHz - Body SPORTON INTERNATIONAL (KUNSHAN) INC. TEL : 86-0512-5790-0158 FAX : 86-0512-5790-0958 D1900V2, Serial No. 5d118 Extended Dipole Calibrations Referring to KDB 865664 D01 v01r01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> '9ದVHULDOQRG  +HDG%RG\ 'DWHRI 0HDVXUHPHQW 5HWXUQ/RVV G%  'HOWD  5HDO ,PSHGDQFH RKP  'HOWD RKP ,PDJLQDU\ ,PSHGDQFH RKP  'HOWD RKP 5HWXUQ/RV V G%  'HOWD   5HDO ,PSHGDQFH RKP  'HOWD RKP  ,PDJLQDU\ ,PSHGDQFH RKP  'HOWD RKP         The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (KUNSHAN) INC. TEL : 86-0512-5790-0158 FAX : 86-0512-5790-0958 <Dipole Verification Data>- D1900V2, serial no. 5d118 1900MHz – Head 1900MHz - Body

SPORTON INT TEL : +86-755- FCC ID : YHLB The p SPOR has b applic The te appro repro Re v Ap No. 3 Buil TERNATIONAL -3320-2398 BLUSTAR40 FCC RF APPLIC EQUIPM BRAND MODEL FCC ID STANDA CLASSI product was RTON INTER been evaluat cable techn est results i oval of SPO oduced exce viewed by: J pproved by: SP lding, the th L (SHENZHEN) F Test Rep FCC CANT MENT D NAME L NAME ARD IFICATION received on RNATIONAL ted in accor ical standar n this repor ORTON INT ept in full. Joseph Lin / : Jones Tsai PORTON hird floor of INC. port C RF : : : : : Y : N : n Dec. 18, 20 L (SHENZHE rdance with rds. rt apply excl ERNATION A / Supervisor i / Manager INTERNA south, Shah Shenzhe Tes CT Asia Mobile Ph BLU Star 4.0 YHLBLUS FCC Part (DTS) Dig 013 and tes EN) INC., wo the proced lusively to th AL (SHENZ r NATIONAL he River wes en, Guangdo t Re hone STAR40 15 Subpa gital Trans ting was co ould like to d ures and sh he tested m HEN) INC., L (SHEN st, Fengzey ong, P.R.C. Page Numb Report Issu Report Vers R port rt C §15.2 mission S mpleted on declare that hown to be c odel / samp the test re NZHEN) IN yuan wareho ber : 1 o ued Date : Ja sion : Re Report No. : 247 System Dec. 25, 20 the tested compliant w ple. Without eport shall NC. ouse, Nansh of 55 n. 09, 2014 ev. 01 FR3D1802B 13. We, sample with the written not be han District, B SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 55 TEL : +86-755-3320-2398 Report Issued Date : Jan. 09, 2014 FCC ID : YHLBLUSTAR40 Report Version : Rev. 01 FCC RF Test Report Report No. : FR3D1802B TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Product Specification of Equipment Under Test ................................................................................ 5 1.5 Modification of EUT ................................................................................................................…

Text truncated - open the document above for the full version.
