YHLBLUSTUDIOGSM850/1900/GPRS/EDGE/UMTS850/HSDPA/HSUPA mobile

User Manual 1 User Manual User Manual 2 Contents 1. Appearance and Keypad Operations ............................................................................................................ 3 2. Using Memory Card as U Disk ......................................................................................................................... 4 3. Wi-Fi .................................. .........................................................................................................5 4. Bluetooth ...................... ............................................................................................................7 5. Mail ............................................................................................................................................................................. 8 6. Dialing .......................................................................................................................................................................... 9 7. Messaging ................................................................................................................................................................ 12 8. Contacts .................................................................................................................................................................... 14 9. Internet Explorer .................................................................................................................................................... 16 10. Recorder ................................................................................................................................................................. 17 11. Clock ......................................................................................................................................................................... 18 12. Caculator ................................................................................................................................................................ 19 13. Camera ................................................................................................................................................................... 20 14. Images..................................................................................................................................................................... 22 15. Music ........................................................................................................................................................................ 24 16. Calendar ................................................................................................................................................................. 27 17. FM Radio ............................................................................................................................................................... 28 18. Settings ................................................................................................................................................................... 29 19. Notices for the use of phone ......................................................................................................................... 33 User Manual 3 1. Appearance and Keypad Operations Keys Functions Home  Press this button to return home from any application or interface.  Press it to open recently opened application window. Menu  Press it to start the menu，which allows you to perform actions in the current interface or options’ menu. Back  Press it to return to the previous interface，or to close dialog box 、 options’ menu、notification panel or the keypad. Search  For more information, please read 「searching button」. Mute  Press it to switch the sound mode and silent mode Power  Press it to open the phone’s menu，then you could choose to lock the screen、 turn off the phone，or set it to the silent mode . UP  Press it to increase the volume  Press it to turn the phone to vibration mode from the silent mode. Down  Press it to decrease the volume. Proximity Sensor  Cover it, and then the phone’s backlight will turn off. Front Camera  Entering the camera interface, switched to the front camera can photo yourself. LED Light  Display mobile phone status and prompt unread messages User Manual 4 2. Using Memory Card as U Disk If you want to send music, pictures or other files to the phone’s memory card from the computer，you should set memory card as u disk first. Set memory card as u disk 1) Connect the phone to the computer with USB cable. The notification icon will appear in the status box. 2) Open the notification panel. 3) In the notification panel, touch USB is connected ，then touch“Open the USB Storage Device”. 4) The USB cable should be the shielded with four cores cable.  Notices：If you connect your phone to the computer then choose open the USB device, the phone can’t read the memory card. You temporarily can not use some applications, such as camera.  Uninstall the U Disk from computer The same as the method of connecting it，see the following picture: User Manual 5 3. Wi-Fi Wi‐Fi provides as far as 300feet (100M) range of wireless network access. If you use cell phone to connect Wi‐Fi, you should connect to the wireless access point or 「hot spots」.  Notices：The availability and coverage of Wi‐Fi signal depend on the number, infrastructure and other objects penetrated by the signal. Open Wi‐Fi and to connect to the wireless network 1) Press home>menu，then touch settings> Wi‐Fi and internet 2) Select the Wi‐Fi box，to open Wi‐Fi. Phone will automatically scan for available wireless networks. 3) Touch Wi‐Fi settings. Then a list of Wi‐Fi network will show the founded network name and security settings. (open network or WEP、WPA/WPA2 with password).If you enable the notification in Wi‐Fi settings, the status box will show this icon () when open available wir…

Text truncated - open the document above for the full version.

Rev. 1/1/03 CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198 ; Fax: 852-27931197 Date: December 29, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YHLBLUSTUDIO Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: Studio 5.3_Schem.pdf) Block Diagram (file: Studio 5.3_BlkDia.pdf) Parts List (file: Studio 5.3_PartsLst.pdf) Operation Description (file: Studio 5.3_OpDes.pdf) Tune up Procedure (file: Studio 5.3_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Chris Chan

1/2 CT Asia Date: December 29, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : YHLBLUSTUDIO To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which CT Asia deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Chris Chan Company: CT Asia TEL: 852-27931198 FAX: 852-27931197 2/2 E-mail: [email protected]

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198; Fax: 852-27931197 Date: December 29, 2011 Power of Attorney To whom it may concern, Please be notified that I, Chris Chan, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: YHLBLUSTUDIO If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Chris Chan Company: CT Asia TEL: 0852-27931198 FAX: 0852-27931197 E-mail: [email protected]

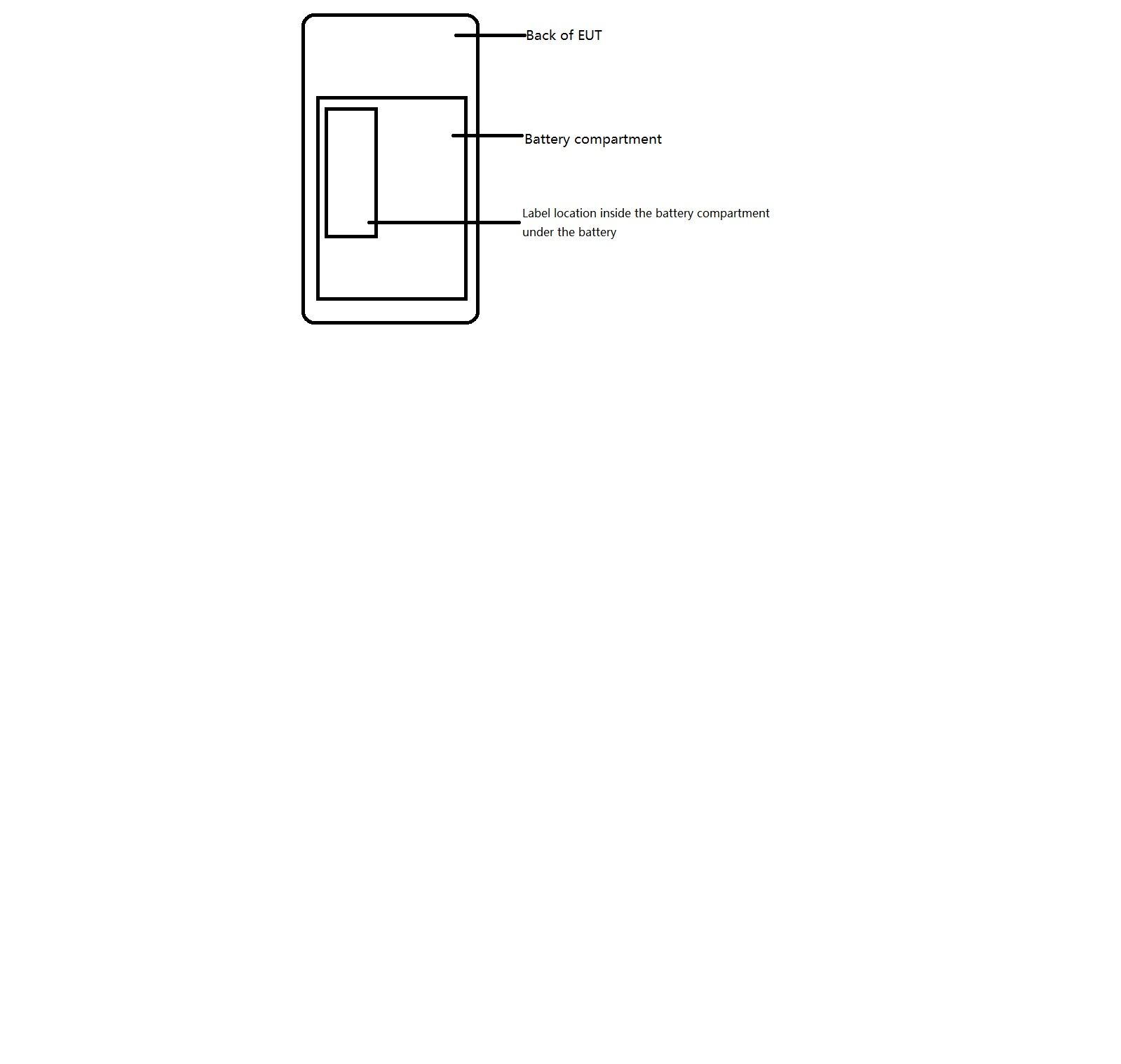

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198 ; Fax: 852-27931197 Date: December 29, 2011 Statement We, CT Asia, states that our device, FCC ID: YHLBLUSTUDIO, has no space to put the label except the battery compartment of this device. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, ________________________ Chris Chan

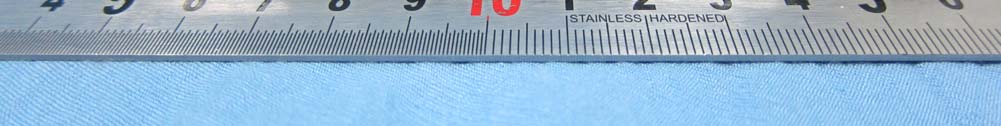

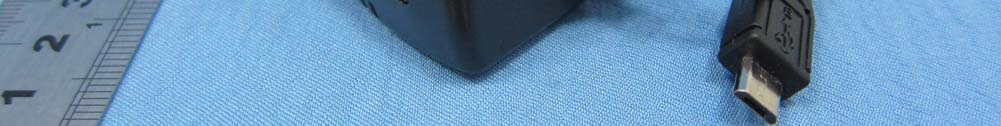

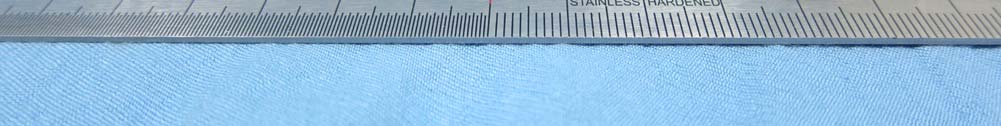

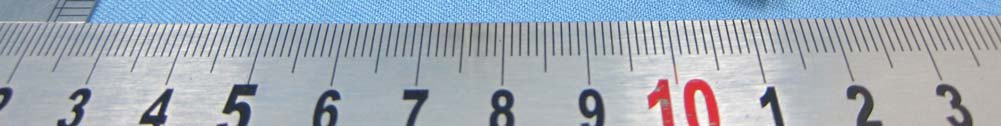

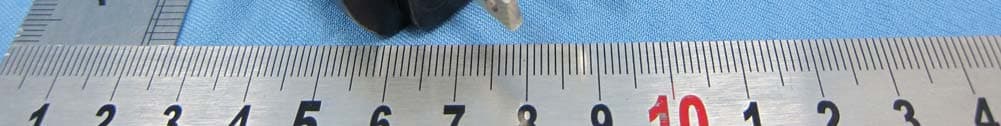

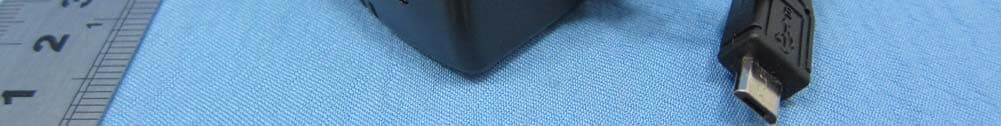

Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO 1. External Photograph of EUT Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO List of Accessory: Specification of Accessory AC Adapter Brand Name BLU Model Name US200507 Battery Brand Name BLU Model Name C835405250T USB Cable Type 1.06m shielded with cores Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO Photographs of EUT Report No.: EP1D0806 Brand Name: BLU / Model Name: Studio 5.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 33 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 38 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO FCC SAR Test Report Report No. : FA1D0806 FCC SAR Test Report APPLICANT : CT Asia EQUIPMENT : GSM850/1900/GPRS/EDGE/UMTS850/HSDPA/HSUPA mobile BRAND NAME : BLU MODEL NAME : Studio 5.3 FCC ID : YHLBLUSTUDIO STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Dec. 08, 2011 and completely tested on Dec. 31, 2011. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 38 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO FCC SAR Test Report Report No. : FA1D0806 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Device Under Test (DUT) .................................................................................................................6 3.2 Product Photos .......................................................................................................................................................7 3.3 Applied Standards ...................................................................................................................................................7 3.4 Device Category and SAR Limits ............................................................................................................................7 3.5 Test Conditions ........................................................................................................................................................7 4. Specific Absorption Rate (SAR) ....................................................................................................................................8 4.1 Introduction .............................................................................................................................................................8 4.2 SAR Definition .........................................................................................................................................................8 5. SAR Measurement System ............................................................................................................................................9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder .......................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. Uncertainty Assessment .............................................................................................................................................20 8. SAR Measurement Evaluation ....................................................................................................................................22 8.1 Purpose…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A1 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO FCC SAR Test Report Report No. : FA1D0806 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-19 System Check_Head_835MHz_111219 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_111219 Medium parameters used: f = 835 MHz; σ = 0.908 mho/m; ε r = 41.652; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.542 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.413 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.467 W/kg SAR(1 g) = 2.26 mW/g; SAR(10 g) = 1.47 mW/g Maximum value of SAR (measured) = 2.440 mW/g 0 dB = 2.440mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-19 System Check_Head_1900MHz_111219 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_111219 Medium parameters used: f = 1900 MHz; σ = 1.419 mho/m; ε r = 40.609; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.46, 7.46, 7.46); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 10.851 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.252 V/m; Power Drift = -0.005 dB Peak SAR (extrapolated) = 18.104 W/kg SAR(1 g) = 9.58 mW/g; SAR(10 g) = 4.93 mW/g Maximum value of SAR (measured) = 10.782 mW/g 0 dB = 10.780mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-26 System Check_Head_2450MHz_111226 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_111226 Medium parameters used: f = 2450 MHz; σ = 1.825 mho/m; ε r = 39.664; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.67, 6.67, 6.67); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 15.796 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.004 V/m; Power Drift = 0.00012 dB Peak SAR (extrapolated) = 30.433 W/kg SAR(1 g) = 13.6 mW/g; SAR(10 g) = 6.09 mW/g Maximum value of SAR (measured) = 15.454 mW/g 0 dB = 15.450mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-31 System Check_Body_835MHz_111231 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_111231 Medium parameters used: f = 835 MHz; σ = 0.977 mho/m; ε r = 54.395; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.722 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.803 V/m; Power Drift = -0.00015 dB Peak SAR (extrapolated) = 3.714 W/kg SAR(1 g) = 2.52 mW/g; SAR(10 g) = 1.67 mW/g Maximum value of SAR (measured) = 2.709 mW/g 0 dB = 2.710mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-31 System Check_Body_1900MHz_111231 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_111231 Medium parameters used: f = 1900 MHz; σ = 1.512 mho/m; ε r = 53.903; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.96, 6.96, 6.96); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.418 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.326 V/m; Power Drift = 0.0011 dB Peak SAR (extrapolated) = 18.453 W/kg SAR(1 g) = 10 mW/g; SAR(10 g) = 5.19 mW/g Maximum value of SAR (measured) = 11.223 mW/g 0 dB = 11.220mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-31 System Check_Body_2450MHz_111231 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_111231 Medium parameters used: f = 2450 MHz; σ = 1.939 mho/m; ε r = 53.98; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : B1 of B1 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 06, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSTUDIO FCC SAR Test Report Report No. : FA1D0806 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-19 #01 GSM850_Right Cheek_Ch251 DUT: 1D0806 Communication System: General GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_111219 Medium parameters used: f = 849 MHz; σ = 0.922 mho/m; ε r = 41.484; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Ch251/Area Scan (71x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.135 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.208 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.160 W/kg SAR(1 g) = 0.133 mW/g; SAR(10 g) = 0.100 mW/g Maximum value of SAR (measured) = 0.138 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-19 #01 GSM850_Right Cheek_Ch251 DUT: 1D0806 Communication System: General GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.30042 Medium: HSL_850_111219 Medium parameters used: f = 849 MHz; σ = 0.922 mho/m; ε r = 41.484; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Ch251/Area Scan (71x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.135 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.208 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.160 W/kg SAR(1 g) = 0.133 mW/g; SAR(10 g) = 0.100 mW/g Maximum value of SAR (measured) = 0.138 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-19 #02 GSM850_Right Tilted_Ch251 DUT: 1D0806 Communication System: General GSM; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_111219 Medium parameters used: f = 849 MHz; σ = 0.922 mho/m; ε r = 41.484; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Ch251/Area Scan (71x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.089 mW/g Ch251/Zoom Scan (5x5x7)/…

Text truncated - open the document above for the full version.
