YHLBLUSTX10Smart Phone (WCDMA/GSM/BT/WIFI)

BLU Products, Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: May 12, 2020
Application Purpose: Original Equipment
Date of Application: May 12, 2020
Equipment Note: Smart Phone (WCDMA/GSM/BT/WIFI)
Frequency Range: 2412.00000000 - 2462.00000000
Company: BLU Products, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 Contents FCC ID:YHLBLUSTX10 Get Started ............................................................................. 2 Insert SIM card ........................................................ 2 Insert Micro SD card ................................................ 2 Charge Mobile Phone ............................................... 3 PC-Phone File Transfer ............................................ 4 Keys and Parts ....................................................................... 6 Lock and Unlock the Screen .................................................. 9 Notification Panel ................................................................ 10 Arranging and Rearranging Widgets and Icons ................. 12 Adding Folders on your Screen ........................................... 14 Adjusting Brightness ........................................................... 15 Changing your Wallpaper ................................................... 16 Make a Call .......................................................................... 17 Call Log ................................................................................ 18 Reject a Call by Sending a Busy Message ........................... 19 Add a Contact ...................................................................... 19 Messaging............................................................................. 20 Receiving a New Message ...................................... 20 Editing SMS and MMS .......................................... 21 Message conversations ........................................... 21 Browse the Web ................................................................... 22 Enjoy Music ......................................................................... 23 Download Applications on Google Play .............................. 24 Manage Applications ........................................................... 26 Maintenance & Safety ......................................................... 27 2 Get Started Insert SIM card You must insert the SIM card before using the phone. 1. Switch off the mobile phone. 2. Insert the SIM card correctly in the card slot. Insert Micro SD card The phone supports MicroSD card, which is a 3 multimedia memory card used to multiply the memory of the device. Please follow the instructions as above mentioned. Charge Mobile Phone Your phone is powered by a rechargeable battery. If your phone comes up a message which notifies 4 you that the battery power is too low, at that moment, please recharge the battery, if the charge is too low, it may shorten the life of the battery. PC-Phone File Transfer Once the mobile phone is connected to a PC with USB, the PC will charge the mobile phone 5 automatically. In such case, USB computer connection will appear on your screen. 1. Drag the notification panel down and tap USB charging this device. 2. Select Connect as Media device (MTP). 3. The device is recognized as a Removable Disk by the computer. Open the folder and transfer or copy files from your phone to PC and vice-versa. 6 Keys and Parts The phone has an exceptional user experience on Camera, Video recorder, FM radio, Music and Sound recorder. Install various APPs, games, and more (supports APK format) by downloading on Google Play. 1.Headset port To connect an earphone so you 12 13 10 1 5 8 11 6 7 11 3 10 9 4 2 7 can listen to music or radio, etc. 2.Receiver To hear the voice of the other side when calling. 3.USB jack To connect charger or USB data cable for data exchange. 4.Front Camera Allow you to take pictures while facing the screen. 5.Return Go back to the previous screen; Close the on-screen keypad, a dialog box, an options menu, or the notification panel. 6. Home Key Go to home screen; Press and hold to open Google assistant. 7.Menu Switch to recently used applications. 8.Mic To record your voice. 9.Volume Up/Down Key To adjust the ringer volume, adjust the voice volume during a call and adjust media volume. 10. Power Key Switch the phone on or off. Press and hold to open phone options menu. 11.Back Camera lens For taking photos. 12.Flashlight To take photos in low-light conditions. 8 13.Loud speaker To listen to music, and other sounds offered by your phone. 9 Lock and Unlock the Screen Press power button to enter Sleep mode and meanwhile the screen will be locked; press power button again to wake up and then drag the lock upward to unlock. 10 Notification Panel Notification icons on the status bar report the new arrival of messages, calendar events, alarm set and ongoing settings such as when call forwarding is on or the current call status. You can open the Notifications panel to open the message, reminder, or event notification and see the mobile operator’s name. Even you can switch on Data connection, WLAN, Bluetooth, etc. -> Opening the Notifications panel Press and hold the status bar, slide your finger downward to open the Notifications panel. If you have several notifications, you can scroll down the status bar to view more notifications. -> Closing the Notifications panel Do one operation of the following: 1. Press and hold the bottom bar of the Notifications panel, then slide your finger up the screen. 2. Press BACK or Home directly. 11 12 Arranging and Rearranging Widgets and Icons Rearrange the widgets and icons on your Home screen to give room for adding more items to the Home screen. -> Press and hold the widget or icon you are desired to move. -> Drag the widget or icon to a new location on the screen. Pause at the left or right edge of the screen to drag the widget or icon onto another Home screen panel. -> When the widget or icon is where you are desired to put it, release your finger. If you've released your finger but a message shows that there's no space to place the widget or icon, drag it right or left again to another Home screen panel. 13 14 Adding Folders on your Screen Use folders to group related applications and other shortcuts to keep your H…

Text truncated - open the document above for the full version.

Cover Letter(s)

Date: 2020/04/20 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: BLU Products, Inc. FCC ID: YHLBLUSTX10 Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. BLU Products, Inc. requests that the following documents regarding this submission for FCC ID: Y HLBLUSTX10 be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematic.pdf Operational Description Operational description.pdf Part list BOM.pdf T hose documents contain detailed system and equipment description and related information about the product which BLU Products, Inc. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, BLU Products, Inc. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Contact name: Wei Zeng Title: Senior Manager Tel: 3057157171 Email: [email protected] Company name: BLU Products, Inc.

Cover Letter(s)

BLU Products, Inc. Date: 2020/04/20 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To whom it may concern, T he BLU Products, Inc., the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Moriah Communications Technology Co., Ltd., to act on the behalf of the BLU Products, Inc. solely in matters relating to the application for an FCC equipment authorization for FCC ID: YHLBLUST X 10 including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Moriah Communications Technology Co., Ltd. on our behalf of the BLU Products, Inc. in connection with the Application shall have the same effect as acts of the BLU Products, Inc .. BLU Products, Inc. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. T hank you for your attention to this matter. Yours Sincerely, Signatory: Contact name: Wei Zeng Ti tle: Senior Manager Tel: 3057157171 Email: [email protected] Company name: BLU Products, Inc.

Cover Letter(s)

Declaration To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: YHLBLUSTX10 Don't operate on Channels 12 and 13. US 2.4G channel 12-13 and Country code selection are disabled t hrough proprietary software and are not user changeable Should you have any questions, please feel free to contact me. Date:2020/4/20 Signature : Title: Senior Manager Company name: BLU Products, Inc.

External Photos

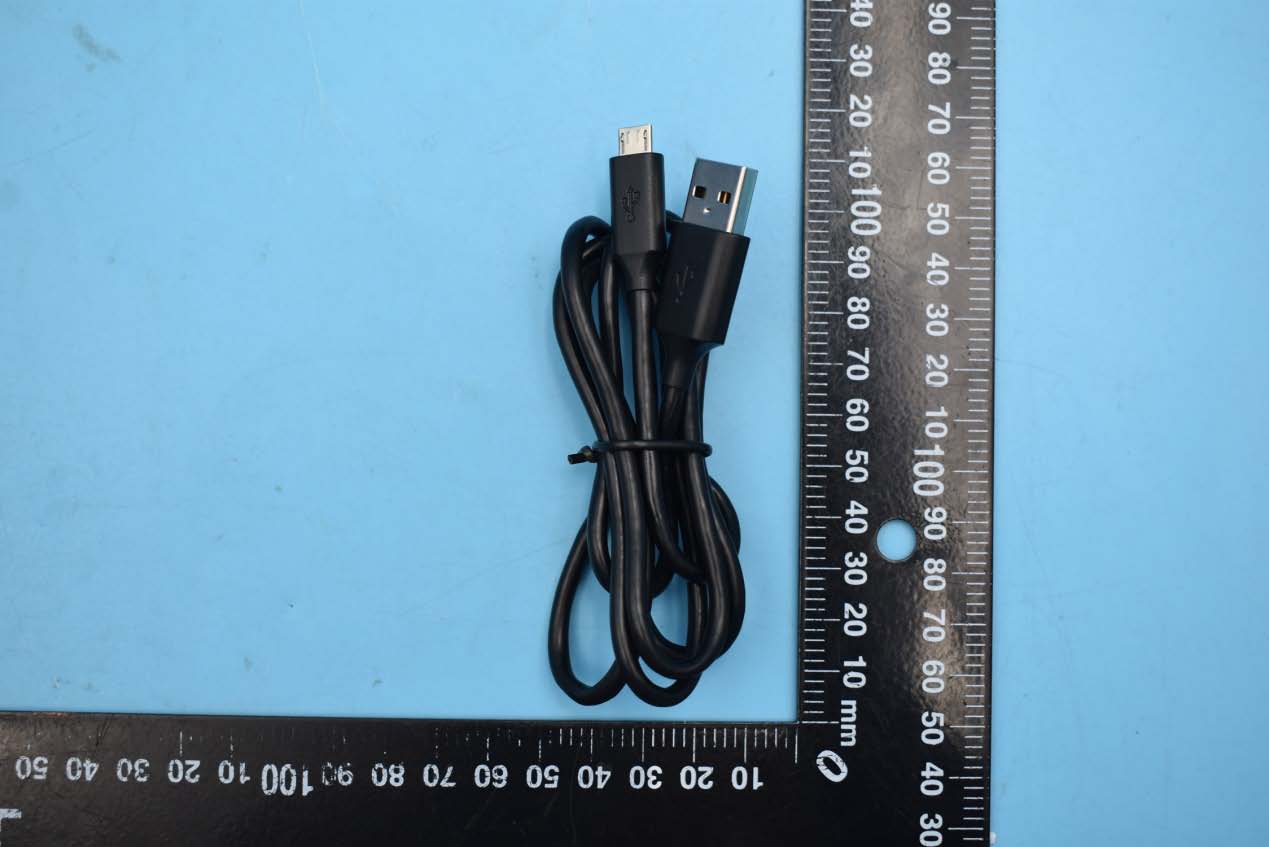

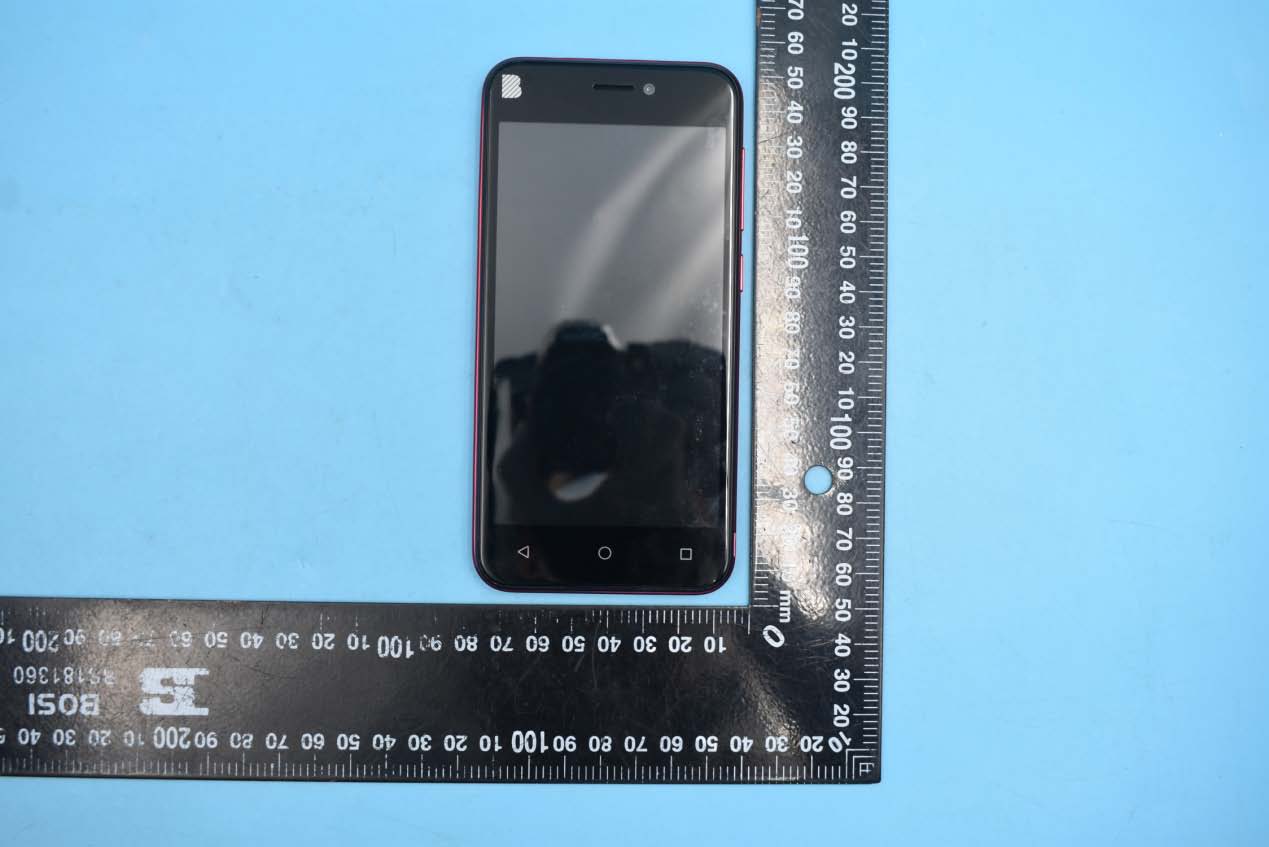

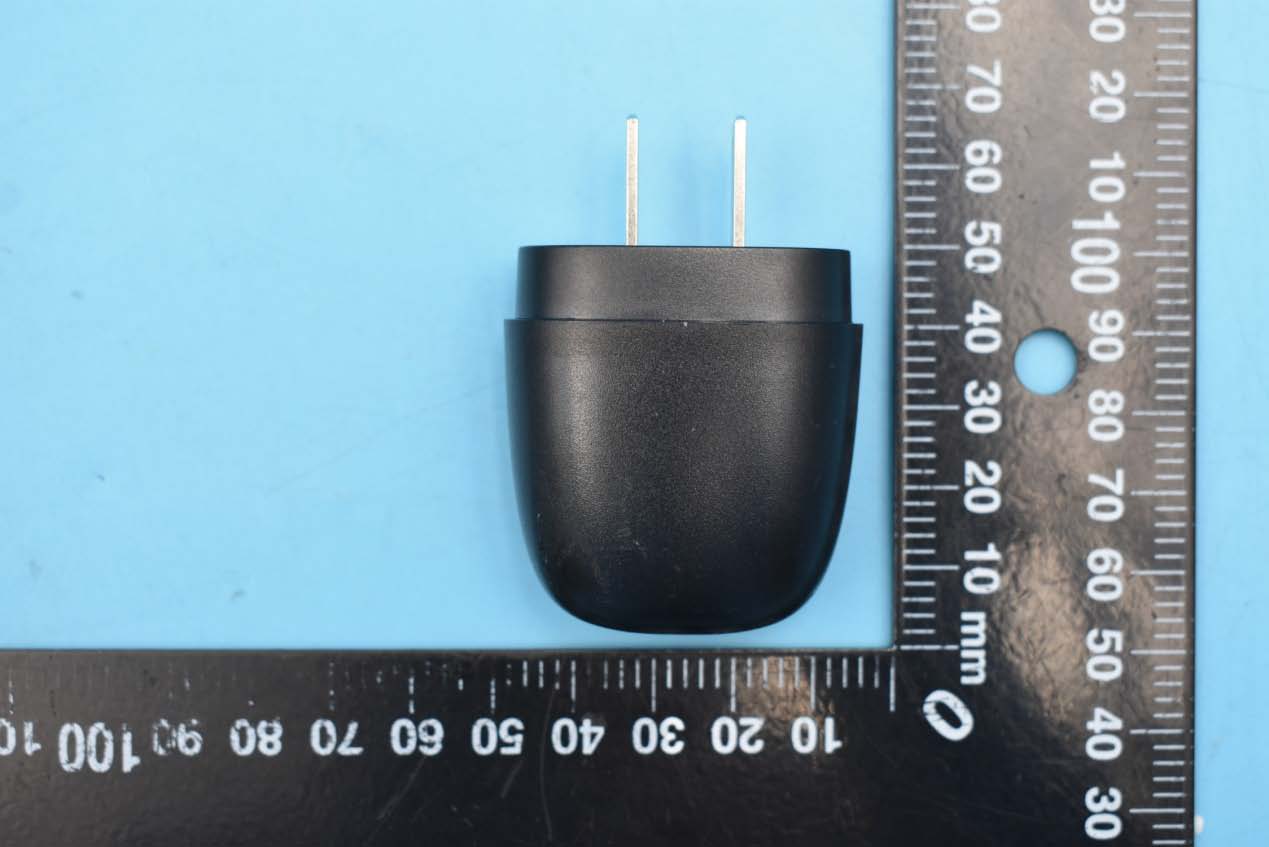

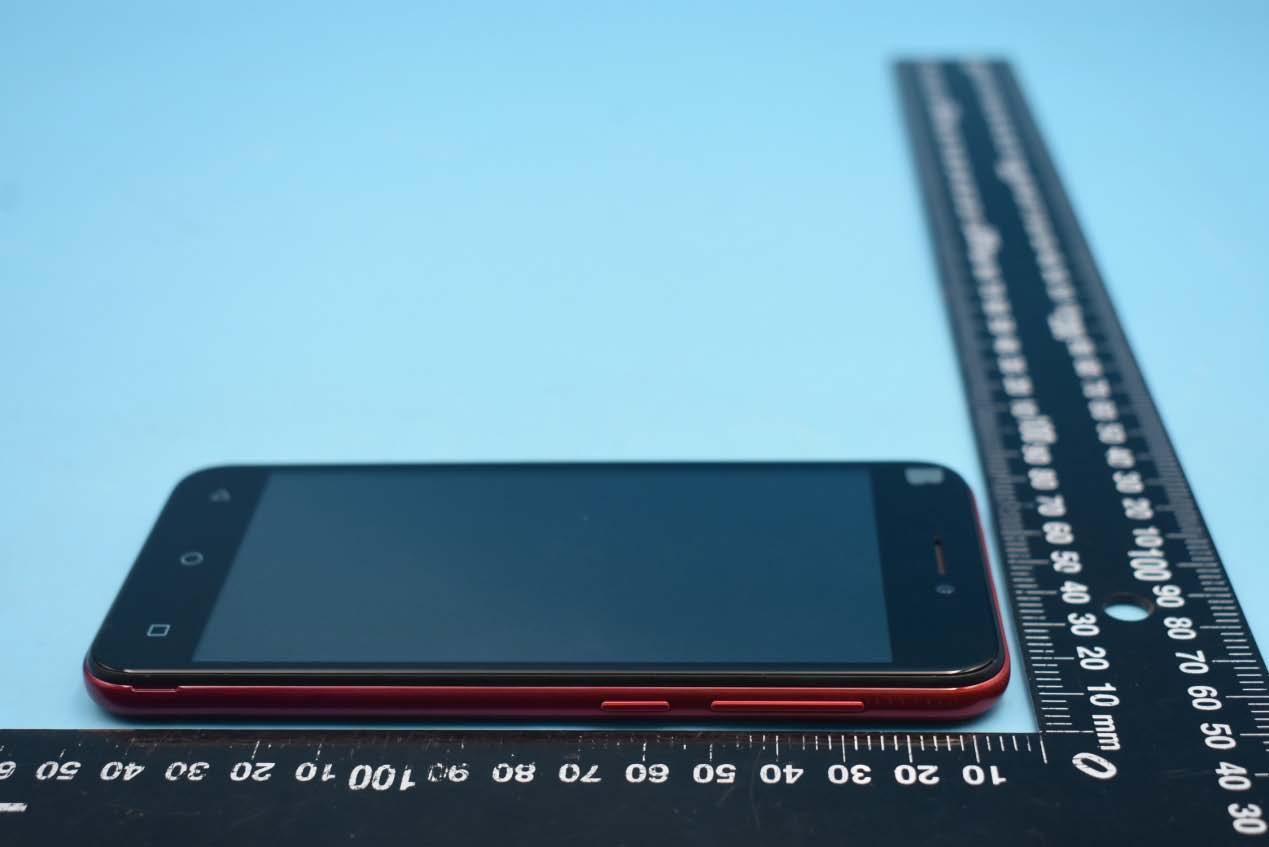

FCC ID:YHLBLUSTX10 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Ports and headphone jack supported by this device 8. Accessories

ID Label/Location Info

BLU Products, Inc. Label Label Location

Internal Photos

FCC ID:YHLBLUSTX10 Internal Photos 1. EUT uncover view 2. Antenna view BT/WIFI Antenna Main Antenna

RF Exposure Info

MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Te l : 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ20030044S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: SAR Lab. of Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.04.02 GSM850_GPRS(3 TX slots)_Right Cheek_Ch128 Communication System: UID 0, GSM850(class 11) (0); Frequency: 824.2 MHz;Duty Cycle: 1:2.77 Medium: HSL_835 Medium parameters used: f = 824.2 MHz; σ = 0.893 S/m; ε r = 41.333; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(9.3, 9.3, 9.3); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2019.04.11 - Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1471 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch128/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.420 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.062 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.443 W/kg SAR(1 g) = 0.411 W/kg; SAR(10 g) = 0.370 W/kg Maximum value of SAR (measured) = 0.420 W/kg 0 dB = 0.420 W/kg Test Laboratory: SAR Lab. of Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.04.03 GSM1900_GPRS(3 TX slots)_Left Cheek_Ch512 Communication System: UID 0, PCS1900(class 11) (0); Frequency: 1850.2 MHz;Duty Cycle: 1:2.77 Medium: HSL_1900 Medium parameters used: f = 1850.2 MHz; σ = 1.282 S/m; ε r = 41.338; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.74, 7.74, 7.74); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2019.04.11 - Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1471 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch512/Area Scan (71x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.194 W/kg Ch512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.139 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.185 W/kg SAR(1 g) = 0.172 W/kg; SAR(10 g) = 0.100 W/kg Maximum value of SAR (measured) = 0.190 W/kg 0 dB = 0.190 W/kg Test Laboratory: SAR Lab. of Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.04.03 WCDMA Band II_RMC 12.2Kbps_Left Cheek_Ch9400 Communication System: UID 0, UMTS-FDD (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_1900 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 41.384; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.74, 7.74, 7.74); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2019.04.11 - Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1471 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch9400/Area Scan (71x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.357 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.465 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.335 W/kg SAR(1 g) = 0.332 W/kg; SAR(10 g) = 0.195 W/kg Maximum value of SAR (measured) = 0.357 W/kg 0 dB = 0.357 W/kg Test Laboratory: SAR Lab. of Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.04.02 WCDMA Band V_RMC 12.2Kbps_Right Cheek_Ch4132 Communication System: UID 0, UMTS-FDD (0); Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium: HSL_835 Medium parameters used: f = 826.4 MHz; σ = 0.895 S/m; ε r = 41.189; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(9.3, 9.3, 9.3); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2019.04.11 - Phantom: SAM 1; Type: QD000P40CC; Serial: TP:1471 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch4132/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.520 W/kg Ch4132/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.200 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.548 W/kg SAR(1 g) = 0.513 W/kg; SAR(10 g) = 0.459 W/kg Maximum value of SAR (measured) = 0.526 W/kg 0 dB = 0.526 W/kg Test Laboratory: SAR Lab. of Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.04.07 WLAN 2.4GHz_802.11b 1Mbps_Right Cheek_Ch13 Communication System: UID 0, WLAN 2.4GHz 802.11b (0); Frequency: 2472 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used: f = 2472 MHz; σ = 1.897 S/m; ε r = 37.788; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3823; ConvF(7.3, 7.3, 7.3); Calibrated: 2020.01.03; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn480; Calibrated: 2019.04.11 - Phantom: SAM 2; Type: QD000P40CC; Serial: TP:1464 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch13/Area Scan (81x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.767 W/kg Ch13/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.613 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 1.64 W/kg SAR(1 g) = 0.669 W/kg; SAR(10 g) = 0.277 W/kg Maximum value of SAR (measured) = 0.768 W/kg 0 dB = 0.768 W/kg Test Laboratory: SAR Lab. of Shenzhen Morlab Communications Technology Co., Ltd. Date: 2020.04.02 GSM850_GPRS(3 TX slots)_Back Side_10mm_Ch128 Communi…

Text truncated - open the document above for the full version.

RF Exposure Info

-40 - In Collaboration with vr ch M., I "T CALIBRATION LABORATORY L 'TWA Add: N5 1 Xueyuan Road, Haidian District, Beijing, 100191, China vnLionn i IVI\ Tel: +86-10-62304633-2079 Fax86-10-62304633-2504 h h, I, %'W"' 1NAb LUO/U E-mail: [email protected] http://www.chinattl.cn Cl ient KEHU Certificate No: Z18-60197 CALIBRATION CERTIF-CATE Object Ca libration Procedure(s) Ca-ibration Procedures for dipole validation kits Calibration date This calibration Certificate documents the traceabi-ity to nationa standards, which realize the phys cal un its of measurements(S I). The measurements and the uncertainties with confidence probability are g iven on the fol lowing pages and are part of the certificate A l l calibrations have been conducted in the closed laboratory fac ility: env ironment temperature(223)C and humidity<70%. Calibration Equipment used (M&TE critical for calibration) Primary Standards ID # Cal Date(Cal ibrated by, Certificate N Scheduled Calibration Power Meter NRVD Power sensor NRV-Z5 Reference Probe EX3DV4 DAE4 Secondary Standards 102083 01-Nov-17 (CTTL, No.J17X08756) Oct-18 100542 01-Nov-17 (CTTL, No.JI7X08756) Oct-18 SN 7464 12-Sep-I 7(SPEAG, No. EX3-7464-Sep17) Sep-18 SN 1525 02-Oct-17(SPEAG,No.DAE4-1525_Oct17) Oct-18 ID # Cal Date(Calibrated by, Certificate No.) Scheduled Calibration Signa-Generator E4438C NetworkAnalyzer E5071 C MY49071430 23-Jan-18 (CTTL, N J18X00560) Jan-19 MY46110673 24-Jan-18 (CTTL, No.J18X00561) Jan-19 Name Function Signature Calibrated by: Zhao Jing SAR Test Engineer v \ fx f i7 v Reviewed by Approved by Issued: June 26, 2018 This calibration certificate shall not be reproduced except in full without written approval of the laboratory Certificate No: Z18-60197 Page 1 of 8 In Collaboration with se CAUBRATION LAORATORY Add: No.5 I Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn ssary: TSL ConvF sensitivity in TSL / NORMx,y,z N/A not applicable or not measured Calibration is Performed According to the Flowing Standards: a) IEEE Std 1528-2013, "IEEE Recommended Practice for Determining the Peak SpatiaAveraged Specific Absorption Rate (SAR n the Human Head from Wireless Commun ications Devices: Measurement Techn iques", June 2013 b) IEC 62209-1, "Measurement procedure for assessment of specific absorption rate of human exposure to rad frequency fields from hand-held and body-mounted w-reless commun ication devices- Part 1: Device used next to the ear (Frequency range of 300MHz to 6GHz)", July 2016 c) IEC 62209-2, "Procedure to measure the Specific Absorption Rate (SAR) For wireless commun ication devices used in close proxim ity to the human body (frequency range of 30MHz to 6GHz)", March 2010 d) KDB865664, SAR Measurement Requirements for 100 MHz to 6 GHz Additional Documentation: e) DASY4/5 System Handbook Methods App-ied and Interpretation of Parameters: . Measurement Conditions: Further details are available from the Validation Report at the end of the certificate. Al l figures stated in the certificate are valid at the frequency indicated. . Antenna Parameters with TSL: The dipole is mounted with the spacer to position its feed point exactly below the center mark-ng of the flat phantom section, with the arms oriented parallel to the body axis. . Feed Point Impedance and Return Loss: These parameters are measured with the d ipole positioned under the liqu id filled phantom. The impedance stated is transformed from the measurement at the SMA connector to the feed point. The Return Loss ensures low reflected power. No uncerta inty requ ired. Electrical Delay: One-way delay between the SMA connector and the antenna feed point No uncertainty requ ired. SAR measured: SAR measured at the stated antenna input power. SAR normalized: SAR as measured, normalized to an input power of 1 W at the antenna connector. . SAR for nominal TSL parameters: The measured TSL parameters are used to calcu late the nominal SAR resu lt. The reported uncertainty of measurement is stated as the standard uncertainty of Measurement mu ltiplied by the coverage factor k=2, wh ich for a norma l d stribution Corresponds to a coverage probability of approximately 95% Certificate No: Z18-60197 Page 2 of 8 In Collaboration wi 17z CALIBRATION LABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-1062304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Measurement Conditions Q991L991p9 DASY Version DASY52 52.10.1.1476 Extrapolation Advanced Extrapolation Phantom Triple F lat Phantom 5.1C l Distance Dipole Center - TSL 10 mm with Spacer Zoom Scan Resolution dx, dy, dz = 5 mm Frequency 1900 MHz 1 MHz I Head TSL parameters SAR result with Head TSL SAR averaged over 1 cm3 (1 g) of Head TSL Condition SAR measured 250 mW input power9.74mW/g SAR for nomina l Head TSL parameters norma lized to 1W 39.5mW/g18.8 % (k=2) SAR averaged over 10 cm3 (10 g) of Head TSL Condition SAR measured 250 mW input power5.10mW/g SAR for nomina l Head TSL parameters normal ized to 1W 20.6 mW /g 18.7 % (k=2) Body TSL parameters SAR result with Body TSL SAR averaged over 1 Cm3 (1 g) of Body TSL Condition SAR measured 250 mW nput power I 10.1 mW / g SAR for nomina l Body TSL parameters normal ized to 1W 39.9 mW /g18.8 % (k=2) I SAR averaged over 10 cm3 (10 g) of Body TSL SAR measured 250 mW input power I 5.21 mW / g L4 SAR for nomina Body TSL parameters normalized to 1W 120.7 mW /g t 18.7 % (k=2) Certificate No: Z18-60197 Page 3 of 8 In Collaboration with CALIBRATION LABORATORY Add: No.51 Xueyuan Road, Haidian District, Beijing, 100191, China Tel86-10-62304633-2079 Fax86-10-62304633-2504 E-mail: [email protected] http://www.chinattl.cn Appendix (Additiona-assessments outside the scope of CNAS L0570) Antenna Parameters with Head TSL -mpedance, transformed to feed point53.40+ 6.62j0 Return Loss -22.9dB Antenna Parameters with Body TSL Impedance, transformed to fe…

Text truncated - open the document above for the full version.

RF Exposure Info

Annual validation for test lab. Appendix Annual validation for Test Lab. General calibration information Date 2019.10.22 Test Laboratory ShenZhen Morlab Communications Technology Co., Ltd. Antenna serial No. D2450V2-SN:997 Antenna Parameters with Head TSL Impedance, transformed to feed point 47.04Ω-2.73jΩ Return Loss -34.36dB General Antenna Parameters and Design Electrical Delay (one direction) 1.276 ns After long term use with 100W radiated power，only a slight warming of the dipole near the feed point can be measured The dipole is made of standard semirigid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC-signals. On some of the dipoles, small end caps are added to the dipole arms in order to improve matching when loaded according to the position as explained in the "Measurement Conditions" paragraph. The SAR data are not affected by this change. The overall dipole length is still according to the Standard No excessive force must be applied to the dipole arm， because they might bend or the soldered connections near the feed point may be damaged . Annual validation for test lab. Annual validation for test lab. Appendix Impedance Measurement Plot for Head TSL

RF Exposure Info

NOTE: This document is issued by MORLAB, the test report shall not be r eproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1- 3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755 -36698555 Fax: 86- 755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 66 REPORT No .：SZ20030044S01 TEST REPORT APPLICANT : BLU Products, Inc. PRODUCT NAME : Smart Phone MODEL NAME : STUDIO X10 BRAND NAME : BLU FCC ID : YHLBLUSTX10 STANDARD(S) : 47 CFR Part 2(2.1093) IEEE 1528-2013 RECEIPT DATE : 2020 -03- 20 TEST DATE : 2020 -04- 02 to 2020-04-07 ISSUE DATE : 2020 -05-12 Edited by : Liang Yumei (Rapporteur) Approved by: Peng Huarui (Supervisor) MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1- 3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755 -36698555 Fax: 86- 755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 66 REPORT No .：SZ20030044S01 DIRECTORY 1. SAR Results Summary ······································································································ 6 2. Technical Information········································································································ 7 2.1. Applicant and Manufacturer Information ······································································ 7 2.2. Equipment Under Test (EUT) Description ····································································· 7 2.3. Environment of Test Site/Conditions ············································································· 8 3. Specific Absorption Rate (SAR)······················································································· 9 3.1. Introduction ······················································································································· 9 3.2. SAR Definition ··················································································································· 9 4. RF Exposure Limits ········································································································· 10 4.1. Uncontrolled Environment ···························································································· 10 4.2. Controlled Environment ································································································ 10 5. Applied Reference Documents ······················································································ 11 6. SAR Measurement System ····························································································· 12 6.1. E-Field Probe ··················································································································· 13 6.2. Data Acquisition Electronics (DAE) ············································································· 14 6.3. Robot ································································································································ 15 6.4. Measurement Server ······································································································ 15 6.5. Light Beam Unit ···········································································································…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Wei Zeng(Senior Manager)

[email protected]3057157171Fax: 3054368819

Test Firm

Shenzhen Morlab Communications Technology Co. Ltd.Mr. Su Feng

[email protected]+86 755 36698566

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.41 GHz - 2.46 GHz	182.00 mW

Confidentiality

Long Term

Grant Notes

Output power is maximum Peak conducted. This device supports 20MHz channel bandwidth. This device has integrated DSS, DTS and PCE transmitters certified under the same FCC ID.SAR compliance for body-worn operating configurations is limited to the belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.0 cm separation between the device and the user's body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values for head, body-worn accessory, hotspot and simultaneous transmission use conditions are 0.78 W/kg, 0.35 W/kg, 1.52 W/kg and 1.52 W/kg, respectively.
