YHLBLUSWINGGSM Mobile Phone

User Guide 1 Table of Contents 1 GET STARTED ............................................................. 2 1.1 SIM CARD INFORMATION ............................................... 2 1.2 INSTALL AND CHARGE THE PHONE ................................ 2 1.3 FOR YOUR SAFETY ........................................................ 3 2 FUNCTION MENU .......................................................... 4 2.1 PHONEBOOK .................................................................. 4 2.2 FUN&GAMES ................................................................ 4 2.3 WEB ............................................................................. 4 2.4 CALL CENTER ............................................................... 5 2.5 MESSAGES .................................................................... 7 2.6 MULTIMEDIA ................................................................. 9 2.7 ORGNIZER ................................................................... 11 2.8 SETTINGS .................................................................... 12 2.9 USER PROFILES ........................................................... 14 2 1 Get started 1.1 SIM card information When you subscribe to a cellular network, you receive a plug-in SIM (Subscriber Identity Module) card loaded with your subscription details, such as your PIN, and available optional services. 1.2 Install and charge the phone  Remove the battery cover and the battery If the phone is already on, first turn it off by pressing and holding on/off key.  Insert the SIM card. Make sure that the gold-colored contacts on the card are face down  Install the battery.  Replace the battery cover.  Plug the charger into the phone  Plug the charger into a standard AC wall outlet.  When the phone is completely charged (the battery icon becomes still), unplug the charger from the power outlet.  Remove the charger from the phone.  Switch the Phone On/Off.  Enter Your Pin (Access Codes is 1234) if it is necessary.  Dial the Phone Number Required. 3 1.3 For Your Safety Please read these safety guidelines before using your mobile phone to assure the safe and proper use of the phone.  Switch off the phone when refueling.  Switch off in an aircraft.  Keep your phone dry.  Keep your phone away from small children and pets.  Do not store the phone in hot areas.  Do not store the phone in cold areas.  Do not drop, knock or shake the phone.  Do not put the phone in or on heating devices, such as a microwave oven, stove or radiator. The phone may explode when overheated.  If your phone has a flash or light, do not use it too close to the eyes.  Use only the supplied or an approved replacement antenna.  Do not attempt to open the phone’s casing.  If the phone or any of its accessories are not working properly, take them to your nearest qualified service center.  Using the earpieces or stereo headset for extended time can cause a serious damage to your hearing.  Do not use the phone while charging the phone.  Extreme heat or cold ：Avoid temperatures below -10°C/14°F or above 40°C/104°F.  This Mobile Phone supports USB data transfer function, but should be shielded with core cable. 4 2 Function Menu 2.1 Phonebook You can fast locate the number of the person you want to contact. Please enter the initial letter of the person’s name, and related records about it will display in the middle of the screen. You can locate your records, and then you can view, send SMS/MMS, call, edit, delete, copy, move and so on. 2.2 Fun&Games There Java program are embedded in the phone. You can launch them. 2.3 Web 2.3.1 Internet service Your mobile phone supports wireless application protocol (WAP) service. You can access many different WAP services such as news, weather reports, flight information, and others. These services are especially designed for mobile phones and maintained by WAP service providers. 2.3.2 STK* Press the left soft key to enter the “STK” main menu. Here you can use the value-added services provided by your network operator. Your mobile phone supports STK functions. This service is provided by your network operator. If your SIM 5 card and network operator do not provide this service, then you will not be able to use this function. For more information please contact your network operator. 2.3.3 Sky Buddy Your phone allows you to chat with friends for free on-line, real-time with your friends and family using instant messaging, such as MSN, Yahoo, Facebook and Twitter. 2.4 Call Center 2.4.1 Call history ◆ SIM1/SIM2 call history All calls: Displays all call logs. Missed calls: Displays the most recent received calls that you did not answer. Dialed calls: Displays the most recent calls you have dialed. Received calls: Displays the most recent calls you have received. Delete call Call timers Call cost Text msg. counter GPRS counter 2.4.2 Call Settings ◆ SIM1/SIM2 Call Setting SIM1 call settings Call waiting: Allows you to enable call waiting function. 6 Call divert: Allows you to set the call condition by which calls are diverted to another number. Call Barring: Allows you to restrict incoming calls and outgoing calls from your phone. Group List Line switch (Line1/ Line2): This is a network service to select phone line 1 or 2, which is the subscriber number for making calls within ALS Setting submenu. SIM2 call settings Same with SIM 1 setting ◆ Advance settings Blacklist: Use this menu to filter and block incoming calls. White List Auto redial: This option allow you set redial automatically when the call receiver is busy. IP dial Background sound: You can set background sound when you are calling. Call time display: You can set the phone to display the call time. Call time reminder: You can set the call time reminder. Auto call disconnect: You can set to end the call automatically. Reject by SMS: When you have incoming call you can reject call and meanwhile send SMS by activate this function. Connect notice Answer mac…

Text truncated - open the document above for the full version.

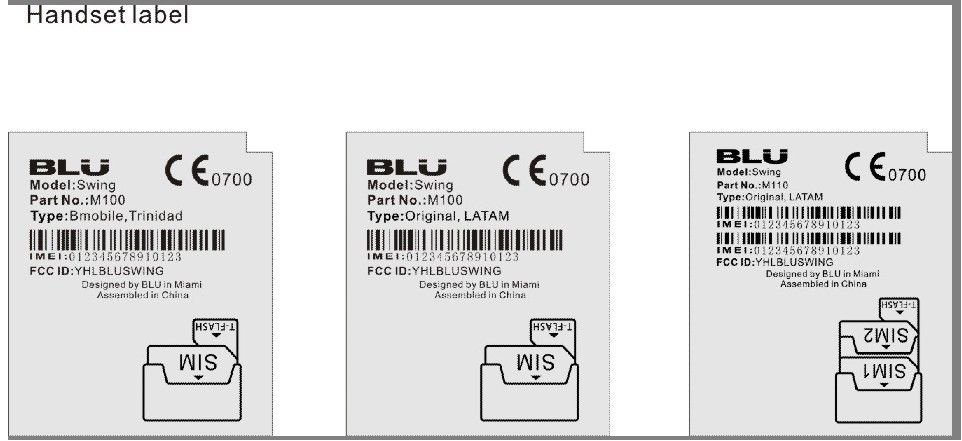

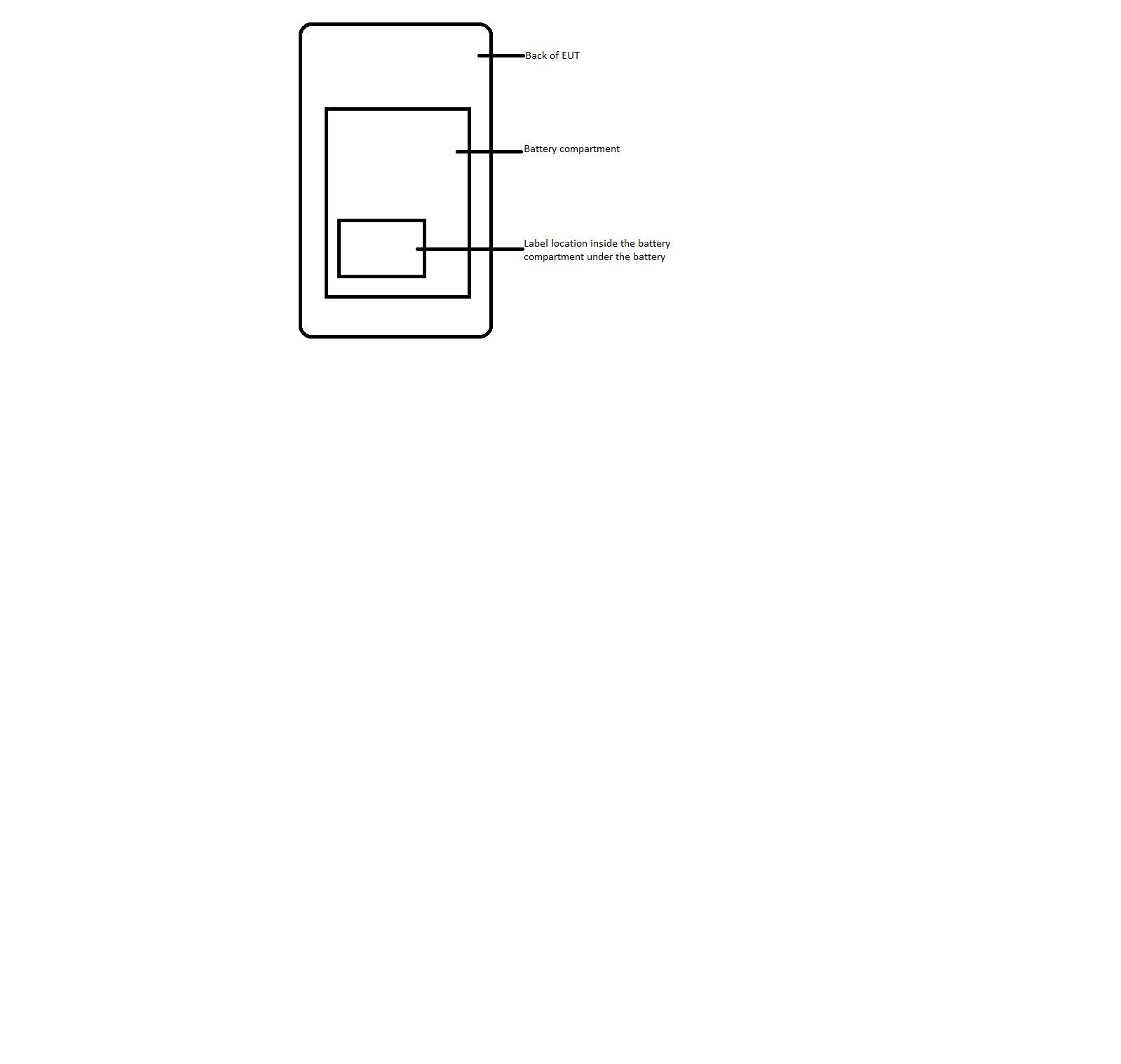

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198 ; Fax: 852-27931197 Date: December 13, 2011 Statement We, CT Asia, states that our device, FCC ID: YHLBLUSWING, has no space to put the label except the battery compartment of this device. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, ________________________ Chris Chan

1/1 CT Asia Date: December 13, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : YHLBLUSWING To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which CT Asia deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Chris Chan Company: CT Asia TEL: 852-27931198 FAX: 852-27931197 E-mail: [email protected]

Rev. 1/1/03 CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198 ; Fax: 852-27931197 Date: December 13, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YHLBLUSWING Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: Swing_Schem.pdf) Block Diagram (file: Swing_BlkDia.pdf) Parts List (file: Swing_PartsLst.pdf) Operation Description (file: Swing_OpDes.pdf) Tune up Procedure (file: Swing_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Chris Chan

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198; Fax: 852-27931197 Date: December 13, 2011 Power of Attorney To whom it may concern, Please be notified that I, Chris Chan, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: YHLBLUSWING If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Chris Chan Company: CT Asia TEL: 0852-27931198 FAX: 0852-27931197 E-mail: [email protected]

Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING 1. External Photograph of EUT Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING List of Accessory: Specification of Accessory AC Adapter Brand Name BLU Model Name US200507 Battery Brand Name BLU Model Name C363256T Earphone Type 1.20m non-shielded USB Cable Type 1.00m shielded with core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 47 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING

Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING 3. Internal Photograph of EUT Sample with Single SIM Card Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 32 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 33 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 34 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Sample with Double SIM Card Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 35 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 36 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 37 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 38 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 39 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 40 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 41 of 49 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING Photographs of EUT Report No.: EP1D0807 Brand Name: BLU / Model Name: Swing SPORTON …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING FCC SAR Test Report Report No. : FA1D0807 FCC SAR Test Report APPLICANT : CT Asia EQUIPMENT : GSM mobile phone BRAND NAME : BLU MODEL NAME : Swing FCC ID : YHLBLUSWING STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Dec. 08, 2011 and completely tested on Dec. 14, 2011. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING FCC SAR Test Report Report No. : FA1D0807 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Device Under Test (DUT) .................................................................................................................6 3.2 Product Photos .......................................................................................................................................................7 3.3 Applied Standards ...................................................................................................................................................7 3.4 Device Category and SAR Limits ............................................................................................................................7 3.5 Test Conditions ........................................................................................................................................................7 4. Specific Absorption Rate (SAR) ....................................................................................................................................8 4.1 Introduction .............................................................................................................................................................8 4.2 SAR Definition .........................................................................................................................................................8 5. SAR Measurement System ............................................................................................................................................9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder .......................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. Uncertainty Assessment .............................................................................................................................................20 8. SAR Measurement Evaluation ....................................................................................................................................22 8.1 Purpose of System Performance check ...........…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A1 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 15, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUSWING FCC SAR Test Report Report No. : FA1D0807 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-14 System Check_Head_835MHz_111214 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_111214 Medium parameters used: f = 835 MHz; σ = 0.92 mho/m; ε r = 40.804; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.575 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.413 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.512 W/kg SAR(1 g) = 2.29 mW/g; SAR(10 g) = 1.49 mW/g Maximum value of SAR (measured) = 2.472 mW/g 0 dB = 2.470mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-14 System Check_Body_835MHz_111214 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_111214 Medium parameters used: f = 835 MHz; σ = 0.974 mho/m; ε r = 54.283; ρ = 1000 kg/m 3 Ambient Temperature：23. °C; Liquid Temperature：21. °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.715 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.803 V/m; Power Drift = -0.00065 dB Peak SAR (extrapolated) = 3.704 W/kg SAR(1 g) = 2.51 mW/g; SAR(10 g) = 1.67 mW/g Maximum value of SAR (measured) = 2.702 mW/g 0 dB = 2.700mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date:…

Text truncated - open the document above for the full version.
