YHLBLUTKFPSmart Phone with GSM, WCDMA, LTE, WiFi and Bluetooth

1 Mobile Appearance picture Brand: BLU Model: Tank Flip BLU Products, Inc. Designed in Miami 2 Table of Contents Moblie Appearance picture ................................. 1 1.Quick start ............................................. 6 Install SIM card .......................... .............................. 7 Install T-flash card ................................................. 7 Installing Battery ................................................... 7 Battery Charging ................................................... 8 2.Menu functions ........................ 9 Contacts ............................................................... 9 Message ............................................................... 9 Call history/Phone ................................................. 9 Email .................................................................... 9 Camera ................................................................. 9 Gallery ................................................................ 10 FM Radio ............................................................ 10 Music .................................................................. 10 File manager ....................................................... 10 Bluetooth ............................................................ 10 SIM Toolkit ...........................................................11 Calendar ..............................................................11 Clock ...................................................................11 Calculator ............................................................11 3. Accessories ........................... 12 4. FCC Regulations ................... 13 5. SAR ........................................ 14 6.Technical Specifications ....... 16 3 Foreword Honorific mobile phones user, thank you for choosing our mobile phone! Our cellular phones is according with the communication industry standards of PRC, and also according with the standards of European, and are approved for GSM networks. Your phone may be used internationally with various networks depending on your roaming arrangements with your service provider. To use this phone you must subscribe to a GSM service from a provider. We have included many features in this device but their function depends on the features available with your subscribed wireless network. Please contact your service provider for more information. We strongly recommend you carefully read and understand this manual before using your phone in order to keep it under best conditions for your effective usage and utmost satisfaction. Safety Never attempt to disassemble your phone. You alone are responsible for how you use your phone and any consequences of its use. As a general rule, always switch off your phone wherever the use of a phone is prohibited. Use of your phone is subject to safety measures designed to protect users and their environment. Do not use your phone in damp areas (bathroom, swimming pool...). Protect it from liquids and other moisture. Do not expose your phone to extreme temperatures lower than - 10°C and higher than + 55°C. Please note that the ambient temperature range for normal charging of mobile phones is 0 °C ~ 45 °C. Do not charge at an ambient temperature below 0 ° C or above 45 ° C, as this will result in reduced battery performance and reduced life. Charging for too long at too high or too low ambient 4 temperatures can damage unfilled or swelled batteries, and there is a risk of battery explosion The physicochemical processes created by chargers impose temperature limits when charging the battery. Your phone automatically protects the batteries in extreme temperatures. Do not leave your phone within the reach of small children (certain removable parts may be accidentally ingested). Electrical safety Only use the chargers listed in the manufacturer’s catalogue. Using any other charger may be dangerous; it would also invalidate your warranty. Line voltage must be exactly the one indicated on the charger’s serial plate. Aircraft safety When traveling by plane, you will need to switch your phone off when so instructed by the cabin crew or the warning signs. Using a mobile phone may be dangerous to the operation of the aircraft and may disrupt the phone network. Its use is illegal and you could be prosecuted or banned from using cellular networks in the future if you do not abide by these regulations. Explosive materials Please comply with warning signs at petrol station when personnel asking you to switch your phone off. You will need to comply with radio equipment usage restrictions in places such as chemical plants, fuel depots and at any location where blasting operations are under way. Electronic equipment To avoid the risk of demagnetization, do not let electronic devices close to your phone for a long time. Electronic medical equipment Your phone is a radio transmitter which may interfere with electronic medical equipment or implants, such as hearing aids, pacemakers, insulin pumps, etc. It is recommended that a minimum separation of 5mm be maintained between the phone and an implant. Your doctor or the manufacturers of such equipment will be able to give you any advice you may need in 5 this area. Hospitals Always make sure that your phone is switched off in hospitals when so instructed by warning signs or by medical staff. Road safety Do not use your phone when driving. In order to give your full attention to driving, stop and park safely before making a call. You must comply with any current legislation. Distance of operation This phone model has been tested and meets radio frequency exposure guidelines when used As follows: ·Against the ear: place or receive a phone call and hold the phone as you would a wire line telephone. ·Body worn: when transmitting, place the phone in a carry accessory that contains no metal and positions the phone a minimum of 5mm form your body. Use of other accessories may not ens…

Text truncated - open the document above for the full version.

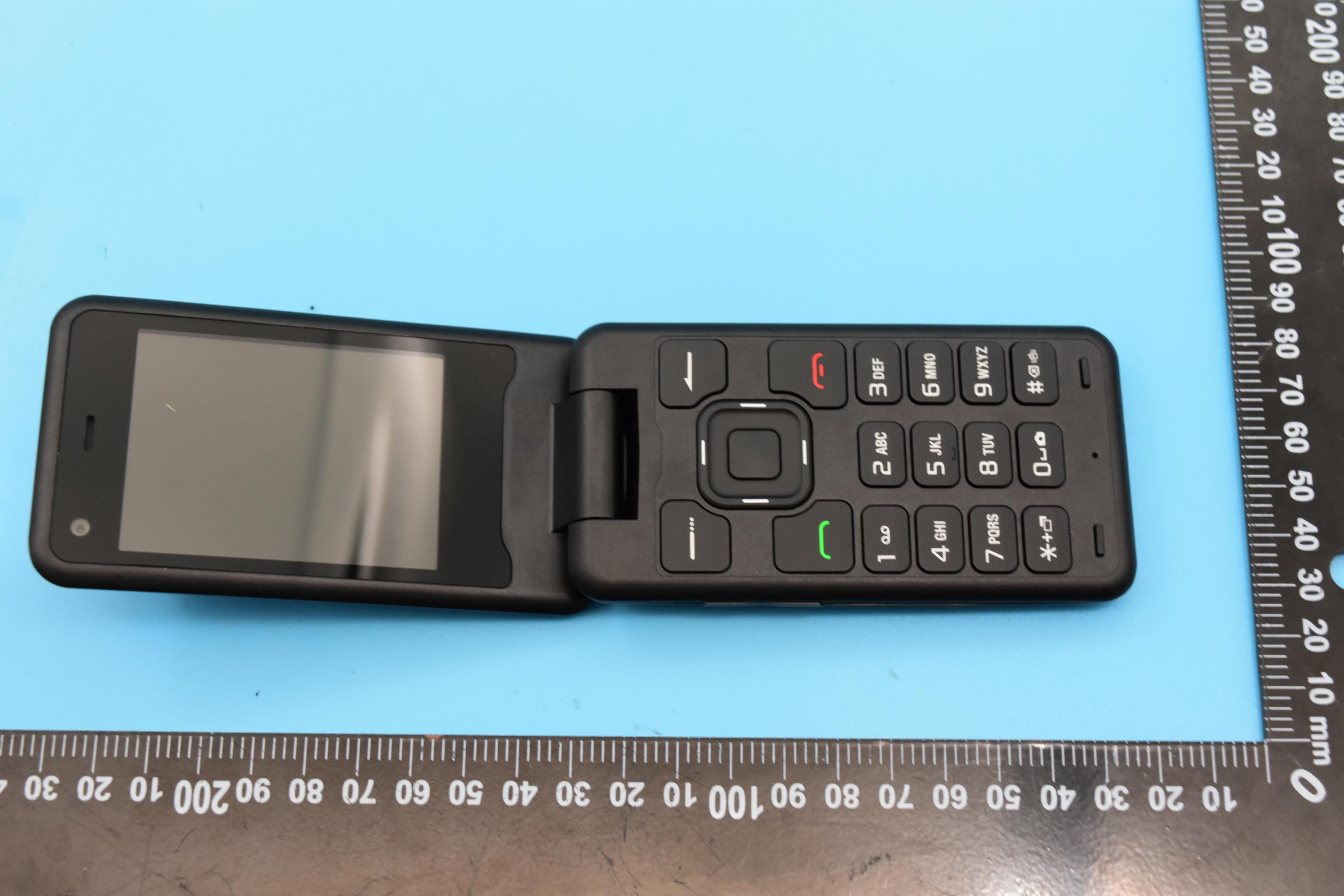

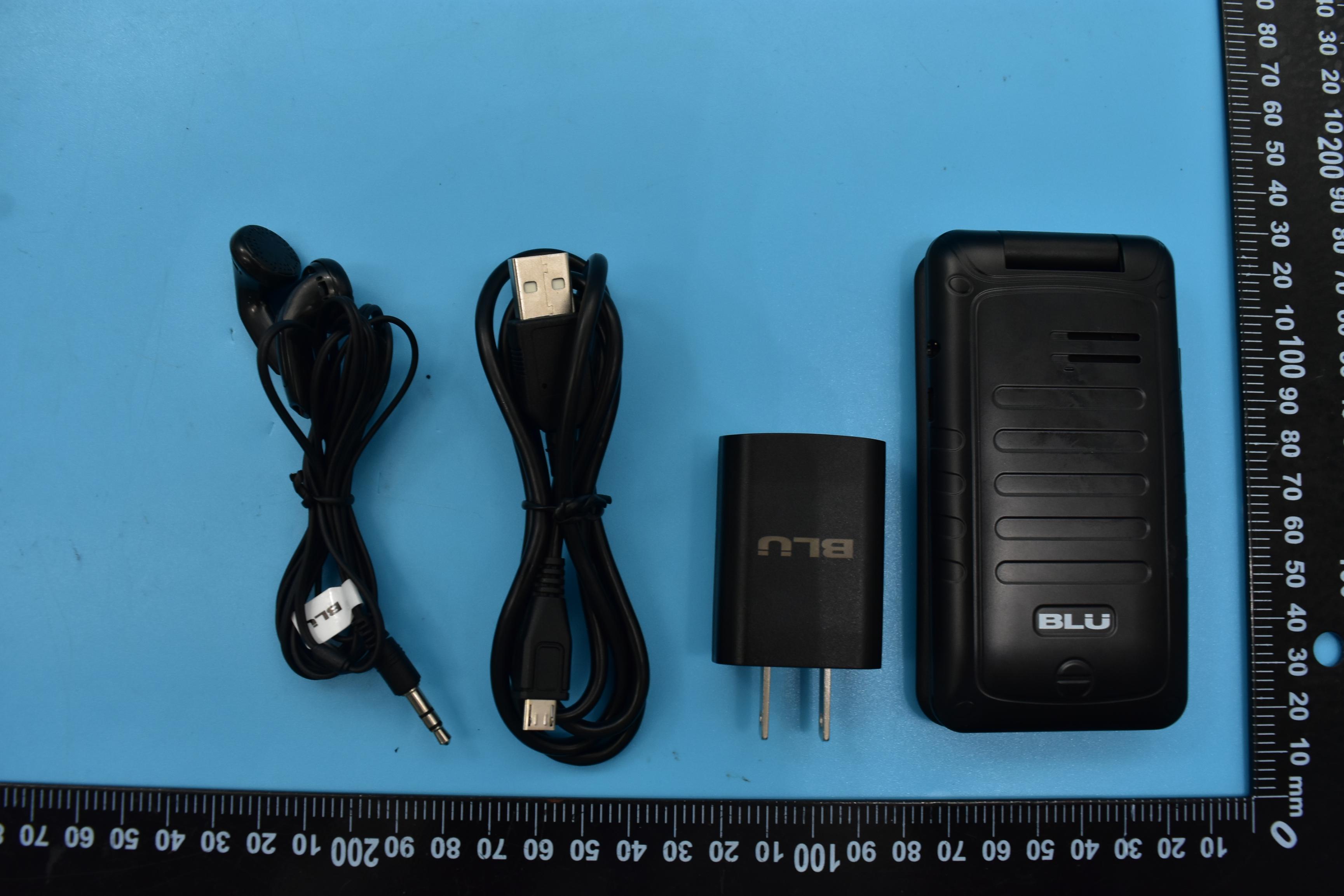

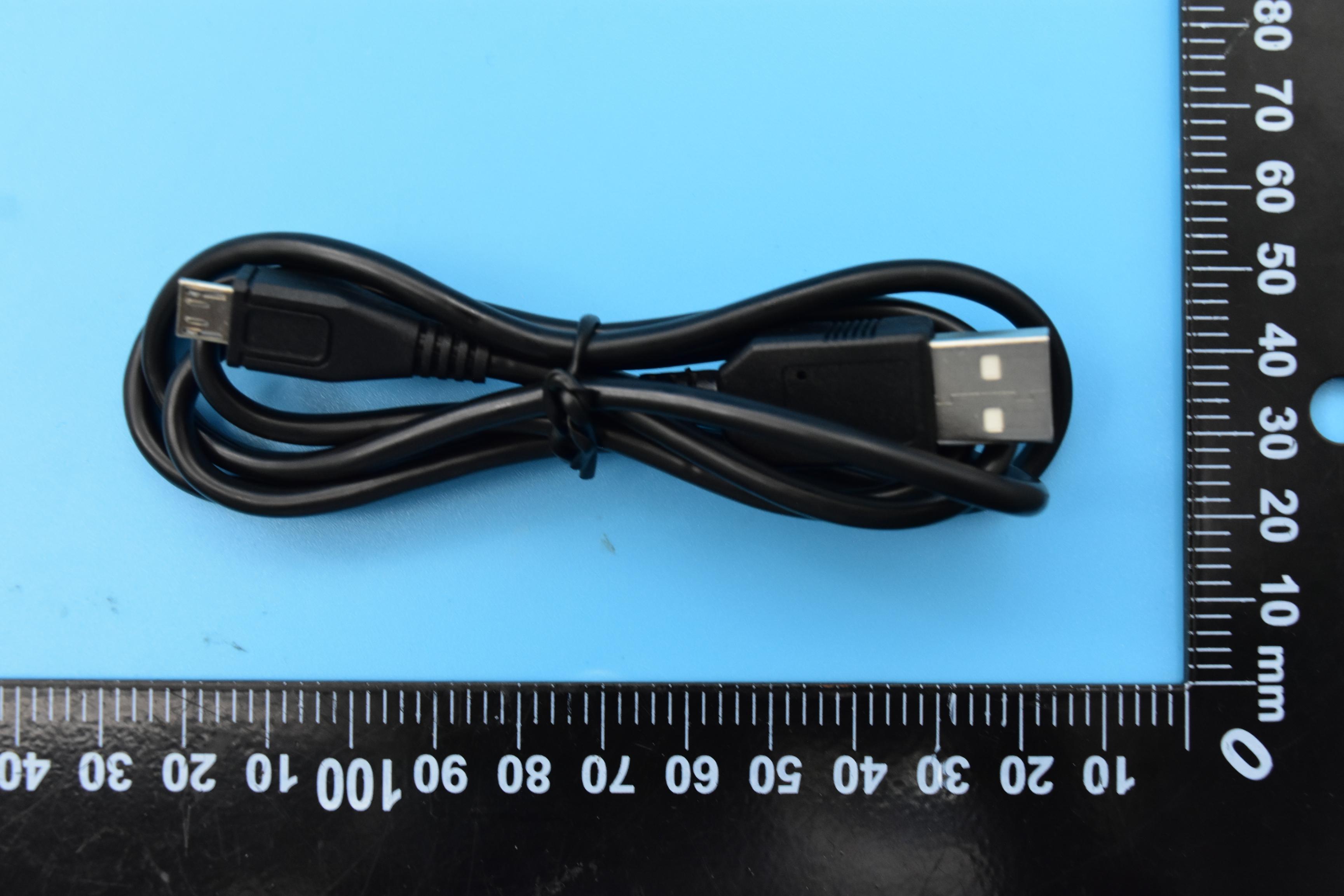

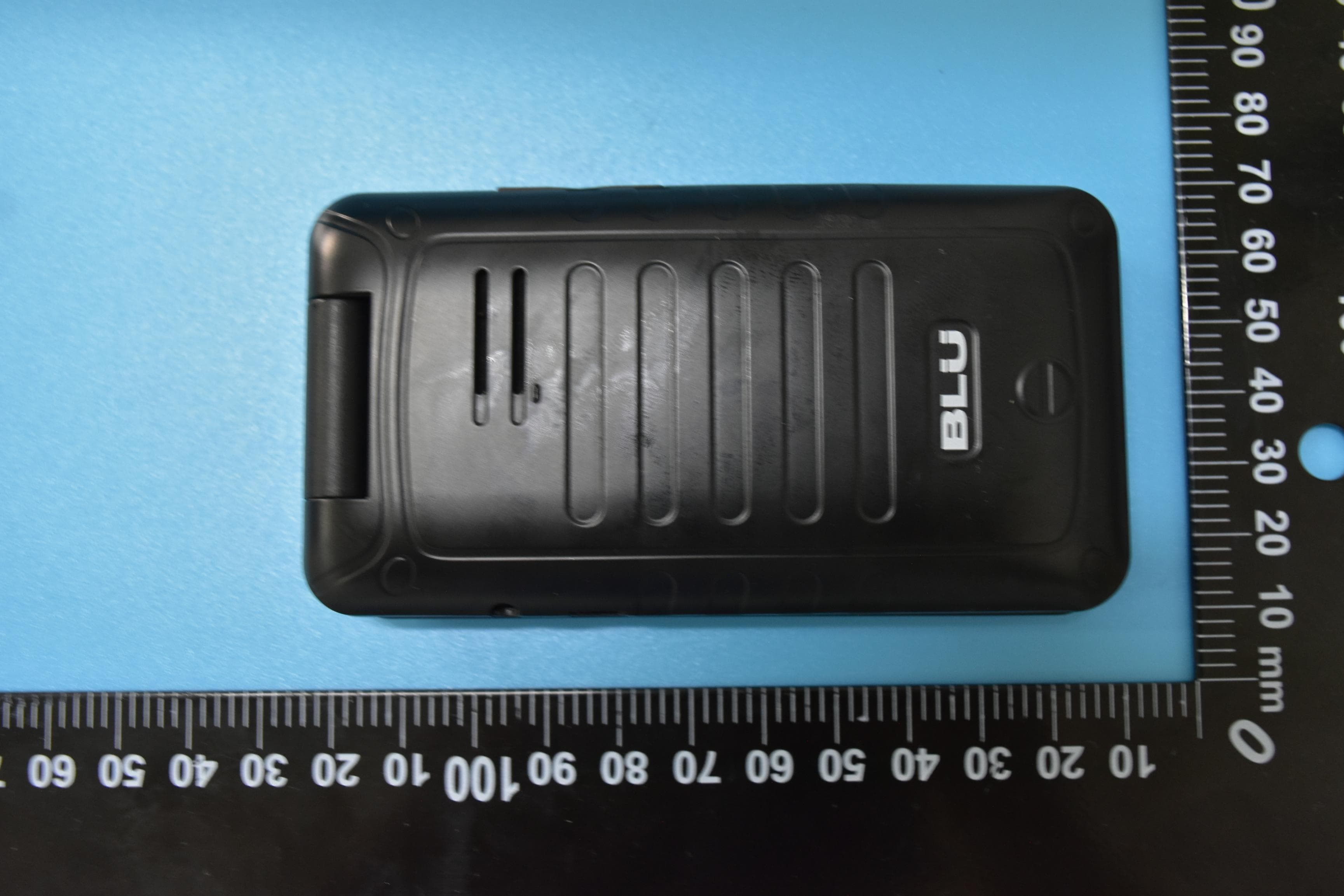

FCCID:YHLBLUTKFP ExternalPhotos 1.EUTfrontview 2.EUTrearview 3.EUTleftsideview 4.EUTrightsideview 5.EUTtopview 6.EUTbottomview 7.Accessories

1、 Label 2、 Label location(EUT rear view)

FCC ID: YHLBLUTKFP Internal Photos 1. EUT uncover view 2. Antenna view GSM/WCDMA/LTE MAIN Antenna Bluetooth/Wi-Fi/GPS Antenna WCDMA/LTE Diversity Antenna

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22030284S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.12 System Check_750MHz_Head Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750 Medium parameters used: f = 750 MHz; σ = 0.925 S/m; ε r = 41.866; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(10.2, 10.2, 10.2) @ 750 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW750/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.44 W/kg CW750/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 51.38 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 3.35 W/kg SAR(1 g) = 2.14 W/kg; SAR(10 g) = 1.37 W/kg Maximum value of SAR (measured) = 2.43 W/kg 0 dB = 2.43 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.19 System Check_900MHz_Head Communication System: UID 0, CW (0); Frequency: 900 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used: f = 900 MHz; σ = 0.973 S/m; ε r = 41.967; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.81, 9.81, 9.81) @ 900 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW900/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.56 W/kg CW900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.50 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 4.06 W/kg SAR(1 g) = 2.77 W/kg; SAR(10 g) = 1.85 W/kg Maximum value of SAR (measured) = 3.41 W/kg 0 dB = 3.41 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.13 System Check_1800MHz_Head Communication System: UID 0, CW (0); Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1800 MHz; σ = 1.436 S/m; ε r = 40.423; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.26, 8.26, 8.26) @ 1800 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW1800/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.8 W/kg CW1800/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 89.58 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 18.2 W/kg SAR(1 g) = 10.33 W/kg; SAR(10 g) = 5.29 W/kg Maximum value of SAR (measured) = 14.3 W/kg 0 dB = 14.3 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.14 System Check_2000MHz_Head Communication System: UID 0, CW (0); Frequency: 2000 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 2000 MHz; σ = 1.457 S/m; ε r = 40.544; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.99, 7.99, 7.99) @ 2000 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW2000/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 15.8 W/kg CW2000/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 92.87 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 19.5 W/kg SAR(1 g) = 10.69 W/kg; SAR(10 g) = 5.44 W/kg Maximum value of SAR (measured) = 15.2 W/kg 0 dB = 15.2 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.17 System Check_2450MHz_Head Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used: f = 2450 MHz; σ = 1.834 S/m; ε r = 39.387; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.42, 7.42, 7.42) @ 2450 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW2450/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 21.4 W/kg CW2450/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.68 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 28.2 W/kg SAR(1 g) = 13.59 W/kg; SAR(10 g) = 6.21 W/kg Maximum value of SAR (measured) = 20.9 W/kg 0 dB = 20.9 W/kg

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22030284S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.19 GSM850_GPRS(2 TX slots)_Right Cheek_Ch189 Communication System: UID 0, GSM850(class 10) (0); Frequency: 836.4 MHz;Duty Cycle: 1:4.15 Medium: HSL_900 Medium parameters used: f = 836.4 MHz; σ = 0.958 S/m; ε r = 40.843; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.81, 9.81, 9.81) @ 836.4 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch189/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.19 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.977 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 1.72 W/kg SAR(1 g) = 0.617 W/kg; SAR(10 g) = 0.590 W/kg Maximum value of SAR (measured) = 1.23 W/kg 0 dB = 1.23 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.14 GSM1900_GPRS(4 TX slots)_Right Cheek_Ch661 Communication System: UID 0, GSM1900(class 12) (0); Frequency: 1880 MHz;Duty Cycle: 1:2.08 Medium: HSL_2000 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.99, 7.99, 7.99) @ 1880 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch661/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.435 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0.4210 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.498 W/kg SAR(1 g) = 0.326 W/kg; SAR(10 g) = 0.202 W/kg Maximum value of SAR (measured) = 0.405 W/kg 0 dB = 0.405 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.14 WCDMA Band II_RMC 12.2Kbps_Right Cheek_Ch9400 Communication System: UID 0, UMTS-FDD (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 1880 MHz; σ = 1.321 S/m; ε r = 39.882; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.99, 7.99, 7.99) @ 1880 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch9400/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.358 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.537 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.371 W/kg SAR(1 g) = 0.250 W/kg; SAR(10 g) = 0.160 W/kg Maximum value of SAR (measured) = 0.316 W/kg 0 dB = 0.316 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.13 WCDMA Band IV_RMC 12.2Kbps_Right Cheek_Ch1413 Communication System: UID 0, UMTS-FDD (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1733 MHz; σ = 1.366 S/m; ε r = 41.367; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.26, 8.26, 8.26) @ 1732.6 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch1413/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.221 W/kg Ch1413/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.722 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.244 W/kg SAR(1 g) = 0.171 W/kg; SAR(10 g) = 0.114 W/kg Maximum value of SAR (measured) = 0.208 W/kg 0 dB = 0.208 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.19 WCDMA Band V_RMC 12.2Kbps_Right Cheek_Ch4182 Communication System: UID 0, UMTS-FDD (0); Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used: f = 836.4 MHz; σ = 0.958 S/m; ε r = 40.843; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.81, 9.81, 9.81) @ 836.4 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch4182/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.953 W/kg Ch4182/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.791 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.980 W/kg SAR(1 g) = 0.535 W/kg; SAR(10 g) = 0.343 W/kg Maximum value of SAR (measured) = 0.688 W/kg 0 dB = 0.688 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.04.14 LTE Band 2_20MHz_QPSK_1RB_0Offset_Right Cheek_C…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22030284S01 Annex E Conducted Power 128189251128189251 824.2836.4848.8824.2836.4848.8 32.8532.5632.5033.0023.8523.5623.5024.00 32.6432.4532.4133.0023.6423.4523.4124.00 29.2729.6029.4030.5023.2723.6023.4024.500.33 27.3227.4427.5828.0023.0623.1823.3223.740.26 25.2025.3825.6026.0022.2022.3822.6023.000.40 26.0126.3026.3726.5017.0117.3017.3717.500.36 24.0024.1024.1724.5018.0018.1018.1718.500.17 21.2321.5121.7022.0016.9717.2517.4417.740.47 20.0520.0020.4321.0017.0517.0017.4318.000.43 Max.32.85Max.23.85 512661810512661810 1850.218801909.81850.218801909.8 29.6529.6829.5530.0020.6520.6820.5521.00 29.6529.6929.5630.0020.6520.6920.5621.00 28.4528.5128.4229.0022.4522.5122.4223.000.09 26.5426.5726.4127.0022.2822.3122.1522.740.16 25.6025.6425.5726.0022.6022.6422.5723.000.07 25.3425.4425.3226.0016.3416.4416.3217.000.12 24.5124.5624.4225.0018.5118.5618.4219.000.14 23.2223.3123.2724.0018.9619.0519.0119.740.09 22.1222.1822.1623.0019.1219.1819.1620.000.06 Max.29.69Max.22.64 926294009538131214131513413241824233 966298009938153716381738435744074458 1852.418801907.61712.41732.61752.6826.4836.4846.6 3GPP Rel 99RMC 12.2Kbps22.5222.5822.4923.0022.3922.4522.4123.0022.4222.5322.3923.00 3GPP Rel 6HSDPA Subtest-121.0921.0221.1022.0021.5021.3921.4322.0020.7420.7620.9121.50 3GPP Rel 6HSDPA Subtest-221.0221.0321.0522.0021.4021.4321.4722.0020.6920.6820.8221.50 3GPP Rel 6HSDPA Subtest-320.5920.6320.6121.5020.9520.9920.8421.5020.2520.2720.3721.50 3GPP Rel 6HSDPA Subtest-420.6620.4720.5221.5020.9120.9720.8221.5021.1721.2521.2822.50 3GPP Rel 6HSUPA Subtest-120.5820.5320.4721.5020.8520.9320.8222.5021.1321.4221.7622.50 3GPP Rel 6HSUPA Subtest-221.0021.0220.9222.0021.4821.4121.2822.0021.6421.7521.8622.50 3GPP Rel 6HSUPA Subtest-319.4419.4419.4920.5020.3320.4920.3721.0020.7420.7620.8621.50 3GPP Rel 6HSUPA Subtest-421.9121.8421.8422.5021.3221.4621.3222.0021.6921.7021.8422.50 3GPP Rel 6HSUPA Subtest-519.9919.9820.0120.5020.3920.4420.3721.0020.7320.7820.7721.50 3GPP Rel 7 HSPA+ (16QAM) Subtest-119.4319.4919.4620.5019.6719.8919.8120.5019.3319.5019.4220.50 Cable Loss0.8Cable Loss0.8Cable Loss0.6 Max.22.58Max.22.45Max.22.53 Full Power GSM850Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot GPRS 2 Tx slots Tune-up Limit (dBm) Tune-up Limit (dBm) Ch Delta > 0.5 0.44 GPRS 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot Mode AttenuatorCable Loss : 0.6 EDGE 2 Tx slots EDGE 3 Tx slots EDGE 4 Tx slots GSM1900Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot Tune-up Limit (dBm) Ch Delta > 0.5 0.14 Tune-up Limit (dBm) GPRS 2 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots Mode AttenuatorCable Loss : 0.8 EDGE 4 Tx slots EDGE 1 Tx slot EDGE 2 Tx slots EDGE 3 Tx slots BandWCDMA Band IIWCDMA Band IVWCDMA Band V TX Channel Rx Channel Frequency (MHz) Attenuator Tune-up Limit (dBm) Mode Tune-up Limit (dBm) Tune-up Limit (dBm) BW [MHz]Modulation RB Size RB Offset Low Channel Middle Channel High Channel BW [MHz] Modulation RB Size RB Offset Low Channel Middle Channel High Channel 187001890019100200502017520300 18601880190017201732.51745 20QPSK10 22.3522.5222.49 20QPSK1022.4322.5522.50 20QPSK149 22.3122.3922.32 20QPSK14922.2922.3722.36 20QPSK199 22.2922.4522.43 20QPSK19922.2122.3422.46 20QPSK500 21.4721.5621.49 20QPSK50021.5021.6321.60 20QPSK5024 21.4821.5321.53 20QPSK502421.5021.5821.58 20QPSK5050 21.5321.4921.55 20QPSK505021.3921.5021.51 20QPSK1000 21.4621.5521.51 20QPSK100021.4921.5321.60 2016QAM10 21.5221.5221.54 2016QAM1021.3621.4421.33 2016QAM149 21.3621.6621.62 2016QAM14921.5121.2821.42 2016QAM199 21.6121.4621.86 2016QAM19921.3021.5221.28 2016QAM500 21.5421.5121.49 2016QAM50021.1721.2221.32 2016QAM5024 21.5021.5521.56 2016QAM502421.1321.2421.13 2016QAM5050 21.5821.5521.62 2016QAM505021.0921.1021.10 2016QAM1000 21.6121.6221.49 2016QAM100021.1121.1921.20 186751890019125200252017520325 1857.518801902.51717.51732.51747.5 15QPSK10 22.2622.2922.20 15QPSK1022.3022.3422.44 15QPSK137 22.0522.4122.29 15QPSK13722.3422.4322.35 15QPSK174 22.4222.3422.42 15QPSK17422.2122.4322.46 15QPSK360 21.4521.5421.53 15QPSK36021.4421.5121.54 15QPSK3620 21.4421.6321.60 15QPSK362021.4821.6121.57 15QPSK3639 21.5621.5721.54 15QPSK363921.5321.5221.61 15QPSK750 21.4821.5421.50 15QPSK75021.4821.5021.51 1516QAM10 21.5721.6521.59 1516QAM1021.1821.4021.12 1516QAM137 21.7021.7321.59 1516QAM13721.2621.2621.10 1516QAM174 21.6521.7721.77 1516QAM17421.1221.4221.21 1516QAM360 21.4421.4921.52 1516QAM36021.1321.1521.34 1516QAM3620 21.5321.4621.59 1516QAM362021.0821.1521.21 1516QAM3639 21.5821.6721.64 1516QAM363921.0421.1321.19 1516QAM750 21.4521.4721.56 1516QAM75021.1521.1621.25 186501890019150200002017520350 18551880190517151732.51750 10QPSK10 22.1122.1022.20 10QPSK1022.2222.4122.24 10QPSK125 22.2222.3222.20 10QPSK12522.2022.3322.34 10QPSK149 22.1122.1922.11 10QPSK14922.2822.1122.34 10QPSK250 21.4421.4521.41 10QPSK25021.2721.4921.51 10QPSK2512 21.4021.5221.45 10QPSK251221.3921.4521.49 10QPSK2525 21.3121.4421.40 10QPSK252521.2821.3921.46 10QPSK500 21.3721.4621.44 10QPSK50021.3421.4421.36 1016QAM10 21.8521.7821.77 1016QAM1021.0921.2421.00 1016QAM125 21.5421.5021.57 1016QAM12521.3621.1021.42 1016QAM149 21.4921.5721.36 1016QAM14921.4321.3321.32 1016QAM250 21.5721.5621.11 1016QAM25021.0921.0821.07 1016QAM2512 21.1921.1521.14 1016QAM251221.0121.1121.08 1016QAM2525 21.1421.1021.09 1016QAM252521.3521.2621.35 1016QAM500 21.1021.0321.07 1016QAM50021.2921.3321.45 186251890019175199752017520375 1852.518801907.51712.51732.51752.5 5QPSK10 22.2522.3022.24 5QPSK1022.1222.3422.39 5QPSK112 22.2422.3522.22 5QPSK11222.1822.3322.30 5QPSK124 22.2022.3622.29 5QPSK12422.1322.2522.24 5QPSK120 21.6121.5221.59 5QPSK12021.3521.3521…

Text truncated - open the document above for the full version.

MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22030284S01 Annex F DASY Calibration Certificate

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZh en , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22030284S01 Page 1 of 69 TEST REPORT APPLICANT : BLU Products, Inc. PRODUCT NAME : Smart Phone MODEL NAME : TANK FLIP BRAND NAME : BLU FCC ID : YHLBLUTKFP STANDARD(S) : FCC 47 CFR Part 2(2.1093) IEEE 1528-2013 RECEIPT DATE : 2022-03-31 TEST DATE : 2022-04-12 to 2022-04-19 ISSUE DATE : 2022-04-28 Edited by : Xie Yiyun (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22030284S01 Page 2 of 69 DIRECTORY 1. SAR Results Summary ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 2. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 2.1. Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 2.2. Equipment under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 2.3. Environment of Test Site/Conditions ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8 3. Specific Absorption Rate (SAR) ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 3.1. Introduction∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 3.2. SAR Definition ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 4. RF Exposure Limits ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10 4.1. Uncontrolled Environment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10 4.2. Controlled Environment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10 5. Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 11 6. SAR Measurement System ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 12 6.1. E-Field Probe ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 13 6.2. Data Acquisition Electronics (DAE) ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 6.3. Robot ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 6.4. Measurement Server ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 15 6.5. Light Beam Unit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 15 6.6. Phantom ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 15 6.7. Device Holder ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 16 6.8. Data Storage and Evaluation ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 17 6.9. Test Equipment List ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 19 7. Tissue Simulating Liquids ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 21 8. SAR System Verification ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 23 8.1. Purpose of System Performance check ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 23 8.2. System Setup ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 23 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22030284S01 Page 3 of 69 8.3. Validation Results ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 24 9. EUT Testing Position ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 27 9.1. Handset Reference Points ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 27 9.2. Positioning for Cheek / Touch ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 28 9.3. Positioning for Ear / 15º Tilt ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 29 …

Text truncated - open the document above for the full version.
