YHLBLUTOUCHBOOKGSM/WCDMA touch book

1 touch book 7.0 User Manual Turn Your Touch Book 7.0 On and Off Press [Power Key] for 3-5 seconds to turn your Touch Book 7.0 on and off. Shortly press the [Power Key] to turn off the screen backlight. The operating temperature range is -10~40°C Getting to know your Touch Book 7.0 A: power key: long press to turn on/off, short press to turn off the screen B: volumn key:up to V+, down to V- C: touch screen D: home key: back to main page E: menu key F: back key G: data/charge port H: SIM card slot I: TF card slot J: 3.5mm earphone jack K: speaker hole Main screen Tap [Home Key] in any interface to go back to the main screen. Tap an application icon on the main screen to start that application. Tap Apps Panel to find all applications. Status Icon Icon Description 2 Network signal 3G data connection Airplane mode Battery capacity Wi-Fi signal No SIM card No Micro SD card Notification BT is on. GPS is on. Missed call New message New Email Silent mode Touch Book 7.0 vibration Alarm clock USB connected If there is any missed call or new message, the status bar on top of the screen will indicate the notifications. Slide down from the status bar to find the notifications and tap to check. Wi-Fi You may connect to Wi-Fi for wireless internet and download. 1. In the applications menu, tap “Settings” → “Wireless & networks” . 2. Tap “Wi-Fi”. The Wi-Fi indicator in highlight () shows the Wi-Fi is on. Tap “Wi-Fi settings” to search the Wi-Fi network. The device will list all the networks in the range being searched. 3. Tap the network to be connected, and tap Connect. 4. If necessary, input the wireless password and other information, then tap “Connect”. The wireless indicator will show in the status line after the device reaches the network. 5. When finished the settings, back to main page, click on the search bar, tapping the internet 3 address. 6. After open the page, using your finger to touch the screen to slide the page. Music Player In the applications menu, tap Music. The music files are classified and saved according to the artists, albums and playlists. Select a category and tap the music or playlist in need. Video player In the applications menu, tap Gallery. Play videos: Tap the video in need to access the video player. Browser files 1. In the applications menu, click the “Quickoffice”, enter the Memory card。 4 2. In the list of files, click the file you want to open. 3. Short press to open the file, long press the file, the window will be like: Then you can rename, delete, cut, and copy the file. 4. Tap the “home key” back to the home page. Connect the PC to transfer files 1. Use the USB cable (shielded cable) to connect the PC and Touch Book 7.0. The default connection method is the synchronous mode. 2. Can drag the status bar pulled down, there is interface: 5 3. Click the in the status bar ,the interface: Click the to mount the TF-card to PC, then you can change the data with PC. 4. In the PC, you can click the Touch Book 7.0 disk to manage files. 5. In the PC, click the , to remove the Touch Book 7.0 disk in safe mode. Or in the Touch Book 7.0 status bar, click the → from 6 to turn off the TF-card storage. Install and uninstall applications This Touch Book 7.0 support many third party software, (Such as MSN, IME, Skype and etc.), users can install and uninstall the applications by themselves. If want to set up the applications, copy the *.apk files to your Touch Book 7.0 TF-card. Then turn on the Touch Book 7.0, enter the “Quickoffice” (The one that can manager your file sources) and click the applications to install. If you want to uninstall the applications, go to the menu, choose “settings” →”Applications” →”Manage applications”, and then click the applications what you want to uninstall, and click “Uninstall”. 7 FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 8 4RF Exposure Information (SAR) This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. * Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting…

Text truncated - open the document above for the full version.

1/1 CT Asia Date: December 7, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : YHLBLUTOUCHBOOK To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which CT Asia deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Chris Chan Company: CT Asia TEL: 852-27931198 FAX: 852-27931197 E-mail: [email protected]

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198; Fax: 852-27931197 Date: December 5, 2011 We, CT Asia, declare that this EUT (FCC ID: YHLBLUTOUCHBOOK) doesn't have Ad Hoc Mode function on "non-US/Canada frequencies". In addition, the frequency selection feature is disabled by firmware for devices marketed to the US/Canada. For DTS part of this device, only channels 1~11 will be used in North America. Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Chris Chan Company: CT Asia TEL: 0852-27931198 FAX: 0852-27931197 E-mail: [email protected]

Rev. 1/1/03 CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198 ; Fax: 852-27931197 Date: December 5, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YHLBLUTOUCHBOOK Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: touch book 7.0_Schem.pdf) Block Diagram (file: ttouch book 7.0_BlkDia.pdf) Parts List (file: ttouch book 7.0_PartsLst.pdf) Operation Description (file: ttouch book 7.0_OpDes.pdf) Tune up Procedure (file: ttouch book 7.0_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Chris Chan

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198; Fax: 852-27931197 Date: December 5, 2011 Power of Attorney To whom it may concern, Please be notified that I, Chris Chan, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: YHLBLUTOUCHBOOK If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Chris Chan Company: CT Asia TEL: 0852-27931198 FAX: 0852-27931197 E-mail: [email protected]

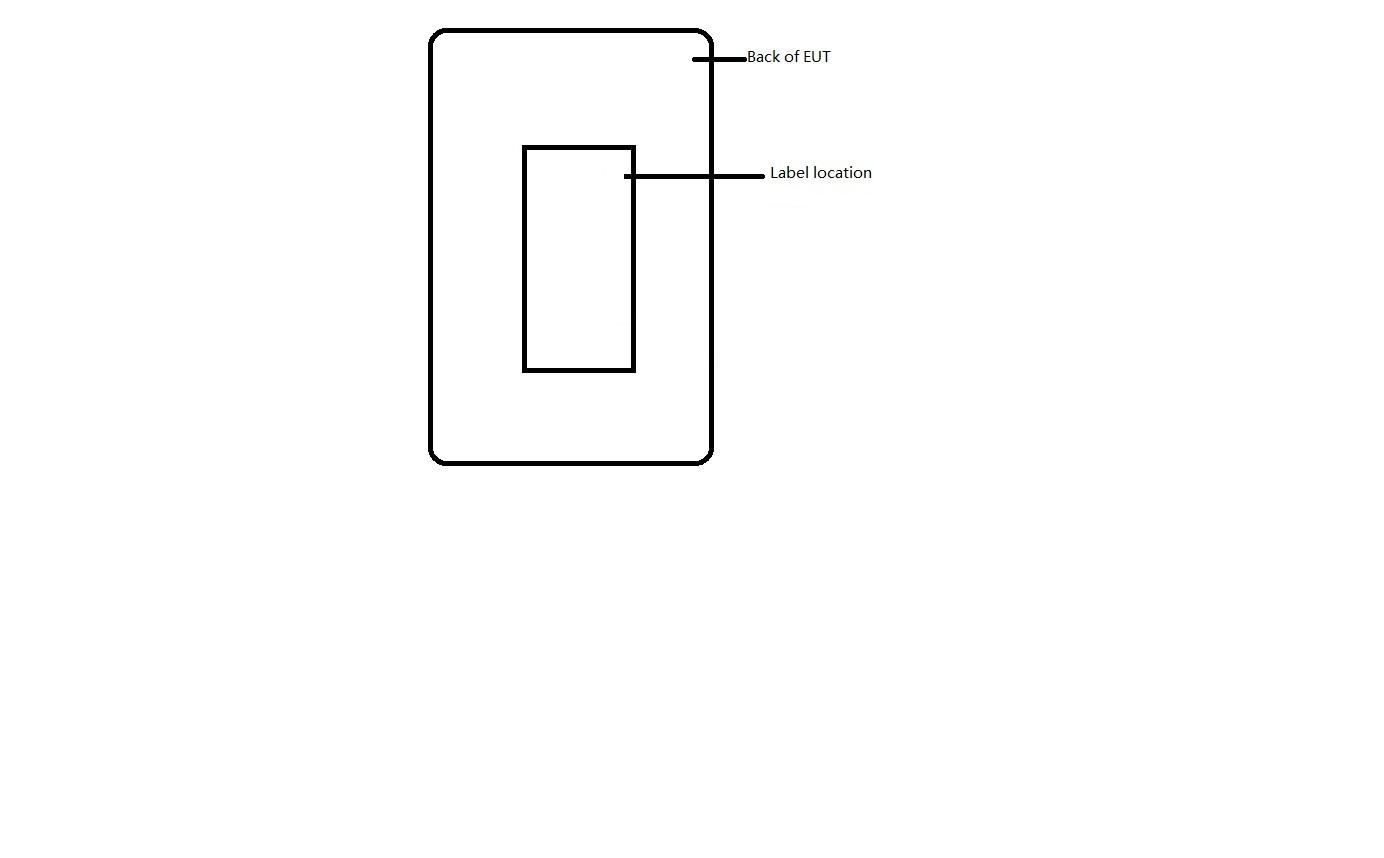

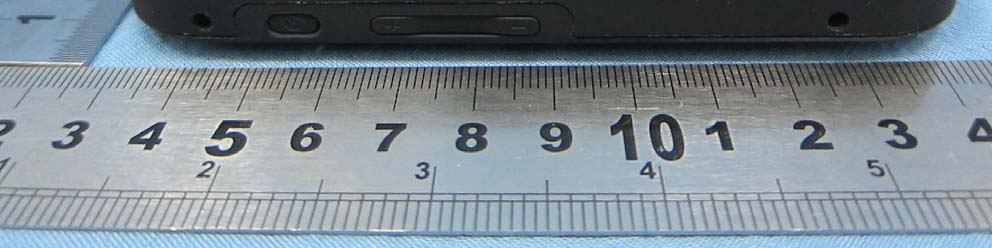

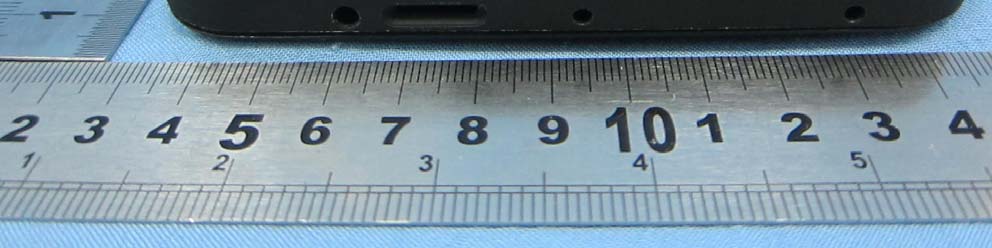

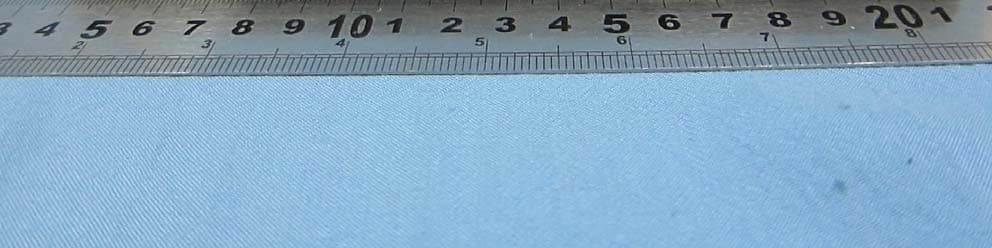

Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK 1. External Photograph of EUT Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK List of Accessory: Specification of Accessory AC Adapter Brand Name BLU Model Name USM3009 Battery Brand Name BLU Model Name 0575100PL Earphone 1.30meter, non-shielded cable, without core USB Cable 1.0meter, shielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK

Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK 3. Internal Photograph of EUT Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK GPS Antenna Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK WLAN & Bluetooth Antenna Photographs of EUT Report No.: EP1N1201 Brand Name: BLU / Model Name: Touch book 7.0 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK WWAN Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A1 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK FCC SAR Test Report Report No. : FA1N1201 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-5 System Check_Body_835MHz_111205 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_111205 Medium parameters used: f = 835 MHz; σ = 0.973 mho/m; ε r = 54.088; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-4-28 - Phantom: SAM3; Type: SAM; Serial: TP-1079 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.656 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.758 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.613 W/kg SAR(1 g) = 2.36 mW/g; SAR(10 g) = 1.53 mW/g Maximum value of SAR (measured) = 2.549 mW/g 0 dB = 2.550mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-5 System Check_Body_1900MHz_111205 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_111205 Medium parameters used: f = 1900 MHz; σ = 1.528 mho/m; ε r = 54.867; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.96, 6.96, 6.96); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-4-28 - Phantom: SAM3; Type: SAM; Serial: TP-1079 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.563 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.374 V/m; Power Drift = 0.004 dB Peak SAR (extrapolated) = 18.661 W/kg SAR(1 g) = 10.1 mW/g; SAR(10 g) = 5.24 mW/g Maximum value of SAR (measured) = 11.350 mW/g 0 dB = 11.350mW/g

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : B1 of B1 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK FCC SAR Test Report Report No. : FA1N1201 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-5 #15 GSM850_GPRS11_Bottom Face_0cm_Ch128 DUT: 1N1201 Communication System: GPRS/EDGE 11; Frequency: 824.2 MHz;Duty Cycle: 1:2.7 Medium: MSL_835_111205 Medium parameters used: f = 824.2 MHz; σ = 0.963 mho/m; ε r = 54.168; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-4-28 - Phantom: SAM3; Type: SAM; Serial: TP-1079 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch128/Area Scan (101x151x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.659 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.024 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 2.711 W/kg SAR(1 g) = 1.43 mW/g; SAR(10 g) = 0.762 mW/g Maximum value of SAR (measured) = 1.566 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-5 #16 GSM850_GPRS11_Primary Landscape_0cm_Ch128 DUT: 1N1201 Communication System: GPRS/EDGE 11; Frequency: 824.2 MHz;Duty Cycle: 1:2.7 Medium: MSL_835_111205 Medium parameters used: f = 824.2 MHz; σ = 0.963 mho/m; ε r = 54.168; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-4-28 - Phantom: SAM3; Type: SAM; Serial: TP-1079 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch128/Area Scan (31x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.322 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 30.687 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 1.894 W/kg SAR(1 g) = 1.18 mW/g; SAR(10 g) = 0.713 mW/g Maximum value of SAR (measured) = 1.270 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-5 #17 GSM850_GPRS11_Primary Portrait_0cm_Ch128 DUT: 1N1201 Communication System: GPRS/EDGE 11; Frequency: 824.2 MHz;Duty Cycle: 1:2.7 Medium: MSL_835_111205 Medium parameters used: f = 824.2 MHz; σ = 0.963 mho/m; ε r = 54.168; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-4-28 - Phantom: SAM3; Type: SAM; Serial: TP-1079 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch128/Area Scan (31x151x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.257 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.834 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.360 W/kg SAR(1 g) = 0.241 mW/g; SAR(10 g) = 0.161 mW/g Maximum value of SAR (measured) = 0.257 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-5 #23 GSM850_GPRS11_Bottom Face_0cm_Ch189 DUT: 1N1201 Communication System: GPRS/EDGE 11; Frequency: 836.4 MHz;Duty Cycle: 1:2.7 Medium: MSL_835_111205 Medium parameters used: f = 836.4 MHz; σ = 0.974 mho/m; ε r = 54.078; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-4-28 - Phantom: SAM3; Type: SAM; Serial: TP-1079 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch189/Area Scan (101x151x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.649 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.540 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 2.687 W/kg SAR(1 g) = 1.44 mW/g; SAR(10 g) = 0.790 mW/g Maximum value of SAR (measured) = 1.635 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-5 #23 GSM850_GPRS11_Bottom Face_0cm_Ch189_2D DUT: 1N1201 Communication System: GPRS/EDGE 11; Frequency: 836.4 MHz;Duty Cycle: 1:2.7 Medium: MSL_835_111205 Medium parameters used: f = 836.4 MHz; σ = 0.974 mho/m; ε r = 54.078; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-4-28 - Phantom: SAM3; Type: SAM; Serial: TP-1079 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Ch189/Area Scan (101x151x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.649 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.540 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 2.687 W/kg SAR(1 g) = 1.44 mW/g; SAR(10 g) = 0.790 mW/g Maximum value of SAR (measured) = 1.635 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-12-5 #24 GSM850_GPRS11_Bottom Face_0cm_Ch251 DUT: 1N1201 Communication System: GPRS/EDGE 11; Frequency: 848.8 MHz;Duty Cycle: 1:2.7 Medium: MSL_835_111205 Medium parameters used: f = 849 MHz; σ = 0.985 mho/m; ε r = 53.969; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : C1 of C1 TEL : 86-0512-5790-0158 Report Issued Date : Dec. 06, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUTOUCHBOOK FCC SAR Test Report Report No. : FA1N1201 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows. SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report D835V2, serial no. 499 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Dipole Verification Data> - D835 V2, serial no. 499 835 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report 835 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report <Justification of the extended calibration> D835V2 – serial no. 499 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 3.22.2010 -28.352 52.17 -3.2461 -24.664 50.066 -5.8652 3.22.2011 -28.323 0.10251.095 1.075-3.57730.331-24.665 -0.00450.685 -0.619 -1.477 -4.388 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result sho…

Text truncated - open the document above for the full version.
