YHLBLUVIVO43GSM / WCDMA mobile phone

BLU VIVO 4.3 User Manual 1. For your safety ......................................................................................................................... 3 2. Learn about the phone ........................................................................................................... 4 3. Before using .............................................................................................................................. 5 4. Getting started ....................................................................................................................... 7 5. Communication ................................................................................................................... 10 6. Multimedia ............................................................................................................................ 11 7. Connecting to networks and devices ........................................................................... 13 8. Warnings and notes ........................................................................................................... 15 1. For your safety Read these simple guidelines. Not following them may be dangerous or illegal. SWITCH OFF IN HOSPITALS Follow any restrictions. Switch the device off near medical equipment. Do not use the device where blasting is in progress. Please keep this cell phone away from children, as they could mistake it for a toy, and hurt themselves with it. Don’t try to modify the phone except by the professional. Warning! Only use the authorized spare parts, otherwise it may damage the phone and the warranty will not work. And it may be dangerous. SWITCH OFF WHEN REFUELING Don’t use the phone at a refueling point. Don’t use near fuel or chemicals. SIM CARD AND T-FLASH CARD ARE PORTABLE Pay attention to these small things to avoid children eating them. Notice: The T-Flash Card can be used as a Memory Disk, the USB cable is necessary. BATTERY Please do not destroy or damage the battery, it can be dangerous and cause fire. Please do not throw battery in fire, it will be dangerous When battery cannot be used, put it in the special container. Do not open the Battery. If the battery or the charger is broken or old, please stop using them. USE QUALITY EQUIPMENT Use our authorized equipment or it will cause dangers ROAD SAFETY COMES FIRST Give full attention while driving; Pull off the road or park before using your phone if driving conditions so require. INTERFERENCE All wireless devices may be susceptible to cause interference, which could affect performance. SWITCH OFF IN AIRCRAFT Wireless devices can cause interference in aircraft. It’s not only dangerous but also illegal to use mobile phone in an aircraft. 2. Learn about the phone Button Press Press & hold Power key (Right side) Turns on/off the screen. Opens a menu with options for airplane mode, / powering off The phone and so on. Volume Up/Down (Left side) When a call is in progress, Increases or decrease the call volume, When the phone is ringing, silences the ringer. On the Home screen when no calls in progress, Increase or decreases the ringtone volume, or sets the phone to be silent instead of ringing. In other applications, controls the volume of music, spoken directions, and other audio. Quickly increasing the ringtone volume to maximum or minimum. 3. Before using Insert SIM card The BLU VIVO 4.3 is a Dual SIM mobile phone allowing you to use the facility of two networks. To insert SIM card(s): 1. Switch off the mobile phone and remove the rear cover and battery. 2. Insert the SIM card correctly in the card slot(s)(See figure below). 3. Finally insert the battery and replace the rear cover of the mobile phone. Note: The SIM card is a small object; please keep the card out of the reach of children to avoid swallowing the card by accident. Do not touch the metal surface of the SIM card and keep it away from electromagnetism to avoid loss and damage of the data. You will not be able to connect to the network if the SIM card is damaged. Insert Memory card Use only compatible memory cards approved by Our company for use with this device. Incompatible memory cards may damage the card or the device and corrupt the data stored in the card. To insert the memory card: 1. Power off the mobile phone, then remove the rear cover and battery. 2. Insert the memory card into the slot at the bottom. 3. Finally insert the battery and the rear cover of the mobile phone. Remove/Insert Battery You may need to remove the battery to insert SIM cards, Memory card or for replacing the battery. To insert the battery: 1. Invert the back of the mobile phone upward and then take off the rear cover. 2. Insert the battery as shown in the following figure. 3. Finally place back the rear cover of the mobile phone. Note: Please use the original-packing battery and accessories. Charger 1. Connect the charger to the charger jack on the phone. 2. Next connect the charger to a power socket, the charging starts, with the charging icon in an animated state. 3. When the charging icon becomes static, it indicates that the battery is full. 4. Disconnect the charger from the power socket and the phone. Note: Slight heating during charging is normal. It indicates that the battery is full, when the charging icon becomes static. 4. Getting started 4 4 . . 1 1 T T u u r r n n o o n n / / o o f f f f y y o o u u r r p p h h o o n n e e  Turn on the phone Long press the power key to start up the cell phone. If you have started up the SIM card 1/2 lock, you have to enter SIM card 1/2 PIN.  Turn off the phone Long press the power key, a context menu will prompt, touch “Power off” to switch off the cell phone.  To wake up the phone If you don’t use the phone for a while, the Home screen or other screen you are viewing is replaced with the lock screen and then the screen darkens, to conserve the battery. 1. Press the Power button. 2. Drag the lock icon rightward. The last screen you were …

Text truncated - open the document above for the full version.

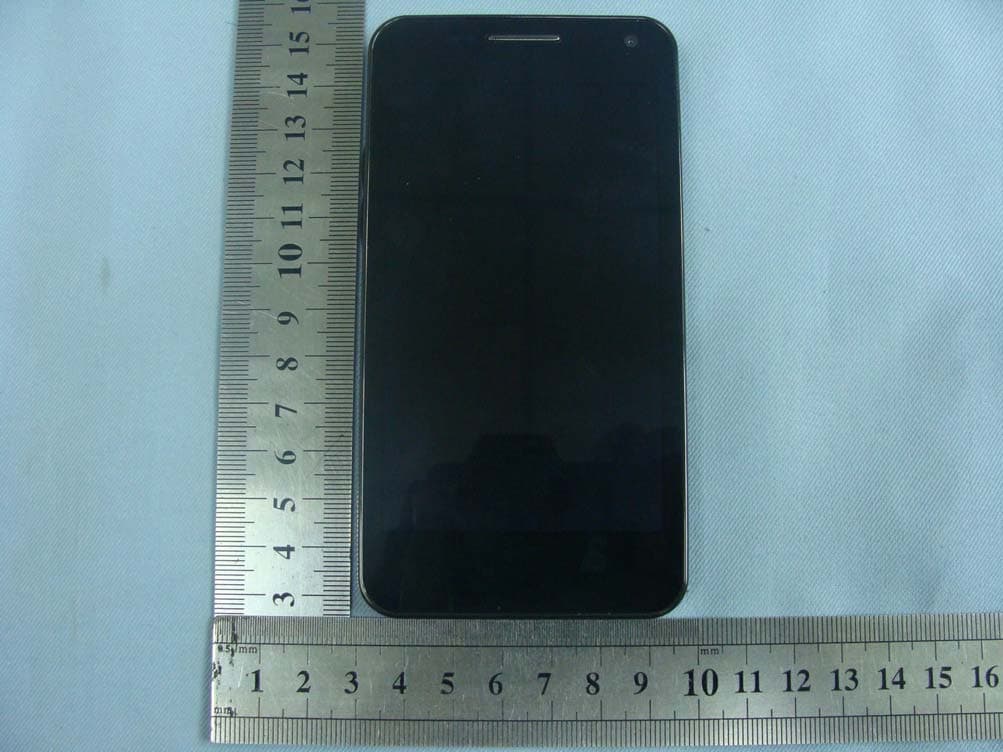

Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 1. External Photograph of EUT Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 List of Accessory: Specification of Accessory AC Adapter Brand Name BLU Model Name US-03-001 Battery Brand Name BLU Model Name C594604160T Earphone Type 153cm non-shielded without core USB Cable Type 105cm shielded with core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43

Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 3. Internal Photograph of EUT WLAN & Bluetooth & GPS Antenna WWAN Antenna Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP281501 Brand Name: BLU; Model Name: VIVO 4.3 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 WLAN & Bluetooth Antenna <Tx / Rx> & GPS Antenna <Rx>

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : C1 of C1 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 FCC SAR Test Report Report No. : FA281501 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows. SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report D2450V2, serial no. 736 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D2450V2 – serial no. 736 2450 Head 2450 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.25.2011 -27.042 54.398 1.4805 -30.696 50.812 2.8262 7.25.2012 -27.950 -3.365 52.541 1.857 0.77343 0.707 -31.781 -3.535 50.572 0.24 1.5953 1.2309 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report <Dipole Verification Data> - D2450 V2, serial no. 736 (Date of Measurement : 7.25.2012) 2450 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 FCC Test Report 2450 MHz – Body

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 36 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 FCC SAR Test Report Report No. : FA281501 FCC SAR Test Report APPLICANT : CT Asia EQUIPMENT : GSM / WCDMA mobile phone BRAND NAME : BLU MODEL NAME : VIVO 4.3 FCC ID : YHLBLUVIVO43 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Aug. 27, 2012. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 36 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 FCC SAR Test Report Report No. : FA281501 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................6 3.2 Product Photos .......................................................................................................................................................7 3.3 Applied Standard .....................................................................................................................................................7 3.4 Device Category and SAR Limits ............................................................................................................................7 3.5 Test Conditions ........................................................................................................................................................7 4. Specific Absorption Rate (SAR) ....................................................................................................................................8 4.1 Introduction .............................................................................................................................................................8 4.2 SAR Definition .........................................................................................................................................................8 5. SAR Measurement System ............................................................................................................................................9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder .......................................................................................................................................................12 5.7 Data Storage and Evaluation ................................................................................................................................13 5.8 Test Equipment List ...............................................................................................................................................15 6. Tissue Simulating Liquids ...........................................................................................................................................16 7. SAR Measurement Evaluation ....................................................................................................................................17 7.1 Purpose of System Performance check ................................................................................................................17 7.2 System Setup .............................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 FCC RF Test Report Report No. : FR281501B FCC RF Test Report APPLICANT : CT Asia EQUIPMENT : GSM / WCDMA mobile phone BRAND NAME : BLU MODEL NAME : VIVO 4.3 FCC ID : YHLBLUVIVO43 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DTS) Digital Transmission System The product was received on Aug. 15, 2012 and completely tested on Aug. 28, 2012. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 FCC RF Test Report Report No. : FR281501B TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Carrier Frequency Channel ............................................................................................................... 7 2.2 Pre-Scanned RF Power ..................................................................................................................... 8 2.3 Test Mode .......................................................................................................................................... 9 2.4 Connection Diagram of Test System ............................................................................................... 10 2.5 RF Utility .......................................................................................................................................... 10 3 TEST RESULT ........................................................................................................................................... 11 3.1 6dB Bandwidth Measurement ......................................................................................................... 11 3.2 Output Power Measurement ............................................................................................................ 16 3.3 Power Spectral Density Measurement ............................................................................................ 19 3.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 24 3.5 Radiated Emission Measurement .................................................................................................... 33 3.6 AC Conducted Emission Measurement........................................................................................... 51 3.7 Antenna Requirements .................................................................................................................... 55 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 56 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 57 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 FCC RF Test Report Report No. : FR281501B REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR281501B Rev. 01 Initial issue of report Aug. 29, 2012 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 57 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 FCC RF Test Report Report No. : FR281501B SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.247(a)(2) A8.2(a) 6dB Bandwidth ≥ 0.5MHz Pass - 3.2 15.247(b) A8.4 Power Output Measurement ≤ 30dBm Pass - 3.3 15.247(e) A8.2(b) Power Spectral Density ≤ 8dBm/3kHz Pass - 3.4 15.247(d) A8.5 Conducted Band Edges ≤ 20dBc Pass - Conducted Spurious Emission Pass - 3.5 15.247(d) A8.5 Radiated Band Edges 15.209(a) & 15.247(d) Pass - Radiated Spuri…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : D1 of D2 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 FCC SAR Test Report Report No. : FA281501 Appendix D. Product Photos SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : D2 of D2 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 FCC SAR Test Report Report No. : FA281501 Antenna Location : Antenna Length Width WWAN Antenna (Tx / Rx) 4.5 cm 1.4 cm BT&WLAN Antenna (Tx / Rx) & GPS Antenna (Rx) 2.1 cm 2.1 cm EUT 12.7 cm 6.7 cm WWANAntenna <Tx /Rx> WLAN & Bluetooth Antenna <Tx / Rx> & GPS Antenna <Rx> 4.4 cm 0.3 cm 0.2 cm 8.7 cm 1.0 cm 0.2 cm 1.2 cm SPORTON INTERNATIONAL (KUNSHAN) INC Page Number : E1 of E1 TEL : 86-0512-5790-0158 Report Issued Date : Aug. 29, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO43 FCC SAR Test Report Report No. : FA281501 Appendix E. Test Setup Photos Right Cheek Right Tilted Left Cheek Left Tilted Front of the DUT with Phantom 1.5 cm (with Headset) Back of the DUT with Phantom 1.5 cm Gap (with Headset)
