YHLBLUVIVO465Mobile Phone

1 / 16 Mobile Phone User Manual Vivo 4.65 HD 2 / 16 1. For your safety ............................................................................................................ 3 2. Learn about the phone ............................................................................................... 4 3. Before using ................................................................................................................ 5 4. Getting started ............................................................................................................. 6 5. Communication ........................................................................................................... 9 6. Multimedia .................................................................................................................. 10 7. Connecting to networks and devices ...................................................................... 12 8. Warnings and notes .................................................................................................. 14 3 / 16 1. For your safety Read these simple guidelines. Not following them may be dangerous or illegal. SWITCH OFF IN HOSPITALS Follow any restrictions. Switch the device off near medical equipment. Do not use the device where blasting is in progress. Please keep this cell phone away from children, as they could mistake it for a toy, and hurt themselves with it. Don’t try to modify the phone except by the professional. Warning! Only use the authorized spare parts, otherwise it may damage the phone and the warranty will not work. And it may be dangerous. SWITCH OFF WHEN REFUELING Don’t use the phone at a refueling point. Don’t use near fuel or chemicals. SIM CARD AND T-FLASH CARD ARE PORTABLE Pay attention to these small things to avoid children eating them. Notice: The T-Flash Card can be used as a Memory Disk, the USB cable is necessary. BATTERY Please do not destroy or damage the battery, it can be dangerous and cause fire. Please do not throw battery in fire, it will be dangerous When battery cannot be used, put it in the special container. Do not open the Battery. If the battery or the charger is broken or old, please stop using them. 4 / 16 USE QUALITY EQUIPMENT Use our authorized equipment or it will cause dangers ROAD SAFETY COMES FIRST Give full attention while driving; Pull off the road or park before using your phone if driving conditions so require. INTERFERENCE All wireless devices may be susceptible to cause interference, which could affect performance. SWITCH OFF IN AIRCRAFT Wireless devices can cause interference in aircraft. It’s not only dangerous but also illegal to use mobile phone in an aircraft. 2. Learn about the phone 5 / 16 Button Press Press & hold Power key (Left side) Turns on/off the screen. Opens a menu with options for airplane mode, / powering off The phone and so on. Volume Up/Down (Right side) When a call is in progress, Increases or decrease the call volume, When the phone is ringing, silences the ringer. On the Home screen when no calls in progress, Increase or decreases the ringtone volume, or sets the phone to be silent instead of ringing. In other applications, controls the volume of music, spoken directions, and other audio. Quickly increasing the ringtone volume to maximum or minimum. 3. Before using Insert SIM card The Vivo 4.65 is a Dual SIM mobile phone allowing you to use the facility of two networks. To insert SIM card(S): 1. Switch off the mobile phone and remove the rear cover. 2. Insert the SIM card correctly in the card slot(s) 6 / 16 3. Finally replace the rear cover of the mobile phone. Insert Memory card Use only compatible memory cards approved by our company for use with this device. Incompatible memory cards may damage the card or the device and corrupt the data stored in the card. To insert the memory card 1. Power off the mobile phone, then remove the rear cover. 2. Insert the memory card into the slot. 3. Finally insert the rear cover of the mobile phone. Charger 1. Connect the charger to the charger jack on the phone. 2. Next connect the charger to a power socket, the charging starts, with the charging icon in an animated state. 3. When the charging icon becomes static, it indicates that the battery is full. 4. Disconnect the charger from the power socket and the phone. 7 / 16 Note: Slight heating during charging is normal. It indicates that the battery is full, when the charging icon becomes static. 4. Getting started 4 4 . . 1 1 T T u u r r n n o o n n / / o o f f f f y y o o u u r r p p h h o o n n e e  Turn on the phone Long press the power key to start up the cell phone. If you have started up the SIM card 1/2 lock, you have to enter SIM card 1/2 PIN.  Turn off the phone Long press the power key, a context menu will prompt, touch “Power off” to switch off the cell phone.  To wake up the phone If you don’t use the phone for a while, the Home screen or other screen you are viewing is replaced with the lock screen and then the screen darkens, to conserve the battery. 1. Press the Power button. 2. Drag the lock icon rightward. The last screen you were working on opens. 4 4 . . 2 2 G G e e t t t t i i n n g g t t o o k k n n o o w w t t h h e e H H o o m m e e s s c c r r e e e e n n The Home screen is your starting point to access all the features on your phone. It displays application icons, widgets, shortcuts, and other features. You can customize the Home screen with different wallpaper and display the items you want. 8 / 16 At the top of the screen, the Status bar displays the time, information about the status of your phone, and icons for notifications that you’ve received. Touch the Launcher icon at the bottom of the screen to view all installed applications. 4 4 . . 3 3 U U s s i i n n g g t t h h e e t t o o u u c c h h s s c c r r e e e e n n The main way to control Android features is by using your finger to touch icons, buttons, menu items, the onscreen keyboard, and other …

Text truncated - open the document above for the full version.

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198; Fax: 852-27931197 Date: January 7, 2013 Power of Attorney To whom it may concern, Please be notified that I, Edward Phan, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: YHLBLUVIVO465 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Edward Phan Company: CT Asia TEL: 852-27931198 FAX: 852-27931197 E-mail: [email protected]

Rev. 1/1/03 CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198 ; Fax: 852-27931197 Date: January 9, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YHLBLUVIVO465 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: Vivo 4.65 HD_Schem.pdf) Block Diagram (file: Vivo 4.65 HD_BlkDia.pdf) Parts List (file: Vivo 4.65 HD_PartsLst.pdf) Operation Description (file: Vivo 4.65 HD_OpDes.pdf) Tune up Procedure (file: Vivo 4.65 HD_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Edward Phan

1/1 CT Asia Date: January 7, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : YHLBLUVIVO465 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which CT Asia deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Edward Phan Company: CT Asia TEL: 852-27931198 FAX: 852-27931197 E-mail: [email protected]

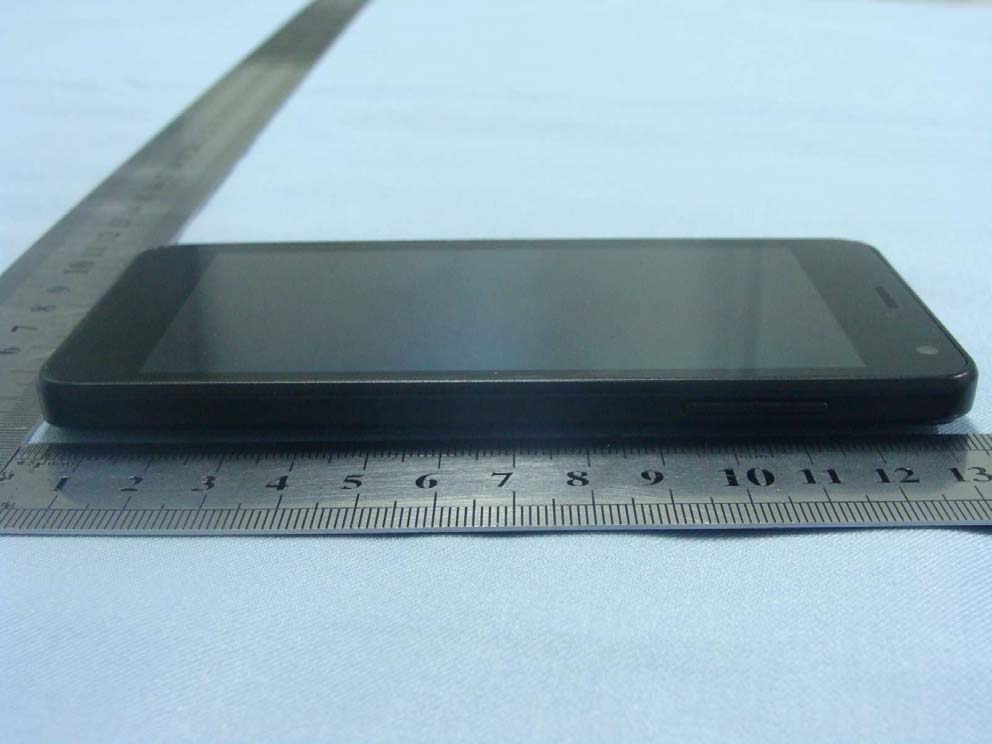

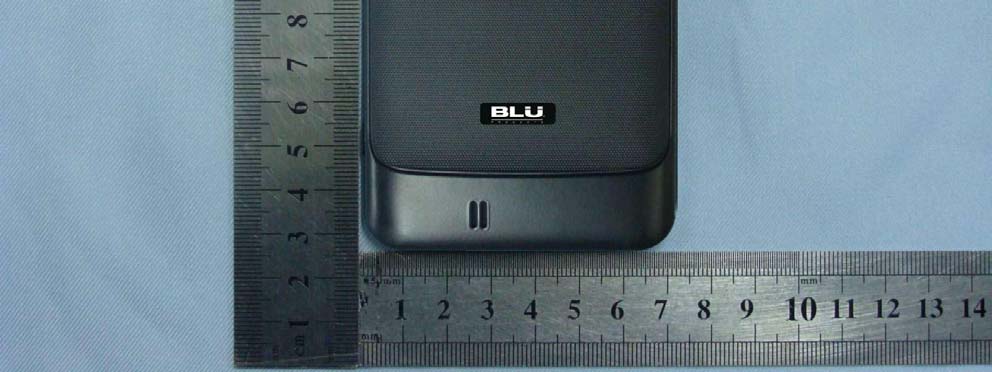

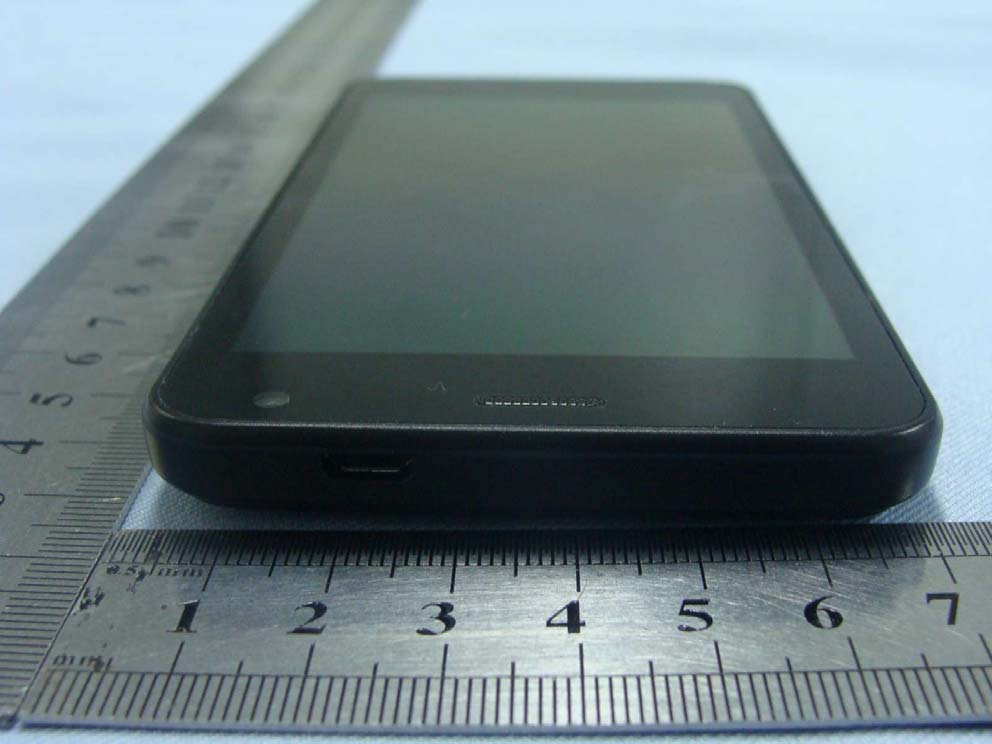

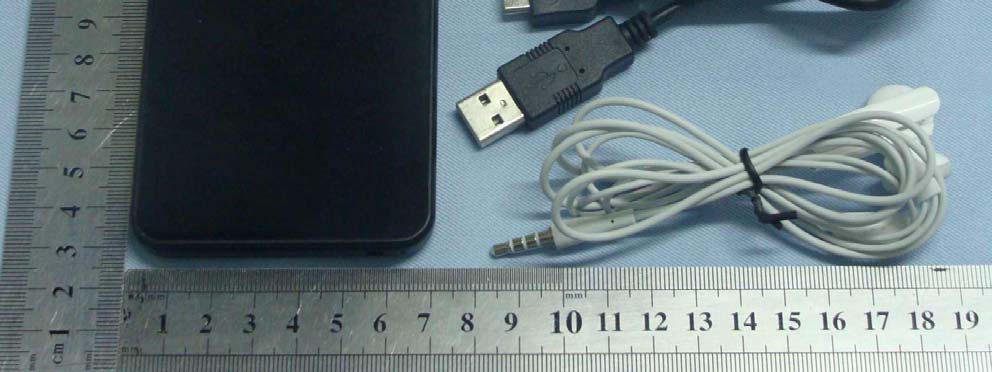

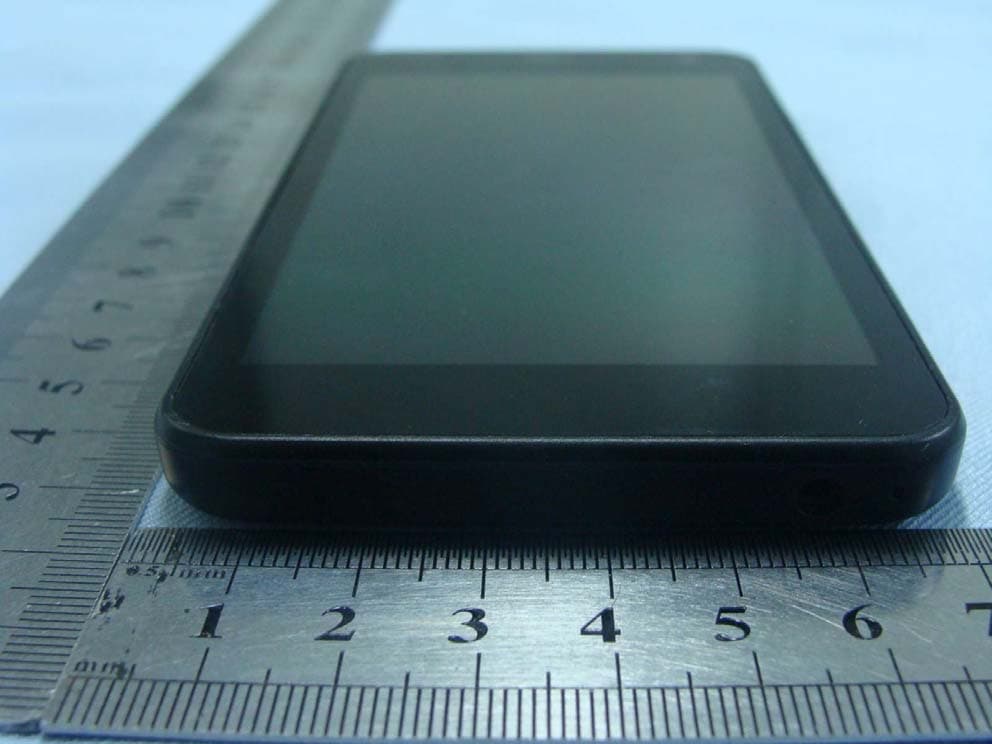

Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 09, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 1. External Photograph of EUT Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 09, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 09, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 09, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 09, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 09, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 09, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 List of Accessory: Specification of Accessory AC Adapter Brand Name BLU Model Name US-AH-1002 Battery Brand Name N/A Model Name S214 Earphone Signal Line Type 1.28m, non-shielded cable USB Cable Signal Line Type 1.03meter, shielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 09, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 09, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 AC Adapter

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198; Fax: 852-27931197 Date: January 7, 2013 Statement We, CT Asia, states that our device, FCC ID: YHLBLUVIVO465. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Edward Phan

Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 3. Internal Photograph of EUT WLAN & Bluetooth Antenna GPS Antenna WWAN Antenna Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP2D1808 Brand Name: BLU; Model Name: Vivo 4.65 HD SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 24 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 08, 2013 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 WLAN & Bluetooth Antenna <Tx / Rx> GPS Antenna <Rx>

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 65 TEL : 86-755-8637-9589 Report Issued Date : Jan. 09, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 FCC SAR Test Report Report No. : FA2D1808 FCC SAR Test Report APPLICANT : CT Asia EQUIPMENT : Mobile Phone BRAND NAME : BLU MODEL NAME : Vivo 4.65 HD FCC ID : YHLBLUVIVO465 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Jan. 02, 2013. We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (SHENZHEN) INC. No. 101, Complex Building C, Guanglong Village, Xili Town, Nanshan District, Shenzhen, Guangdong, P.R.C. SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 65 TEL : 86-755-8637-9589 Report Issued Date : Jan. 09, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 FCC SAR Test Report Report No. : FA2D1808 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................6 2.1 Testing Laboratory ...................................................................................................................................................6 2.2 Applicant .................................................................................................................................................................6 2.3 Manufacturer ...........................................................................................................................................................6 2.4 Application Details ...................................................................................................................................................6 3. General Information .......................................................................................................................................................7 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................7 3.2 Maximum RF output power among production units ...............................................................................................8 3.3 Product Photos .....................................................................................................................................................10 3.4 Applied Standard ...................................................................................................................................................10 3.5 Device Category and SAR Limits ..........................................................................................................................10 3.6 Test Conditions ......................................................................................................................................................10 4. Specific Absorption Rate (SAR) ..................................................................................................................................11 4.1 Introduction ........................................................................................................................................................... 11 4.2 SAR Definition ....................................................................................................................................................... 11 5. SAR Measurement System ..........................................................................................................................................12 5.1 E-Field Probe ........................................................................................................................................................13 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................14 5.3 Robot ....................................................................................................................................................................14 5.4 Measurement Server .............................................................................................................................................14 5.5 Phantom ................................................................................................................................................................15 5.6 Device Holder .......................................................................................................................................................15 5.7 Data Storage and Evaluation ................................................................................................................................16 5.8 Test Equipment List ...............................................................................................................................................18 6. Tissue Simulating Liquids ...........................................................................................................................................19 7. SAR Measurement Evaluation ....................................................................................................................................20 7.1 Purpose of System Performance check ............…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : B1 of B1 TEL : 86-755-8637-9589 Report Issued Date : Jan. 09, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 FCC SAR Test Report Report No. : FA2D1808 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 27.12.2012 01 GSM850_GSM_Right Cheek_Ch128 DUT: 2D1808 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_121227 Medium parameters used: f = 824.2 MHz; σ = 0.888 mho/m; ε r = 40.885; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch128/Area Scan (61x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.476 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.820 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.515 mW/g SAR(1 g) = 0.420 mW/g; SAR(10 g) = 0.327 mW/g Maximum value of SAR (measured) = 0.470 W/kg 0 dB = 0.470 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 27.12.2012 02 GSM850_GSM_Right Tilted_Ch128 DUT: 2D1808 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_121227 Medium parameters used: f = 824.2 MHz; σ = 0.888 mho/m; ε r = 40.885; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch128/Area Scan (61x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.302 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.783 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.326 mW/g SAR(1 g) = 0.262 mW/g; SAR(10 g) = 0.202 mW/g Maximum value of SAR (measured) = 0.300 W/kg 0 dB = 0.300 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 27.12.2012 03 GSM850_GSM_Left Cheek_Ch128 DUT: 2D1808 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_121227 Medium parameters used: f = 824.2 MHz; σ = 0.888 mho/m; ε r = 40.885; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch128/Area Scan (61x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.497 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.494 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.549 mW/g SAR(1 g) = 0.439 mW/g; SAR(10 g) = 0.338 mW/g Maximum value of SAR (measured) = 0.504 W/kg 0 dB = 0.504 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 27.12.2012 03 GSM850_GSM_Left Cheek_Ch128_2D DUT: 2D1808 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_121227 Medium parameters used: f = 824.2 MHz; σ = 0.888 mho/m; ε r = 40.885; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch128/Area Scan (61x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.497 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.494 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.549 mW/g SAR(1 g) = 0.439 mW/g; SAR(10 g) = 0.338 mW/g Maximum value of SAR (measured) = 0.504 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 27.12.2012 04 GSM850_GSM_Left Tilted_Ch128 DUT: 2D1808 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_121227 Medium parameters used: f = 824.2 MHz; σ = 0.888 mho/m; ε r = 40.885; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(9.56, 9.56, 9.56); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch128/Area Scan (61x101x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.315 W/kg Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.378 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.344 mW/g SAR(1 g) = 0.277 mW/g; SAR(10 g) = 0.212 mW/g Maximum value of SAR (measured) = 0.315 W/kg 0 dB = 0.315 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 30.12.2012 62 GSM1900_GSM_Right Cheek_Ch661 DUT: 2D1808 Communication System: Generic GSM; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_121230 Medium parameters used: f = 1880 MHz; σ = 1.412 mho/m; ε r = 38.533; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; L…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : C1 of C1 TEL : 86-755-8637-9589 Report Issued Date : Jan. 09, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : YHLBLUVIVO465 FCC SAR Test Report Report No. : FA2D1808 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report D835V2, serial No. 4d091 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 4d091 ʳ 835 Head 835 Body D…

Text truncated - open the document above for the full version.
