YHLBLUVIVO48HDMobile Phone

1 Vivo 4.8 HD User Manual 2 1. For your safety .......................................................................................................................... 3 2. Learn about the phone ............................................................................................................ 4 3. Before using .............................................................................................................................. 5 4. Getting started .......................................................................................................................... 6 5. Communication ........................................................................................................................ 8 6. Multimedia ................................................................................................................................. 9 7. Connecting to networks and devices ............................................................................... 11 8. Warnings and notes .............................................................................................................. 13 3 1. For your safety Read these simple guidelines. Not following them may be dangerous or illegal. SWITCH OFF IN HOSPITALS Follow any restrictions. Switch the device off near medical equipment. Do not use the device where blasting is in progress. Please keep this cell phone away from children, as they could mistake it for a toy, and hurt themselves with it. Don’t try to modify the phone except by the professional. Warning! Only use the authorized spare parts, otherwise it may damage the phone and the warranty will be void. And it may be dangerous. SWITCH OFF WHEN REFUELING Don’t use the phone at a refueling point. Don’t use near fuel or chemicals. SIM CARD IS PORTABLE Keep your phone, phone parts and accessories out of children’s reach BATTERY Please do not destroy or damage the battery, it can be dangerous and cause fire. Please do not throw battery in fire to avoid danger When battery cannot be used, please dispose in an environmental safe method Do not try to dismantle the battery. If the battery or the charger is broken or old, please stop using them. And replace with certified genuine battery USE QUALITY EQUIPMENT 4 Use our authorized equipment to avoid danger ROAD SAFETY COMES FIRST Give full attention while driving; pull off the road or park before using your phone. Please follow traffic rules of local city/town INTERFERENCE All wireless devices may be susceptible to cause interference, which could affect performance. SWITCH OFF IN AIRCRAFT Wireless devices can cause interference in aircraft. It’s not only dangerous but also illegal to use mobile phone in an aircraft. 2. Learn about the phone Button Press Press & hold Power key (Left side) Turns on/off the screen. Opens a menu with options for “Turn on airplane ”“Power off” and long press 10 seconds the phone will automatically turned off. Volume Up/Down (Left side) When a call is in progress, Increases or decrease the call volume, When the phone is ringing, silences the ringer. On the Home screen when no calls in progress, Increase or decreases the ringtone volume, or sets the phone to be silent instead of ringing. In other applications, controls the volume of music, spoken directions, and other audio. Quickly increasing the ringtone volume to maximum or minimum. 5 IMPORTANT The battery of Vivo 4.8 HD mobile phone is fixed, not removable. 3. Before using 1. Insert the SIM card correctly in the card slot 2. Finally replace the cover of the card slot Note: The SIM card is Hot Plug. Note: The SIM card is a small object; please keep the card out of the reach of children to avoid swallowing the card by accident. Do not touch the metal surface of the SIM card and keep it away from electromagnetism to avoid loss and damage of the data. You will not be able to connect to the network if the SIM card is damaged. Charger 1. Connect the charger to the charger jack on the phone. 2. Next connect the charger to a power socket, the charging starts, with the charging icon in an animated state. 3. When the charging icon becomes static, it indicates that the battery is full. 4. Disconnect the charger from the power socket and the phone. Note: Slight heating during charging is normal. It indicates that the battery is full, when the 6 charging icon becomes static. 4. Getting started 4 4 . . 1 1 T T u u r r n n o o n n / / o o f f f f y y o o u u r r p p h h o o n n e e  Turn on the phone Long press the power key to start up the cell phone.  Turn off the phone 1. Long press the power key, a context menu will prompt, touch “Power off” to switch off the cell phone. 2. Long press the power key 10 seconds to power off the cell phone when the handset got hang options.  To wake up the phone If you don’t use the phone for a while, the Home screen or other screen you are viewing is replaced with the lock screen and then the screen darkens, to conserve the battery. 1. Press the Power button. 2. Drag the lock icon rightward. The last screen you were working on opens. 4 4 . . 2 2 G G e e t t t t i i n n g g t t o o k k n n o o w w t t h h e e H H o o m m e e s s c c r r e e e e n n The Home screen is your starting point to access all the features on your phone. It displays application icons, widgets, shortcuts, and other features. You can customize the Home screen with different wallpaper and display the items you want. 7 At the top of the screen, the Status bar displays the time, information about the status of your phone, and icons for notifications that you’ve received. Touch the Launcher icon at the bottom of the screen to view all installed applications. 4 4 . . 3 3 U U s s i i n n g g t t h h e e t t o o u u c c h h s s c c r r e e e e n n The main way to control Android features is by using your finger to touch icons, buttons, menu items, the onscreen keyboard, and other items on the touch screen. Touch: To act on items on the screen,…

Text truncated - open the document above for the full version.

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198; Fax: 852-27931197 Date: January 13, 2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: YHLBLUVIVO48HD To Whom It May Concern: We, CT Asia, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Contact Person: Edward Phan Company: CT Asia TEL: 852-27931198 FAX: 852-27931197 E-mail: [email protected]

Rev. 1/1/03 CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198 ; Fax: 852-27931197 Date: January 13, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YHLBLUVIVO48HD Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Edward Phan

CT Asia Unit 01, 15/F, Seaview Centre, 139-141 Hoi bun road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27931198; Fax: 852-27931197 Date: January 13, 2014 Power of Attorney To whom it may concern, Please be notified that I, Edward Phan, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: YHLBLUVIVO48HD If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Edward Phan Company: CT Asia TEL: 852-27931198 FAX: 852-27931197 E-mail: [email protected]

1/1 CT Asia Date: January 13, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : YHLBLUVIVO48HD To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which CT Asia deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Edward Phan Company: CT Asia TEL: 852-27931198 FAX: 852-27931197 E-mail: [email protected]

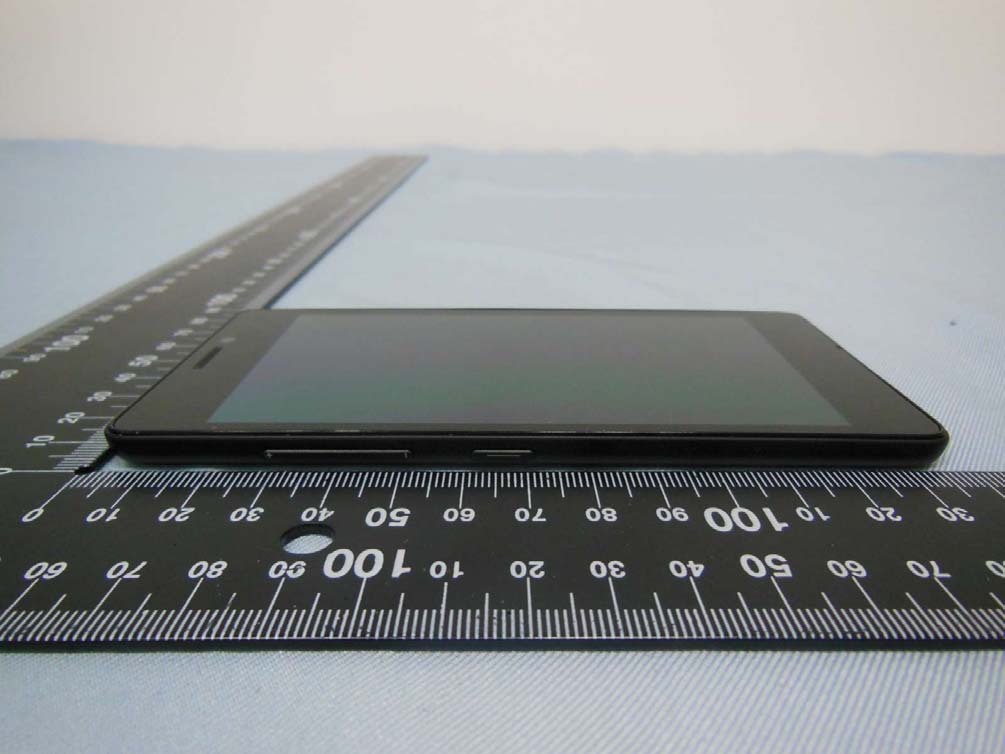

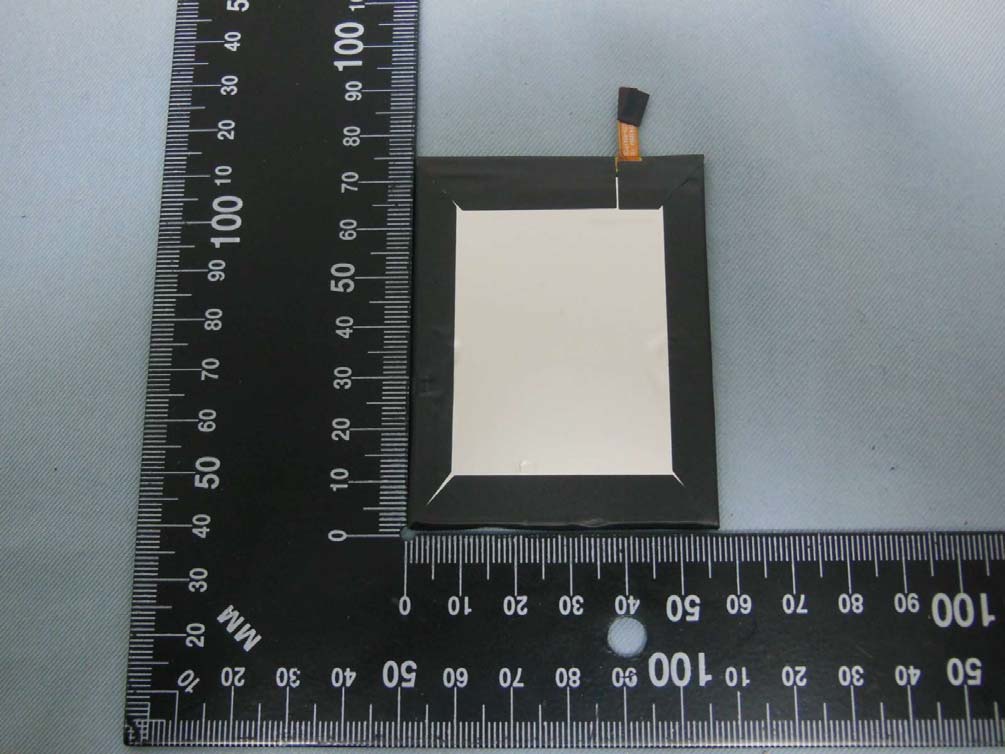

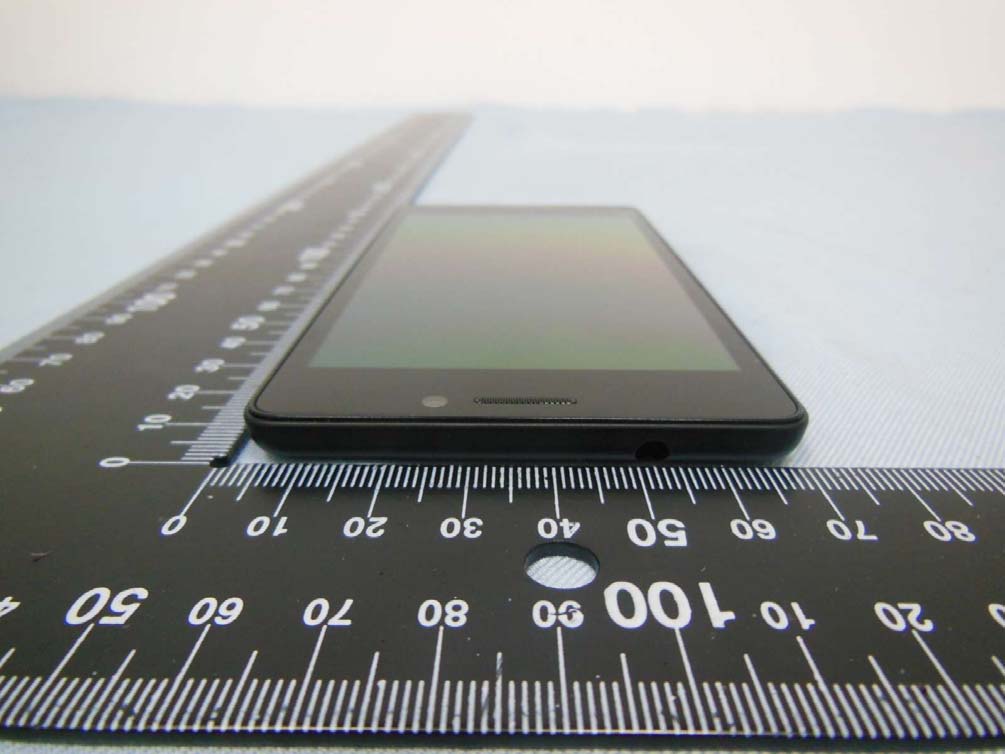

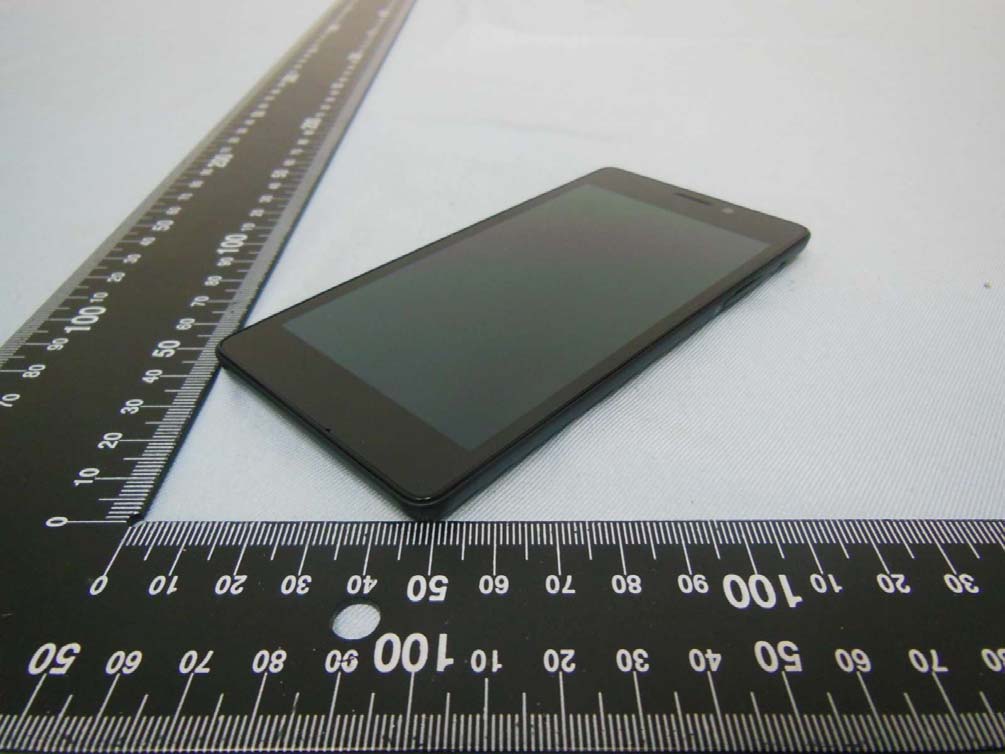

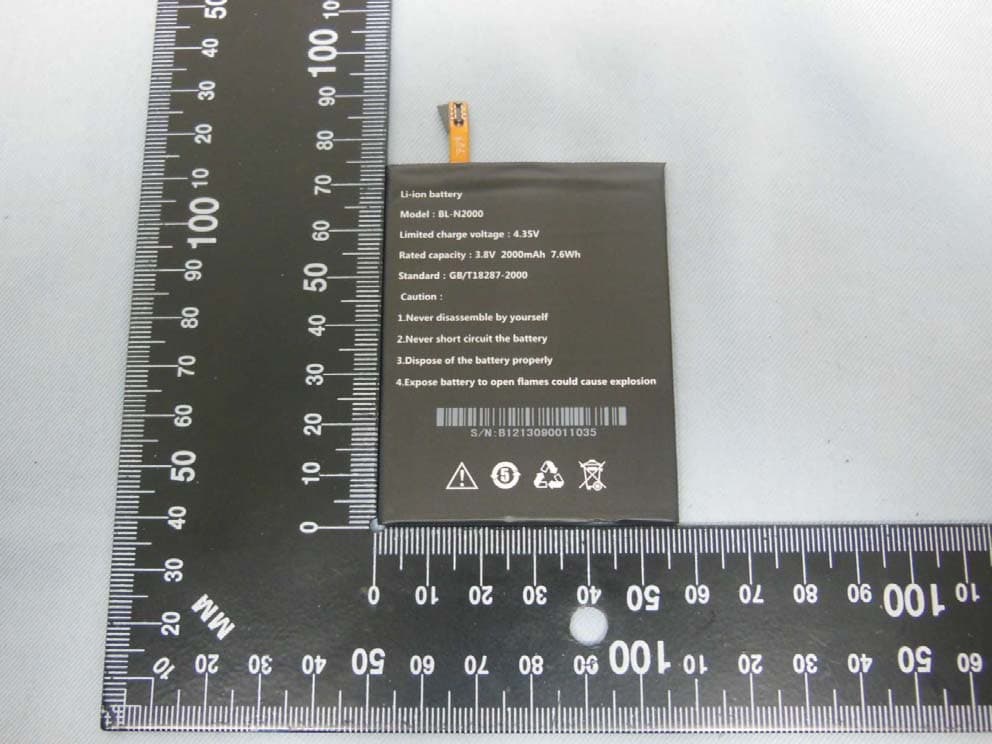

Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 1. External Photograph of EUT Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 List of Accessory: Specification of Accessory AC Adapter Brand Name BLU Model Name US-03-001 Battery Brand Name BLU Model Name BL-N2000 USB Cable Signal Line Type 1.0m, unshielded cable, without core Earphone Signal Line Type 1.3m, unshielded cable, without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 AC Adapter Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Battery Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01

Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 3. Internal Photograph of EUT Bluetooth & WLAN & GPS Antenna WWAN Antenna Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 23 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 24 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 25 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 26 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP3D1803 Brand Name: BLU; Model Name: Vivo 4.8 HD SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 27 of 27 TEL : 86-755- 3320-2398 Report Issued Date : Jan. 13, 2014 FCC ID : YHLBLUVIVO48HD Report Version : Rev. 01 Bluetooth & WLAN Antenna <Tx / Rx> GPS Antenna <Rx>

SPORTON INTERNATIONAL (XI’AN) INC. Page Number : 1 of 53 TEL : +86-029-8860-8767 Report Issued Date : Jan. 13, 2014 FAX: +86-029-8860-8791 Report Version : Rev. 01 FCC ID : YHLBLUVIVO48HD FCC SAR Test Report Report No. : FA3D1803 FCC SAR Test Report APPLICANT : CT Asia EQUIPMENT : Mobile Phone BRAND NAME : BLU MODEL NAME : Vivo 4.8 HD FCC ID : YHLBLUVIVO48HD STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was testing completed on Dec. 31, 2013. We, SPORTON INTERNATIONAL (XI’AN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (XI’AN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (XI’AN) INC. 1F, Building A3, No. 39 Chuangye Rd., Xi'an Hi-teck Zone, Shanxi Province, P.R.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (XI’AN) INC. Page Number : 2 of 53 TEL : +86-029-8860-8767 Report Issued Date : Jan. 13, 2014 FAX: +86-029-8860-8791 Report Version : Rev. 01 FCC ID : YHLBLUVIVO48HD FCC SAR Test Report Report No. : FA3D1803 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................6 3.2 Maximum RF output power among production units ...............................................................................................7 3.3 Applied Standard .....................................................................................................................................................8 3.4 Device Category and SAR Limits ............................................................................................................................8 3.5 Test Conditions ........................................................................................................................................................8 4. Specific Absorption Rate (SAR) ....................................................................................................................................9 4.1 Introduction .............................................................................................................................................................9 4.2 SAR Definition .........................................................................................................................................................9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder .......................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. System Verification Procedures .................................................................................................................................20 7.1 Purpose of System Performance check ................................................................................................................20 7.2 System Setup ......................................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (XI’AN) INC. Page Number : A1 of A1 TEL : +86-029-8860-8767 Report Issued Date : Jan. 13, 2014 FAX: +86-029-8860-8791 Report Version : Rev. 01 FCC ID : YHLBLUVIVO48HD FCC SAR Test Report Report No. : FA3D1803 Appendix A. Plots of System Performance Check The plots are shown as follows. TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2013.12.27 System Check_Head_835MHz_131227 DUT: D835V2 - SN:4d151 C ommunication System: CW;Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_131227 Medium parameters used: f = 835 MHz; σ = 0.929 S/m; ε r = 41.793; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(10.05, 10.05, 10.05); Calibrated: 2013.04.11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1358; Calibrated: 2013.04.08 - Phantom: SAM 2; Type: QD 000 P40 C; Serial: TP-1754 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.98 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.890 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.54 W/kg SAR(1 g) = 2.35 W/kg; SAR(10 g) = 1.54 W/kg Maximum value of SAR (measured) = 2.98 W/kg 0 dB = 2.98 W/kg TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2013.12.30 System Check_Head_1900MHz_131230 DUT: D1900V2 - SN:5d170 C ommunication System: CW;Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_131230 Medium parameters used: f = 1900 MHz; σ = 1.449 S/m; ε r = 39.14; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(8.25, 8.25, 8.25); Calibrated: 2013.04.11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1358; Calibrated: 2013.04.08 - Phantom: SAM 2; Type: QD 000 P40 C; Serial: TP-1754 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.5 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.653 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 18.4 W/kg SAR(1 g) = 9.92 W/kg; SAR(10 g) = 5.13 W/kg Maximum value of SAR (measured) = 14.0 W/kg 0 dB = 14.0 W/kg TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2013.12.31 System Check_Head_1900MHz_131231 DUT: D1900V2 - SN:5d170 Communication System: CW;Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_131231 Medium parameters used: f = 1900 MHz; σ = 1.446 S/m; ε r = 39.09; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(8.25, 8.25, 8.25); Calibrated: 2013.04.11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1358; Calibrated: 2013.04.08 - Phantom: SAM 2; Type: QD 000 P40 C; Serial: TP-1754 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 15.3 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 103.2 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 19.3 W/kg SAR(1 g) = 10.5 W/kg; SAR(10 g) = 5.48 W/kg Maximum value of SAR (measured) = 15.0 W/kg 0 dB = 15.0 W/kg TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2013.12.30 System Check_Head_2450MHz_131230 DUT: D2450V2 - SN: 908 Communication System: CW;Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_131230 Medium parameters used: f = 2450 MHz; σ = 1.81 S/m; ε r = 37.626; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(7.22, 7.22, 7.22); Calibrated: 2013.04.11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1358; Calibrated: 2013.04.08 - Phantom: SAM 1; Type: QD 000 P40 C; Serial: TP-1753 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Pin=250mW/Area Scan (71x81x1): Interpolated grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 21.1 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 107.4 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 28.3 W/kg SAR(1 g) = 13.4 W/kg; SAR(10 g) = 6.14 W/kg Maximum value of SAR (measured) = 20.8 W/kg 0 dB = 20.8 W/kg TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2013.12.26 System Check_Body_835MHz_131226 DUT: D835V2 - SN: 4d151 C ommunication System: CW;Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_131226 Medium parameters used: f = 835 MHz; σ = 0.971 S/m; ε r = 56; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3911; ConvF(9.93, 9.93, 9.93); Calibrated: 2013.04.11; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1358; Calibrated: 2013.04.08 - Phantom: SAM 2; Type: QD 000 P40 C; Serial: TP-1754 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.91 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.995 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.39 W/kg SAR(1 g) = 2.29 W/kg; SAR(10 g) = 1.51 W/kg Maximum value of SAR (measured) = 2.89 W/kg 0 dB = 2.89 W/kg TestLaboratory: Sporton International Inc. SAR/HAC TestingLab Date: 2013.12.27 System Check_Body_1900MHz_131227 DUT: D1900V2 - SN: 5d170 Communication System: CW;Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_131227 Medium parameters used: f = 1900 MHz; σ = 1.531 S/m; ε r = 54.671; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (XI’AN) INC. Page Number : C1 of C1 TEL : +86-029-8860-8767 Report Issued Date : Jan. 13, 2014 FAX: +86-029-8860-8791 Report Version : Rev. 01 FCC ID : YHLBLUVIVO48HD FCC SAR Test Report Report No. : FA3D1803 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows.

SPORTON INT TEL : 86-755- FCC ID : YHL B The p SPOR has b applic The te appro repro Re v Ap No. 3 Buil TERNATIONAL 3320-2398 BLUVIVO48HD FCC RF APPLIC EQUIPM BRAND MODEL FCC ID STANDA CLASSI product was RTON INTER been ev…

Text truncated - open the document above for the full version.
