YHLBLUX10L22Smart Phone with GSM, WCDMA, LTE, Bluetooth and WiFi
BLU Products, Inc.
Click to zoom
Application Details
- Equipment Class
- PCE - PCS Licensed Transmitter held to ear
- Date of Grant
- Apr 11, 2022
- Application Purpose
- Original Equipment
- Date of Application
- Apr 10, 2022
- Equipment Note
- Smart Phone with GSM, WCDMA, LTE, Bluetooth and WiFi
- Frequency Range
- 2510.00000000 - 2560.00000000
- Company
- BLU Products, Inc.
- Country
- United States
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
1 / 18 Content 1 General Information ................................................................................................................................ 3 1.1 Profile .............................................................................................................................................................. 3 1.2 Safety warning and Attentions ......................................................................................................................... 3 2 Your phone ................................................................................................................................................ 5 2.1 Phone overview ............................................................................................................................................... 5 2.2 Functions of Keys ............................................................................................................................................ 5 2.3 Functions of icons ............................................................................................................................................ 5 3 Getting started .......................................................................................................................................... 5 3.1 Installing the SIM Card and the Battery .......................................................................................................... 5 3.2 Charging the Battery ........................................................................................................................................ 6 3.3 Linking to the Networks and devices............................................................................................................... 6 3.4 Using the touch screen ..................................................................................................................................... 7 3.5 Using the onscreen keypad .............................................................................................................................. 8 3.6 Dialing Calls .................................................................................................................................................... 8 4 Using the Menu ........................................................................................................................................ 8 4.1 Backup and Restore ......................................................................................................................................... 8 4.2 Browser ............................................................................................................................................................ 8 4.3 Calculator ....................................................................................................................................................... 10 4.4 Calendar ......................................................................................................................................................... 10 4.5 Camera ........................................................................................................................................................... 11 4.6 Clock .............................................................................................................................................................. 11 4.7 Contacts ......................................................................................................................................................... 11 4.8 Downloads ..................................................................................................................................................... 11 4.9 Email .............................................................................................................................................................. 11 4.10 File Manager .................................................................................................................................................. 12 4.11 FM Radio ....................................................................................................................................................... 12 4.12 Gallery ........................................................................................................................................................... 12 4.13 Gmail ............................................................................................................................................................. 12 4.14 Google ........................................................................................................................................................... 12 4.15 Google Setting ............................................................................................................................................... 12 4.16 Hangouts ........................................................................................................................................................ 12 4.17 Maps .............................................................................................................................................................. 12 4.18 Messaging ...................................................................................................................................................... 13 4.19 Music ............................................................................................................................................................. 13 2 / 18 4.20 Phone ............................................................................................................................................................. 14 4.21 play store ...................................................................................................................................................β¦
Text truncated - open the document above for the full version.
External Photos

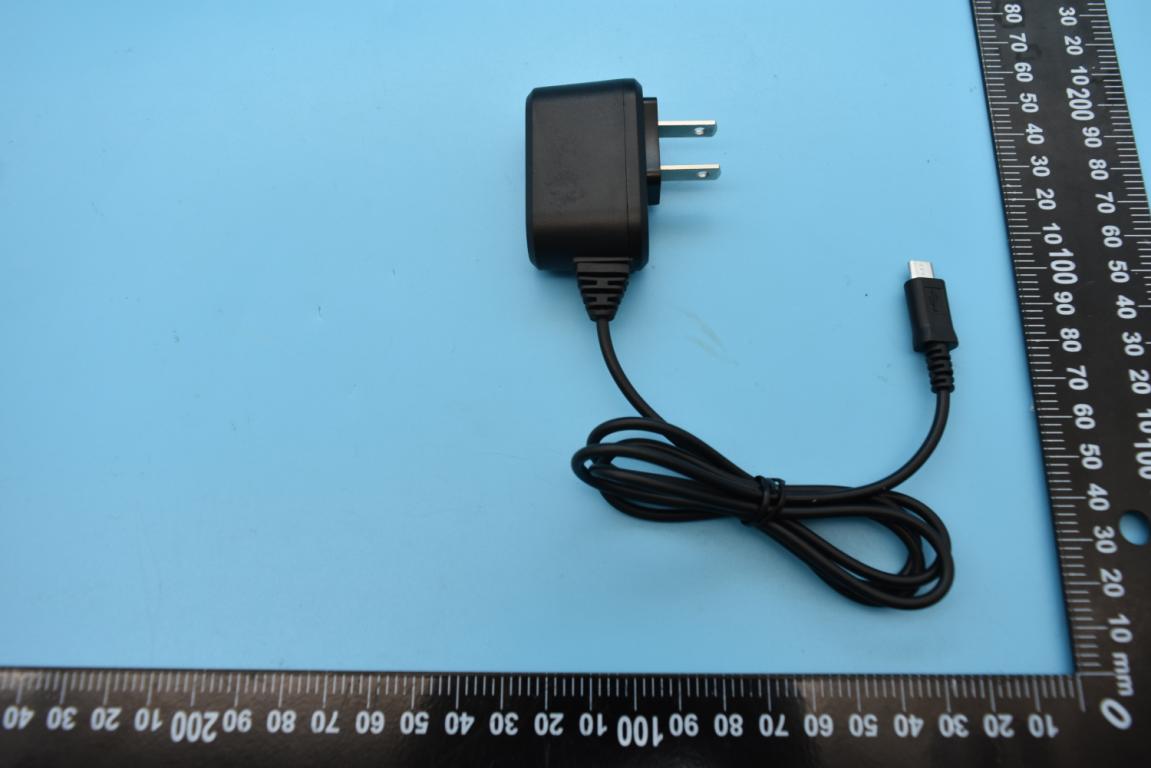

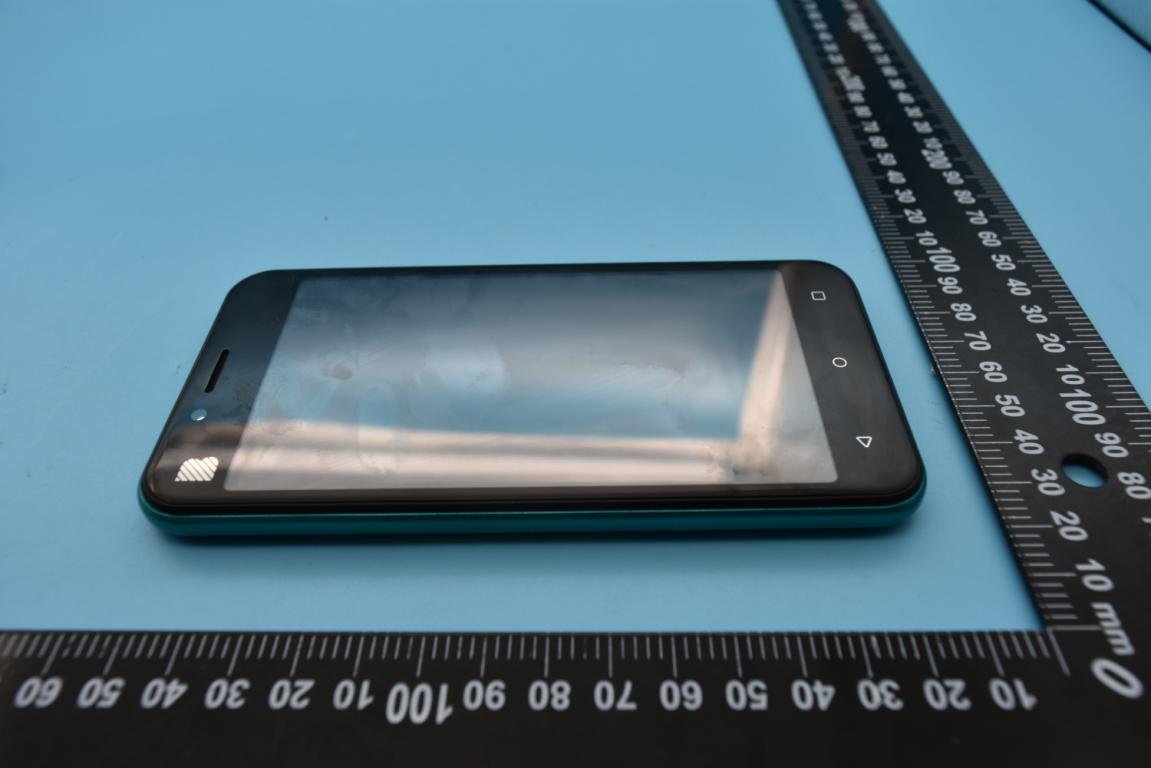

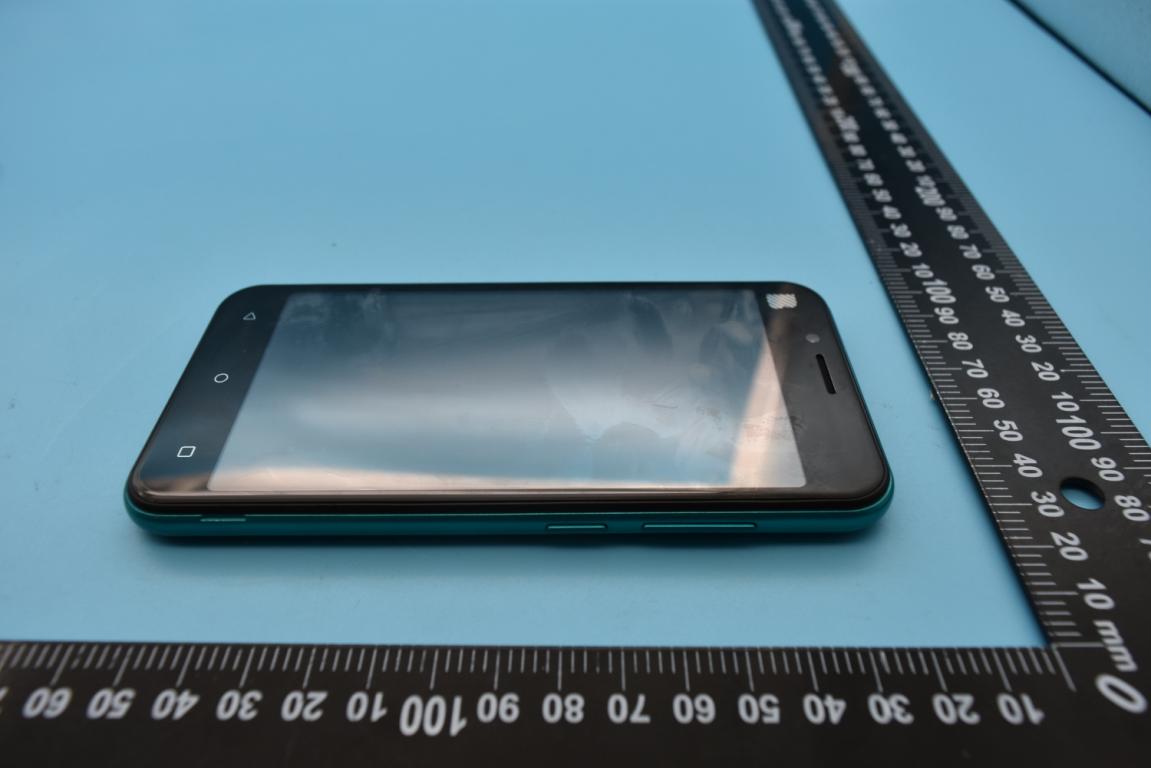

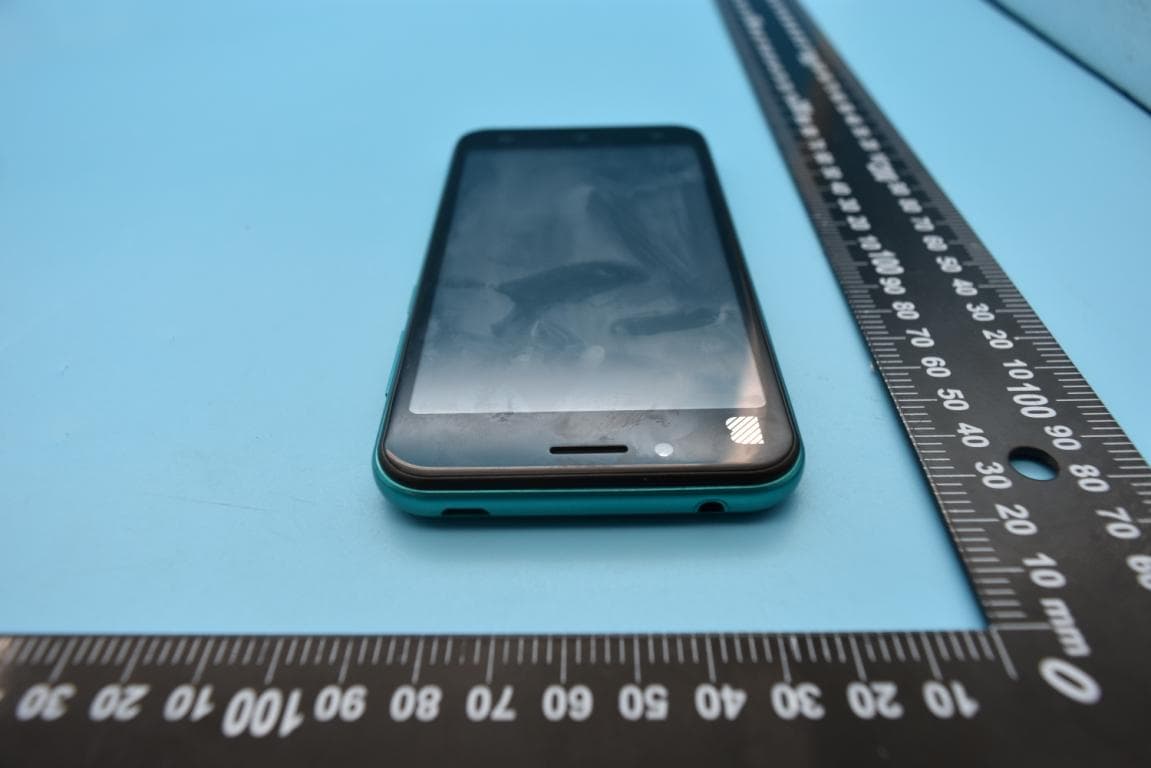

FCC ID: YHLBLUX10L22 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories
ID Label/Location Info
1. Label 2. Label location
Internal Photos
FCC ID: YHLBLUX10L22 Internal Photos 1. EUT uncover view 2. Antenna view GSM/WCDMA/LTE Antenna Bluetooth/Wi-Fi/GPS Antenna Diversity Antenna
RF Exposure Info
MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.οΌSZ21080257S01 Annex C Plots of System Performance Check Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.20 System Check_900MHz_Head Communication System: UID 0, CW (0); Frequency: 900 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used: f = 900 MHz; Ο = 0.961 S/m; Ξ΅ r = 41.592; Ο = 1000 kg/m 3 Ambient TemperatureοΌ23.2 Β°C; Liquid TemperatureοΌ22.1 Β°C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.81, 9.81, 9.81) @ 900 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW900/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.58 W/kg CW900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.49 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 4.11 W/kg SAR(1 g) = 2.85 W/kg; SAR(10 g) = 1.79 W/kg Maximum value of SAR (measured) = 3.43 W/kg 0 dB = 3.43 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.22 System Check_1800MHz_Head Communication System: UID 0, CW (0); Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL_1800 Medium parameters used: f = 1800 MHz; Ο = 1.423 S/m; Ξ΅ r = 40.363; Ο = 1000 kg/m 3 Ambient TemperatureοΌ23.2 Β°C; Liquid TemperatureοΌ22.1 Β°C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(8.26, 8.26, 8.26) @ 1800 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW1800/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.7 W/kg CW1800/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 85.43 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 17.1 W/kg SAR(1 g) = 9.86 W/kg; SAR(10 g) = 5.11 W/kg Maximum value of SAR (measured) = 13.4 W/kg 0 dB = 13.4 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.21 System Check_2000MHz_Head Communication System: UID 0, CW (0); Frequency: 2000 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 2000 MHz; Ο = 1.433 S/m; Ξ΅ r = 40.251; Ο = 1000 kg/m 3 Ambient TemperatureοΌ23.2 Β°C; Liquid TemperatureοΌ22.1 Β°C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.99, 7.99, 7.99) @ 2000 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW2000/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.7 W/kg CW2000/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 88.86 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 18.4 W/kg SAR(1 g) = 10.55 W/kg; SAR(10 g) = 5.26 W/kg Maximum value of SAR (measured) = 14.3 W/kg 0 dB = 14.3 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.25 System Check_2450MHz_Head Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450 Medium parameters used: f = 2450 MHz; Ο = 1.842 S/m; Ξ΅ r = 39.522; Ο = 1000 kg/m 3 Ambient TemperatureοΌ23.2 Β°C; Liquid TemperatureοΌ22.4 Β°C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.42, 7.42, 7.42) @ 2450 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW2450/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 21.5 W/kg CW2450/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 93.19 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 27.9 W/kg SAR(1 g) = 13.34 W/kg; SAR(10 g) = 6.02 W/kg Maximum value of SAR (measured) = 20.5 W/kg 0 dB = 20.5 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.19 System Check_2600MHz_Head Communication System: UID 0, CW (0); Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: HSL_2600 Medium parameters used: f = 2600 MHz; Ο = 1.999 S/m; Ξ΅ r = 39.242; Ο = 1000 kg/m 3 Ambient TemperatureοΌ23.2 Β°C; Liquid TemperatureοΌ22.4 Β°C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.08, 7.08, 7.08) @ 2600 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) CW2600/Area Scan (101x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 9.24 W/kg CW2600/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 65.11 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 17.8 W/kg SAR(1 g) = 13.66 W/kg; SAR(10 g) = 6.17 W/kg Maximum value of SAR (measured) = 8.99 W/kg 0 dB = 8.99 W/kg
RF Exposure Info
MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.οΌSZ21080257S01 Annex D Plots of Maximum SAR Test Results Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.20 GSM850_GPRS(2 TX slots)_Left Cheek_Ch189 Communication System: UID 0, GSM850(class 10) (0); Frequency: 836.4 MHz;Duty Cycle: 1:4.15 Medium: HSL_900 Medium parameters used: f = 836.4 MHz; Ο = 0.943 S/m; Ξ΅ r = 42.978; Ο = 1000 kg/m 3 Ambient TemperatureοΌ23.2 Β°C; Liquid TemperatureοΌ22.1 Β°C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.81, 9.81, 9.81) @ 836.4 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch189/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.394 W/kg Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.968 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.438 W/kg SAR(1 g) = 0.338 W/kg; SAR(10 g) = 0.252 W/kg Maximum value of SAR (measured) = 0.388 W/kg 0 dB = 0.388 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.21 GSM1900_GPRS(1 TX slots)_Left Cheek_Ch661 Communication System: UID 0, GSM1900(class 8) (0); Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL_2000 Medium parameters used: f = 1880 MHz; Ο = 1.321 S/m; Ξ΅ r = 39.882; Ο = 1000 kg/m 3 Ambient TemperatureοΌ23.2 Β°C; Liquid TemperatureοΌ22.1 Β°C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.99, 7.99, 7.99) @ 1880 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch661/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.272 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.987 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.323 W/kg SAR(1 g) = 0.214 W/kg; SAR(10 g) = 0.136 W/kg Maximum value of SAR (measured) = 0.271 W/kg 0 dB = 0.271 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.21 WCDMA Band II_RMC 12.2Kbps_Left Cheek_Ch9400 Communication System: UID 0, UMTS-FDD (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 1880 MHz; Ο = 1.321 S/m; Ξ΅ r = 39.882; Ο = 1000 kg/m 3 Ambient TemperatureοΌ23.2 Β°C; Liquid TemperatureοΌ22.1 Β°C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.99, 7.99, 7.99) @ 1880 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch9400/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0963 W/kg Ch9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.703 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.114 W/kg SAR(1 g) = 0.074 W/kg; SAR(10 g) = 0.046 W/kg Maximum value of SAR (measured) = 0.0953 W/kg 0 dB = 0.0953 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.20 WCDMA Band V_RMC 12.2Kbps_Left Cheek_Ch4182 Communication System: UID 0, UMTS-FDD (0); Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: HSL_900 Medium parameters used: f = 836.4 MHz; Ο = 0.943 S/m; Ξ΅ r = 42.978; Ο = 1000 kg/m 3 Ambient TemperatureοΌ23.2 Β°C; Liquid TemperatureοΌ22.1 Β°C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(9.81, 9.81, 9.81) @ 836.4 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch4182/Area Scan (71x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0837 W/kg Ch4182/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.358 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.0920 W/kg SAR(1 g) = 0.071 W/kg; SAR(10 g) = 0.053 W/kg Maximum value of SAR (measured) = 0.0815 W/kg 0 dB = 0.0815 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.21 LTE Band 2_20MHz_QPSK_1RB_0Offset_Left Cheek_Ch18900 Communication System: UID 0, LTE (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_2000 Medium parameters used: f = 1880 MHz; Ο = 1.321 S/m; Ξ΅ r = 39.882; Ο = 1000 kg/m 3 Ambient TemperatureοΌ23.2 Β°C; Liquid TemperatureοΌ22.1 Β°C DASY5 Configuration: - Probe: EX3DV4 - SN7608; ConvF(7.99, 7.99, 7.99) @ 1880 MHz; Calibrated: 2022.01.12 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1643; Calibrated: 2021.12.30 - Phantom: Twin-SAM; Type: QD 000 P41 Ax; Serial: 2020 - Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7483) Ch18900/Area Scan (71x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0906 W/kg Ch18900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.686 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.101 W/kg SAR(1 g) = 0.065 W/kg; SAR(10 g) = 0.041 W/kg Maximum value of SAR (measured) = 0.0840 W/kg 0 dB = 0.0840 W/kg Test Laboratory: Shenzhen Morlab Communications Technology Co., Ltd. Date: 2022.03.22 LTE Band 4_20MHz_QPSK_1RB_0Offset_Left Cβ¦
Text truncated - open the document above for the full version.
RF Exposure Info
MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.οΌSZ21080257S01 Annex E Conducted Power 128189251128189251 824.2836.4848.8824.2836.4848.8 30.5530.5730.6131.0021.5521.5721.6122.00 32.5132.6832.5934.0023.5123.6823.5925.00 30.3130.4330.3931.0024.3124.4324.3925.00 28.4228.5128.4429.0024.1624.2524.1824.74 26.1626.2526.1927.0023.1623.2523.1924.00 26.7726.8026.7327.0017.7717.8017.7318.00 26.5926.6326.5727.0020.5920.6320.5721.00 26.4526.4326.4127.0022.1922.1722.1522.74 26.2726.2426.2127.0023.2723.2423.2124.00 Max.32.68Max.24.43 512661810512661810 1850.218801909.81850.218801909.8 27.1827.0627.0228.0018.1818.0618.0219.00 30.2230.2430.2131.0021.2221.2421.2122.00 26.4426.6826.3927.5020.4420.6820.3921.50 25.2125.5325.2326.0020.9521.2720.9721.74 23.1723.5123.2224.0020.1720.5120.2221.00 25.3125.4425.2926.0016.3116.4416.2917.00 25.2425.4025.2626.0019.2419.4019.2620.00 25.0325.2625.1126.0020.7721.0020.8521.74 23.1623.2323.0124.0020.1620.2320.0121.00 Max.30.24Max.21.27 926294009538413241824233 966298009938435744074458 1852.418801907.6826.4836.4846.6 3GPP Rel 99RMC 12.2Kbps22.2622.5522.3723.0021.5121.6121.5522.00 3GPP Rel 6HSDPA Subtest-122.4522.3522.2523.0021.2221.4621.3422.00 3GPP Rel 6HSDPA Subtest-222.1921.9421.8022.5021.2321.2121.3122.00 3GPP Rel 6HSDPA Subtest-322.2922.0321.9222.5020.9220.9221.0121.50 3GPP Rel 6HSDPA Subtest-422.0221.7321.6122.5020.8320.8220.9121.50 3GPP Rel 6HSUPA Subtest-122.1321.8921.7722.5021.4221.3421.3922.00 3GPP Rel 6HSUPA Subtest-222.2221.9521.8022.5021.3921.2821.3422.00 3GPP Rel 6HSUPA Subtest-322.0421.8321.7322.5021.4021.3221.2822.00 3GPP Rel 6HSUPA Subtest-422.2121.9621.8722.5021.3521.2321.2222.00 3GPP Rel 6HSUPA Subtest-522.0821.8721.7622.5021.3921.2921.2922.00 3GPP Rel 7 HSPA+ (16QAM) Subtest-121.9521.8221.7922.5021.2621.2421.2222.00 Cable Loss0.8Cable Loss0.6 Max.22.55Max.21.61 Conducted Power GSM850Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot GPRS 2 Tx slots Tune-up Limit (dBm) Tune-up Limit (dBm) GPRS 3 Tx slots GPRS 4 Tx slots EDGE 1 Tx slot Mode AttenuatorCable Loss : 0.6 EDGE 2 Tx slots EDGE 3 Tx slots EDGE 4 Tx slots GSM1900Burst Average Power (dBm)Frame-Average Power (dBm) TX Channel Frequency (MHz) GSM 1 Tx slot GPRS 1 Tx slot Tune-up Limit (dBm) GPRS 2 Tx slots GPRS 3 Tx slots GPRS 4 Tx slots EDGE 4 Tx slots EDGE 1 Tx slot EDGE 2 Tx slots EDGE 3 Tx slots WCDMA Band V TX Channel Rx Channel Frequency (MHz) Mode AttenuatorCable Loss : 0.8 Tune-up Limit (dBm) Mode Attenuator Tune-up Limit (dBm) Tune-up Limit (dBm) Date2022.03.08 BandWCDMA Band II BW [MHz] Modulation RB Size RB Offset Low Channel Middle Channel High Channel BW [MHz] Modulation RB Size RB Offset Low Channel Middle Channel High Channel 187001890019100200502017520300 18601880190017201732.51745 20QPSK1023.2523.2723.1920QPSK1023.0423.1623.07 20QPSK14923.0523.1223.1120QPSK14923.0423.0823.03 20QPSK19922.9823.0823.0420QPSK19923.0123.0122.98 20QPSK50022.6022.6122.5520QPSK50022.3522.5122.45 20QPSK502422.4422.5022.3420QPSK502422.3722.3622.38 20QPSK505022.1222.1422.2520QPSK505022.3622.3222.35 20QPSK100022.2222.4622.3420QPSK100022.2622.4222.31 2016QAM1022.4722.5022.482016QAM1022.5422.6222.71 2016QAM14922.2222.2922.302016QAM14922.3822.4822.53 2016QAM19922.0522.1522.212016QAM19922.3522.5222.48 2016QAM50021.2321.2221.182016QAM50021.1921.2721.29 2016QAM502421.1121.1821.162016QAM502421.1321.1221.16 2016QAM505021.1221.1721.152016QAM505021.0321.0821.10 2016QAM100021.2121.2421.212016QAM100021.1021.1721.13 2064QAM1021.2421.3421.262064QAM1021.4921.2221.31 2064QAM14921.1921.2321.202064QAM14921.3021.1821.22 2064QAM19921.1221.1521.122064QAM19921.1321.1421.15 2064QAM50021.2321.2321.202064QAM50021.1721.2221.19 2064QAM502421.2021.2421.252064QAM502421.1321.1621.17 2064QAM505021.1321.2921.202064QAM505021.1021.1121.13 2064QAM100021.2221.1121.162064QAM1000 21.0921.1021.12 186751890019125200252017520325 1857.518801902.51717.51732.51747.5 15QPSK1023.1523.2323.1715QPSK1023.0323.1123.04 15QPSK13722.9923.0823.0915QPSK13723.0323.0323.00 15QPSK17422.9223.0423.0215QPSK17423.0022.9622.95 15QPSK36022.0921.9722.0815QPSK36022.0022.1222.08 15QPSK362021.9322.0122.0715QPSK362022.0222.4922.53 15QPSK363922.0622.1022.1115QPSK363922.0122.4522.50 15QPSK75021.9221.9522.1215QPSK75021.9122.5522.46 1516QAM1022.3922.4422.441516QAM1022.5322.5722.68 1516QAM13722.1422.2322.261516QAM13722.3522.4122.48 1516QAM17421.9722.0922.171516QAM17422.3222.4522.43 1516QAM36021.1521.1621.141516QAM36021.1621.2021.24 1516QAM362021.0321.1221.121516QAM362021.1021.0521.11 1516QAM363921.0421.1121.111516QAM363921.0021.0121.05 1516QAM75021.1321.1821.171516QAM75021.0721.1021.08 1564QAM1021.1821.3021.241564QAM1021.4821.1721.28 1564QAM13721.1321.1921.181564QAM13721.2921.1321.19 1564QAM17421.0621.1121.101564QAM17421.1221.0921.12 1564QAM36021.1721.1921.181564QAM36021.1621.1721.16 1564QAM362021.1421.2021.231564QAM362021.1221.1121.14 1564QAM363921.0721.2521.181564QAM363921.0921.0621.10 1564QAM75021.1621.1221.141564QAM75021.0821.0521.09 186501890019150200002017520350 18551880190517151732.51750 10QPSK1023.1823.2223.1610QPSK1023.0523.1323.06 10QPSK12522.9823.0723.0810QPSK12523.0323.0523.02 10QPSK14922.9123.0323.0110QPSK14923.0122.9822.97 10QPSK25022.0821.9622.0710QPSK25022.0022.1422.10 10QPSK251221.9222.0022.0610QPSK251222.0421.9922.03 10QPSK252522.0522.0922.1010QPSK252522.0121.9522.00 10QPSK50021.9121.9422.1110QPSK50021.9222.0521.96 1016QAM1022.3822.4322.431016QAM1022.5322.5922.70 1016QAM12522.1322.2222.251016QAM12522.3722.4522.52 1016QAM14921.9622.0822.161016QAM14922.3422.4922.47 1016QAM25021.1421.1521.131016QAM25021.1821.2421.28 1016QAM251221.0221.1121.111016QAM251221.1221.0921.15 1016QAM252521.0321.1021.101016QAM252521.0221.0521.09 1016QAM50021.1221.1721.161016QAM50021.0921.1421.12 1064QAM102β¦
Text truncated - open the document above for the full version.
RF Exposure Info
MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.οΌSZ21080257S01 Annex F DASY Calibration Certificate
RF Exposure Info
NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZh en , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.οΌSZ21080257S01 Page 1 of 66 TEST REPORT APPLICANT : BLU Products, Inc. PRODUCT NAME : Smart Phone MODEL NAME : STUDIO X10L 2022 BRAND NAME : BLU FCC ID : YHLBLUX10L22 STANDARD(S) : FCC 47 CFR Part 2(2.1093) IEEE 1528-2013 RECEIPT DATE : 2022-02-28 TEST DATE : 2022-03-19 to 2022-03-25 ISSUE DATE : 2022-04-07 Edited by : Xie Yiyun (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.οΌSZ21080257S01 Page 2 of 66 DIRECTORY 1. SAR Results Summary ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 5 2. Technical Information ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 6 2.1. Applicant and Manufacturer Information βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 6 2.2. Equipment under Test (EUT) Description ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 6 2.3. Environment of Test Site/Conditions βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 8 3. Specific Absorption Rate (SAR) βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 9 3.1. Introductionββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 9 3.2. SAR Definition βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 9 4. RF Exposure Limits βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 10 4.1. Uncontrolled Environment βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 10 4.2. Controlled Environment βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 10 5. Applied Reference Documents ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 11 6. SAR Measurement System βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 12 6.1. E-Field Probe βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 13 6.2. Data Acquisition Electronics (DAE) ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 14 6.3. Robot ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 14 6.4. Measurement Server βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 15 6.5. Light Beam Unit βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 15 6.6. Phantom βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 15 6.7. Device Holder ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 16 6.8. Data Storage and Evaluation βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 17 6.9. Test Equipment List ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 19 7. Tissue Simulating Liquids ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 21 8. SAR System Verification βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 23 8.1. Purpose of System Performance check ββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 23 8.2. System Setup βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 23 MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.οΌSZ21080257S01 Page 3 of 66 8.3. Validation Results βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 24 9. EUT Testing Position βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 27 9.1. Handset Reference Points βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 27 9.2. Positioning for Cheek / Touch βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ 28 9.3. Positioning for Ear / 15ΒΊ Tilt βββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββββ¦
Text truncated - open the document above for the full version.
Contact Information
Applicant
Wei Zeng(Senior Manager)
Test Firm
Shenzhen Morlab Communications Technology Co. Ltd.Mr. Su Feng
[email protected]+86 755 36698566
