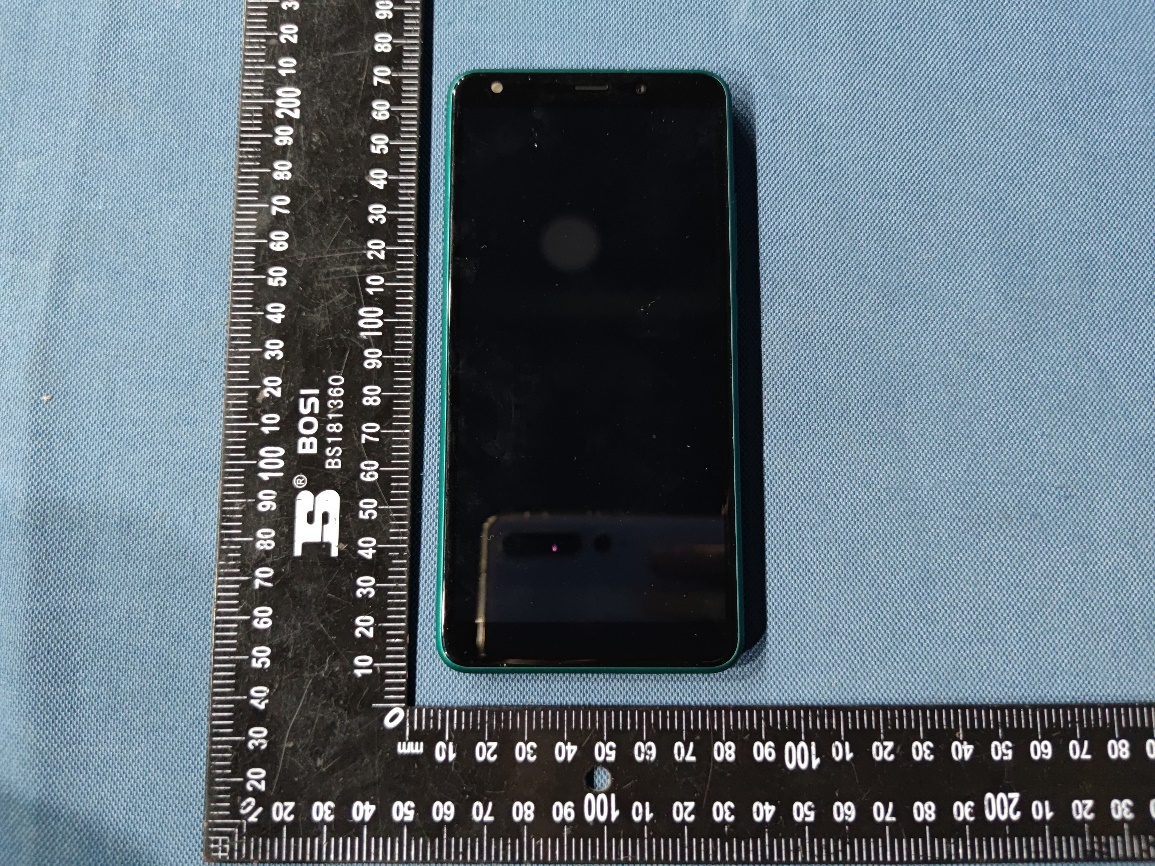

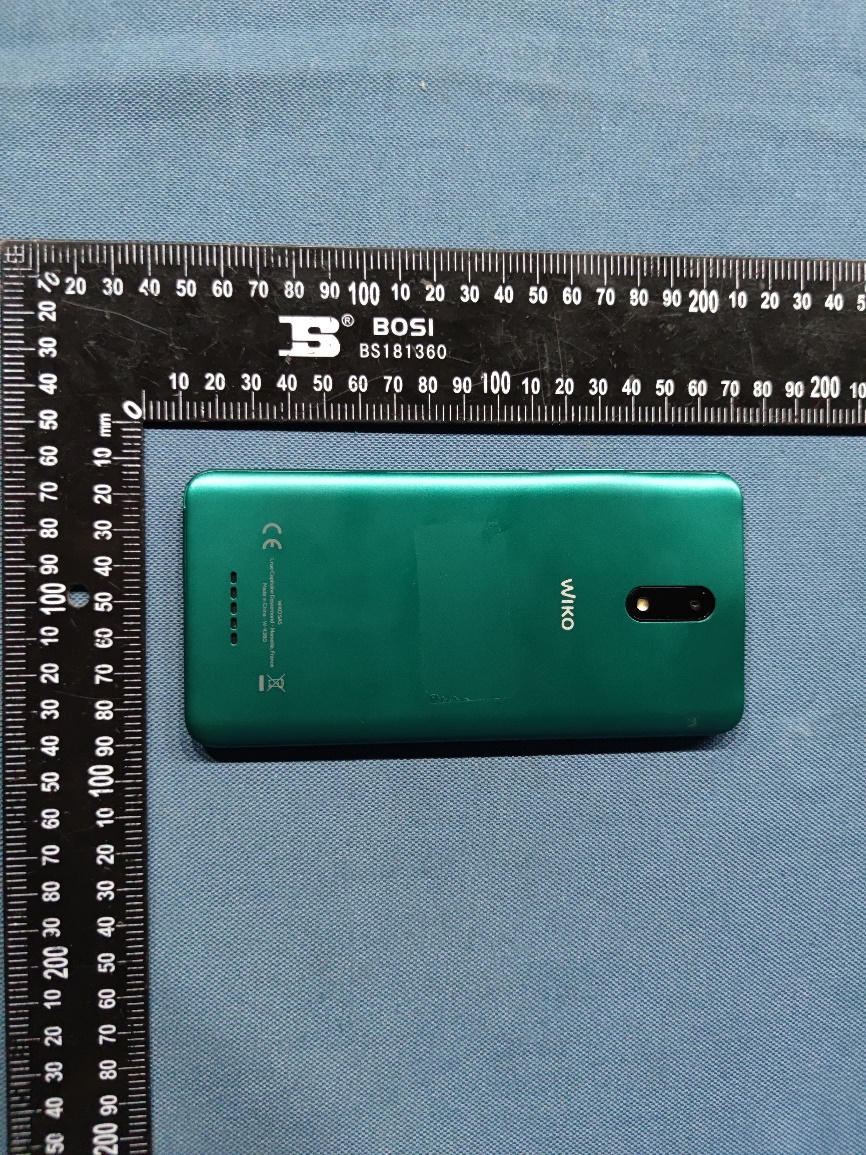

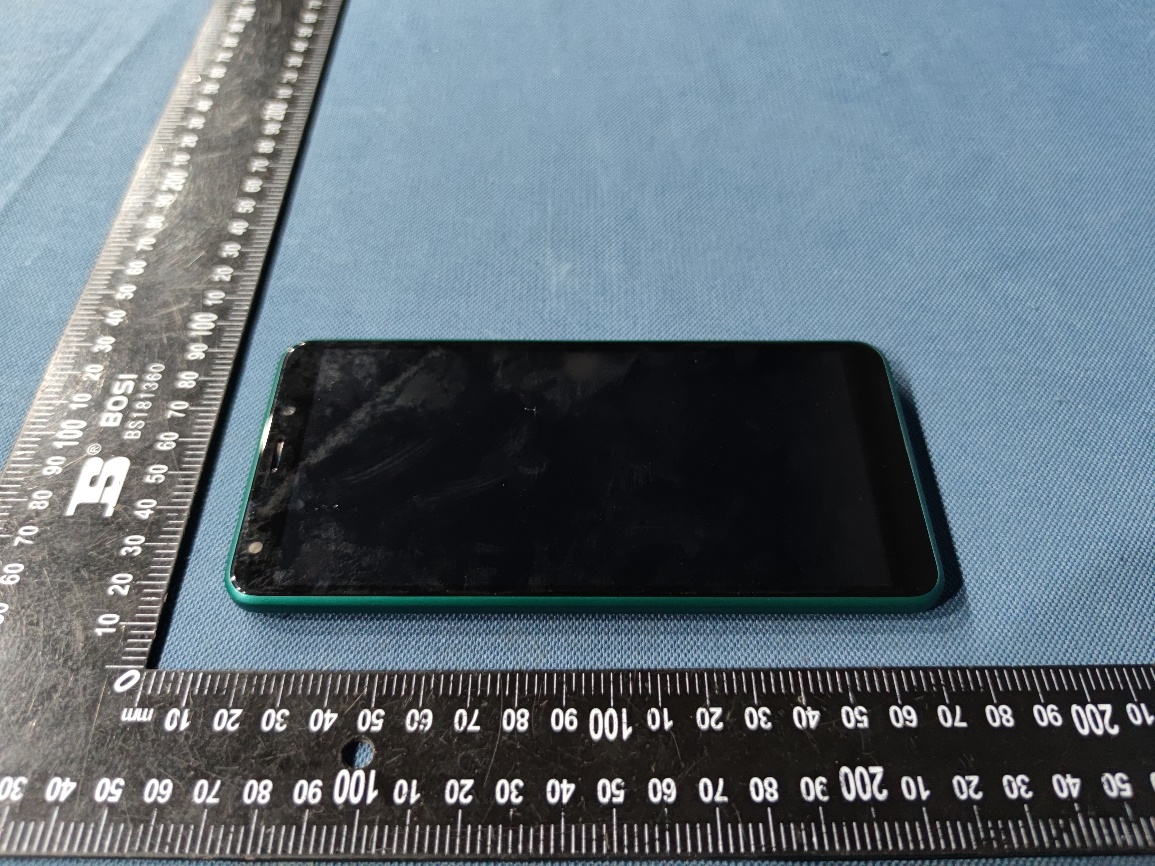

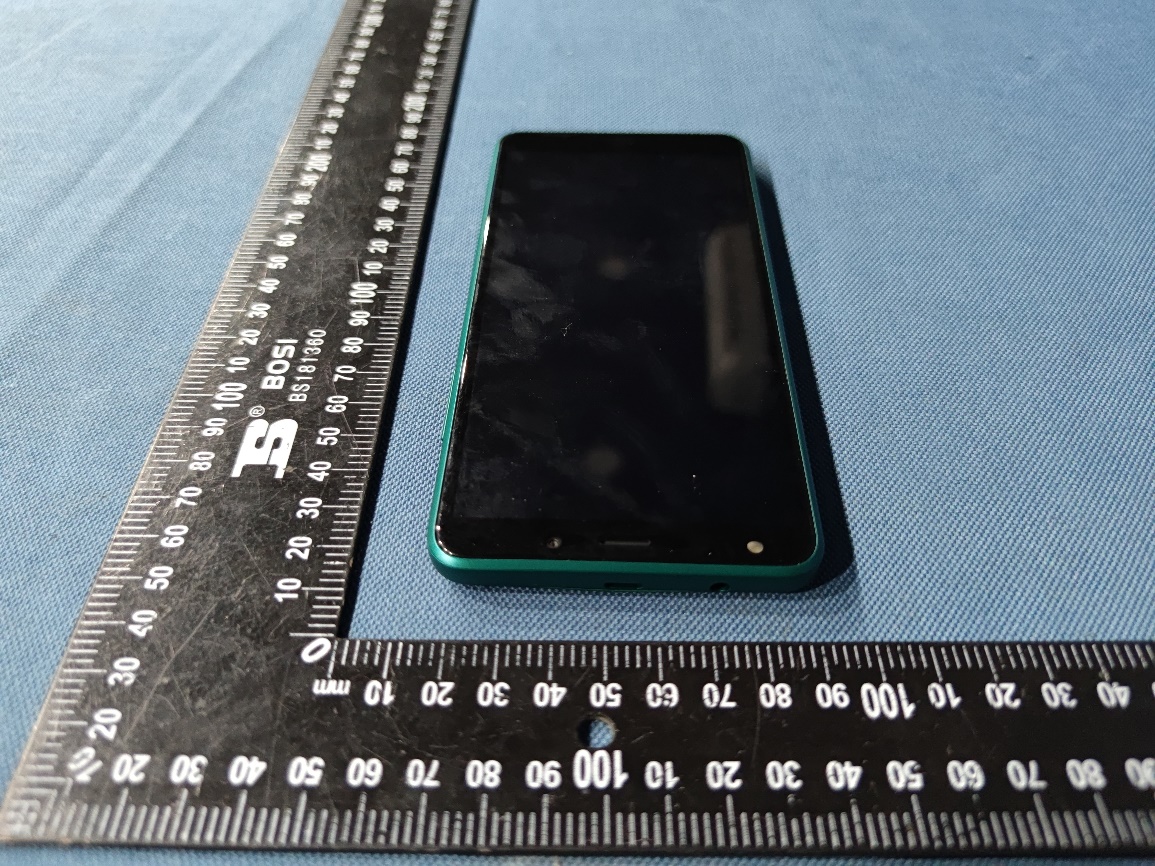

Page 1 of 5 FCC ID: YHLBLUX12 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 5 FCC ID: YHLBLUX12 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 5 FCC ID: YHLBLUX12 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 5 FCC ID: YHLBLUX12 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 5 FCC ID: YHLBLUX12 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

155*202mm

Page 1 of 9 FCC ID: YHLBLUX12 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E- mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo BT/WIFI Antenna 2G/3G Antenna Page 2 of 9 FCC ID: YHLBLUX12 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E- mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 9 FCC ID: YHLBLUX12 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E- mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 9 FCC ID: YHLBLUX12 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E- mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 9 FCC ID: YHLBLUX12 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E- mail: [email protected] Http://www.uttlab.com EUT Photo

Page 6 of 9 FCC ID: YHLBLUX12 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E- mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 7 of 9 FCC ID: YHLBLUX12 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E- mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 8 of 9 FCC ID: YHLBLUX12 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E- mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 9 of 9 FCC ID: YHLBLUX12 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E- mail: [email protected] Http://www.uttlab.com EUT Photo

Page 1 of 46 Report No.: 201224007SAR-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com UTTR-SAR-IEEE Std 1528-2013-V1.1 FCC SAR Test Report Product : Mobile Phone Trade mark : BLU Model/Type reference : STUDIO X12 Report Number : 201224007SAR-1 Date of Issue : January 28, 2021 FCC ID : YHLBLUX12 Test Standards : FCC 47 CFR Part 2 §2.1093 ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Test result : PASS Prepared for: BLU Products, Inc. 10814 NW 33rd St # 100 Doral, FL 33172 ,USA Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: Charley Wu Project Engineer Kevin Liang Assistant Manager Approved by: Date: January 28, 2021 Billy Li Technical Director Page 2 of 46 Report No.: 201224007SAR-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com UTTR-SAR-IEEE Std 1528-2013-V1.1 Version Version No. Date Description V1.0 January 28, 2021 Original Page 3 of 46 Report No.: 201224007SAR-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com UTTR-SAR-IEEE Std 1528-2013-V1.1 Contents Page 1 GENERAL INFORMATION ............................................................................................................................. 5 1.1 STATEMENT OF COMPLIANCE .......................................................................................................... 5 1.2 EUT DESCRIPTION .............................................................................................................................. 6 1.2.1 General Description ...................................................................................................................... 6 1.2.2 Wireless Technologies .................................................................................................................. 7 1.2.3 List of Accessory ........................................................................................................................... 8 1.3 MAXIMUM CONDUCTED POWER ...................................................................................................... 9 1.4 OTHER INFORMATION ...................................................................................................................... 10 1.5 TESTING LOCATION ......................................................................................................................... 10 1.6 TEST FACILITY .................................................................................................................................. 10 1.7 GUIDANCE STANDARD .................................................................................................................... 11 2 SPECIFIC ABSORPTION RATE (SAR) ........................................................................................................ 12 2.1 INTRODUCTION ................................................................................................................................. 12 2.2 SAR DEFINITION ................................................................................................................................ 12 2.3 SAR LIMITS ........................................................................................................................................ 12 3 SAR MEASUREMENT SYSTEM .................................................................................................................. 13 3.1 SPEAG DASY SYSTEM ..................................................................................................................... 13 3.1.1 Robot .......................................................................................................................................... 13 3.1.2 Probe .......................................................................................................................................... 14 3.1.3 Data Acquisition Electronics (DAE) ............................................................................................ 14 3.1.4 Phantom ..................................................................................................................................... 15 3.1.5 Device Holder ............................................................................................................................. 16 3.1.6 System Validation Dipoles .......................................................................................................... 16 3.2 SAR SCAN PROCEDURE .................................................................................................................. 17 3.2.1 SAR Reference Measurement (drift) .......................................................................................... 17 3.2.2 Area Scan ................................................................................................................................... 17 3.2.3 Zoom Scan ................................................................................................................................. 17 3.2.4 SAR Drift Measurement.............................................................................................................. 18 3.3 TEST EQUIPMENT .......................................................…

Text truncated - open the document above for the full version.

Test Laboratory: UnionTrust Date/Time: 2021/01/20 System Check_H835 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL835 Medium parameters used: f = 835 MHz; σ = 0.874 mho/m; ε r = 41.62; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.34, 6.34, 6.34); Calib rated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.10 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 36.0 V/m; Power Drift = -0.014 dB Peak SAR (extrapolated) = 1.50 W/kg SAR(1 g) = 0.940 mW/g; SAR(10 g) = 0.594 mW/g Maximum value of SAR (measured) = 1.11 mW/g 0 dB = 1.11mW/g Test Laboratory: UnionTrust Date/Time: 2 021/01/21 System Check_H1900 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900 Medium parameters used: f = 1900 MHz; σ = 1.37 mho/m; ε r = 41.35; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.1, 5.1, 5.1); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 2; Type: QD 000 P40 CB; Serial: TP-1376 - Postprocessing SW: SEMCAD, V1.8 Build 186 Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.551 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.7 V/m; Power Drift = 0.015 dB Peak SAR (extrapolated) = 0.880 W/kg SAR(1 g) = 0.430 mW/g; SAR(10 g) = 0.211 mW/g Maximum value of SAR (measured) = 0.563 mW/g 0 dB = 0.551mW/g Date/Time: 2021/01/23Test Laboratory: UnionTrust System Check_H2450 DUT: Dipole 2450 MHz C ommunication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H2450 Medium parameters used: f = 2450 MHz; σ = 1.76 mho/m; ε r = 40.38; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(4.61, 4.61, 4.61); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 2; Type: QD 000 P40 CB; Serial: TP-1376 - Postprocessing SW: SEMCAD, V1.8 Build 186 system check/Area Scan (51x71x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.733 mW/g system check/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.0 V/m; Power Drift = 0.120 dB Peak SAR (extrapolated) = 0.769 W/kg SAR(1 g) = 0.542 mW/g; SAR(10 g) = 0.271 mW/g Maximum value of SAR (measured) = 0.558 mW/g 0 dB = 0.558mW/g

Test Laboratory: UnionTrust Date/Time: 2021/1/20 GSM850_GSM_Right Cheek_128 DUT: EUT Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: H835 Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.9 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.13, 6.13, 6.13); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 Area Scan (71x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.288 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.28 V/m; Power Drift = 0.021 dB Peak SAR (extrapolated) = 0.327 W/kg SAR(1 g) = 0.261 mW/g; SAR(10 g) = 0.198 mW/g Maximum value of SAR (measured) = 0.284 mW/g 0 dB = 0.284mW/g Test Laboratory: UnionTrust Date/Time: 2021/1/21 GSM1900_GSM_Left Cheek_810 DUT: EUT Communication System: GSM1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: H1900 Medium parameters used: f = 1910 MHz; σ = 1.47 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.1, 5.1, 5.1); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 2; Type: QD 000 P40 CB; Serial: TP-1376 - Postprocessing SW: SEMCAD, V1.8 Build 186 Area Scan (71x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.361 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.88 V/m; Power Drift = 0.041 dB Peak SAR (extrapolated) = 0.456 W/kg SAR(1 g) = 0.291 mW/g; SAR(10 g) = 0.181 mW/g Maximum value of SAR (measured) = 0.341 mW/g 0 dB = 0.341mW/g Test Laboratory: UnionTrust Date/Time: 2021/1/21 WCCDMA II_RMC12.2K_Left Cheek_9262 DUT: EUT Communication System: WCDMA Band II; Frequency: 1852.4 MHz;Duty Cycle: 1:1 Medium: H1900 Medium parameters used: f = 1852.4 MHz; σ = 1.41 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.1, 5.1, 5.1); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2018/5/11 - Phantom: SAM 2; Type: QD 000 P40 CB; Serial: TP-1376 - Postprocessing SW: SEMCAD, V1.8 Build 186 Area Scan (71x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.190 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.51 V/m; Power Drift = 0.030 dB Peak SAR (extrapolated) = 0.250 W/kg SAR(1 g) = 0.159 mW/g; SAR(10 g) = 0.100 mW/g Maximum value of SAR (measured) = 0.187 mW/g 0 dB = 0.187mW/g Test Laboratory: UnionTrust Date/Time: 2021/1/20 WCCDMA V_RMC12.2K_Right Cheek_4233 DUT: EUT Communication System: WCDMA Band V; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium: H835 Medium parameters used: f = 847 MHz; σ = 0.921 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.13, 6.13, 6.13); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 Area Scan (71x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.321 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.01 V/m; Power Drift = -0.041 dB Peak SAR (extrapolated) = 0.356 W/kg SAR(1 g) = 0.275 mW/g; SAR(10 g) = 0.206 mW/g Maximum value of SAR (measured) = 0.306 mW/g 0 dB = 0.306mW/g Test Laboratory: UnionTrust Date/Time: 2021/1/23 2.4G WLAN_802.11b_Left Cheek_Ch11 DUT: EUT Communication System: Wlan 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: H2450 Medium parameters used: f = 2462 MHz; σ = 1.79 mho/m; ε r = 40.2; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(4.61, 4.61, 4.61); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 Area Scan (81x111x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 1.20 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.5 V/m; Power Drift = 0.075 dB Peak SAR (extrapolated) = 1.97 W/kg SAR(1 g) = 0.900 mW/g; SAR(10 g) = 0.420 mW/gMaximum value of SAR (measured) = 1.19 mW/g 0 dB = 1.19mW/g Test Laboratory: UnionTrust Date/Time: 2021/1/20 GSM850_GPRS11_Rear Face_10mm_251 DUT: EUT Communication System: GPRS 850-3solt; Frequency: 848.8 MHz;Duty Cycle: 1:2.77 Medium: H835 Medium parameters used: f = 849 MHz; σ = 0.923 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(6.13, 6.13, 6.13); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Phantom: SAM 1; Type: QD 000 P40 CB; Serial: TP/1378 - Postprocessing SW: SEMCAD, V1.8 Build 186 251/Area Scan (71x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.589 mW/g 251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.5 V/m; Power Drift = 0.024 dB Peak SAR (extrapolated) = 0.734 W/kg SAR(1 g) = 0.417 mW/g; SAR(10 g) = 0.264 mW/g Maximum value of SAR (measured) = 0.493 mW/g 0 dB = 0.493mW/g Test Laboratory: UnionTrust Date/Time: 2021/1/21 GSM1900_GPRS11_Rear Face_10mm_512 DUT: EUT Communication System: GPRS1900-3slots; Frequency: 1850.2 MHz;Duty Cycle: 1:2.77 Medium: H1900 Medium parameters used: f = 1850.2 MHz; σ = 1.41 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ES3DV3 - SN3090; ConvF(5.1, 5.1, 5.1); Calibrated: 2020/5/9 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn662; Calibrated: 2020/5/6 - Pha…
