YHLCTBLUTATTOOGSM MOBILE PHONE

-1- Table of Content 1 Preface................................................................................................................................................................2 1.1 Safety Notices ................................................................................................................................................................................................. 2 1.2 Safety Precautions ........................................................................................................................................................................................ 2 1.2.1 Current Precautions ..................................................................................................................................................................................... 2 1.2.2 Mobile Phone............................................................................................................................................................................................... 3 1.2.3 Battery ......................................................................................................................................................................................................... 3 1.2.4 Charger ........................................................................................................................................................................................................ 4 1.2.5 Cleaning& Maintenance ................................................................................................................................................................................. 5 2.1 Keypad Description ........................................................................................................................................................................................ 5 2.2 Specification ...................................................................................................................................................................................................... 6 3.1 SIM Card ........................................................................................................................................................................................................... 6 3.7Accesories .......................................................................................................................................................................................................... 8 4.2 Contacts .........................................................................................................................................................................................................11 4.3 Browser 12 4.6 User Profile ...................................................................................................................................................................................................... 13 4.8 Setup 14 4.10 CALL center .................................................................................................................................................................................................. 14 4.11 Call History.................................................................................................................................................................................................... 14 4.12 setup 15 4.16 PowerOff ....................................................................................................................................................................................................... 18 -2- 1 Preface Thank you for choosing the mobile phones. You may have a comprehensive knowledge of usage of this phone and learn its excellent functionality and easy operation methods through reading through this manual. The mobile phone is designed for GSM/GPRS network environment. In addition to basic phone functions, it also provides multiple practical functions for you to include name card phonebook, 64-Polyphonic ring tones, clock/alarm clock, calendar, health, calculator, MP3 /Video player, camera, video recorder, voice recorder, etc., to facilitate both your work and entertainment activities. Meanwhile, the mobile phone adopts personalized man-machine interface and can satisfy your every need through perfect functional design. The phone conforms to GSM/GPRS technical criteria, and has passed the attestation by both domestic and foreign institutions with authorities. The company reserves the right to modify any contents in this Manual without any further notice. 1.1 Safety Notices If your phone is lost or stolen, please immediately inform your nearest telecommunication department or agent to disable the SIM card, so as to prevent others from using your phone and incurring economic loss to you. When you contact telecommunication departments or agents, they may need to know the IMEI code of your phone (you can find it on the back label of your phone after removing the battery). Please write down the code and keep it in a safe place for later use. For the purpose of avoiding mistaken use of your phone, please adopt precautions such as: -- Set up the PIN code of your SIM card. The PIN code can prevent your SIM card from being used by unauthorized people. -- On a tr+ip or travel outside, please do not disclose your phone in public, so as to avoid unnecessary loss. You’d better keep it close to you or lock it in your luggage. -- Enable call barring. 1.2 Safety Precautions Before using your phone, please carefully read through these precautions, so as to ensure safe and correct use. 1.2.1 Current Precautions  Use only the original or specifiedaccessories. Other products may cause battery leakage, overheat, explosion,or fire.  Do not severely bump, shake or throw your phone, so as to avoid faults and fire.  Do not put your phone, battery or charger into your microwave oven or other h…

Text truncated - open the document above for the full version.

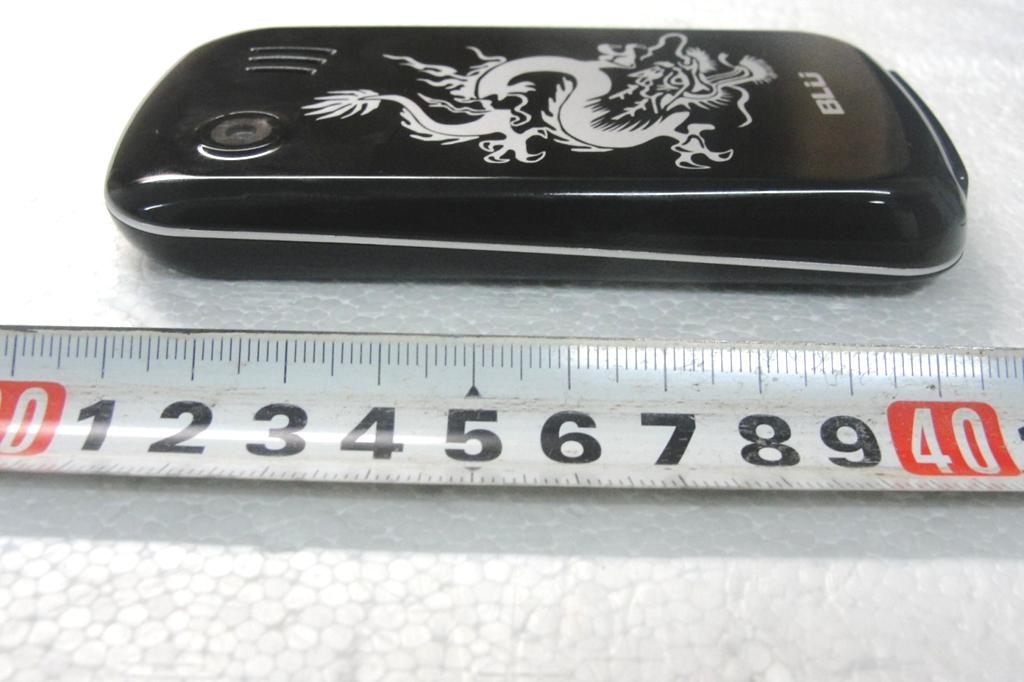

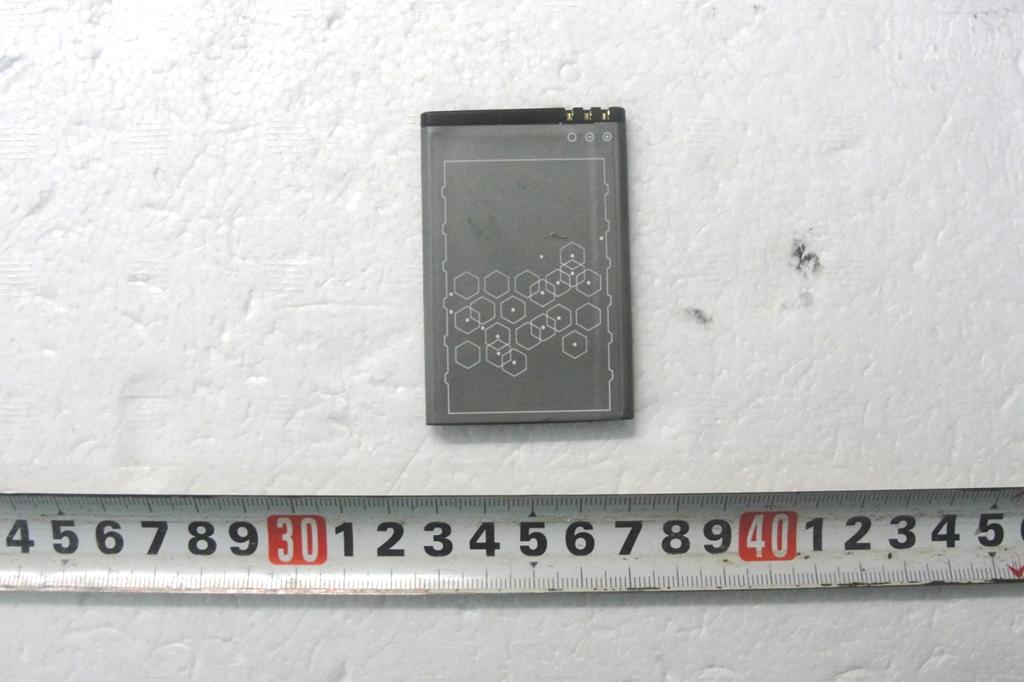

Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO 1. External Photograph of EUT Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO 720510 Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO List of Accessory: Specification of Accessory AC Adapter Brand Name BLU Model Name Tattoo Power Rating I/P:100-240Vac, 50-60Hz, 150mA; O/P: 5.0Vdc, 500mA DC Power Cord Type 1.05 meter non-shielded cable without ferrite core Battery Brand Name BLU Model Name Tattoo Power Rating 4.2Vdc, 700mAh Type Li-ion Earphone Brand Name BLU Model Name Tattoo Signal Line Type 0.97 meter non-shielded cable without ferrite core USB Cable Brand Name BLU Model Name Tattoo Signal Line Type 0.88 meter non-shielded cable with ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO 720510

Label Location Label location Back Cover

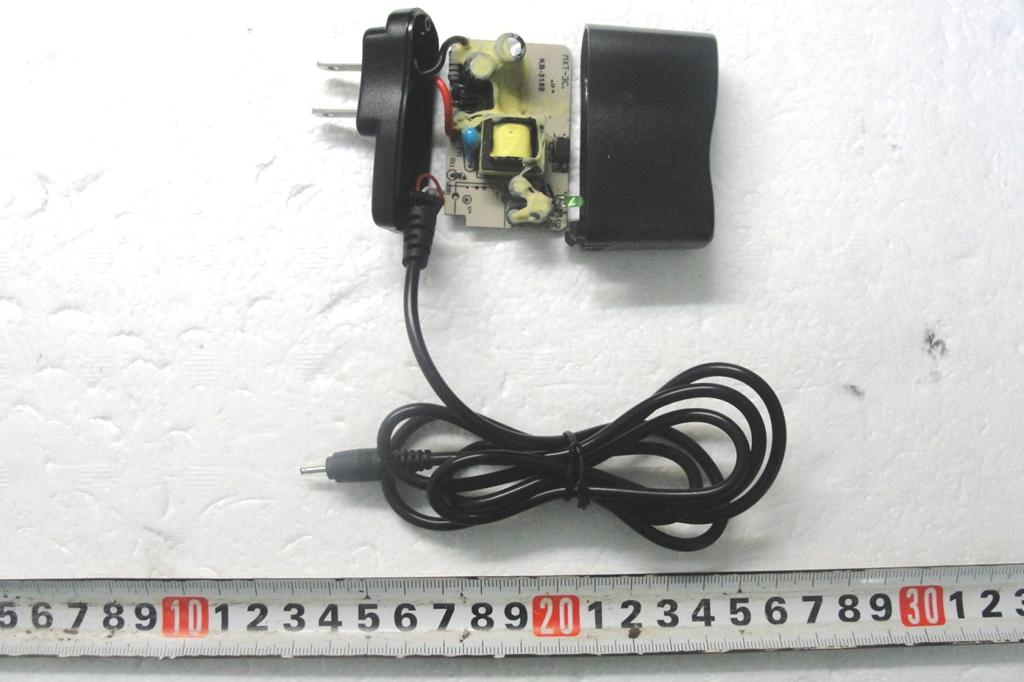

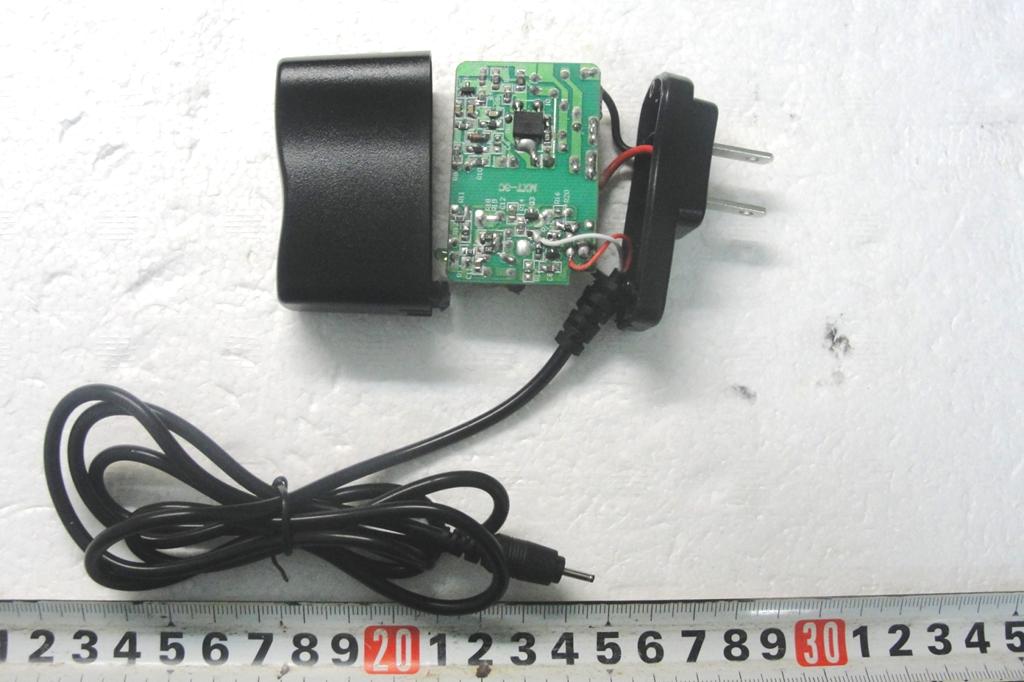

Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Single SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO 3. Internal Photograph of EUT Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Single SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Single SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Single SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Single SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Single SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Single SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Single SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Single SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO 720510 Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Dual SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 27 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Dual SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 28 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Dual SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 29 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Dual SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 30 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Dual SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 31 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Dual SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 32 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Dual SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 33 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Dual SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 34 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Dual SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 35 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Dual SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 36 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Dual SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 37 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO Photographs of EUT Report No.: EP052523 Brand Name: BLU / Model Name: Tattoo Dual SIM SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 38 of 41 TEL : +86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : +86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO 720510 Photographs of EUT Report No.: EP052523 Brand Name: BLU / …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO FCC SAR Test Report Report No. : FA052523 FCC SAR Test Report APPLICANT : CT Asia EQUIPMENT : GSM mobile phone BRAND NAME : BLU MODEL NAME : Tattoo FCC ID : YHLCTBLUTATTOO STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on May 25, 2010 and completely tested on May 28, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 32 TEL : 86-0512-5790-0158 Report Issued Date : Jun. 25, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : YHLCTBLUTATTOO FCC SAR Test Report Report No. : FA052523 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 7 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage ............................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/05/28 System Check_835MHz_100528 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_100528 Medium parameters used: f = 835 MHz; σ = 0.897 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.974 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33 V/m; Power Drift = -0.00354 dB Peak SAR (extrapolated) = 1.36 W/kg SAR(1 g) = 0.902 mW/g; SAR(10 g) = 0.589 mW/g Maximum value of SAR (measured) = 0.969 mW/g 0 dB = 0.969mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/05/28 System Check_1900MHz_100528 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_100528 Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature : 23.7 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.32, 7.32, 7.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.58 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.7 V/m; Power Drift = -0.0175 dB Peak SAR (extrapolated) = 7.51 W/kg SAR(1 g) = 3.93 mW/g; SAR(10 g) = 2.03 mW/g Maximum value of SAR (measured) = 4.39 mW/g 0 dB = 4.39mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/05/28 #17 GSM850_Right Cheek_Ch128 DUT: 052502 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100528 Medium parameters used: f = 824.2 MHz; σ = 0.888 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.07 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.2 V/m; Power Drift = -0.032 dB Peak SAR (extrapolated) = 1.35 W/kg SAR(1 g) = 0.990 mW/g; SAR(10 g) = 0.692 mW/g Maximum value of SAR (measured) = 1.05 mW/g 0 dB = 1.05mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/05/28 #12 GSM850_Right Tilted_Ch189 DUT: 052502 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100528 Medium parameters used: f = 836.6 MHz; σ = 0.898 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch189/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.741 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.8 V/m; Power Drift = -0.043 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.672 mW/g; SAR(10 g) = 0.456 mW/g Maximum value of SAR (measured) = 0.718 mW/ g 0 dB = 0.718mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/05/28 #15 GSM850_Left Cheek_Ch128 DUT: 052502 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100528 Medium parameters used: f = 824.2 MHz; σ = 0.888 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.27 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.3 V/m; Power Drift = -0.076 dB Peak SAR (extrapolated) = 1.54 W/kg SAR(1 g) = 1.17 mW/g; SAR(10 g) = 0.834 mW/g Maximum value of SAR (measured) = 1.25 mW/ g 0 dB = 1.25mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/05/28 #15 GSM850_Left Cheek_Ch128_2D DUT: 052502 Communication System: Generic GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100528 Medium parameters used: f = 824.2 MHz; σ = 0.888 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.32, 8.32, 8.32); Calibrated: 2009/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch128/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.27 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.3 V/m; Power Drift = -0.076 dB Peak SAR (extrapolated) = 1.54 W/kg SAR(1 g) = 1.17 mW/g; SAR(10 g) = 0.834 mW/g Maximum value of SAR (measured) = 1.25 mW/ g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/05/28 #14 GSM850_Left Tilted_Ch189 DUT: 052502 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100528 Medium parameters used: f = 836.6 MHz; σ = 0.898 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature :…

Text truncated - open the document above for the full version.
