YI4DW17PX56Microwave Oven

MICROWAVE OVEN I NSTRUCTION MANUAL CLOCKLBDEF MEMOZ TIMERENTER CODE AMT TIME Model: 17PX56 Please read this booklet carefully before fixing and using, and save it for future reference. Zhongshan Donlim Weili Electrical Appliances Co., Ltd. ADDRESS: Fusha Industrial Park, Fusha Town, Zhongshan City, Guangdong Province OPERAITON THEORY OF MICROWAVE OVEN 1. Microwave is a kind of high frequency electromagnetic wave, which is commonly distributed in the nature. But the existing form of microwave is dispersed so that it cannot be collected together for heating purpose. The key component of magnetron of microwave oven will transform the energy of electricity to microwave and huge energy of microwave field is established under the closed cavity. So the molecule of food is caused to vibrate at very high speed and the friction heat produced will cook the food in a fast way. 2. There is 3 properties of microwave, that is a) Absorbability: the microwave can cause the excess vibration of molecule of various food so as to obtain the heating purpose. But the infiltration ability is largely depending on the size, thickness and properties of the food. b) Penetrability: microwave can penetrate through ceramics, glass, temperature-resistant plastics. It is required to use the containers whose material have good microwave penetrability to achieve best heating result. See the below utensils guide. c) Reflectivity: microwave would be reflected by the metal wall of interior cavity so as to establish an even magnetic field, thus can prevent the overheating of partial area. INSTALLATION OF MICROWAVE OVEN 1) To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5cm, the free distance above the top surface at least 20 cm. 2) The appliance should be operated with the rear side placed against a wall. 3) Do not place any objects on the top of microwave oven. 4) The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance or noise may occur. 5) The appliance must be positioned so that the plug is accessible. 6) The microwave oven is intended to be used freestanding and shall not be placed in a cabinet. 7) To keep the microwave oven at a distance from the wall, it is necessary to install a distance limiter Push Distance Limiter in this direction 1)Push Distance Limiter in the given direction; 2)Make sure Clasp A is secured to Hole A; Secure Clasp A to Hole A Hole A Clasp A Hole A Distance Limiter 3)Insert Clasp B and Clasp C into their respective square holes. Clasp C Clasp B UTENSILS GUIDELINE It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave 1 2 cooking and combination cooking as spark is likely to occur. You can take the reference of below table. Material of container Microwave Notes Ceramic Yes Never use the ceramics which are decorated with metal rim or glazed Heat-resistant plastic Yes Can not be used for long time microwave cooking Heat-resistant glass Yes Grill rack No Plastic film Yes It should not be used when cooking meat or chops as the over temperature may do damage to the film FOR THE FIRST USE As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the turntable, setting at high power and operate for several times. IMPORTANT SAFEGUARDS The following basic precautions should always be followed when using electrical appliance: 1. Read all instructions before using. 2. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded. 3. To reduce the risk of fire in the oven cavity: a. Do not overcook the food. b. Remove wire twist-ties from paper or plastic bags before placing bags in the oven. c. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled. d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built-up grease may overheat and begin to cause smoke or catch fire. e. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply. f. Close supervision is necessary when using disposable containers made from plastic, paper or other combustible material. 4. To reduce the risk of explosion and sudden boiling: a. Do not place sealed containers in the oven. Baby bottles fitted with a screw cap or teat are considered to be sealed containers. b. When boiling liquid in the oven, use the wide-mouthed container and stand about 20 seconds at the end of cooking to avoid delayed eruptive boiling of liquids. c. Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard-boiled eggs should not be heated in microwave ovens since they may explode,even after microwave heating has ended. 3 d. The cooked liquid should not be removed out immediately. Several moments should be waited before removing In order to avoid possible hazards caused by delayed eruptive boiling of liquids. e. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns. 5. Never operate the oven further if the door or door seals is damaged or the oven is malfunctioned or supply cord is damaged. Return the appliance to the nearest authorised service center for repair and maintenance. Never try to adjust or repair the oven yourself. 6. If the supply co…

Text truncated - open the document above for the full version.

Power supply 120V 60Hz Noise filter 120V 60Hz interlock protect system 120V 60Hz Electronic control system 12VDC High voltage inverter 4kV DC Magnetron 2450MHz Turntable Motor 120V 60Hz Cavity lamp and hood lamp 120V 60Hz Hood Fan motor 120V 60Hz Block Diagram For Microwave Oven Moldel: 17PX56

Zhongshan Donlim Weili Electrical Appliances Co.,Ltd. Fusha Industrial Park ,Fusha Town ,Zhongshan City, Guangdong Province,China FCC Authorization Date: 2010-10-15 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Zhongshan Donlim Weili Electrical Appliances Co.,Ltd. , the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Yann yang Engineer Zhongshan Donlim Weili Electrical Appliances Co.,Ltd.

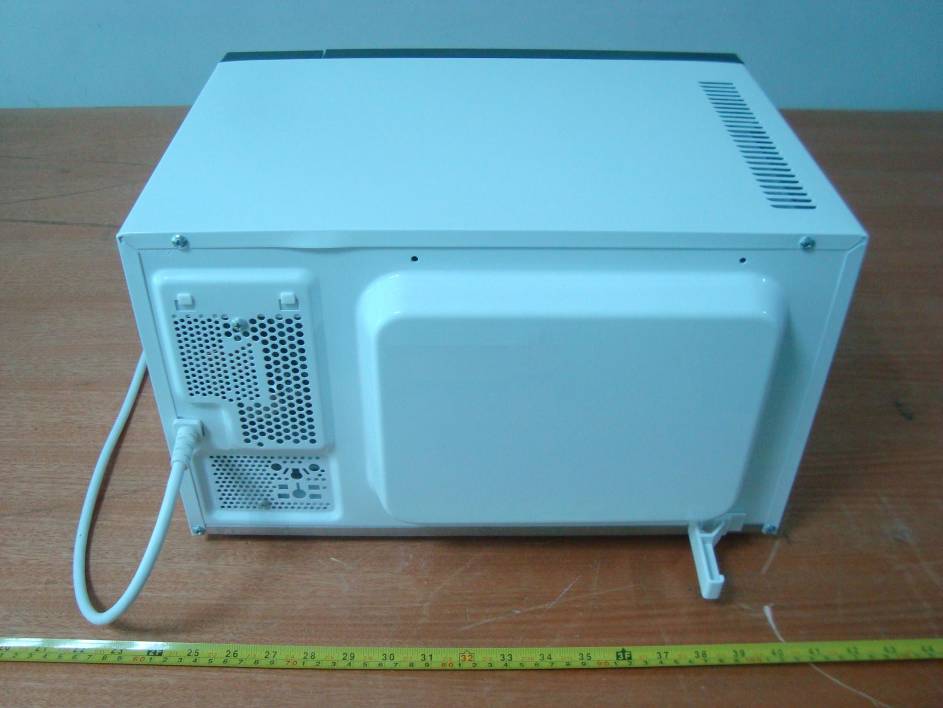

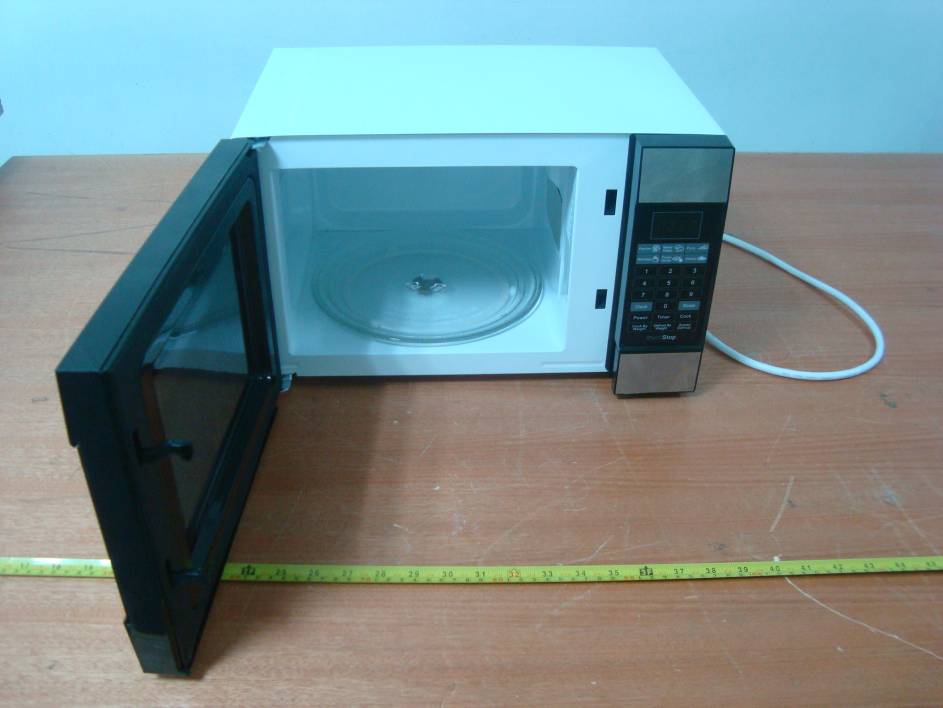

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Bottom View EUT – Door Open View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Magnetron View EUT – Main Board Top View EUT – Main Board Bottom View EUT – Filter Board Top View EUT – Filter Board Bottom View EUT – H.V. Capacitor View EUT – Transformer View

Circuit Description Model: 17PX56 Microwave oven was connected to the power supply, when the door is closed, All interlock switch worked, the electronic control system get power and controls the high voltage circuit(HV transformer,HV capacitor,HV diode) to generate the High voltage and power needed for Magnetron, then Magnetron will generate 2450MHz microwave to the cavity of microwave oven. At the same time, Electronic control system will control the cavity lamp, turntable motor , hood exhaust fan motor, hood lamp,heating elements and convection motor according to the program.

Item Part NameSpecificationManufacturer*Appr. 17PCBKB-3151C or KB-5150Kingboard Laminates Ltd.1 E 123995 PCBZD-90F or ZD 95(G)FZhaoyuan Jinbao Electronics Co., Ltd1E141940 PCBW-F4 Foshan shunde weichi Electroinces Co ,.Ltd 1E310993 19Relay(for microwave)JQX-78F 16A 250VAC Xian ziwei industuial electronic development co,.ltd 1E214411 Relay(for microwave)TRA2F-12VDC-H 20A 125VAC Ningbo tianbo ganglian electronics co.,ltd *E173485 20Relay(for lamp)JZC-40F 5A/250VXian Ziwei Industrial Electronic Developm e1E214411 Relay(for lamp) TRG1 D-12VDC-S-H 10A ,120VAC Ningbo tianbo ganglian electronics co.,ltd *E173485 21L.V. Transformer YL-35-100250B 10V/250mADongguan YinLi Electronics co.,ltd1E226968 22Micro switch KW3A 16A 125V~Yunqing dong nan electric Co.,Ltd.4E176213 Micro switch HK-14 15A 125V~Yueqing Tongda Wire Electric Factory*E227984 23High voltage transformer XB-700-1712N Class:220Shunde WELLING electronic&electric co ltd 1E219701 24Turn table motor TYC50-8A2 4W/6rpm 120V/60Hz Foshan shunde hengxing mcro motor co ltd 1E199324 25 Fan motor YJ61-10E 20W/120V/60HzHUNAN KELI MOTOR LTD1E184751 26Magnetron2M219K 2450MHzXin Bao Electrical Equipments Co., Ltd1 27 Thermostat KSD-301V 165°C/125V/16AFoshan tongbao co ltd*E173238 Thermostat KSD-301V 105°C/125V/16AFoshan tongbao co ltd*E173238 28Lamp holderZ187 125V 20WShanghai twin-tree plastics factory1E106276 30PlugKH-9922AKAI HUA1E254267 PlugAW002Awin wire&cable co ltd1E206175 PlugML-301MAINLAND*E242434 PlugJF-107-PJinfeng*E121581 31Cord16 or 18AWGx3C SPT-2 SJT KAI HUA1E254458 Cord16 or 18AWGx3C SPT-2 SJT Jhi wei electric wire&cable co ltd1E157718 Cord16 or 18AWGx3C SPT-2 SJT LUCKY UNTTED ELECTRIC WIRE & CABLE CO LTD *E156549 Cord16 or 18AWGx3C SPT-2 SJT Chau's electrical co ltd*E114235 32HVM12 12KV/350mALeshan radio co., ltd.1 33 2CL3512H 12KV/350mATianjin Zhong Huan semiconducror co.,ltd * 34CH85 212080 2100VAC 0.80uF Ningbo Bicai Industry Co.,Ltd1 35MWOC/T21080 2100VAC 0.80uF Tae yang condenser co., ltd.* 36Filter board NF-07Xin Bao Electrical Equipments Co., Ltd1 37 Capacitor X0.33mF,275VHua Da Electric Industrial Co. Ltd1E227157 Capacitor X0.33mF, 275VDain Electronics Co., Ltd*E147776 Capacitor X0.33mF, 275VCarli Electronics Co., Ltd*E120045 Capacitor X0.33mF, 250V Shantou High-new Technology Development Zone Son gtian Enterpeise Co。，Ltd *E208107 38 Capacitor Y22200PF, 251VSHEN ZHEN FU TAO ELECTRONICS CO，LTD2E187963 Capacitor Y22200PF, 250VJyh-chung Electronic Co.，Ltd.* EN132400 IEC 384-14 Capacitor Y22200PF, 250VJya-Nay Co.,Ltd* EN132400 IEC 384-14 High voltage diode High voltage capacitor Microware oven 17PX56 120V/60Hz 700W 第 1 页，共 2 页 Item Part NameSpecificationManufacturer*Appr. Microware oven 17PX56 120V/60Hz 700W Capacitor Y22200PF, 250VNanjing General Electronic Ceramics Co.,Lt* EN132400 IEC 384-14 Capacitor Y22200PF, 250VXiamen Wanming Electronics Co.,Ltd* EN132400 IEC 384-14 39Fuse6H 250V/125V，15ASun Electric Co.1 E166522 FuseRTI-30 250V/15ALan Bao*E213695 第 2 页，共 2 页

H.V.Diode SW1:Main switch H.V.Transformer H.V.Capacitor K2 Black wire 24AWG K1 Yellow wire 24AWG L.V.T K2 K1 LAMP TURN-TABLE MOTOR MS FAN MOTOR MF Magnetron SW2:Monitor switch Black wire 24AWG Brown wire 24AWG Black wire 24AWG Yellow wire 24AWG Yellow wire 24AWG Yellow wire 24AWG Brown wire 24AWG Blue wire 24AWG NF-07 noise filter Control group Thermostat 1，2 (ETL,FDA,FCC) 17PX56 17PX56-00-31 1 STANDARD/DATE QTY CHECKEN/DATE PRBPARED/DATE REVISED DOC NO CRAFT/DATE SIGN DONLIM WEILI ELECTRICAL APPLIANCES CO.,LTD PHASE MARKING SCALE SUBAREA UNIT MAT'L: MARK B A S W E I G H T REVIEWED/DATE APPROVED/DATE SHEET: FIRST ANGLE PROGECTION 1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA ZHONGSHAN DONLIM WEILI ELECTRICAL APPLIANCES CO., LTD. MODEL: 17PX56 TITLE: PART.NO: SCALE: PREPARED BY: CHECKED BY: REVIEWED BY : MAT'L: APPROVED BY: DWG.NO: Form No:07-151-A UNITS: mm QTY: A4 REV: A DOC.NO: DATE:DATE:DEAE: FRAME:SHEET: 1OF1 DATE: ECN : VDD +5V +VDD +5V R27~R34 150 Ω +5V VDD 22 PD3 17 PD2 16 PH1 15 PH0 14 PA3 11 PA2 10 PA1 9 PB0 18 PB1 19 PB2 20 PB3 21 PA0 8 PD0 12 PD1 13 VSS 7 PC2 5 PE1 3 PE3 1 PE2 2 RESET 6 PF1 26 XOUT 23 XIN 24 PF2 27 PE0 4 PF0/TONE 25 PF3 28 U1 12 AC/IN D1D2D3D4 D9 C1 R3 C3 C4 C8 D10 D12 D13 D14 D15 D16 D17 D18 D19 ZD1 ZD2 R8 R10 R9 C6 C5 R4 R5 R7 R6 BUZZER R11 R13 R14 R16 R17 R18 R19 R20 R21 R22 R23 R24 R25 R26 R27 R28 R29 R30 R31 R32 R33 R34 R35 R36 R37 R38R39R40R41R42R43 RP1 RP2 RP3RP4 RP5RP6 C7 C9C10 C11 C12C13C14C15C16C17 OSC CN2 Q1 EC B 8550 Q3 Q4 Q6 Q8 E C B Q7 1 12 MW LAMP Seg2 8 Seg7 13 Seg8 14 Seg6 12 Seg5 11 Seg4 10 Seg3 9 Seg1 7 Com4 4 Com3 3 Com2 2 Com1 1 Com5 5 Com6 6 DISPLAY 12 543 TRANS R1 C2 VA1

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 18 EMI MEASUREMENT AND TEST REPORT For Zhongshan Donlim Weili Electrical Appliances Co., Ltd. Fusha Industrial Park, Fusha Town, Zhongshan, Guangdong, P. R. of China FCC ID: YI4DW17PX56 Report Type: Original Product Type: Microwave Oven Test Engineer: Jessica He Report No.: RSZ10092951 Report Date: 2010-10-13 Reviewed By: Lisa Zhu EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Zhongshan Donlim Weili Electrical Appliances Co., Ltd. FCC ID: YI4DW17PX56 Report #: RSZ10092951 Page 2 of 20 FCC Part 18 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 OPERATING CONDITION/TEST CONFIGURATION..........................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 EXTERNAL CABLE LIST AND DETAILS.........................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSIONS ........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................7 TEST DATA..................................................................................................................................................................7 RADIATION HAZARD MEASUREMENT .............................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 RADIATION HAZARD MEASUREMENT........................................................................................................................10 INPUT POWER.............................................................................................................................................................11 LOAD FOR MICROWAVE OVENS.................................................................................................................................11 RF OUTPUT POWER MEASUREMENT..........................................................................................................................11 OPERATING FREQUENCY MEASUREMENT..................................................................................................................12 RADIATED EMISSIONS...........................................................................................................................................16 MEASUREMENT UNCERTAINTY..................................................................................................................................16 EUT SETUP...................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conduction Emissions - Front View Conduction Emissions - Side View Radiated Emissions - Front View (30 MHz-1 GHz) Radiated Emissions - Rear View (30 MHz-1 GHz) Radiated Emissions - Front View (Above 1 GHz) Radiated Emissions - Rear View (Above 1 GHz)
