MICROWAVE OVEN I NSTRUCTION MANUAL Model: XB2831T Please read this booklet carefully before fixing and using, and save it for future reference. Zhongshan Donlim Weili Electrical Appliances Co., Ltd. ADDRESS: Fusha Industrial Park, Fusha Town, Zhongshan City, Guangdong Province 1 OPERAITON THEORY OF MICROWAVE OVEN 1.Microwave is a kind of high frequency electromagnetic wave, which is commonly distributed in the nature. But the existing form of microwave is dispersed so that it cannot be collected together for heating purpose. The key component of magnetron of microwave oven will transform the energy of electricity to microwave and huge energy of microwave field is established under the closed cavity. So the molecule of food is caused to vibrate at very high speed and the friction heat produced will cook the food in a fast way. 2. There is 3 properties of microwave, that is a) Absorbability: the microwave can cause the excess vibration of molecule of various food so as to obtain the heating purpose. But the infiltration ability is largely depend on the size, thickness and properties of the food. b) Penetrability: microwave can penetrate through ceramics, glass, temperature-resistant plastics. It is required to use the containers whose material have good microwave penetrability to achieve best heating result. See the below utensils guide. c) Reflectivity: microwave would be reflected by the metal wall of interior cavity so as to establish an even magnetic field, thus can prevent the overheating of partial area. NSTALLATION OF MICROWAVE OVEN 1) To ensure sufficient ventilation, the distance from the back of microwave to the wall should be above10cm, the side to the wall above 5cm, the top to the ceiling above 20 cm. 2) Do not place any objects on the top of microwave oven. 3) Keep the microwave oven far from the TV, Radio or antenna as picture disturbance or noise may occur. 4) Keep the plug accessible to the socket. 5)This is designed as a freestanding style and should not be placed in a cabinet. UTENSILS GUIDELINE It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table. Material of container Microwave Notes Ceramic Yes Never use the ceramics which are decorated with metal rim or glazed Heat-resistant plastic Yes Can not be used for long time microwave cooking Heat-resistant glass Yes Grill rack No Plastic film Yes It should not be used when cooking meat or chops as the over temperature may do damage to the film FOR THE FIRST USE As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the turntable, setting at high power and operate for several times. 2 IMPORTANT SAFEGUARDS The following basic precautions should always be followed when using electrical appliance: 1. Read all instructions before using. 2. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded. 3. To reduce the risk of fire in the oven cavity: a. Do not overcook the food. b. Remove wire twist-ties from paper or plastic bags before placing bags in the oven. c. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled. d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built-up grease may overheat and begin to cause smoke or catch fire. e. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply. f. Close supervision is necessary when using disposable containers made from plastic, paper or other combustible material. 4. To reduce the risk of explosion and sudden boiling: a. Do not place sealed containers in the oven. Baby bottles fitted with a screw cap or teat are considered to be sealed containers. b. When boiling liquid in the oven, use the wide-mouthed container and stand about 20 seconds at the end of cooking to avoid delayed eruptive boiling of liquids. c. Eggs in their shell, whole hard-boiled eggs, potatoes, sausage and chestnut should be peeled or pierced before cooking. d. The cooked eggs or liquid should not be removed out immediately. Several moments should be waited before removing In order to avoid possible hazards caused by delayed eruptive boiling of liquids. e. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns. 5. Never operate the oven further if the door is damaged or the oven is malfunctioned or supply cord is damaged. Return the appliance to the nearest authorised service center for repair and maintenance. Never try to adjust or repair the oven yourself. 6. If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard. 7. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands. 8. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face. 9. To prevent the turntable from breaking: a. Let the turntable cool down before cleaning. b. Do not place hot foods or utensils on the cold turntable. c. Do not place frozen foods or utensils on the hot turntable. 10. Make sure the utensils do not touch the interior walls during cook…

Text truncated - open the document above for the full version.

Power supply 120V 60Hz Noise filter 120V 60Hz interlock protect system 120V 60Hz Electronic control system 12VDC High voltage inverter 4kV DC Magnetron 2450MHz Turntable Motor 120V 60Hz Cavity lamp and hood lamp 120V 60Hz Hood Fan motor 120V 60Hz Block Diagram For Microwave Oven Moldel: XB2831T

ZHONGSHAN DONLIM WEILI ELECTRICAL APPLIANCES CO.,LTD. FCC Authorization Date: 2010-6-24 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Zhongshan Donlim Weili Electrical Appliances Co., Ltd. , the undersigned, Hereby authorizes Bay Area Compliance Laboratory Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Typed or Printed Name: jianli Yang Title: Engineer Company Name: Zhongshan Donlim Weili Electrical Appliances Co., Ltd.

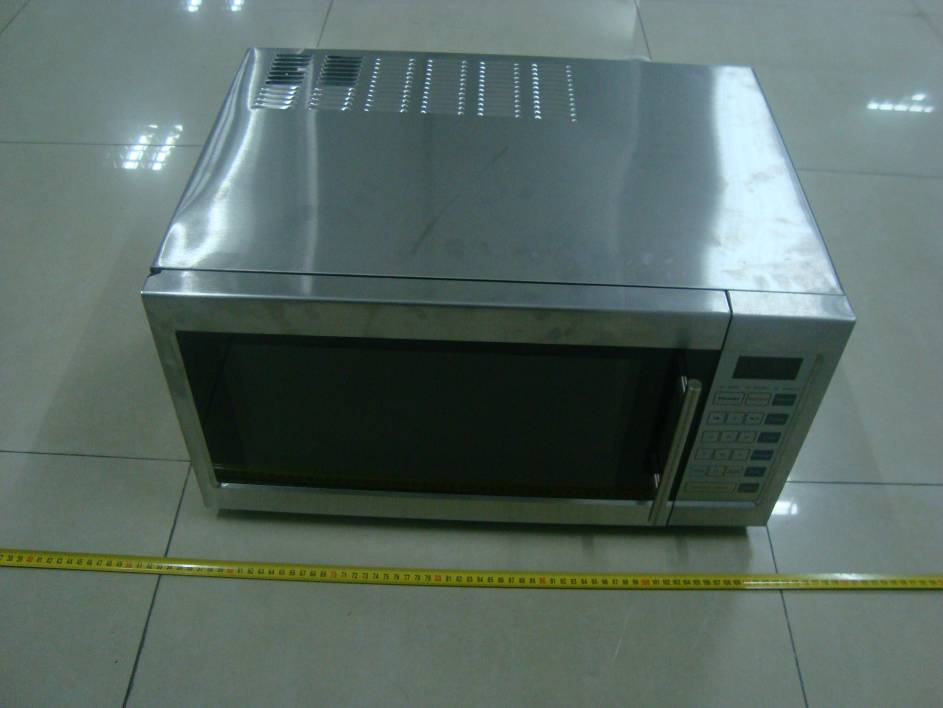

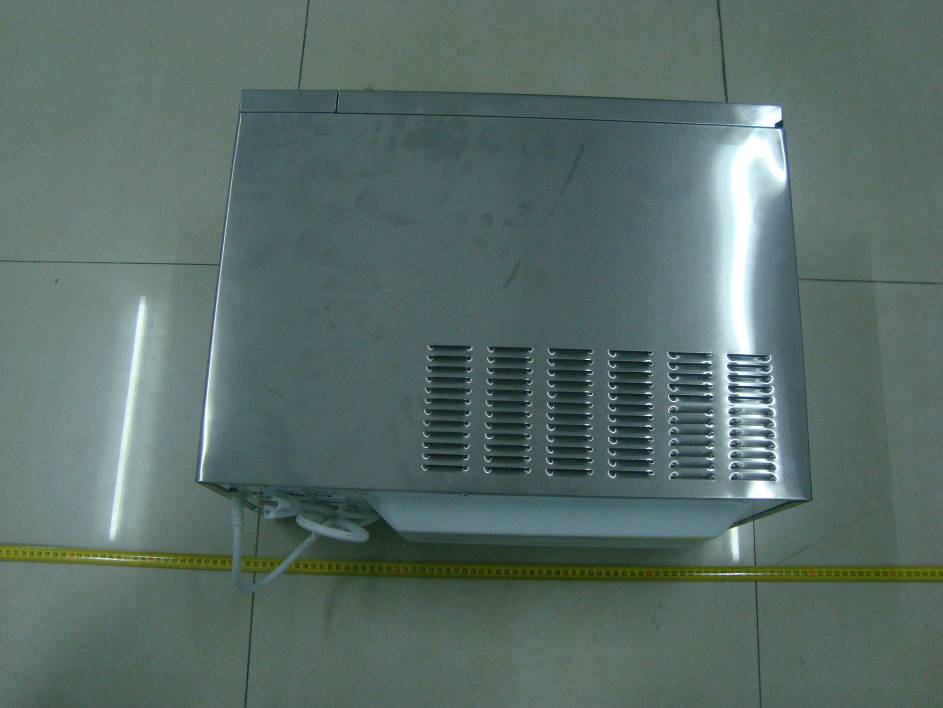

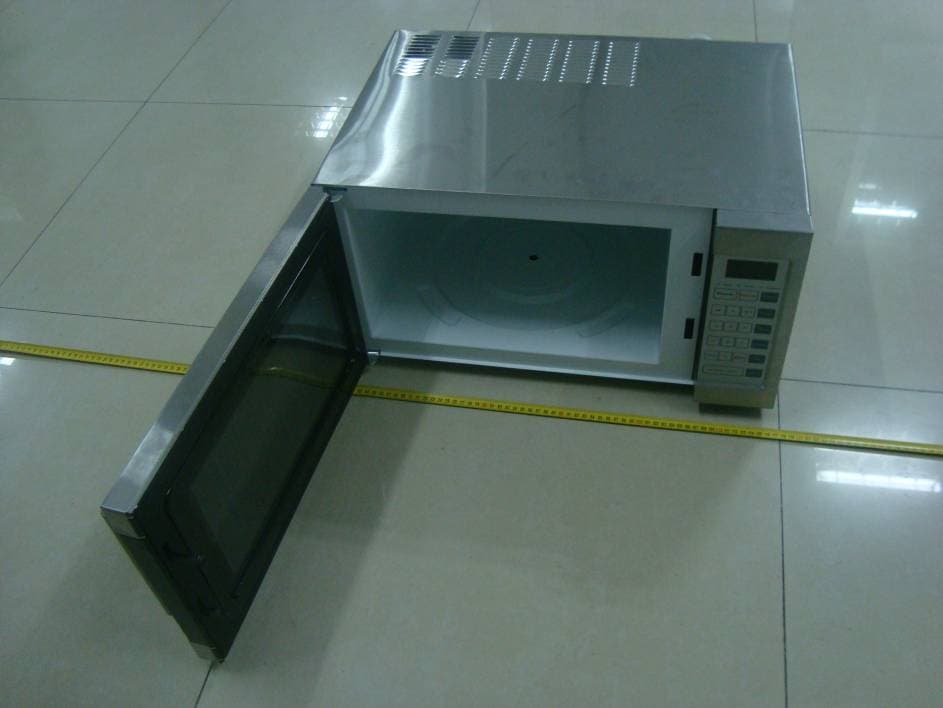

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Window Open View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Magnetron View EUT – Main Board Top View EUT – Main Board Bottom View EUT – Transformer View EUT –Filter Board Top View EUT –Filter Board Bottom View HV Capacitor View Fan and Motor View

Circuit Description Model: XB2831T Microwave oven was connected to the power supply, when the door is closed, All interlock switch worked, the electronic control system get power and controls the high voltage circuit(HV transformer,HV capacitor,HV diode) to generate the High voltage and power needed for Magnetron, then Magnetron will generate 2450MHz microwave to the cavity of microwave oven. At the same time, Electronic control system will control the cavity lamp, turntable motor , hood exhaust fan motor, hood lamp,heating elements and convection motor according to the program.

ItemPart NameSpecification Manufacturer QTY Appr. 1Lower hinget=2.5mm/SPCC1 2Lower hinge statort=2.0mm / SECC1 3Left bottom platet=0.6mm / SGCC1 4Middel bottom platet=0.4mm / SGCC1 5Right bottom platet=0.8mm / SGCC1 6Right bottom plate sponge3*20*1301 7Oven foot pinPP 730L Samsung general chenicals co.,ltd 4 E140331 8Oven footPP 730L Samsung general chenicals co.,ltd 4 E140331 9HVT supportt=0.5mm/SECC1 10Transformer right spongerubber 10*10*201 11Lamp covert=0.4mm/SECC1 12Lamp cover sponge2.5*6*2801 13Transformer left spongerubber 30*32*28.51 14Lamp holder Z187 125V 20WShanghai twin-tree plastics factory1E106276 15Wire supportPA6 1010C22 16Fan bladePP 730L Samsung general chenicals co.,ltd 1 E140331 17Fan motor coverPP FB51 94V-21 18Fan motor sponge6*10*70mm1 19 Fan motorYJ61-10E 120V/60Hz Class A Hunan keli motor ltd 1E184751 20GT-100MHua wei industrial co ltd8E75050 21100HS G Industrial co ltd*E194589 22YDTU2 187# PVC/105°CFoshan fangpu pvc dipping co ltdE185679 23YDTU2 250# PVC/105°CFoshan fangpu pvc dipping co ltdE185679 24SR187/0.5mmJIAN HUI METAL PLACTIC PART FACTORYE207921 25SR250/0.5mmJIAN HUI METAL PLACTIC PART FACTORYE207921 26Filter boardNF-02XIN BOA1 27Capacitor X 0.33μF,275V Hua Da Electric Industrial Co. Ltd 1 EN132400IEC 28Capacitor X 0.33μF, 275V Dain Electronics Co., Ltd * EN132400IEC 29Capacitor X 0.33μF, 275V Carli Electronics Co., Ltd * EN132400IEC 30Capacitor X 0.33μF, 275V Shantou High-new Technology Development Zone Songtian C * EN132400IEC 384-14 31Capacitor Y2 2200PF, 251V SHEN ZHEN FU TAO ELECTRONICS CO ，LTD 2 E187963 32Capacitor Y2 2200PF, 250VJya-Nay Co.,Ltd * EN132400IEC 384-14 33Capacitor Y2 2200PF, 250VJyh Chung Electronic Co.,Ltd * EN132400IEC 384-14 34Capacitor Y2 2200PF, 250V Nanjing General Electronic Ceramics Co.,Ltd * EN132400IEC 384-14 35Capacitor Y2 2200PF, 250V Xiamen Wanming Electronics Co.,Ltd * EN132400IEC 384-14 36PCB XD-106Xing da printed circuit board Factory 1 E193079 37PCB JD-B1Shunde Leliu Junda Radio Factory * E173873 38PCB V1CHENGDE PCB MANUF CO.LTD * E198946 39PCB JE-1shundequ somida electronic co.ltd * E207494 40FuseRTI-30 125V/20A Lan Bao Electrical Appliance Factory of Zhongshan China1 E67006 Microware oven XB2831T 120V/60Hz 1580W Key part list Cable tie Jacket Terminal 第 1 页，共 4 页 ItemPart NameSpecification Manufacturer QTY Appr. Microware oven XB2831T 120V/60Hz 1580W Key part list 41Fuse6H 125V/20A Sun Electric Co. * E166522 42Outer covert=0.6mm/SPCC1 43 Power supply group1 44KH-9922AKAI HUA1E254267 45ML-301MAINLAND*E242434 46XT-202 HUMEN XINTAI ELECTRICAL WIRES FACTORY1E316596 4714AWGx3C SPT-2 SJTJhi wei electric wire&cable co ltd1E157718 4814AWG*3C SPT-2 SJT LUCKY UNTTED ELECTRIC WIRE & CABLE CO LTD1E156549 4914AWGx3C SPT-2 SJT HUMEN XINTAI ELECTRICAL WIRES FACTORY1E316601 50Limit wire clampPP 730L1 51Outer back platet=0.6mm/SGCD1 52 CH86-21100 2100VAC 1.0uFNingguo Jiahua Electric co., ltd.1 53CH85-21100 2100VAC 1.0uFNingbo Bicai Industry Co.,Ltd* 54MWOC/T21100 2100VAC 1.0uFTae yang condenser co., ltd.* 55 High voltage wire group18AWG/105°C 20KVDC UL32391 56 2CL3512H 12KV/350mA Tianjin Zhong Huan semiconducror co.,ltd 1 57HVM12 12KV/350mALeshan radio co., ltd.* 58Magnetron supportt=0.6 / SECC1 59KSD-168+ 150°C/125V/16AShunde rongqi1E202825 60KSD-301 G 150°C/125V/16AFoshan tongbao co ltd*E173238 61Magnetron2M248K 2450MHzTOSHIBA1 62HVC suppportt=0.5mm/SECC1 63Oven beamt=0.6mm/SECC1 64Oven beam sponge 4*14*150mm1 65Wave guide tubet=0.6mm / SECD1 66 MQS-216 250VAC/16AToneluck Electronics Ind. Co.Ltd1E136100 67 KW3A 16(4)A Yunqing dong nan electric Co.,Ltd.* 68Upper interlock blockPOM F20-031 69 MQS-216 250VAC/16AToneluck Electronics Ind. Co.Ltd2E136100 70 KW3A 16(4)A Yunqing dong nan electric Co.,Ltd.* 71Interlock supportPBT+15%GF1 72 Middle interlock blockPOM F20-031 73Wring spring ∮0.5mm/65Mn1 74Lower interlock blockPOM F20-031 75 High voltage transformer XB-1000-3112Shunde WELLING electronic&electric co ltd1E219701 76 Motor bracket t=0.6mm / SECC1 77 Turn table motor TYC50-0.5/120 4W/5rpm 120V/60Hz Nanhai muyuan home electrical appliances co1E200545 78 Turn table motor TYC50-8A2 4W/6rpm 120V/60Hz class：F Foshan shunde hengxing mcro motor co ltd 1E199324 79 Door hook POM F20-031 80 Tension spring of latch ∮0.7 65Mn1 81 Door hook support t=0.8mm / SPCC1 82 Inner back plate t=0.4mm / SPCC1 High voltage diode High voltage capacitor Micro switch no Micro switch nc Thermostat(Magnetron) Plug Cord 第 2 页，共 4 页 ItemPart NameSpecification Manufacturer QTY Appr. Microware oven XB2831T 120V/60Hz 1580W Key part list 83 Top plate t=0.4mm/ SPCC1 84 Front plate t=0.6mm / SPCC1 85 U-plate t=0.4mm /SPCC1 86 Upper hinge t=2.5mm/SPCC1 87 Wave guide cover t=0.25,76*113mm MICA1 88 Glass pan ∮345mm Silicon boride1 89 turning washer ∮3.5*∮10*1/PTFE3 90 Wheel ∮4.3*∮14*6.2 /PTFE3 91 Turnig ring ∮269 /PP1 92 Turnig axle PPS R-71 93 Washer ∮13*∮20*0.6mm TEFLON1 94 Plastic frame PP SH-52C1 95 Upper door pivot ∮4 45#Steel1 96 Upper axle bas t=2.0mm / SPCC1 97 Inner glass window t=0.13 , PET 340x1781 98 Metal door t=0.6mm/SPCD1 99 Lower axle base t=2.0mm / SPCC1 100 Lower door pivo ∮4 45#Steel1 101 ABS302 HUADU CITY KE YUAN ENTERPRISE CO LTD E201440 102 ABS-F7501 WAYLAM CHEMICAL INDUSTRY METERIAL CO LTD E257285 103 door glass t=3mm Glass1 104 Plastic door frame t=0.4mm drawbench aluminium1 105 Door knob 1 106 Electronic Control Box frame t=0.4mm drawbench aluminium1 107 Film switch XB2831TGuang dong deyi1 108 ABS302 HUADU CITY KE YUAN ENTERPRISE CO LTD E201440 109 ABS-F7501 WAYLAM CHEMICAL INDUSTRY METERIAL CO LTD E257285 110Control groupXB2611T-A（UL）-D-21 XIN BOA1 111 ZD-90F 94V-0 Zhaoyuan jinbao electronics co ltd 1 E141940 112 CEPCP(G)-22F 94V-0 Wuxi city guangda copper-clad laminate d sheets co.,ltd *E164507 113 JD-B1 94V-0Shunde junda * E173873 114 CWR-91FWUJN NO.2 RADIO FACTOY *E140088 115 XD-106 116 KB-3151C 94V-0, 130ºCKingboard laminates ltd. * E123995 117 L-90F 94V-0Fujian Leehing electronic Co.,Ltd. *E193288 118 JQX-14FY-012-1H 250V,16AYueqing Dongya…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 18 EMI MEASUREMENT AND TEST REPORT For Zhongshan Donlim Weili Electrical Appliances Co., Ltd. Fusha Industrial Park, Fusha Town, Zhongshan, Guangdong, P.R.China FCC ID: YI4DWXB283T Report Type: Original Product Type: Microwave Oven Test Engineer: Jack Wang Report No.: RSZ10061251 Report Date: 2010-07-03 Reviewed By: Lisa Zhu EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong,China Tel: +86-755-33320018 Fax: +86-755-33320008 Zhongshan Donlim Weili Electrical Appliances Co., Ltd. FCC ID: YI4DWXB283T Report #: RSZ10061251 Page 2 of 20 FCC Part 18 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 OPERATING CONDITION/TEST CONFIGURATION..........................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 EXTERNAL CABLE LIST AND DETAILS.........................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSIONS ........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................7 TEST DATA..................................................................................................................................................................7 RADIATION HAZARD MEASUREMENT .............................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 RADIATION HAZARD MEASUREMENT........................................................................................................................10 INPUT POWER.............................................................................................................................................................10 LOAD FOR MICROWAVE OVENS.................................................................................................................................11 RF OUTPUT POWER MEASUREMENT..........................................................................................................................11 OPERATING FREQUENCY MEASUREMENT..................................................................................................................12 RADIATED EMISSIONS...........................................................................................................................................15 MEASUREMENT UNCERTAINTY..................................................................................................................................15 EUT SETUP...........................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conduction Emissions - Front View Conduction Emissions - Side View Radiated Emissions - Front View (30 MHz-1 GHz) Radiated Emissions - Rear View (30 MHz-1 GHz) Radiated Emissions - Front View (Above 1 GHz) Radiated Emissions - Rear View (Above 1 GHz)
