YI5-REM01Flex VRA Remote Control

Copyright ⓒ 2024 Lab-T, Inc. User Manual Industry Canada Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Ce dispositif est conforme à la norme CNR d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionne ment est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Tout changement ou modification non expressément approuvé par la partie chargée de la mise en conformité peut annuler le droit de l’utilisateur à utiliser l’équipement. •Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour unenvironnement non contrôlé. IC : 9065A-REM01 Regulatory Compliance Statements FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. FCC ID: YI5-REM01 Flex VRA User’s Manual Remote Control Model: Flex-Remote-1 Flex VRA 100 E. Whitestone Blvd. St. 148, #160 Cedar Park, TX 78613 flexvra.com Button Assignments The package contains the remote and the USB receiver. Pairing the Remote To pair the remote control with the USB receiver: • Press and Hold the Light On Button (3) and Lights Only Button (8) for 3 seconds. • Red Feedback LED turns ON and flashes. • Press the pairing button on the USB receiver once. • Remote accepts the USB receiver pairing request. • Green Feedback LED blinks one time (slowly), turns OFF and remote exits pairing mode. • Remote is now paired to the USB receiver. Normal Use – Remote Paired • User pushes a button on the remote. ; GREEN LED on remote blinks for the duration of the button being held down. Attempted Use – Remote Not Paired • User pushes a button on the remote. ; RED LED on remote blinks while the button is held down, but no signal is received by the USB receiver. Un-Pairing Process • Press and Hold Light On Button (3) and Custom Button (9) for 3 seconds. • RED Feedback LED turns ON. • RED feedback LED blinks 5 times (slowly). • Remote is now un-paired to the USB receiver. Package Contents Button Description Video Change Stim to Video Image Toy Change Stim to Toy Image Light On Turn on Light Left Activate Left Reinforcer Center Activate Center Reinforcer Right Activate Right Reinforcer Light Off Turn Light Off Light Only Change Stim to Only Lights (No Image) Custom Change Stim to Custom Content Vol Down Turn Volume Down Vol Up Turn Volume Up Mute Mute Volume Distract Toggle On/Off Distract Mode Replacing the Battery This remote needs a battery to operate. Replace the battery when needs with 2 AAA batteries. To replace the battery: • Pull the battery compartment out and remove the old batteries. • Insert the replacement batteries. • Close the battery compartment. • If necessary, perform the pairing procedure. About this guide This guide explains the setup and operation of Flex VRA remote control, P/N Flex-Remote-1. Overview Flex wireless remote control is a single-frequency remote that transmits a 433.92 MHz (FSK) signal to Visual Reinforcement Audiometry (VRA) system. Flex VRA System Operation Flex-Remote-1 Flex-USB-1 PC (Audiometry Software) HID data 433.92MHz 1 System = 3 PCs with receiver

Celadon, Inc. 58 Paul Drive, Suite D San Rafael, CA 94903 U.S.A. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Feb, 06, 2024 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: YI5-REM01 Celadon, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: FRN: 0019943943 Name: Celadon, Inc. Address: 58 Paul Drive, Suite D San Rafael, CA 94903 U.S.A. Contact Person: Robert Retzlaff Tel.: 415-472-1177 x101 Email: [email protected] Sincerely, Robert Retzlaff / CEO 415-472-1177 x101 58 Paul Drive, Suite D San Rafael, CA 94903 U.S.A. Rev 1/26/2023

Celadon, Inc. 58 Paul Drive, Suite D San Rafael, CA 94903 U.S.A. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: YI5-REM01 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name - Block Diagram - Schematics - Operational Description - 06. Block Diagram.pdf - 07. Schematics.pdf - 10. Operation Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for a period of 180 days Exhibit Type File Name - RF Test Setup photos - Internal Photos - User manual - 03. Test Setup Photos.pdf - 05. Internal Photos.pdf - 08. User Manual.pdf Robert Retzlaff / CEO 415-472-1177 x101 58 Paul Drive, Suite D San Rafael, CA 94903 U.S.A.

Celadon, Inc. 58 Paul Drive, Suite D San Rafael, CA 94903 U.S.A. Date: Feb, 06, 2024 Timco Engineering, Inc. 13146 NW 86th Drive, Suite 400, Alachua, FL 32615 SUBJECT: Application for Certification for FCC ID: YI5-REM01 To Whom It May Concern: We, the undersigned, hereby authorize SangHoon, Yu at Lab-T, Inc. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SangHoon, Yu at Lab-T, Inc. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Robert Retzlaff / CEO 415-472-1177 x101 58 Paul Drive, Suite D San Rafael, CA 94903 U.S.A.

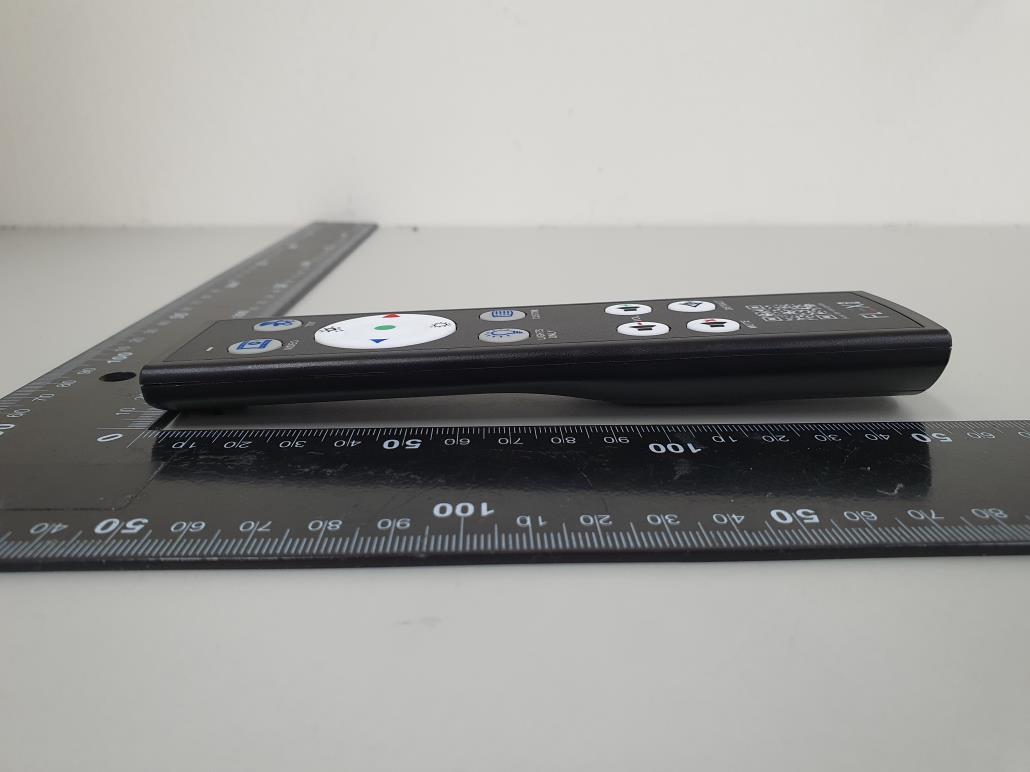

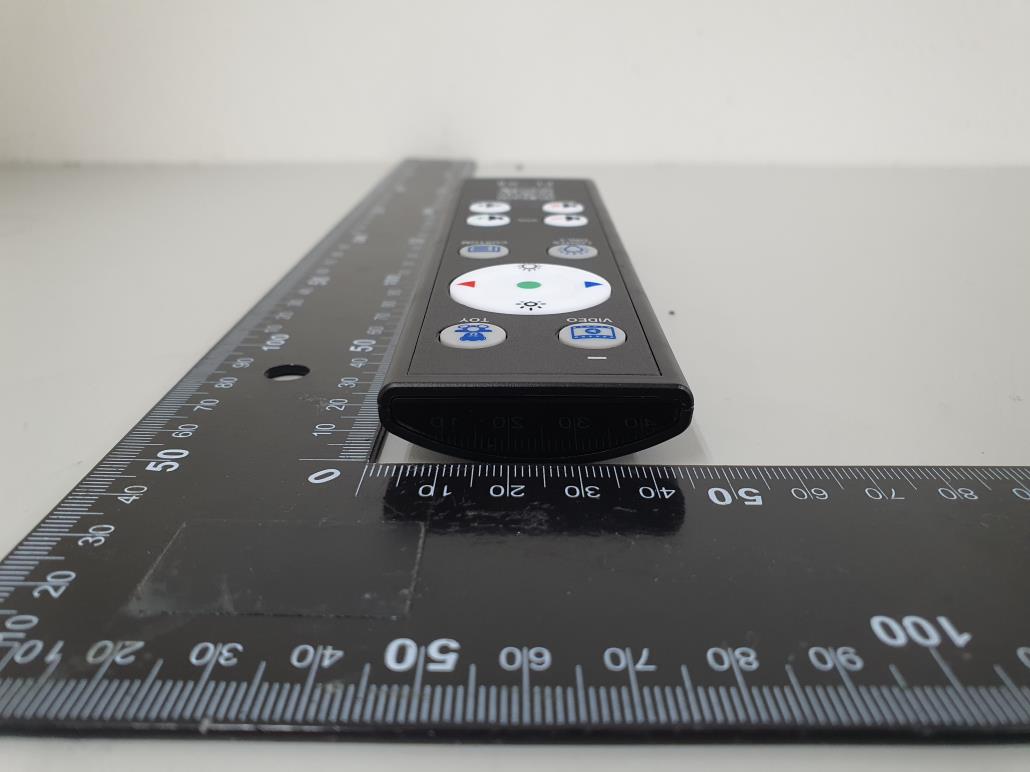

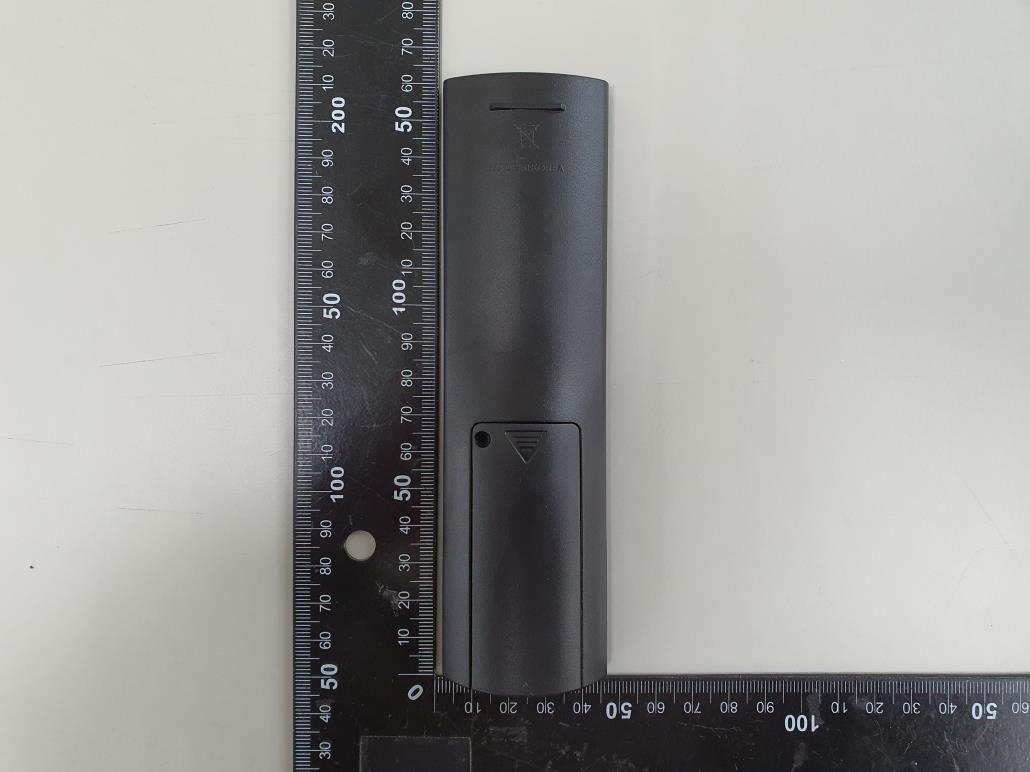

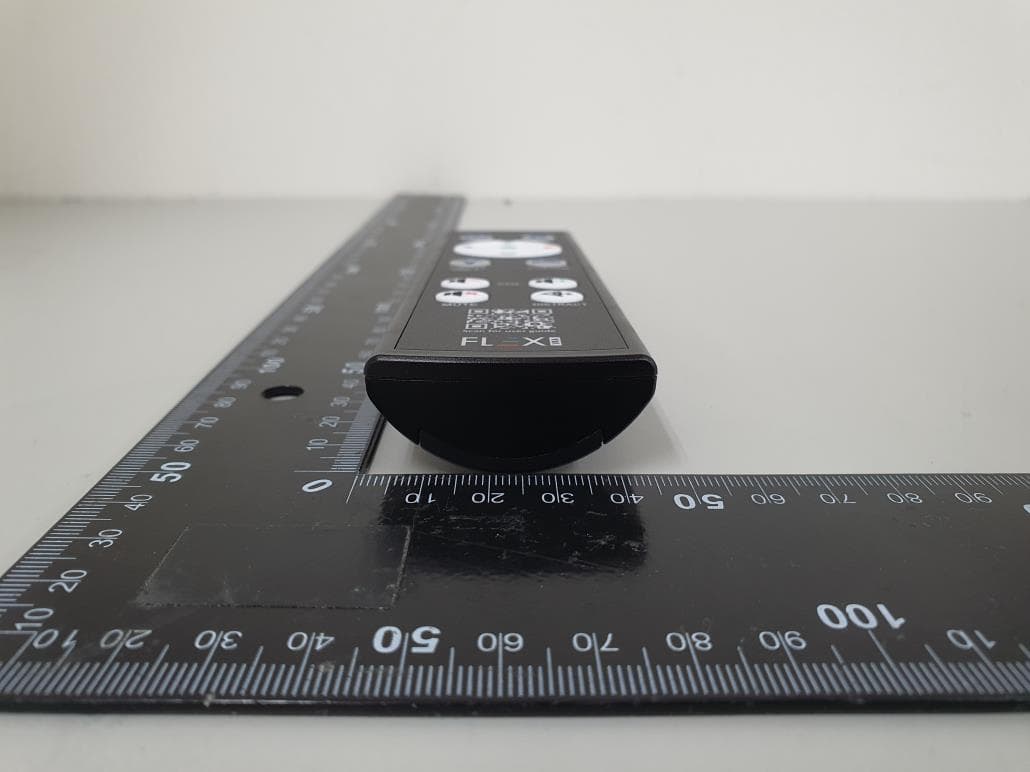

Page: 1 / 4 Copyright ⓒ 2024, Lab-T, Inc. External Photos Page: 2 / 4 Copyright ⓒ 2024, Lab-T, Inc. External Photos Front Rear Page: 3 / 4 Copyright ⓒ 2024, Lab-T, Inc. External Photos Top Bottom Page: 4 / 4 Copyright ⓒ 2024, Lab-T, Inc. External Photos Left Right

1. Regulation RF EXPOSURE The SAR exclusion table from RSS-102 issue 6 is reproduced below: Table 11: Power limits for exemption from routine SAR evaluation based on the separation distance Frequency (MHz) Exemption Limits ≤ 5 mm (mW) 10 mm (mW) 15 mm (mW) 20 mm (mW) 25 mm (mW) ≤300 45116139163189 450327187104124 8352132415472 1900610183357 245037163256 350026152950 580015132332 Frequency (MHz) Exemption Limits 30 mm (mW) 35 mm (mW) 40 mm (mW) 45 mm (mW) > 50 mm (mW) ≤300 216246280319362 450147175208248296 83596129172228298 190092138194257323 5800415474102128 245089128170209245 35007294114134158 Copyright ⓒ 2024. Lab-T, Inc. Page :1 / 3 The result is rounded to one decimal place for comparison Step.2 For 100 MHz to 6 GHz and test separation distances > 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)· (f(MHz)/150)]} mW, for 100 MHz to 1500 MHz {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)·10]} mW, for > 1500 MHz and ≤ 6 GHz Step.2-1 Step.2-2 The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below RF EXPOSURE KDB447498 was used as the guidance. SAR test exclusion considerations Step.1 For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion threshold are determined by the following : [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation Copyright ⓒ 2024. Lab-T, Inc. Page :2 / 3 ( EIRP Field strength=82.20dBμV/m @3m =-13.00dBm SAR test exclusion considerations FCCID : YI5-REM01 IC : 9065A-REM01 - Measured RF Maximum Output Power :-2.51 dBm dBi The EUT will only be used with a separation of 5 millimeters or lesser between the antenna and the body of the SAR Exclusion calculation for this exposure is shown below. - EIRP=P + G- NOTE =-2.51dBm+-10.49dBiP : Max tuneup Power (dBm) =-2.51dBm Antenna power - Frequency Range :433.92 MHz~433.92 MHz - Maximum Peak Antenna Gain :-10.490 =-13.00dBmG : Maximum Peak Antenna Gain (dBi) =0.05mW - PdBm- NOTE= √( 0.43392 ) =0.56mW -2.51 P : Max tuneup Power (dBm) Estimated SAR at the specific separation - S= [(P(mW) / R)] X [√f(GHz)] - NOTE ]S : Maximum Estimated SAR f(GHz) : the RF channel transmit frequency in GHz RF Exposure Compliance Issue Therefore, EUT is not required the SAR Evaluation. =0.074P(mW) : Max tuneup Power (mW) R : Distance to the center of the radiation of the antenna5.00mm ) <3 =[(0.56/5.00)]X[ Copyright ⓒ 2024. Lab-T, Inc. Page :3 / 3

Copyright ⓒ 2024. Lab-T, Inc. Antenna datasheet Specification For Approval Application Wireless System Model Name RC-433H –ANT Part No Issued Date 2023. 08. 22 CONTENTS 1. Revision History ..............................................3 2. Specification ............................................. 4 3. Electrical Specification Test 3.1 V.S.W.R .............................................5 3.2 Beam Pattern .............................................7 4. Drawing ..............................................9 Model Name Application Rev Page RC-433H-ANT Wireless System 0.0 2 / 9 1. Revision History Rev No Date Contents Charge Remarks 0.0 2023. 08. 22 New Established Hwang Dong Min Model Name Application Rev Page RC-433H-ANT Wireless System 0.0 3 / 9 2. Specification 2.1. Electrical Specification Item Spec Remarks Center Frequency 433MHz Frequency Range 430MHz – 436MHz V.S.W.R Less Than 2.0 Peak Gain(dBi) -10.6dBi (Max) Radiation pattern Omni-directional Polarization Linear Vertical Impedance Nominal 50 Ω 2.2. Mechanical Specification Item Spec Remarks Dimensions(L) 26 mm x 21.4Turns mm(Drawing reference) Connector Soldering Color Black Operating Temperature -45 °C ~ +85 °C Weight 1g ± 0.2g 2.3. Major Materials of Parts Item Type Remarks Element SWC Plate Cu Tube POLYOLEFIN Black Model Name Application Rev Page RC-433H-ANT Wireless System 0.0 4 / 9 3. V.S.W.R Test 3.1.1 Test method ① Network Analyzer Spec Equipment Model Specification Network Analyzer HP8753ES ∙ Freq. Range : 300KHz ~ 6GHz Calibration Kit HP85032B ∙ DC ~ 6GHz (SMA-Type) ② Network Analyzer test method Model Name Application Rev Page RC-433H-ANT Wireless System 0.0 5 / 9 3. Electrical Specification 3.1.2 V.S.W.R DATA Model Name Application Rev Page RC-433H-ANT Wireless System 0.0 6 / 9 3.2.1 Gain & Beam Pattern Test ① Chamber Spec Section Specification Chamber Size 6(L)m X 3(W)m X 3(H)m Frequency Range 400MHz – 6GHz (Far Field) Quiet Zone 1m X 1 m @ 1GHz Type Rectangular Antenna weight < 50 kg ② Chamber Test method Model Name Application Rev Page RC-433H-ANT Wireless System 0.0 7 / 9 Positioner Control Microwave Receiver Printer Roll Positioner GPIB RF Cables System Cable Far Field Measurement Software System Controller Az/El/Az Positioner Antenna Under Test Standard Gain Horn Antenna 3 .2.2 Gain & Beam Pattern Model Name Application Rev Page RC-433H-ANT Wireless System 0.0 8 / 9 4. Drawing Model Name Application Rev Page RC-433H-ANT Wireless System 0.0 9 / 9
