YJDVESPM1Marine VHF with Class D DSC and Class B SO-TDMA AIS

Vesper Marine, 45 Sales St, Auckland, New Zealand - vespermarine.com V1.0 DATASHEET CORTEX H1 TETHERED HANDSET ACCESSORY CODEDESCRIPTION CRDL-H1NON-POWERED H1 CRADLE CORTEX-H1 DESCRIPTION CORTEX H1P PORTABLE HANDSET PRODUCT CODECORTEX-H1 UPC0793591743585 DESCRIPTIONCortex H1 Tethered Handset INCLUDEDBulkhead connector, Non Powered H1 Cradle PACKAGING 213 x 98 x 58 mm (8 3/8” x 3 7/8” x 2 5/16”) 0.34 kg (0.75 lb) Upgrade your Cortex smartAIS (M1) or add additional handsets for access to key functions in more places on board. Have situational awareness and VHF communication at your fingertips, no matter where you are on your boat. The H1 Tethered Handset is compatible with Cortex M1 to turn your smartAIS solution into a full VHF system. Cortex H1 comes bundled in the Cortex V1. Add additional H1 handsets for additional stations. • Powered handset for connection to Cortex M1 or Cortex V1 • 4-inch multi-touch display with gorilla glass for maximum durability • Single hand operation with unique click wheel and dedicated buttons • Wet and gloves capable touchscreen • Works with polarised sunglasses • Optically bonded display for wide- angle and sunlight viewability, even in the harshest midday sun. • 85 dBA of crystal-clear audio • Combined AIS and VHF display with voiced alerts • Touch a vessel onscreen for direct calling (DSC) • Connect up to 10 handsets to the Cortex Hub INCLUDED NON-POWERED H1 CRADLE BULKHEAD CONNECTOR Vesper Marine, 45 Sales St, Auckland, New Zealand - vespermarine.com V1.0 TECHNICAL SPECIFICATIONS 1 DSC distress call button 2 2W high fìdelity loud speaker 3 Side volume buttons 4 Power On button 5 DSC Call shortcut 6 Channel 16 shortcut button 7 MOB waypoint activation 8 Click-wheel rotary controller 9 Microphone 10 VHF screen shortcut button 11 Return button 12 Menu button 13 Push to talk button 14 4-inch touch screen 15 Protective rubber overmould 16 Power cable DIMENSIONS KNOW YOUR HANDSET CORTEX H1 HANDSET GENERAL SPECIFICATIONS HANDSET SIZE 164.8 x 71.8 x 21.4mm (6 1/2” x 2 13/16” x 7/8”) POWER SUPPLY 12V, 1A max, 200mA nom 12-24V compatible BATTERY Lithium Polymer 2 hour full charge, >12 hours nominal operation WEIGHTH1 285g (0.63lb) ENVIRONMENTALWaterproof (IPx7) OPERATING TEMPERATURE-20°C to +55°C (-13°F to +131°F) AUDIO2W, THD < 5% @ 85dBA CABLE LENGTH50mm curled, 200mm uncurled (H1) DISPLAY SCREENLCD TFT Si, 640 x 800, 24bit Colour, Polarised Compatibility TOUCHCapacitive, optically bonded, LCD, glove and salt water operable BACKLIGHT600 cd/m2, Ambient Light sensor for auto dimming All stated specifications are subject to change without notice or obligation. Dimensional measurements based on metric. 58.7mm (2 5/16”) 58.7mm (2 5/16”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 21.4mm (7/8”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 25.1mm (1”) 20.8mm (13/16”) 168mm (6 5/8”) 147.5mm (5 13/16”) 147.5mm (5 13/16”) 58.7mm 75.6mm (3”) 73.3mm (2 7/8”) 75.6mm (3”) 73.3mm (2 7/8”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 21.4mm (7/8”)21.4mm (7/8”) 168mm (6 5/8”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 20.8mm (13/16”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 20.8mm (13/16”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 58.7mm (2 5/16”) 58.7mm (2 5/16”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 21.4mm (7/8”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 25.1mm (1”) 20.8mm (13/16”) 168mm (6 5/8”) 147.5mm (5 13/16”) 147.5mm (5 13/16”) 58.7mm 75.6mm (3”) 73.3mm (2 7/8”) 75.6mm (3”) 73.3mm (2 7/8”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 21.4mm (7/8”) 21.4mm (7/8”) 168mm (6 5/8”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 20.8mm (13/16”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 20.8mm (13/16”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 58.7mm (2 5/16”) 58.7mm (2 5/16”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 21.4mm (7/8”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 25.1mm (1”) 20.8mm (13/16”) 168mm (6 5/8”) 147.5mm (5 13/16”) 147.5mm (5 13/16”) 58.7mm 75.6mm (3”) 73.3mm (2 7/8”) 75.6mm (3”) 73.3mm (2 7/8”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 21.4mm (7/8”)21.4mm (7/8”) 168mm (6 5/8”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 20.8mm (13/16”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 20.8mm (13/16”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 1 2 3 4 5 6 8 7 9 10 11 12 13 15 14 16 35mm (1 3/8”) 35mm (1 3/8”) 17.5mm (11/16”) 8.8mm (3/8”) 8.1mm (5/16”) 8.1mm (5/16”) 18.7mm (3/4”) 35mm (1 3/8”) 35mm (1 3/8”) 8.8mm (3/8”) 11.3mm (7/16”) 35mm (1 3/8”) 35mm (1 3/8”) 17.5mm (11/16”) 8.1mm (5/16”) 18.7mm (3/4”) 35mm (1 3/8”) 35mm (1 3/8”) 8.8mm (3/8”) 8.8mm (3/8”) 11.3mm (7/16”) 35mm (1 3/8”) 8.1mm (5/16”) 58.7mm (2 5/16”) 58.7mm (2 5/16”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 21.4mm (7/8”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 25.1mm (1”) 20.8mm (13/16”) 168mm (6 5/8”) 147.5mm (5 13/16”) 147.5mm (5 13/16”) 58.7mm 75.6mm (3”) 73.3mm (2 7/8”) 75.6mm (3”) 73.3mm (2 7/8”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 21.4mm (7/8”)21.4mm (7/8”)21.4mm (7/8”) 168mm (6 5/8”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 20.8mm (13/16”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 20.8mm (13/16”) 164.8mm (6 1/2”) 71.8mm (2 13/16”)

Track and control, whether on board or ashore. Built-in Class B SOTDMA smartAIS with no-loss splitter. The world’s most advanced VHF with multi-station wireless touchscreen handsets. VHF AIS MONITOR PRODUCT OVERVIEW Cortex continuously calculates collision risk and warns you with voice annunciated alerts. View crossing situations, navigation light sectors and perform trial maneuvers while talking on the VHF radio. Initiate direct calls (DSC) with other vessels by simply tapping the vessel on your handset touchscreen. Push to talk to quickly hail another vessel when every second counts. Cortex is the world’s fi rst VHF with high speed SOTDMA AIS transponder technology, making your boat visible to others. A built-in heading sensor tells other vessels your direction, helping them more accurately predict potential collisions. See critical information about vessels, AIS Aids to Navigation and man overboard devices on your MFD, mobile or Cortex handset. Cortex is a revolution in marine technology that will change your VHF experience forever with an intuitive touchscreen engineered to withstand the rigours of the harsh marine environment. Cortex combines built-in sensors, external sensor inputs and NMEA 2000 connectivity with free basic monitoring. Using cloud connectivity, you can view twice-daily updates of power, location, wind, depth, bilge, temperature and more on your smartphone. The Cortex Monitor Premium subscription unlocks real-time vessel status, instant alerts and device control for boat systems like refrigerators, icemakers, lights or heaters. By combining your position and heading, Cortex will determine if your anchor drags. If your boat moves outside your anchor swing radius the alarm will sound on Cortex handsets, connected speaker and your smartphone. Receive alerts while ashore via the Cortex Monitor App on your smartphone. Collision Avoidance & One-touch DSC The power of VHF and AIS combined VHF Reimagined Monitor Anchor Watch on board and ashore Vesper Marine, 45 Sale Street, Auckland, New Zealand Phone: +64 9 950 4848 | Vespermarine.com 1234 5678 9 1 VHF Antenna In 2 VHF Antenna Out (no-loss splitter) 3 DC Power (12/24V) 4 GPS/GNSS, WiFi and Cloud ports 5 Mounting holes 6 External Speaker output 7 General Purpose Input / Output, NMEA 0183 8 NMEA 2000 port 9 Coloured backlit status indicators for GPS/GNSS, VHF/AIS, WiFi, Cloud and Power Cortex is the world’s fi rst VHF with high speed SOTDMA AIS transponder technology making your boat visible to others. A built-in heading sensor tells other vessels your direction, helping them more accurately predict potential collisions. Confi gure and monitor the Cortex system and receive alerts to a connected smartphone on the Cortex Onboard App or receive alerts and control devices on the boat remotely using the Cortex Monitor App. • Add H1 Tethered & H1P Portable handset for VHF capability • Built-in Class B SOTDMA • Built-in antennas for WiFi and cloud connectivity for monitoring on board and ashore • Transmit AIS and VHF simultaneously • Universal compatibility • Low power consumption • Galvanically isolated ports • Monitor up to 5 external sensors connected directly • Network to NMEA 2000 to monitor sensors remotely or supported 3rd Party Apps • Integrated no-loss AIS / VHF splitter • IPx7 full plastic housing • 10Hz GPS and external antenna port • GNSS: GPS, GLONASS, Bei Dou, Galilleo • Anti jamming feature 58.7mm (2 5/16”) 58.7mm (2 5/16”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 21.4mm (7/8”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 25.1mm (1”) 20.8mm (13/16”) 168mm (6 5/8”) 147.5mm (5 13/16”) 147.5mm (5 13/16”) 58.7mm 168mm (6 5/8”) 58.7mm (2 5/16”) 58.7mm (2 5/16”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 21.4mm (7/8”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 25.1mm (1”) 20.8mm (13/16”) 168mm (6 5/8”) 147.5mm (5 13/16”) 147.5mm (5 13/16”) 58.7mm 168mm (6 5/8”) Cortex M1 Hub is a Full Class B SOTDMA smartAIS with out-of- the-box monitoring. Cortex V1 combines Cortex M1 with Cortex H1 Tethered Handset to provide full VHF functionality. Optionally add H1P Portable Handsets for even greater freedom on board. CORTEX HUB TECHNICAL M1 & V1 Confi gure and Monitor your Cortex system from your smartphone anywhere on board. Receive alerts for collision threats, anchor drags and more. Android and iOS CORTEX ONBOARD APP NOTE: Measurements based on metric. Vesper Marine, 45 Sale Street, Auckland, New Zealand Phone: +64 9 950 4848 | Vespermarine.com V1.3 A revolution in marine technology that will change your VHF experience forever. An intuitive touchscreen that is engineered for durability to withstand the rigours of the harsh marine environment. Audio that’s as loud as a train but clear as a bell. The future of VHF is here. 1 DSC distress call button 2 Up to 85 dBA high fìdelity speaker 3 Side volume buttons 4 Power On button 5 DSC Call shortcut 6 Channel 16 shortcut key 7 MOB waypoint activation 8 Click-wheel rotary controller 9 Microphone 10 VHF screen shortcut key 11 Return key 12 Menu key 13 Push to talk key 14 4-inch touch screen 15 Protective rubber overmould 16 Power cord TETHERED & PORTABLE HANDSETS TECHNICAL H1H1P 58.7mm (2 5/16”) 58.7mm (2 5/16”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 21.4mm (7/8”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 25.1mm (1”) 20.8mm (13/16”) 168mm (6 5/8”) 147.5mm (5 13/16”) 147.5mm (5 13/16”) 58.7mm 168mm (6 5/8”) 58.7mm (2 5/16”) 58.7mm (2 5/16”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 21.4mm (7/8”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 25.1mm (1”) 20.8mm (13/16”) 168mm (6 5/8”) 147.5mm (5 13/16”) 147.5mm (5 13/16”) 58.7mm 168mm (6 5/8”) 58.7mm (2 5/16”) 58.7mm (2 5/16”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 21.4mm (7/8”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 25.1mm (1”) 20.8mm (13/16”) 168mm (6 5/8”) 147.5mm (5 13/16”) 147.5mm (5 13/16”) 58.7mm 168mm (6 5/8”) 58.7mm (2 5/16”) 58.7mm (2 5/16”) 164.8mm (6 1/2”) 71.8mm (2 13/16”) 21.4mm (7/8”) 75.6mm (3”) 73.3mm (2 7/8”) 18mm (11/16”) 25.1mm (1”) 20.8mm (13/16”) 168mm (…

Text truncated - open the document above for the full version.

Vesper Cortex FCC Test Report Summary Version Date Comment Author 1 01/06/2020 First Release CBO Vesper Marine | 45 Sale Street, Freemans Bay, Auckland, New Zealand | +64 9 950 4848 | vespermarine.com Page 1 Introduction This document summarizes the test reports provided to show Vesper Marine Cortex System compliance with the FCC requirements for operation in the US. Cortex V1 System with Cortex M1 (left) and H1 Handset (right) Vesper Marine | 45 Sale Street, Freemans Bay, Auckland, New Zealand | +64 9 950 4848 | vespermarine.com Page 2 FCC Technical Test Reports The Cortex System was tested as both an intentional radiator as a Marine VHF, DSC and AIS device under FCC 47 CFR Part 80. The WiFi and Cellular aspects are pre-certified under modular approvals, however additional testing was performed to ensure compliance within the Cortex system under FCC Part 15. The following provides a summary and cross reference for the technical test reports provided to show compliance. VHF Type Freq Bands (MHz) Max Power (dBm) Emission Designator FCC Rule VHF Telephony 156.0 - 162.0 44 16K0G3E 47 CFR Part 80 Class D DSC 156.525 44 16K0G2B 47 CFR Part 80.225 Report Name Test Standards Description 75943855-19 Issue 01 FCC Part 80 VHF Telephony 75943855-13 Issue 01 ITU 493-13 Class D DSC Functional Testing 75943855-08 Issue 02 IEC 62238 Class D DSC Physical Layer 200309_2 IEC 62238 Class D DSC Adjacent Channel Power AIS Type Freq Bands (MHz) Max Power (dBm) Emission Designator FCC Rule Class B SO-TDMA AIS 156.0 -162.025 37 16K0GXW 47 CFR Part 80.231 The AIS functionality is by design autonomous in operation, and as such its operation is encapsulated by the Cortex M1 Hub and does not require the presence of the handset in order to function. Vesper Marine | 45 Sale Street, Freemans Bay, Auckland, New Zealand | +64 9 950 4848 | vespermarine.com Page 3 Report Name Test Standards Description 75943855-12 Issue 01 IEC 62287-2 Class B SO-TDMA AIS Functional 75943855-18 Issue 01 IEC 62287-2 Class B SO-TDMA AIS Physical Layer 75943855-05 Issue 01 IEC 61108 Marine GNSS 454_1_1 IEC 61108 Marine GNSS 454_1_2 IEC 61108 Marine GNSS 75943855-04 Issue 02 IEC 60945 Environmental EMC 75943855-10 Issue 01 IEC 60945 Environmental Temperature and Vibration Note, the USCG Type Approval 165.156/51/0 is also provided. WiFi The WiFi functionality in both the M1 and the H1 use pre-approved modules. Some additional testing was performed to verify radiated disturbance limits were maintained. In both cases the antenna gains do not exceed that of the original module certification. Type Freq Bands (MHz) Power (dBm) Emission Designator FCC Rule WiFi 2400-2480 5-17 20M0G7D 47 CFR Part 15B Device Module FCC ID Supporting Documentation M1 TI WL1801MODGB Z64-WL18SBMOD https://fccid.io/Z64-WL18SBMOD H1 Qualcomm 410 2AFDI-ITCOQ410S https://fccid.io/2AFDI-ITCOQ410S Report Name Test Standards Description 75943855-13 Issue 01 FCC 47 CFR Part 15.109 Cortex M1 & H1 Radiated Disturbance 75943820-03 Issue 1 FCC 47 CFR Part 15.109 Cortex H1 Radiated Disturbance Vesper Marine | 45 Sale Street, Freemans Bay, Auckland, New Zealand | +64 9 950 4848 | vespermarine.com Page 4 Testing for simultaneous transmissions of WiFi and the other intentional radiators in the M1 was covered while testing each of the other intentional radiators (LTE, VHF, AIS) since WiFi was always enabled during these tests. LTE A cellular data modem is integrated into the Cortex M1 for LTE Cat-1 and 3G fallback using a pre-approved module. The antenna gains do not exceed that required by the original module certification. Type Freq Bands (MHz) Max Power (dBm) Emission Designator FCC Rule LTE Cat-1, UMTS B2, B4, B5, B17 23 5M00G7D 47 CFR Part 15B, 15, 22, 24 and 27 Device Module FCC ID Supporting Documentation M1-LTE Sierra HL7688 N7NHL7688 https://fccid.io/N7NHL7688 Report Name Test Standards Description 75946817-01 Issue 01 FCC 15B Radiated Disturbance 75946817-02 Issue 01 FCC 47 CFR Part2.1093 Radiated Spurious Emissions Note, there are two variants of the M1. The only difference between the two is the Sierra Module. The North American variant M1-LTE uses the HL7688. RF Exposure The RF Exposure for the M1 and H1 have been treated independently. Since the handset is designed to be held in the hand and operated close to the face (~25cm) SAR testing was performed on the H1. An RF exposure assessment for the general public was performed for the M1. A separate report on both H1 and M1 summarizing this is provided, ​Cortex RF Exposure Evaluation.pdf. Report Name Test Standards Description 75943820-03 Issue 1 FCC 47 CFR 2.1093 Specific Absorption Rate on H1 Handsets Vesper Marine | 45 Sale Street, Freemans Bay, Auckland, New Zealand | +64 9 950 4848 | vespermarine.com Page 5 Naming Conventions Note that the Cortex project was internally referred to by Vesper Marine as Project Marlin. The M1 was also referred to as the Pod and the Handset as the Remote. Some reports may reference these project names. The Cortex Hub and Handset are the final marketing names used. International Compliance Cortex was simultaneously tested to international standards for FCC, ISED and RED and where there was crossover between each regions’ requirements the worst case limits were applied, and in the interests of efficiency the product was tested to these worst case limits. This also applies where there is cross over within each regions’ requirements for each sub-system e.g. radiated emissions requirements of VHF and WiFi. A complete summary of the global test standards is provided at ​Vesper Cortex Test Specification Summary.pdf​. ​Test reports applicable to another region that are not included in this submission are available on request. Vesper Marine | 45 Sale Street, Freemans Bay, Auckland, New Zealand | +64 9 950 4848 | vespermarine.com Page 6

Cortex Modular Certifications WiFi Hub M1-3G / M1-LTE The Hub WiLink WL1801MOD WiFi chipset carries modular certifications: http://processors.wiki.ti.com/index.php/WL18xx http://processors.wiki.ti.com/index.php/WL18xxMOD_Certificates http://processors.wiki.ti.com/index.php/WL18xxMOD_Certification_Reports https://fccid.io/Z64-WL18SBMOD Handset H1/ H1P The handset Qualcomm module https://fccid.io/2AFDI-ITCOQ410S Device Module FCC ID IC M1 TI WL1801MODGB Z64-WL18SBMOD 23244-WL18SBMOD H1 Qualcomm 410 2AFDI-ITCOQ410S 9049A-ITCOQ410S Cellular The cellular module on the Pod is the Sierra HL8548 for 3G and the HL7688 for LTE. https://www.sierrawireless.com/products-and-solutions/embedded-solutions/products/hl8548/ https://fccid.io/N7NHL8548 https://www.sierrawireless.com/products-and-solutions/embedded-solutions/products/hl7688/ https://fccid.io/N7NHL7688 Device Module FCC ID IC M1-LTE Sierra HL7688 N7NHL7688 2417C-HL7688 M1-3G Sierra HL8548 N7NHL8548 2417C-HL8548 The LTE variant is for North America Only. The 3G variant is for rest of world (ROW)

45 Sale Street, Freemans Bay PO Box 91164, Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 REF: Declaration of Equivalence FCC ID: YJDVESPM1, YJDVESPH1 June 6, 2020 Attn: Reviewing Engineer Office of Engineering and Technology Federal Communications Commission Dear Sir or Madam, The Cortex VHF System consists of the Cortex Hub and the Cortex Handset. Both Hub and Handset come in two variants. The M1 is available with LTE cellular data communication for North America (M1-LTE), or UMTS (3G) for Europe and the rest of world (M1-3G). The two models are identical and equivalent in all other respects. The H1 is available in a tethered variant (H1) or non-tethered (H1P). The H1 has a curly power cord and is supplied with the M1 when sold as a Cortex V1 system. The H1P does not have a power cable but is instead designed to sit in a charging cradle. The H1P is identical and equivalent to the H1 in all other respects and is supplied as an accessory to the Cortex V1 system. Please contact me directly if you require any further information to regarding this request. I can be contacted via email at [email protected] or by phone at +64 9 950 4848. Yours Sincerely, Carl Omundsen CTO

45 Sale Street, Freemans Bay PO Box 91164, Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 REF: Request for Confidentiality FCC ID: YJDVESPM1, YJDVESPH1 June 6, 2020 Attn: Reviewing Engineer Office of Engineering and Technology Federal Communications Commission Dear Sir or Madam, In accordance with FCC rule CFR 47 0.457 and 0.459, Vesper Marine Ltd requests the confidentiality of the following technical documents and requests they be withheld from public view: • Schematic diagrams and Parts List • Block Diagrams • Operational Description Vesper Marine Ltd also requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: • Internal Photos These documents contain proprietary technical information developed by Vesper Marine Ltd which we deem to be trade secrets. Please contact me directly if you require any further information to regarding this request. I can be contacted via email at [email protected] or by phone at +64 9 950 4848. Yours Sincerely, Carl Omundsen CTO

45 Sale Street, Freemans Bay PO Box 91164, Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 REF: Authorization for Signature 06 June 2020, Attn: Reviewing Engineer Office of Engineering and Technology Federal Communications Commission Dear Sir or Madam, Mr. Carl Omundsen, Vesper Marine Limited Chief Technology Officer, is authorized to sign on my behalf for all applications to FCC. Please contact me directly if you require any further information to regarding this request. I can be contacted via email at [email protected] or by phone at +64 9 950 4848. Yours Sincerely, Jeffrey Robbins Director

45 Sale Street, Freemans Bay PO Box 91164, Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 REF: Equipment Authorization Submission FCC ID: YJDVESPM1, YJDVESPH1 June 6, 2020 Dear Sir or Madam, The Vesper Marine Cortex V1 is a marine VHF system with Class D DSC and Class B SO-TDMA AIS. The Cortex V1 is comprised of the M1 Hub and the H1 handsets. The M1 and H1 are designed and manufactured by Vesper Marine Ltd. The included documents show Cortex system conforms to the requirements under FCC Title 47 part 80. The device has been approved as meeting the technical requirements for a Class B SO-TDMA AIS Transponder by the United States Coast Guard in accordance with the requirement under §80.275. Please contact me directly if you require any further information to support this request. I can be contacted via email at [email protected] or by phone on +64 9 950 4848. Yours Sincerely, Carl Omundsen CTO

2020-3684 16714 / 46 CFR 165.156 April 23, 2020 Carl Omundsen Vesper Marine 45 Sale Street Freemans Bay Auckland, New Zealand Subj: VESPER MARINE CORTEX M1 AIS CLASS B SO-TDMA; APPROVAL We have reviewed the materials you have submitted with your email dated March 19, 2020 requesting an approval of the Vesper Marine AIS Class B Cortex M1 module. This units meets the requirements of the applicable international standards. The Certificate of Approval (COA) is enclosed. The new equipment COA will remain valid for five years, unless we suspend, withdraw, or terminate it. Terms of approval are on the reverse of the certificate. Any changes or alternation of components, construction or manufacturing location of the product may require a product to undergo additional testing, or requalification in order to keep its approval. You may apply for an extension of this certification by writing to our office before it expires. If the equipment is no longer produced our office continues to consider it certified based on the date of manufacture, the vessel installation date, and the valid certification for that time period. You cannot transfer this certification to another manufacturer without written authorization from our office. You must notify our office in writing when you make any change in the design or construction of the device or when you cease manufacturing the device. This letter and all attachments were delivered electronically to [email protected]. No hard copies will be provided. You are welcome to print as many copies as you wish. If you have any follow-up to this approval, please feel free to contact this office at the email address or phone number above or at [email protected]. Please reference ID# 2020-3684 in any correspondence related to this project. Sincerely, J. H. MILLER, P.E. Commander, U.S. Coast Guard Chief, Systems Engineering Division Office of Design and Engineering Standards By direction Encl: U.S. Coast Guard Certificate of Approval Number 165.156/51/0 dated 23 April 2020 Commandant United States Coast Guard Martin Luther King Jr. Ave. SE, Stop 7509 Washington, DC 20593-7509 Staff Symbol: CG-ENG-3 Phone: (202) 372-1375 Fax: (202) 372-8379 Email: [email protected]

Vesper Marine Ltd Vesper Cortex Test Specification Summary Summary of test standards for compliance to RED / FCC / ISED. Primary markets: EU, North America, NZ, Australia, UK. Hub (M1) 3G Network Variant Vesper Marine Ltd Additional - North American LTE variant only Handset (H1/H1P)

Coast Guard Approval Number: 165.156/51/0Expires: 22 April 2025 AUTOMATIC IDENTIFICATION SYSTEM CLASS B Shipborne Automatic Identification System (AIS) Class B Vesper Marine Ltd. 45 Sale Street Freemans Bay Auckland 1010 NEW ZEALAND Vesper Marine, Cortex M1 Automatic Identification System (AIS) Class B SO Vesper Marine, Cortex M1 AIS Class B SO meets the the requirements as set forth in: IMO Resolution A.694(17) IMO Resolution MSC.74(69) Annex 3 IEC 60945 (2002) with Corrigendum 1 (2008) IEC 62287-2 (2017) IEC 61108 ITU-R M.1371 Vesper Marine, Cortex M1 AIS Class B SO consists of the following equipment: Cortex M1 Class B SO-TDMA Transponder Federal Communications Commission (FCC) certification is required. *** End *** THIS IS TO CERTIFY THAT the above named manufacturer has submitted to the undersigned satisfactory evidence that the item specified herein complies with the applicable laws and regulations as outlined on the reverse side of this Certificate, and approval is hereby given. This approval shall be in effect until the expiration date hereon unless sooner canceled or suspended by proper authority. GIVEN UNDER MY HAND THIS 23୾ރ DAY OF APRIL 2020, AT WASHINGTON D.C. J. H. MILLER, P.E., CDR CHIEF, SYSTEMS ENGINEERING DIVISION BY DIRECTION OF THE COMMANDANT DEPT. OF HOMELAND SECURITY, USCG, CGHQ-10030 (REV. 3-03) TERMS: The approval of the item described on the face of the Certificate has been based upon the submittal of satisfactory evidence that the item complies with the applicable provisions of the navigation and shipping laws and the applicable regulations in Title 33 and/or Title 46 of the Code of Federal Regulations. The approval is subject to any conditions noted on this Certificate and in the applicable laws and regulations governing the use of the item on vessels subject to Coast Guard inspection or on other vessels and boats. Consideration will be given to an extension of this approval provided application is made 3 months prior to the expiration date of this Certificate. The approval holder is responsible for making sure that the required inspections or tests of materials or devices covered by this approval are carried out during production as prescribed in the applicable regulations. The approval of the item covered by this certificate is valid only so long as the item is manufactured in conformance with the details of the approved drawings, specifications, or other data referred to. No modification in the approved design, construction, or materials is to be adopted until the modification has been presented for consideration by the Commandant and confirmation received that the proposed alteration is acceptable. NOTICE: Where a manufacturer of safety-at-sea equipment is offering for sale to the maritime industry, directly or indirectly, equipment represented to be approved, which fails to conform with either the design details or material specifications, or both, as approved by the Coast Guard, immediate action may be taken to invoke the various penalties and sanctions provided by law including prosecution under 46 U.S.C. 3318, which provides: "A person that knowingly manufactures, sells, offers for sale, or possesses with intent to sell, any equipment subject to this part (Part B. of Subtitle II of Title 46 U.S.C.). and the equipment is so defective as to be insufficient to accomplish the purpose for which it is intended, shall be fined not more than $10,000, imprisoned for not more than 5 years or both."

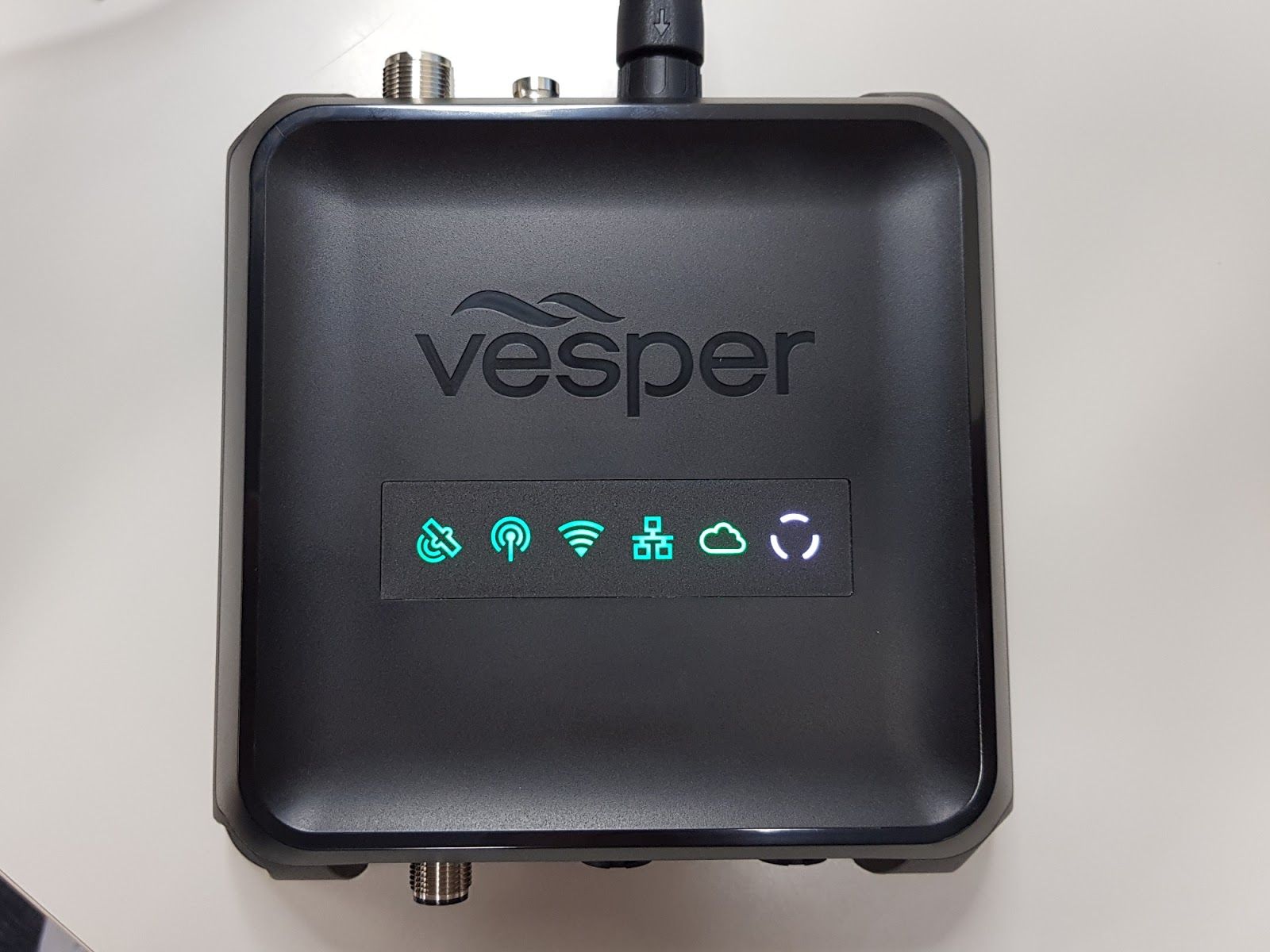

Vesper Marine Ltd Cortex M1 Product Photos Front Vesper Marine Ltd Top Vesper Marine Ltd Bottom Vesper Marine Ltd Back Vesper Marine Ltd Left side Right side

Vesper Marine Ltd 09/06/2020 Cortex M1 Label Locations Serial and Certification Label The Serial and Certification Label is found on the bottom of the M1 unit, Figure 1 - Certification and Serial Label North America M1-USA Figure 2 - Certification and Serial Label Europe M1-ROW V21 Vesper Marine Ltd 09/06/2020 Figure 2 - Serial and Certification Label Location V22 Vesper Marine Ltd 09/06/2020 Warning Label The warning label is attached to the top side of the M1 so it is clearly visible when the product is first seen out of the box. Figure 3 - Warning Label example Figure 4 - Location of warning label V23

Vesper Marine Ltd Cortex M1 Internal Photos Assembly Vesper Marine Ltd Vesper Marine Ltd Internal Modules Vesper Marine Ltd Vesper Marine Ltd Vesper Marine Ltd Vesper Marine Ltd Vesper Marine Ltd

Vesper Cortex RF Exposure Evaluation FCC: YJD-VESPM1, YJD-VESPH1 IC: 9118A-M1, 9118A-H1 Version Date Comment Author 1 01/06/2020 First Release CBO 2 09/06/2020 ISED update CBO 3 17/06/2020 Include FCC and IC identifiers CBO Vesper Marine | 45 Sale Street, Freemans Bay, Auckland, New Zealand | +64 9 950 4848 | vespermarine.com Page 1 Introduction This document evaluates the Vesper Marine Cortex System against the international requirements for RF exposure to the general public. Cortex V1 System with Cortex M1 (left) and H1 Handset (right) Vesper Marine | 45 Sale Street, Freemans Bay, Auckland, New Zealand | +64 9 950 4848 | vespermarine.com Page 2 Overview The RF Exposure for the M1 and H1 have been treated independently. Since the handset is designed to be held in the hand and operated close to the face (~25cm) SAR testing was performed on the H1. An RF exposure assessment for the general public in the US, Canada and Europe was performed for the M1. Cortex Hub M1 FCC: YJD-VESPM1 IC: 9118A-M1 VHF Limits The Cortex VHF, DSC and AIS System must operate in Europe under the reference levels as outlined by the Council Recommendation 1999/519/EC and in the US under the FCC limits which can be summarized as follows: Table 1 – International VHF Exposure Limits Region Fr…
