YJDVESPWMX850AIS WatchMate - WMX850

AISWatchMate ® Class B AIS Transceiver Model: WMX850 WMX850-504-1110 Trademarks AISWatchMate is a registered trademark of Vesper Marine Ltd. All other product names are trademarks or registered trademarks of their respective owners. Copyright Notice Copyright © 2010, Vesper Marine Ltd. All rights are reserved. Unless otherwise indicated, all documentation and operating software contained within this product or distributed with this product is copyrighted by Vesper Marine Ltd. All rights are reserved. Except for short quotations in a review, no portions of this document or the software contained within this product may be reproduced or transmitted in any form or by any means without prior written permission of Vesper Marine Ltd. Portions of this product may use software licensed under the GNU GPL or a modified GPL. Source code for the applicable software is available upon request from Vesper Marine Ltd. Technical Accuracy The information contained in this document is to the best of our knowledge correct at the time of publication. However, we reserve the right to change specifications, installation and operating instructions without notice as part of our ongoing product development and improvement programs. No liability can be accepted for any inaccuracies or omissions in this document, or any other document provided by Vesper Marine Ltd, although every effort has been made to ensure it is as complete and accurate as possible. - 2 - General Warnings The AISWatchMate works in cooperation with other vessels and systems such as transceivers and GPS. The accuracy of this device and the AIS system can be affected by many factors, including equipment failure or defects, environmental conditions and incorrect installation, handling or use. Vesper Marine does not warrant that this product is error-free. It is the user’s responsibility to exercise common prudence and navigational judgment. This device should not be relied upon as a substitute for such prudence and judgment. Always maintain a permanent watch so that you can respond to situations as they develop. The prudent mariner will not rely on a single aid to navigation. The user should verify the information obtained from the AISWatchMate is in accordance with expected situations and conditions. The information is not guaranteed to be accurate or reliable and the AISWatchMate is not a substitute for proper seamanship. Vesper Marine Limited cannot be held liable for any injury, damage or loss caused by, during, or because of the installation, use or inability to use this device. The AISWatchMate is to be installed and used entirely at your own risk. By installing and/or using the AISWatchMate you fully accept this risk and agree to hold Vesper Marine Limited harmless. RF Emissions Warning CAUTION: This device generates and radiates electromagnetic energy. This device must be installed and operated according to the instructions contained in this manual. Failure to do so may result in product malfunction and / or exposure to potentially harmful levels of radio frequency radiation. CAUTION: Never operate this device unless it is connected to a - 3 - VHF antenna. The system has a Maximum Permissible Exposure (MPE) radius of 1m from the antenna. This has been determined assuming the maximum power of the transmitter and using a standard half-wave monopole VHF antenna with a maximum gain of 3dBi and termination impedence of 50 ohms. When installing the antenna and operating the equipment consider the following: ●The antenna should be mounted as high above deck as possible. ●Higher gain VHF antennas will require a larger MPE radius. ●Do not operate the unit when anyone is within the MPE radius of the antenna. ●The antenna should not be collocated or operated in conjunction with any other transmitting antenna. MMSI Programming Warning IMPORTANT: In most countries the operation of an AIS unit is included under the vessel's marine VHF license provisions and the vessel on which this device is to be installed may be required to possess a current VHF radiotelephone license which lists the AIS system and the vessel Call Sign and MMSI number. An MMSI number is required in order for this device to operate as a transmitter. Please contact the relevant authority in your country for more information. - 4 - For Customers in the USA This device must be programmed with data corresponding to the vessel on which it will be installed. Programming must be carried out by a Vesper Marine dealer. The included instructions contain information on how to verify the correct programming. WARNING: It is a violation of the rules of the Federal Communications Commission to input an MMSI that has not been properly assigned to the end user, or to otherwise input any inaccurate data in this device GPS Antenna The AISWatchMate Transceiver has a built-in GPS patch antenna. This antenna requires a clear view of the sky. The performance of the internal GPS antenna is also highly dependent on the environment in which the device is mounted. The antenna performance maybe significantly reduced if the AISWatchMate is installed on, under, or near large metal structures. If you are mounting the display in a location which will not provide adequate GPS signal coverage then you must install a dedicated external GPS antenna. You cannot share a GPS or GPS antenna. See the GPS Installation section for more information on installing an external GPS antenna. Compass Safe Distance Mount your AISWatchMate Transceiver at least 0.6m (2 feet) from any compass. Test your compass to verify that it operates properly when this device is operating. - 5 - Electronic Waste Recycling Various regional and national regulations exist regarding the recycling of certain electronics. Please consult your local authorities or contact Vesper Marine for recycling information. Care Notice To provide protection against the damaging effects of UV light, it is recommended to replace the cover when not in use. Take care when cle…

Text truncated - open the document above for the full version.

103 Westhaven Drive, St. Mary's Bay PO Box 91164, Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 Fax: +64 (0)9 950 4085 REF: Equipment Authorization Submission FCC ID: YJDVESPWMX850 November 21, 2010 Attn: Reviewing Engineer Office of Engineering and Technology Federal Communications Commission Dear Sir or Madam, The AIS WatchMate WMX850 is a marine collision avoidance device with an integrated display and Class B AIS transponder using carrier-sense time division multiple access (CSTDMA) techniques. The WMX850 is designed and manufactured by Vesper Marine Ltd. The attached documents show the WMX850 conforms to the relevant international standards for Class B AIS devices including IEC 62287-1 and IEC 60945. The WMX850 has been type approved by BSH and granted certificate number BSH/46162/4321414/10. BAPT has issued certificate number NC14714 i01. The device has been approved by the United States Coast Guard in accordance with the requirement under §80.231 and issued certificate number 165.156/12/0. Please contact me directly if you require any further information to support this request. I can be contacted via email at [email protected] or by phone on +64 21 156 1033. Yours Sincerely, Jeffrey Robbins Director

103 Westhaven Drive, St. Mary's Bay PO Box 91164, Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 Fax: +64 (0)9 950 4085 REF: Request for Confidentiality FCC ID: YJDVESPWMX850 November 20, 2010 Attn: Reviewing Engineer Office of Engineering and Technology Federal Communications Commission Dear Sir or Madam, In accordance with FCC rule CFR 47 0.457 and 0.459, Vesper Marine Ltd requests the confidentiality of the following technical documents and requests they be withheld from public view: –Schematic diagrams –Parts List –Operational Description These documents contain proprietary technical information developed by Vesper Marine Ltd which we deem to be trade secrets. Please contact me directly if you require any further information to regarding this request. I can be contacted via email at [email protected] or by phone at +64 21 156 1033. Yours Sincerely, Jeffrey Robbins Director

Vesper Marine 10/14/10 WMX850 External Photos 103 Westhaven Drive, St. Mary's Bay PO Box 91164, Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 Fax: +64 (0)9 950 4085 www.vespermarine.com 1 of 7Ver 1 Vesper Marine 10/14/10 Version History VersionDateCommentAuthor 113/10/10First versionCBO Copyright Notice Copyright © 2010, Vesper Marine Ltd. All rights are reserved. The information contained within this document is the copyright of Vesper Marine Ltd No part of this document may be disclosed, reproduced or transmitted in any form, or by any means without the written permission of Vesper Marine Ltd. The term document extends to all forms of media in which information may be embodied. 2 of 7Ver 1 Vesper Marine 10/14/10 Product Identification Product AIS WatchMate WMX850 Collision Warning System with integrated AIS Class B Transceiver Manufacturer Vesper Marine Ltd Model Number WMX850 Power Supply 12-24V DC Frequency Range 161.500 – 162.025 MHz TX 156.025 – 162.025 MHz RX Transmit Power 33dBm (2W) Modulation TechniqueFM GMSK Channel Spacing 25kHz Temperature Range -25 - +55 deg C Intended UsersGeneral Public GPS AntennaInternal patch antenna (with connection for optional external antenna) EnclosureIPx7 3 of 7Ver 1 Vesper Marine 10/14/10 External Photos WMX850 – Front View 4 of 7Ver 1 Vesper Marine 10/14/10 WMX850 – Rear View 5 of 7Ver 1 Vesper Marine 10/14/10 WMX850 – USA Customer Warning Label 6 of 7Ver 1 Vesper Marine 10/14/10 WMX850 – Serial Label Example 7 of 7Ver 1

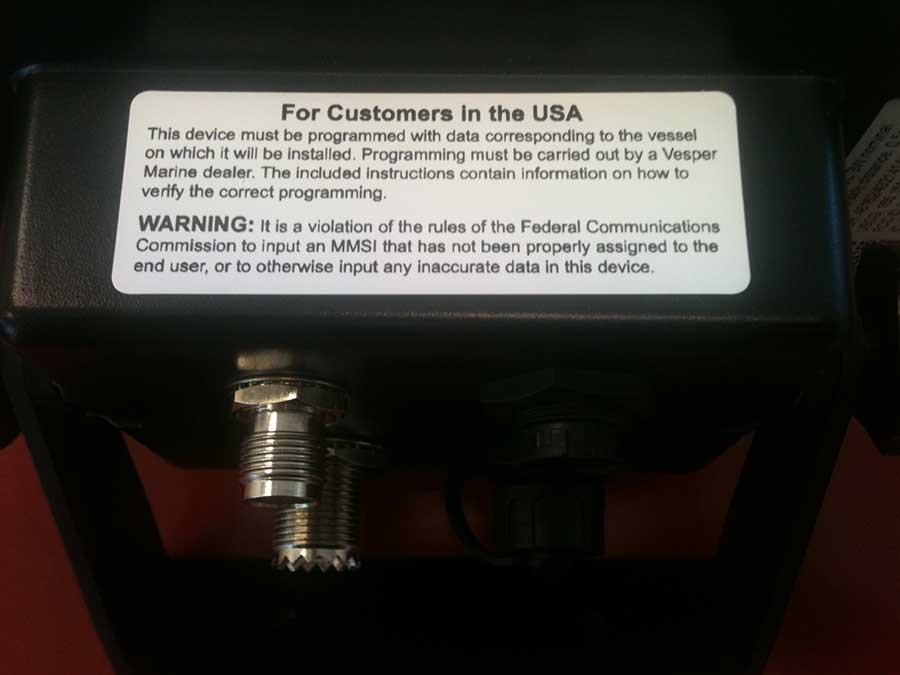

Vesper Marine 10/14/10 WMX850 Labels and Locations 103 Westhaven Drive, St. Mary's Bay PO Box 91164, Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 Fax: +64 (0)9 950 4085 www.vespermarine.com 1 of 7Ver 1 Vesper Marine 10/14/10 Version History VersionDateCommentAuthor 113/10/10First versionCBO Copyright Notice Copyright © 2010, Vesper Marine Ltd. All rights are reserved. The information contained within this document is the copyright of Vesper Marine Ltd No part of this document may be disclosed, reproduced or transmitted in any form, or by any means without the written permission of Vesper Marine Ltd. The term document extends to all forms of media in which information may be embodied. 2 of 7Ver 1 Vesper Marine 10/14/10 Product Identification Product AIS WatchMate WMX850 Collision Warning System with integrated AIS Class B Transceiver Manufacturer Vesper Marine Ltd Model Number WMX850 Power Supply 12-24V DC Frequency Range 161.500 – 162.025 MHz TX 156.025 – 162.025 MHz RX Transmit Power 33dBm (2W) Modulation TechniqueFM GMSK Channel Spacing 25kHz Temperature Range -25 - +55 deg C Intended UsersGeneral Public GPS AntennaInternal patch antenna (with connection for optional external antenna) EnclosureIPx7 3 of 7Ver 1 Vesper Marine 10/14/10 WMX850 – Label Locations 4 of 7Ver 1 Vesper Marine 10/14/10 WMX850 – USA Customer Warning Label 5 of 7Ver 1 Vesper Marine 10/14/10 WMX850 – Serial Label Example 6 of 7Ver 1 Vesper Marine 10/14/10 USA Warning Label – 70mm x 25mm Serial Number Label – 70mm x 25mm 7 of 7Ver 1

Vesper Marine 10/14/10 WMX850 Internal Photos 103 Westhaven Drive, St. Mary's Bay PO Box 91164, Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 Fax: +64 (0)9 950 4085 www.vespermarine.com 1 of 10Ver 1 Vesper Marine 10/14/10 Version History VersionDateCommentAuthor 113/10/10First versionCBO Copyright Notice Copyright © 2010, Vesper Marine Ltd. All rights are reserved. The information contained within this document is the copyright of Vesper Marine Ltd No part of this document may be disclosed, reproduced or transmitted in any form, or by any means without the written permission of Vesper Marine Ltd. The term document extends to all forms of media in which information may be embodied. 2 of 10Ver 1 Vesper Marine 10/14/10 Product Identification Product AIS WatchMate WMX850 Collision Warning System with integrated AIS Class B Transceiver Manufacturer Vesper Marine Ltd Model Number WMX850 Power Supply 12-24V DC Frequency Range 161.500 – 162.025 MHz TX 156.025 – 162.025 MHz RX Transmit Power 33dBm (2W) Modulation TechniqueFM GMSK Channel Spacing 25kHz Temperature Range -25 - +55 deg C Intended UsersGeneral Public GPS AntennaInternal patch antenna (with connection for optional external antenna) EnclosureIPx7 3 of 10Ver 1 Vesper Marine 10/14/10 Internal Photos WMX850 – Enclosure open showing connectors in place 4 of 10Ver 1 Vesper Marine 10/14/10 WMX850 – Rear assembly 5 of 10Ver 1 Vesper Marine 10/14/10 WMX850 – Front assembly 6 of 10Ver 1 Vesper Marine 10/14/10 LCD PCB – Top 7 of 10Ver 1 Vesper Marine 10/14/10 LCD PCB – Bottom 8 of 10Ver 1 Vesper Marine 10/14/10 Main PCB – Top 9 of 10Ver 1 Vesper Marine 10/14/10 Main PCB – Bottom 10 of 10Ver 1

EMC Technologies (NZ) Ltd Test Report No 100715.2 Report date: 12 October 2010 ______________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Ph: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 1 of 56 This report may not be reproduced except in full TEST REPORT Vesper WMX850 AIS WatchMate Transciever tested to IEC 62287 Maritime navigation and radiocommunication equipment and systems – Class B shipborne equipment of the Automatic Identification System (AIS) using CSTDMA techniques – Operational and performance requirements, methods of test and required results for Vesper Marine Ltd This Test Report is issued with the authority of: ______________________________________ Andrew Cutler - General Manager EMC Technologies (NZ) Ltd Test Report No 100715.2 Report date: 12 October 2010 ______________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Ph: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 2 of 56 This report may not be reproduced except in full Table of Contents 1. COMPLIANCE STATEMENT 3 2. RESULT SUMMARY 3 3. INTRODUCTION 4 4. CLIENT INFORMATION 5 5. DESCRIPTION OF TEST SAMPLE 5 6. TEST CONDITIONS 6 7. TEST RESULTS 7 8. TEST EQUIPMENT 54 9. ACCREDITATIONS 54 10. PHOTOGRAPH (S) 55 EMC Technologies (NZ) Ltd Test Report No 100715.2 Report date: 12 October 2010 ______________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Ph: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 3 of 56 This report may not be reproduced except in full 1. COMPLIANCE STATEMENT The Vesper WMX850 AIS WatchMate Transceiver complies with IEC 62287-1, First Edition, 2006-03 2. RESULT SUMMARY The results from testing are summarised as follows: Clause Test Performed Result 11.1 TDMA Transmitter 11.1.1 Frequency error Complies 11.1.2 Carrier power Complies 11.1.3 Transmission spectrum Complies 11.1.4 Modulation accuracy Complies 11.1.5 Transmitter output power versus time function Complies 11.2 TDMA Receiver 11.2.1 Sensitivity Complies 11.2.2 Error behaviour at high input levels Complies 11.2.3 Co-channel rejection Complies 11.2.4 Adjacent channel selectivity Complies 11.2.5 Spurious response rejection Complies 11.2.6 Intermodulation response rejection Complies 11.2.7 Blocking or desensitisation Complies 11.3 Conducted spurious emissions 11.3.1 Spurious emissions from the receiver Complies 11.3.2 Spurious emissions from the transmitter Complies Annex C.4 DSC Receiver tests Not applicable. Waiver applied EMC Technologies (NZ) Ltd Test Report No 100715.2 Report date: 12 October 2010 ______________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Ph: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 4 of 56 This report may not be reproduced except in full 3. INTRODUCTION This report describes the tests and measurements for the purpose of determining compliance with the specification under the following conditions: The test sample was selected by the client. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. This test report replaces report number 100715.1 dated September 2010 with the following changes having been made: - Section 3 Introduction has been added to the report showing the changes to the report and as result the page number has been changed and the headers incremented accordingly - On page 44 a typographical error has been corrected with the Channel B LOL frequency being corrected to show 134.625 MHz instead of 134.025 MHz as reported. - On page 44 and 45, with regard test 11.2.5, tables and calculations has been included showing the frequencies of interest for channels A and B when the spurious response receiver test was carried out. - On page 46, with regard test 11.2.6, the title of the second table has been changed from channel A to correctly show that it applies to channel B - The result summary table on page 3 has had a statement included with regard Annex C4 and the DSC receiver requirements - Annex C4 statements have been included in the report on page 53 Andrew Cutler General Manger EMC Technologies (NZ) Ltd Test Report No 100715.2 Report date: 12 October 2010 ______________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Ph: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 5 of 56 This report may not be reproduced except in full 4. CLIENT INFORMATION Company Name Vesper Marine Ltd Address PO Box 91164 St Marys Bay City Auckland Country New Zealand Contact Mr Carl Omundsen 5. DESCRIPTION OF TEST SAMPLE Brand Name Vesper Model Number WMX850 Product AIS WatchMate Transceiver Manufacturer …

Text truncated - open the document above for the full version.

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 19 Test Report No 100417.2 12 October 2010. This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT Watchmate WMX850 AIS Device tested to the specification EN 60945: 2002 Maritime navigation and radio communication equipment and systems – General requirements – Methods of testing and required test results for Vesper Marine This Test Report is issued with the authority of: _____________________________________ Andrew Cutler - General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 19 Test Report No 100417.2 12 October 2010. This report may not be reproduced except in full. Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. INTRODUCTION 3 4. CLIENT INFORMATION 3 5. DESCRIPTION OF TEST SAMPLE 4 6. SETUPS AND PROCEDURES 5 7. TEST RESULTS 7 8. EQUIPMENT USED 16 9. ACCREDITATIONS 16 10. PHOTOGRAPHS 17 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 19 Test Report No 100417.2 12 October 2010. This report may not be reproduced except in full. 1. STATEMENT OF COMPLIANCE The Watchmate WMX850 AIS device complies with EN 60945: 2002. 2. RESULTS SUMMARY Electromagnetic emission tests: Clause Application Result 9.2 Conducted emissions Complies. 9.3 Radiated emissions Complies. Electromagnetic immunity tests: Clause Application Result 10.3 Conducted RF disturbance Complies. 10.4 Radiated disturbance Complies. 10.5 Fast transients (bursts) Complies. 10.6 Slow transients (surges) Not applicable. Device is DC powered 10.7 Power supply short term variations Not applicable. Device is DC powered. 10.8 Power supply failure Not applicable. Device is DC powered using an external battery. 10.9 Electrostatic discharge Complies. 3. INTRODUCTION This report describes the tests and measurements for the purpose of determining compliance with the specification under the following conditions: The test sample was selected by the client. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. This EN 60945 test report replaces report number 100417.1 dated 16 August 2010 with the following changes having been made: - Fast transient testing was actually carried out over a period of 180 seconds and not 120 seconds as initially reported Andrew Cutler General Manger ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 19 Test Report No 100417.2 12 October 2010. This report may not be reproduced except in full. 4. CLIENT INFORMATION Company Name Vesper Marine Ltd Address 103 Westhaven Drive St Marys Bay City Auckland Country New Zealand Contact Carl Omundsen 5. DESCRIPTION OF TEST SAMPLE Brand Name Watchmate Model Number WMX 850 Product AIS Device Manufacturer Vesper Marine Ltd Country of Origin New Zealand Serial Number ZZ00001 – Test 1 ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 19 Test Report No 100417.2 12 October 2010. This report may not be reproduced except in full. 6. SETUPS AND PROCEDURES Standard The sample was tested in accordance with EN 60945: 2002. Electromagnetic emissions: Method Protected Limit Conducted emissions 10 kHz – 150 kHz 150 kHz – 350 kHz 350 kHz – 30 MHz 96 dBuV- 50 dBuV 60 dBuV- 50 dBuV 50 dBuV Radiated emissions 150 kHz – 300 kHz 300 kHz – 30 MHz 30 MHz – 2 GHz 156 MHz – 165 MHz 80 dBuV/m – 52 dBuV/m 52 dBuV/m – 34 dBuV/m 54 dBuV/m (120 kHz Bw) 24 dBuV/m Quasi-peak (9 kHz Bw) 30 dBuV/m Peak (9 kHz Bw) Electromagnetic immunity: Method Standard Criteria Conducted disturbances 3V r.m.s. 150 kHz – 80 MHz, 10V r.m.s. spot frequencies EN 61000-4-6, 2004 A Radiated disturbances 10V/m 80 MHz – 2 GHz EN 61000-4-3, 2003 A Fast Transients (bursts) - 1kV common mode signal/ control ports - 2kV AC power ports EN 61000-4-4, 2004 B Slow transients (surges) - 1 kV line/earth - 0.5 kV line/line EN 61000-4-5, 2005 B Power supply short term variations - 20% voltage for 1.5s, AC power ports - 10% frequency for 5s, AC power ports EN 61000-4-11, 2004 C Power supply failure 60s interruption, AC and DC power ports EN 61000-4-11,2004 C Electrostatic discharge - 8 kV air - 6 kV contact discharges EN 61000-4-2, 2001 B ____________________________________________________________________________________________________________________________________________________________________________ Page 6 of 19 Test Report No 100417.2 12 October 2010. This report may not be reproduced except in full. Performance Criteria Performance Criterion A: The EUT shall continue to operate as intended during and after the test. No degradation of performance or loss of function is allowed, as defined in the relevant equipment standard and in the technical specifications published by the manufacturer; Performance Criterion B: The EUT shall continue to operate as intended after the test. No degradation of performance or loss of function is allowed, as defined in the relevant equipment standard and in the technical specifications published by the manufacturer. During the test, degradation or lo…

Text truncated - open the document above for the full version.

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 20 Test Report No 100417.3 12 October 2010 This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT Watchmate WMX850 AIS Device tested to the specification EN 301 843-1 v1.2.1 (2004-06) Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for marine radio equipment and services; Part 1: Common technical requirements for Vesper Marine This Test Report is issued with the authority of: _____________________________________ Andrew Cutler - General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 20 Test Report No 100417.3 12 October 2010 This report may not be reproduced except in full. Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. INTRODUCTION 4 4. CLIENT INFORMATION 4 5. DESCRIPTION OF TEST SAMPLE 5 6. SETUPS AND PROCEDURES 6 7. TEST RESULTS 8 8. EQUIPMENT USED 17 9. ACCREDITATIONS 17 10. PHOTOGRAPHS 18 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 20 Test Report No 100417.3 12 October 2010 This report may not be reproduced except in full. 1. STATEMENT OF COMPLIANCE The Watchmate WMX850 AIS device complies with EN 301 843-1 v1.2.1 (2004-06). 2. RESULTS SUMMARY Electromagnetic emission tests: Clause Phenomenon Application Result 8.2 Radiated emissions (below 30 MHz) Enclosure of ancillary equipment Complies 8.2 Radiated emissions (above 30 MHz) Enclosure of ancillary equipment Complies 8.3 Conducted emissions DC power input/ output port Complies 8.4 Conducted emissions AC mains power input/ output port Not applicable Electromagnetic immunity tests: Clause Phenomenon Application Result 9.2 RF electromagnetic field (80 MHz to 2000 MHz) Enclosure Complies 9.3 Electrostatic discharge Enclosure Complies 9.4 Fast transients common mode Signal and control ports, DC and AC power ports Complies 9.5 RF common mode (0.15 MHz - 80 MHz) Signal and control ports, DC and AC power ports Complies 9.6.1 Short term power supply variations AC power input ports Not applicable – DC powered device 9.6.2 Power supply failure AC power input ports Not applicable – DC powered device 9.7 Surges, line to line and line to ground AC power input ports Not applicable – DC powered device ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 20 Test Report No 100417.3 12 October 2010 This report may not be reproduced except in full. 3. INTRODUCTION This report describes the tests and measurements for the purpose of determining compliance with the specification under the following conditions: The test sample was selected by the client. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. This EN 301 843 test report replaces report number 100417.1 dated 16 August 2010 with the following changes having been made: - Fast transient testing was actually carried out over a period of 180 seconds and not 120 seconds as initially reported Andrew Cutler General Manger 4. CLIENT INFORMATION Company Name Vesper Marine Ltd Address 103 Westhaven Drive St Marys Bay City Auckland Country New Zealand Contact Carl Omundsen ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 20 Test Report No 100417.3 12 October 2010 This report may not be reproduced except in full. 5. DESCRIPTION OF TEST SAMPLE Brand Name Watchmate Model Number WMX 850 Product AIS Device Manufacturer Vesper Marine Ltd Country of Origin New Zealand Serial Number ZZ00001 – Test 1 ____________________________________________________________________________________________________________________________________________________________________________ Page 6 of 20 Test Report No 100417.3 12 October 2010 This report may not be reproduced except in full. 6. SETUPS AND PROCEDURES Standard The sample was tested in accordance with EN 301 843 v1.2.1 (2004-06) Electromagnetic emissions: Method Protected Limit Conducted emissions 10 kHz – 150 kHz 150 kHz – 350 kHz 350 kHz – 30 MHz 96 dBuV- 50 dBuV 60 dBuV- 50 dBuV 50 dBuV Radiated emissions 150 kHz – 300 kHz 300 kHz – 30 MHz 30 MHz – 2 GHz 156 …

Text truncated - open the document above for the full version.
