YJDVESPXB8000XB-8000 CLASS B AIS TRANSPONDER

XB-8000 | XB-6000 INSTALL GUIDE OPTIONAL ACCESSORIES WHAT YOU NEED TO GET GOING = Item Included = Item Included CONNECTIONS STATUS LED COLORSTATEDESCRIPTION Green (OK)SolidNormal Operation Flashing Antenna VSWR is high Background noise level on AIS receiver is high Orange (No Transmit) SolidDevice initializing, silent mode, waiting to transmit FlashingAcquiring a GPS fix Red (Error)Solid/ Flashing Built in integrity test error (See troubleshooting section for more info) Congratulations on your purchase. Your XB-8000 / XB-6000 AIS Transponder is a Class B AIS Transponder with integrated NMEA 2000 and WiFi* connectivity. The XB provides information to improve your situational awareness and assist in avoiding collisions at sea. Because it consumes very low power it may be left turned on whenever your vessel is underway. It works by interpreting Universal Shipborne Automated Identification System (AIS) messages which are sent over VHF by transponders installed on other vessels. The AIS system uses two dedicated VHF channels designated for this purpose and with the installation of the XB to receive these signals, you can distribute this information to other devices on board your vessel (e.g. chart plotters, laptops, smart phones) using NMEA 2000, USB and WiFi*. In addition, your vessel data is transmitted to other AIS-equipped vessels within range. For more information on AIS go to www.vespermarine.com/xb. (*XB-8000 only) XB-8000 or XB-6000 External GPS Antenna with 10m cable 10 pin power/data cable AIS/VHF antenna MMSI number PC/Mobile Device for configuring XB settings 2A fuse or circuit breaker 1m USB cable (for configuration) Waterproof 5m USB cable with locking security ring NMEA 2000 cable, T connector and network extension cable SP160 Antenna Splitter Consider other equipment you may need to install this on your vessel e.g. additional cable, cable ties, mounting screws, wire strippers, screw driver etc. • AIS/VHF antenna • NMEA 2000 • GPS antenna • 10 pin power/data port • LED Status 185mm (7 1/4”) 98mm (3 7/8”) • USB Mount your XB at least 0.6m (2 feet) from any compass. Test your compass to verify that it operates properly when the XB is operating. VHF ANTENNA GPS ANTENNA ! POWER AND DATA COLORDESCRIPTION RedDC positive (+) (12-24 volts). Always use a 2A fuse or circuit breaker. Do not connect directly to battery. If you must extend the power connections use high quality pre-tinned marine grade wire which is at least 16 AWG (1.5mm 2 ). BlackDC negative (-) GrayNMEA data out (+) A YellowNMEA data out (-) B GreenNMEA data in (+) A WhiteNMEA data in (-) B BrownExternal silent mode switch. Do not connect if not used. (Do not connect blue or pink wire) DATA OUT (+) A XBCHART PLOTTER DATA OUT (-) B DATA IN (+) A DATA IN (-) B HEADING SENSOR DATA OUT (+) A DATA OUT (-) B DATA IN (+) A DATA IN (-) B (Gray) (Yellow) (Green) (White) 38400 Baud 4800 Baud DC NEGATIVE / GROUND (Brown) EXTERNAL SWITCH OUTPUT SILENT MODE SWITCH NMEA 0183 EXAMPLE • A dedicated VHF antenna or Vesper Marine AIS/VHF Antenna Splitter is required. • Make sure your VHF antenna is an omni-directional antenna designed for the marine band (156-162MHz) and is well tuned at the AIS end of the band (VSWR 2:1 or less at 162MHz). • Mount the antenna as high as possible (at least 2-3 metres (6-10 ft) above the water surface) and as far as practical from any existing VHF, HF or radar antennas and any metal structures. It is not recommended to place the VHF antenna directly alongside a mast or another VHF antenna such as on a mast-head. CAUTION: Never operate this device unless it is connected to a suitable VHF antenna or Vesper Marine AIS/VHF Antenna Splitter. Performance cannot be assured if you use any other antenna splitter. The use of an improper splitter may damage the device and void your warranty. HINT: Use the VSWR meter in the vmAIS or WatchMate App (see configuration section) to check your antenna system installation. • The XB requires a GPS fix before it can transmit its position. • The GPS antenna should be situated so that it has an unobstructed view of the sky above. • Do not place the GPS antenna near or in the path of radar or HF antennas. • The antenna cable is terminated with a small SMA connector to facilitate easy routing through holes and openings. Do not cut the cable unless you have the proper tools to crimp a new connector. Make the connection to your AIS transponder last after antenna installation is complete. CAUTION: The GPS antenna provided is designed specifically for use with the XB Transponder. Performance cannot be assured unless you use a Vesper Marine GPS antenna. Use of a different antenna may damage your XB and void your warranty. HINT: Use the GPS Status screen in the vmAIS or WatchMate App (see configuration section) to view satellite signal strengths which will assist in determining the best location for the antenna. ! A 2m (6.5’) cable with attached 10 pin connector is supplied for connecting the XB to power, other devices over NMEA 0183 and an external silent mode switch. You may extend this cable as necessary. • Check you have the VHF antenna connected before connecting to power. • Fully engage the locking ring to ensure a watertight seal. • Received NMEA 0183 data is output on WIFI* and USB. Hint: Silent Mode can also be controlled over USB and WiFi*. External switch is an optional manual override. NMEA 2000 USB • When you connect to your PC over USB the XB will automatically enumerate itself as a COM port (see configuration section). • On the first connection, most operating systems will automatically install the necessary drivers. In some cases this may not be successful so the drivers are available for download from www.vespermarine.com/xb. WIFI (FOR XB-8000 ONLY) DROP CABLE T CONNECTION NETWORK POWER NETWORK EXTENSION CABLE TERMINATING RESISTOR CHART PLOTTER The XB can be connected to a NMEA 2000 network to enable AIS and GPS data to be sent to other NMEA 2000 devices. The XB can also …

Text truncated - open the document above for the full version.

tr^ vespermanne 103 Westhaven Drive, St. Mary's Bay PO Box 91164, Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 Fax: +64 (0)9 950 4085 REF: Request for Confidentiality FCG lD: YJDVESPXB9OOO FCG lD: YJDVESPXB8OO0 FCC lD: YJDVESPXB6000 September 7,2412 Attn: Reviewing Engineer Office of Engineering and Technology Federal Communications Commission Dear Sir or Madam, ln accordance with FCC rule CFR 47 0.457 and 0.459, Vesper Marine Ltd requests the confidentiality of the following technical documents and requests they be withheld from public view: Schematic diagrams Parts List Operational Description Tune up procedure Block Diagrams These documents contain proprietary technical information developed by Vesper Marine Ltd which we deem to be trade secrets. Please contact me directly if you require any further information to regarding this request. I can be contacted via email at [email protected] or by phone at +64 I 950 4848. Yours Sincerely, clcM Carl Omundsen Product and Engineering Manager

--^ vespermanne 103 Westhaven Drive, St. Mary's Bay PO Box 9ll64,Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 Fax: +64 (0)9 950 4085 REF: Equipment Authorization Submission FCG lD: YJDVESPXB8OO0 October 20,2012 Attn: Reviewing Engineer Office of Engineering and Technology Federal Communications Commission Dear Sir or Madam, The Vesper Marine XB Series of Class B AIS transponders use carrier-sense time division multiple access (CSTDMA) techniques. The XB8000 is designed and manufactured by Vesper Marine Ltd. The attached documents show the X88000 conforms to the relevant international standards for Class B AIS devices including aEC 62287-1 and IEC 60945. The X88000 has been type approved by BSH and granted certificate number BSH/4616214322189112. BABT has issued certificate number THER2 1PAg 73901 002. The device has been approved by the United States Coast Guard in accordance with the requirement under 580.231 and issued certificate number 165.156/19/0. Please contact me directly if you require any further informationn to support this request. I can be contacted via email at [email protected] or by phone on +64 I 950 4848. Product and Engineering Manager

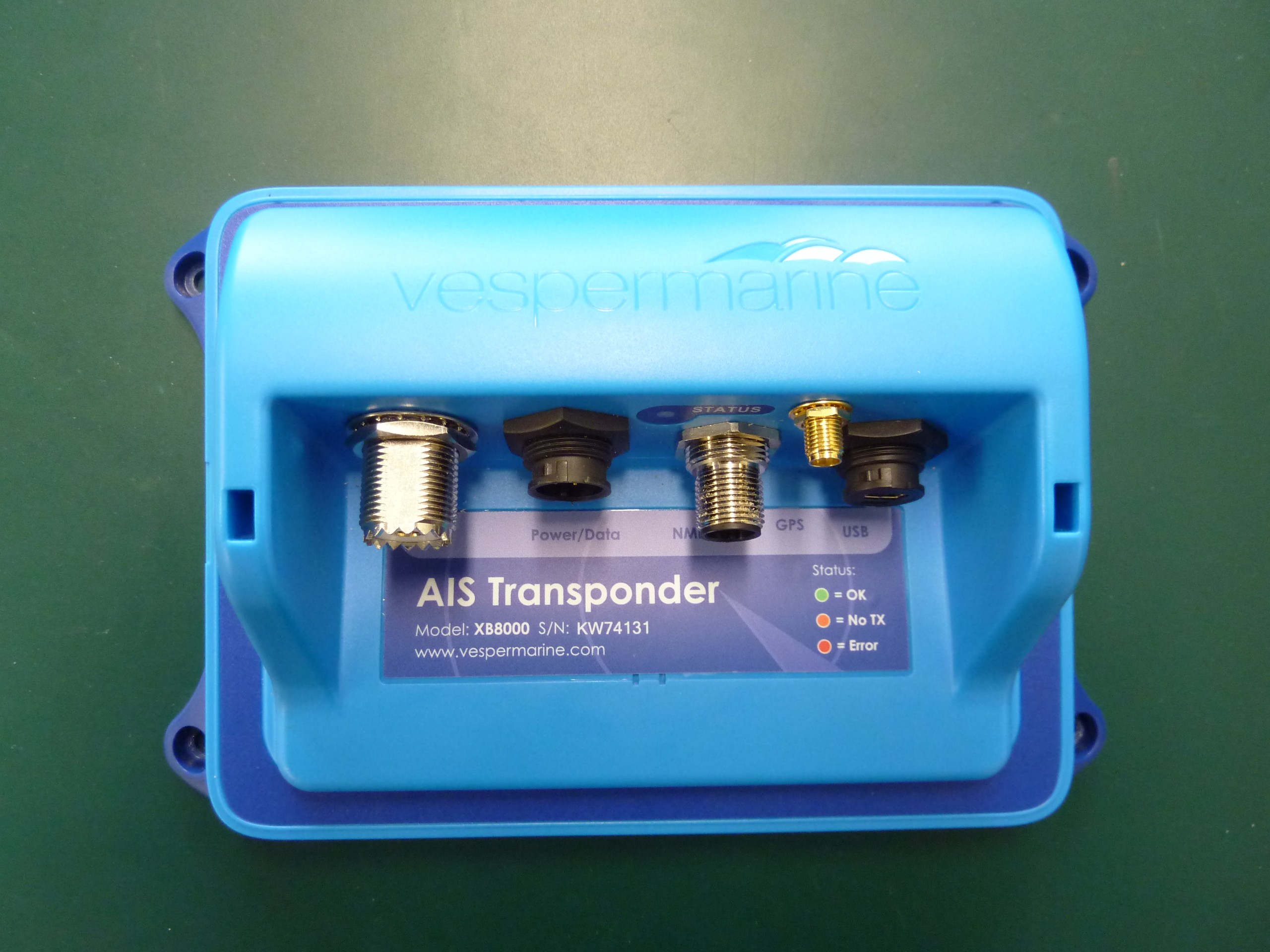

Vesper Marine 10/08/12 XB Series External Photos - 2 103 Westhaven Drive, St. Mary's Bay PO Box 91164, Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 Fax: +64 (0)9 950 4085 www.vespermarine.com 1 of 11Ver 3 Vesper Marine 10/08/12 Version History VersionDateCommentAuthor 109/07/12First versionCBO 210/08/12Include More Sides and NMEA Close up CBO 310/09/12Broken into two seperate files for FCC SubmissionCBO Copyright Notice Copyright © 2012, Vesper Marine Ltd. All rights are reserved. The information contained within this document is the copyright of Vesper Marine Ltd No part of this document may be disclosed, reproduced or transmitted in any form, or by any means without the written permission of Vesper Marine Ltd. The term document extends to all forms of media in which information may be embodied. 2 of 11Ver 3 Vesper Marine 10/08/12 Product Identification Product FamilyXB Series Manufacturer Vesper Marine Ltd Model Number sXB9000, XB8000, XB6000 Power Supply 12-24V DC VHF Frequency Range 161.500 – 162.025 MHz TX 156.025 – 162.025 MHz RX Transmit Power 33dBm (2W) Modulation TechniqueFM GMSK Channel Spacing 25kHz Temperature Range -25 - +55 deg C Intended UsersGeneral Public EnclosureIpx7 Wireless connectivity 802.11 b/g (XB9000 and XB8000 only) 3 of 11Ver 3 Vesper Marine 10/08/12 XB-8000 / XB-6000 XB-8000 / XB-6000 – Connector View 4 of 11Ver 3 Vesper Marine 10/08/12 XB-8000 / XB-6000 – Front View 5 of 11Ver 3 Vesper Marine 10/08/12 XB-8000 / XB-6000 – Top View 6 of 11Ver 3 Vesper Marine 10/08/12 XB-8000 / XB-6000 – Side 1 View 7 of 11Ver 3 Vesper Marine 10/08/12 XB-8000 / XB-6000 – Side 2 View 8 of 11Ver 3 Vesper Marine 10/08/12 XB-8000 / XB-6000 – Bottom View 9 of 11Ver 3 Vesper Marine 10/08/12 XB-8000 / XB-6000 – Rear View 10 of 11Ver 3 Vesper Marine 10/08/12 XB-8000 / XB-6000 – NMEA 2000 Connector 11 of 11Ver 3

Vesper MarineConfidential 10/23/12 XB6000 and XB8000 Device Labeling 103 Westhaven Drive, St. Mary's Bay PO Box 91164, Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 Fax: +64 (0)9 950 4085 www.vespermarine.com Internal Use Only 1 of 7Ver 1 Vesper MarineConfidential 10/23/12 Version History VersionDateComment 123 Oct 2012First Release Copyright Notice Copyright © 2012, Vesper Marine Ltd. All rights are reserved. The information contained within this document is the copyright of Vesper Marine Ltd No part of this document may be disclosed, reproduced or transmitted in any form, or by any means without the written permission of Vesper Marine Ltd. The term document extends to all forms of media in which information may be embodied. Internal Use Only 2 of 7Ver 1 Vesper MarineConfidential 10/23/12 Product Family Indentification ProductsXB-8000, XB-6000 Trade NameVesper Marine Ltd Model Numbers XB8000, XB6000 Power Supply 12-24V DC AIS Frequency Range 161.500 – 162.025 MHz TX 156.025 – 162.025 MHz RX AIS Transmit Power 33dBm (2W) Modulation TechniqueFM GMSK Channel Spacing 25kHz Temperature Range -25 - +55 deg C Intended UsersGeneral Public GPS AntennaInternal patch antenna (with connection for optional external antenna) WiFi*802.11 b/g WiFi AntennaSMT PCB WiFi Power output15dBm Equipment typeFixed (Not portable) EnclosureIPX7 Firmware Version V5.06 For more details please refer to the user manual and website www.vespermarine.com *Not included in XB-6000 Internal Use Only 3 of 7Ver 1 Vesper MarineConfidential 10/23/12 FCC Warning Text The device and space set aside for labeling is deemed to small to fit the complete two part warning message as required by Section 15.19. In accordance with Section 15.19 (a) 5 this text has been placed in the Warnings Section of each products user manual. Internal Use Only 4 of 7Ver 1 Vesper MarineConfidential 10/23/12 XB6000 / XB8000 XB-6000 Label Internal Use Only 5 of 7Ver 1 Vesper MarineConfidential 10/23/12 XB- 8000 Label Internal Use Only 6 of 7Ver 1 Vesper MarineConfidential 10/23/12 XB-6000 and XB-8000 Rear View Showing Label Location (actual label is shown in previous section) Internal Use Only 7 of 7Ver 1

Vesper Marine 09/07/12 XB Internal Photos - 1 103 Westhaven Drive, St. Mary's Bay PO Box 91164, Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 Fax: +64 (0)9 950 4085 www.vespermarine.com 1 of 11Ver 3 Vesper Marine 09/07/12 Version History VersionDateCommentAuthor 109/07/12First versionCBO 210/07/12Higher Resolution PhotosCBO 310/09/12Seperate Documents to accoomdate FCC size restrictions CBO Copyright Notice Copyright © 2010, Vesper Marine Ltd. All rights are reserved. The information contained within this document is the copyright of Vesper Marine Ltd No part of this document may be disclosed, reproduced or transmitted in any form, or by any means without the written permission of Vesper Marine Ltd. The term document extends to all forms of media in which information may be embodied. 2 of 11Ver 3 Vesper Marine 09/07/12 Product Identification Product FamilyXB Series Manufacturer Vesper Marine Ltd Model Number sXB9000, XB8000, XB6000* Power Supply 12-24V DC VHF Frequency Range 161.500 – 162.025 MHz TX 156.025 – 162.025 MHz RX Transmit Power 33dBm (2W) Modulation TechniqueFM GMSK Channel Spacing 25kHz Temperature Range -25 - +55 deg C Intended UsersGeneral Public EnclosureIpx7 Wireless connectivity 802.11 b/g (XB9000 and XB8000 only) *XB-6000 is a deconfigured variant of the XB-8000 as it does not include the User Interface Processor board but is otherwise identical. 3 of 11Ver 3 Vesper Marine 09/07/12 Internal Photos - PCB Assemblies XB User Interface Processor XB User Interface Processor – Top side 4 of 11Ver 3 Vesper Marine 09/07/12 XB User Interface Processor – Bottom side 5 of 11Ver 3 Vesper Marine 09/07/12 XB User Interface Processor (WiFi Shield Loaded) – Bottom side 6 of 11Ver 3 Vesper Marine 09/07/12 WMX850 AIS Engine WMX850 AIS Engine – Top side (Shields removed) 7 of 11Ver 3 Vesper Marine 09/07/12 WMX850 AIS Engine – Top side (Shields fitted) 8 of 11Ver 3 Vesper Marine 09/07/12 WMX850 AIS Engine – Bottom side 9 of 11Ver 3 Vesper Marine 09/07/12 NMEA 2000 Interface NMEA 2000 Interface – Bottom Side 10 of 11Ver 3 Vesper Marine 09/07/12 NMEA 2000 Interface – Top Side 11 of 11Ver 3

Vesper Marine 09/07/12 XB Internal Photos - 2 103 Westhaven Drive, St. Mary's Bay PO Box 91164, Victoria Street West Auckland, New Zealand Phone: +64 (0)9 950 4848 Fax: +64 (0)9 950 4085 www.vespermarine.com 1 of 13Ver 3 Vesper Marine 09/07/12 Version History VersionDateCommentAuthor 109/07/12First versionCBO 210/07/12Higher Resolution PhotosCBO 310/09/12Seperate Documents to accoomdate FCC size restrictions CBO Copyright Notice Copyright © 2010, Vesper Marine Ltd. All rights are reserved. The information contained within this document is the copyright of Vesper Marine Ltd No part of this document may be disclosed, reproduced or transmitted in any form, or by any means without the written permission of Vesper Marine Ltd. The term document extends to all forms of media in which information may be embodied. 2 of 13Ver 3 Vesper Marine 09/07/12 Product Identification Product FamilyXB Series Manufacturer Vesper Marine Ltd Model Number sXB9000, XB8000, XB6000* Power Supply 12-24V DC VHF Frequency Range 161.500 – 162.025 MHz TX 156.025 – 162.025 MHz RX Transmit Power 33dBm (2W) Modulation TechniqueFM GMSK Channel Spacing 25kHz Temperature Range -25 - +55 deg C Intended UsersGeneral Public EnclosureIpx7 Wireless connectivity 802.11 b/g (XB9000 and XB8000 only) *XB-6000 is a deconfigured variant of the XB-8000 as it does not include the User Interface Processor board but is otherwise identical. 3 of 13Ver 3 Vesper Marine 09/07/12 Internal Photos – Modules, PCB Assemblies GPS Module GPS Module – Top Side 4 of 13Ver 3 Vesper Marine 09/07/12 GPS Module (Shield Removed) – Bottom Side 5 of 13Ver 3 Vesper Marine 09/07/12 GPS Module (Shield Fitted) – Bottom Side 6 of 13Ver 3 Vesper Marine 09/07/12 LCD Module LCD Module – Front 7 of 13Ver 3 Vesper Marine 09/07/12 LCD Module – Rear 8 of 13Ver 3 Vesper Marine 09/07/12 Internal Photos – Assembly stack up WatchMate Vision (XB9000) WatchMate Vision (XB9000) – Front LCD and User Interface assembly 9 of 13Ver 3 Vesper Marine 09/07/12 WatchMate Vision (XB9000) – Rear GPS and External Connectors 10 of 13Ver 3 Vesper Marine 09/07/12 WatchMate Vision (XB9000) – Internal Connector Assembly 11 of 13Ver 3 Vesper Marine 09/07/12 XB-8000 / XB-6000 XB-8000 – Rear AIS Engine and User Interface Processor Note, XB-6000 is as shown but without the XB User Interface Processor 12 of 13Ver 3 Vesper Marine 09/07/12 XB-8000 – Internal Connector assembly Note, XB-6000 is as shown but without the XB User Interface Processor 13 of 13Ver 3

EMC Technologies (NZ) Ltd Test Report No 100715.2 Report date: 12 October 2010 ______________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Ph: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 1 of 56 This report may not be reproduced except in full TEST REPORT Vesper WMX850 AIS WatchMate Transciever tested to IEC 62287 Maritime navigation and radiocommunication equipment and systems – Class B shipborne equipment of the Automatic Identification System (AIS) using CSTDMA techniques – Operational and performance requirements, methods of test and required results for Vesper Marine Ltd This Test Report is issued with the authority of: ______________________________________ Andrew Cutler - General Manager EMC Technologies (NZ) Ltd Test Report No 100715.2 Report date: 12 October 2010 ______________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Ph: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 2 of 56 This report may not be reproduced except in full Table of Contents 1. COMPLIANCE STATEMENT 3 2. RESULT SUMMARY 3 3. INTRODUCTION 4 4. CLIENT INFORMATION 5 5. DESCRIPTION OF TEST SAMPLE 5 6. TEST CONDITIONS 6 7. TEST RESULTS 7 8. TEST EQUIPMENT 54 9. ACCREDITATIONS 54 10. PHOTOGRAPH (S) 55 EMC Technologies (NZ) Ltd Test Report No 100715.2 Report date: 12 October 2010 ______________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Ph: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 3 of 56 This report may not be reproduced except in full 1. COMPLIANCE STATEMENT The Vesper WMX850 AIS WatchMate Transceiver complies with IEC 62287-1, First Edition, 2006-03 2. RESULT SUMMARY The results from testing are summarised as follows: Clause Test Performed Result 11.1 TDMA Transmitter 11.1.1 Frequency error Complies 11.1.2 Carrier power Complies 11.1.3 Transmission spectrum Complies 11.1.4 Modulation accuracy Complies 11.1.5 Transmitter output power versus time function Complies 11.2 TDMA Receiver 11.2.1 Sensitivity Complies 11.2.2 Error behaviour at high input levels Complies 11.2.3 Co-channel rejection Complies 11.2.4 Adjacent channel selectivity Complies 11.2.5 Spurious response rejection Complies 11.2.6 Intermodulation response rejection Complies 11.2.7 Blocking or desensitisation Complies 11.3 Conducted spurious emissions 11.3.1 Spurious emissions from the receiver Complies 11.3.2 Spurious emissions from the transmitter Complies Annex C.4 DSC Receiver tests Not applicable. Waiver applied EMC Technologies (NZ) Ltd Test Report No 100715.2 Report date: 12 October 2010 ______________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Ph: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 4 of 56 This report may not be reproduced except in full 3. INTRODUCTION This report describes the tests and measurements for the purpose of determining compliance with the specification under the following conditions: The test sample was selected by the client. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. This test report replaces report number 100715.1 dated September 2010 with the following changes having been made: - Section 3 Introduction has been added to the report showing the changes to the report and as result the page number has been changed and the headers incremented accordingly - On page 44 a typographical error has been corrected with the Channel B LOL frequency being corrected to show 134.625 MHz instead of 134.025 MHz as reported. - On page 44 and 45, with regard test 11.2.5, tables and calculations has been included showing the frequencies of interest for channels A and B when the spurious response receiver test was carried out. - On page 46, with regard test 11.2.6, the title of the second table has been changed from channel A to correctly show that it applies to channel B - The result summary table on page 3 has had a statement included with regard Annex C4 and the DSC receiver requirements - Annex C4 statements have been included in the report on page 53 Andrew Cutler General Manger EMC Technologies (NZ) Ltd Test Report No 100715.2 Report date: 12 October 2010 ______________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Ph: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 5 of 56 This report may not be reproduced except in full 4. CLIENT INFORMATION Company Name Vesper Marine Ltd Address PO Box 91164 St Marys Bay City Auckland Country New Zealand Contact Mr Carl Omundsen 5. DESCRIPTION OF TEST SAMPLE Brand Name Vesper Model Number WMX850 Product AIS WatchMate Transceiver Manufacturer …

Text truncated - open the document above for the full version.

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 23 Test Report No 120325.4 8 th August 2012 This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT WatchMate Vision Class B AIS Transponder with built in display tested to the specification EN 60945: 2002 Maritime navigation and radio communication equipment and systems – General requirements – Methods of testing and required test results for Vesper Marine Ltd This Test Report is issued with the authority of: _______________________________ Andrew Cutler - General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 23 Test Report No 120325.4 8 th August 2012 This report may not be reproduced except in full. Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. INTRODUCTION 3 4. CLIENT INFORMATION 4 5. DESCRIPTION OF TEST SAMPLE 4 6. SETUPS AND PROCEDURES 6 7. TEST RESULTS 8 8. EQUIPMENT USED 19 9. ACCREDITATIONS 19 10. PHOTOGRAPHS 20 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 23 Test Report No 120325.4 8 th August 2012 This report may not be reproduced except in full. 1. STATEMENT OF COMPLIANCE The WatchMate Vision Class B AIS Transponder with built in display complies with EN 60945: 2002. 2. RESULTS SUMMARY Electromagnetic emission tests: Clause Application Result 9.2 Conducted emissions 9 kHz – 30 MHz Complies with a 1.3 dB margin at 0.513 MHz. 9.3 Radiated emissions 150 kHz – 30 MHz Complies with a 4.0 dB margin at 24.830 MHz. 9.3 Radiated emissions 30 MHz – 2000 MHz Complies with 2.1 dB margin at 159.000 MHz (Horizontal). Electromagnetic immunity tests: Clause Application Result 10.3 Conducted RF disturbance Complies. 10.4 Radiated disturbance Complies. 10.5 Fast transients (bursts) Complies. 10.6 Slow transients (surges) Not applicable. Device is DC powered 10.7 Power supply short term variations Not applicable. Device is DC powered. 10.8 Power supply failure Not applicable. Device is DC powered using an external battery. 10.9 Electrostatic discharge Complies. 3. INTRODUCTION This report describes the tests and measurements for the purpose of determining compliance with the specification under the following conditions: The test sample was selected by the client. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 23 Test Report No 120325.4 8 th August 2012 This report may not be reproduced except in full. 4. CLIENT INFORMATION Company Name Vesper Marine Ltd Address 103 Westhaven Drive, St Marys Bay 1010 City Auckland Country New Zealand Contact Carl Omundsen 5. DESCRIPTION OF TEST SAMPLE Brand Name WatchMate Model Vision Product Class B AIS Transponder with built in display Manufacturer Vesper Marine Ltd Country of Origin New Zealand Serial Numbers Sample not serialised The sample tested was the WatchMate Vision which was tested with a built in display and a WiFi module. The client advises that this report may also be applied to the following other model which are identical to the model that was tested except for the following differences which simplify the device: - Model XB-8000. This model is identical to the Vision however it does not have a display - Model XB-6000. This model is identical to the Vision however it does not have a display and it does not contain a WiFi module The system tested is primarily an AIS Transponder that operates in the VHF Marine band between 156 – 165 MHz. This system also contains a GPS receiver and a Wireless Access Point that operated in the 2.4 GHz band with a rated output power of 30 mW (+15 dBm). The Wireless Access Point will allow access to various information contained within the AIS system using personal computers with appropriate software at various locations throughout the vessel that are away from the AIS Transponder. ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 23 Test Report No 120325.4 8 th August 2012 This report may not be reproduced except in full. The device has the following ports that were terminated as follows: - AIS transmit / receive antenna port connected to a 50 ohm dummy load - USB port was connected to USB power supply device using a 5 metre length of data cable - GPS antenna port connected to a GPS antenna using a 10 metre length of data cable - NMEA0183 port was connected to an unterminated 5 metre length of data cable - NMEA2000 port was connected to a 10 metre length of cable that was terminated with a 12 Vdc battery For testing purposes the device was operated sending AIS messages every 2 seconds ____________________________________________________________________________________________________________________________________________________________________________ Page 6 of 23 Test Report No 120325.4 8 th August 2012 This report may not be reproduced except in full. 6. SETUPS AND PROCEDURES Standard The sample was tested in accordance with EN 60945: 2002. Electromagnetic emissions: Method Protected Limit Conducted e…
