YJNA-520INDOOR/OUTDOOR WIRELESS ANALOG CAMERA
First Alert
Click to zoom
Application Details
- Equipment Class
- DXX - Part 15 Low Power Communication Device Transmitter
- Date of Grant
- Jun 23, 2010
- Application Purpose
- Original Equipment
- Date of Application
- Jun 23, 2010
- Equipment Note
- INDOOR/OUTDOOR WIRELESS ANALOG CAMERA
- Frequency Range
- 2402.00000000 - 2480.00000000
- Company
- First Alert
- Country
- United States
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
External Photos

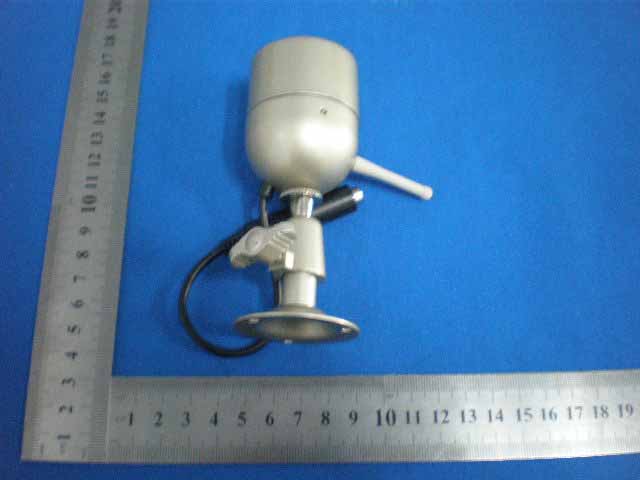

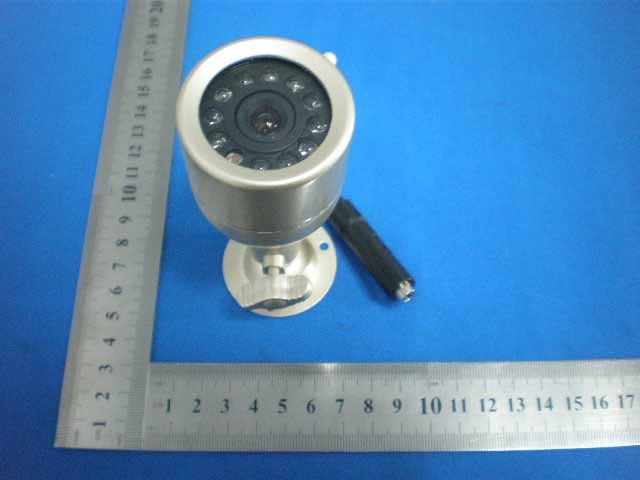

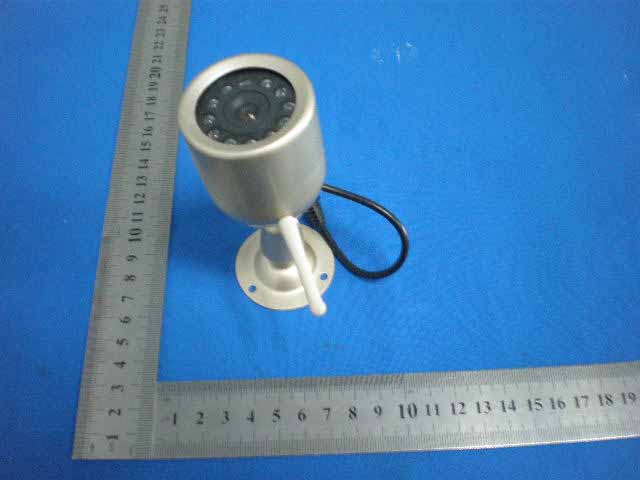

External Photo External Photo External Photo External Photo For Adapter
ID Label/Location Info
FCC ID LABEL FCC ID:YJNA-520 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received,including interference that may cause undesired operation. Label Location on EUT EUT Bottom View/ FCC ID Label Location
Internal Photos
Internal Photo Internal Photo Internal Photo Internal Photo Antenna Internal Photo
Operational Description
Circuit Description of transmitter The transmitter is made up of two parts: Audio & Video unit and RF unit. The audio signal from MIC1 is amplified, then modulates the audio carry frequency oscillator (5.5MHz), the modulated carry frequency is a added in the VT of voltage controlled oscillator VCO2 (2.4GHz, N1, Q9 ). The video signal from CMOS camera passes through the sharp network (C42, R45, C43, R48, R46), also is added in the VT of VCO2 another signal is a added in the VC02 is the error. Voltage output of loop filter , of PLL(U4) which is programmed by MCU (U5) the channel data is decided by the encodes switch of MCU’s peripheries. The feed back signal (R35 C31) form Voltage controlled oscillator. VCO2 is compared with reference crystal oscillator the error frequency of oscillator VCO2 can be corrected. The carry frequency to be modulated by audio & video has been power amplified by Q10 filtered through the band pass filter (C22, C24C25 )which the higher harmonica of signal reduced to lower level. The purer signal is emitted by antenna (RFOUT).
Test Report
FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For First Alert First Alert 3901 Liberty Street Road Aurora, IL 60504 FCC ID:YJNA-520 Jun. 24, 2010 This Report Concerns: Original Report Equipment Type Indoor/Outdoor Wireless Analog Camera Test Engineer: Eric Li Report No.: BST10060129R-3 Receive EUT Date/Test Date: Jun. 15,2010/ Jun. 15-24,2010 Reviewed By: Christina Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road, Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. First Alert FCC ID: YJNA-520 BST FCC ID REPORT : BST10060129R-3 Page 2/21 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................4 2.3. Support Equipment List ....................................................................................................4 2.4. Test Conditions .................................................................................................................4 3. FCC ID LABEL...........................................................................................................................5 4. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 5. TEST EQUIPMENT USED .......................................................................................................7 6. ANTENNA REQUIREMENT ...................................................................................................8 6.1. STANDARD APPLICABLE............................................................................................8 6.2. ANTENNA CONNECTED CONSTRUCTION ..............................................................8 6.3. Result............................................................................................................................8 7. CONDUCTED POWER LINE TEST .......................................................................................9 7.1. Test Equipment .................................................................................................................9 7.2. Test Procedure ..................................................................................................................9 7.3. Test Setup..........................................................................................................................9 7.4. Configurating of the EUT .................................................................................................9 7.5. EUT Operating Condition...............................................................................................11 7.6. Conducted Power line Emission Limits..........................................................................11 7.7. Conducted Power Line Test Result.................................................................................12 7.8. Plot(s) of Test Data .........................................................................................................13 8. RADIATED EMISSION TEST ...............................................................................................15 8.1. Test Equipment ...............................................................................................................15 8.2. Test Procedure ................................................................................................................15 8.3. Radiated Test Setup ........................................................................................................15 8.4. Confihuration of the EUT ...............................................................................................16 8.5. EUT Operating Condition...............................................................................................16 8.6. Radiated Emission Limit.................................................................................................16 8.7. Radiated Emission Test Result .......................................................................................17 9. BAND EDGE .............................................................................................................................19 9.1. Test Equipment ...............................................................................................................19 9.2. Test Procedure ................................................................................................................19 9.3. Configuration of The EUT ..............................................................................................19 9.4. EUT Operating Condition...............................................................................................19 9.5. Band Edge FCC 15.249(d) Limit ...................................................................…
Text truncated - open the document above for the full version.
