YJNA-575INDOOR/OUTDOOR WIRELESS CAMERA SYSTEM

User Manual Model: A-575 1 Table of Contents IMPORTANT SAFETY PRECAUTIONS.................................................... 2 Overview......................................................................................................... 3 Technical Specifications............................................................................... 4 2 IMPORTANT SAFETY PRECAUTIONS 3 Overview Congratulations on your purchase of the wireless DVR! This single channel video recorder is a terrific value for money security solution, as well as being easy to install, use and transport from location to location. Practically fitting into the palm of your hand is a neat feature as well! Before we get into the nitty-gritty of learning how to install, configure and use the wireless DVR, let’s just take a moment to discuss its features, strengths and limitations, so you can get the most out of your Wireless DVR. 1 How it Works The wireless DVR will record video or still images directly to an SD card, and it can be configured to do this whenever it detects motion in the view of its camera. It is an ideal monitoring solution for guarding specific security vulnerabilities around the home or small office. Some suggested applications include monitoring the front or back door, a main hallway, or a courtyard or balcony. If there is a single, specific location that you wish to safeguard, the wireless DVR is the perfect solution. By correctly configuring the motion detection settings, and using a large SD card you can get the wireless DVR to function autonomously for up to months at a time! 2 A few key points to remember: →The wireless DVR requires high-quality, high-speed SD cards to function correctly. Cheaper SD cards have slower write speeds, and can’t keep up with the wireless DVR. Digital video requires a massive amount of data -so make sure you use the highest quality, highest speed cards available. The Wireless DVR is compatible with the SD and SDHC standards. 4 Technical Specifications 1) Wireless DVR Video Video Format NTSC or PAL Video Input 1 Composite Input Video Output 1 Composite Output Display Resolution NTSC: 720 x 480, PAL: 720 x 576 Display Frame Rate NTSC: Up to 30fps* PAL: Up to 25fps* Audio Audio Input 1 Audio Output 1 Recording Compression Format Video: MJPEG (Motion JPEG) Photo: JPEG Recording Resolution Video: NTSC D1(720 x 480) CIF(360 x 240) PAL: D1(720 x 576) CIF(360 x 288) Recording Frame Rate NTSC: Up to 30fps* PAL: Up to 25fps* *Note: While monitoring two cameras (PIP MODE) the monitoring and recording frame rates are reduced. Recording Modes Manual / Motion / Continuous Multiplex Operation Simplex HDD Interface/Memory SD Card Hard Drive Support SD / SDHC Cards 5 General Operating Power DC 9V Dimensions 5.25” x 3.33” x 0.75” 133mm x 85mm x 20mm Weight 5.25oz / 148g Backup Method SD Card FCC NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

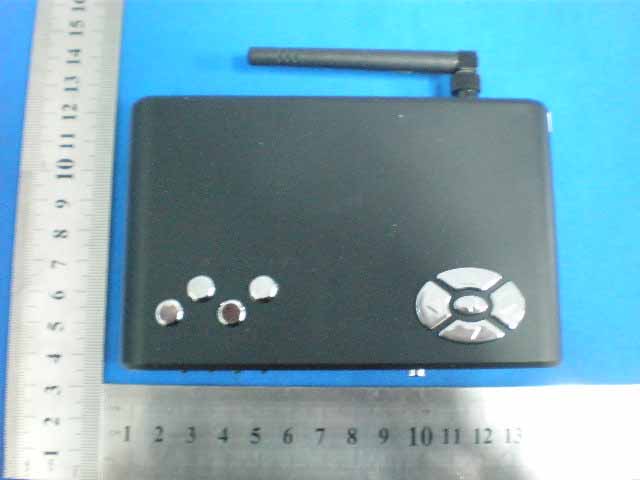

External Photo External Photo External Photo For Adapter

FCC ID LABEL FCC ID:YJNA-575 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received,including interference that may cause undesired operation. Label Location on EUT EUT Bottom View/ FCC ID Label Location

Internal Photo Internal Photo Internal Photo Internal Photo Internal Photo Internal Photo

Circuit Description: 1, the control and management of this machine is completed by U1(DSP); 2, The Video signal processing is completed by the U12, U13 and its peripheral components; 3, The Sound amplification output is completed by U16, R107, C106 and so on. 4, External memory from the SD-CARD and peripheral devices R53, R55, C75, C67, Q18, C152 complete control and storage; 5, The U9, U10 complete the DSP's data storage and start the process of storage; 6, The R59, R60, R61, R62, R63, S1, S2, S3, S4, R68, R69, R70, R71, R72, R73, S7, S8, S9, S10, S11 is composed of function keys 7, Power supply is in part by U11, U17, U20, U18 to completed; 8, RF is Composed by part of the RF2, U19, LED1, LED2, LED3, LED4.

FCC PART 15 CLASS B EMI MEASUREMENT AND TEST REPORT For First Alert First Alert 3901 Liberty Street Road Aurora, IL 60504 FCC ID:YJNA-575 Jun. 23, 2010 This Report Concerns: Original Report Equipment Type Indoor/Outdoor Wireless Camera System Test Engineer: Eric Li Report No.: BST10060131R-3 Receive EUT Date/Test Date: Jun.15,2010/ Jun.15-23,2010 Reviewed By: Christina Prepared By: Shenzhen BST Technology Co.,Ltd. 3F,Weames Technology Building, No. 10 Kefa Road,Science Park, Nanshan District,Shenzhen,Guangdong,China Tel: 0755-267477513 Fax: 0755-267477513 ext.826 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Shenzhen BST Technology Co.,Ltd. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. First Alert FCC ID: YJNA-575 BST FCC ID REPORT : BST10060131R-3 Page 2/17 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1. Report information............................................................................................................ 3 1.2. Measurement Uncertainty................................................................................................. 3 2. PRODUCT DESCRIPTION ...................................................................................................... 4 2.1. EUT Description ............................................................................................................... 4 2.2. Block Diagram of EUT Configuration ............................................................................. 4 2.3. Support Equipment List .................................................................................................... 4 2.4. Test Conditions .................................................................................................................4 3. FCC ID LABEL........................................................................................................................... 5 4. TEST RESULTS SUMMARY ................................................................................................... 6 Modifications ................................................................................................................................ 6 5. TEST EQUIPMENT USED ....................................................................................................... 7 5.1. For Conducted Emission Test ........................................................................................... 7 5.2. For Radiated Emission Measurement ............................................................................... 7 6. CONDUCTED EMISSION TEST............................................................................................. 8 6.1. Block Diagram of Test Setup............................................................................................ 8 6.2. Test Standard .................................................................................................................... 8 6.3. Conducted Emission Limit(Class B) ................................................................................ 8 6.4. EUT Configuration on Test .............................................................................................. 8 6.5. Operating Condition of EUT ............................................................................................ 8 6.6. Test Procedure ..................................................................................................................9 6.7. Test Result ........................................................................................................................ 9 7. RADIATED EMISSION MEASUREMENT ......................................................................... 10 7.1. Block Diagram of EUT Configuration ........................................................................... 10 7.2. Test Standard ..................................................................................................................10 7.3. Radiated Emission Limit(Class B) ................................................................................. 10 7.4. EUT Configuration on Test ............................................................................................ 11 7.5. Operating Condition of EUT .......................................................................................... 11 7.6. Test Procedure ................................................................................................................ 11 7.7. Test Result ...................................................................................................................... 11 APPENDIX I ......................................................................................................................................... 12 APPENDIX II........................................................................................................................................ 16 First Alert FCC ID: YJNA-575 BST FCC ID REPORT : BST10060131R-3 Page 3/17 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BST approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that BST in any way guarantees the later performance of the product/equipment. 1.1.2.The sample/s mentioned in this report is/are supplied by Applicant, BST therefore assumes no responsibility for the accuracy of information on the brand name, model number, origin of manufacture or …
