YJW-00016Portable Bluetooth Speaker

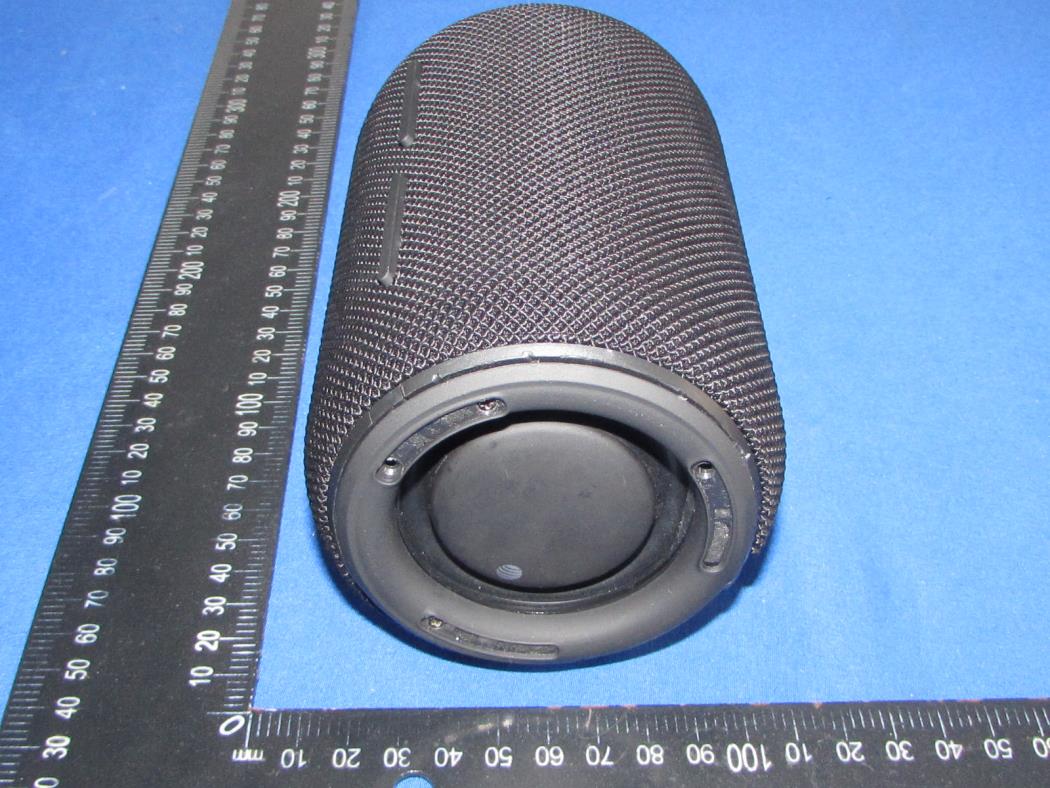

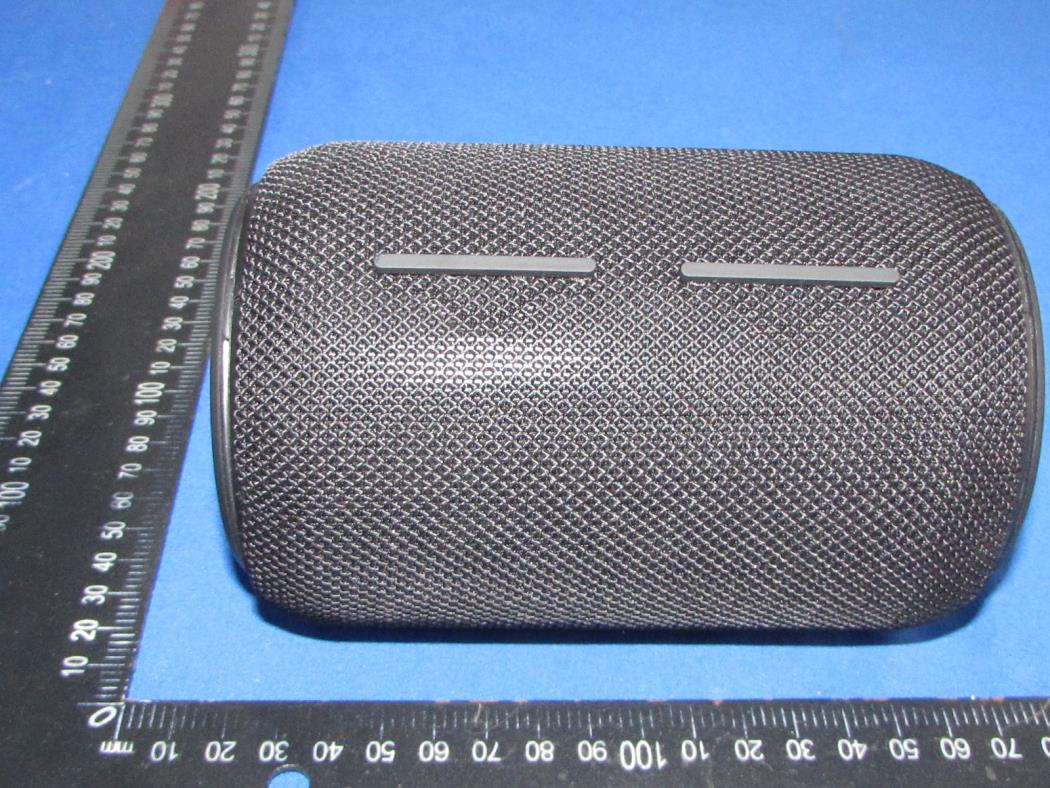

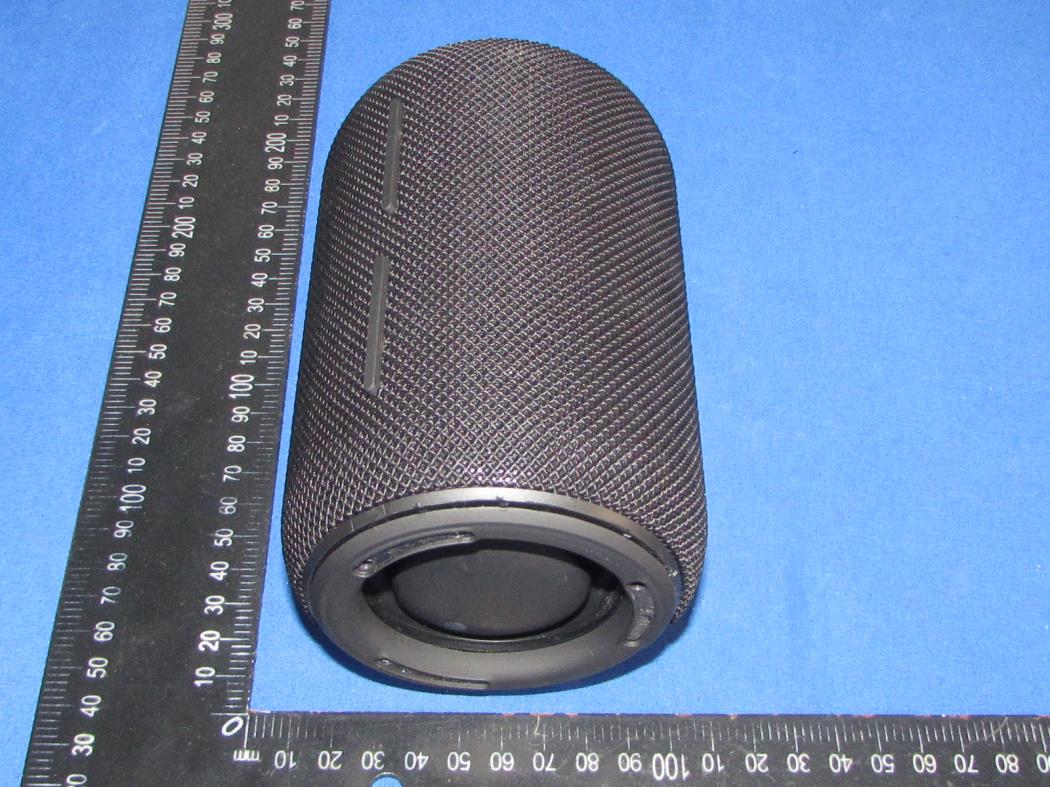

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 2 of 3 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 3 of 3 Fig.5 Fig.6

Label Location FCC ID: YJW-00016

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 1 of 6 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 2 of 6 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 3 of 6 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 4 of 6 Fig.7 Fig.8 Bluetooth antenna Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 5 of 6 Fig.9 Fig.10 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 6 of 6 Fig.11

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 3 of 3 Conducted Power Results Test Mode Antenna Frequency[MHz] Result[dBm] DH5 Ant1 2402 -1.11 DH5 Ant1 2441 -0.85 DH5 Ant1 2480 -1.24 2DH5 Ant1 2402 -0.33 2DH5 Ant1 2441 -0.15 2DH5 Ant1 2480 -0.48 Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.5 -1.5 -1.5 Tolerance ±(dB) 1 1 1 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1 -0.5 -1 Tolerance ±(dB) 1 1 1 Results Test Mode Max Conducted Tune Up Power(dBm) Max of ERP and Conducted Power including Tune Up (dBm) Max of ERP and Conducted Power including Tune Up (mW) Exemption Limit(mW) GFSK -0.5 -0.5 0.89 3 π/4-DQPSK 0.5 0.5 1.12 3 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The antenna gain of the EUT for BT is 1.9 dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(dBm) 1.2 Directivity (dBi) 1.9 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) 1.2 (Avg Gain XY-plane) Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to ch ange without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.2 -0.51.9 -3.61.1 -3.06 0.2 % Retum Loss The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 1 of 35 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Portable Bluetooth Speaker Trade Mark: AT&T Test Model: 00016, 00016/4448T (Oracle # for 00016) FCC ID: YJW-00016 Environmental Conditions Temperature: 23.8°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.047 2401.478 2402.525 --- --- DH5 Ant1 2441 1.041 2440.487 2441.528 --- --- DH5 Ant1 2480 1.032 2479.496 2480.528 --- --- 2DH5 Ant1 2402 1.326 2401.349 2402.675 --- --- 2DH5 Ant1 2441 1.329 2440.343 2441.672 --- --- 2DH5 Ant1 2480 1.356 2479.334 2480.690 --- --- Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 2 of 35 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 3 of 35 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 4 of 35 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 5 of 35 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.92817 2401.5433 2402.4715 --- --- DH5 Ant1 2441 0.94736 2440.5301 2441.4775 --- --- DH5 Ant1 2480 0.94056 2479.5330 2480.4736 --- --- 2DH5 Ant1 2402 1.2274 2401.4040 2402.6314 --- --- 2DH5 Ant1 2441 1.2147 2440.4114 2441.6261 --- --- 2DH5 Ant1 2480 1.2061 2479.4116 2480.6177 --- --- Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 6 of 35 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 7 of 35 DH5-Ant1-2480 2DH5-Ant1-2402 2DH5-Ant1-2441 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 8 of 35 2DH5-Ant1-2480 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 9 of 35 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency[MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -1.11 ≤30 PASS DH5 Ant1 2441 -0.85 ≤30 PASS DH5 Ant1 2480 -1.24 ≤30 PASS 2DH5 Ant1 2402 -0.33 ≤20.97 PASS 2DH5 Ant1 2441 -0.15 ≤20.97 PASS 2DH5 Ant1 2480 -0.48 ≤20.97 PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 10 of 35 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 11 of 35 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 12 of 35 2DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 13 of 35 Appendix D: Carrier frequency separation Test Result TestMode Antenna Frequency[MHz] Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.254 ≥1.047 PASS 2DH5 Ant1 Hop 1.302 ≥0.924 PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 14 of 35 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 15 of 35 Appendix E: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.878 80 0.23 ≤0.4 PASS 2DH5 Ant1 Hop 2.884 90 0.26 ≤0.4 PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 16 of 35 Test Graphs DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 17 of 35 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 18 of 35 Appendix F: Number of hopping channels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 19 of 35 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 20 of 35 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -1.64 -48.06 ≤-21.64 PASS DH5 Ant1 High 2480 -1.71 -47.23 ≤-21.71 PASS DH5 Ant1 Low Hop_2402 -2.64 -48.17 ≤-22.64 PASS DH5 Ant1 High Hop_2480 -1.95 -47.91 ≤-21.95 PASS 2DH5 Ant1 Low 2402 -2.98 -49.59 ≤-22.98 PASS 2DH5 Ant1 High 2480 -1.70 -47.78 ≤-21.7 PASS 2DH5 Ant1 Low Hop_2402 -5.88 -50.45 ≤-25.88 PASS 2DH5 Ant1 High Hop_2480 -4.49 -48.81 ≤-24.49 PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 21 of 35 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 22 of 35 DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 23 of 35 2DH5-Ant1-2480-PASS 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 Report No.: TZ0028240805FRF01 Page 24 of 35 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 0~Reference -2.20 -2.20 --- PASS DH5 Ant1 2402 30~1000 -2.20 -62.9 ≤-22.2 PASS DH5 Ant1 2402 1000~26500 -2.20 -41.51 ≤-22.2 PASS DH5 Ant1 2441 0~Reference -1.91 -1.91 --- PASS DH5 Ant1 2441 30~1000 -1.91 -62.29 ≤-21.91 PASS DH5 Ant1 2441 1000~26500 -1.91 -41.16 ≤-21.91 PASS DH5 Ant1 2480 0~R…

Text truncated - open the document above for the full version.

FCC TEST REPORT Test report On Behalf of Superior communications . For Portable Bluetooth Speaker Model No.: 00016, 00016/4448T (Oracle # for 00016), 00023, 00023/4462T (Oracle # for 00023） FCC ID: YJW-00016 Prepared for : Superior communications . 5027 Irwindale Ave.Suite, Irwindale Ave, California, United States Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2024/8/20 ~ 2024/8/30 Date of Report: 2024/8/31 Report Number: TZ0028240805FRF01 The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ0028240805FRF01 Page 2 of 38 TEST RESULT CERTIFICATION Applicant’s name ................. : Superior communications . Address .................................. : 5027 Irwindale Ave.Suite, Irwindale Ave, California, United States Manufacture's Name ............ : Dongguan LingChao Electronic Technology Co., LTD Address .................................. : ROOM 401, BUILDING 1, NO.9 ZHENXING WEST ROAD 1ST STREET,CHANGPING TOWN, DONGGUAN CITY, GUANGDONG PROVINCE, CHINA Product description Trade Mark ................................ : AT&T Product name ............................ : Portable Bluetooth Speaker Model and/or type reference . : 00016, 00016/4448T (Oracle # for 00016), 00023, 00023/4462T (Oracle # for 00023） Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2024/8/20 ~ 2024/8/30 Date of Issue .......................................... : 2024/8/31 Test Result .............................................. : Pass Testing Engineer : (Allen Lai) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ0028240805FRF01 Page 3 of 38 Report No.: TZ0028240805FRF01 Page 4 of 38 Revision History Revision Issue Date Revisions Revised By 00 2024/8/31 Initial Issue Andy Zhang Report No.: TZ0028240805FRF01 Page 5 of 38 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................ 6 1.1 Description of Device (EUT) ................................................................................................... 6 1.2 Wireless Function Tested in this Report ................................................................................. 6 1.3 EUT configuration ................................................................................................................... 7 1.4 Description of Test Facility ...................................................................................................... 7 1.5 Statement of the Measurement Uncertainty ............................................................................ 7 1.6 Measurement Uncertainty ....................................................................................................... 8 1.7 Description of Test Modes ...................................................................................................... 8 1.8 Frequency of Channels........................................................................................................... 8 2 TEST METHODOLOGY ..................................................................................................... 9 2.1 EUT Configuration .................................................................................................................. 9 2.2 EUT Exercise ......................................................................................................................... 9 2.3 Test Sample ........................................................................................................................... 9 3 SYSTEM TEST CONFIGURATION .................................................................................. 10 3.1 Justification ........................................................................................................................... 10 3.2 EUT Exercise Software......................................................................................................... 10 3.3 Special Accessories ............................................................................................................. 10 3.4 Block Diagram/Schematics ................................................................................................... 10 3.5 Equipment Modifications ....................................................................................................... 10 3.6 Test Setup ............................................................................................................................ 10 4 SUMMARY OF TEST RESULTS ...................................................................................... 11 5 MEASUREMENT RESULTS ............................................................................................ 12 5.1 Maximum Peak Conducted Output Power ............................................................................ 12 5.2 Frequency Separation and 20 dB Bandwidth ........................................................................ 13 5.3 Number of Hopping Frequency ............................................................................................. 14 5.4 Time of Occupancy (Dwell Time) .................................................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Conducted Emission Radiated Emission Below 1GHz Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: YJW-00016 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 2 of 2 Radiated Emission Above 1GHz
