YJW-06679Premium Wireless Charger Black

Superior communications .
Premium Wireless Charger Black - FCC ID YJW-06679 - Superior communications .
Click to zoom

Application Details

Equipment Class
DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant
Mar 27, 2024
Application Purpose
Original Equipment
Date of Application
Mar 27, 2024
Equipment Note
Premium Wireless Charger Black
Frequency Range
0.11300000 - 0.20500000
Company
Superior communications .
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

5W/7.5W/10W/15W Premium Wireless Charger Black FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device mustaccept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in are sidential installation. This equipment generates uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged totry to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The FCC certification of this device refers to RF exposure testing perfomed in typical operating conditions, where a person is no closer than 20 centimeters from the device surface at all times,except for non-repetitivepatterns with transient time intervals in the order of a second. Only in the stated conditions, the device is shownto fully comply with the FCC RF Exposure requirements of KDB 447498.

Attestation Statements

-Superiorcommunications.- FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 3/25/24 U.S.AgentDesignation Superiorcommunications.acknowledgestheirconsentforthefollowingcontactlocatedintheUnitedStates toactastheiragentforserviceofprocessfortheequipmentforwhichauthorizationissought(FCCID:YJW- 06679): NameandcompanyofU.S.agent: REPAmericaLLC PhysicalU.S.addressofagent:BenXU,6510SAcademyBlvd,SteA#523,ColoradoSprings,CO 80906 FRNofU.S.agent: 0034192500 EmailaddressofU.S.agent: [email protected] REPAmericaLLCacknowledgestheirobligationtoacceptserviceofprocessonbehalfofSuperior communications. Superiorcommunications.withtheFRN0019944727acceptsitsobligationtomaintainanagentfor serviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,ortheconclusionofany Commission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheverislater. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature GeorgeChen VPProductDevelopment Superiorcommunications. Signature BenXU Manager REPAmericaLLC 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

External Photos

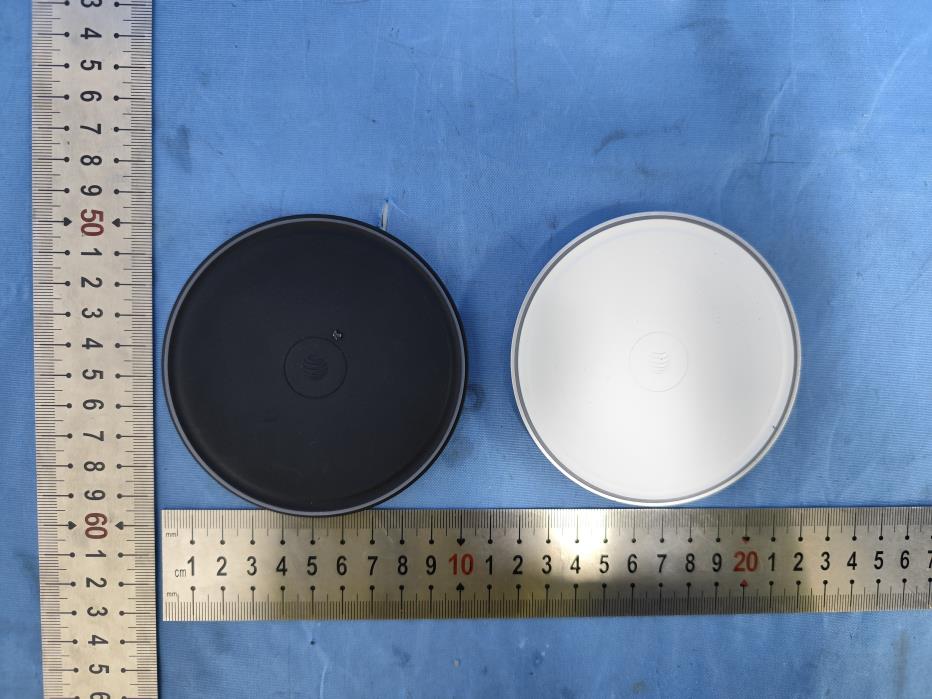

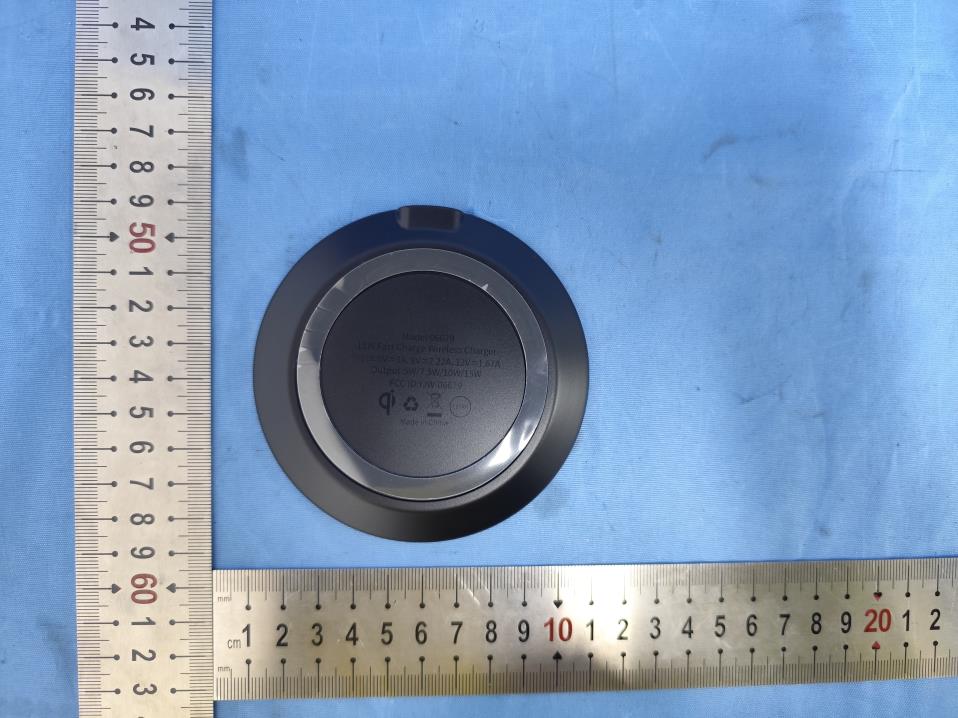

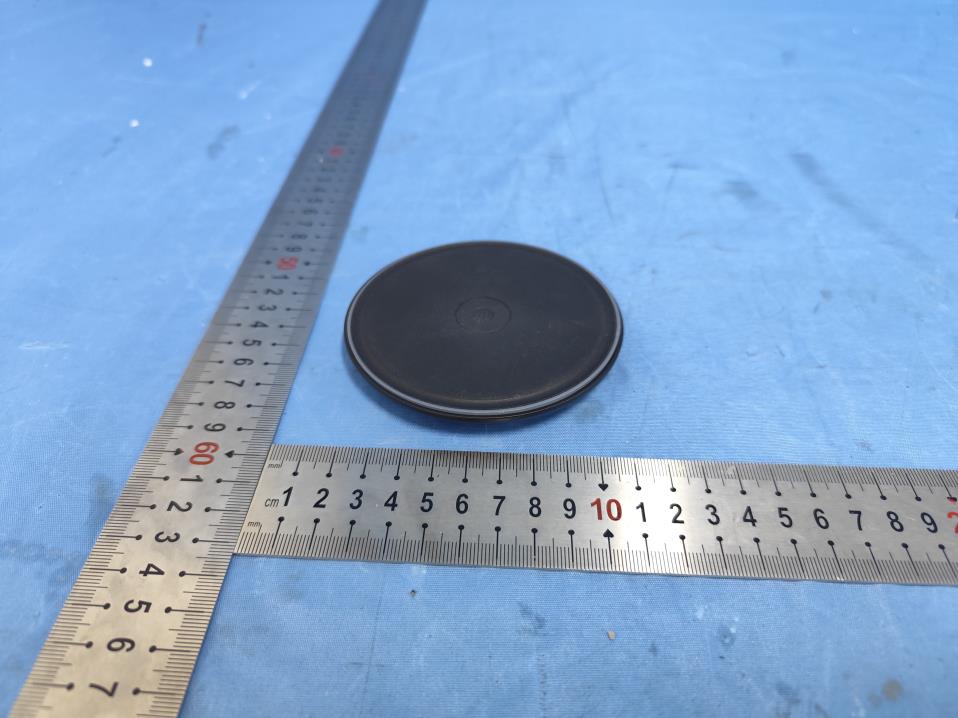

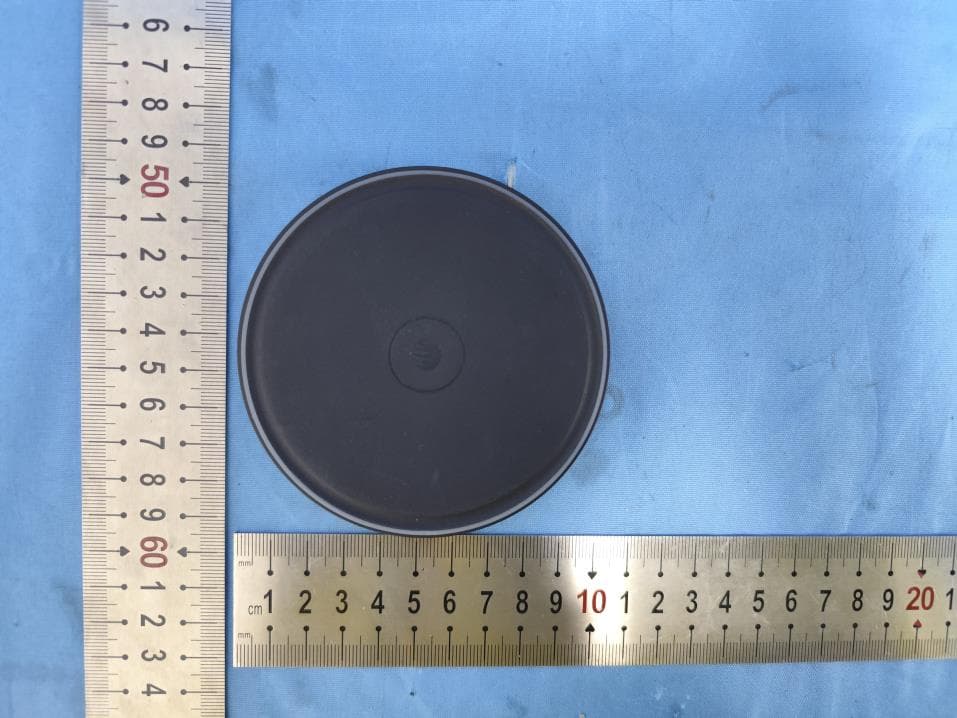

Page 1 of 5 FCC ID: YJW-06679 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 5 FCC ID: YJW-06679 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 5 FCC ID: YJW-06679 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 Page 4 of 5 FCC ID: YJW-06679 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 7 Photo 8 Page 5 of 5 FCC ID: YJW-06679 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 9 ---The End---

ID Label/Location Info

Label Size: 40.6mm * 26.2mm The label is silk-screen on the sample

Internal Photos

Page 1 of 2 FCC ID: YJW-06679 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Page 2 of 2 FCC ID: YJW-06679 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 ------End------ Antenna

RF Exposure Info

Page 1 of 8 Report No.: AITSZ24031904IW1 RF Exposure Evaluation FCC ID: YJW-06679 1 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: KDB 680106 D01 Wireless Power Transfer v04. 2 Requirements According to the item 3 of KDB 680106 D01v04: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Mobile Device and Portable Device Configurations (2) Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz (3) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the top surface. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Page 2 of 8 Report No.: AITSZ24031904IW1 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E,F) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01 Wireless Power Transfer v04. Remark:The EUT’s test position A, B, C, D,E and F is valid for the E and H field measurements. Page 3 of 8 Report No.: AITSZ24031904IW1 5 Equipment Approval Considerations The EUT does comply with KDB 680106 D01 as follow table. Requirements of section 5 of KDB 680106 D01 Yes / No Description Mobile Device and Portable Device Configurations Yes Mobile Device Equipment Authorization Procedures for Devices Operating at Frequencies Below 4 MHz Yes The device operate in the frequency range 113kHz-205kHz RF Exposure compliance may be ensured only for a minimum separation distance that is greater than 20 cm, while use conditions at smaller distances can still be considered unlikely. Yes The EUT H-field strengths at 15 cm surrounding the device and 20 cm above the top surface. Page 4 of 8 Report No.: AITSZ24031904IW1 6 Description of the test mode Equipment under test was operated during the measurement under the following conditions: Test Mode Description Mode 1 AC Adapter + EUT + Wireless charger receiver Record Note: 1. All test modes were pre-tested, but we only recorded the worst case in this report. 7 Peripheral List 8 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Electric and Magnetic Field Analyzer Narda EHP-200A 180ZX10505 21.06.2023 20.06.2024 No. Equipment Manufacturer Model No. Serial No. Power cord signal cable 1 Wireless charger receiver YBZ 15W N/A N/A N/A 2 Adapter HNT HNT-QC530 N/A N/A N/A Page 5 of 8 Report No.: AITSZ24031904IW1 9 Test Result MPE Test distance Battery levels Probe from EUT Side E-field (V/m) H-field (A/m) 20cm < 1% Top 15.44 0.39 15cm < 1% Top 15.46 0.54 15cm < 1% Left 15.56 0.36 15cm < 1% Right 15.67 0.40 15cm < 1% Front 15.47 0.51 15cm < 1% Rear 15.44 0.33 Limit 614 1.63 Margin Limit (%) 2.55% 33.13% MPE Test distance Battery levels Probe from EUT Side E-field (V/m) H-field (A/m) 20cm < 50% Top 14.49 0.24 15cm < 50% Top 13.66 0.09 15cm < 50% Left 14.30 0.16 15cm < 50% Right 13.90 0.29 15cm < 50% Front 14.12 0.17 15cm < 50% Rear 13.82 0.13 Limit 614 1.63 Margin Limit (%) 2.36% 17.79% MPE Test distance Battery levels Probe from EUT Side E-field (V/m) H-field (A/m) 20cm < 99% Top 14.03 0.12 15cm < 99% Top 12.71 0.14 15cm < 99% Left 13.88 0.04 15cm < 99% Right 13.42 0.18 15cm < 99% Front 13.36 0.09 15cm < 99% Rear 13.51 0.18 Limit 614 1.63 Margin Limit (%) 2.29% 11.04% Note: All test modes were pre-tested, but we only recorded the worst case in this report. Page 6 of 8 Report No.: AITSZ24031904IW1 10 Test Setup photo Front Left Page 7 of 8 Report No.: AITSZ24031904IW1 Rear Right Page 8 of 8 Report No.: AITSZ24031904IW1 Top ***End of report***

Test Report

Page 1 of 24 Report No.: AITSZ24031904FW1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. FCC TEST REPORT Client Information: Applicant: Superior Communications . Applicant add.: 5027 Irwindale Ave.Suite Irwindale Ave California United States. Manufacturer: Shenzhen Powerqi Technology Co.,Ltd. Manufacturer add.: Room 201, 302, 401 of A4 Building, Block A, Fangxing Science and Technology Park, No. 13 of Baonan Road, Longgang District, Shenzhen, China Product Information: Product Name: Premium Wireless Charger Black Model No.: 06679 Brand Name: AT&T FCC ID: YJW-06679 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Date of Receipt: Mar. 19, 2024 Date of Test: Mar. 19, 2024 - Mar. 20, 2024 Date of Issue: Mar. 20, 2024 Test Result: Pass This device described above has been tested by Guangdong Asia Hongke Test Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited, this document may be altered or revised by Guangdong Asia Hongke Test Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Sean She Eder Zhan Page 2 of 24 Report No.: AITSZ24031904FW1 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS .................................................................................................................................................... 2 2 TEST SUMMARY ............................................................................................................................................ 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ......................................................................................... 5 2.2 MEASUREMENT UNCERTAINTY ...................................................................................................................... 5 3 TEST FACILITY .............................................................................................................................................. 6 3.1 DEVIATION FROM STANDARD ......................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS ............................................................................................... 6 3.3 TEST LOCATION .......................................................................................................................................... 6 4 GENERAL INFORMATION ............................................................................................................................. 7 4.1 EUT TEST MODE ........................................................................................................................................ 8 4.2 DESCRIPTION OF TEST SETUP ....................................................................................................................... 8 4.3 PERIPHERAL LIST ........................................................................................................................................ 9 4.4 EUT PERIPHERAL LIST ................................................................................................................................ 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ................................................................................................. 10 6 CONDUCTED EMISSION TEST.................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT............................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ....................................................................................... 11 6.3 TEST PROCEDURE ............................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD .................................................................................................... 11 6.5 TEST SETUP .......................................................................................................................................... 12 6.6 EUT OPERATING CONDITIONS ............................................................................................................ 12 6.7 TEST RESULT ........................................................................................................................................... 13 7 RADIATED EMISSION MEASUREMENT ..................................................................................................... 15 7.1 RADIATED EMISSION LIMITS ........................................................................................................................ 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ................................................................................................ 16 7.3 TEST PROCEDURE ..................................................................................................................................... 16 7.4 DEVIATION FROM TEST STANDARD ............................…

Text truncated - open the document above for the full version.

Test Report

Wire rod 0.08*105P silk-covered wire (small wire diameter) Hard magnetic disc 50*1.0H(with U-shaped groove) 3M double-sided tape 48.5* 0.08H (with hand tear) Glue JS-E103 (thickened) white glue Gold finger tape

Test Setup Photos

Page 1 of 2 FCC ID: YJW-06679 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo Radiated Emission Page 2 of 2 FCC ID: YJW-06679 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Conducted Emission ------End------

Contact Information

Applicant

George Chen(VP Product Development)
[email protected]818-636-4985Fax: 626-608-9043

Test Firm

Guangdong Asia Hongke Test Technology LimitedDarren Ding
[email protected]185656258618

Technical Specifications

#Rule PartsFrequency RangePower Output
115C0.113 MHz - 0.205 MHz-
Confidentiality
Long Term
Grant Notes
The FCC certification of this device refers to RF exposure testing performed in typical operating conditions, where a person is no closer than 20 centimeters from the device surface at all times, except for non-repetitive patterns with transient time intervals in the order of a second. Only in the stated conditions, the device is shown to fully comply with the FCC RF Exposure requirements of KDB 447498.
