YJW03612MyTouch Slide Bluetooth charging dock

1 My Touch Slide Bluetooth Swivel Dock User’s Manual 2 About the Bluetooth Swivel Dock This is a Bluetooth swivel dock; its unique swivel allows rotation from portrait and landscape mode for optimized viewing. It has built-in stereo Bluetooth with 3.5mm audio out. It allows keyboard slide open while in the dock it charges and syncs your my touch slide. Overview: 1 Connecting plug 2 3.5mm line-out port 3 Micro-USB power socket 1 3 2 3 How to use: Initial Pairing: • Make sure power is provided to the dock along with 3.5mm audio jack for external output • On the Phone, open the HTC Bluetooth function first and go to searching new device. • After searching, you will find device name “SWIVLDOCK” and select it. • Handset will NOT ask for pairing code • Note: The Bluetooth swivel dock once power on: the unit will auto search the last phone which had paired already for around 10 second. 4 Care and Maintenance Before using the Bluetooth Swivel Dock, please read the following recommendations. xKeep it dry and don’t put it in wet place, in order to avoid affecting the interior circuit of the product. xDon’t put the product under the direct of sunlight or place in hot areas. High temperature will shorten the life of electronic device and distort certain plastic. xDon’t expose it to extreme temperature, which may damage the internal circuit board. xDon’t try to take apart the product; you may damage the product. xDon’t use intensified chemical or detergent to clean the product. xDon’t scrap the surface with sharp items. Technical Parameters: Working Temperature: -10 ~ 45ºC Storage Temperature: -20 ~60ºC Dimensions: 70mm (width) x 98.5mm (depth) x 70mm (height) Weight: 160g Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.

Superior communications 5027 Irwindale Ave., Suite 900 Irwindale, CA 91706 Date : 2010,Jul 28 Federal Communication Commission FCC ID:YJW03612 Product MyTouch Slide Bluetooth charging dock Model 03612/03770 Dear Sir, In singing this document I acknowledge that the Bluetooth module of certified product comply with Bluetooth CORE specifications and hence comply with FCC 15.247 FHSS requirements. Date: 2010,jui,29 By: Harry Mkhitarian Signature Printed Title: VP of Manufacturing & Technology On behalf: Superoir communications Telephone: 818-427-0065

910805 1 Superior communications 5027 Irwindale Ave., Suite 900 Irwindale, CA 91706 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 910805 2 f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Harry Mkhitarian /VP of Manufacturing & Technology Applicant :Superior communications Address:5027 Irwindale Ave., Suite 900 Irwindale, CA 91706

910805 3 Superior communications 5027 Irwindale Ave., Suite 900 Irwindale, CA 91706 Federal Communications Commission FCC ID: YJW03612 Product Name: Product Name: MyTouch Slide Bluetooth charging dock Model Name:03612/03770 Trade Name: Superior Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics and Operation Description. By: By: Harry Mkhitarian Title : VP of Manufacturing & Technology Applicant : Superior communications Address : 5027 Irwindale Ave., Suite 900 Irwindale, CA 91706 Tel : 818-427-0065 Fax: 626-608-9043 Date : Jun-24-2010

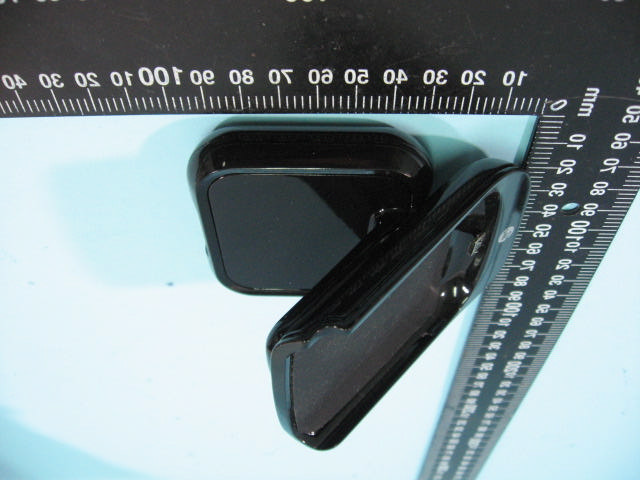

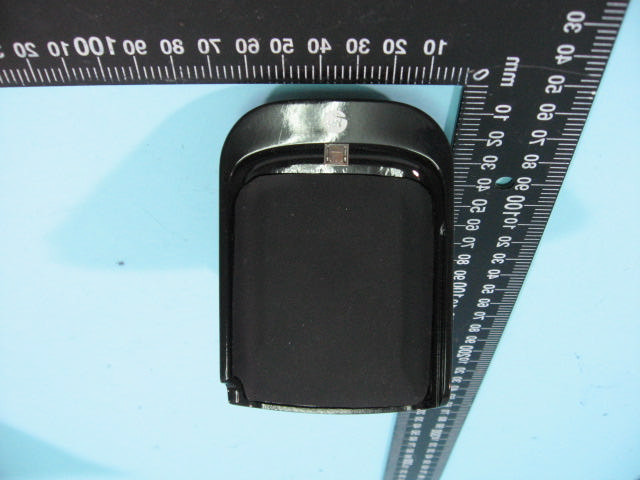

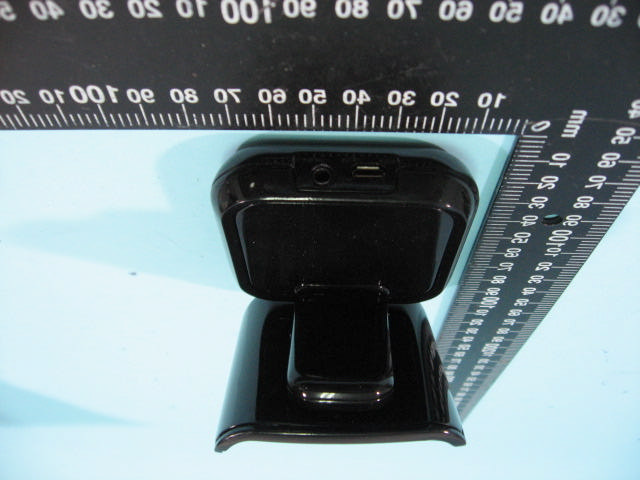

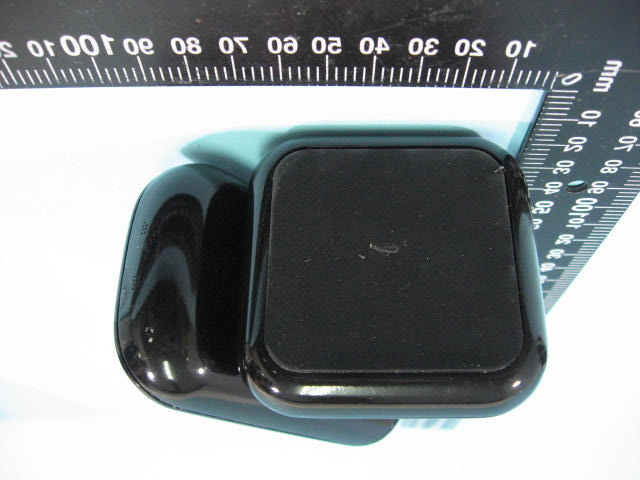

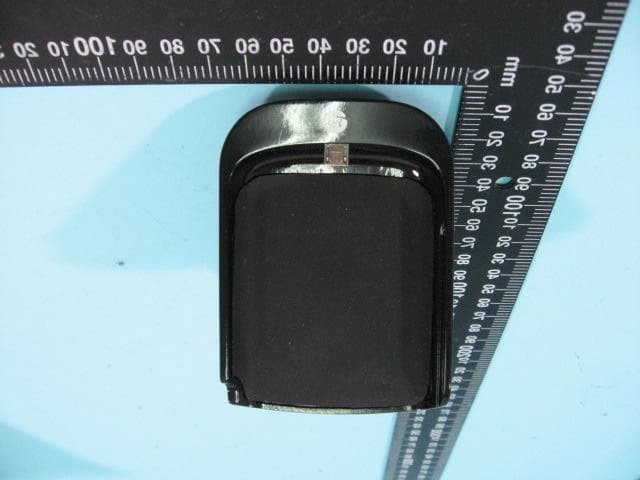

ETC Report No. : 10-06-RBF -122 FCC ID.: YJW03612 Sheet 1 of 5 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Bottom View of EUT ETC Report No. : 10-06-RBF -122 FCC ID.: YJW03612 Sheet 2 of 5 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Front View of EUT ETC Report No. : 10-06-RBF -122 FCC ID.: YJW03612 Sheet 3 of 5 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 5. Side View of EUT 6. Rear View of EUT

文件编号:MT / OD01(2S001) MegaTrend Electronics Co.,LTD 华联电电子（深圳）有限公司 日期：2010年06月1日 MegaTrend MTegarend 版本/状态：A/0 页次：-1/1- All information in thes document is Confidential and is covered by relevant Non-Bisclosure Agreements 这份资料中的全部信息是保密的且遵守相关的保密协议 2S001 BTA-S6A3X产品标签 SIZE: 25 x 10mm 黑色PET，黑底银字 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference,and (2)This device must accept any interference received, including interference that may cause undesired operation. Model: BLUETOOTH ADAPTER FCC ID:YJW03612 14.5mm14.5mm 70mm 70mm This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference,and (2)This device must accept any interference received, including interference that may cause undesired operation. Model: BLUETOOTH ADAPTER ID.:YJM03612

ETC Report No. : 10-06-RBF -122 FCC ID.: YJW03612 Sheet 4 of 5 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT ETC Report No. : 10-06-RBF -122 FCC ID.: YJW03612 Sheet 5 of 5 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 8. Component View of PCB 9. Solder View of PCB

FCC ID: YJW03612 RF Exposure Evaluation of E.U.T. : MyTouch Slide Bluetooth charging dock FCC ID. : YJW03612 MODEL : 03612 for APPLICANT : Superior communications. ADDRESS : 5027 Irwindale Ave., Suite 900 Irwindale, CA 91706 Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 10-06-RBF-122-MPE FCC ID: YJW03612 Product Information: Type of EUT: MyTouch Slide Bluetooth charging dock FCC ID: YJW03612 Manufacturer: Superior communications. Model: 03612 Description: The major chip is BC57E6 of CSR corporation and 8MB flash,16Mhz crystal and filter consist of blutooth module. The bluetooth systme's 2.402 - 2.480Ghz. Maximum conducted output power (measured): -0.35 dBm or 0.923mW The following table lists the provided authorized antennas: Antenna Gain Model Antenna Type (dBi) Numeric N/A Copper trace Antenna 0 1.0 Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC ID: YJW03612 Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 614 1.63 *(100) 6 3-30 ..................... 1842/f 4.89/f *(900/f 2 ) 6 30-300 .................. 61.4 0.163 1.0 6 300-1500 ............... ...................... ...................... f/300 6 1500-100,000 ......... ...................... ...................... 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 614 1.63 *(100) 30 1.34-30 ............... 824/f 2.19/f *(180/f2) 30 30-300 .................. 27.5 0.073 0.2 30 300-1500 ............... ...................... ...................... f/1500 30 1500-100,000 ......... ...................... ...................... 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: YJW03612 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4R 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= PG / 4S) 1/2 For our device P = 0.923mW G = 1.0 R = 20 cm S = (0.923 * 1.0) / (4**20 2 ) = 0.0002 mW/cm 2 < 1.0 mW/cm 2 For complying the FCC limits for general population/uncontrolled exposure, the power density limit is 1.0 mW/cm 2 . The calculation result of the power density at a distance of 20 cm of our device is less than the limit. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : MyTouch Slide Bluetooth charging dock Model : 03612 FCC ID : YJW03612 for APPLICANT : Superior communications. ADDRESS : 5027 Irwindale Ave., Suite 900 Irwindale, CA 91706 Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO.34, LIN 5, DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : 10-06-RBF-122 ETC Report No. : 10-06-RBF-122 FCC ID.: YJW03612 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Superior communications . 5027 Irwindale Ave., Suite 900 Irwindale, CA 91706 Manufacture : Megatrend Electronics CO.,LTD Tong-Fu-Yu Ind., Ku-Keng Community, Guan-Lan Jie-Dao, Bao-An District, Shenzhen 518110, China Description of Device : a) Type of EUT : MyTouch Slide Bluetooth charging dock b) Trade Name : Superior c) Model No. : 03612 d) Serial Model : 03770 e) Power Supply : Power From USB (DC 5V) Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2009) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. ETC Report No. : 10-06-RBF-122 FCC ID.: YJW03612 Rev. No 1.0 Date Test Item Received : Jun. 21, 2010 Date Test Campaign Completed : Jun 03, 2010 Date of Issue : Jul. 19, 2010 Test Engineer : ( Vincent Chang, Engineer ) Check By : ( Charles Wang, Supervisor ) Approve & Authorized : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 10-06-RBF-122 FCC ID.: YJW03612 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION.......................................................................................................1 1.1 Product Description......................................................................................................................1 1.2 Test Methodology........................................................................................................................1 1.3 Test Facility..................................................................................................................................1 2 PROVISIONS APPLICABLE......................................................................................................2 2.1 Definition.....................................................................................................................................2 2.2 Requirement for Compliance.......................................................................................................3 2.3 Restricted Bands of Operation.....................................................................................................5 2.4 Labeling Requirement..................................................................................................................6 2.5 User Information..........................................................................................................................6 3 SYSTEM TEST CONFIGURATION..........................................................................................7 3.1 Justification..................................................................................................................................7 3.2 Devices for Tested System...........................................................................................................7 4 RADIATED EMISSION MEASUREMENT..............................................................................8 4.1 Applicable Standard.....................................................................................................................8 4.2 Measurement Procedure...............................................................................................................8 4.3 Measuring Instrument................................................................................................................10 4.4 Radiated Emission Data.............................................................................................................11 4.5 Field Strength Calculation..........................................................................................................16 4.6 Photos of Radiation Measuring Setup........................................................................................17 5 CONDUCTED EMISSION MEASUREMENT........................................................................19 5.1 Standard Applicable...................................................................................................................19 5.2 Measurement Procedure.............................................................................................................19 5.3 Conducted Emission Data..........................................................................................................20 5.4 Result Data Calculation..............................................................................................................22 5.5 Conducted Measurement Equipment.........................................................................................22 5.6 Photos of Conduction Measuring Setup.....................................................................................23 6 ANTENNA REQUIREMENT....................................................................................................24 6.1 Standard Applicable...................................................................................................................24 6.2 Antenna Construction.................................................................................................................24 7 HOPPING CHANN…

Text truncated - open the document above for the full version.

ETC Report No. : 10-06-RBF-122 FCC ID.: YJW03612 Sheet 17 of 17 Sheets Rev. No 2.1 4.6 Photos of Radiation Measuring Setup ETC Report No. : 10-06-RBF-122 FCC ID.: YJW03612 Sheet 18 of 18 Sheets Rev. No 2.1 ETC Report No. : 10-06-RBF-122 FCC ID.: YJW03612 Sheet 23 of 23 Sheets Rev. No 2.1 5.6 Photos of Conduction Measuring Setup
