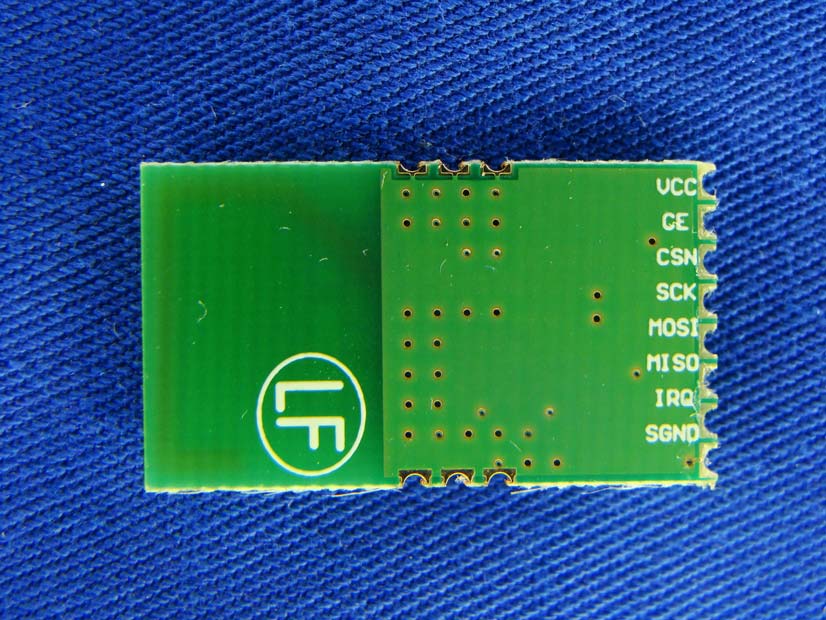

YKH319-NRM0012.4G NRM

Product Specification Key Features •Worldwide 2.4GHz ISM band operation •Up to 2Mbps on air data rate •Ultra low power operation •11.3mA TX at 0dBm output power •12.3mA RX at 2Mbps air data rate •900nA in power down •22μA in standby-I •On chip voltage regulator •1.9 to 3.6V supply range •Enhanced ShockBurst™ •Automatic packet handling •Auto packet transaction handling •6 data pipe MultiCeiver™ 319-NRM001 User's Manual FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Labeling requirements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF exposure warning The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: YKH319-NRM001 " Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user. 1) This device is intended for OEM integrators only. 2) Please see the full Grant of Equipment document for other restrictions Features •Radio X Worldwide 2.4GHz ISM band operation X 126 RF channels X Common RX and TX pins XGFSK modulation X 1 and 2Mbps air data rate X 1MHz non-overlapping channel spacing at 1Mbps X2MHz non-overlapping channel spacing at 2Mbps •Transmitter X Programmable output power: 0, -6, -12 or -18dBm X 11.3mA at 0dBm output power •Receiver X Integrated channel filters X 12.3mA at 2Mbps X -82dBm sensitivity at 2Mbps X-85dBm sensitivity at 1Mbps X Programmable LNA gain •RF Synthesizer XFully integrated synthesizer XNo external loop filer, VCO varactor diode or resonator XAccepts low cost ±60ppm 16MHz crystal •Enhanced ShockBurst™ X 1 to 32 bytes dynamic payload length XAutomatic packet handling XAuto packet transaction handling X6 data pipe MultiCeiver™ for 1:6 star networks •Power Management X Integrated voltage regulator X 1.9 to 3.6V supply range XIdle modes with fast start-up times for advanced power management X22uA Standby-I mode, 900nA power down mode X Max 1.5ms start-up from power down mode X Max 130us start-up from standby-I mode •Host Interface X4-pin hardware SPI XMax 8Mbps X 3 separate 32 bytes TX and RX FIFOs X 5V tolerant inputs •Compact 20-pin 4x4mm QFN package Absolute maximum ratings Table 2. Absolute maximum ratings Operating conditionsMinimumMaximumUnits Supply voltages VDD-0.33.6V VSS0V Input voltage V I -0.35.25V Output voltage V O VSS to VDD VSS to VDD Total Power Dissipation P D (T A =85°C)60mW Temperatures Operating Temperature-40+85°C Storage Temperature-40+125°C Operating conditions Table 3. Operating conditions SymbolParameter (condition)NotesMin.Typ.Max.Units VDDSupply voltage1.93.03.6V VDD Supply voltage if input signals >3.6V 2.73.03.3V TEMPOperating Temperature -40+27+85ºC Electrical specifications Conditions: VDD = +3V, VSS = 0V, T A = - 40ºC to + 85ºC 5.1 Power consumption Table 4.Power consumption SymbolParameter (condition)NotesMin.Typ.Max.Units Idle modes I VDD_PD Supply current in power down900nA I VDD_ST1 Supply current in standby-I mode a a. Current is given for a 12pF crystal. Current when using external clock is dependent on signal swing. 22μA I VDD_ST2 Supply current in standby-II mode320μA I VDD_SU Average current during 1.5ms crystal oscillator startup 285μA Transmit I VDD_TX0 Supply current @ 0dBm output power b b. Antenna load impedance = 15Ω+j88Ω. 11.3mA I VDD_TX6 Supply current @ -6dBm output power b 9.0mA I VDD_TX12 Supply current @ -12dBm output power b 7.5mA I VDD_TX18 Supply current @ -18dBm output power b 7.0mA I VDD_AVG Average Supply current @ -6dBm out- put power, Enhanced ShockBurst™ c c. Antenna load impedance = 15Ω+j88Ω. Average data rate 10kbps and full packets 0.12mA I VDD_TXS Average current during TX settling d d. Average current consumption for TX startup (130μs) and when changing mode from RX to TX (130μs). 8.0mA Receive I VDD_2M Supply current 2Mbps 12.3mA I VDD_LC Supply current 2Mbps LNA low current 11.5mA I VDD_1M Supply current 1Mbps11.8mA I VDD_LC Supply current 1Mbps LNA low current 11.1mA I VDD_RXS Average current during RX settling e e. Average current consumption for RX startup (130μs) and when changing mode from TX to RX (130μs). 8.4mA General…
