Tong Lung Metal Industry Co.,Ltd. No.82, Zhonghua Rd., Minxiong Industrial Park Chiayi County Taiwan 62157 Theory of Operation/Technical Description – FCC ID: YLK-PLD-BT - RF circuit function: The product are based on the ACI810700S-BLE-MD modules The major part of this IC is a Bluetooth LE transceiver. The BLE 500kbps, 2Mbps function of this product will be turned off using software. Will not be used by the final consumer. - Description of all modulation schemes used in the product: Bluetooth BLE Vincent Hsu Title: Q.C. Engineer Signature:

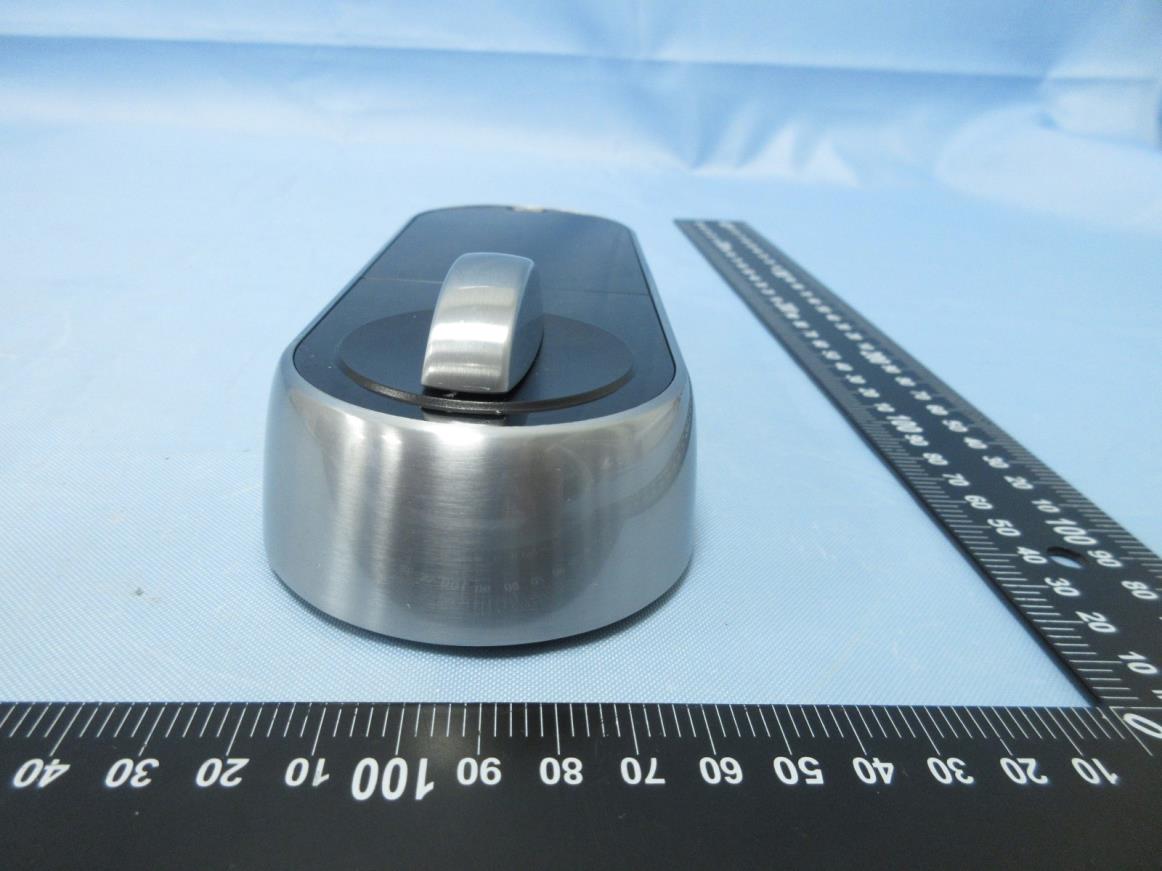

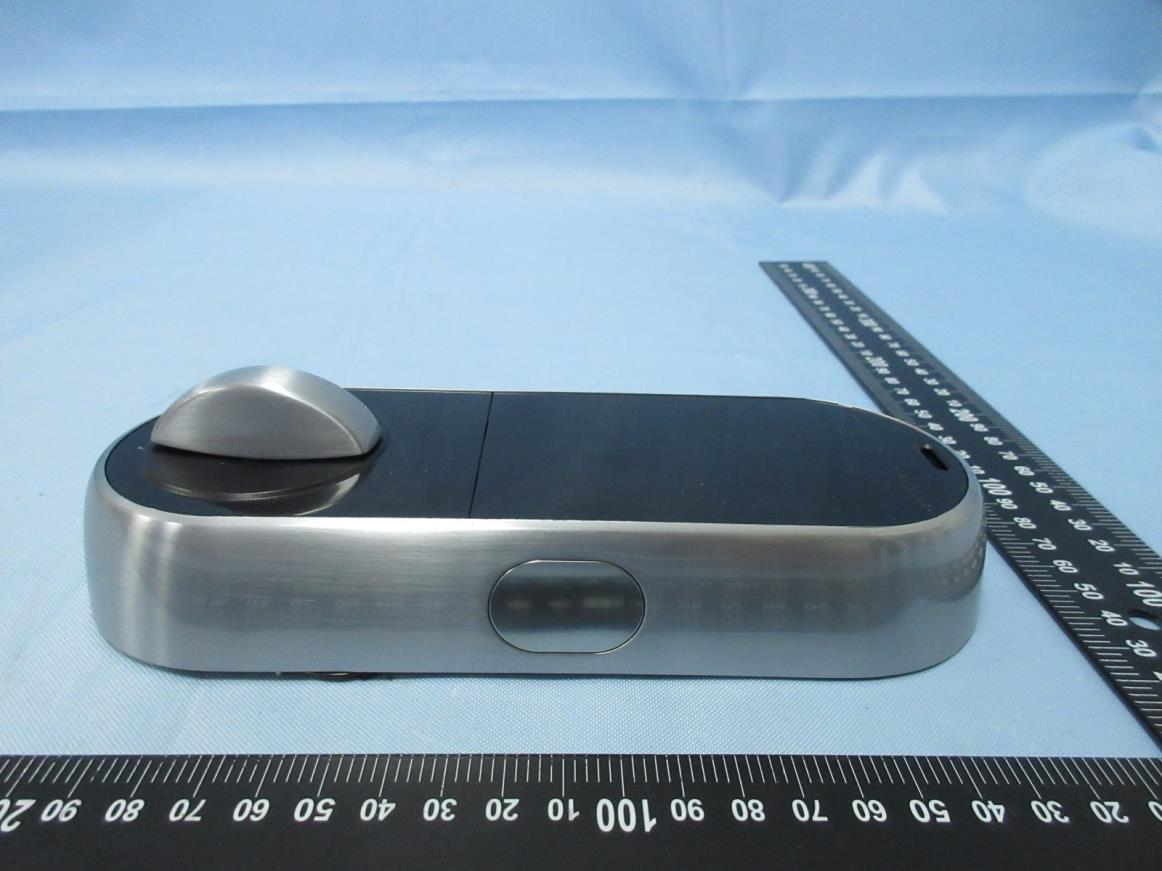

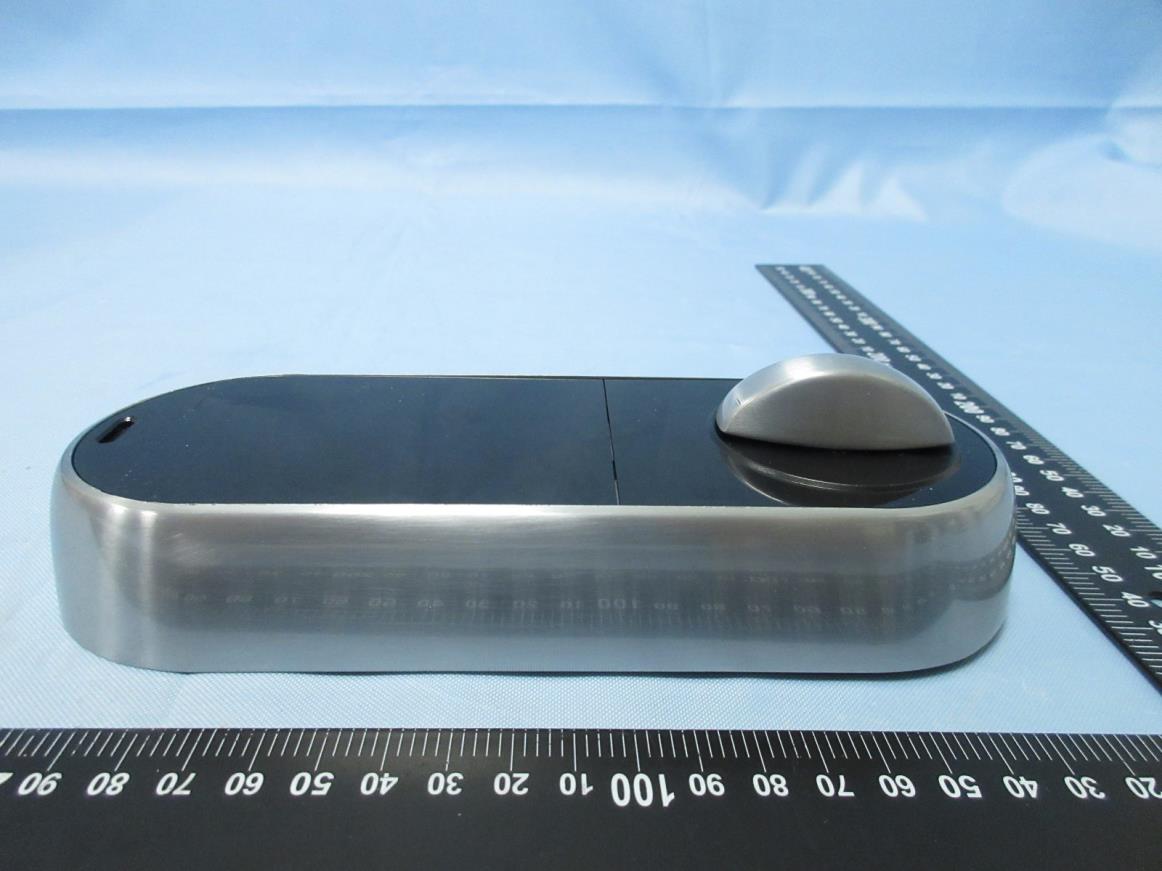

Appendix D Photo Documentation Page 1 of 6 60369889 001 Product: Electronic Touch Screen BLE Deadbolt Type Identification: PLD-BT Appendix D Photo Documentation Page 2 of 6 60369889 001 Product: Electronic Touch Screen BLE Deadbolt Type Identification: PLD-BT Appendix D Photo Documentation Page 3 of 6 60369889 001 Product: Electronic Touch Screen BLE Deadbolt Type Identification: PLD-BT

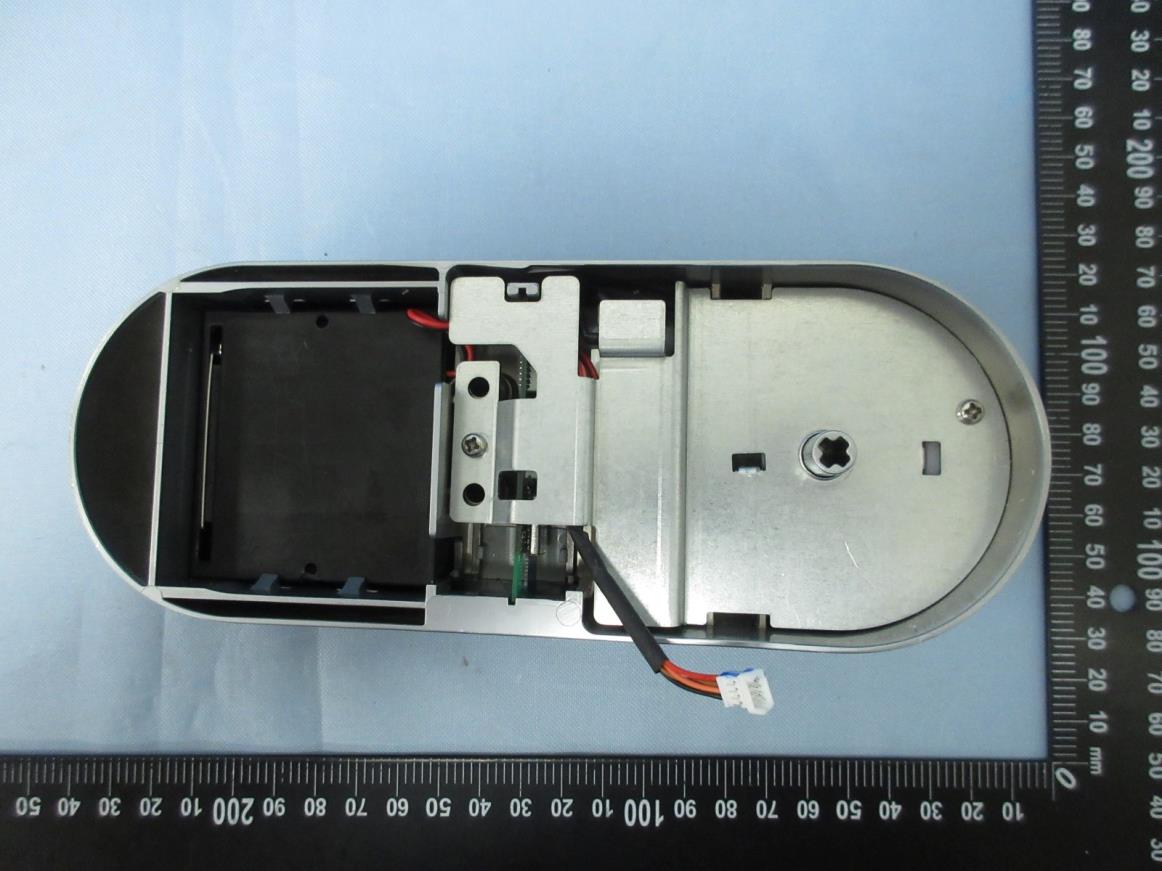

FCC label location_外側 鎖體背面 FCC label

Appendix D Photo Documentation Page 4 of 6 60369889 001 Product: Electronic Touch Screen BLE Deadbolt Type Identification: PLD-BT Appendix D Photo Documentation Page 5 of 6 60369889 001 Product: Electronic Touch Screen BLE Deadbolt Type Identification: PLD-BT Appendix D Photo Documentation Page 6 of 6 60369889 001 Product: Electronic Touch Screen BLE Deadbolt Type Identification: PLD-BT Antenna

Produkte Products Prü fbericht - Nr.: Test Report No. 60369889 001 Seite 28 von 28 Page 28 of 28 6. Safety Human Exposure 6.1 RF Exposure Compliance 6.1.1 SAR Test Exclusion Thresholds Results Since the maximum output power of the transmitter is 0.13 mW < 10 mW (Distance: 5 mm), hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure.

Prü fbericht - Nr.: Test Report No. 60369889 001 Seite A1 von A5 Page A1 of A5 Appendix A: Test Results of Conducted Test Test Result of 6 dB Bandwidth BLE_1M Channel Channel Frequency (MHz) 6 dB Bandwidth (kHz) Limit (kHz) Result Low Channel 2402 683.320 > 500 Pass Middle Channel 2440 692.310 > 500 Pass High Channel 2480 704.300 > 500 Pass Low Channel Middle Channel High Channel Date: 19.JUN.2020 02:31:20Date: 19.JUN.2020 02:33:53 Date: 19.JUN.2020 02:36:32 Prü fbericht - Nr.: Test Report No. 60369889 001 Seite A2 von A5 Page A2 of A5 Test Result of 99% Occupied Bandwidth BLE_1M Channel Channel Frequency (MHz) 99% Bandwidth (MHz) Low Channel 2402 1.08 Middle Channel 2440 1.09 High Channel 2480 1.09 Low Channel Middle Channel High Channel Date: 19.JUN.2020 02:31:42Date: 19.JUN.2020 02:34:15 Date: 19.JUN.2020 02:36:58 Prü fbericht - Nr.: Test Report No. 60369889 001 Seite A3 von A5 Page A3 of A5 Test Result of Power Spectral Density BLE_1M Channel Channel Frequency (MHz) Power Density (dBm/3kHz) Limit (dBm/3kHz) Result Low Channel 2402 -19.82 8 Pass Middle Channel 2440 -20.28 8 Pass High Channel 2480 -20.67 8 Pass Low Channel Middle Channel High Channel Date: 19.JUN.2020 02:32:16Date: 19.JUN.2020 02:34:44 Date: 19.JUN.2020 02:37:42 Prü fbericht - Nr.: Test Report No. 60369889 001 Seite A4 von A5 Page A4 of A5 Test Result of Conducted Spurious Emissions, Tx Mode BLE_1M Low Channel Middle Channel High Channel Date: 19.JUN.2020 02:33:03Date: 19.JUN.2020 02:35:04 Date: 19.JUN.2020 02:38:23 Prü fbericht - Nr.: Test Report No. 60369889 001 Seite A5 von A5 Page A5 of A5 Test Result of Conducted Band Edge, Tx Mode BLE_1M Low Channel High Channel Date: 19.JUN.2020 02:32:37Date: 19.JUN.2020 02:38:04

Prü fbericht - Nr.: Test Report No. 60369889 001 Seite B1 von B9 Page B1 of B9 Appendix B: Test Results of Radiated Spurious Emissions Band Edges, 2.31GHz ~ 2.9GHz BLE_1M Low Channel (Horizontal) Peak Low Channel (Vertical) Peak Prü fbericht - Nr.: Test Report No. 60369889 001 Seite B2 von B9 Page B2 of B9 BLE_1M Low Channel (Horizontal) Average Low Channel (Vertical) Average Prü fbericht - Nr.: Test Report No. 60369889 001 Seite B3 von B9 Page B3 of B9 BLE_1M High Channel (Horizontal) Peak High Channel (Vertical) Peak Prü fbericht - Nr.: Test Report No. 60369889 001 Seite B4 von B9 Page B4 of B9 BLE_1M High Channel (Horizontal) Average High Channel (Vertical) Average Prü fbericht - Nr.: Test Report No. 60369889 001 Seite B5 von B9 Page B5 of B9 Spurious Emissions, Tx Mode, 9kHz ~ 30MHz BLE_1M Low Channel 9kHz~150kHz Low Channel 150kHz~30MHz Prü fbericht - Nr.: Test Report No. 60369889 001 Seite B6 von B9 Page B6 of B9 Spurious Emissions, Tx Mode, 30MHz ~ 1GHz BLE_1M Low Channel (Horizontal) Low Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60369889 001 Seite B7 von B9 Page B7 of B9 Spurious Emissions, Tx Mode, 1GHz ~ 26.5GHz BLE_1M Low Channel (Horizontal) Low Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60369889 001 Seite B8 von B9 Page B8 of B9 BLE_1M Middle Channel (Horizontal) Middle Channel (Vertical) Prü fbericht - Nr.: Test Report No. 60369889 001 Seite B9 von B9 Page B9 of B9 BLE_1M High Channel (Horizontal) High Channel (Vertical)

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: 60369889 001 Auftrags-Nr.: Order no.: 238486936 Seite 1 von 28 Page 1 of 28 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 28-May-2020 Auftraggeber: Client: Tong Lung Metal Industry Co.,Ltd. No. 82, Zhonghua Rd., Minxiong Industrial Park, TW-62157 Chiayi County, Taiwan, R.O.C. Prü fgegenstand: Test item: Electronic Touch Screen BLE Deadbolt Bezeichnung / Typ-Nr.: Identification / Type no.: PLD-BT Auftrags-Inhalt: Order content: FCC Part 15C Test report (BLE) Prü fgrundlage: Test specification: FCC 47CFR Part 15: Subpart C Section 15.247 Wareneingangsdatum: Date of sample receipt: 15-Jun-2020 Prü fmuster-Nr.: Test sample no: A002847805-001 A002847805-002 Prü fzeitraum: Testing period: 16-Jun-2020 – 29-Jun-2020 Ort der Prü fung: Place of testing: EMC/RF Laboratory Taipei Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass ü berprü ft von: reviewed by: Mars Y.J. Lin genehmigt von authorized by: Ryan W.T. Chen Datum: 02-Jul-2020 Date: Datum: 02-Jul-2020 Date: Stellung / Position: Project Engineer Stellung / Position: Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] Web: www.tuv.com Produkte Products Prü fbericht - Nr.: Test Report No. 60369889 001 Seite 2 von 28 Page 2 of 28 TEST SUMMARY Report Section FCC Clause Test Item Result 5.1.1 15.247(b) & 15.203 Antenna Requirement Pass 5.1.2 15.247(b) Peak Output Power Pass 5.1.3 15.247(a)(2) 6 dB Bandwidth Pass 5.1.3 2.1049 99% Occupied Bandwidth Pass 5.1.4 15.247(e) Power Spectral Density Pass 5.1.5 15.247(d) Conducted Spurious Emissions and Band Edges Pass 5.1.6 15.247(d) & 15.205 & 15.209 Radiated Spurious Emissions and Band Edges Pass 5.2.1 15.207 Mains Conducted Emission N/A 6.1 FCC KDB 447498 D01 v06 RF Exposure Compliance Pass Note: Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Produkte Products Prü fbericht - Nr.: Test Report No. 60369889 001 Seite 3 von 28 Page 3 of 28 Contents HISTORY OF THIS TEST REPORT .............................................................................. 5 1. GENERAL REMARKS ............................................................................................. 6 1.1 COMPLEMENTARY MATERIALS ............................................................................... 6 1.2 DECISION RULE OF CONFORMITY ........................................................................... 6 2. TEST SITES .......................................................................................................... 7 2.1 TEST LABORATORY .............................................................................................. 7 2.2 TEST FACILITY ...................................................................................................... 7 2.3 TRACEABILITY ...................................................................................................... 8 2.4 CALIBRATION ....................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ............................................................................... 8 3. GENERAL PRODUCT INFORMATION ......................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................. 9 3.3 NOISE GENERATING AND NOISE SUPPRESSING PARTS .......................................... 10 3.4 SUBMITTED DOCUMENTS ..................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................. 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................... 11 4.2 CARRIER FREQUENCY AND CHANNEL ................................................................... 11 4.3 TEST OPERATION AND TEST SOFTWARE ............................................................... 12 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................. 13 4.5 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ........................................... 14 4.6 TEST SETUP DIAGRAM ........................................................................................ 14 5. TEST RESULTS ................................................................................................... 15 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ....................................................... 15 5.1.1 Antenna Requirement .............................................................................................................15 5.1.2 Peak Output Po…
