YLKPL1KKEYPAD ELECTRONIC DEDBOLT LOCK

http//www.ezset.com.tw 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 KEYPAD ELECTRONIC LOCK REMOTE CONTROL MANUAL Remote is well programmed already. You may use it without programming only if you want to add more remotes or change the setting. Please refer to the following instructions. FEATURES 1. Power & Battery 1-1 Power : a CR2025 lithium button cell battery needed. 1-2 Changing Battery : Please use slotted head screwdriver to separate the plastic cover and change the battery. 1-3 All setting will not be changed or eliminated because of battery replacement. 2. Transmission Distance 30M without obstruction. 3. Lock the lockset Press on remote once → Green light flashes twice with 1 short beep. → The door is locked. Battery 4. Unlock the Lockset Press on remote once. → Green light flashes twice with 1 short beep. → The door is unlocked. PROGRAMMING 1. Add Remotes (under unlock status) (1) Enter Programming Code → Press → Enter  → Press → Press any button on remote → It's usable after 8 seconds (2) 3 short warning sounds when re-add the same remote. The remote is still valid, and won't occupy the number of available remotes. (3) Up to 5 remote controls available. 2. Delete All Remotes (1) Enter Programming Code → Press → Press   → Press (2) It's not available to delete individual or specified remote. When you delete remotes, you delete all of them. REMARK 1. When pressing RESET button, all the remote setting will be eliminated as well. 2. Do not put in the battery backward, it might cause a breakdown of remote. TONG LUNG METAL INDUSTRY CO., LTD. 62, Chung Hsiao 1st Street, Hou-Hu-Li, Chia-Yi 600. Taiwan, R.O.C. TEL : 886-5-2770017 FAX : 886-5-2767392 Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IMPORTANT NOTE : To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user's authority to operate the device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

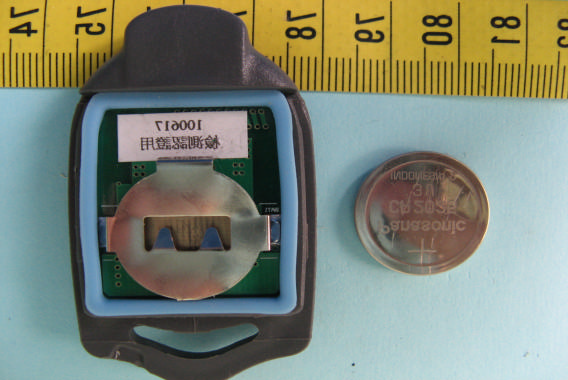

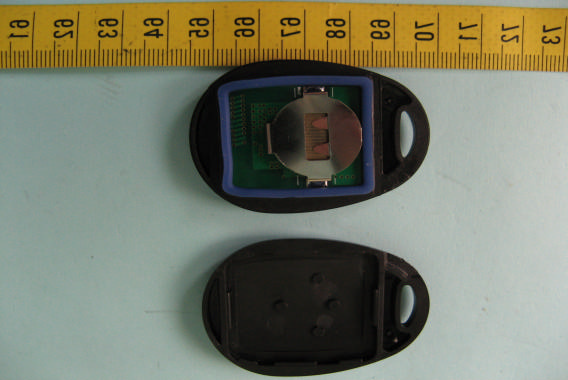

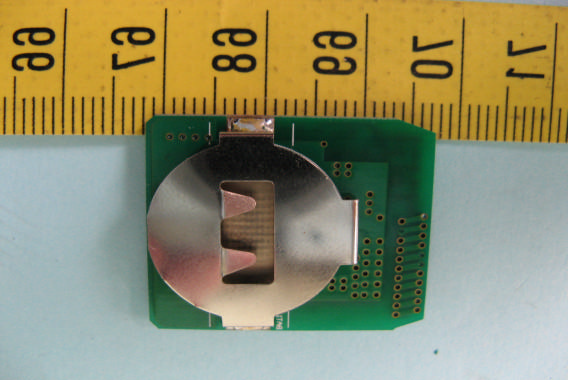

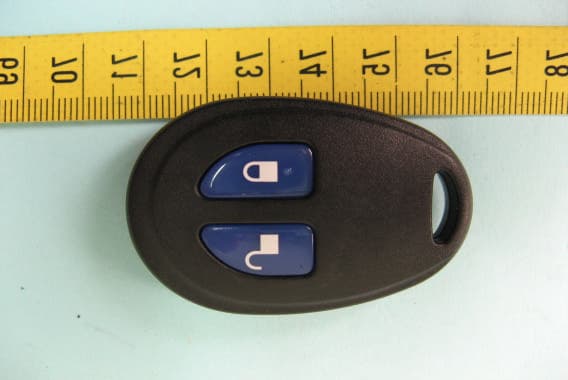

ETC Report No.:10-06-RBF-176-01 Sheet 1 of 5 Sheets FCC ID.: YLKPL1 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Bottom View of EUT ETC Report No.:10-06-RBF-176-01 Sheet 2 of 5 Sheets FCC ID.: YLKPL1 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Side View of EUT ETC Report No.:10-06-RBF-176-01 Sheet 3 of 5 Sheets FCC ID.: YLKPL1 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Side View of EUT 6. Side View of EUT ETC Report No.:10-06-RBF-176-01 Sheet 4 of 5 Sheets FCC ID.: YLKPL1 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT 8. Internal View of EUT ETC Report No.:10-06-RBF-176-01 Sheet 5 of 5 Sheets FCC ID.: YLKPL1 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9. Component View of PCB 10. Solder View of PCB

ETC Report No.:10-06-RBF-176-01 Sheet 4 of 5 Sheets FCC ID.: YLKPL1 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT 8. Internal View of EUT ETC Report No.:10-06-RBF-176-01 Sheet 5 of 5 Sheets FCC ID.: YLKPL1 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9. Component View of PCB 10. Solder View of PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : KEYPAD ELECTRONIC DEADBOLT LOCK FCC ID : YLKPL1 MODEL : PL1 Working Frequency : 433.92 MHz for APPLICANT : Tong Lung Metal Industry Co., Ltd ADDRESS : 62, Chung-Hsiao 1st street, Hou-Hu-Li, Chia-Yi 600, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO.34, LIN 5, DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 10-06-RBF-176-01 ETC Report No.:10-06-RBF-176-01 FCC ID.: YLKPL1 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Tong Lung Metal Industry Co., Ltd 62, Chung-Hsiao 1st street, Hou-Hu-Li, Chia-Yi 600, Taiwan, R.O.C. Manufacturer : Tong Lung Metal Industry Co., Ltd 62, Chung-Hsiao 1st street, Hou-Hu-Li, Chia-Yi 600, Taiwan, R.O.C. Description of EUT : a) Type of EUT : KEYPAD ELECTRONIC DEADBOLT LOCK b) Trade Name : EZSET, EZLOCK c) Model No. : PL1 d) FCC ID : YLKPL1 e) Working Frequency : 433.92MHz f) Power Supply : Tx: DC 3.0 V Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2009) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. ETC Report No.:10-06-RBF-176-01 FCC ID.: YLKPL1 Rev. No 1.0 Issued Date : Sep. 12, 2010 Test Engineer : (Falcon Shi, Engineer ) Check By : ( Charles Wang, Supervisor ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:10-06-RBF-176-01 FCC ID.: YLKPL1 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS.......................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................5 2.5 USER INFORMATION.................................................................................................................................................................5 3 SYSTEM TEST CONFIGURATION.........................................................................................................................................6 3.1 JUSTIFICATION..........................................................................................................................................................................6 3.2 DEVICES FOR TESTED SYSTEM...............................................................................................................................................6 4. RADIATED EMISSION MEASUREMENT.............................................................................................................................7 4.1 APPLICABLE STANDARD.........................................................................................................................................................7 4.2 MEASUREMENT PROCEDURE..................................................................................................................................................7 4.3 TEST DATA...............................................................................................................................................................................10 4.4 FIELD STRENGTH CALCULATION........................................................................................................................................12 4.5 ACTIVATE TIME......................................................................................................................................................................12 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................................12 4.7 RADIATED TEST EQUIPMENT...............................................................................................................................................17 4.8 MEASURING INSTRUMENT SETUP.......................................................................................................................................18 4…
