YMSK5E3U8R7I4G410Coffee Brewer

1 USING YOUR B80V BREWER Owner’s Manual: Getting the most from your new B80V Keurig Brewer 2 IMPORTANT SAFEGUARDS Safe Operation & Use W hen using electrical appliances, basic safety precautions should be followed, including the following: 1. Read all instructions before using. 2. Do not touch hot surfaces. Use handles and knobs when available. 3. This appliance must be properly installed and located in accordance with these instructions before it is used. 4. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electrical shock or injury to persons. 5. Do not place on or near a hot gas or electric burner, or in a heated oven. 6. Do not use outdoors. 7. To protect against fire, electric shock and injury do not immerse cords, plugs, or the appliance in water or any other liquid. 8. Do not overfill the Water Reservoir with water. 9. Use only water in this appliance! Do not put any other liquids or foods in the Water Reservoir except as instructed in the Cleaning Instructions in this guide. 10. Turn off and unplug the Brewer before cleaning or maintenance. Allow to cool before putting on or taking off parts and before cleaning the appliance. 11. For best operation, plug the appliance into its own electrical outlet on a dedicated circuit to prevent flickering of lights, blowing of fuses or tripping a circuit breaker. 12. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is damaged in any manner. Contact Keurig® Customer Service to report any malfunction of or damage to the Brewer. 13. Do not let the cord hang over the edge of the table or counter, or touch hot surfaces. 14. To disconnect, press the Power Button on the Brewer to ‘OFF’ status and then remove the plug from the wall outlet. 15. Close supervision is necessary when any appliance is used by or near children. 16. Do not lift the Handle to open the Lid of the Brewer while brewing is in progress. 17. Always keep the Water Reservoir Lid on the Water Reservoir unless you are refilling it. 18. This appliance is equipped with a power cord having a grounding wire with a grounding plug. The appliance must be grounded using a 3-hole properly grounded outlet. In the event of an electrical short circuit, grounding reduces the risk of electrical shock. 19. If the outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. 20. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord or use an adapter. 21. Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. 22. Do not use the appliance for other than its intended use. 3 CAUTION: There are two sharp needles that puncture the V-Cup® portion pack. To avoid risk of injury, do not put your fingers in the V-Cup Assembly Housing. CAUTION: There is extremely hot water in the V-Cup Holder during the brew process. To avoid risk of injury, do not lift the Handle or open the V-Cup Assembly Housing during the brewing process. SHORT CORD INSTRUCTIONS: A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. If an extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance; (2) the cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally; and (3) the extension cord must include a 3-prong grounding plug. THIS PRODUCT IS FOR HOUSEHOLD USE ONLY. TABLE OF CONTENTS KEURIG® GOURMET SINGLE CUP HOME BREWING SYSTEM B80V — Using Your Brewer S ET-UP Helpful Hints.......................................................................................... 4 Unpacking............................................................................................. 4 SECTION 1 — SET-UP & FIRST BREW Set-Up & First Brew.............................................................................. 5 SECTION 2 — CONTROLS & INDICATORS Setting the Clock................................................................................... 8 Programming On/Off Features.............................................................. 8 Programming Brew Temperature......................................................... 10 SECTION 3 — CLEANING & MAINTENANCE Cleaning............................................................................................... 10 De-Scaling........................................................................................... 10 Storage................................................................................................ 11 Record your Brewer Serial Number here. 4 Set-up Helpful Hints 1. Keep your Brewer turned “ON” at all times. To brew a fresh cup of coffee, tea or hot cocoa anytime you want, we suggest you keep your Brewer turned “ON” all the time. However, the Brewer is fully programmable so you can set it to turn on and off automatically to match your schedule. Or, if you prefer, set the Brewer to automatically turn off after a period of time. Follow the simple instructions on pages 9–10 to make using the Brewer convenient for you. 2. For the best tasting gourmet coffee, tea or hot cocoa, Keurig recommends using bottled water or the Keurig® Water Filter Starter Kit (available at www.keurig.com). Water quality varies from place to place. If you notice an undesirable taste in your cup of coffee, such as chlorine or other mineral tastes, we recommend you consider using bottled water or water from a filtration system. 3. Plug Brewer into its own grounded outlet. If the electric circuit is overloaded with other appliances, your Brewer may not function properly. The Brewer should be operated on its own circuit, separate from o…

Text truncated - open the document above for the full version.

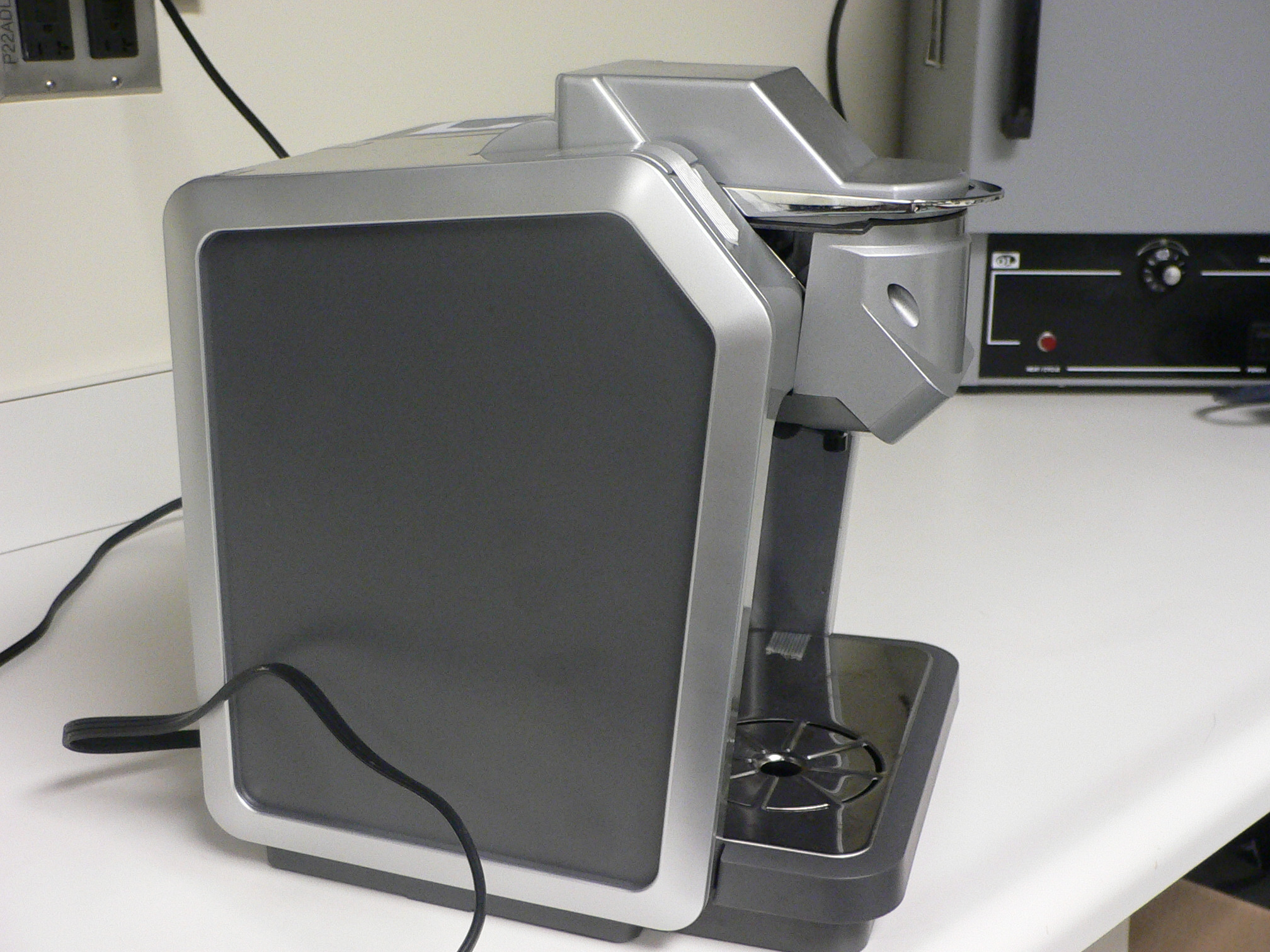

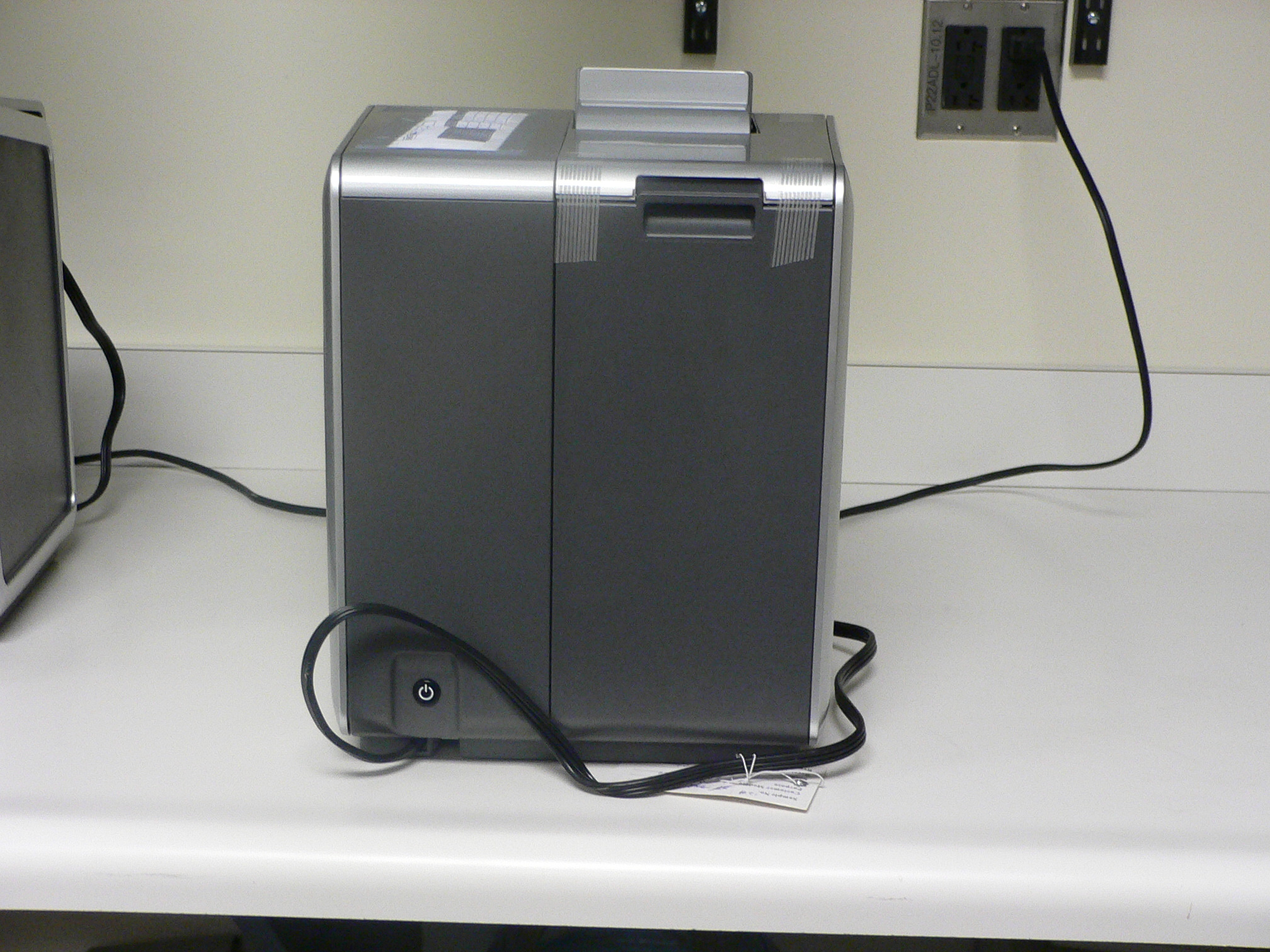

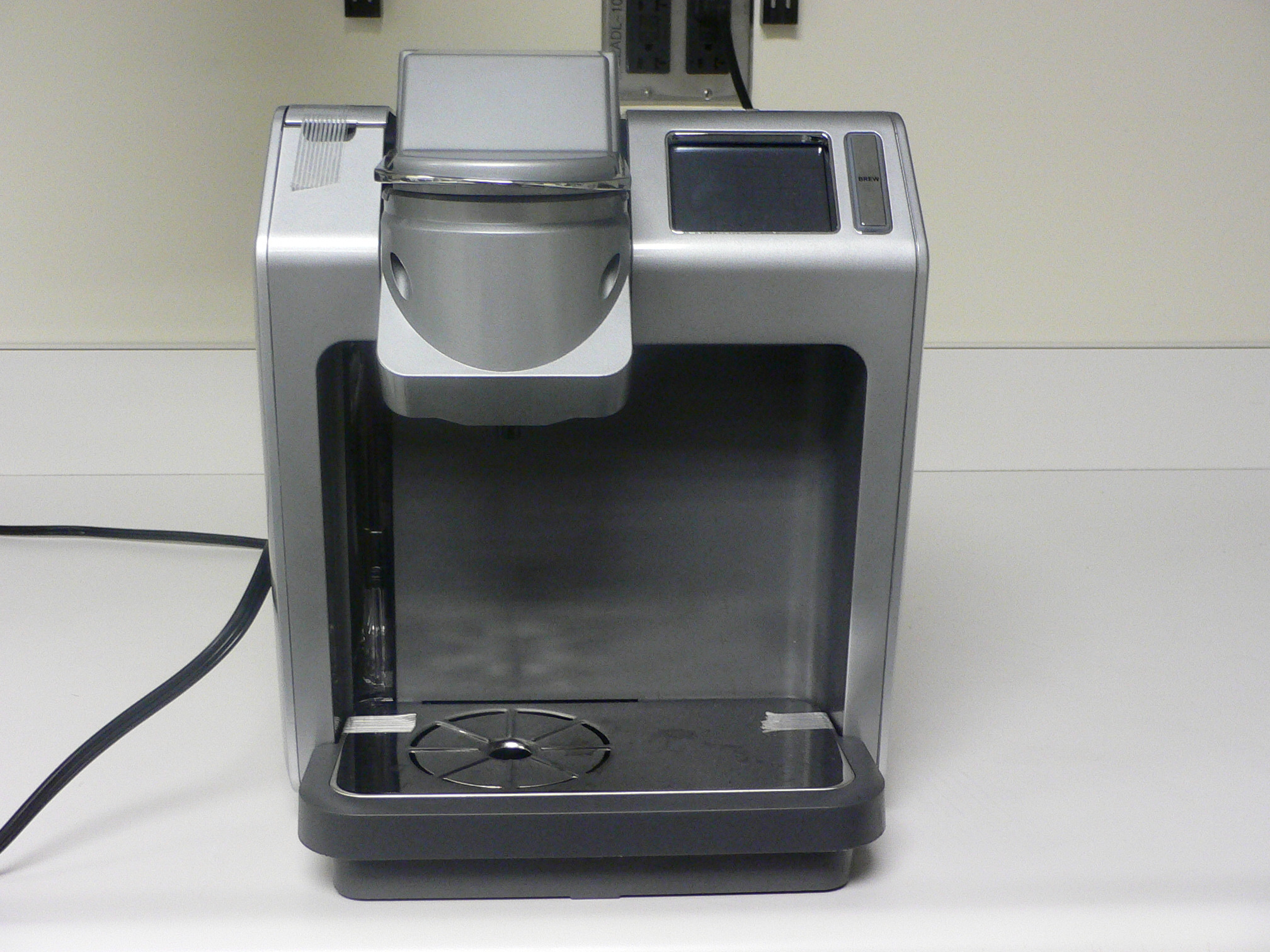

EK0676-1 Keurig Inc. External Photographs EK0676-1 Keurig Inc. External Photographs EK0676-1 Keurig Inc. External Photographs EK0676-1 Keurig Inc. External Photographs

EK0676-1 Keurig Inc. External Photographs EK0676-1 Keurig Inc. External Photographs EK0676-1 Keurig Inc. External Photographs EK0676-1 Keurig Inc. External Photographs EK0676-1 Keurig Inc. External Photographs EK0676-1 Keurig Inc. External Photographs EK0676-1 Keurig Inc. External Photographs EK0676-1 Keurig Inc. External Photographs EK0676-1 Keurig Inc. External Photographs EK0676-1 Keurig Inc. External Photographs EK0676-1 Keurig Inc. External Photographs

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal: 28.20(dBm) Maximum peak output power at the antenna terminal:660.693448(mW) Antenna gain(typical):-6(dBi) Maximum antenna gain:0.251188643(numeric) Prediction distance:20(cm) Prediction frequency: 915(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.6(mW/cm^2) Power density at prediction frequency:0.033016(mW/cm^2) Therefore device complies with FCC and Industry Canada RF radiation exposure limits for gereral population as a mobile device (distance > 20cm) 2 4R PG S π =

CurtisStraus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 162701. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 1 of 30 Test Report CurtisStraus LLC, a wholly owned subsidiary of BV CPS Report No EK06761 Client Keurig Inc. Address 55 Walkers Brook Drive Reading, MA 01867 Phone 7812057221 Items tested RFID Coffee Brewer FCC ID YMSK5E3U8R7I4G410 FRN 0019667195 Equipment Type Part 15.247 Digital Transmission Systems Equipment Code DTS FCC/IC Rule Parts 47 CFR 15.247 Test Dates May 17, 2010 & June 15, 2010 Results As detailed within this report Prepared by Matthew Burman – Test Engineer Authorized by Mairaj Hussain – EMC Supervisor Issue Date June 29, 2010 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 29 of this report. Test Report for Keurig Inc. • •• • Report No. EK0676-1 July 21, 2010 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 4868880 • FAX (978) 4868828 page 2 of 30 Contents Contents..................................................................................................................................2 Summary.................................................................................................................................3 Test Methodology....................................................................................................................3 Product Tested  Configuration Documentation.......................................................................4 Statement of Conformity......................................................................................................5 Modifications Required for Compliance ...................................................................................6 Test Results ............................................................................................................................8 Bandwidth............................................................................................................................8 Peak Power.......................................................................................................................11 Band Edge Measurements.................................................................................................13 Duty Cycle Correction Calculation......................................................................................15 Radiated Spurious Emissions............................................................................................17 Conducted Spurious Emissions.........................................................................................19 Power Spectral Density......................................................................................................21 AC Line Conducted Emissions...........................................................................................24 Occupied Bandwidth..........................................................................................................25 Measurement Uncertainty......................................................................................................27 Product Documentation.........................................................................................................28 Conditions Of Testing............................................................................................................29 Form Final Report REV 72007 (DW) Test Report for Keurig Inc. • •• • Report No. EK0676-1 July 21, 2010 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release July 21, 2010 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 3 of 30 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.247. The product is the Coffee Brewer equipped with RFID radio. It is a transmitter that operates in the range 902928MHz. We found that the product met the above requirements with modification (see Modifications Required for Compliance section on page 6). Ranganarayan Narasimhan from Keurig Inc. was present during the testing. The test sample was received in good condition. Test Methodology Radiated emission and AC Line conducted testing was performed according to the procedures specified in ANSI C63.10 (2009) and C63.4 (2009). Radiated Emissions were maximized by rotating the device around its axes as well as varying the test antenna’s height and polarity. The device antenna cannot be maximized separately. Radiated emissions about the digital circuitry within the coffee brewer were not tested due to exemption. Section 15.103(d), a digital device utilized exclusively as an appliance. Conducted emission at the antenna port was performed, as required by rule section. The EUT receives backscattered RFID information at the same time that it transmits the data, it does not contain a dedicated receive mode. The EUT operating voltage is 120Vac 60Hz. Low operating channel frequency = 910MHz Mid operating channel frequency = 915MHz High operating channel frequency = 922MHz The following bandwidths were used during radiated spurious and line conducted emissions. Frequency RBW V…

Text truncated - open the document above for the full version.

EK0676-1 Keurig Inc. Test Setup Photographs Radiated Spurious Emissions above 1GHz in OATS EK0676-1 Keurig Inc. Test Setup Photographs Radiated Spurious Emission s below 1GHz Radiated Spurious Emissions Above 1GHz in Anechoic Chamber EK0676-1 Keurig Inc. Test Setup Photographs AC Line Conducted Emissions - Rear EK0676-1 Keurig Inc. Test Setup Photographs AC Line Conducted Emissions - Front EK0676-1 Keurig Inc. Test Setup Photographs Antenna Port Conductive Measurements
