YMU-6XTRemote Control Transmitter TCF200-6XT

Manual of TCF200-6XT Model No.: TCF200-6XT FCC ID:YMU-6XT Brand： ：： ： Modulation Mode: FSK Frequency: 433.92MHz Operating Voltage: 12V Alkaline Battery Range: 200m TCF200-6XT is a special transmitter with 6 buttons-Start, Stepper, Pause, continue, Stop & Lock/Unlock for working with RFRemotech receivers. Turn on the switch, Indicating LED is on in Red brightly and transmitter enters into Standby & Unlock Status. Transmitter will enter Lock Status automatically after 30 seconds. Under Unlock Status, press Start button to send Start Command, Indicating LED is on in Green; press Stepper button to send Stepper Command, Indicating LED is blinking in Green; press Pause button to send Pause Command, Indicating LED is on in Yellow; press Stop button to send Stop Command to the receiver, Indicating LED is on in Red brightly; press Lock/Unlock Button to Lock the transmitter and Indicating LED is on in dim Red. Under Lock Status, Stepper, Pause, continue, Stop buttons are not available until Lock/Unlock Button is pressed for unlock the transmitter. IMPORTANT REGULATORY INFORMATION This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Dec.19, 2012 Federal Communication Commission Authorization and Evaluation Division FCC ID: YMU-6XT Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

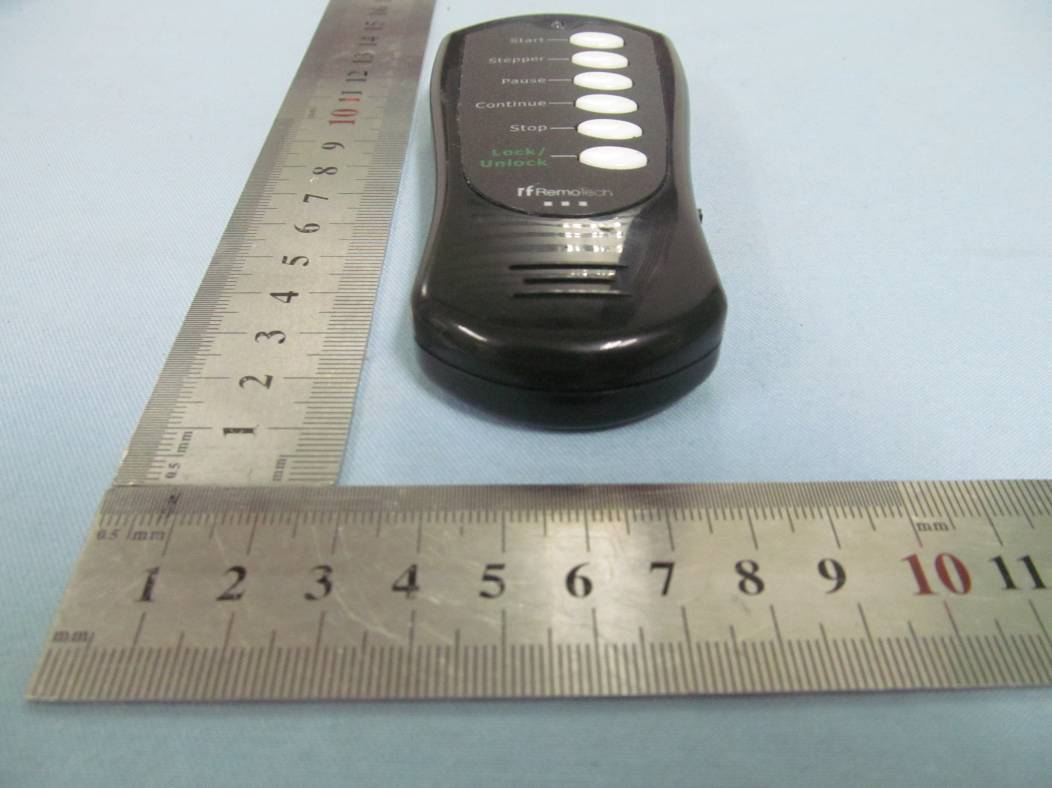

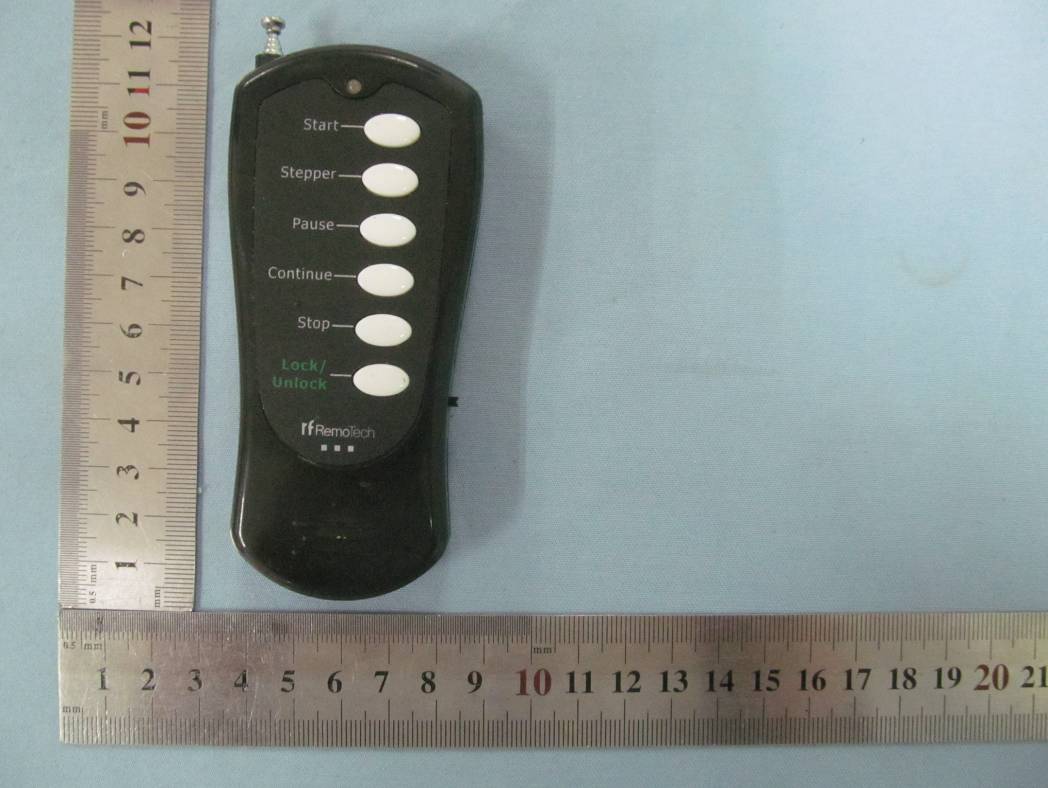

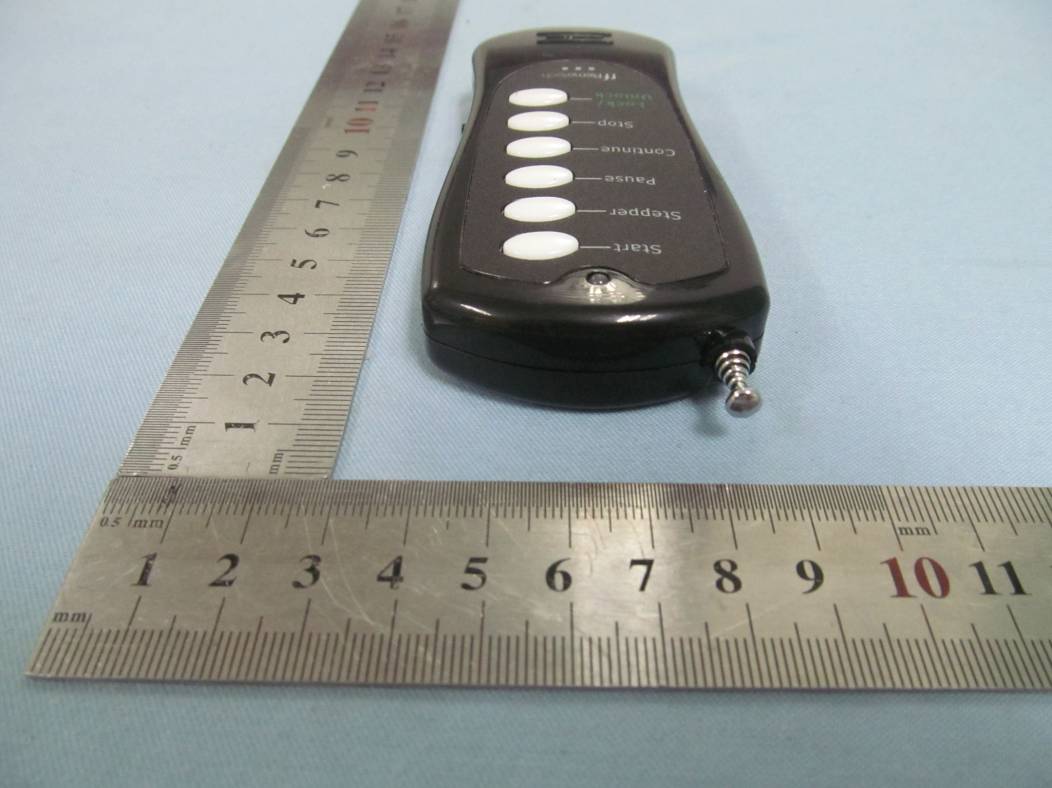

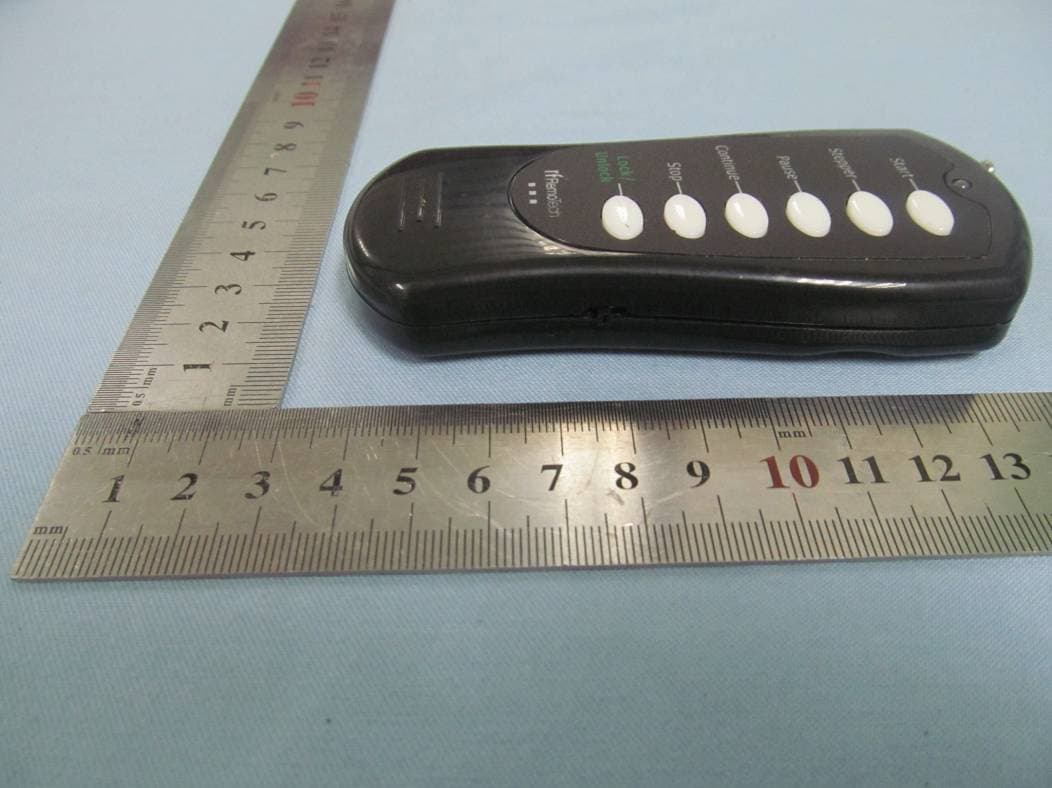

TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW EUT

FCC Label & Label Location Model: TCF200-6XT Brand: RFRemotech FCC ID:YMU-6XT

OPEN VIEW OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT

Report No.: AGC02A121101-2F2 Page 1 of 27 FCC PART 15 Test Report Report No.: AGC02A121101‐2F2 FCC ID : YMU‐6XT PRODUCT DESIGNATION : TCF200‐6XT BRAND NAME : RFRemotech TEST MODEL : TCF200‐6XT CLIENT : RFRemotech Company DATE OF ISSUE : Dec.27, 2012 STANDARD(S) : FCC PART 15 RULES Attestation of Global Compliance (Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC02A121101-2F2 Page 2 of 27 VERIFICATION OF COMPLIANCE Applicant RFRemotech Company 18E, No.445, Tianhe Bei Rd., Guangzhou, China Manufacturer RFRemotech Company 18E, No.445, Tianhe Bei Rd., Guangzhou, China Product Designation TCF200-6XT Brand Name RFRemotech Model Name TCF200-6XT FCC ID YMU-6XT Report Number AGC02A121101-2F2 Date of Test Dec.11~Dec.15, 2012 WE HEREBY CERTIFY THAT: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) .The sample tested as described in this report is in compliance with the FCC Rules Part 15 requirements The test results of this report relate only to the tested sample identified in this report. Tested By Huang Wall Dec.27, 2012 Reviewed By Forrest Lei Dec.27, 2012 Approved By Solger Zhang Dec.27, 2012 Report No.: AGC02A121101-2F2 Page 3 of 27 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION .............................................................................................................................................. 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................................................... 4 1.3 TEST METHODOLOGY ................................................................................................................................................... 4 1.4 TEST FACILITY ................................................................................................................................................................. 5 1.5 SPECIAL ACCESSORIES ............................................................................................................................................... 5 1.6 EQUIPMENT MODIFICATIONS ...................................................................................................................................... 5 2. SYSTEM TEST CONFIGURATION ...................................................................................................................................... 6 2.1 CONFIGURATION OF TESTED SYSTEM .................................................................................................................... 6 2.2 EQUIPMENT USED IN EUT SYSTEM ........................................................................................................................... 6 3. SUMMARY OF TEST RESULTS ........................................................................................................................................... 7 4. DESCRIPTION OF TEST MODES ....................................................................................................................................... 8 5 DUTY CYCLE ............................................................................................................................................................................ 9 5.1 LIMIT ...................................................................................................................................................................................... 9 5.2 TEST PROCEDURE ............................................................................................................................................................ 9 5.3 TEST RESULT ...................................................................................................................................................................... 9 6. RADIATED EMISSION ......................................................................................................................................................... 11 6.1 LIMITS ............................................................................................................................................................................... 11 6.2 MEASUREMENT PROCEDURE .................................................................................................................................. 11 6.3 TEST SETUP ................................................................................................................................................................... 11 6.4 TEST EQUIMENT LIST .................................................................................................................................................. 12 6.5 TEST RESULT ................................................................................................................................................................. 13 7. 20DB BANDWIDTH .............................................................................................................................................................. 17 7.1 LIMITS ................................................................................................................................................................................. 17 7.2 MEASUREMENT PROCEDURE .................................................................................................................................. 17 7.3TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................................... 17 7…

Text truncated - open the document above for the full version.

RADIATED EMISSION TEST SETUP
